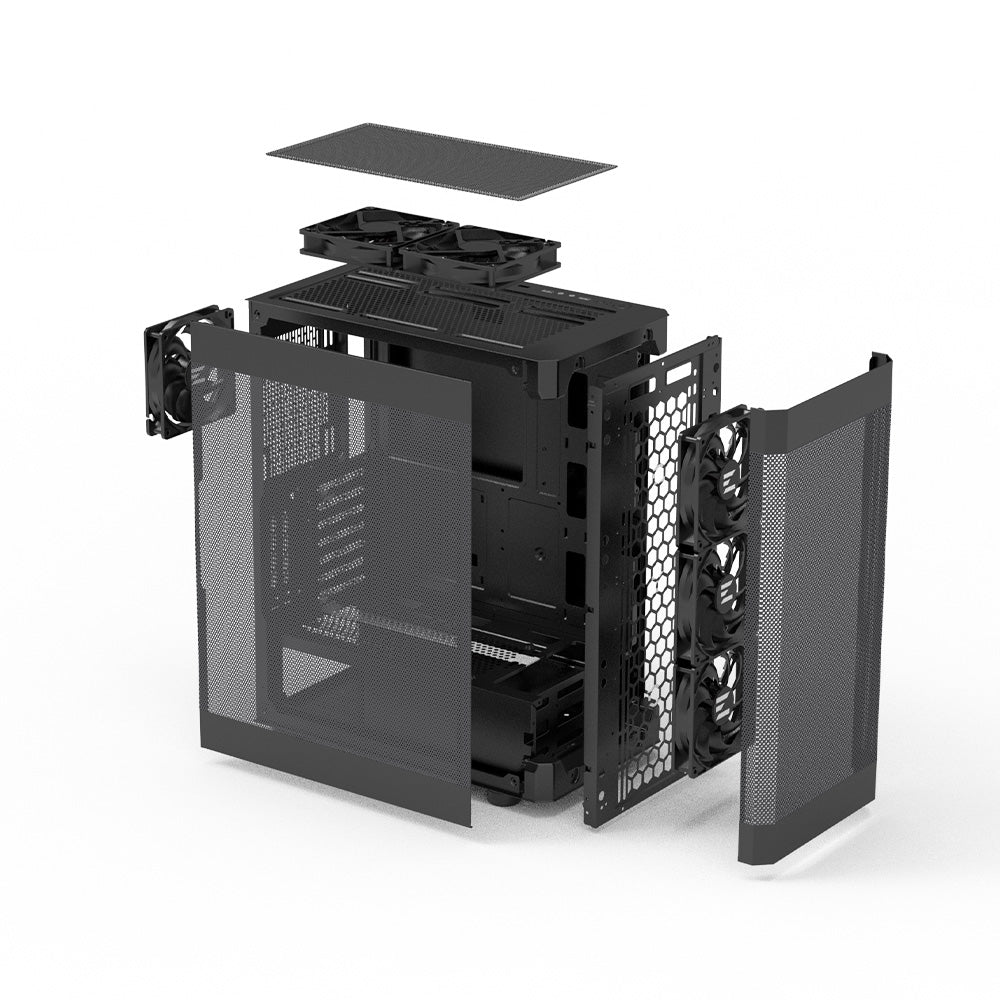

Features

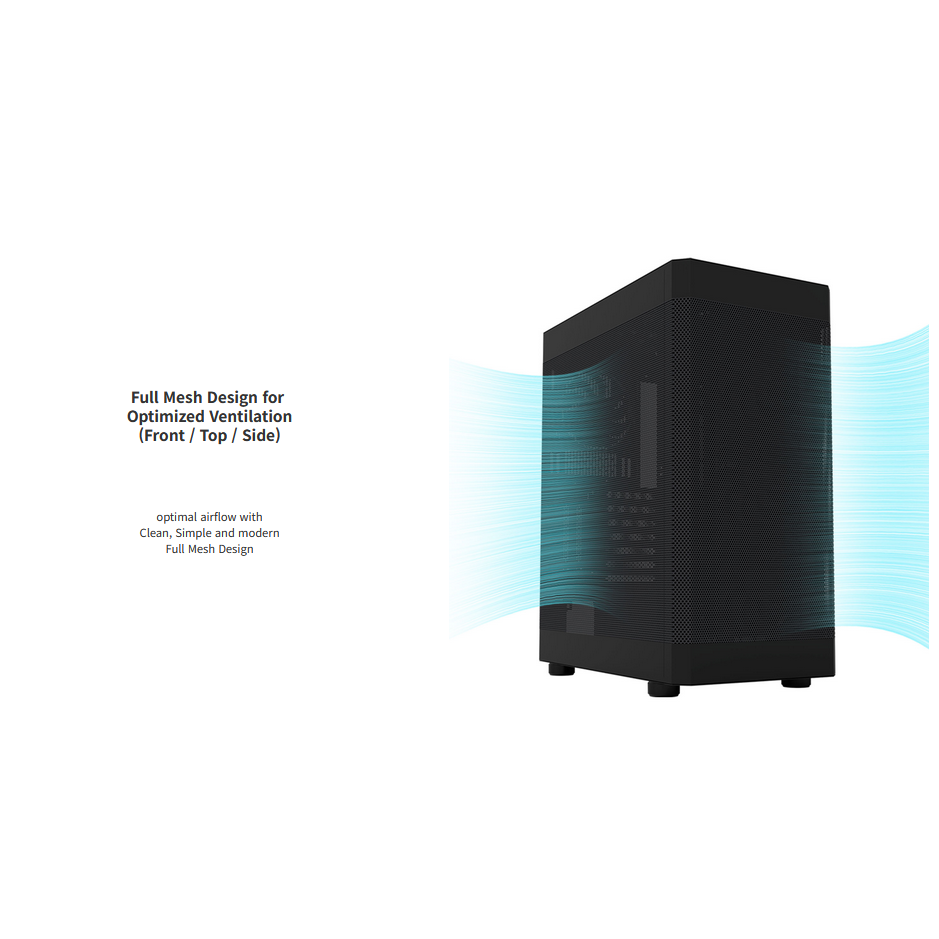

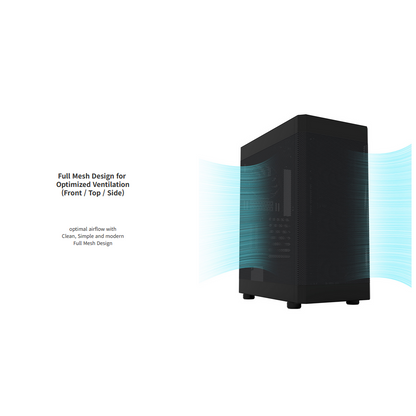

Full Mesh Design for Optimised Ventilation (Front / Top / Side)
Optimal Airflow with Clean, Simple and modern Full Mesh Design

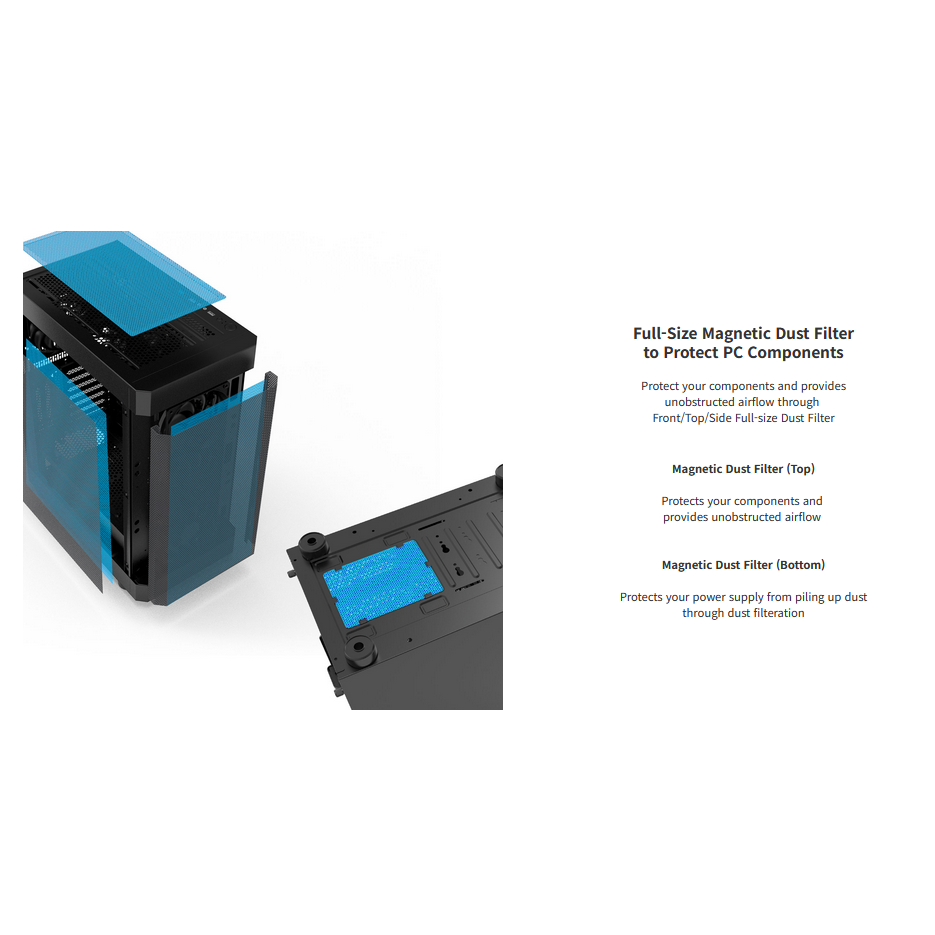

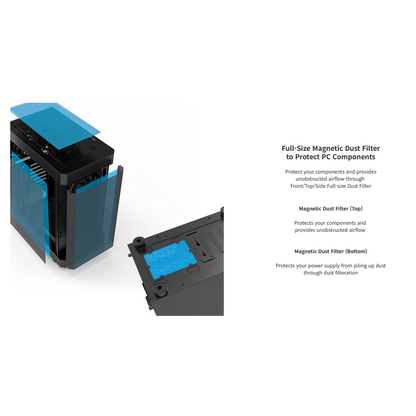

Full-Size Magnetic Dust Filter to Protect PC Components
Protect your components and provides unobstructed airflow through Front/Top/Side Full-size Dust Filter
Magnetic Dust Filter (Top)
Protects your components and provides unobstructed airflow
Magnetic Dust Filter (Bottom)
Protects your power supply from piling up dust through dust filtration

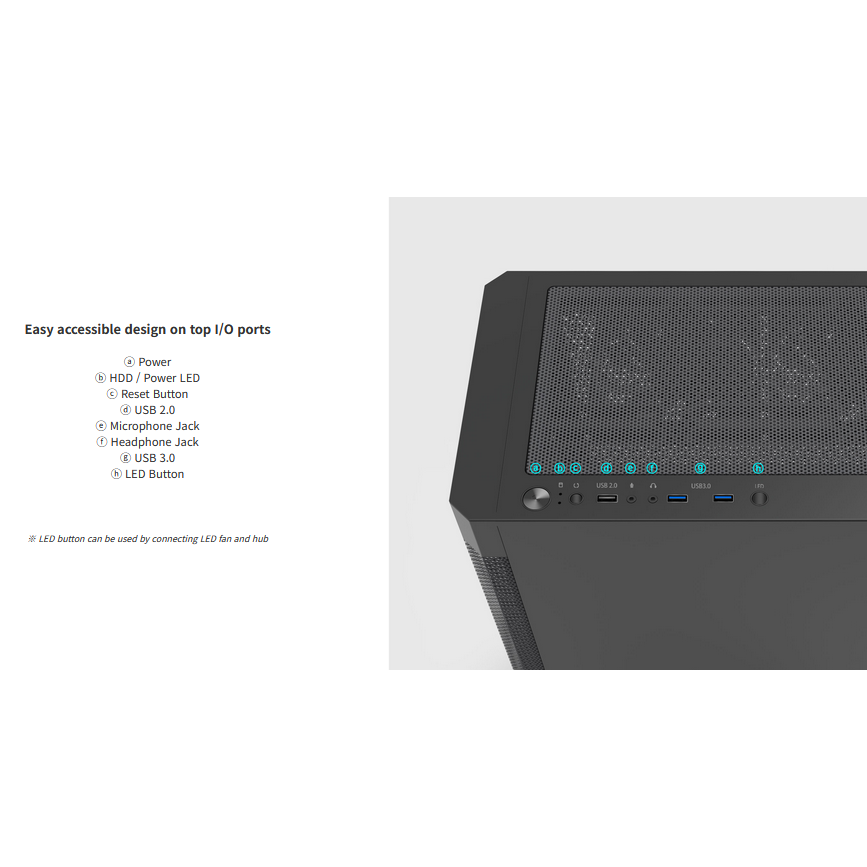

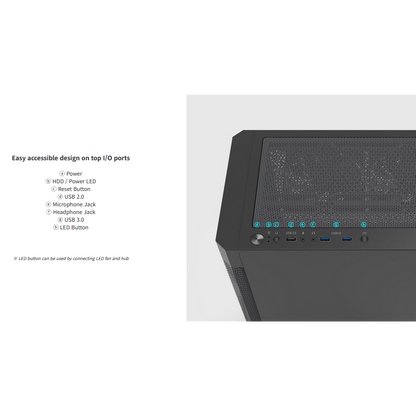

Easy accessible design on top I/O ports
ⓐ Power
ⓑ HDD / Power LED
ⓒ Reset Button
ⓓ USB 2.0
ⓔ Microphone Jack
ⓕ Headphone Jack
ⓖ USB 3.0
ⓗ LED Button
※ LED button can be used by connecting LED fan and hub

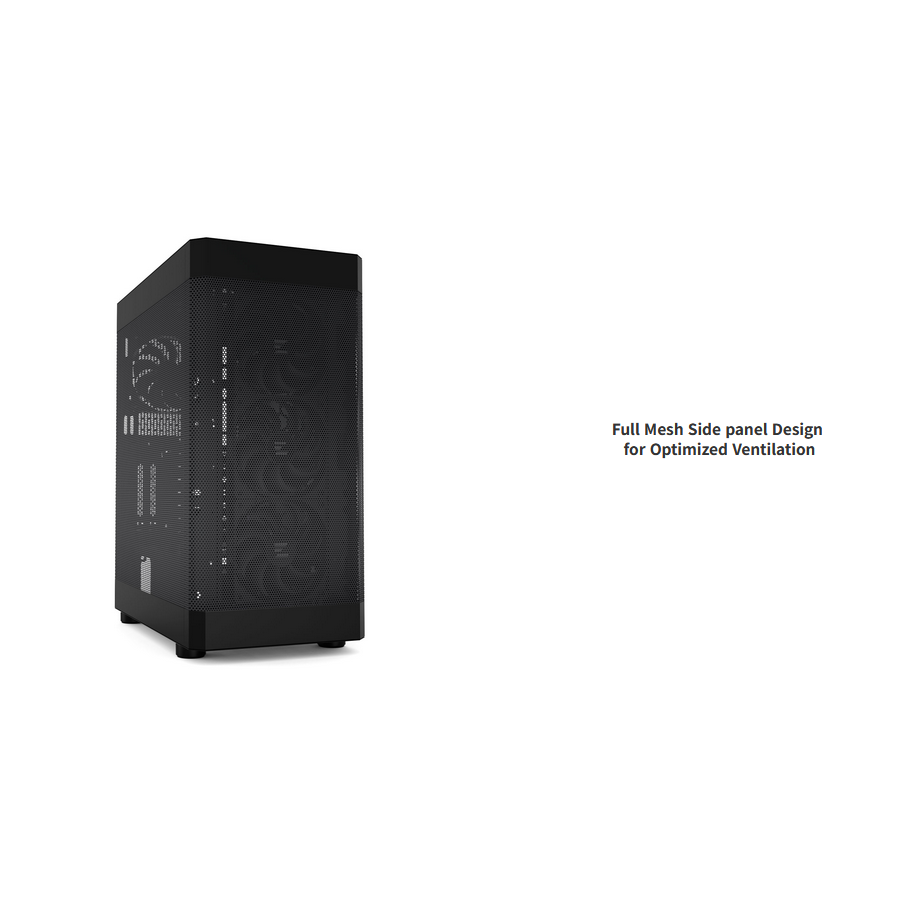

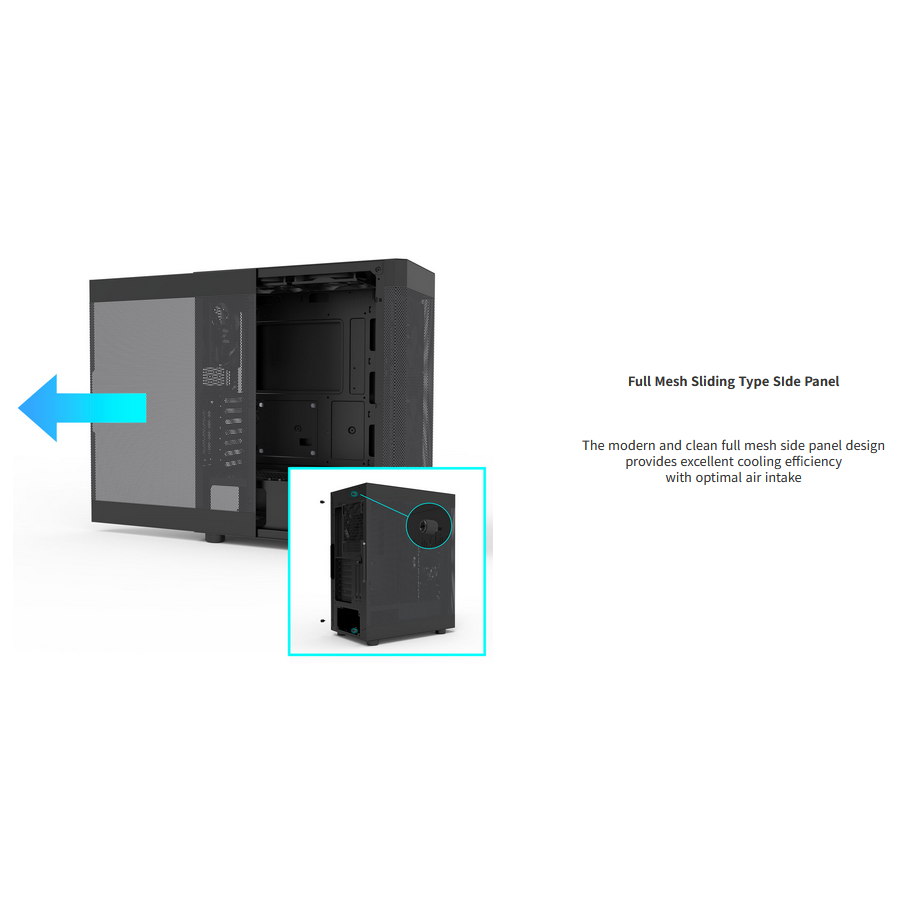

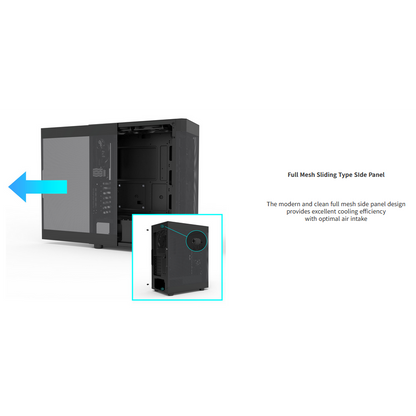

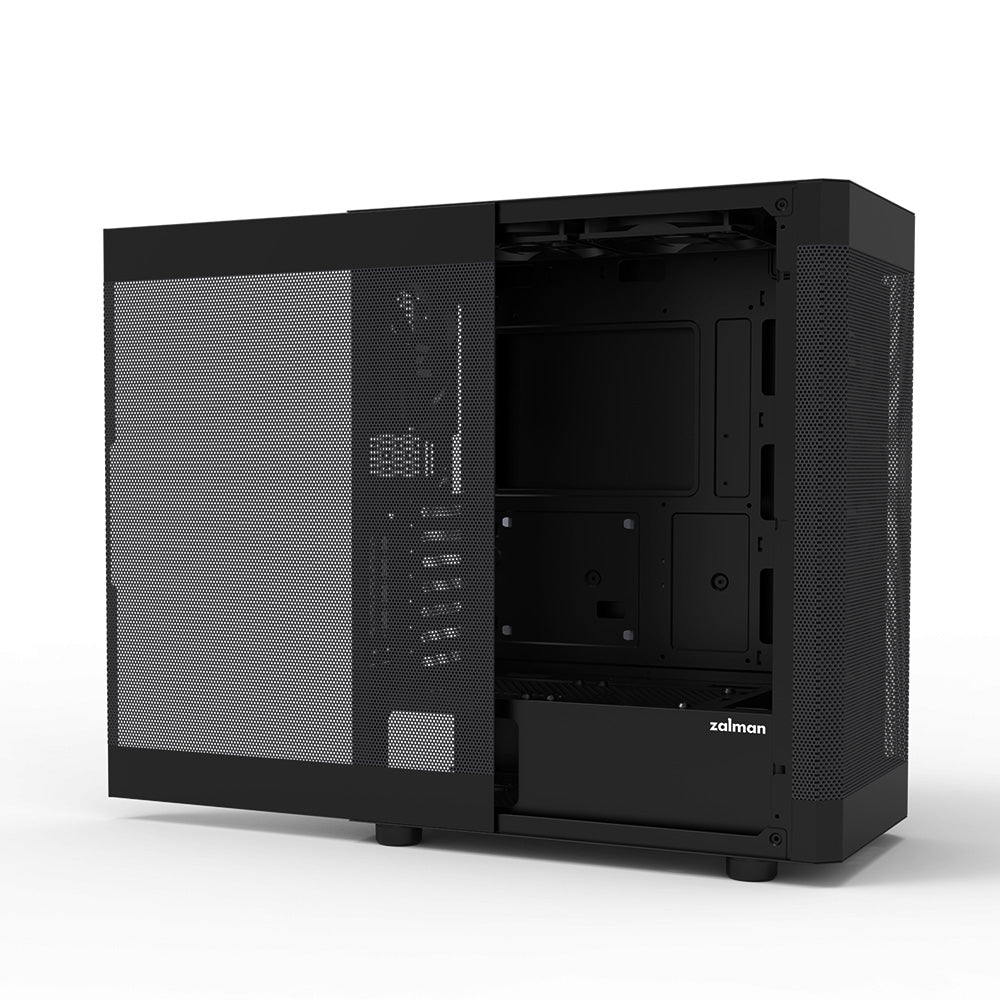

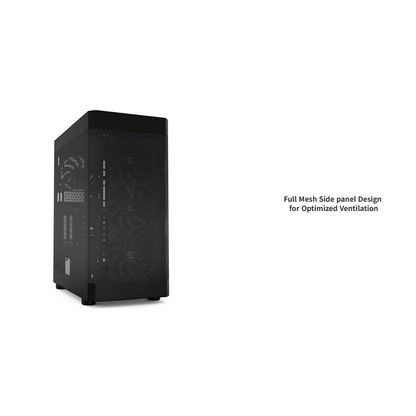

Full Mesh Sliding Type Side Panel
The modern and clean full mesh side panel design provides excellent cooling efficiency with optimal air intake

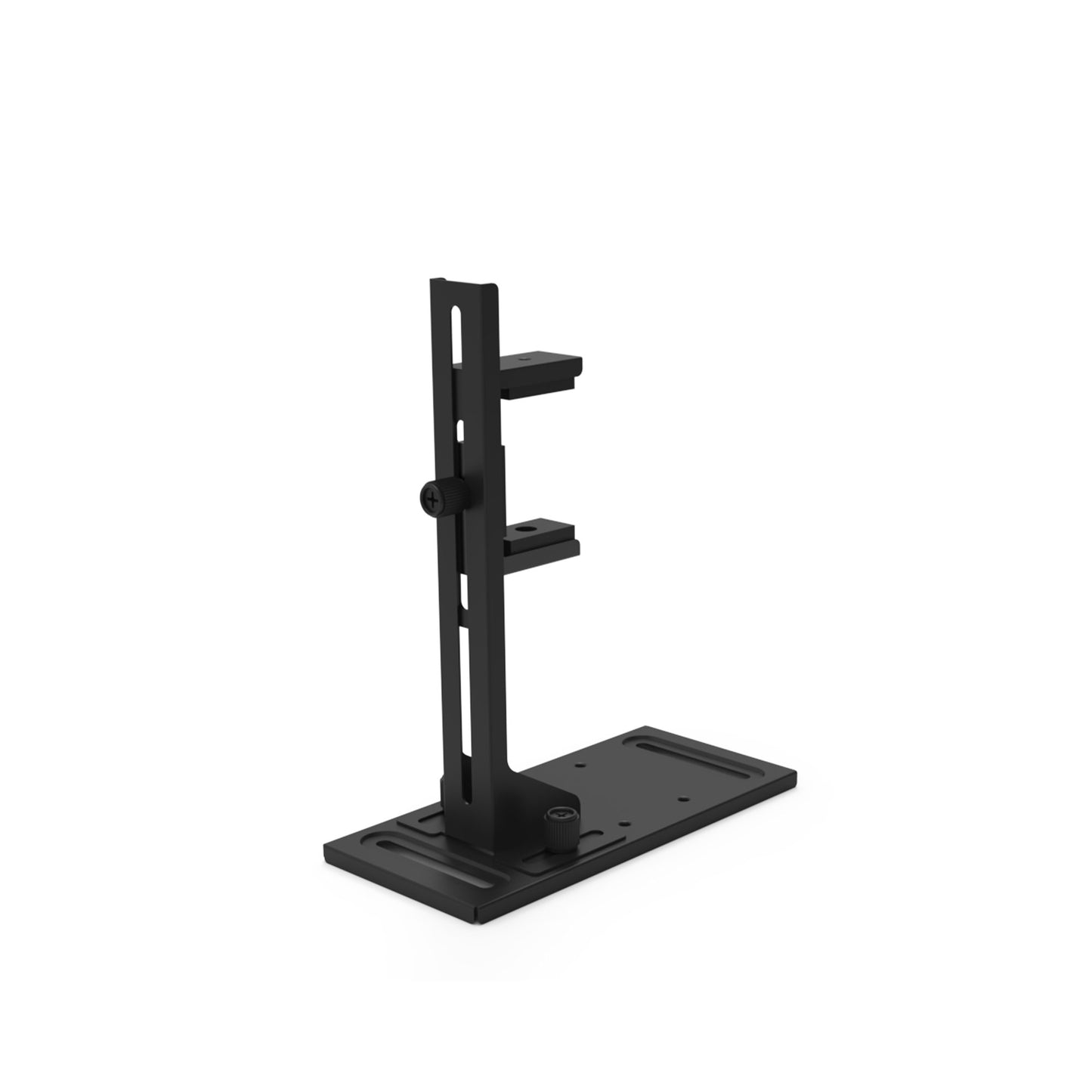

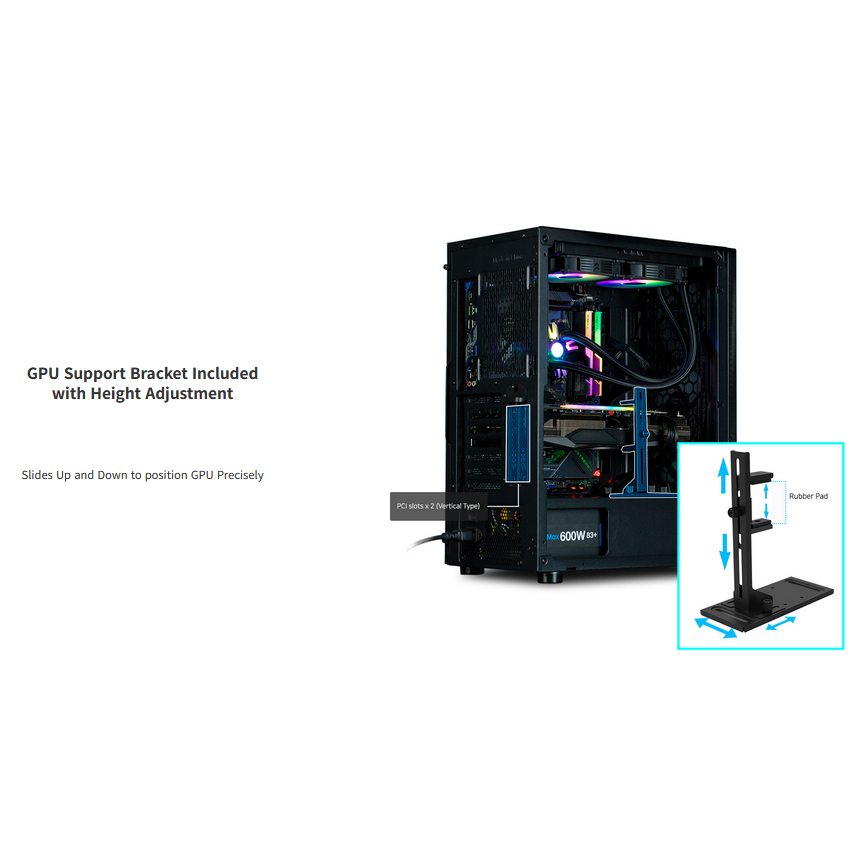

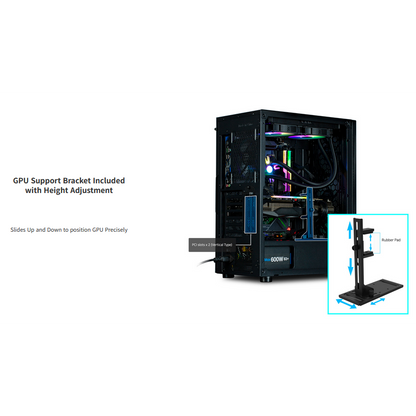

GPU Support Bracket Included with Height Adjustment
Slides Up and Down to position GPU Precisely

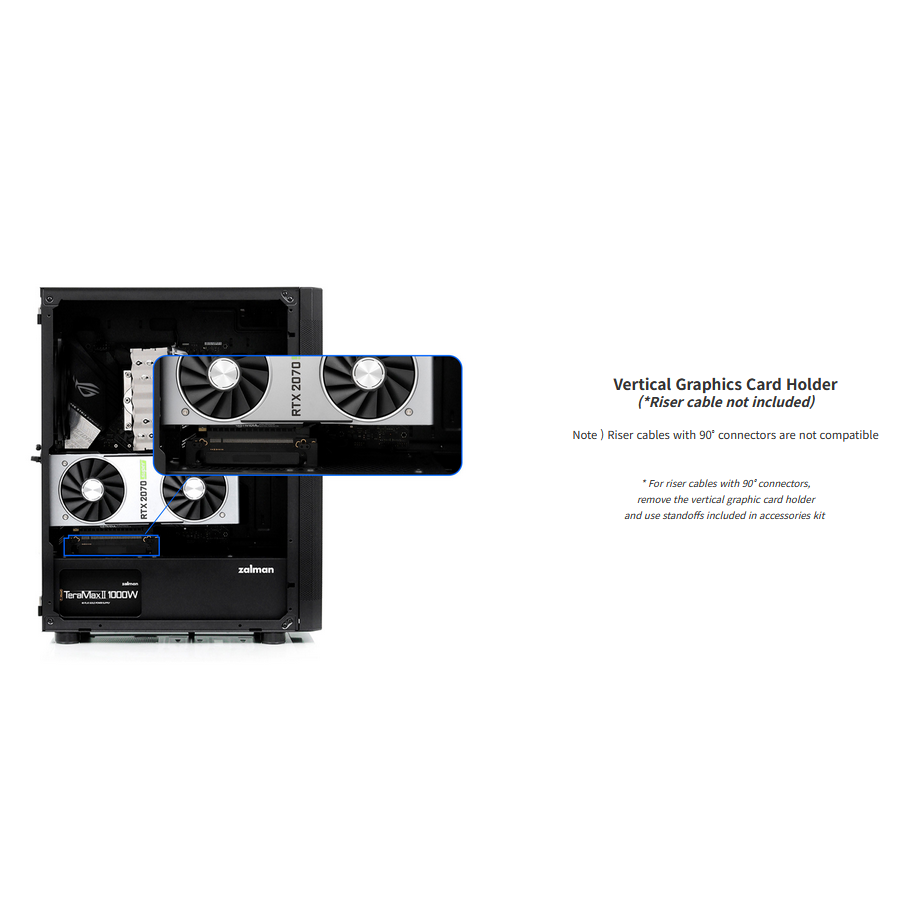

Vertical Graphics Card Holder (*Riser cable not included)
Note: Riser cables with 90˚ connectors are not compatible
* For riser cables with 90˚ connectors,remove the vertical graphic card holder and use stand-offs included in accessories kit

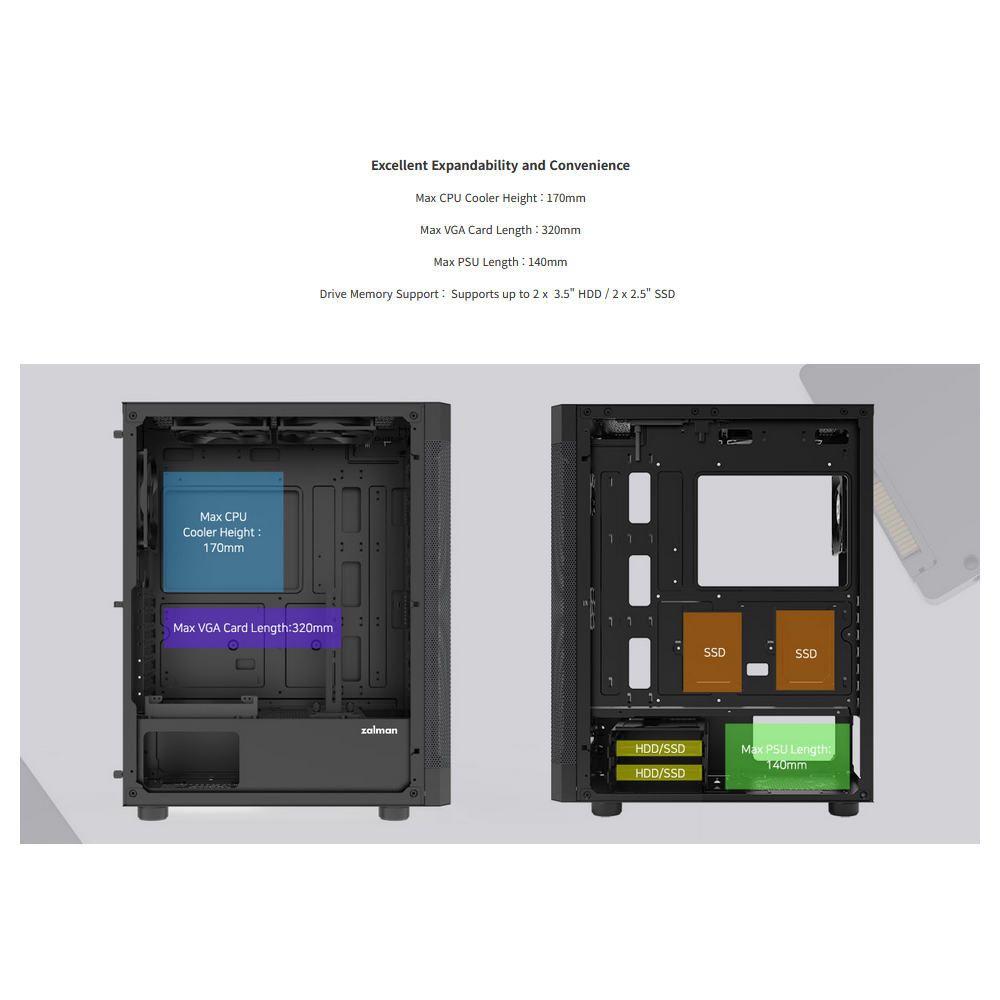

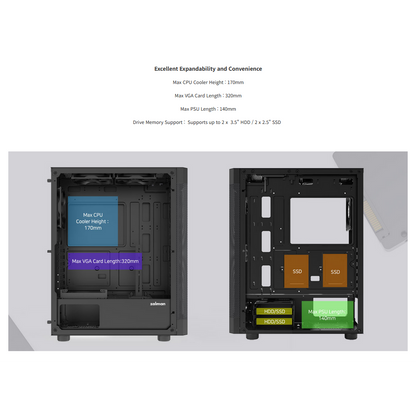

Excellent Expandability and Convenience
Max CPU Cooler Height : 170mm
Max VGA Card Length : 320mm
Max PSU Length : 140mm
Drive Memory Support : Supports up to 2 x 3.5" HDD / 2 x 2.5" SSD

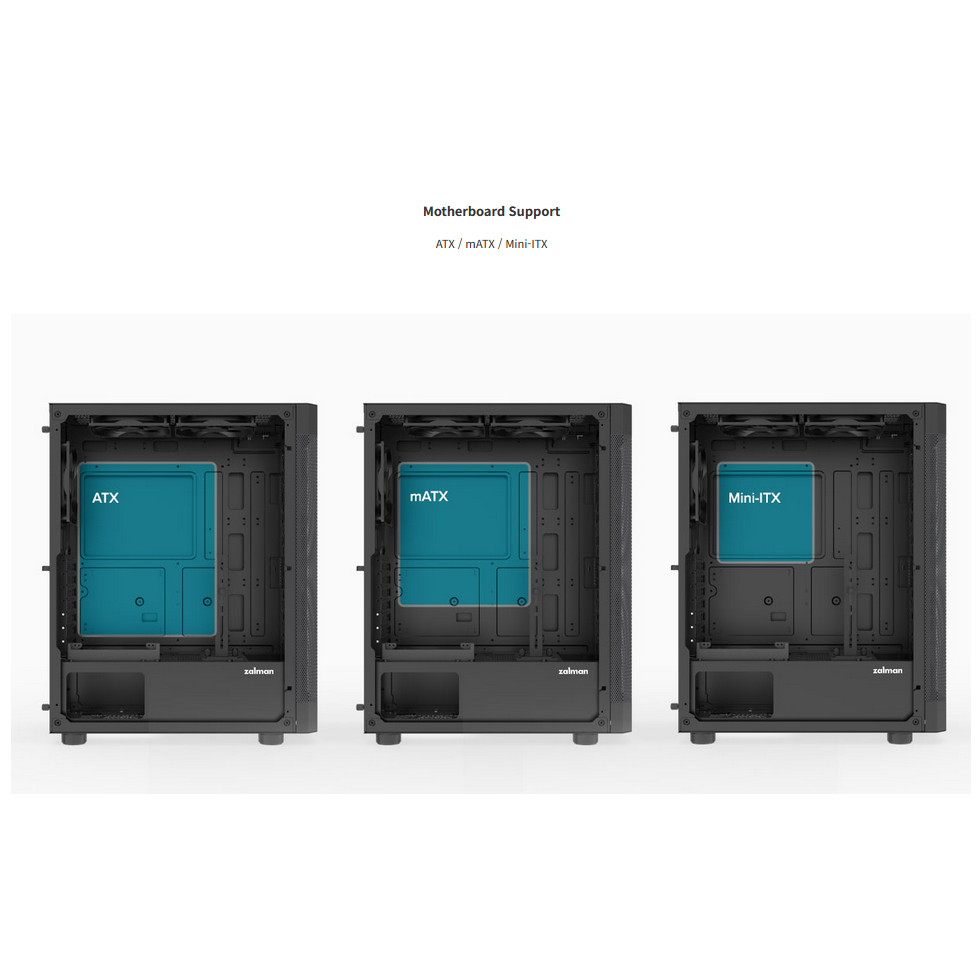

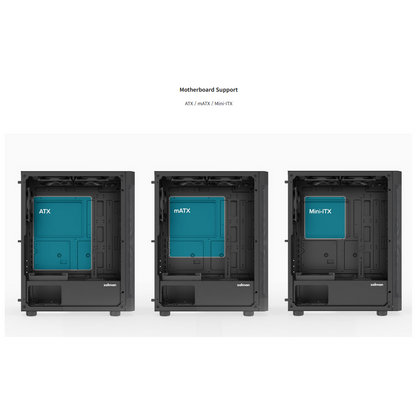

Motherboard Support
ATX / mATX / Mini-ITX

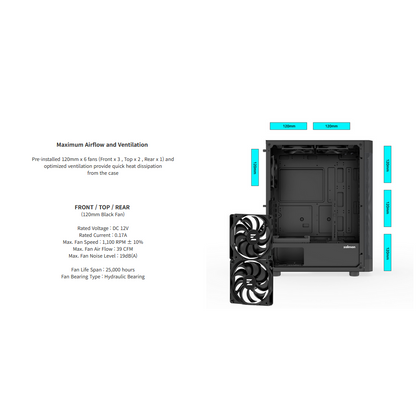

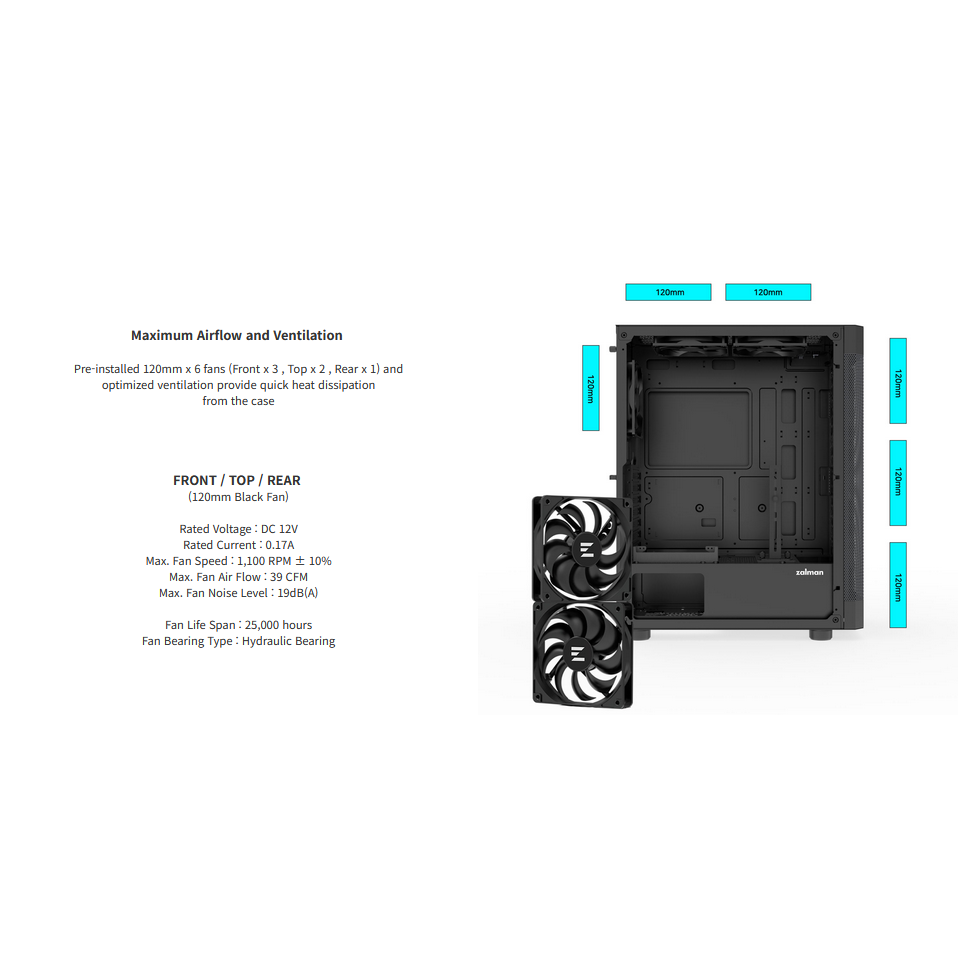

Maximum Airflow and Ventilation

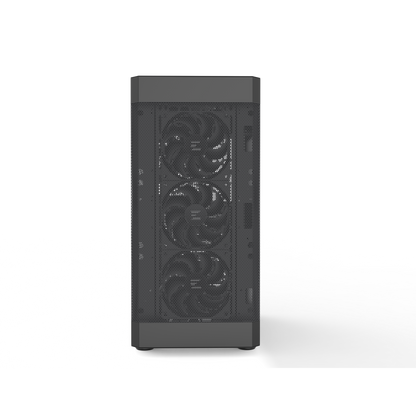

Pre-installed 120mm x 6 fans (Front x 3 , Top x 2 , Rear x 1) and optimised ventilation provide quick heat dissipation from the case
FRONT / TOP / REAR (120mm Black Fan)
Rated Voltage : DC 12V
Rated Current : 0.17A
Max. Fan Speed : 1,100 RPM ± 10%
Max. Fan Air Flow : 39 CFM
Max. Fan Noise Level : 19dB(A)
Fan Life Span : 25,000 hours
Fan Bearing Type : Hydraulic Bearing

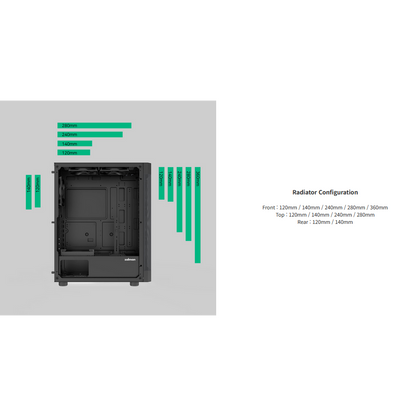

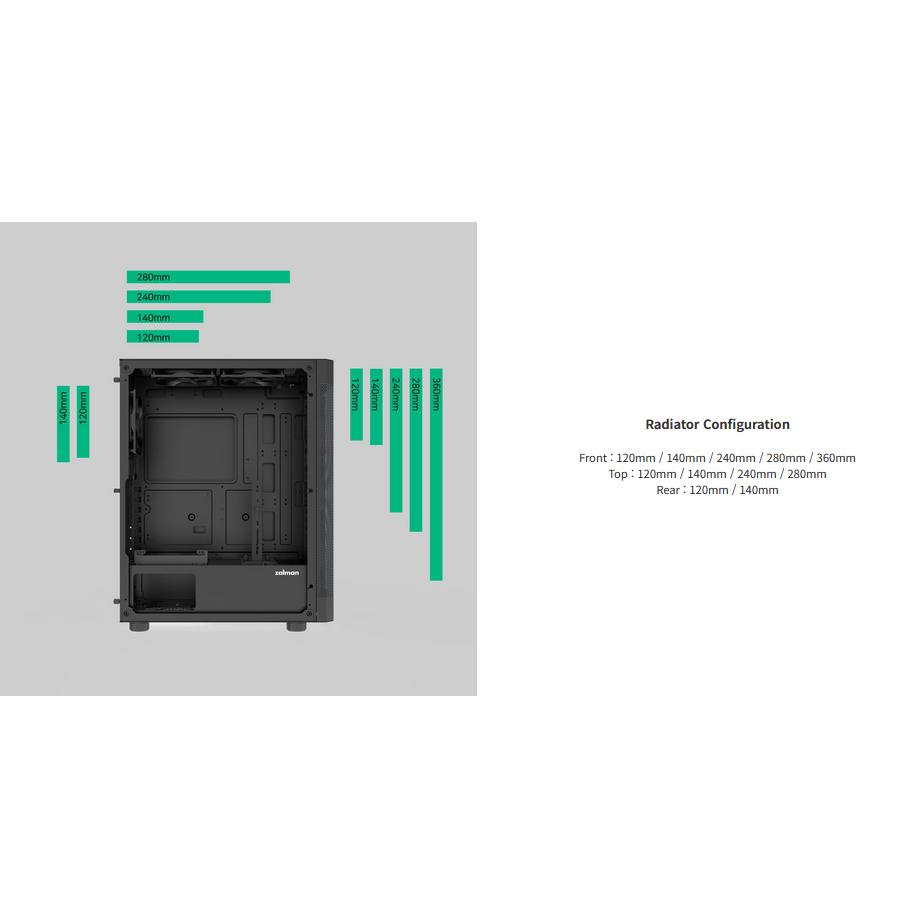

Radiator Configuration
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm
Rear : 120mm / 140mm

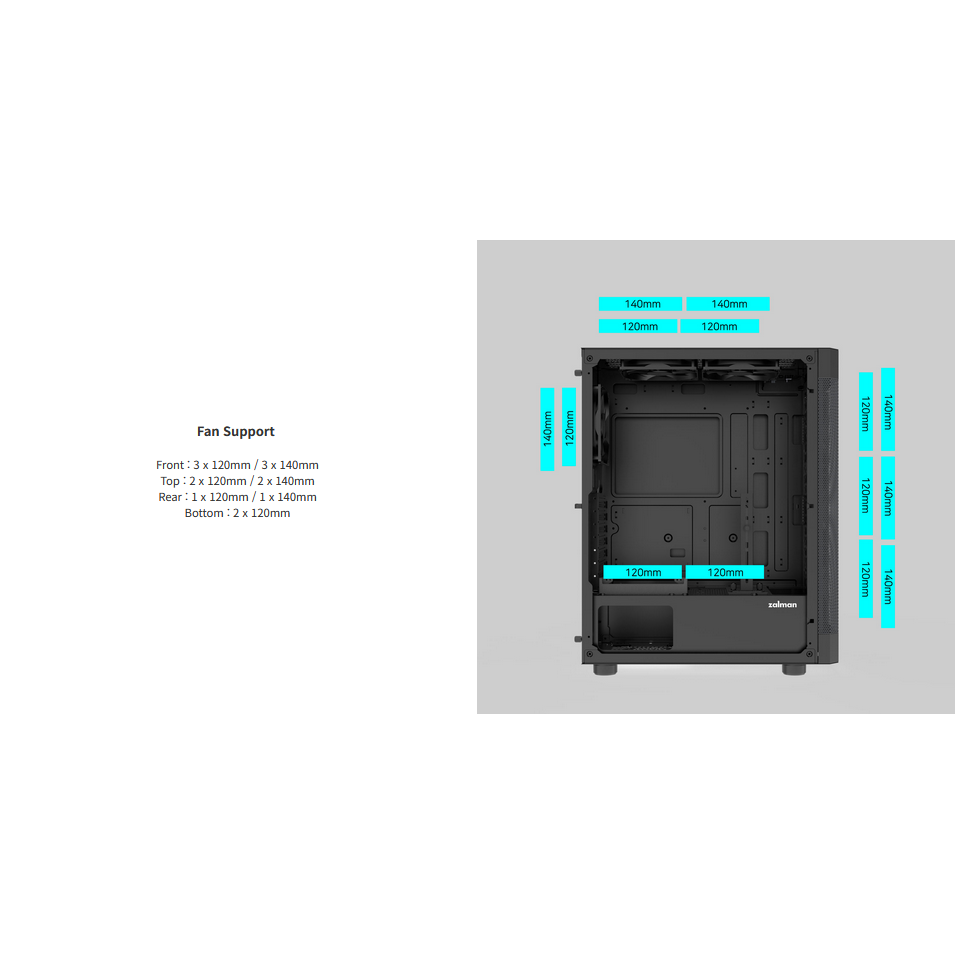

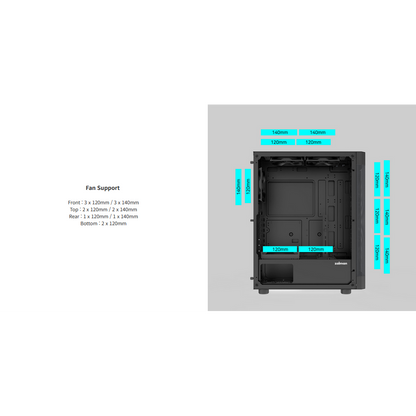

Fan Support
Front : 3 x 120mm / 3 x 140mm
Top : 2 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Bottom : 2 x 120mm

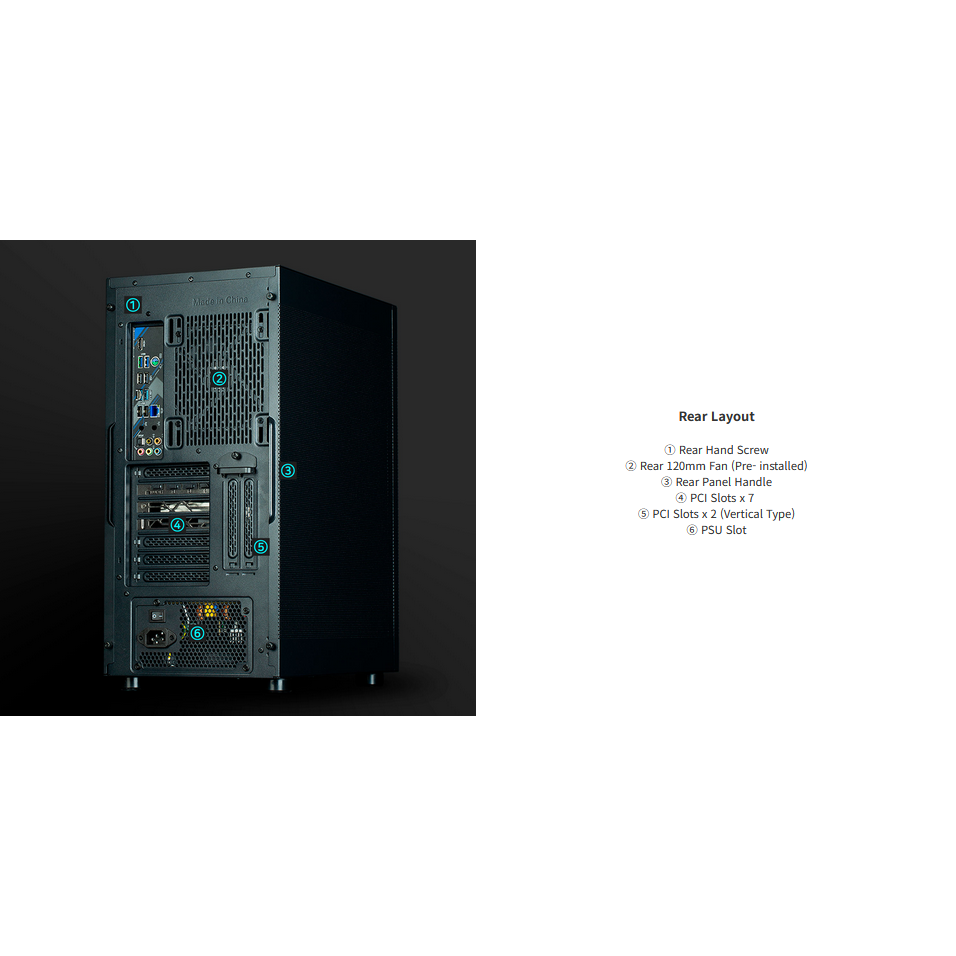

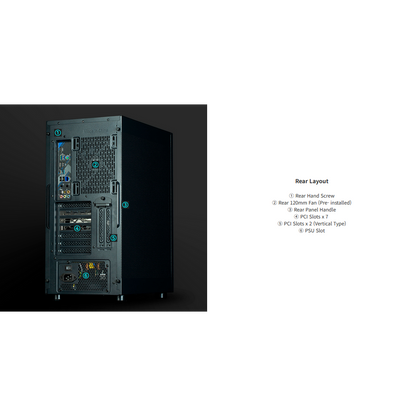

Rear Layout
① Rear Hand Screw
② Rear 120mm Fan (Pre- installed)
③ Rear Panel Handle
④ PCI Slots x 7
⑤ PCI Slots x 2 (Vertical Type)
⑥ PSU Slot
Model: i4
Case Form Factor: ATX Mid-Tower
Materials: Steel, Plastic
Weight: 5.8kg
Dimensions: 396(D) x 225(W) x 484(H)mm
Motherboard Support: ATX / mATX / Mini-ITX
Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top : 2 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Bottom : 2 x 120mm
Fan(s) Included
Front : 3 x 120mm (Black Fan)
Top : 2 x 120mm (Black Fan)
Rear : 1 x 120mm (Black Fan)
Radiator Support
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm
Rear : 120mm / 140mm
Max. PSU Length: 140mm
Max. VGA Length: 320mm
Max. CPU Cooler Height: 170mm
Drive Bays: 2 x 3.5"(Combo), 2 x 2.5"
PCI Expansion Slots: 7+ 2 pcs
I/O Ports: Power, Power/HDD LED, Reset, 1 x USB 2.0, 2 x USB 3.0, MIC, Audio, LED Button
*Please note: Power Supply Unit (PSU) not included.
Warranty: 24 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
