Features

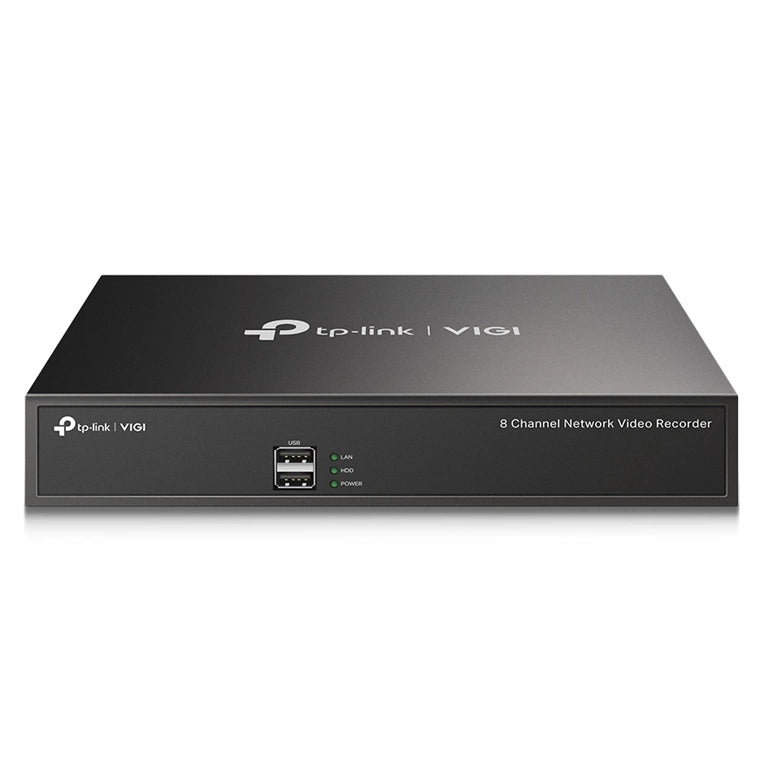

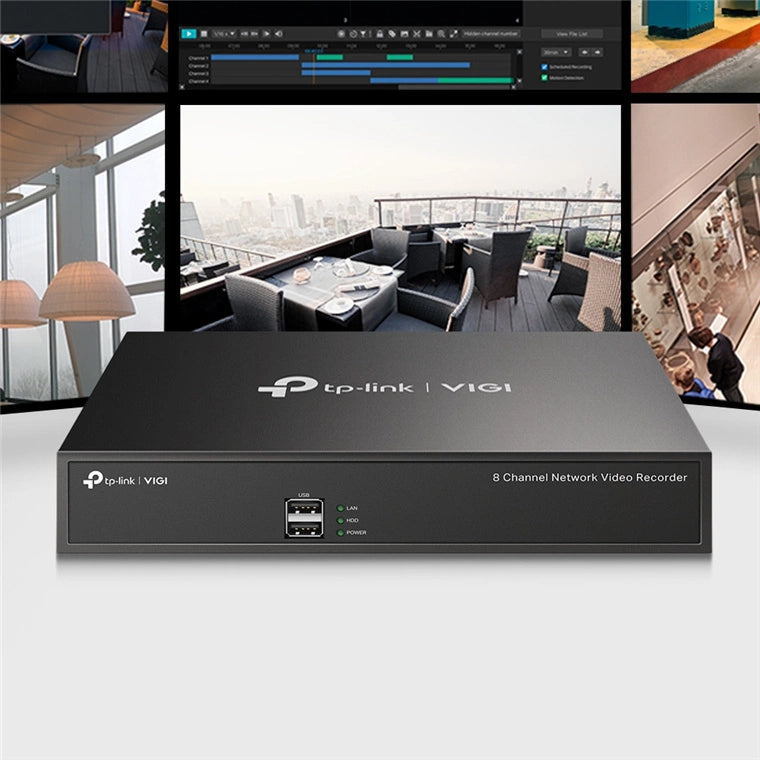

Security Never Shuts Down - 8 Channel Network Video Recorder
24/7 Continuous Recording
Automatically stores up to 10TB of footage from connected cameras to secure your data for quick, convenient access.

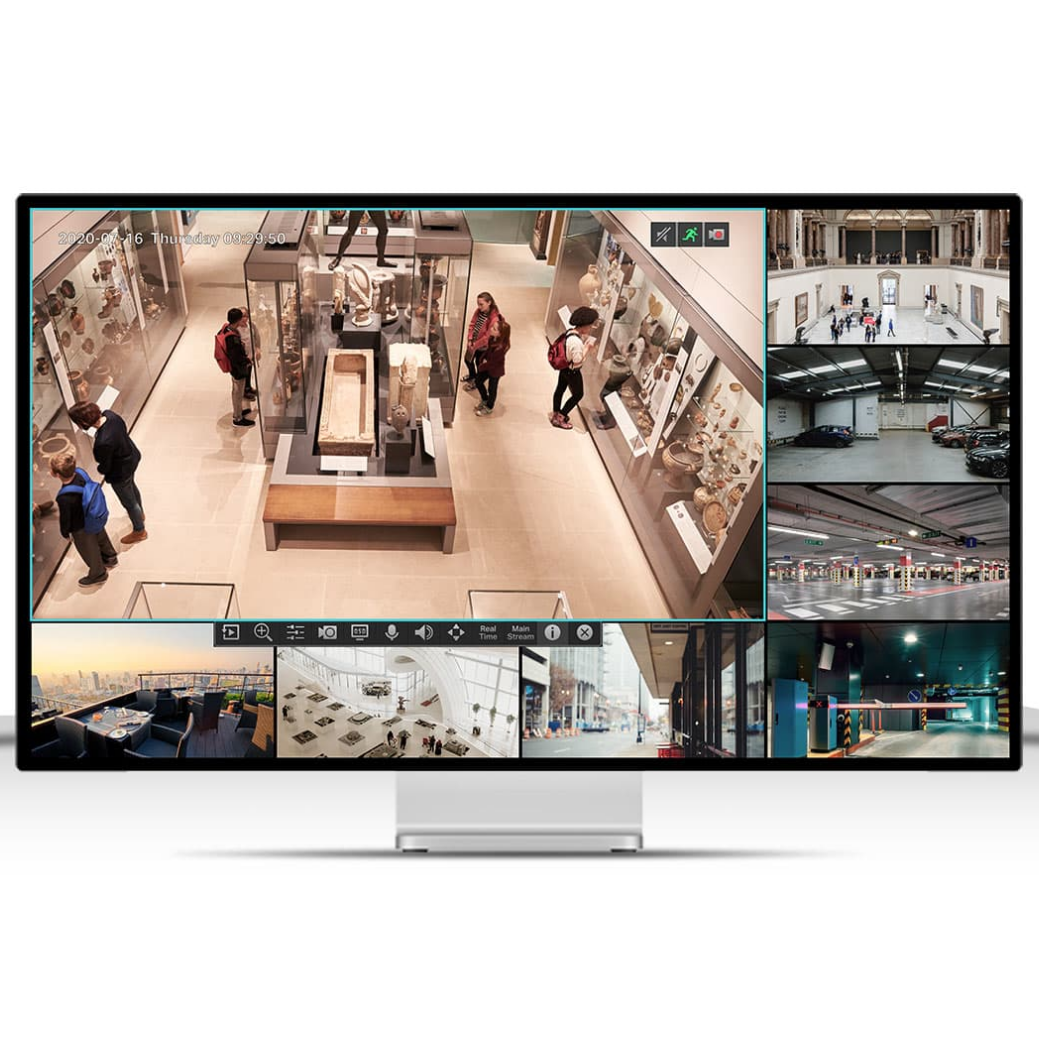

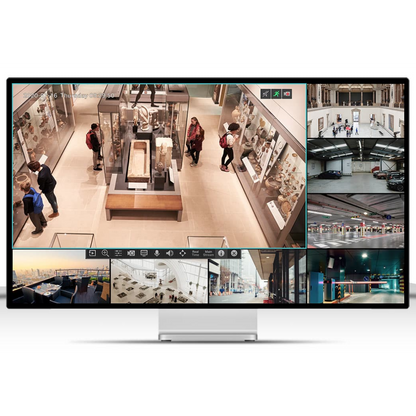

8-Channel Real-Time Live View
Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.

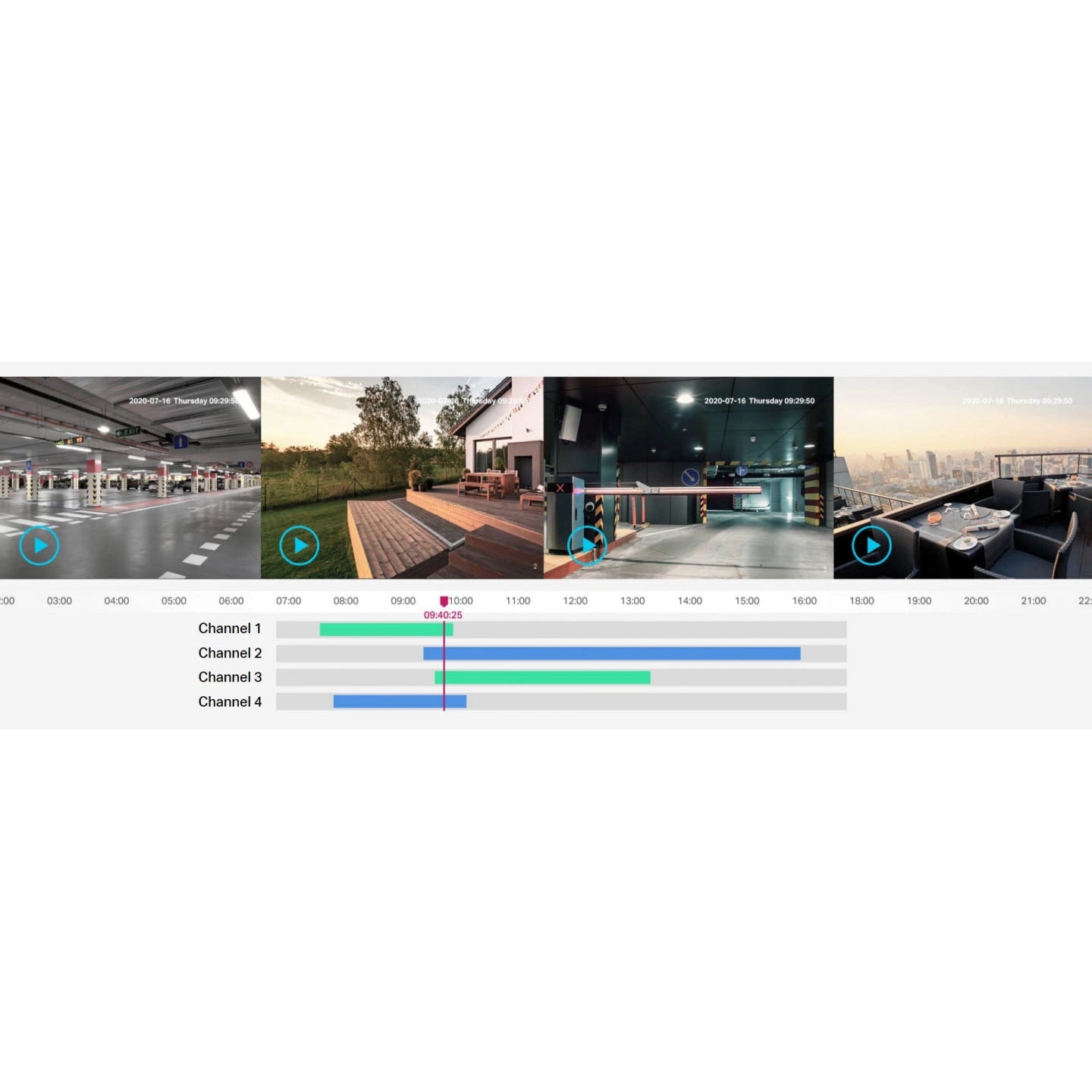

4-Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. (Fewer or no channels may be available for playback if the total resolution is greater than 5MP.)

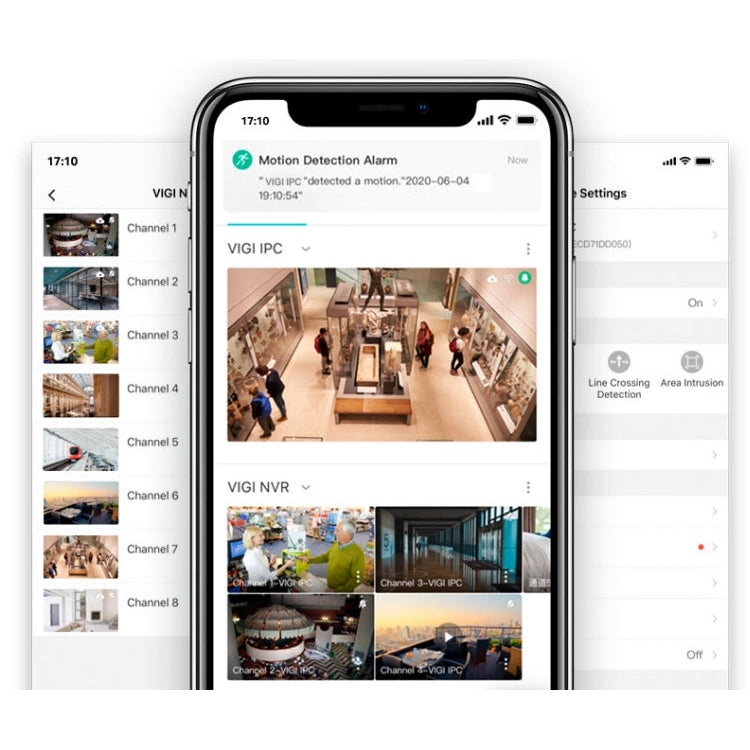

Remote Monitoring
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

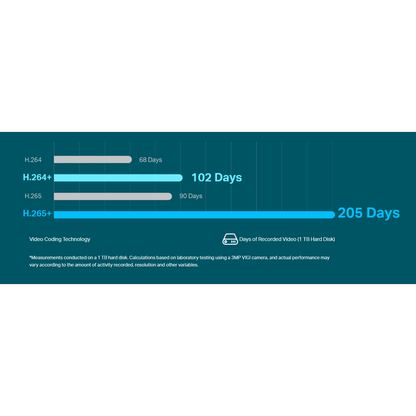

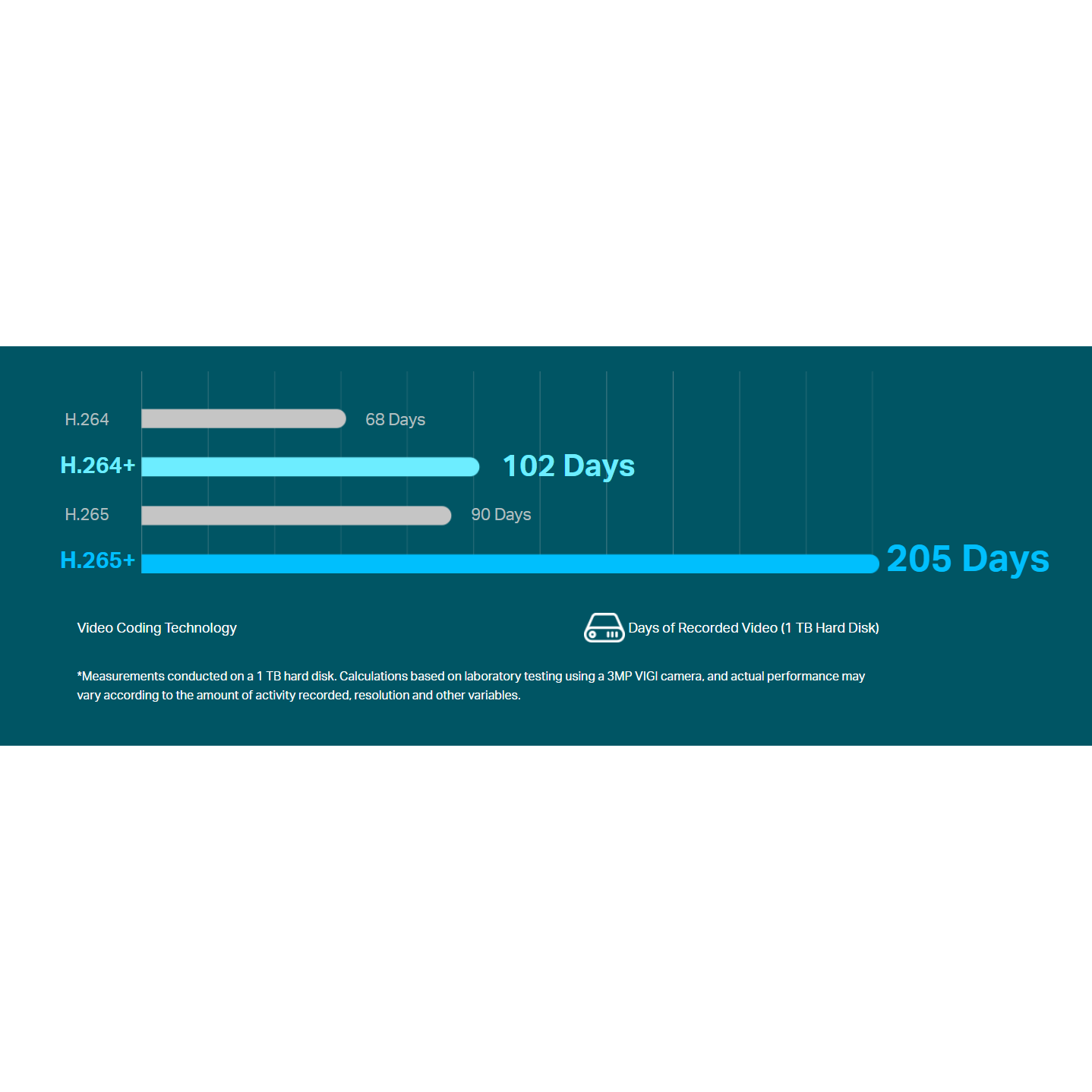

H.265+
Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensure Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. (VIGI NVR works best with VIGI cameras but is compatible with other brands.)

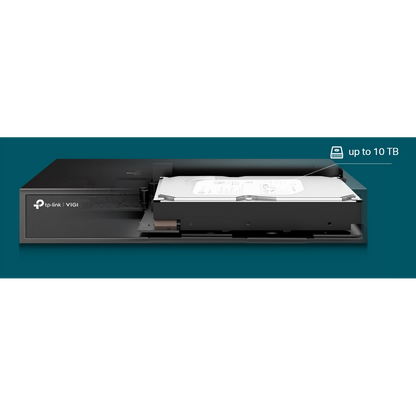

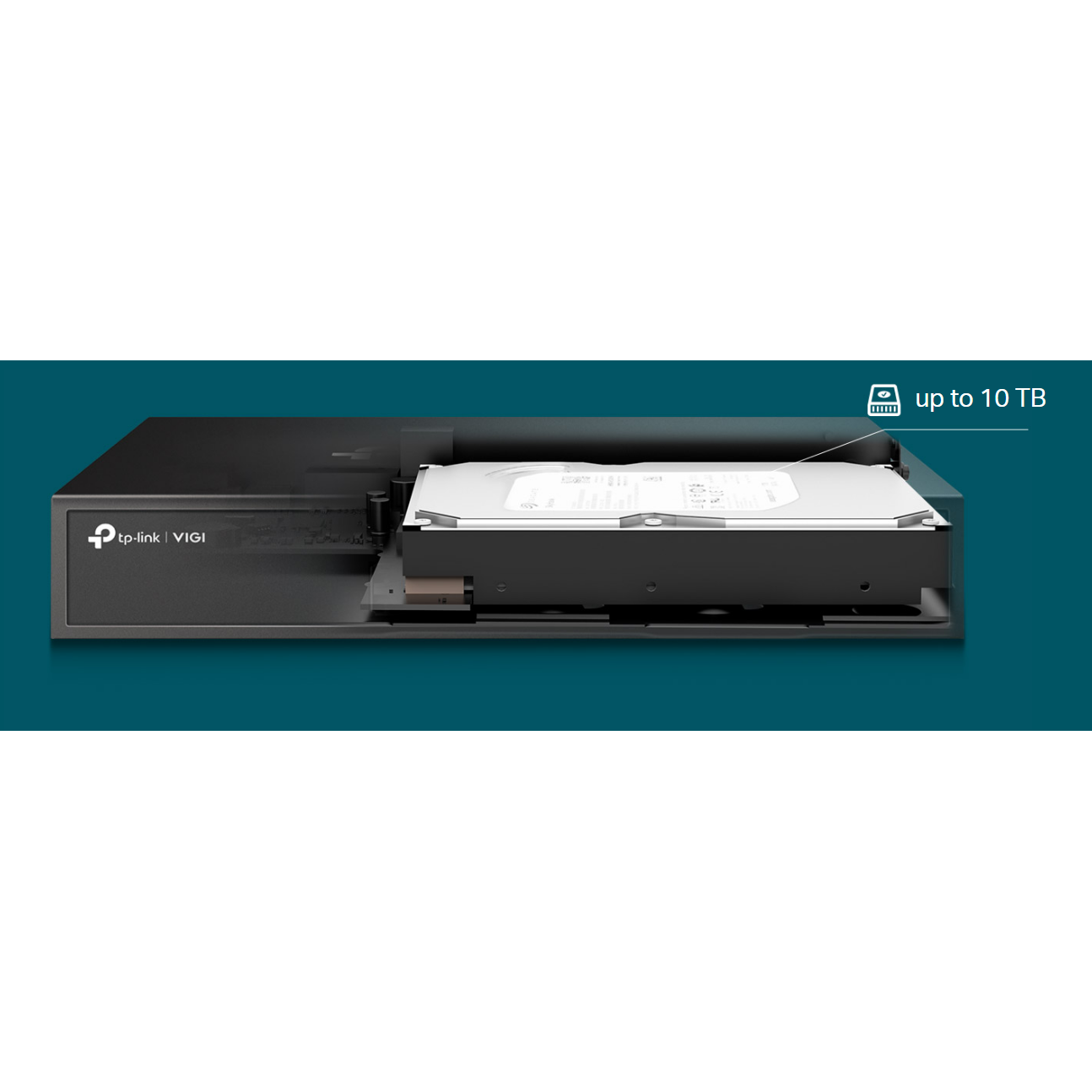

1 HDD Interface (up to 10TB)*
Stores up to 10 TB (720 days** of video) on a SATA hard drive, keeping your data storage secured locally.
*A hard disk drive (not included) must be installed for operation.
**Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Specifications
NETWORK
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith: 80Mbps
Outgoing Bandwidth: 60Mbps
GENERAL
Operating Temperature: -10-55 °C
Chassis: 1U Chassis
Dimensions ( H x W x D ): 246.2 x 148.2 x 42.6 mm
Weight: 578.5g
External Power Supply: 12V DC, no more than 18W
Power Consumption: 4.25W (without disk) / 13.10W (with disk)
VIDEO/IMAGE
Video Input:
8-Channel IP Video Input, up to 5MP Resolution
Video Output:
Recording Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA Output Resolution: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1680 x 1050/60Hz, 1440 x 900/60Hz
DECODING
Decoding Format: H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution: 5MP/ 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 4 Channel (Fewer or no channels may be available for playback if the total resolution is greater than 5MP)
Capability: 1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p
HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10TB

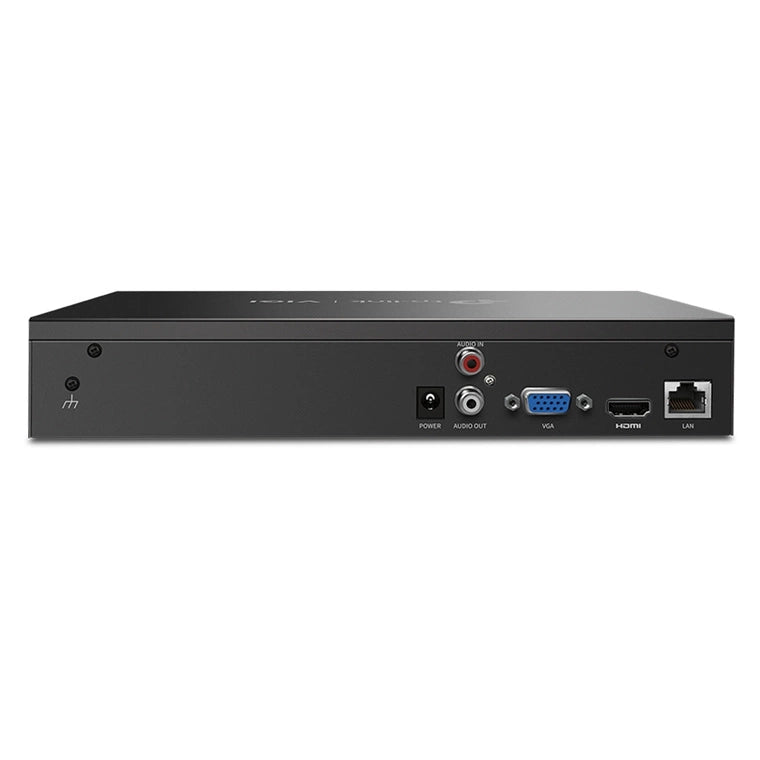

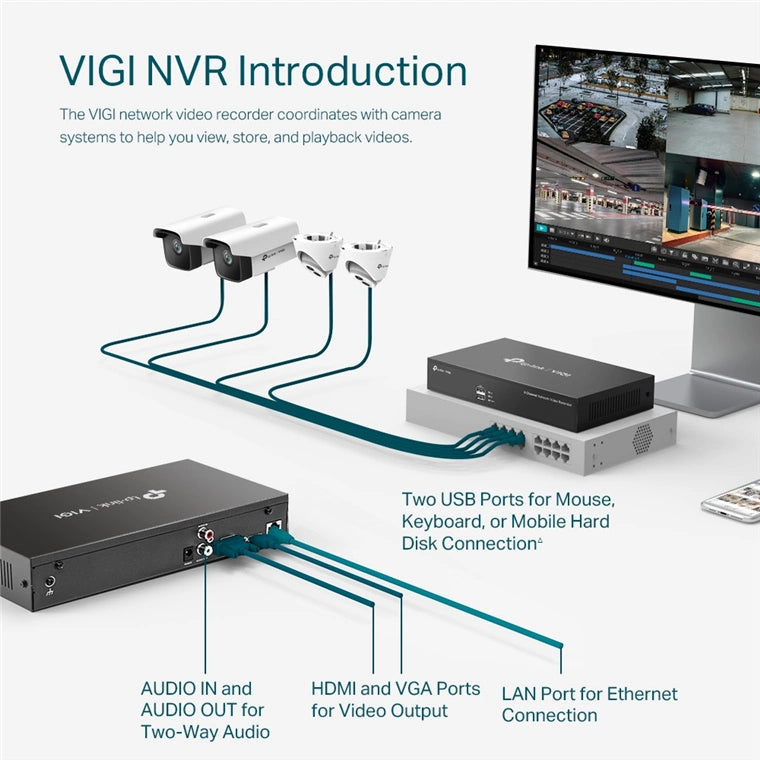

INTERFACES
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2 x USB 2.0
Warranty: 24 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
