Features
VIGI 4 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 16 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
Dedicated 4 PoE+ ports (53W budget) for simplified IP camera deployment
Features 4x 10/100Mbps PoE+ ports, the NVR supports up to 30W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

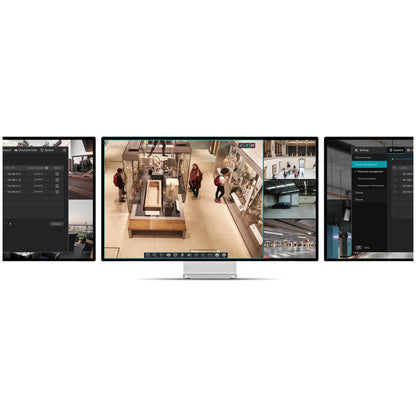

Reviewing footage is faster than ever
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

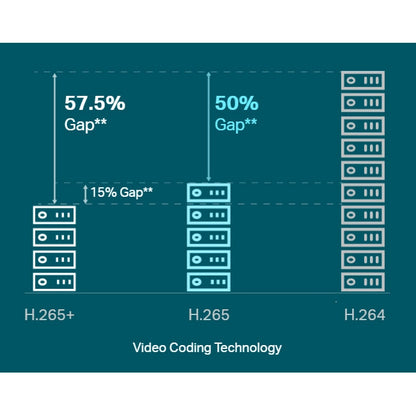

More Compression. More Savings. More Quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Keep an eye on things even when you are on the move
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Greet your visitors before they enter
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
Higher bandwidth for high-definition cameras
High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.
Specifications
VIDEO & AUDIO
IP Video Input: 4-Channel
Incoming Bandwidth: 80Mbps
Outgoing Bandwidth: 60Mbps
HDMI Output Resolution:
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution:
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4
DECODING
Audio Compression: G.711A/G.711U/G.726
Decoding Format: H.265+/H.265/ H.264+/H.264
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 4 Channel
Capability: 2-ch @ 8MP, 4-ch @ 4MP
RECORD MANAGEMENT
Record Mode
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode
- Regular Backup
- Video Clip Backup
Playback Function
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
NETWORK
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access: Android, iOS
Incoming Bandwidth: 80Mbps
Outgoing Bandwidth: 60Mbps
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF, CGI
EXTERNAL INTERFACE
Network Interface: 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Power: 1× DC Jack
Reset Button: 1
HDMI: 1
VGA: 1
HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 16 TB
POE
Standard: 802.3at/af Compliant
Interface: 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget: 53W available for All PoE+ Ports, 30W Max per Port
ALARM
General Alarm
- Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
Anomaly Alarm
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
Alarm Linkage
- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
INTERFACES
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0
VIDEO/IMAGE
Video Input: 4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution:
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution:
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
GENERAL
Operating Temperature: -10-55 °C
Storage Temperature: -40-70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Working Temperature: NVR: -10-55 °C / Power Adapter: 0-40 °C
Working Humidity: 10%~90% RH Non-Condensing
Dimensions( W x D x H ): 246.2 × 148.2 × 45 mm
PoE: Standard: 802.3af/at / PoE Ports: Ports 1-4 / PoE Budget: 53W
External Power Supply: 53.5V DC/1.31A
Power Supply: 53.5V DC/1.31A
Power Consumption: 4.25W (without disk)
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Package Contents
VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
***Hard Drive/HDD not included, sold separately***
