Features

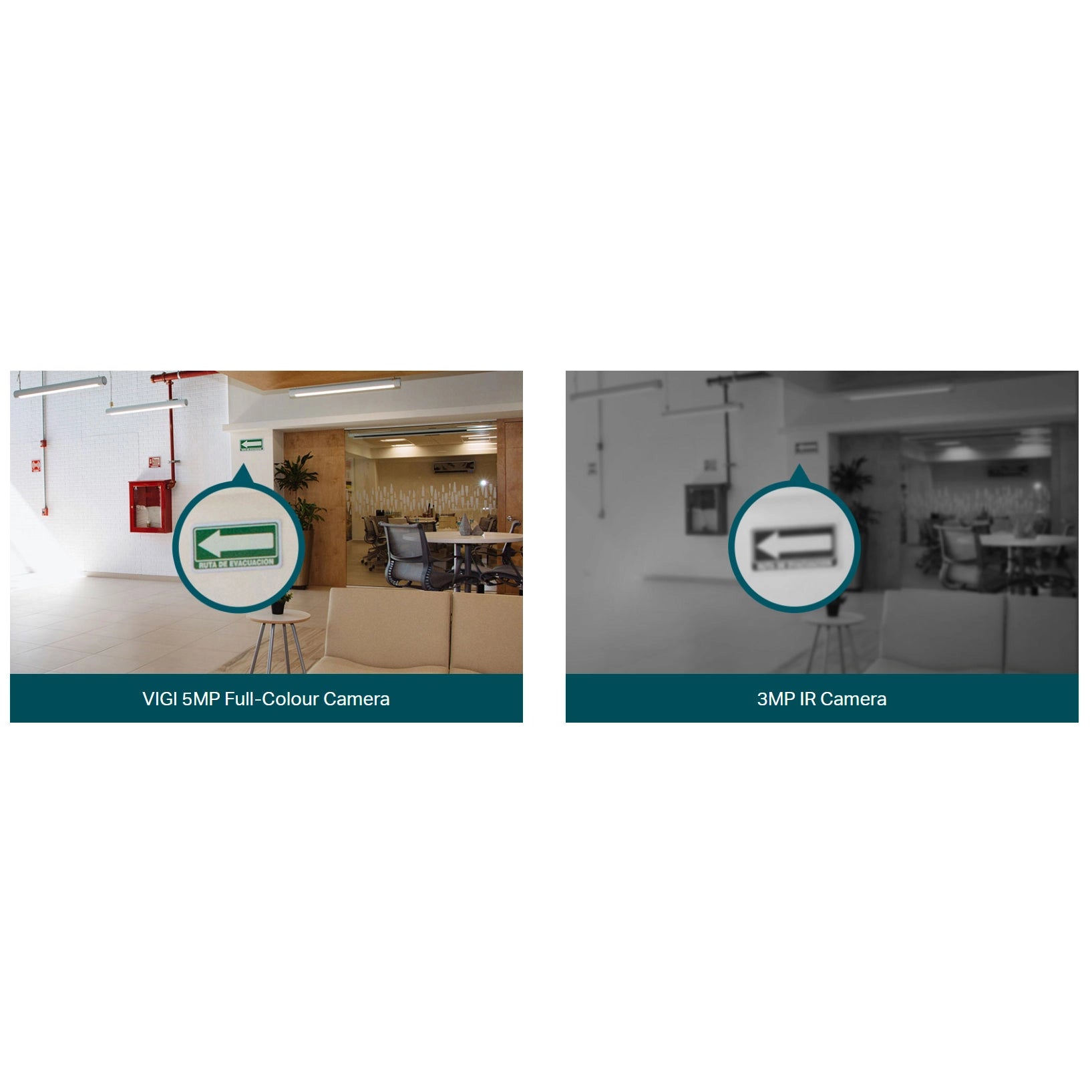

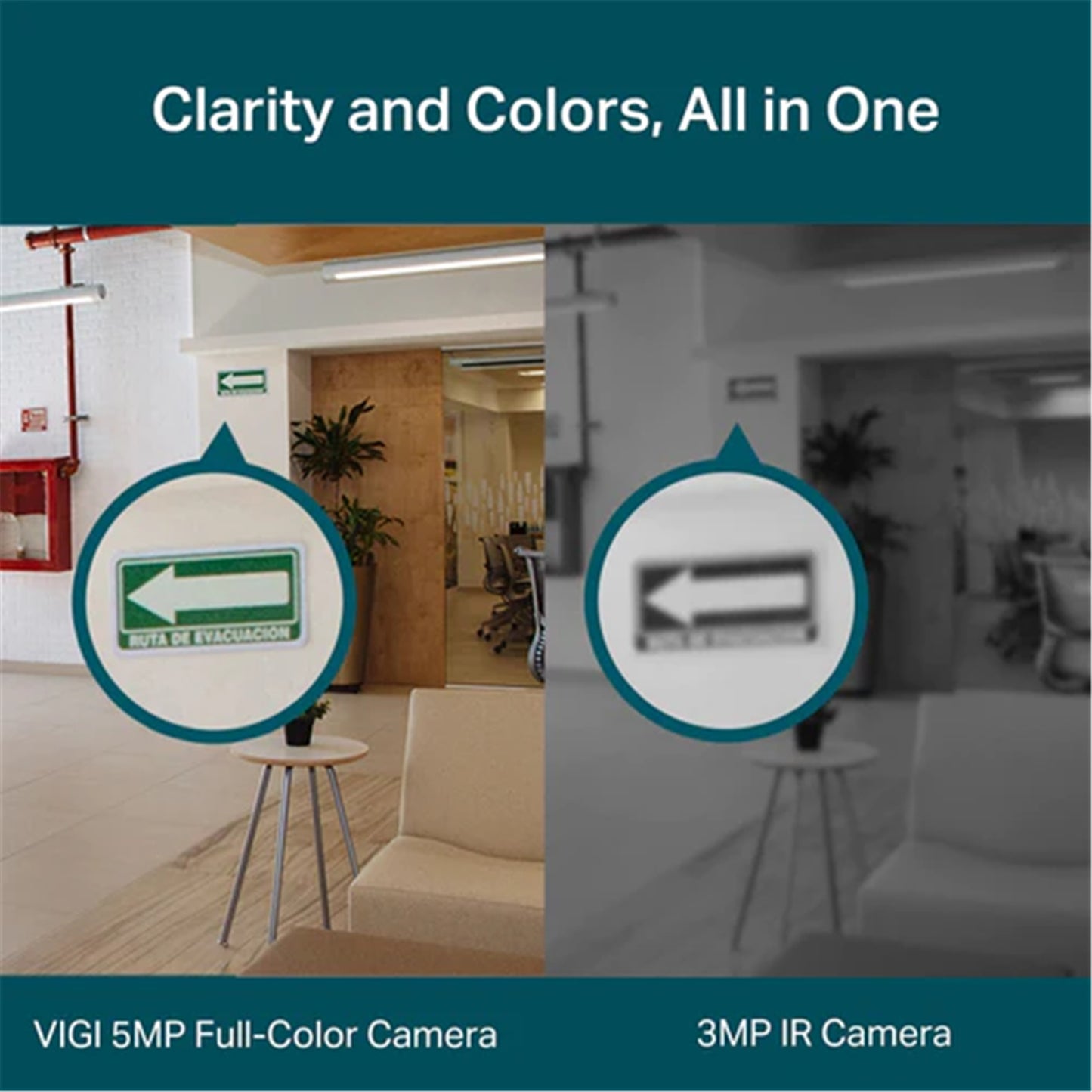

24/7 Stunning Visual Experience | 5MP Super-High Definition
Monitor 24-hour clear and colourful details even on pitch night. VIGI Full-Colour camera provides maximum 5MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

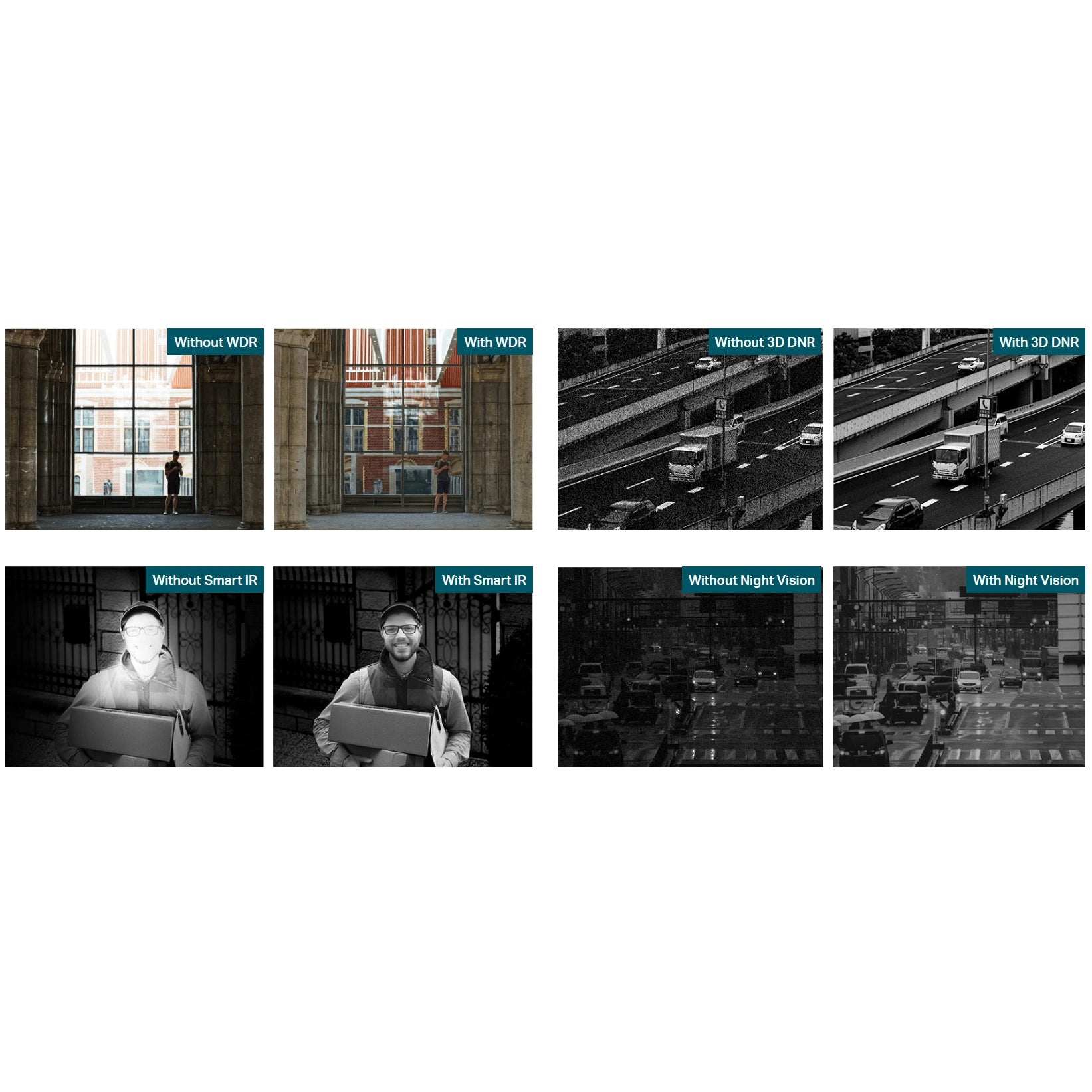

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

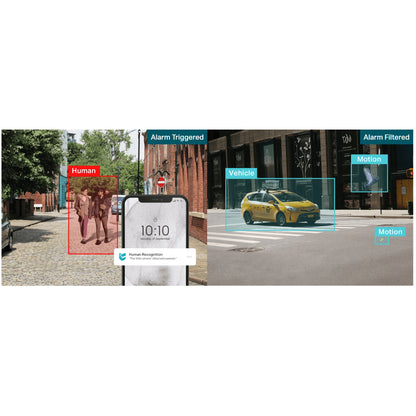

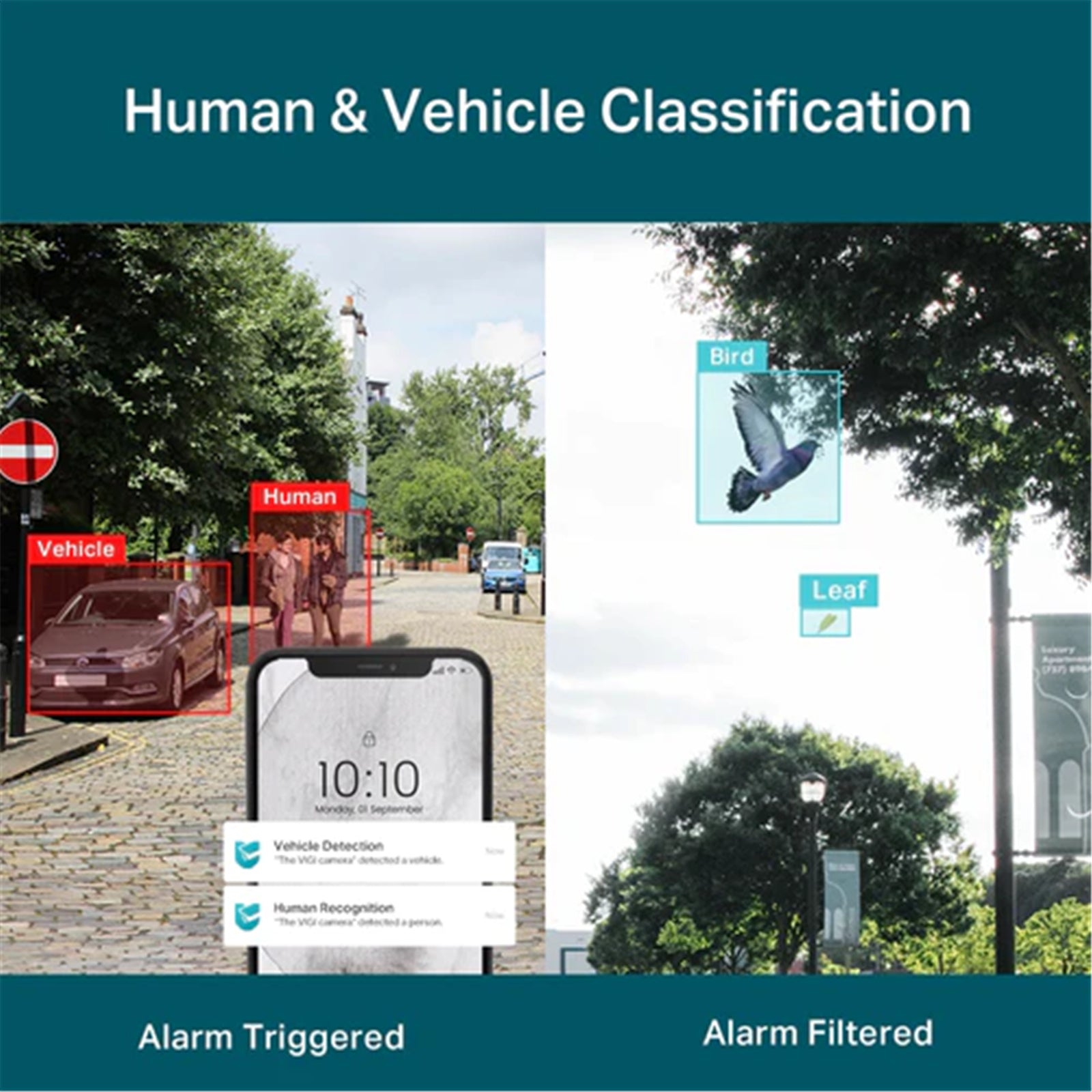

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

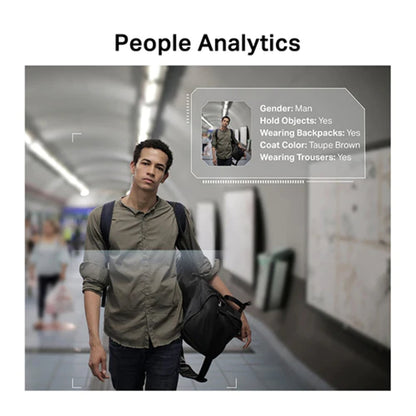

People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.

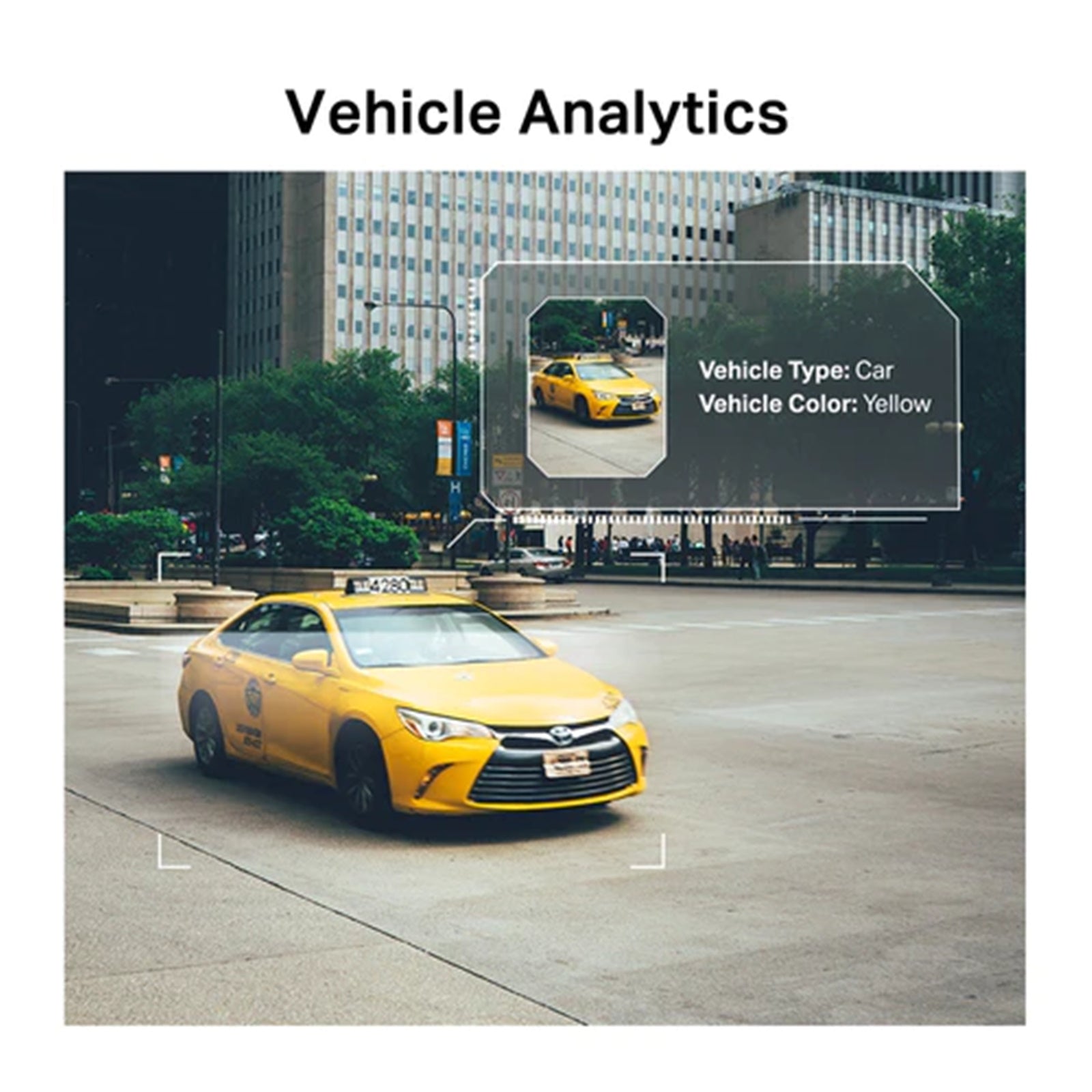

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle colour and type for targeting meaningful events in a short time.
Active Defence
Warn potential intruders instantly with sound and light when abnormal events
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

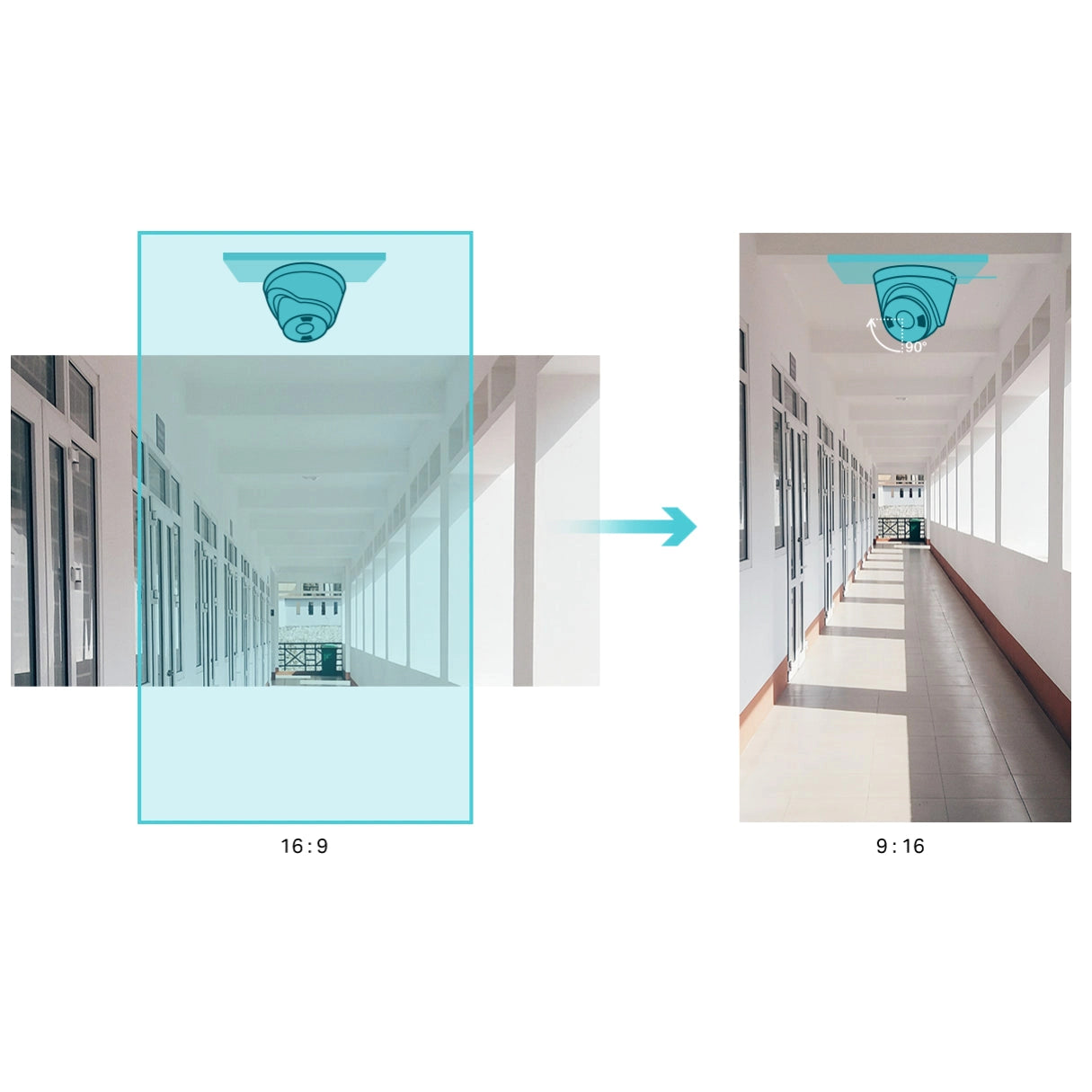

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.

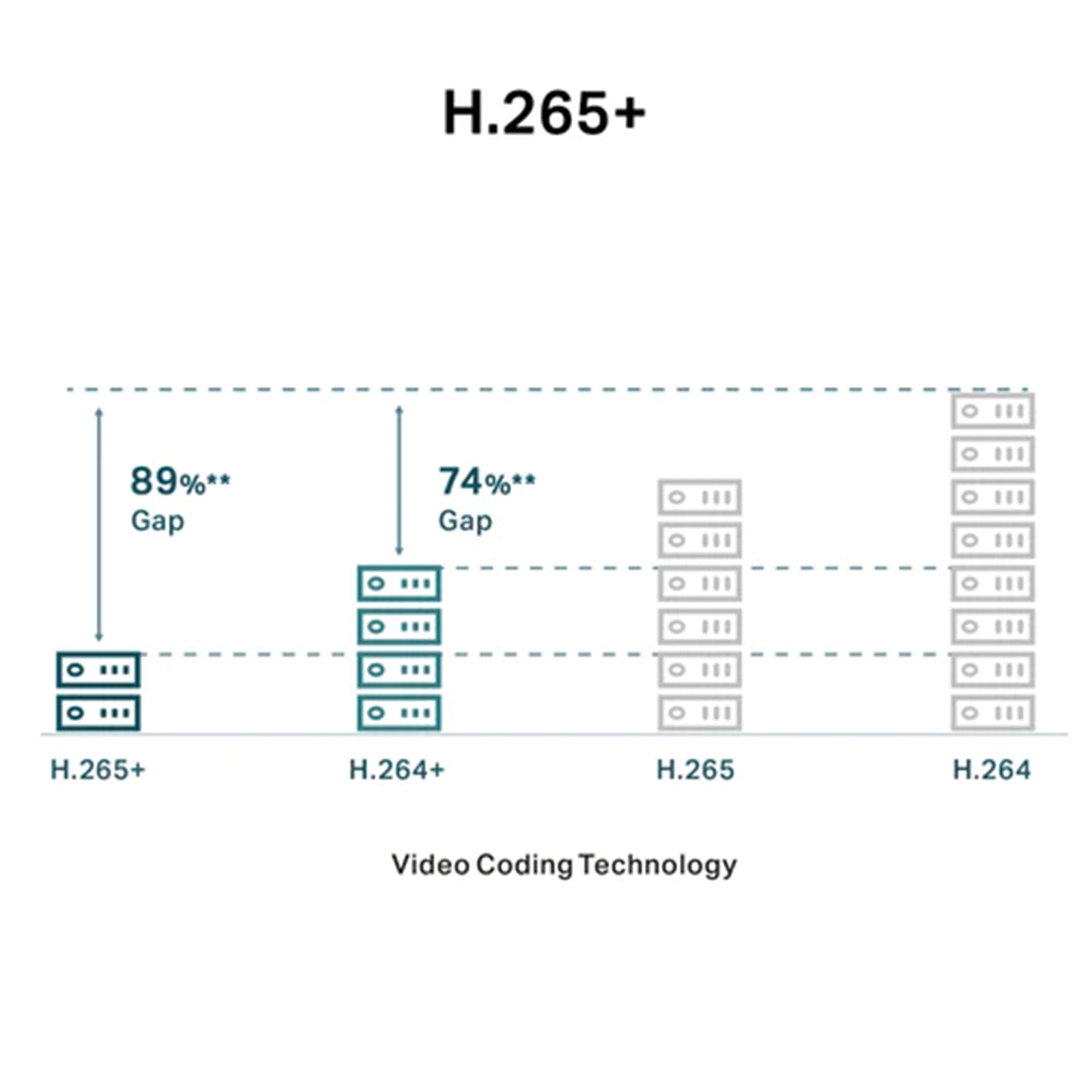

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

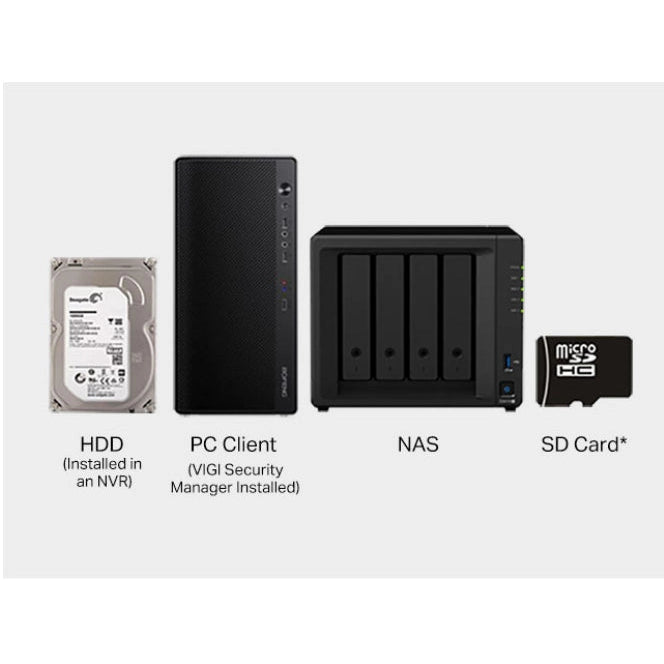

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

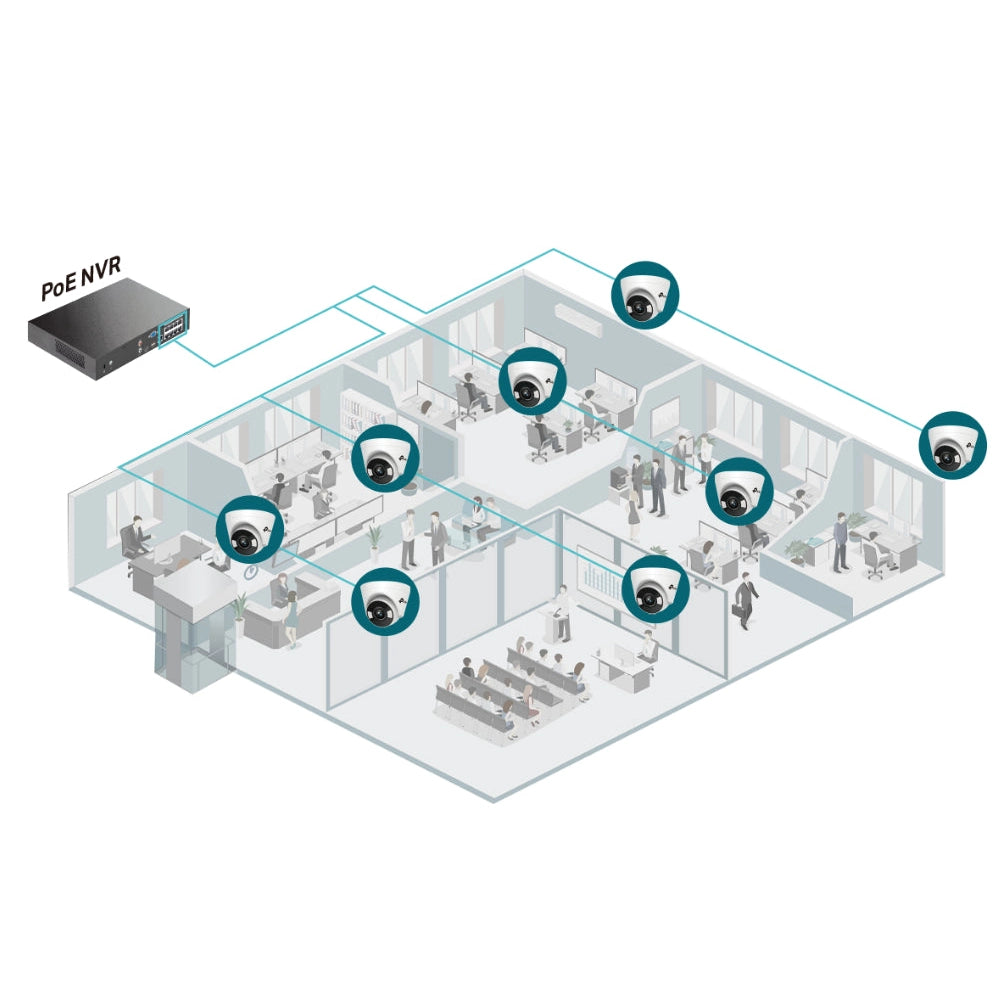

Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Specifications
CAMERA
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Day/Night/Auto/Schedule-Switch
LENS
Type: Fixed Focal Lens
Focal Length: 2.8mm
Aperture: 2.8mm: F1.6
FOV: 2.8mm (Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°)
Lens Mount: M12*P 0.5
DORI Distance: 2.8 mm: Detect: 64 m (209 ft), Observe: 27 m (87 ft), Recognise: 13 m (42 ft), Identify: 6 m (21 ft)
VIDEO
Max. Resolution: 2880 X 1620
Main Stream
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps / 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps / 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED:
Quantity: 2
Range: 30m
Wave-Length: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL): Range: Pan: 0° to 360°, Tilt: 0° to 85°
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: 120 dB
SNR: = 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Communication: Yes
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)
NETWORK
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage: NAS (NFS, SMB/ CIFS)
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Google Chrome® 57 and above / Firefox® 52 and above / Safari® 11 and above / Microsoft® Edge 91 and above
Cloud: Yes
ONVIF: Yes
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
ALARM AND EVENT MANAGEMENT

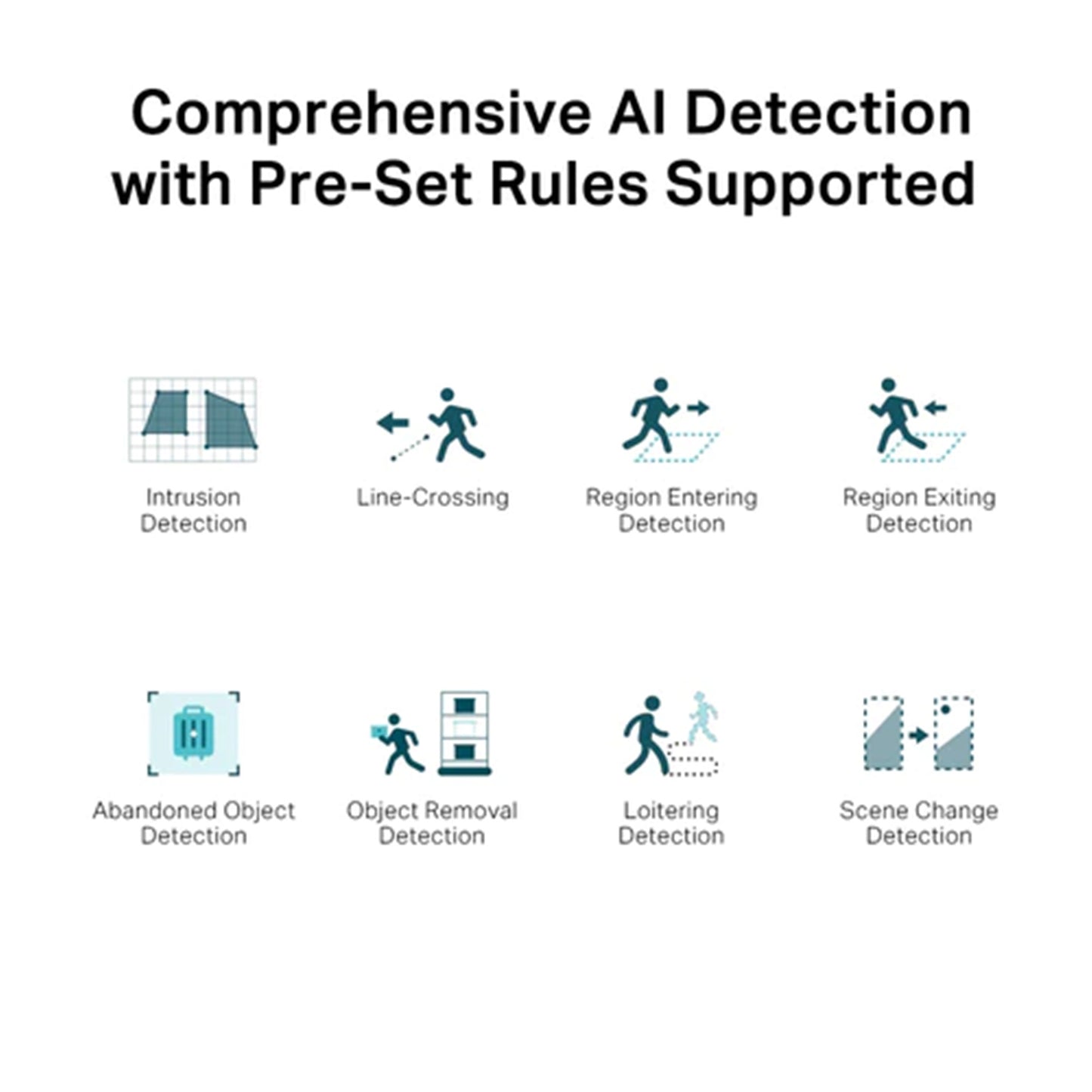

Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push
DEEP LEARNING FUNCTION
Multi-Target-Type Detection: Supports Simultaneous Detection and Capture of Human Body and Vehicle
GENERAL
Operating Temperature: -30-60 °C
Storage Temperature: -40-60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)
Material: Plastic
Net Weight: 0.24 Kg
Gross Weight: 0.4 Kg
Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug / PoE (802.3at, class 0)
Power Consumption: Maximum: 9 W / Typical (Day Mode): 1.76 W / Typical (Night Mode with IR LED): 3.5 W / Typical (Night Mode with White LED): 3.8 W
Protection: N/A
Product Dimensions (L x W x H): F123x84 mm
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
Package Contents

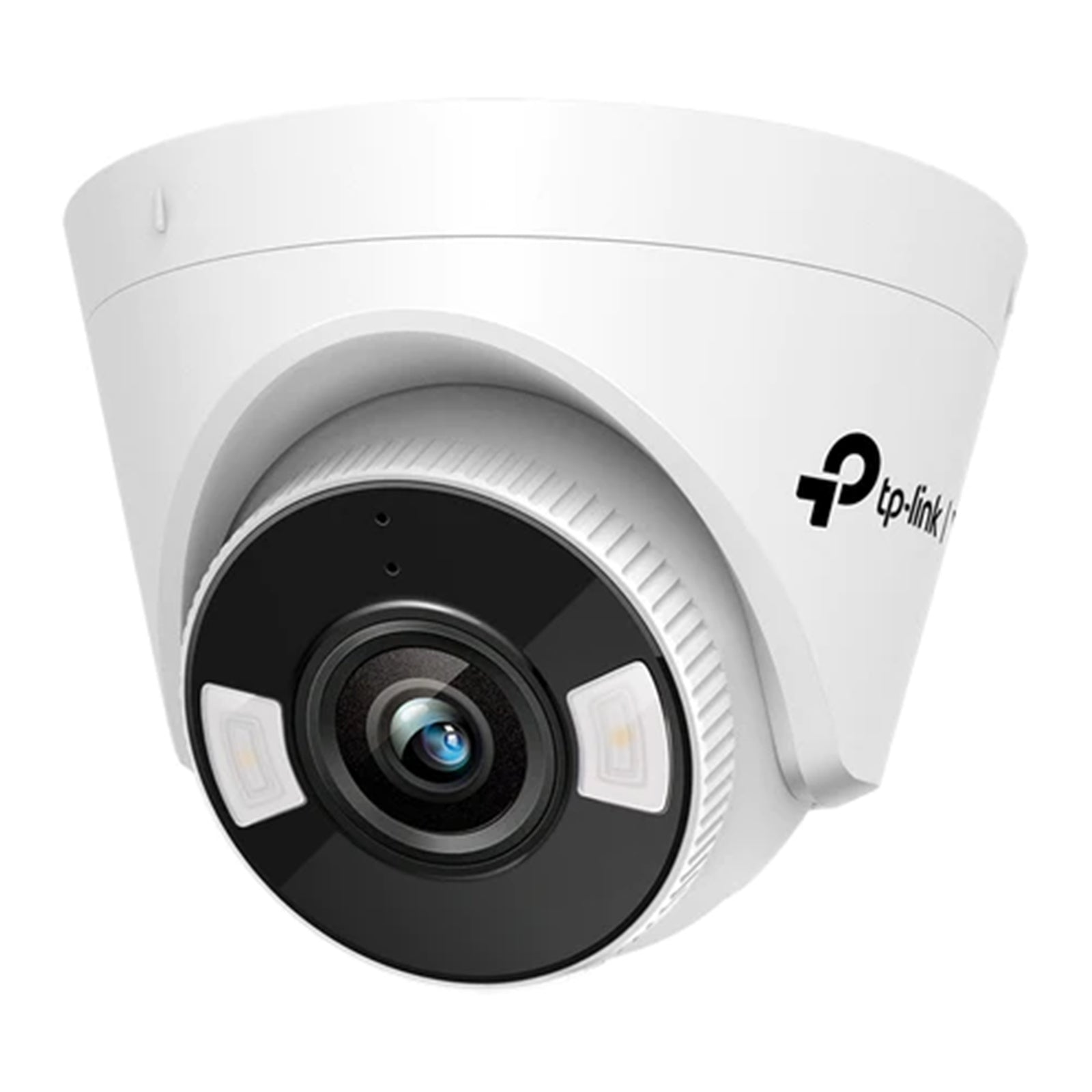

VIGI Wired Network Camera
Quick Start Guide
Mounting Accessories
Warranty: 12 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
