Features
2K+ 5MP Live View
Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine-details captured even in low-light environments.
Colour Night Vision
With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and colour at night.

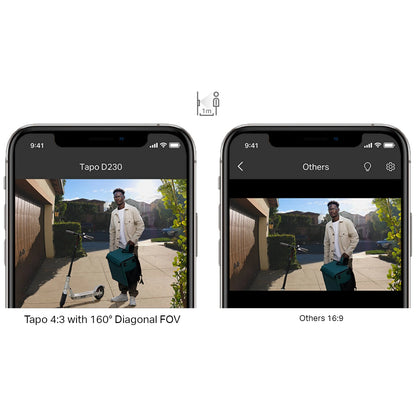

Head-to-Toe View
With the camera's ultra-wide FOV (160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m, which shows more vertical details than other 16:9 doorbells'.

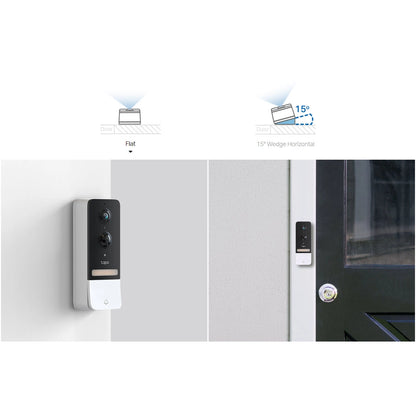

Flexible Placement, Flexible Views
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.

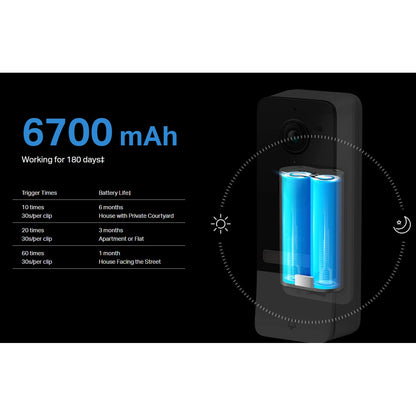

Longer Battery Life
The rechargeable and removable battery with a low-power protocol extends your usage.
Person and Vehicles Detection
Powerful Al identifies people or vehicles, notifying users with filtered notifications.
Multiple Ways to Answer
With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
Indoor Chime Provided
Choose from a variety of ringtones to get alerted immediately when you are at home.
Flexible Storage Choice
Save recorded videos on the hub-installed microSD card (up to 512 GB) or by using Tapo Care cloud storage services.
Anti-theft Alarm
Be alerted when someone tries to take the doorbell off with the anti-theft alarm function.
Compatibility List of microSD Cards
Notes:
• The information listed in the compatibility table is based solely on our lab test results. This indicates that the SD cards have been tested for compatibility with the camera, but the stability depends on the quality of each card.
• MicroSD cards use flash memory technology, which has a limited number of write cycles. Each data write operation wears down the flash memory chips. We recommend choosing high-endurance SD cards specifically designed for video surveillance and continuous read/write operations.
• Based on our lab test results, sorry to tell you that the Samsung (256 GB, EVO plus U3, V30, A2, SDXC1) is not supported by any Tapo/Kasa cameras.
More information, please click the link: https://www.tp-link.com/au/support/faq/3048/
Specifications
CAMERA
Image Sensor: 1/2.7"
Resolution: 2K+ 5MP (2560 × 1920px, 15fps)
Lens: F/NO: 2.1
Viewing Angle: 160° Diagonal
Colour Night Vision: 850 nm IR LED (up to 25 ft)
Weatherproof Rating: IP64
VIDEO
Frame Rate: 15 fps
Video Streaming: 2K+ 5MP
Video Compression: H.264
Audio Compression: G.711
AUDIO
Audio Communication: 2-Way Audio
Audio Input & Output: Built-in microphone and speaker
NETWORK
Standards and Protocols: IEEE 802.11b/g/n, 2.4 GHz
Security: 128 bit AES encryption with SSL/TLS
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Frequency: 2.4 GHz
Wireless Security: WPA/WPA2-PSK
VIDEO STORAGE
Memory Card Support: Up to 512GB Micro SD (Local)
Cloud: Optional, Subscription required
SMART HOME INTEGRATION
Amazon Alexa & Google Assistant
ACTIVITY NOTIFICATIONS
Input Trigger: Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection.
Output Notification: Notification, Snapshot (Tapo Care), Clips (Tapo Care).
ENVIRONMENT
Operating Temperature: -20°C~45°C (-4°F ~113 °F )
Storage Temperature: -20°C~45°C (-4°F ~113 °F )
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 5%~90%RH, Non-condensing
HARDWARE
Button
Doorbell Button: Reset/SYNC/Anti-Theft Button
Hub Button: Reset Button; SYNC Button
Indicator LED
Doorbell Indicator LED: System LED
Hub Indicator LED: System LED
Adapter Input
Doorbell Adapter Input: 100-240V, 50/60Hz
Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
Adapter Output
Doorbell Adapter Output: 5.0V, 1.0A
Hub Adapter Output: 9.0V, 0.85A
Product Dimensions (W x D x H)
Camera Dimensions (Lx W x H): 5.7*0.21*1.3in
(146*54.5*35.5mm)
Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in
(71.45*71.45*31.25mm)
Warranty: 24 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
