Features
Brighter than Full-Colour
Tapo C520WS renders brighter images than other full-colour night vision cameras with spotlights on due to its starlight sensor.
See Colours in Low Light
Equipped with an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, revealing colourful images even without spotlights on.
Multiple Night Vision Modes
Tapo C520WS offers 3 night vision modes to choose from. Full-Colour Mode provides 24/7 full-time colours while Smart Mode will only turn on spotlights for colourful pictures when an event is detected. Infrared Mode is also supported for your convenience.
2K QHD Crystal Clear View
Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.
360° Visual Coverage
Provides 360° horizontal & 130° vertical view range to capture everything around.
Multiple AI Detection, All for Free!
Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.

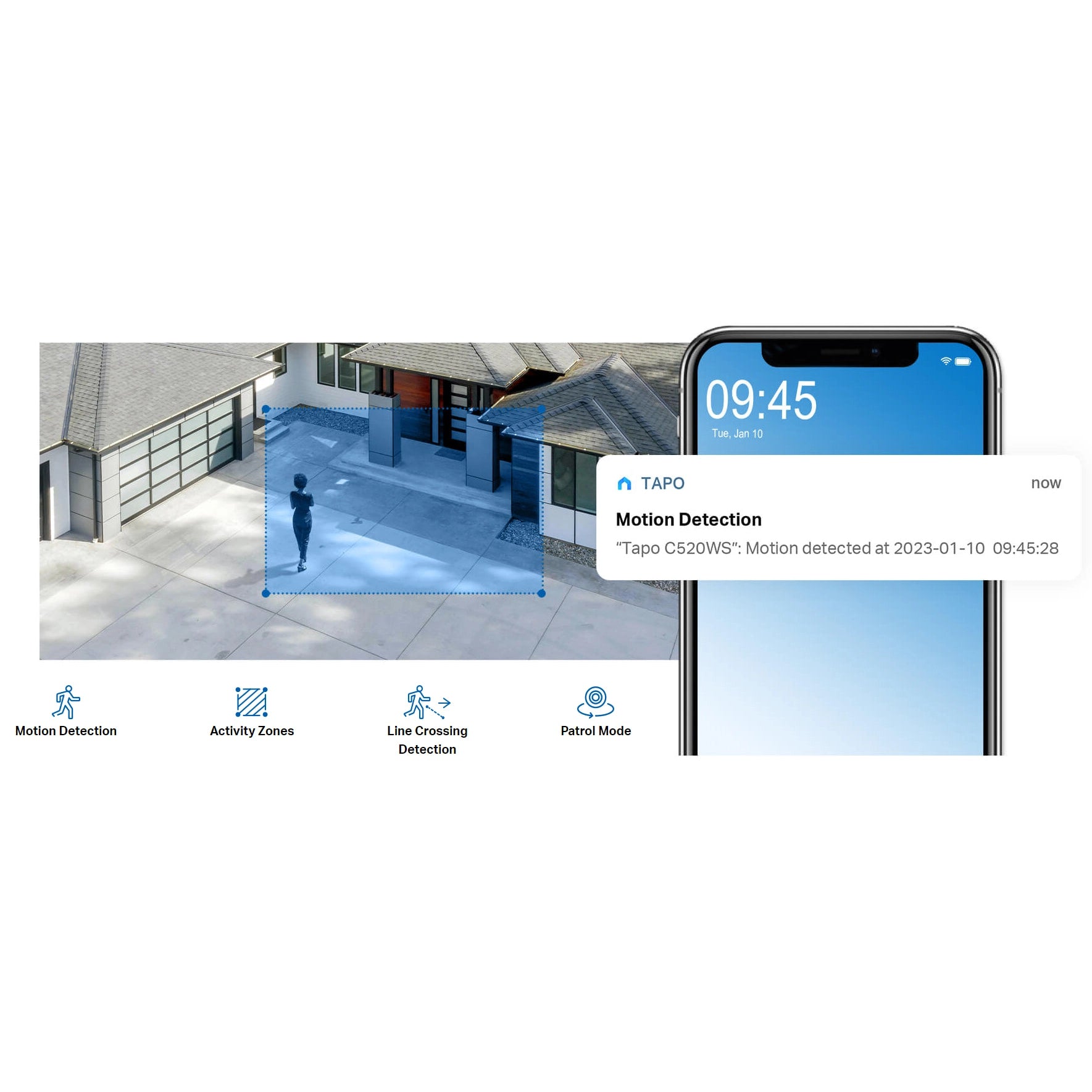

Customise Your Detection
Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customised points.

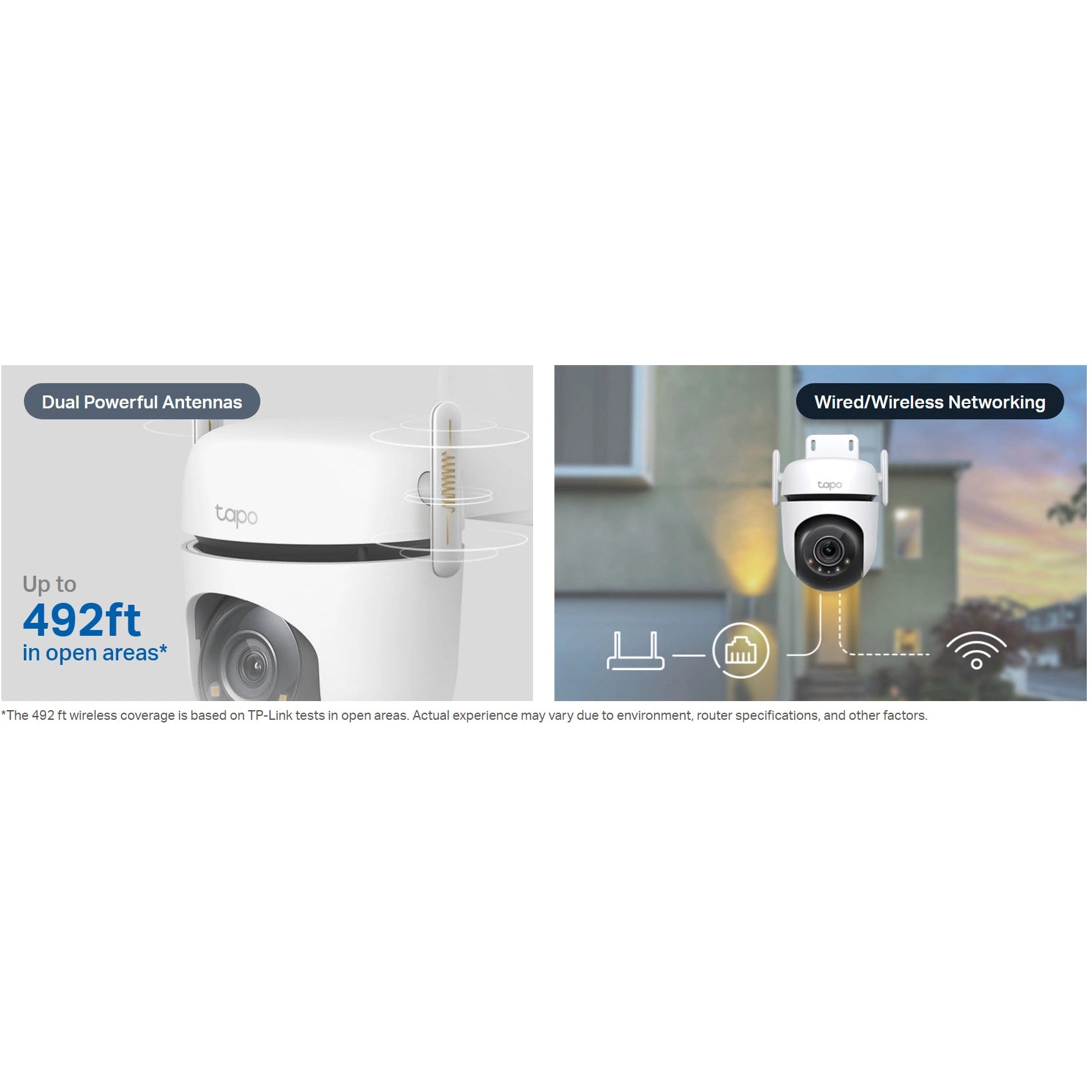

Reliable Networking, Flexible Connection
Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you're your camera to the network through the RJ45 Ethernet port.
Customisable Sound and Light Alarm
Record your own audio as an alarm to extent your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.
Secure Local & Cloud Storage
Save recorded videos to a microSD card? (up to 512 GB) or by using Tapo Care** cloud services.

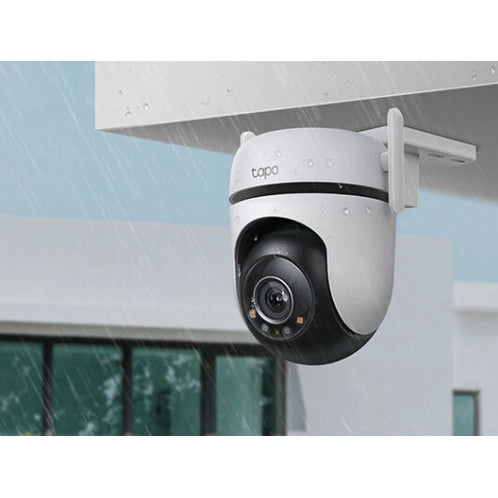

IP66 Weatherproof
Offers excellent waterproof and dustproof performance for outdoor scenarios.

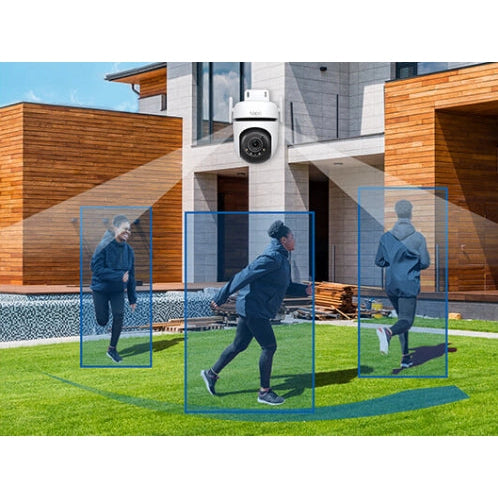

Smart Motion Tracking
Tracks motion with high-speed rotation to keep the object within the camera's view.

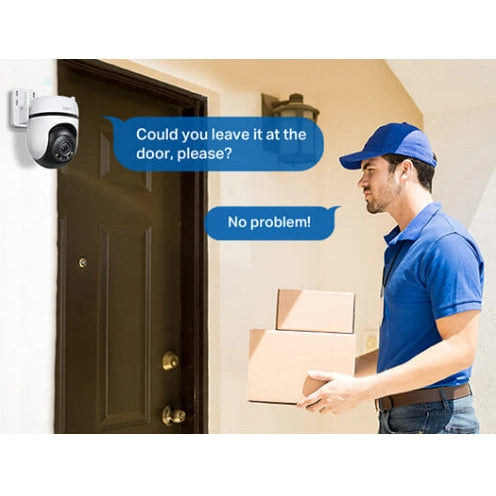

Two-Way Audio
Communicate directly with the outdoors for your convenience.

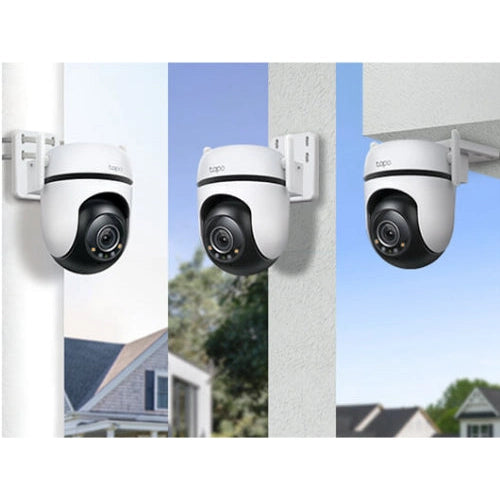

Multiple Installation Options
Use the mounting screws, template and loops? to install on any wall, ceiling or pole for the perfect view-wherever you want.

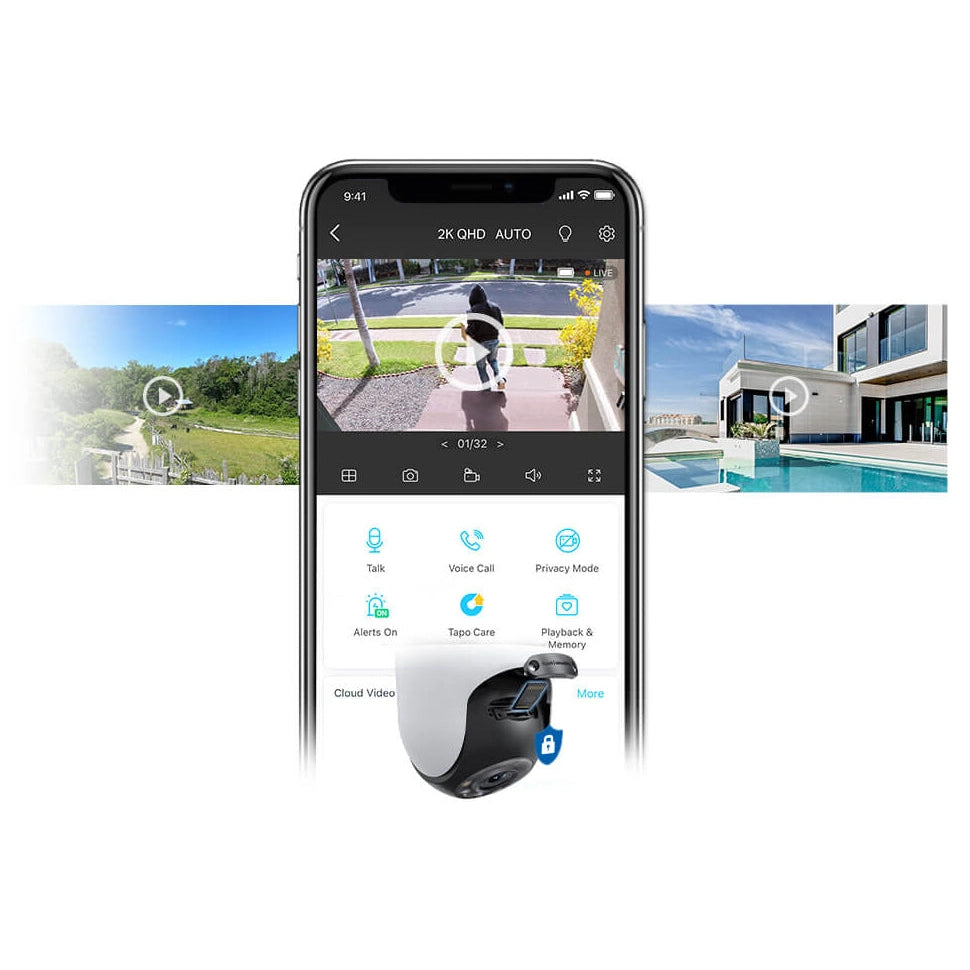

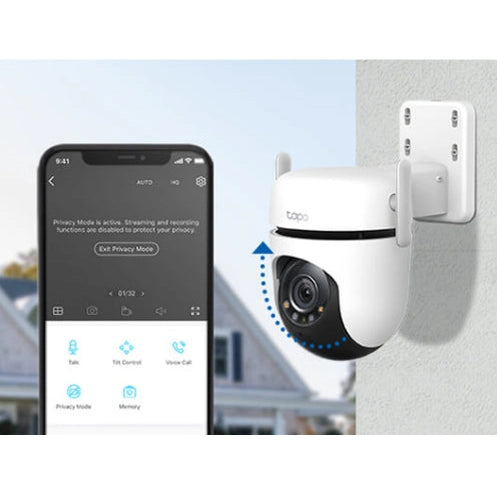

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.
Voice Activated
Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.

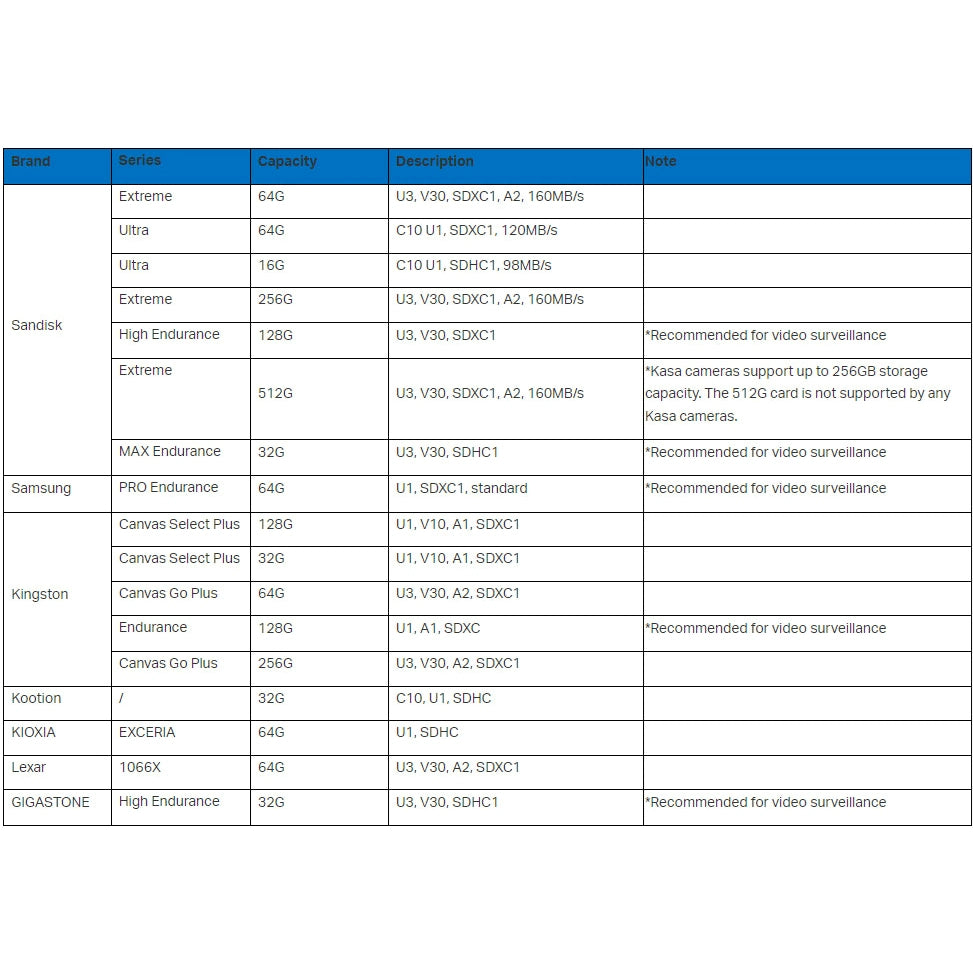

Compatibility List of microSD Cards We’ve Tested
Notes:
• The information listed in the compatibility table is based solely on our lab test results. This indicates that the SD cards have been tested for compatibility with the camera, but the stability depends on the quality of each card.
• Micro SD cards use flash memory technology, which has a limited number of write cycles. Each data write operation wears down the flash memory chips. We recommend choosing high-endurance SD cards specifically designed for video surveillance and continuous read/write operations.
• Based on our lab test results, sorry to tell you that the Samsung (256 GB, EVO plus U3, V30, A2, SDXC1) is not supported by any Tapo/Kasa cameras.
More information, please click the link: https://www.tp-link.com/au/support/faq/3048/
Specifications
CAMERA
Image Sensor: 1/3'' CMOS
Resolution: 2K QHD 4MP (2560 × 1440 px)
Lens: F/NO: 1.61±10%; Focal Length: 3.18mm±5%
View Range: 360° horizontal and 130° vertical
Night Vision: 850 nm IR LED (up to 98ft), Starlight Colour Night Vision
Weatherproof Rating: IP66
VIDEO
Frame Rate: Up to 25/30fps
Video Streaming: 2K QHD
Video Compression: H.264
AUDIO
Audio Communication: Two-Way
Audio Input & Output: Built-in Microphone and Speaker
NETWORK
Standards and Protocols: IEEE 802.11b/g/n
Security: 128 bit AES encryption with SSL/TLS
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Frequency: 2.4GHz
Wireless Security: WPA/WPA2-PSK
ACTIVITY NOTIFICATIONS
Input Trigger: Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection
Output Notification: Snapshot (Tapo Care), Clips (Tapo Care)
ENVIRONMENT
Operating Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Storage Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 0~90%RH, Non-condensing
HARDWARE
Button: RESET Button
Indicator LED: System LED
Adapter Input: 100-240V, 50/60Hz
Adapter Output: 9V, 0.85A (DC Power)
Product Dimensions (W x D x H): 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
Package Contents
Tapo C520WS Camera
Power Adapter (3.0m)
Mounting Anchors
Mounting Screws
Bracket Screws
Mounting Template
Mounting Bracket
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide
Warranty: 24 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
