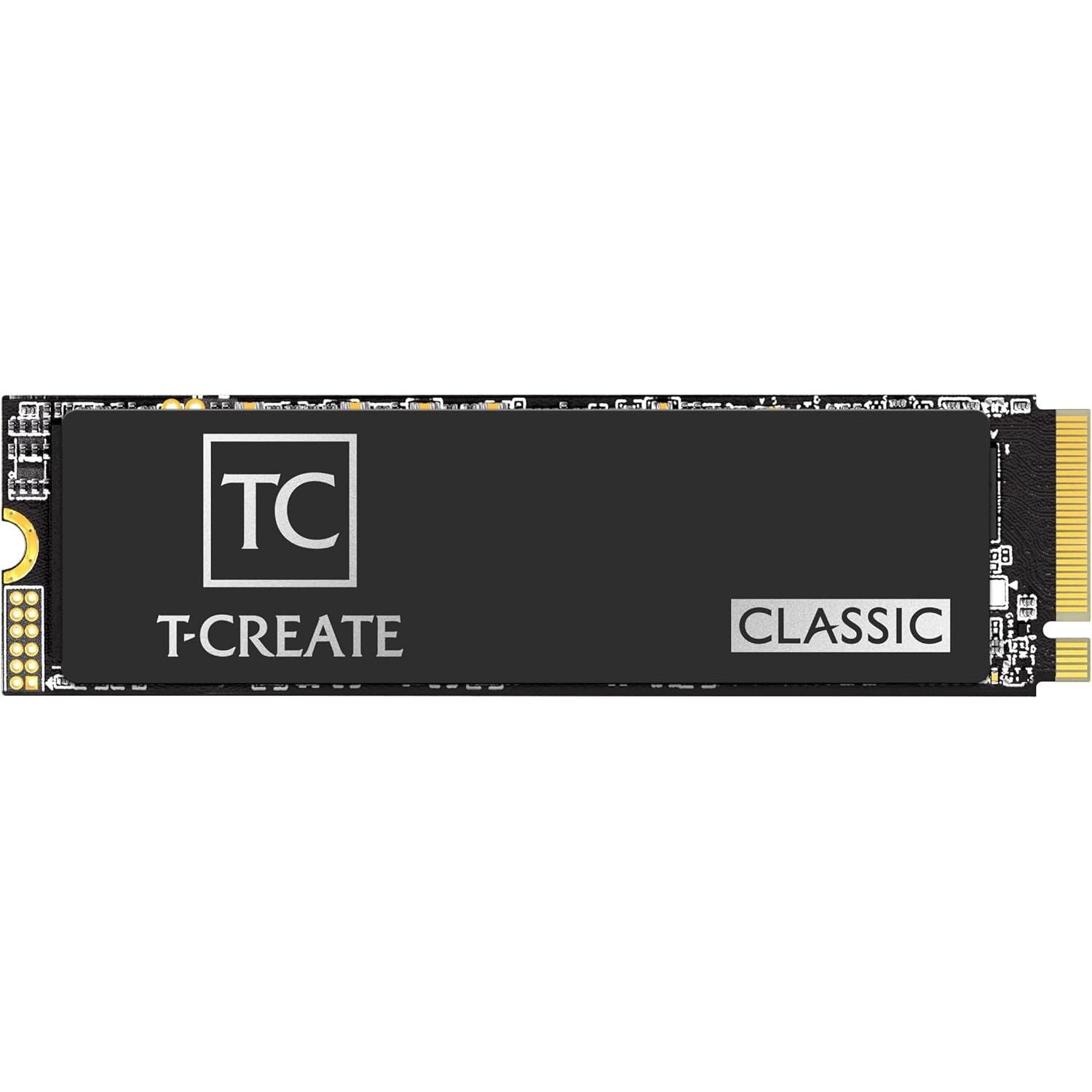

T-CREATE CLASSIC C4 Series PCIe4.0 SSD supports SLC Caching technology and patented extra-slim graphene heatsink. Together with customized high-stability controller and firmware, they make a stable and reliable SSD offering secure data storage. T-CREATE CLASSIC C4 Series PCIe4.0 SSD comes with three models???C43, C45, and C47 and three different speed specs with maximum read speed of 3000B/s, 5000MB/s, and 7000MB/s that dramatically shortens file conversion time. Users can choose products with the most appropriate read speed and capacity depending on their needs to exercise their creativity with no limits.
Primary functions and features
??? Various specs and capacity for freedom of choice
??? Customized stability controller and firmware for secure data storage
??? Patented extra-slim graphene heatsink for worry-free creating process
??? Excellent intelligent management and error correction mechanism
??? SSD condition monitoring offers safer creating process
??? Eco-friendly and sustainable to conserve the Earth
Main introduction
Various specs and capacity for freedom of choice
T-CREATE CLASSIC C4 Series PCIe4.0 SSD comes with three models???C43, C45, and C47 and three different speed specs with maximum read speed of 3000B/s, 5000MB/s, and 7000MB/s for users to choose depending on their creating needs.
Customized stability controller and firmware for secure data storage
The product supports SLC Caching technology for users to set up customized highly-stable controller and firmware to offer a stable and reliable SSD for secure data storage.

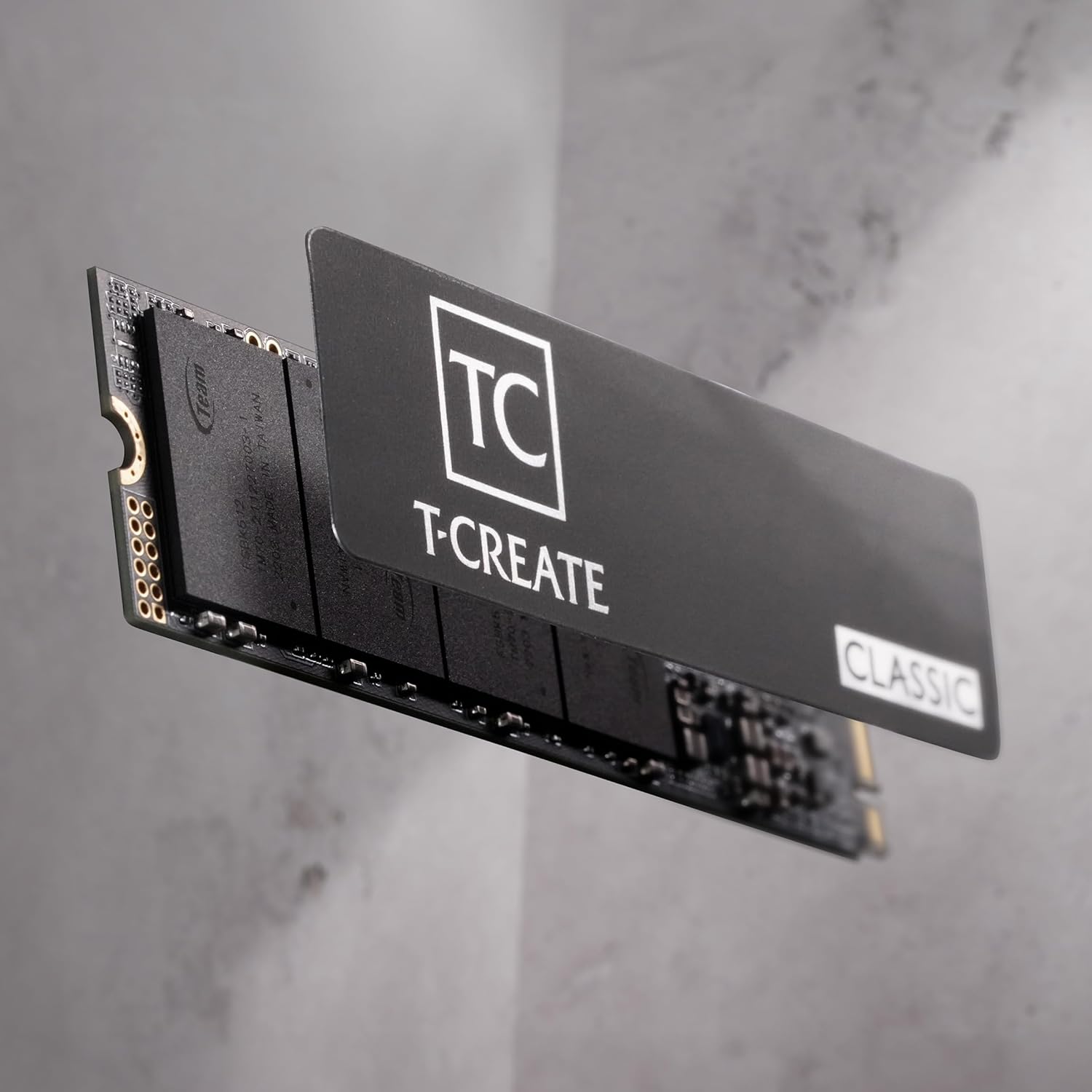

Patented extra-slim graphene heatsink for worry-free creating process
Patented extra-slim graphene heatsink effectively releases the heat brought about by high performance to stabilize system operation, so users won???t need to worry about creating under long hours.
Excellent intelligent management and error correction mechanism
Supports smart algorithm and error correction using high-level LDPC (Low Density Parity Check) to help with data operation efficiency while managing the security and completeness of data transmission, offering a safer creating process.
SSD condition monitoring offers safer creating process
Offers TEAMGROUP???s exclusive patented intelligent SSD monitoring software, S.M.A.R.T, which monitors product status at all times. It also monitors product quality and performance effortlessly through fast and easy setting and inspection to allow for a safer creating process.
Eco-friendly and sustainable to conserve the Earth
The entire production is lead-free and halogen-free, RoHS-compliant, and adopts recyclable environmentally friendly materials for packaging to conserve Earth by being eco-friendly and sustainable.
Specifications
Interface PCIe Gen4x4 with NVMe
Capacity 4TB
Voltage DC +3.3V
Operation Temperature 0??C ~ 70??C
Storage Temperature -40??C ~ 85??C
DRAM Cache NO
Terabyte Written
C47:
4TB - 3000 TBW
Performance
C47:
4TB Read/Write: up to
7400/6600 MB/s
Dimensions 80.0(L) x 22.0(W) x 3.7(H) mm
Weight 7g
Vibration 80Hz~2,000Hz/20G
Shock 1,500G/0.5ms
MTBF 1,700,000 Hours
Operating System Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
Windows 11 / 10 / 8.1 / 8 / 7 / Vista, MAC OS 10.4 or later, Linux 2.6.33 or later
Warranty 5-year limited warranty[4]
