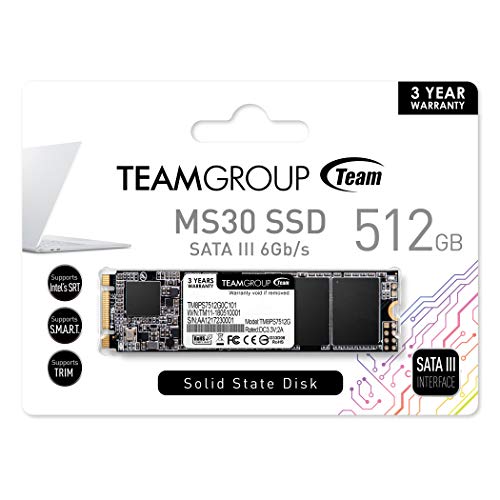

MS30 is a M.2 (NGFF, Next Generation Form Factor) high speed solid state drive of the latest generation. It has the latest SATA III 6Gb/s transfer interface and offers excellent transfer efficiency and compatibility. For different environment usage, MS30 comes in two sizes, 22X80mm and 22X42mm, and the capacity of 22X80mm comes to 1TB, which is capable of satisfying all kinds of specification requirements for motherboards, laptops, mobile devices and developing embedded devices.
Main Feature
Supports Intel???s SRT ???Supports S.M.A.R.T.
Supports TRIM
New Generation power saving technology that extends the battery life
3-year product warranty
Specification
Form Factor : M.2 2280
Interface: SATA Rev. 3.0 (6Gb/s)
Capacity: 512GB
Voltage : DC +3.3V
Operation Temperature : 0??C ~ 70??C
Storage Temperature: -40??C ~ 80??C
Terabyte Written : 512GB / 120TB
Performance : up to 530/430 MB/s
Weight: 10g
Dimensions : 80(L) x 22(W) x 3.5(H) mm
Humidity : RH 90% under 40??C (operational)
Vibration : 80Hz~2,000Hz/20G
Shock : 500 G, 2 m/sec
MTBF : 1,500,000 hours
Warranty : 3-year limited warranty
