Features

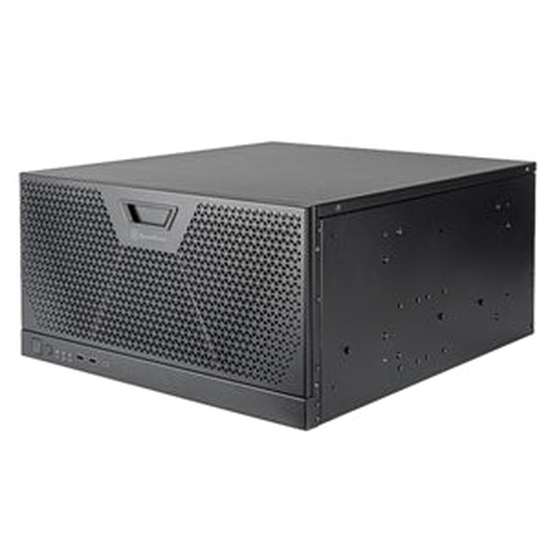

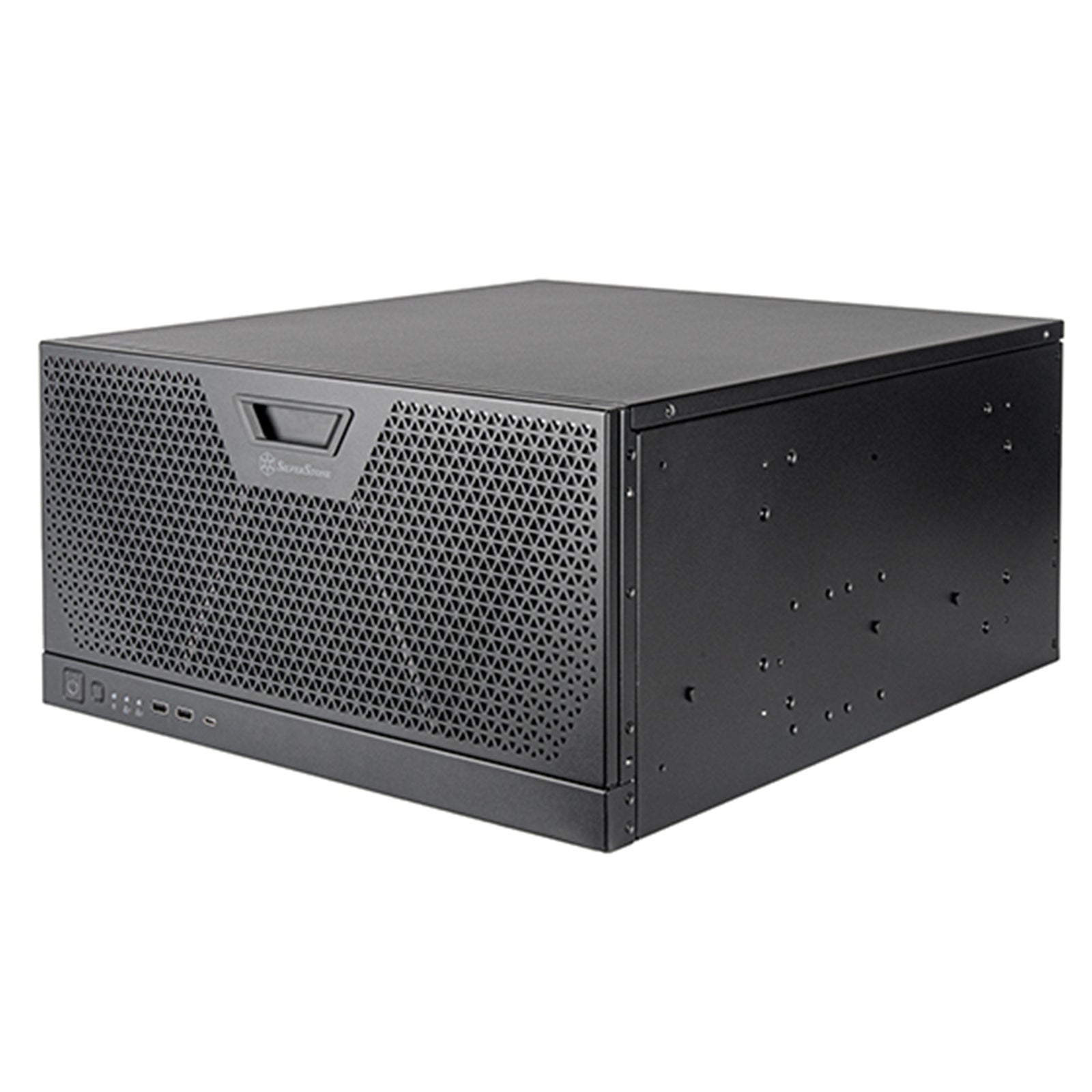

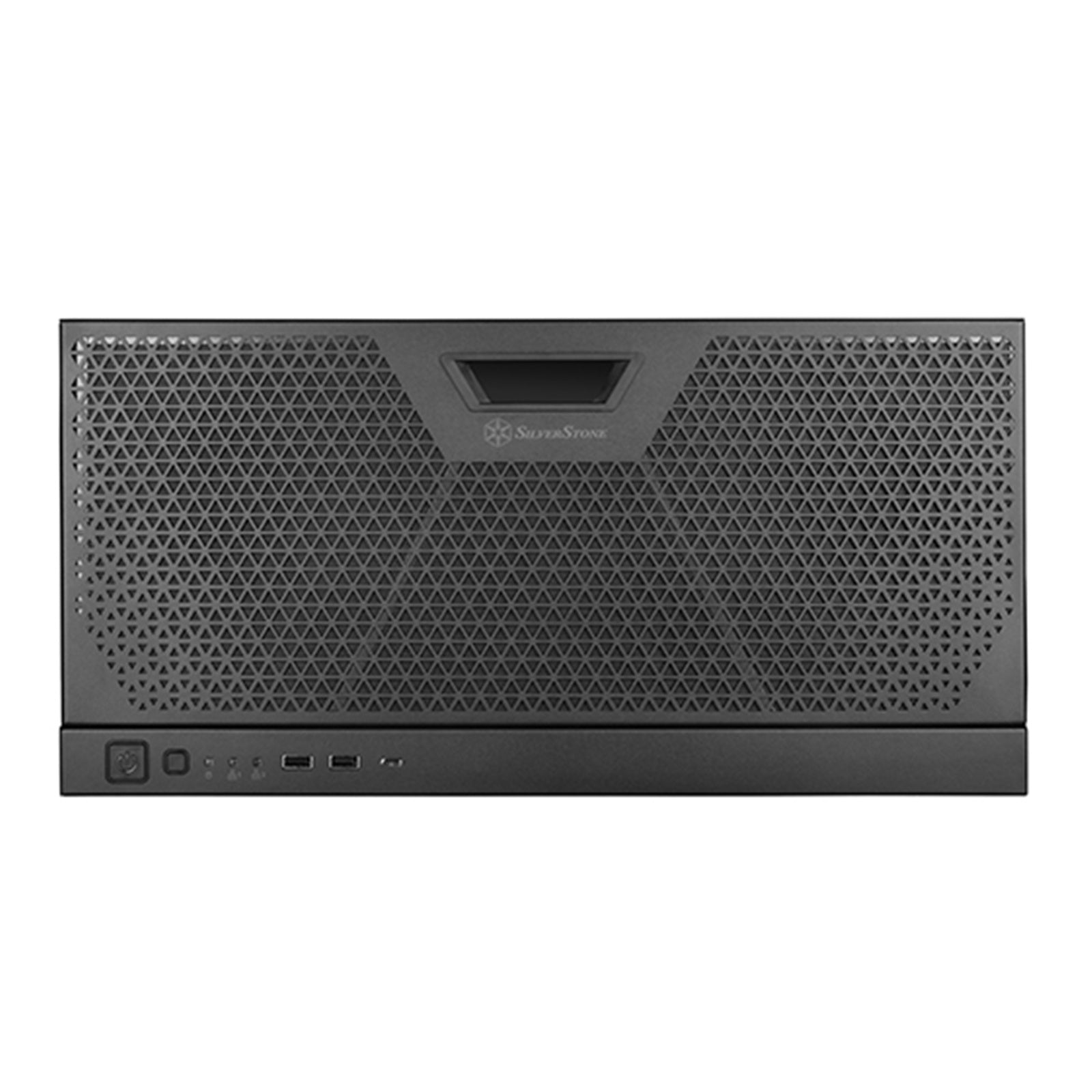

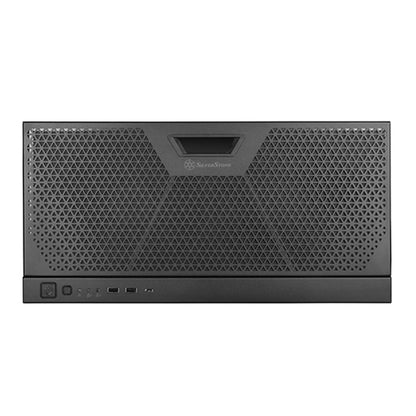

SilverStone RM51 5U Rackmount Server Chassis
5U Rack Mount Server chassis with dual 180mm fans and enhanced liquid cooling compatibility.
- Supports up to SSI-EEB motherboards
- Includes 2 x Air Penetrator 184i PRO fans for superior air intake
- Supports 360mm liquid cooling radiator

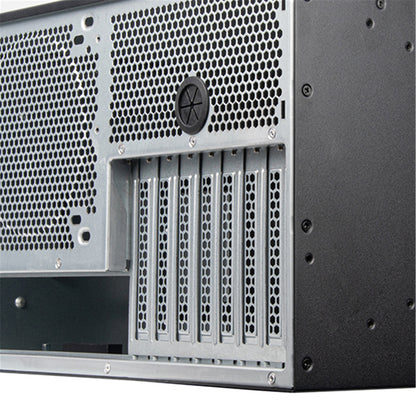

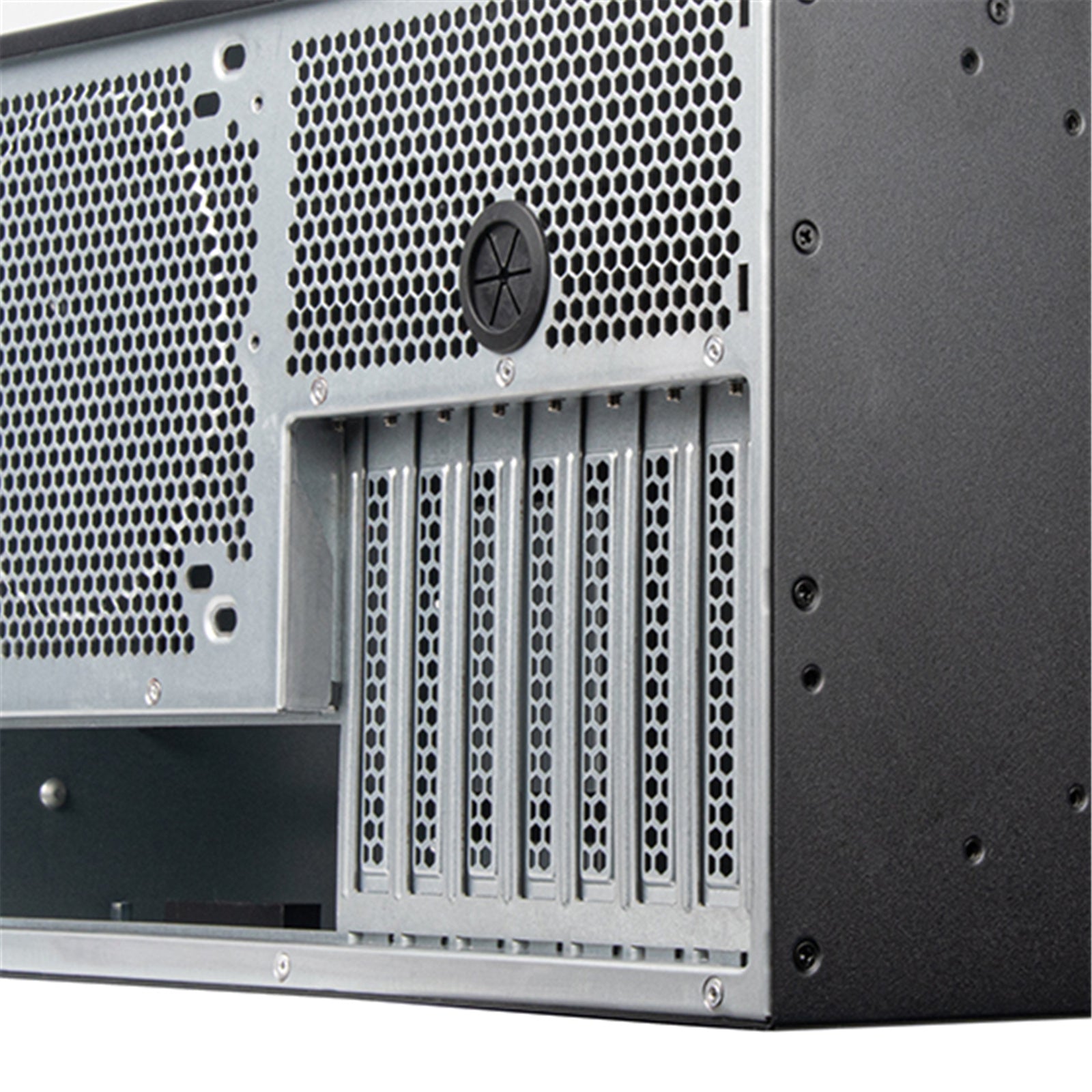

- 8 PCI expansion slots
- Reserved sliding rail mounting holes for quick rail installation
- Includes one USB Type-C interface

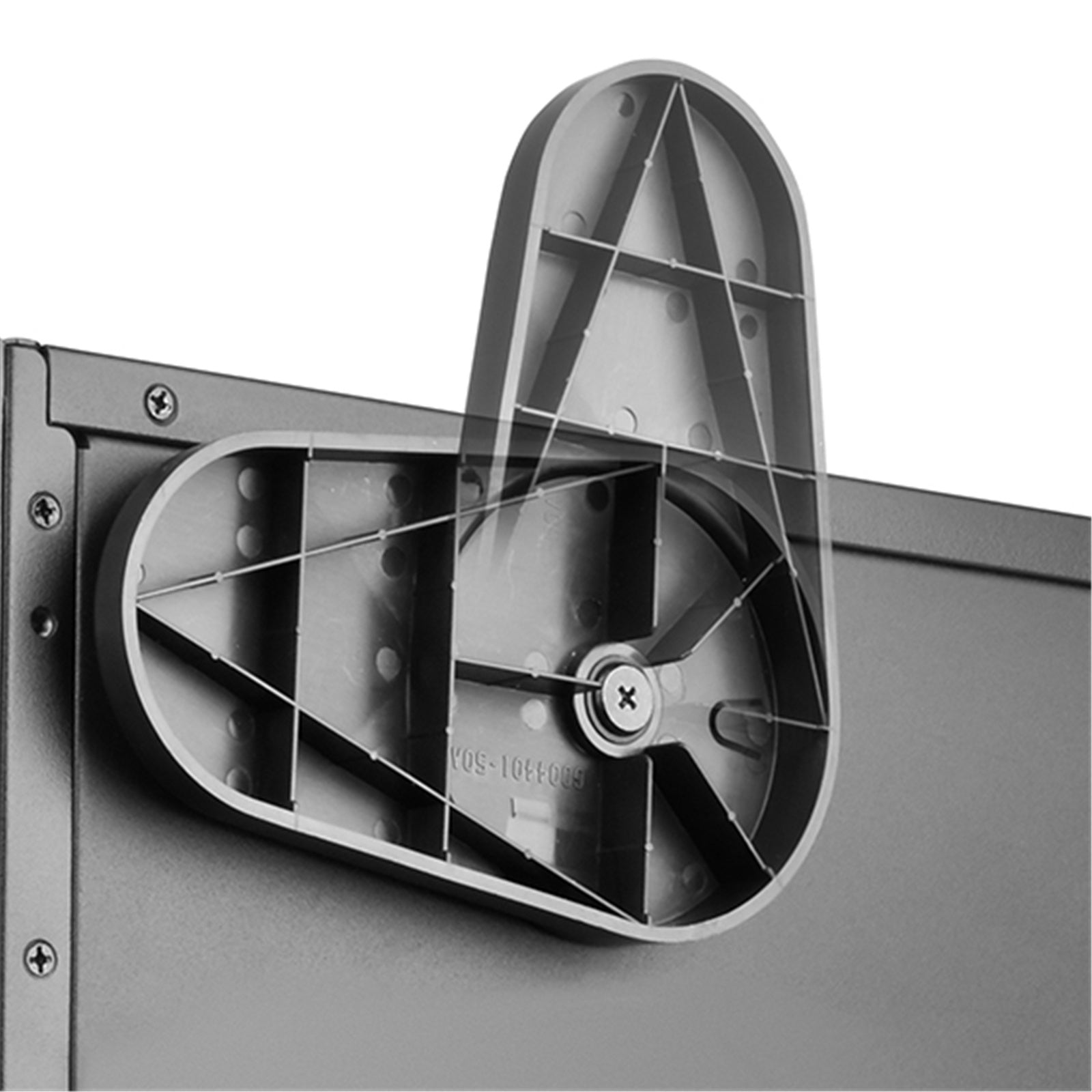

- Upright or horizontal placement flexibility
- Secondary PSU can be installed if 3.5" drive cage is to be left unoccupied

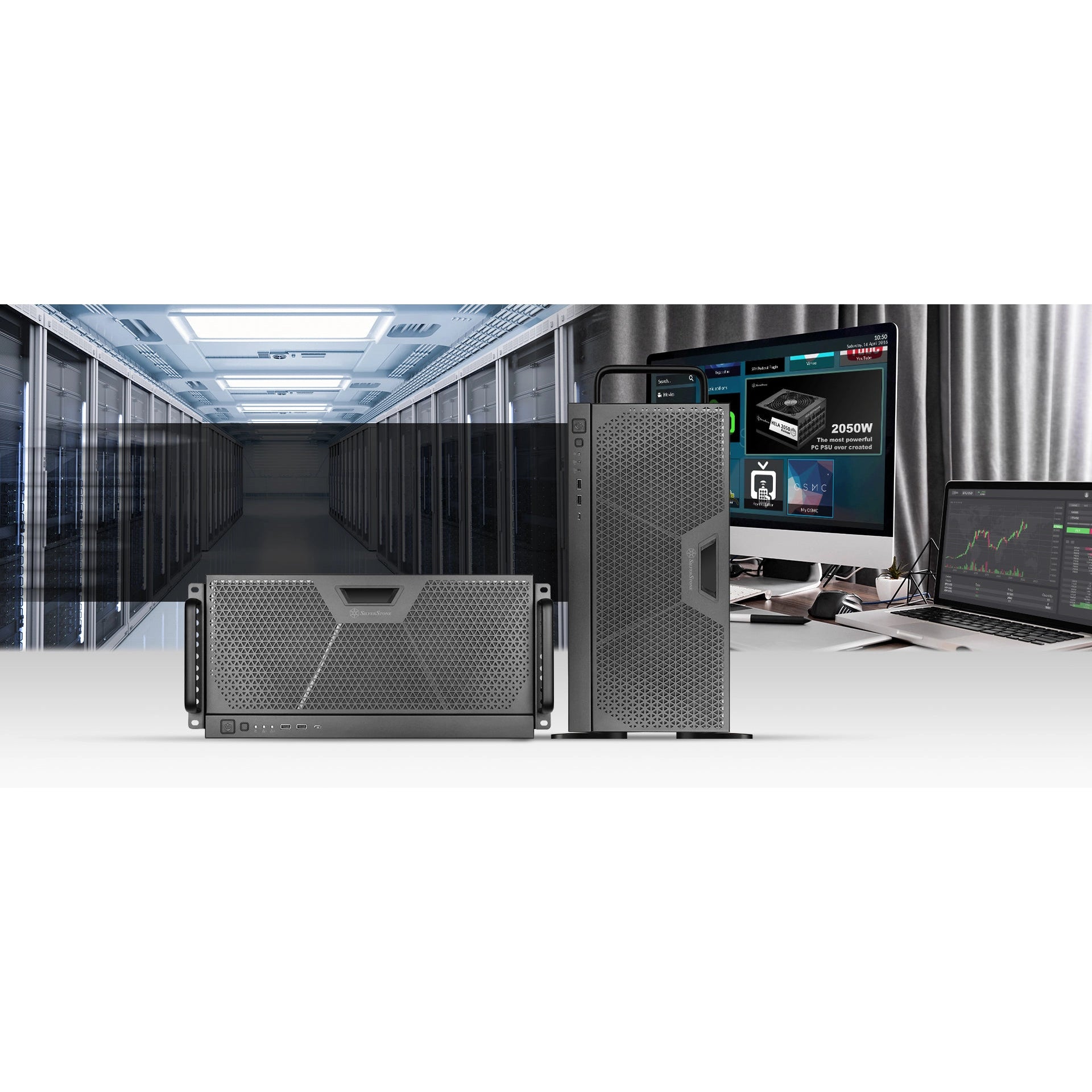

Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.

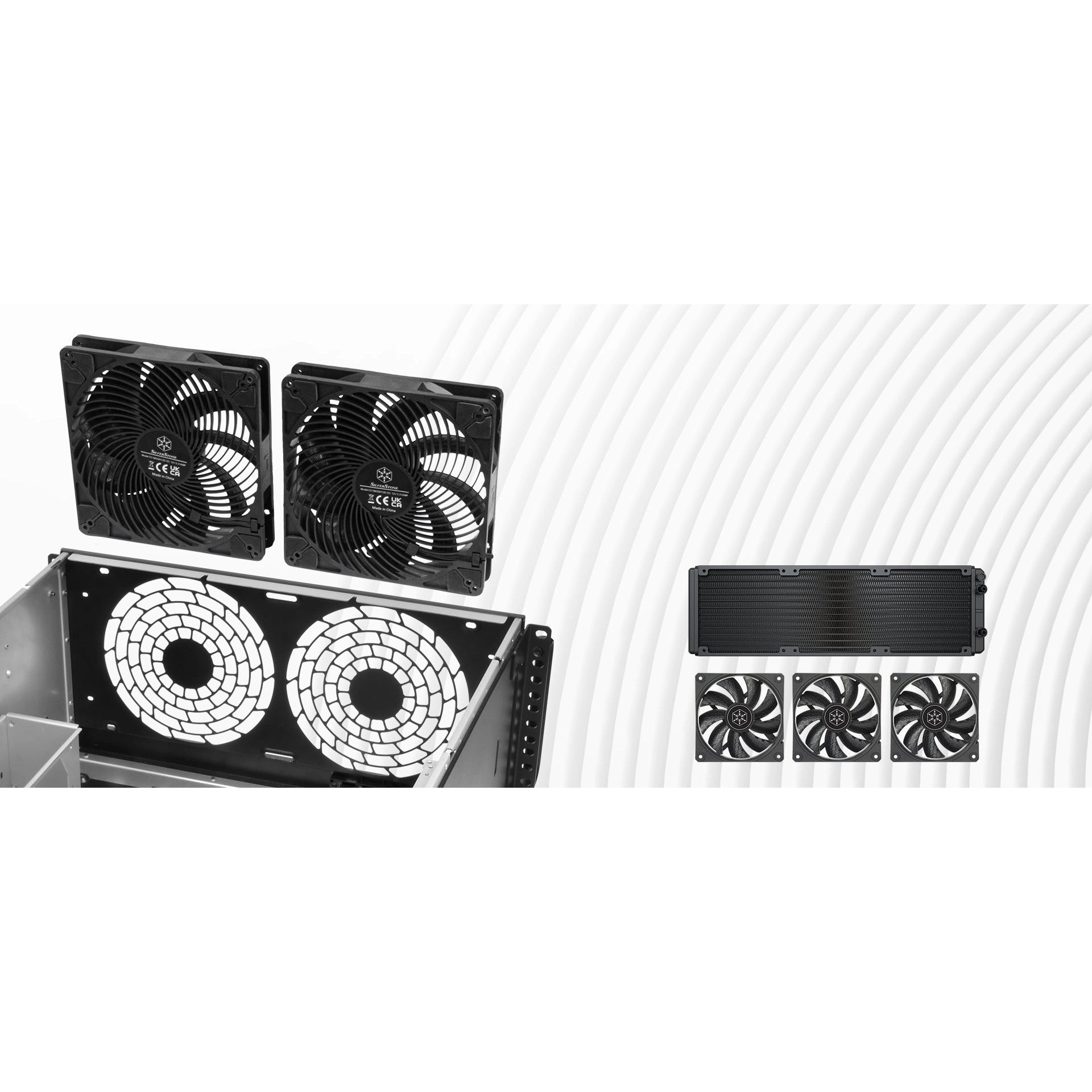

Unparalleled Rackmount cooling performance
2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.
Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.

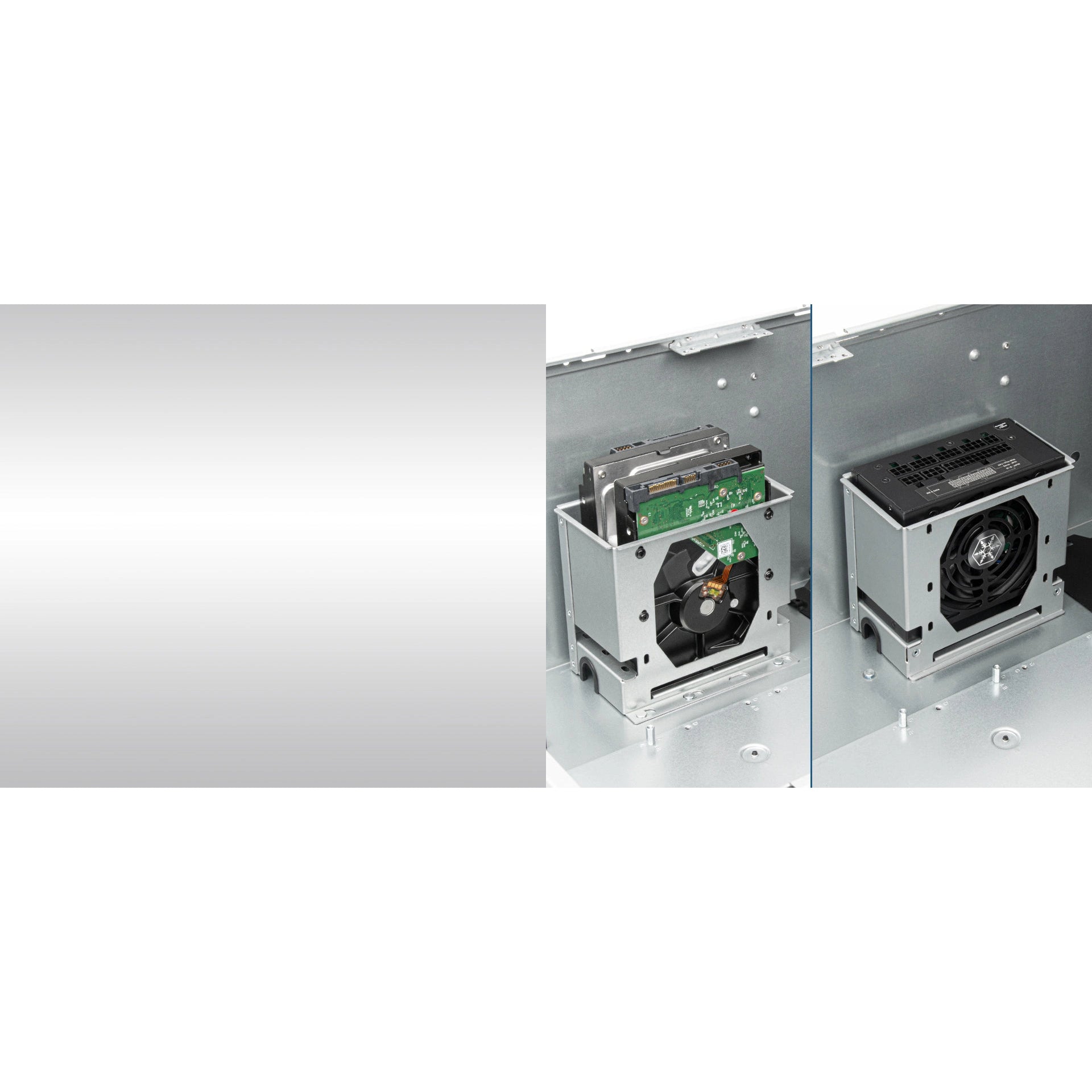

Tremendous hardware versatility
An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor

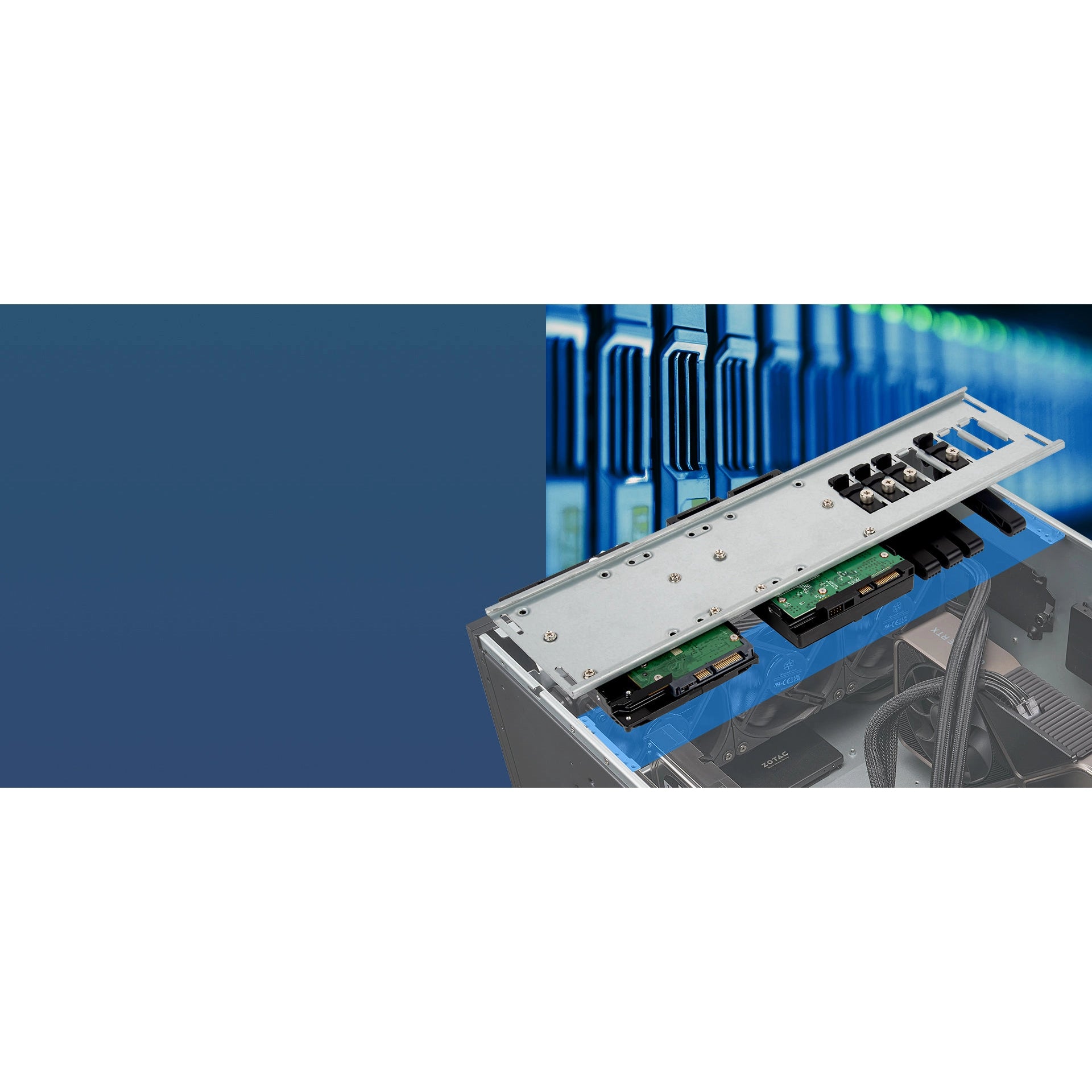

Excellent space maximisation
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximising space utilisation

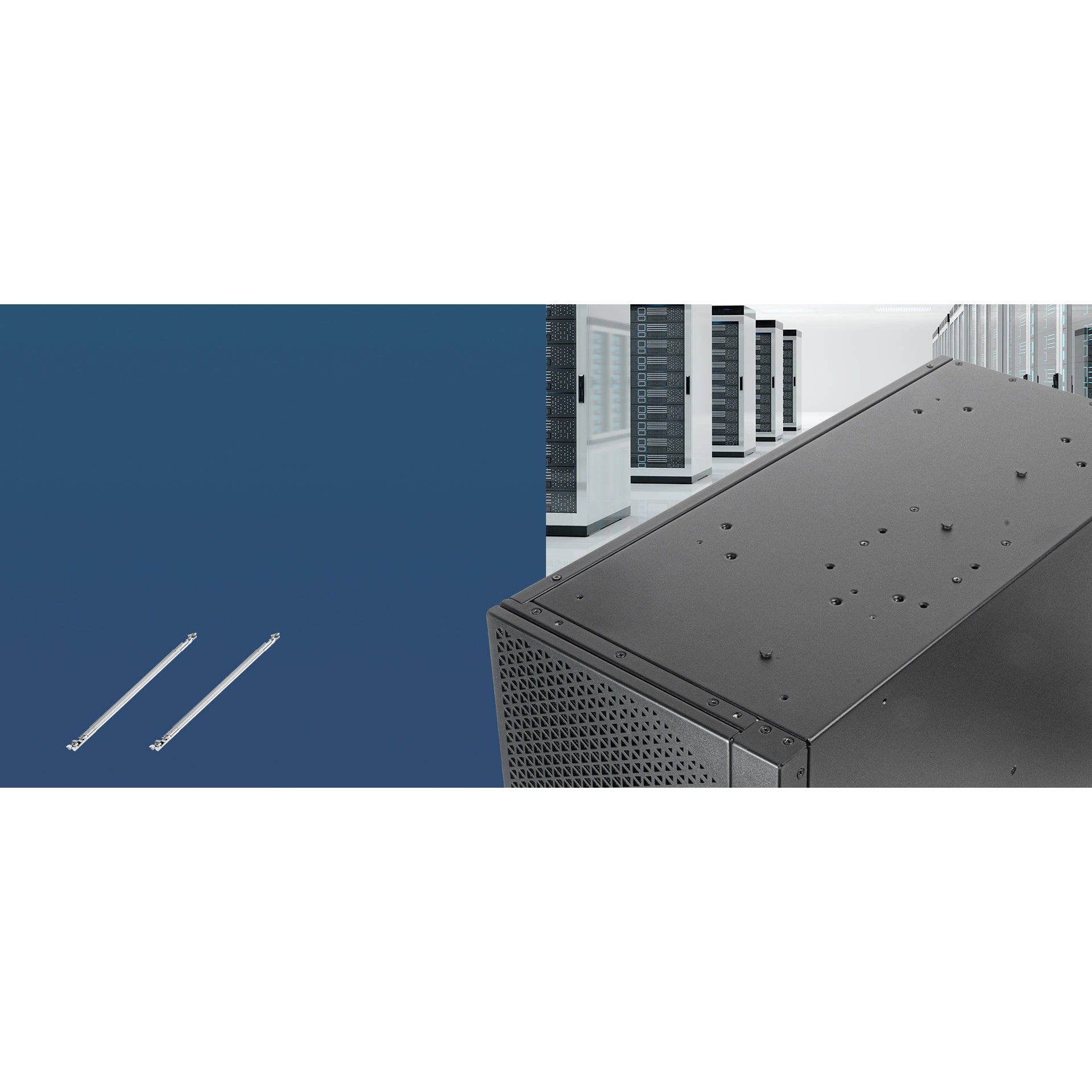

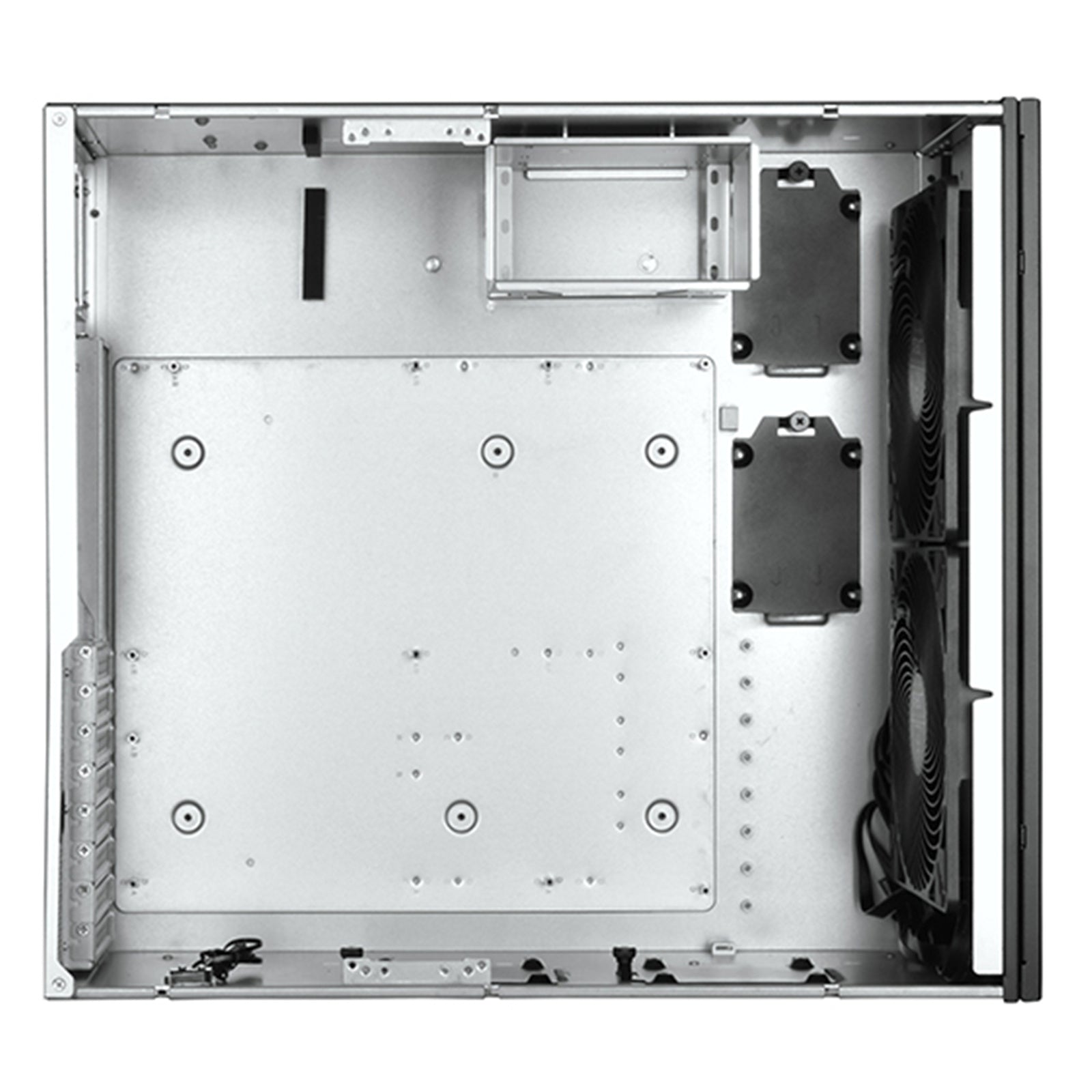

Highly versatile internal layout

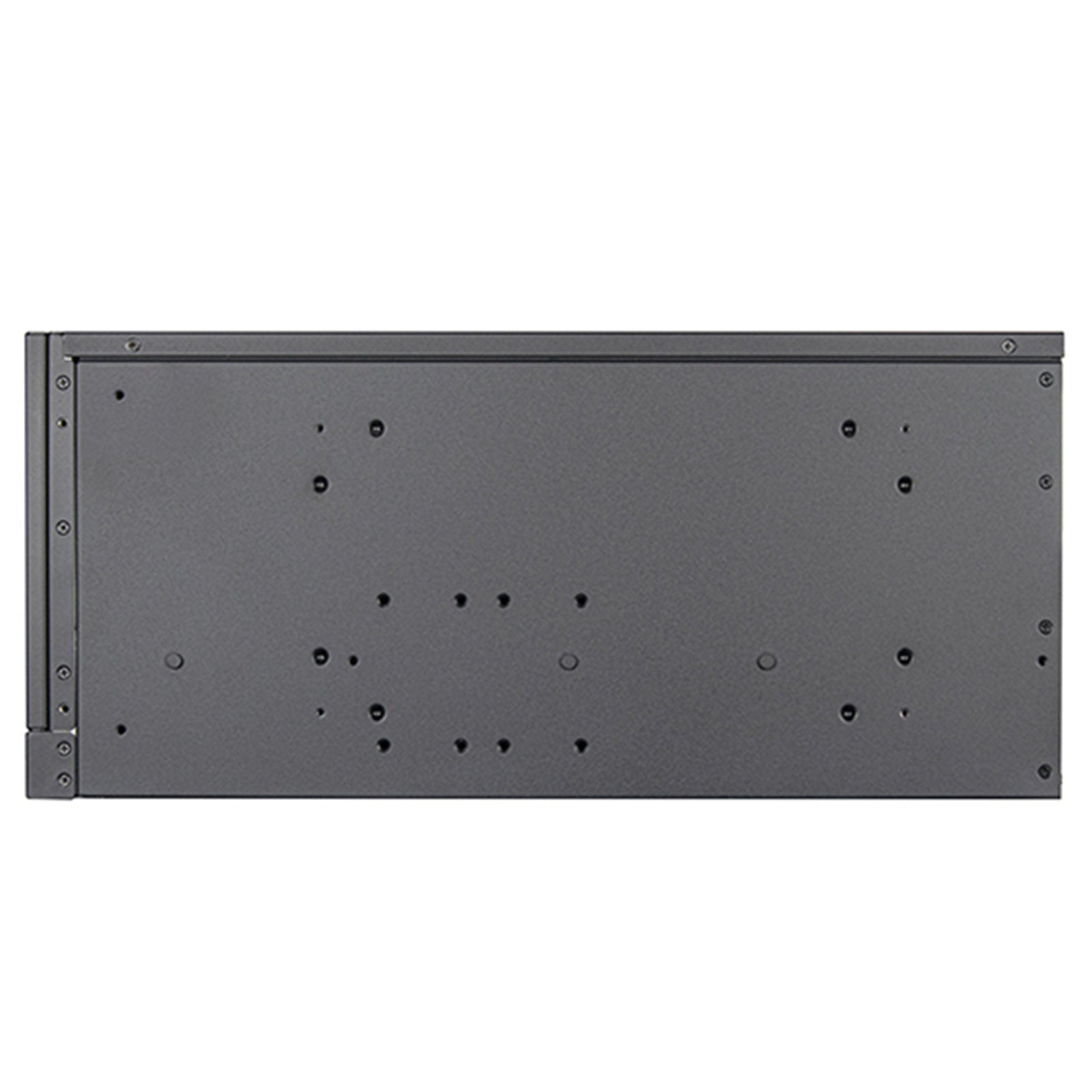

Server rack sliding rails* can be easily fitted onto the chassis with the reserved mounting holes.
*SST-RMS05-22 (sold separately)
Specifications
Model No.: SST-RM51
Chassis Form Factor: 5U

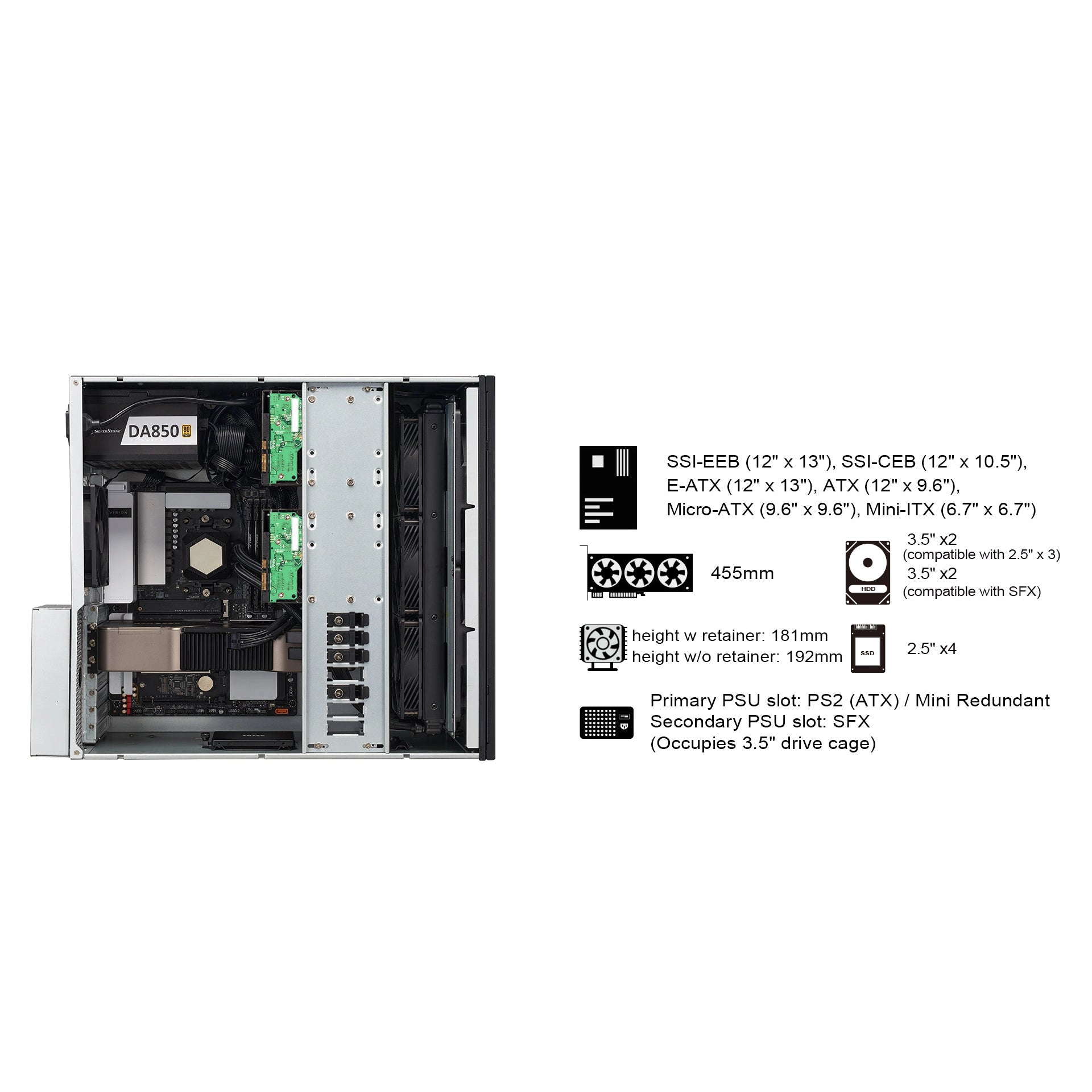

Motherboard Compatibility: SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Material: Steel
Drive Bay
Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)

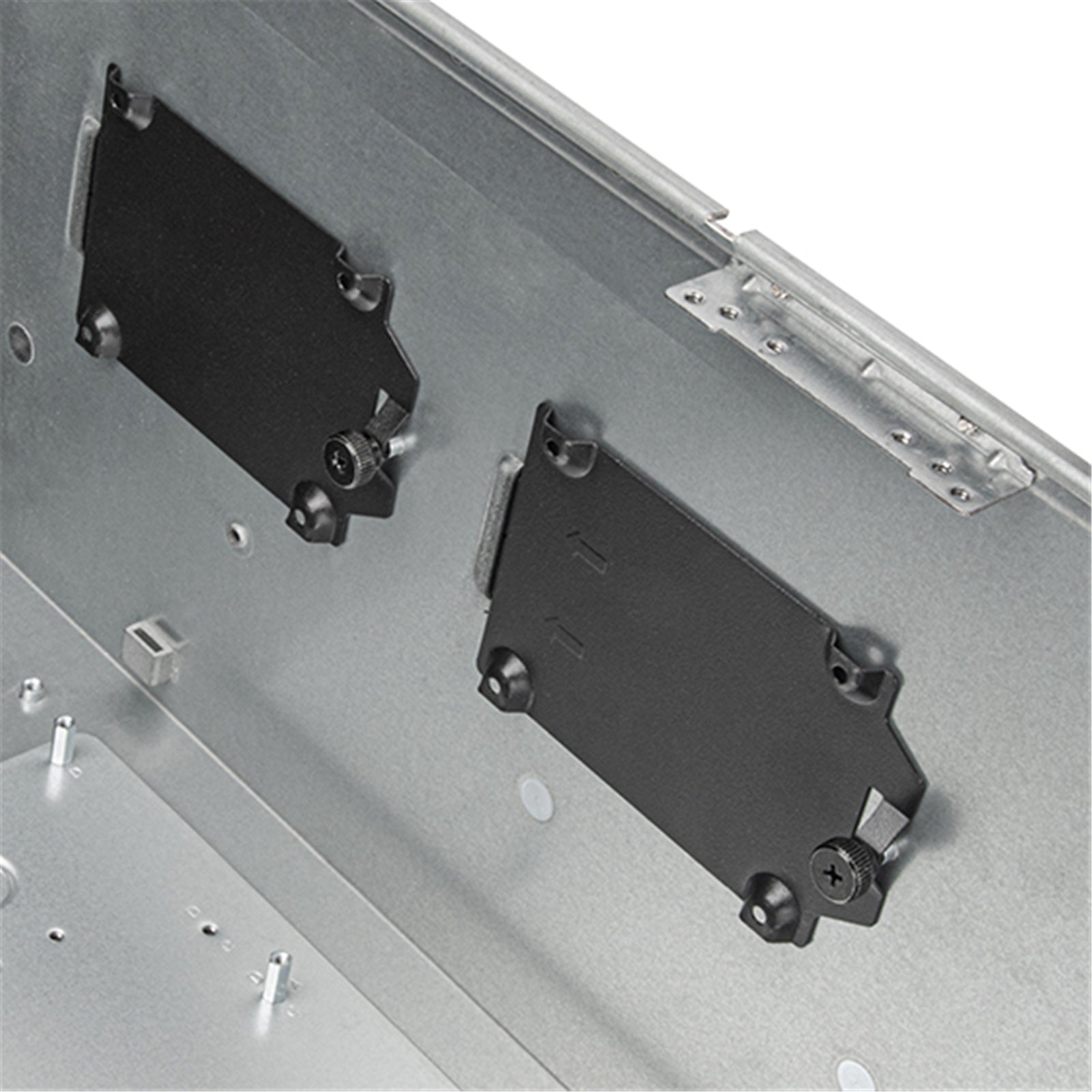

2.5" x 4
Power Supply
Primary PSU slot: PS2 (ATX) / Mini Redundant
Secondary PSU slot: SFX (occupies 3.5" bracket)
Limitation of PSU
160mm~190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)
Cooling System
Front
120mm x 3 / 180mm x 2
(2 x Air Penetrator 184i PRO fans included)

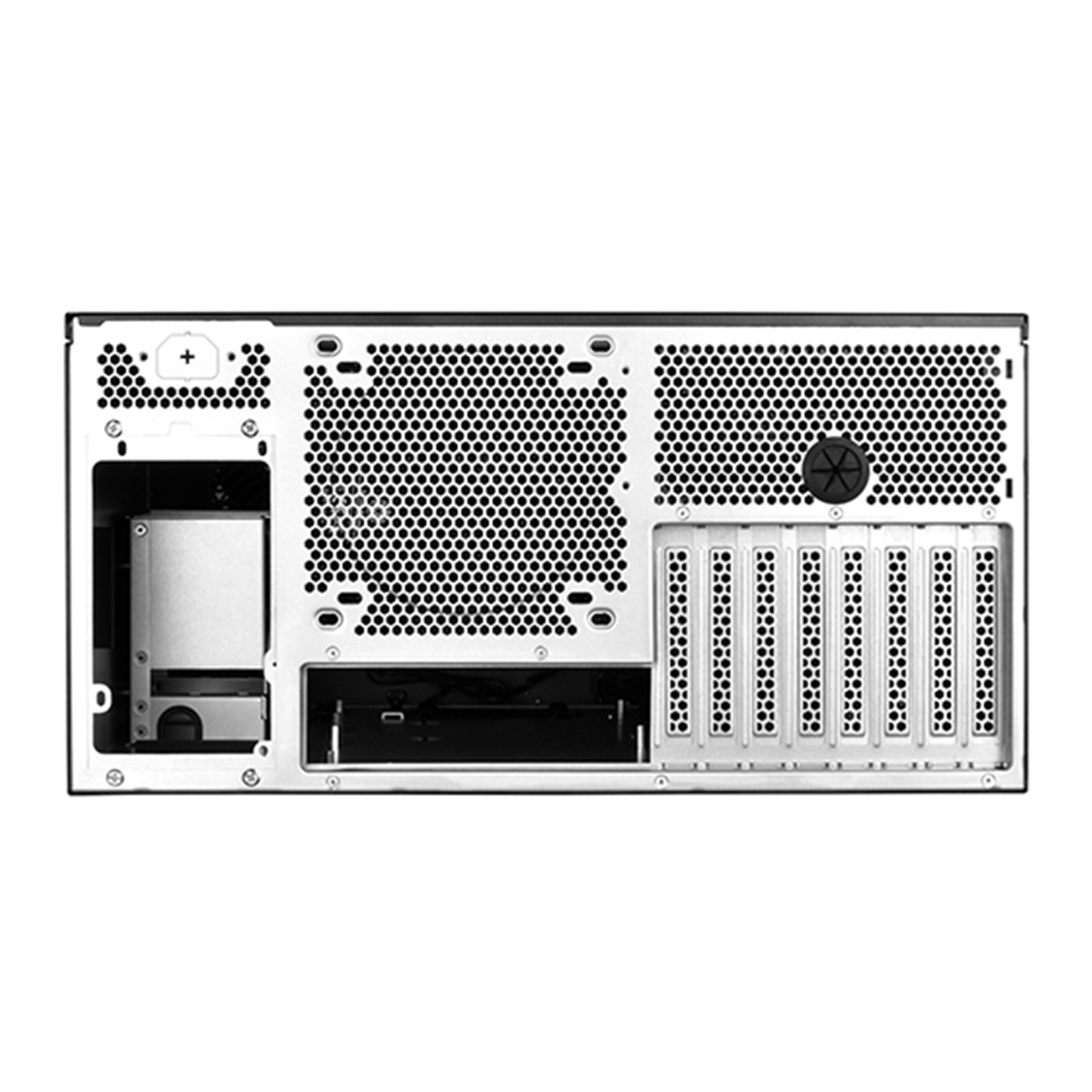

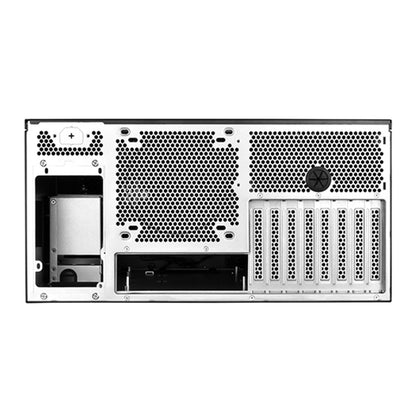

Rear
Rear I/O: 120mm x 1 / 140mm x 1
Rear fan cage: 80mm x 2
Radiator Support
Front
120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 (120mm x 3) / 360mm x 1 (180mm x 2)
Rear
120mm x 1
Limitation of CPU Cooler
Height with expansion card retainer: 181mm
Height without expansion card retainer: 192mm
Expansion Card
Length: 455mm (without installing front fans and radiators)
Width with expansion card retainer: 157mm
Width without expansion card retainer: 198mm
Expansion Slot: 8

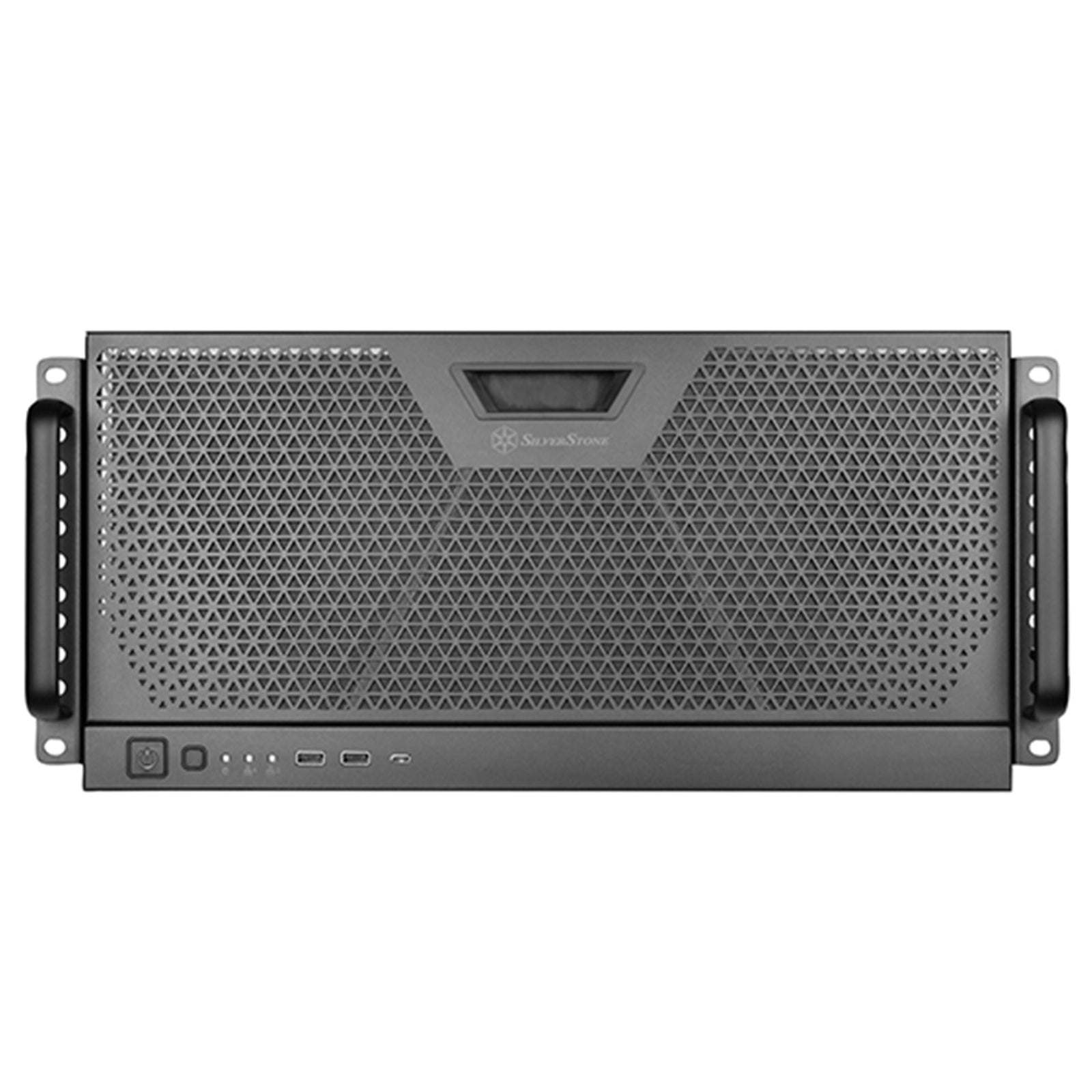

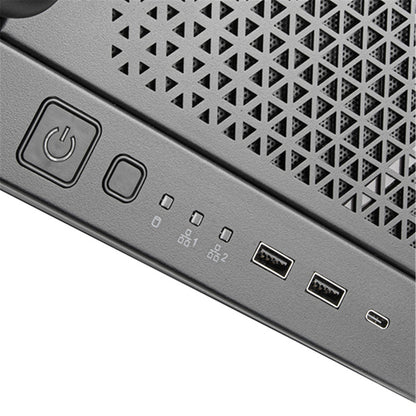

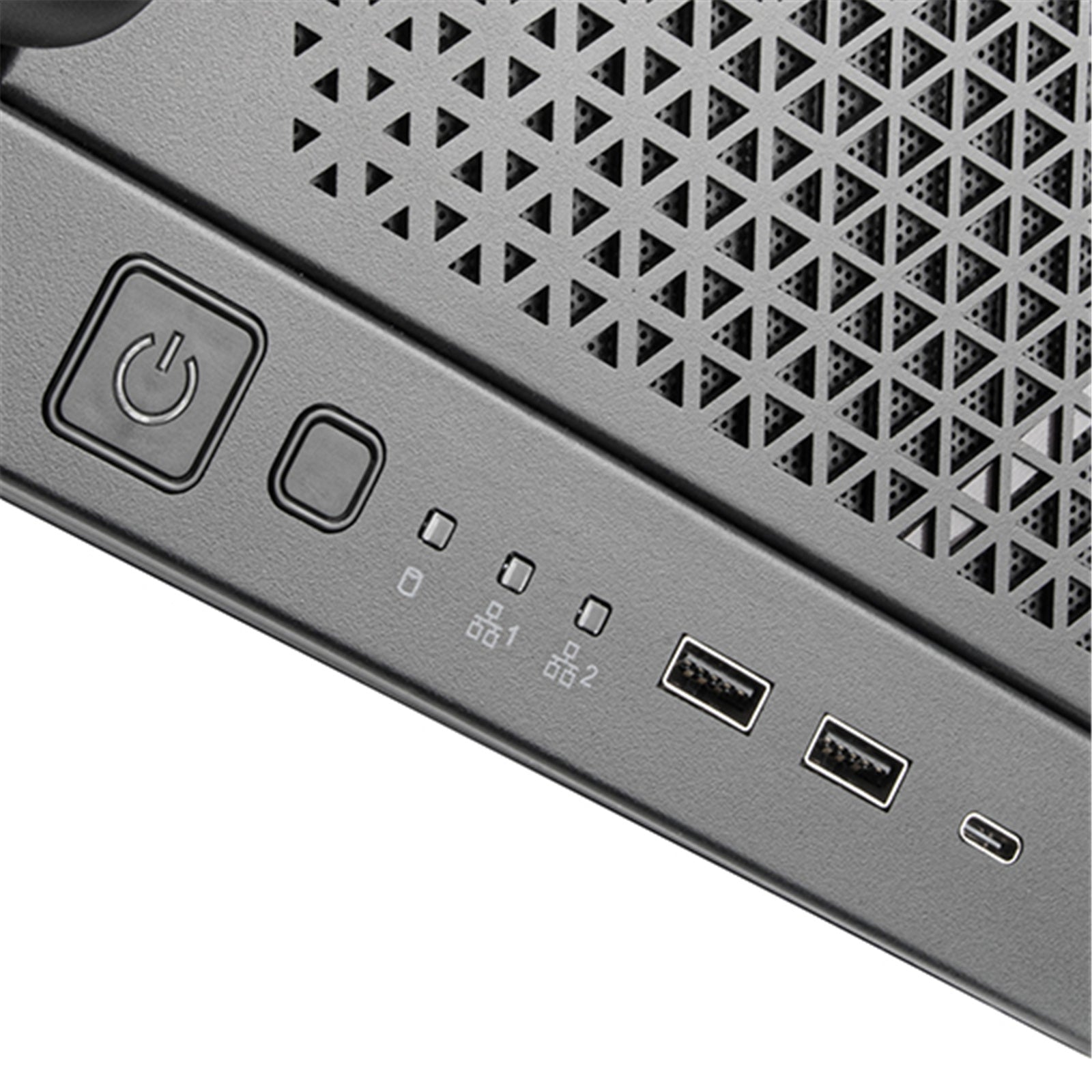

Front I/O Port
USB Type-C x 1
USB 3.0 x 2
LED Indicator
Power status x 1
HDD activity x 1
LAN activity x 2
Dimensions
Incl. Rear Fan Cage (W x H x D): 440 x 220 x 530 mm (17.3" x 8.66" x 20.87"), 51.3 litres
Excl. Rear Fan Cage (W x H x D): 440 x 220 x 485 mm (17.3" x 8.66" x 19.1"), 46.95 litres
Net Weight: 10.6 kg
Extra: Side switch for chassis intrusion security
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
