Features

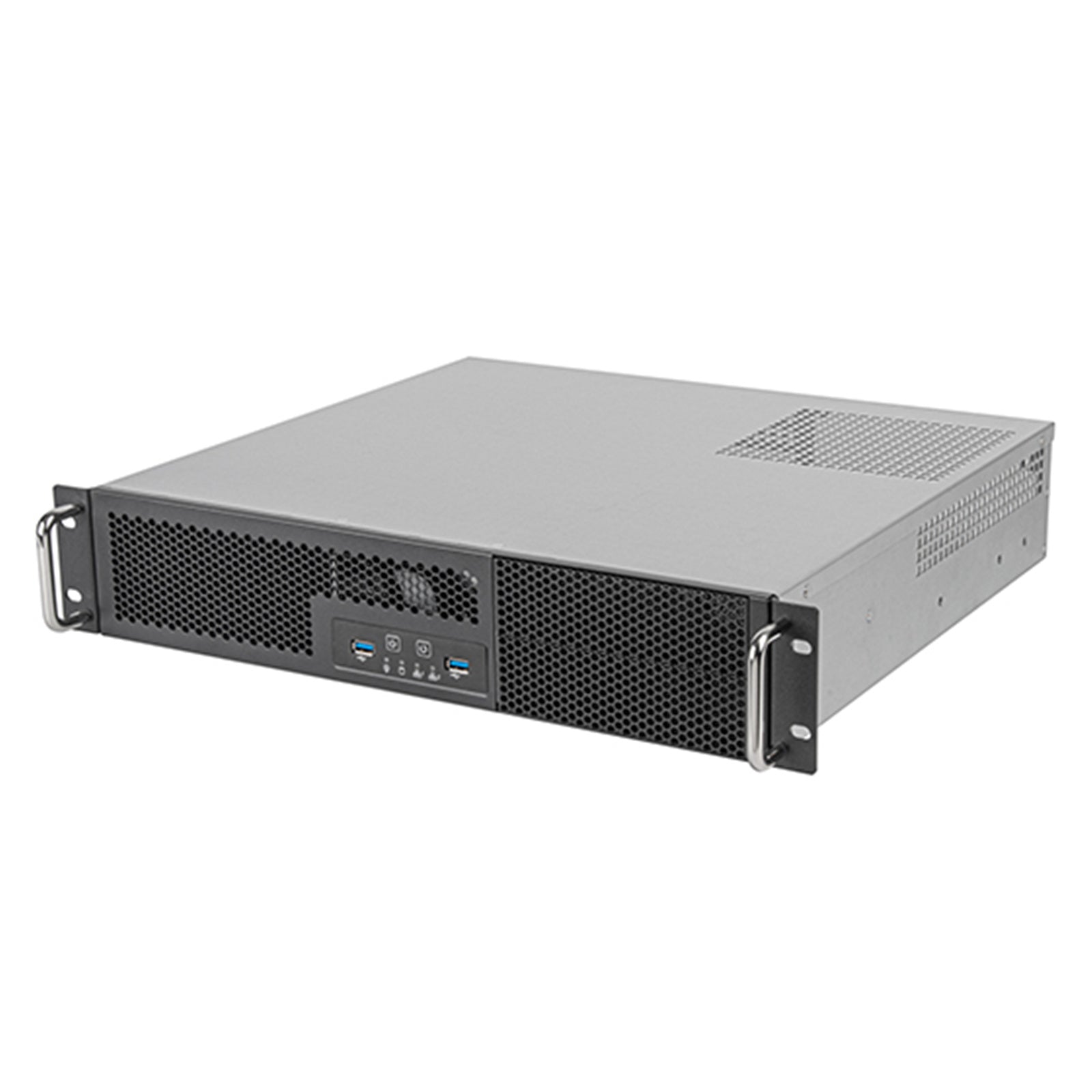

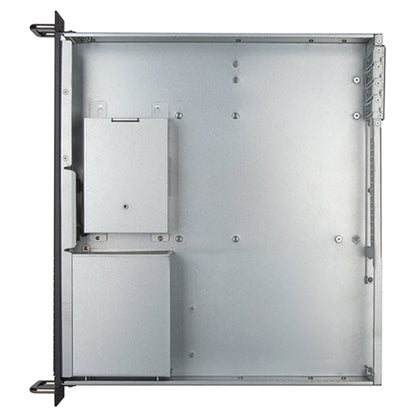

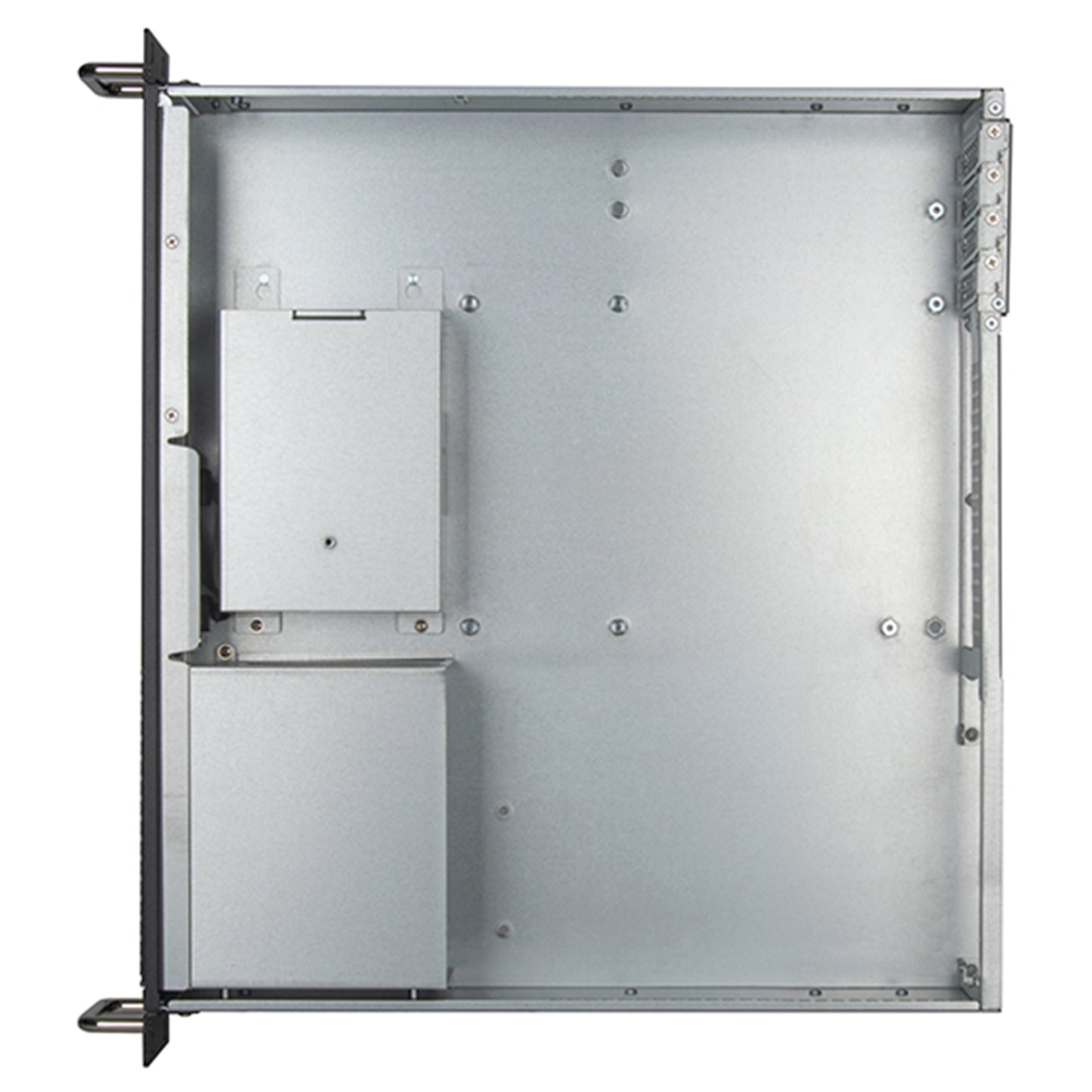

The SilverStone RM23-502 Rackmount Case Server Chassis is designed to fit Micro-ATX motherboards and ATX (PS2) / 2U single / 2U redundant power supplies. The case supports 1x 2.5" Internal SSD and up to 2x 3.5" Internal HDD, 5Gbps USB 3.1 Gen1 interface and built-in fan bracket which supports up to two 80mm x 25mm fans.
- 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
- 2x 5,25" Hotswap - Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
- Supports Micro-ATX Motherboards (9.6" x 9.6") and Micro-ITX Motherboards (6.7" x 6.7")

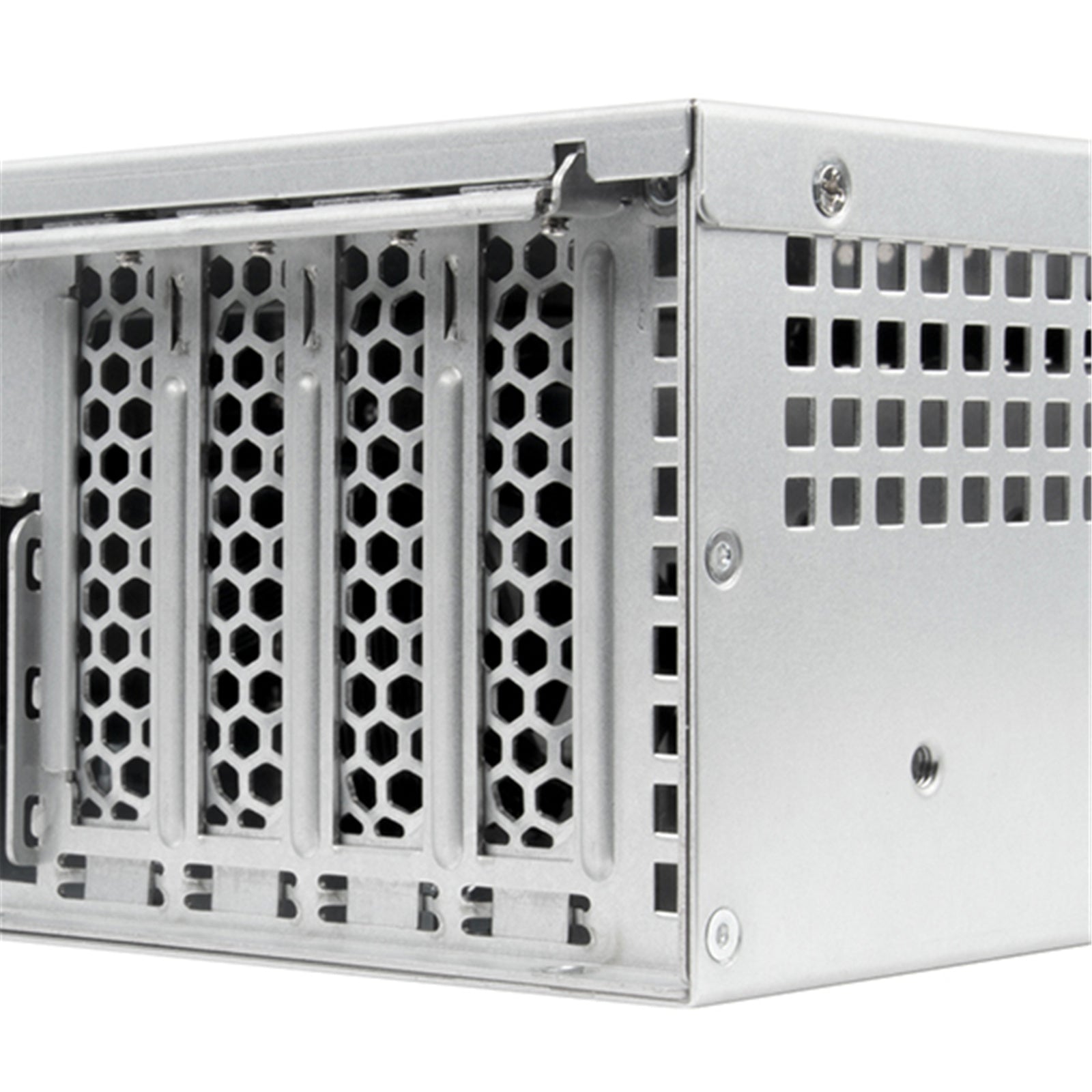

- Supports 4 Low-Profile PCI / PCIe slots
- CPU Cooler Support up to 65mm

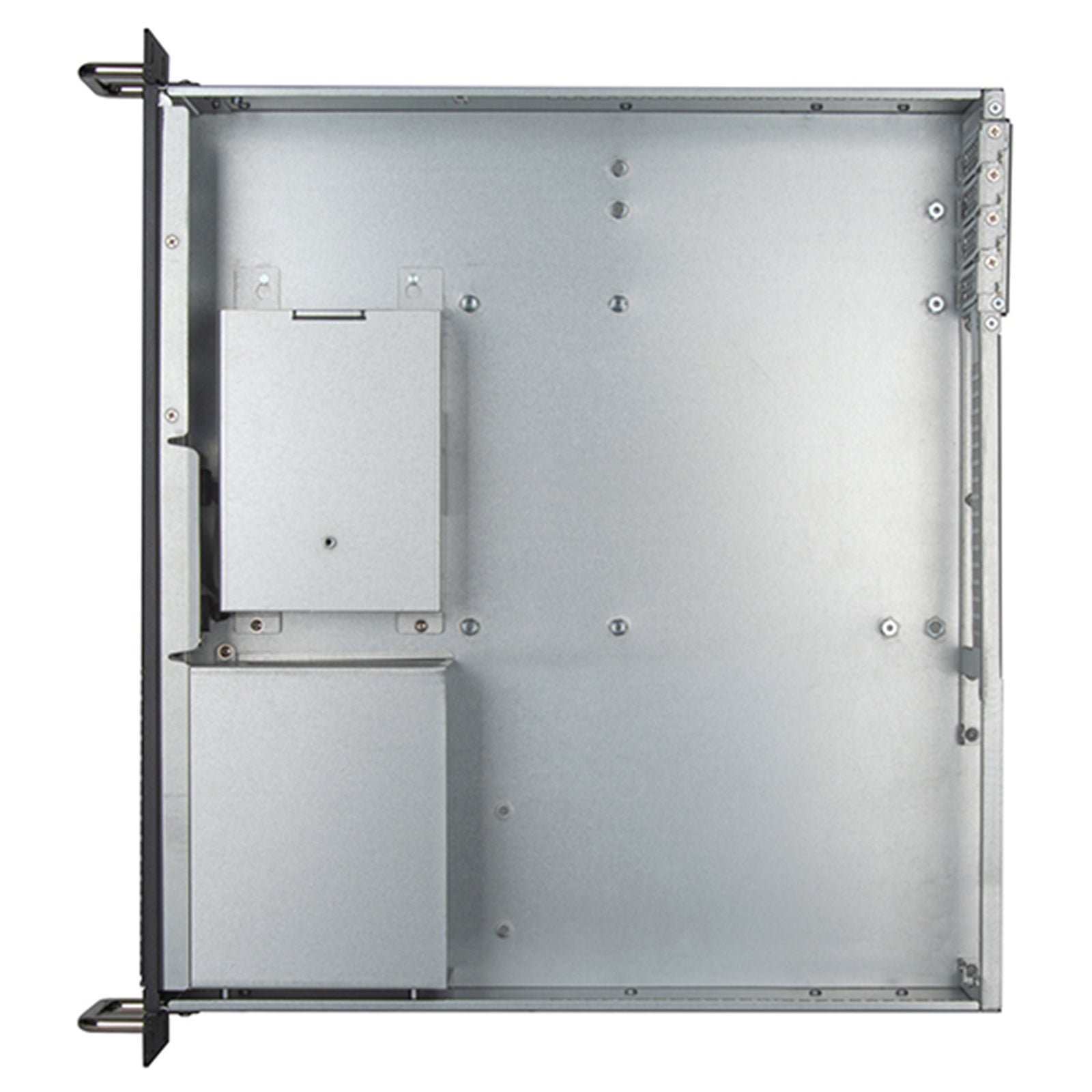

Well-Equipped Drive Bays

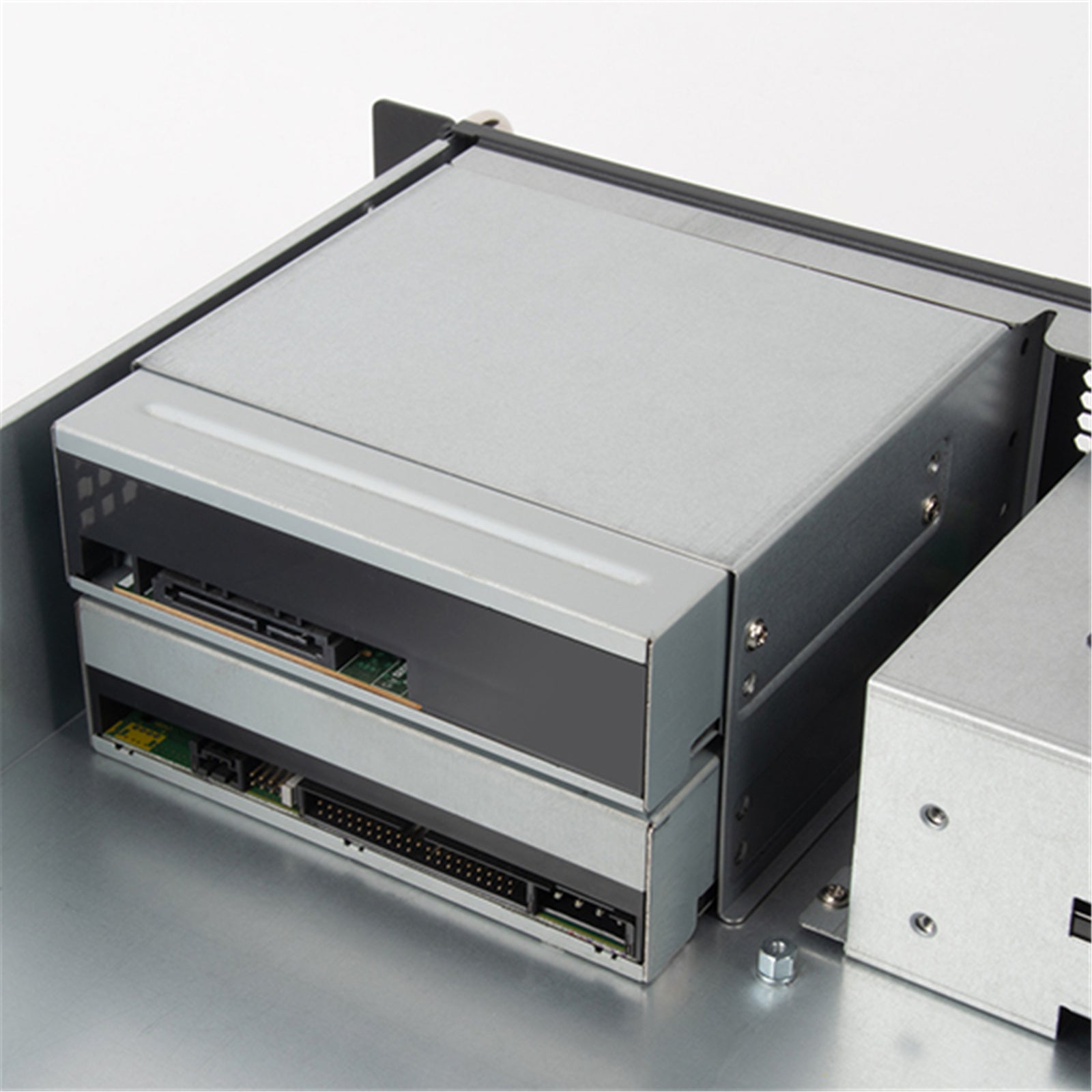

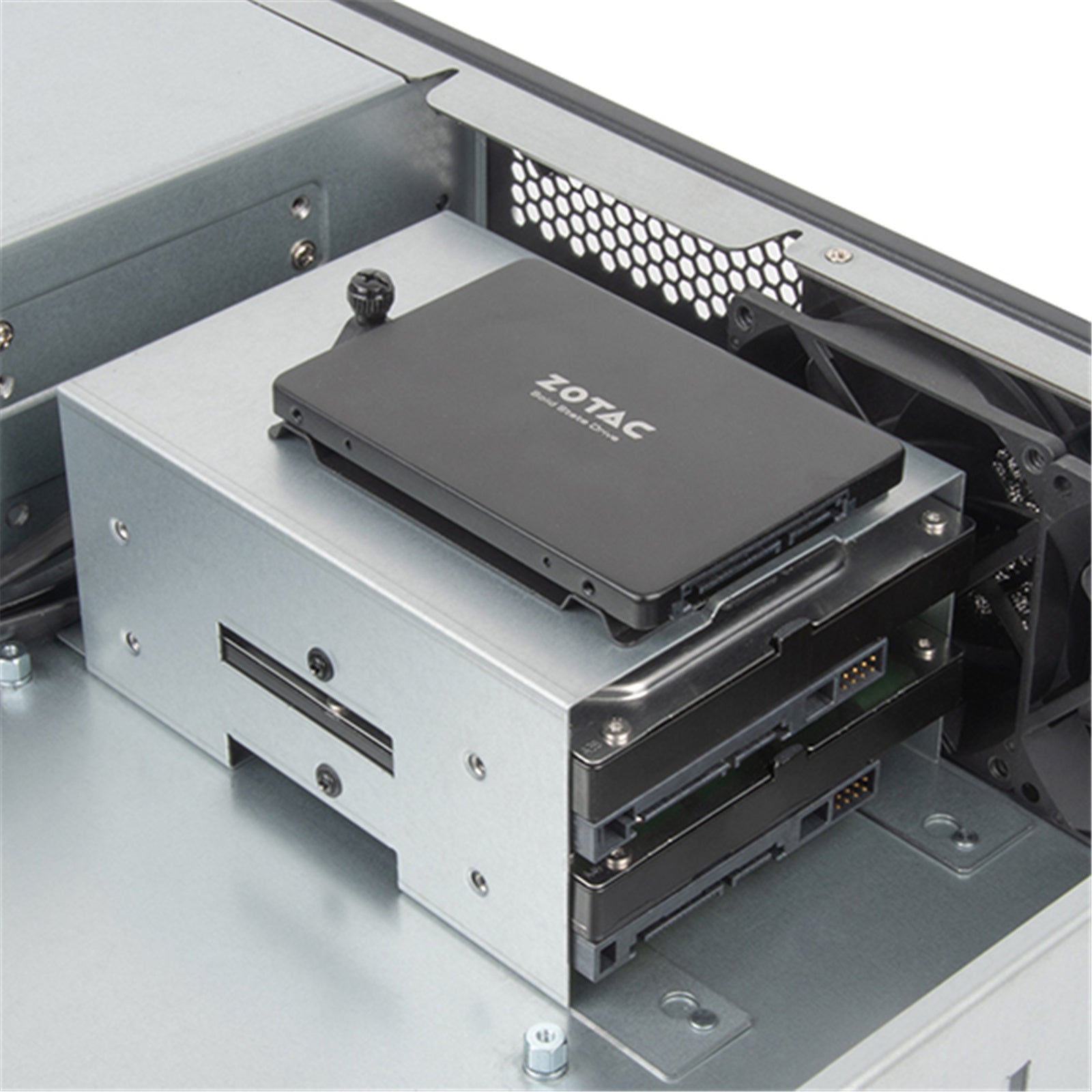

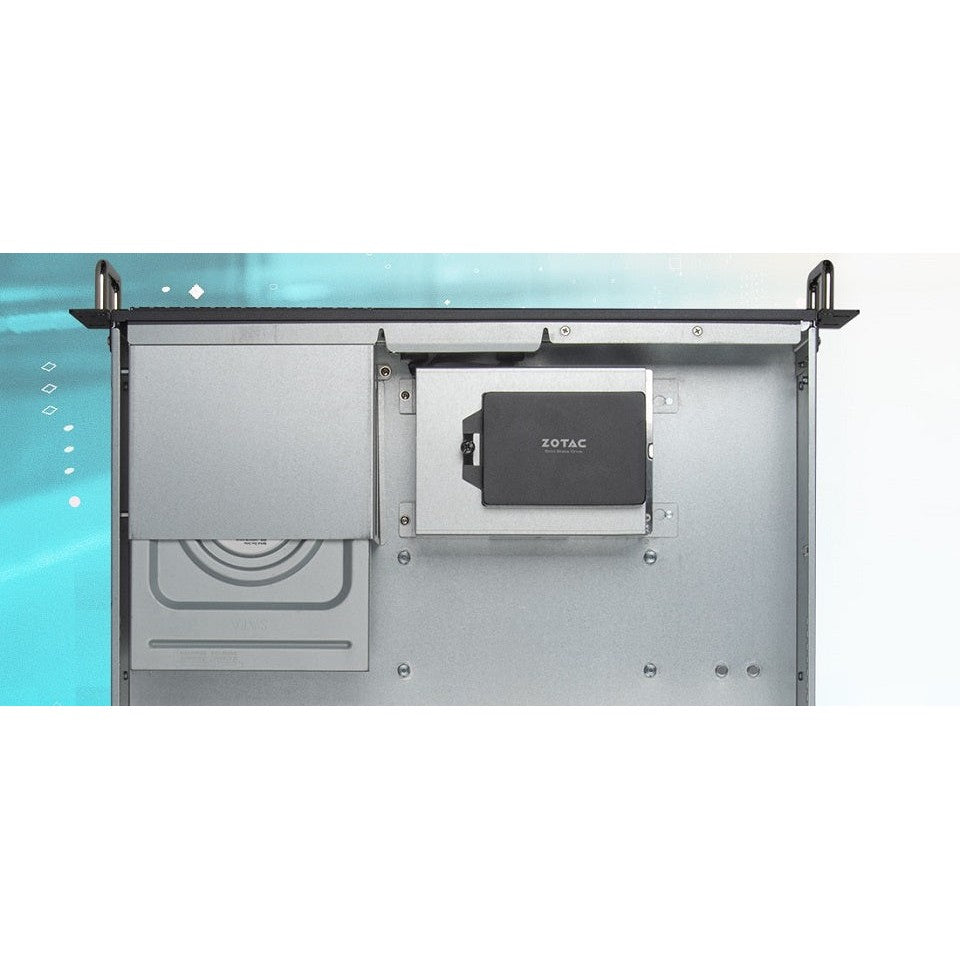

Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally.
Outstanding Cooling Capabilities

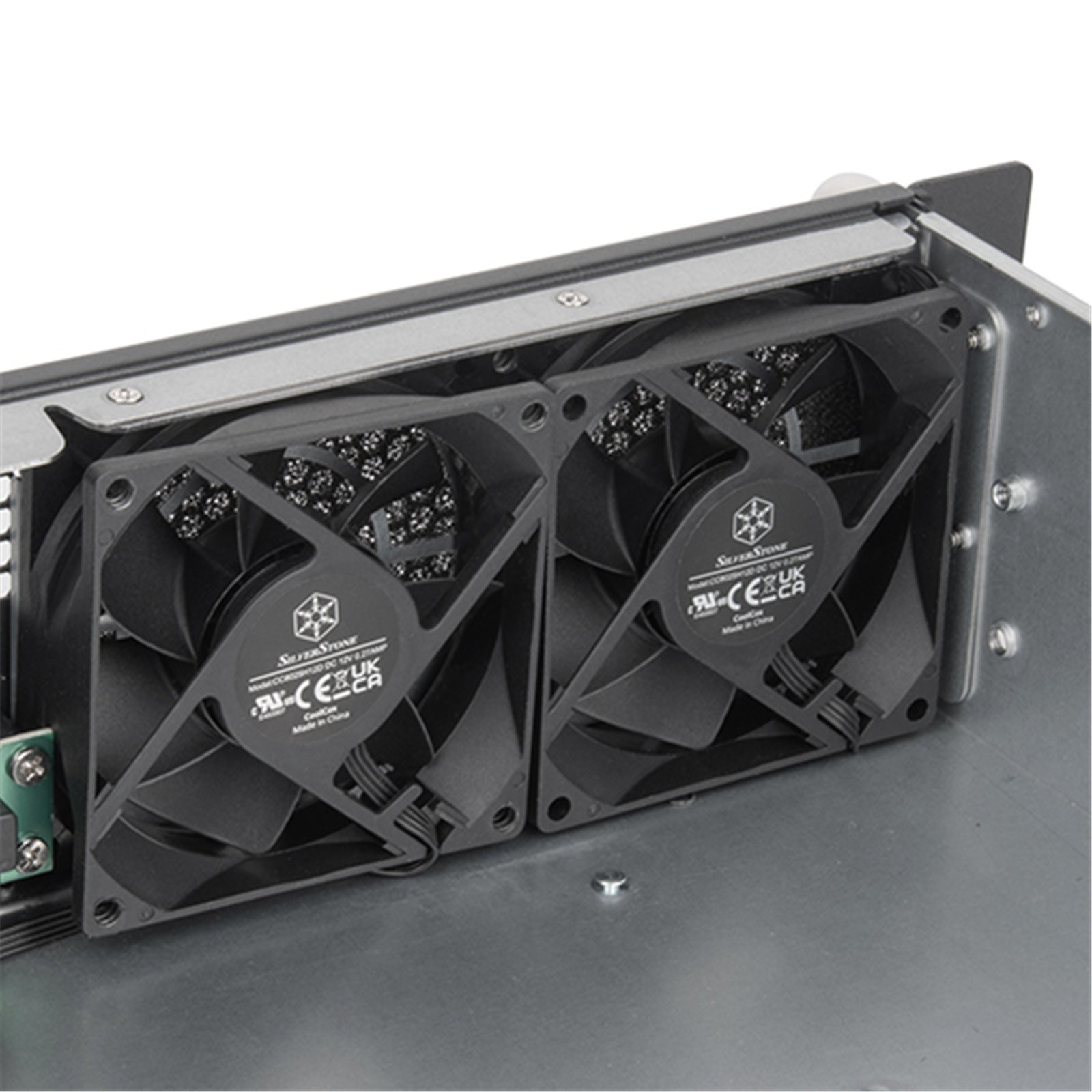

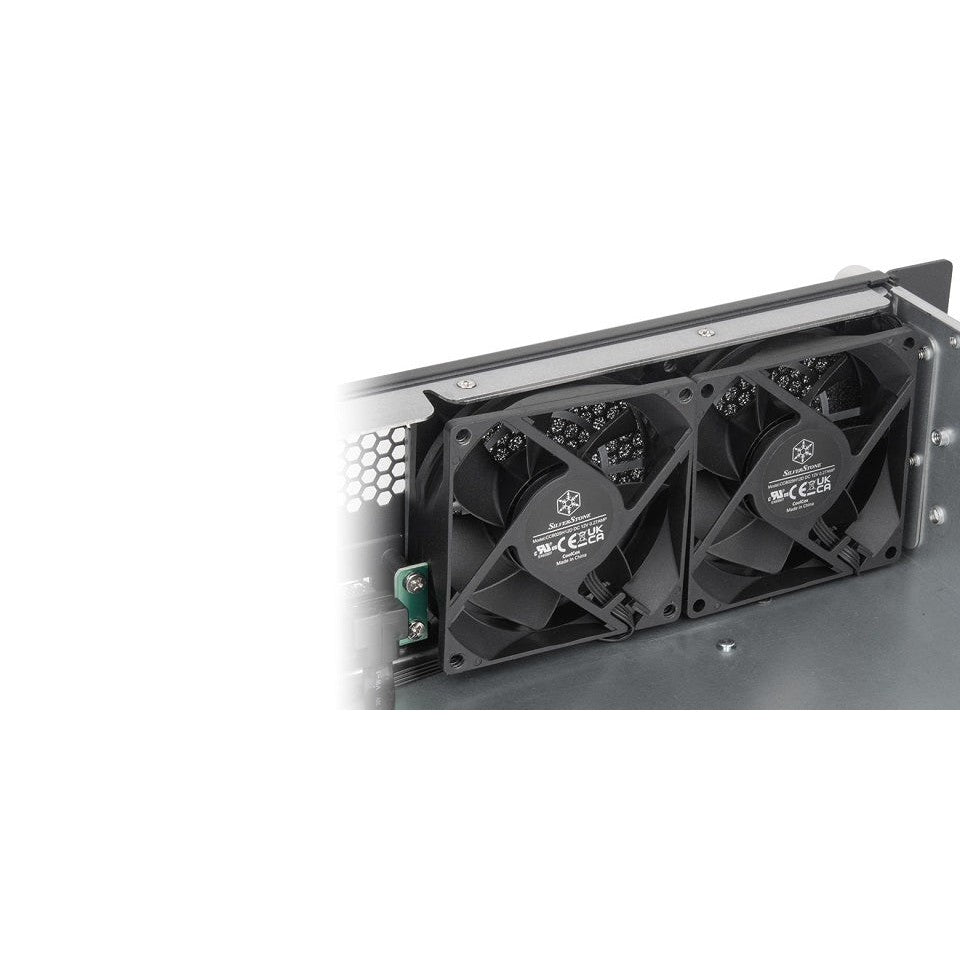

A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system.
Numerous PSU Form Factor Compatibility

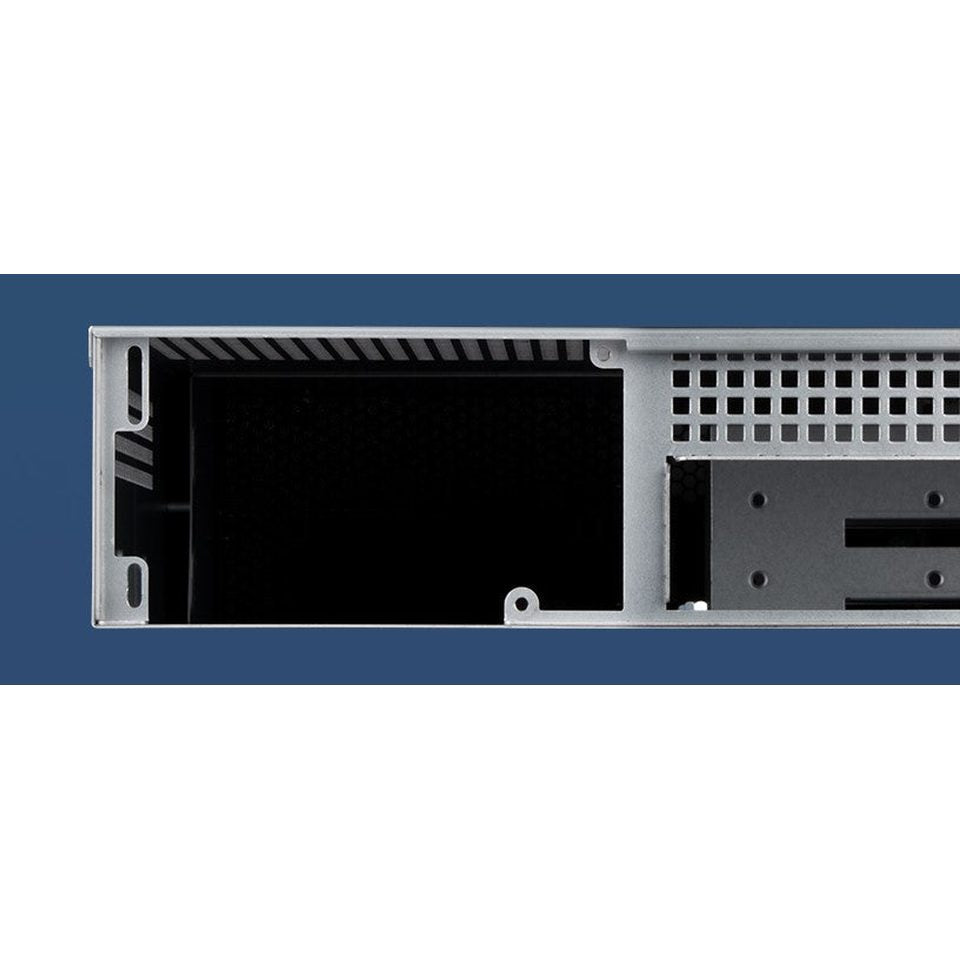

As a miniature sizing of the RM23-502, compatible PSU selection has greater flexibility than the original with support for ATX (PS2), 2U Single or 2U Redundant.
ATX
2U Single
2U Redundant
*We recommend that the combined length of the power supply and 5.25" device does not exceed 350mm, allowing 40mm of space for the power cables.
**RM23-502-MINI's USB internal cable is 600mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.
Specifications
Model Number: SST-RM23-502-MINI
Drive Bay - External: 5.25" x 2
Drive Bay - Internal: 3.5" x 2, 2.5" x 1
Front I/O Port: USB 3.1 Gen 1 Type-A x 2
Net Weight: 4.8 kg
Chassis Form Factor: 2U

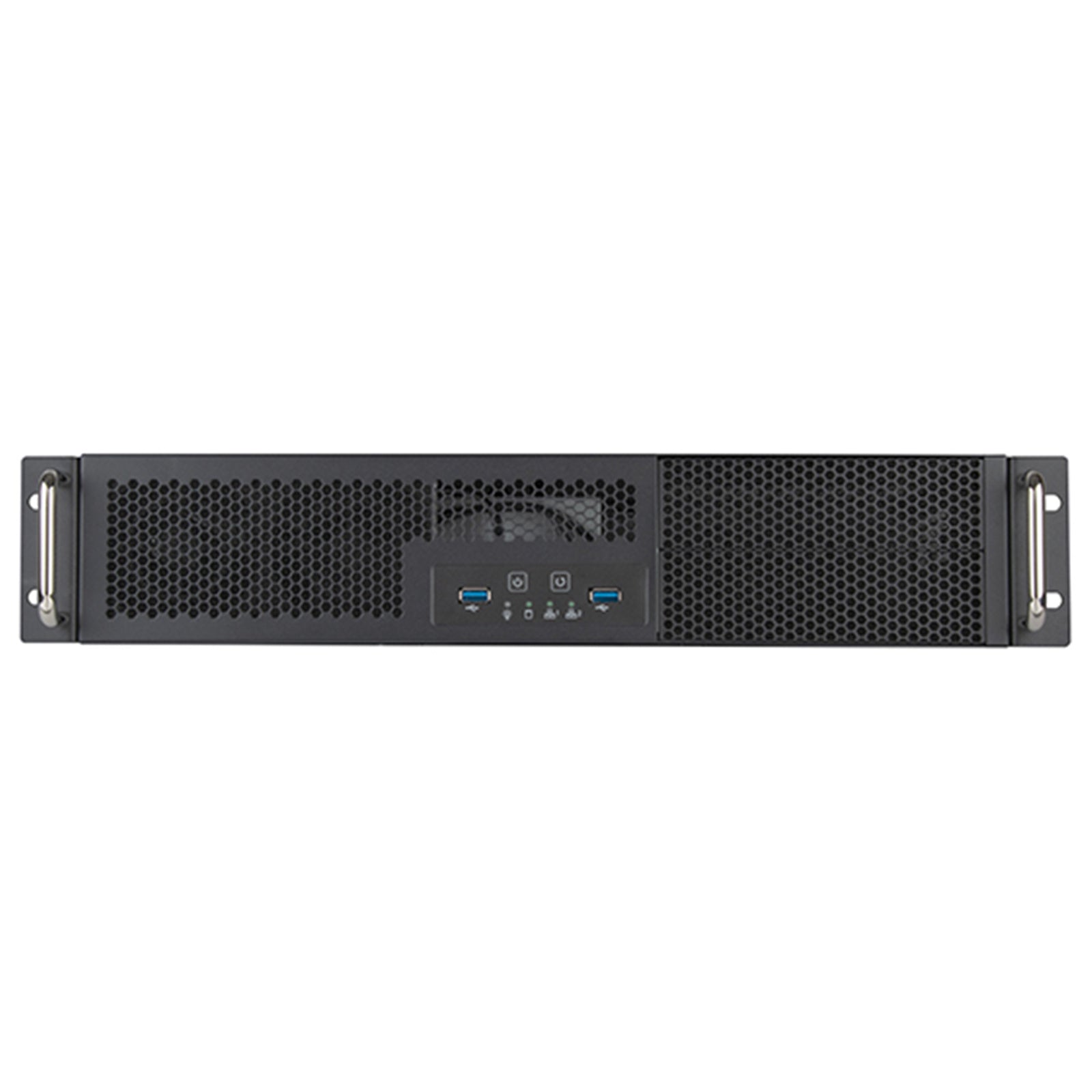

Indicators: 1 x Power Status / 1 x HDD Activity / 1 x LAN Activity
Limitation of CPU Cooler: 65 mm
Motherboard: Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Expansion Slot: 4 x Low Profile PCI / PCIe
Power Supply: ATX (PS2) / 2U Single / 2U Redundant (Power Supply NOT included)
Dimensions: 430mm (W) x 88.5mm (H) x 400mm (D), 15.22 Litres
Front Buttons: Power On / Off, System Reset
Main Metal Thickness: 1 mm
Cooling System - Front: 80 x 25 mm Fan Slot x 2
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
