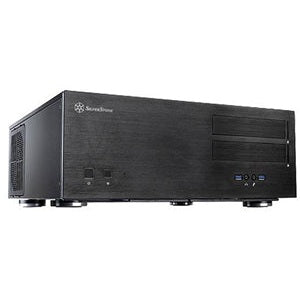

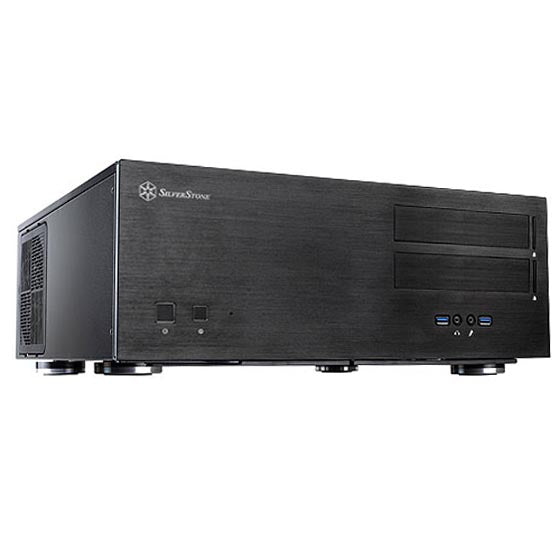

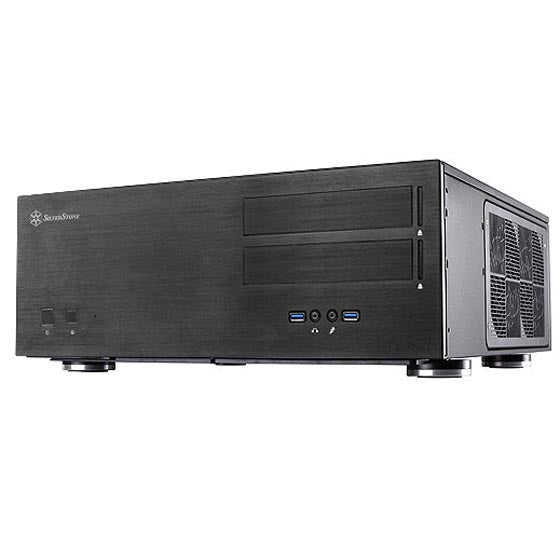

SilverStone GD08 Grandia ATX HTPC STT-GD08B Desktop Case (Black)
For the first time, the power and storage capacity of a server can now be neatly stowed beautifully and quietly in a home theatre environment. Completely re-engineered to fully utilise all available spaces, the Grandia GD08 can accommodate an incredible amount of drives (up to twelve) and high-end components (graphics cards up to 13.6 inches long) with minimal sacrifices.
With a wealth of lessons learned from building the best performing tower cases in the last several years, SilverStone engineers upgraded GD08’s cooling performance tremendously with up to five 120mm fan options. And to make sure owners can easily maintain their cases’ cooling ability over time with the lowest noise possible, custom designed removable filters surround the case for positive pressure to work effectively and quietly.
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Supports expansion cards up to 13.6 inches
- Supports Extended ATX motherboard

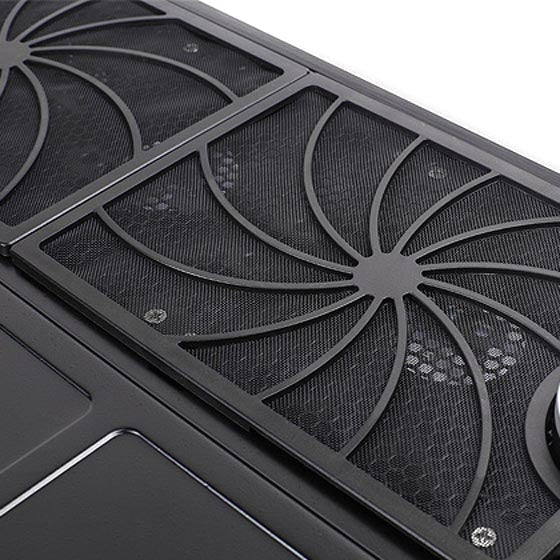

- Quick access filters to prevent dust build-up

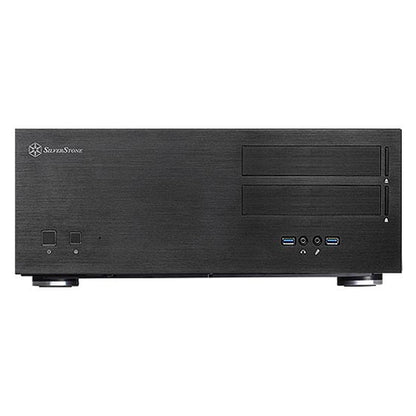

- Aluminium front panel with premium styling
- LED indicator with adjustable brightness
- Impressive storage capacity of up to twelve drive bays
Specifications
Model No.: SST-GD08B (Black)
Material: Aluminium front panel, SECC body
Motherboard Compatibility: SSI EEB, SSI CEB, Extended ATX, ATX, Micro ATX (*1)
Drive Bay
External: 5.25" x2 (Supports Optical Drive only)
Internal: 3.5" x8, 2.5” x2
Cooling System

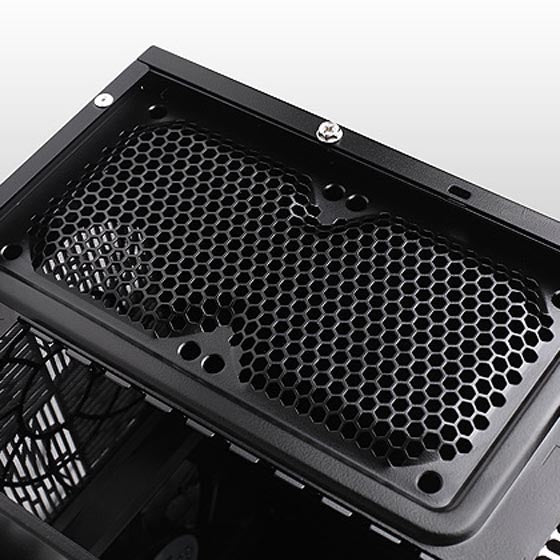

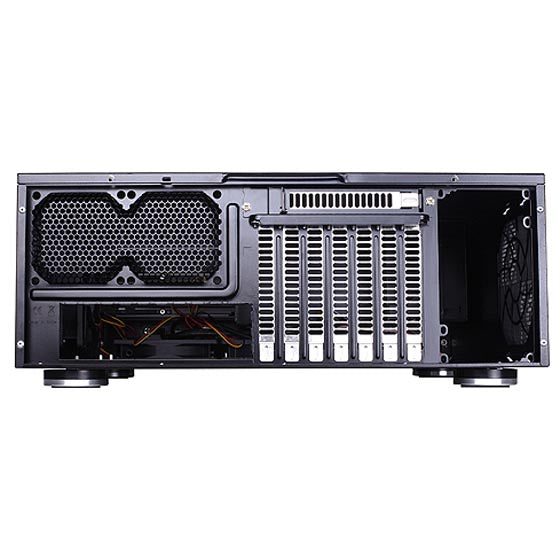

Rear: 2 x 80mm fan slot
Top: Oversized vents

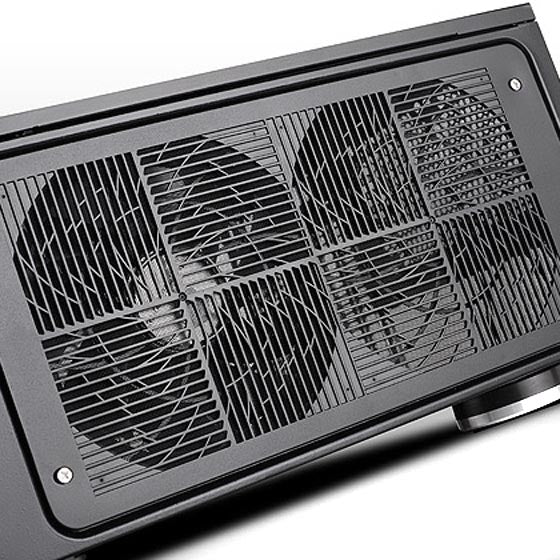

Bottom:
2 x 120mm intake fans, 900rpm, 18dBA
(backwards compatible with 1 x 120mm fan + 3 x 80mm fans, or 6 x 60mm fans)

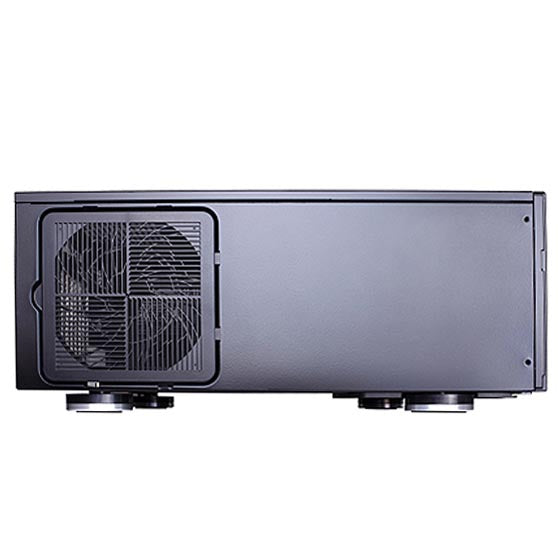

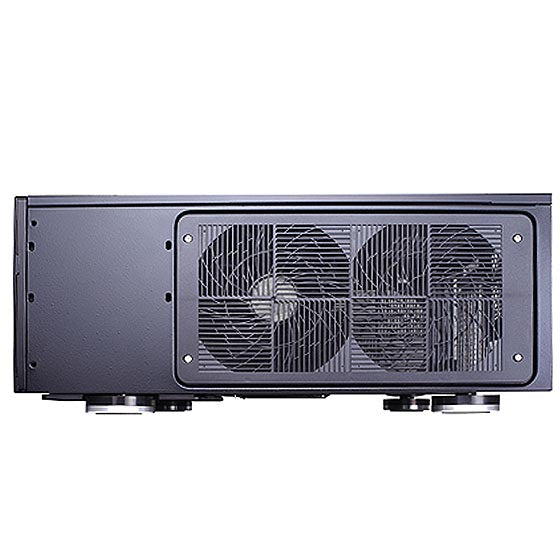

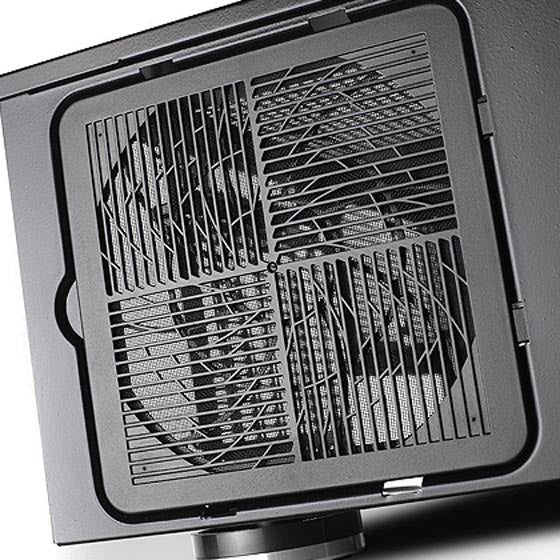

Side:
1 x 120mm intake fans, 900rpm, 18dBA
1 x 120mm fan slot
Limitation of CPU Cooler: 138mm

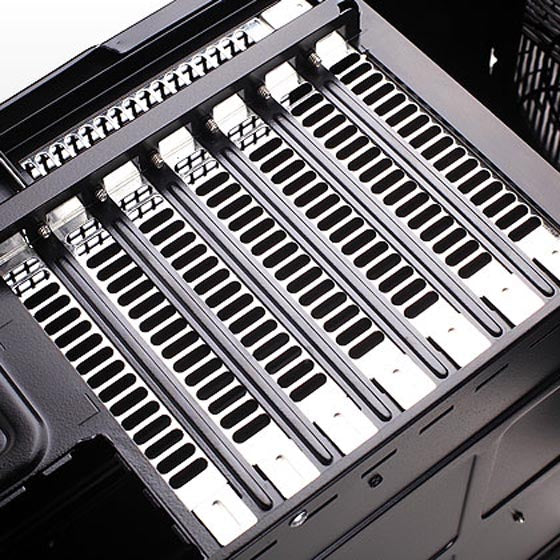

Expansion Slot: 7+1
Limitation of Expansion/Graphics Card: Compatible up to 13.6" (345mm) long, width restriction - 5.25" (133mm)
Power Supply: Support standard PS2 (ATX) up to 220mm, recommend depth is under 180mm (*2)
Limitation of PSU: 220mm (Recommended: 180mm deep, with optical drive installed)

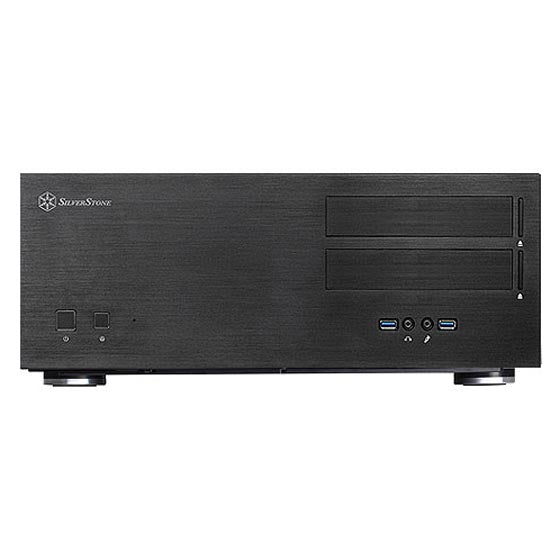

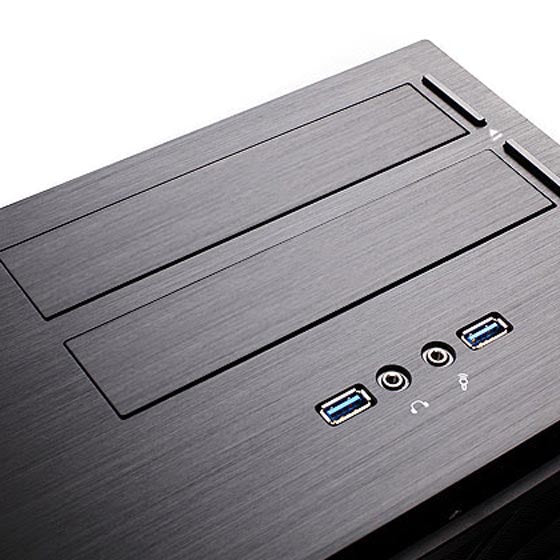

Front I/O Port
USB 3.0 x 2
Audio x 1
MIC x 1

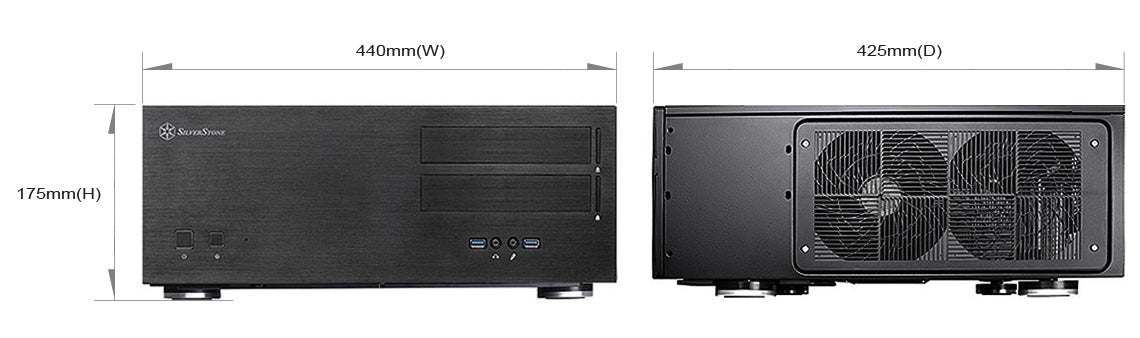

Dimensions (W x H x D): 440 x 175 x 425 mm (17.32" x 6.89" x 16.73")
Volume: 32.7 Litres
Net Weight: 7kg
Extra: Support Kensington lock
(*1): Motherboard size will affect the size and amount of fans that can be fitted in the bottom panel. Please refer to manual for details.
(*2): With optical drive installed, the deepest PSU recommended is 180mm.

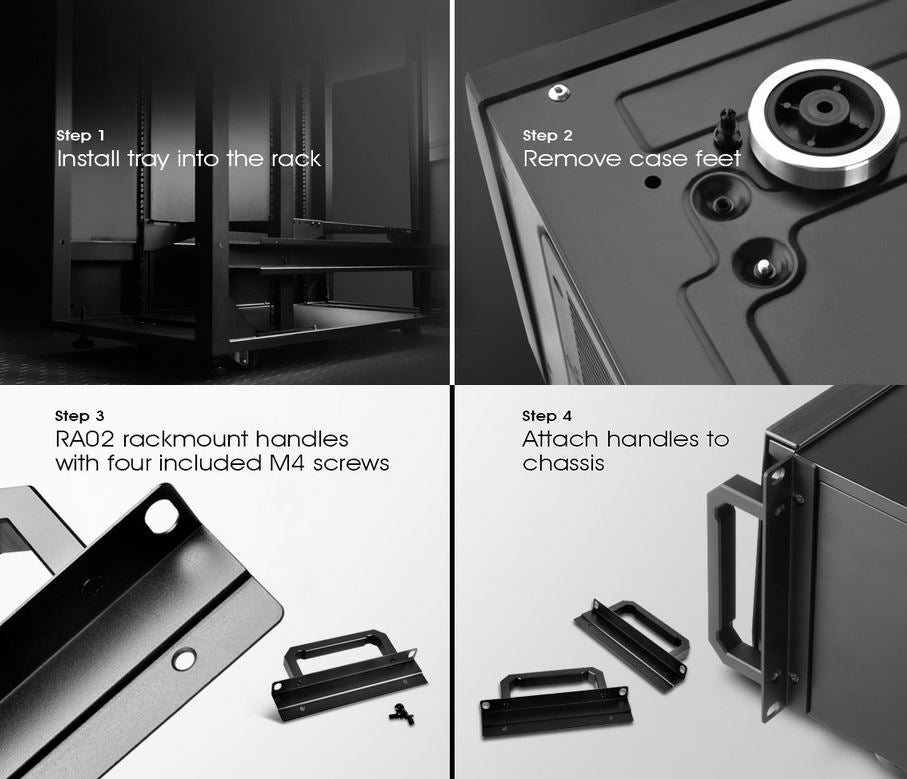

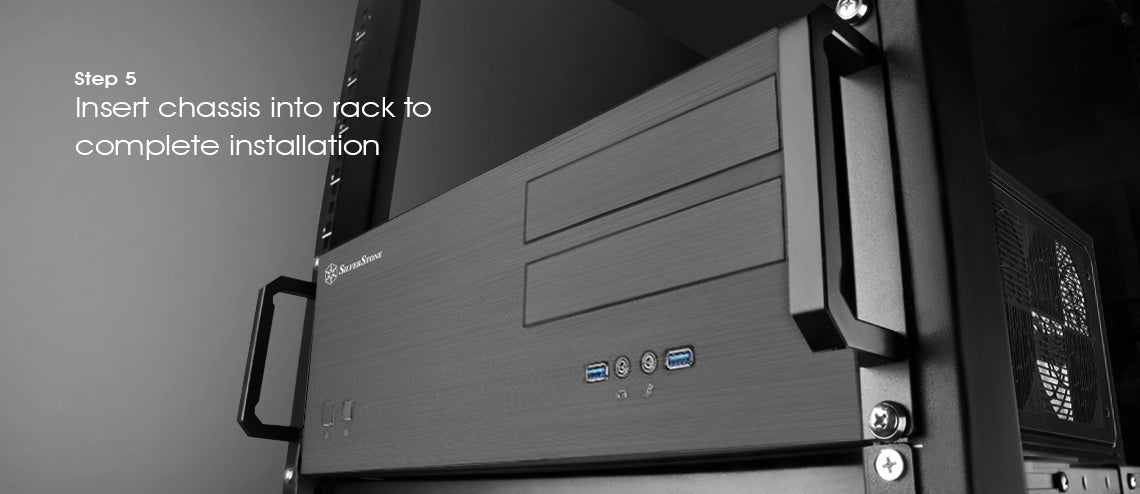

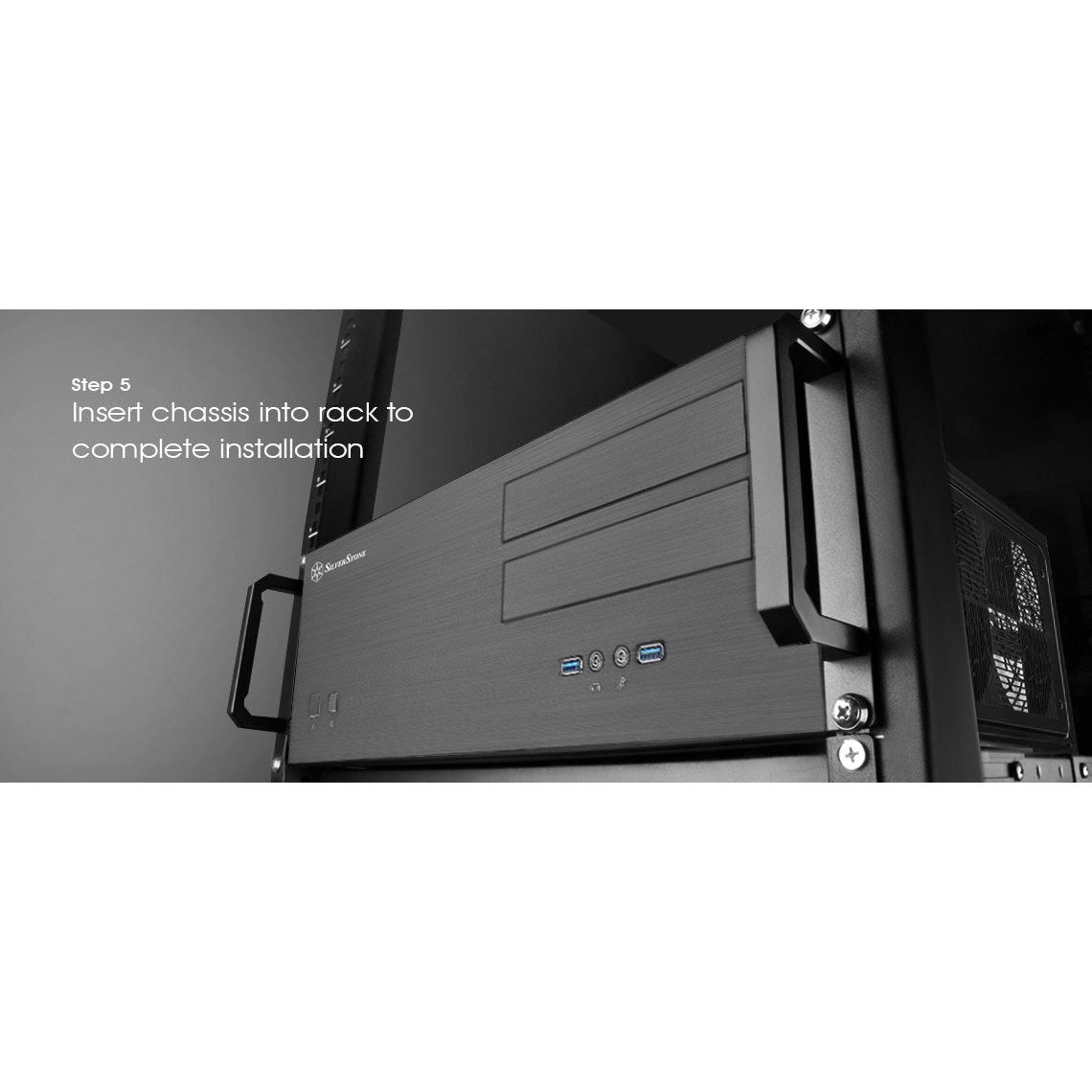

Please see images for optional RA02 rack-mount ears installation SOP.
Please find SilverStone GD08 Grandia Manual here.
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
