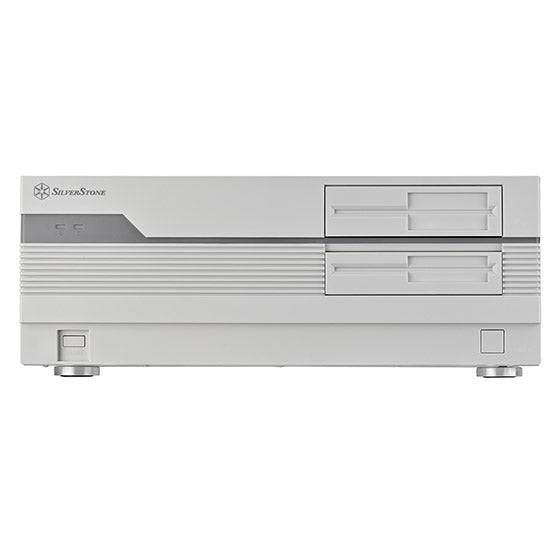

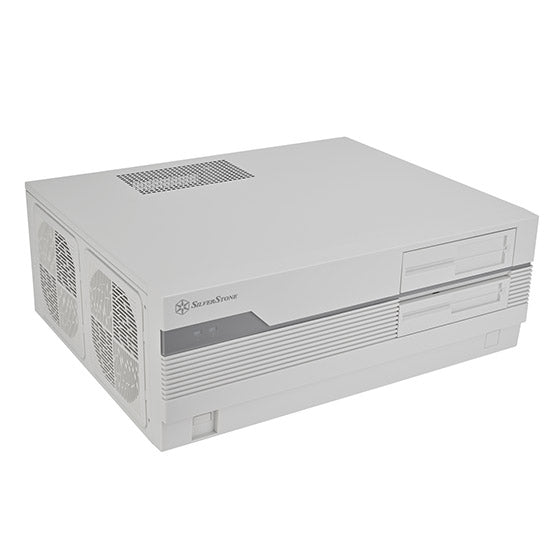

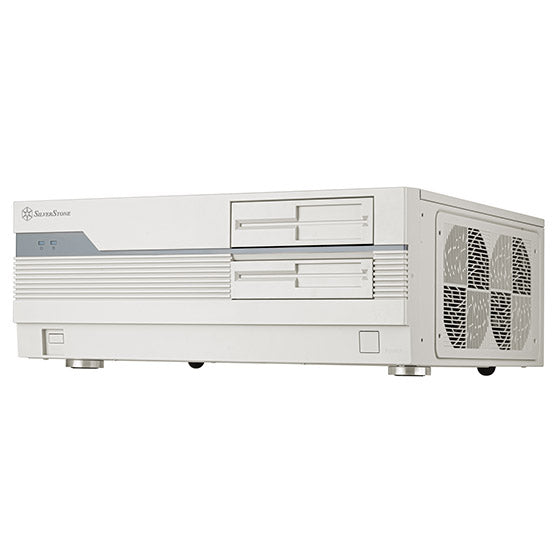

Silverstone FLP01
Retro-inspired HTPC Chassis
- Universal drive cage design compatible with 5.25", 3.5", and 2.5" storage drives
- Equipped with 1 x USB Type-C port

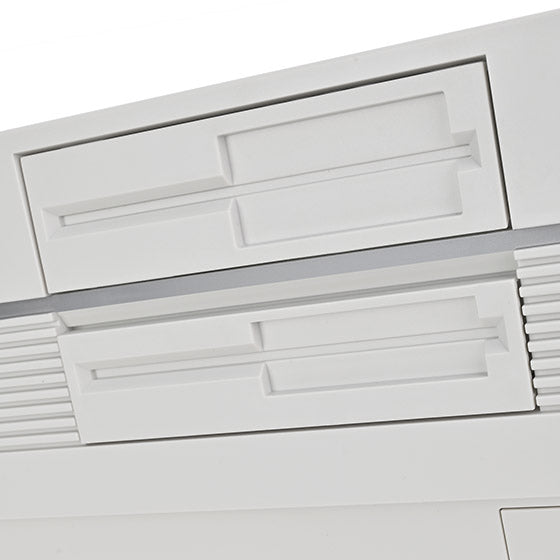

- Retro floppy disk-style optical drive bay cover
- Positive air pressure design ensures superior cooling performance, quieter operation, and effective dust prevention.
- Includes quick-access filters for easy maintenance.
Comprehensive Storage Support

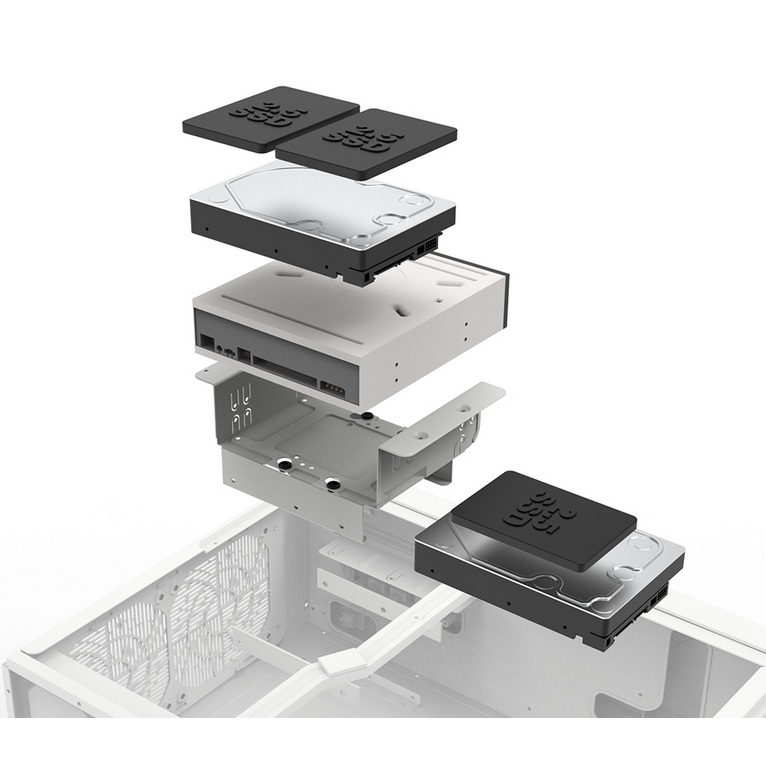

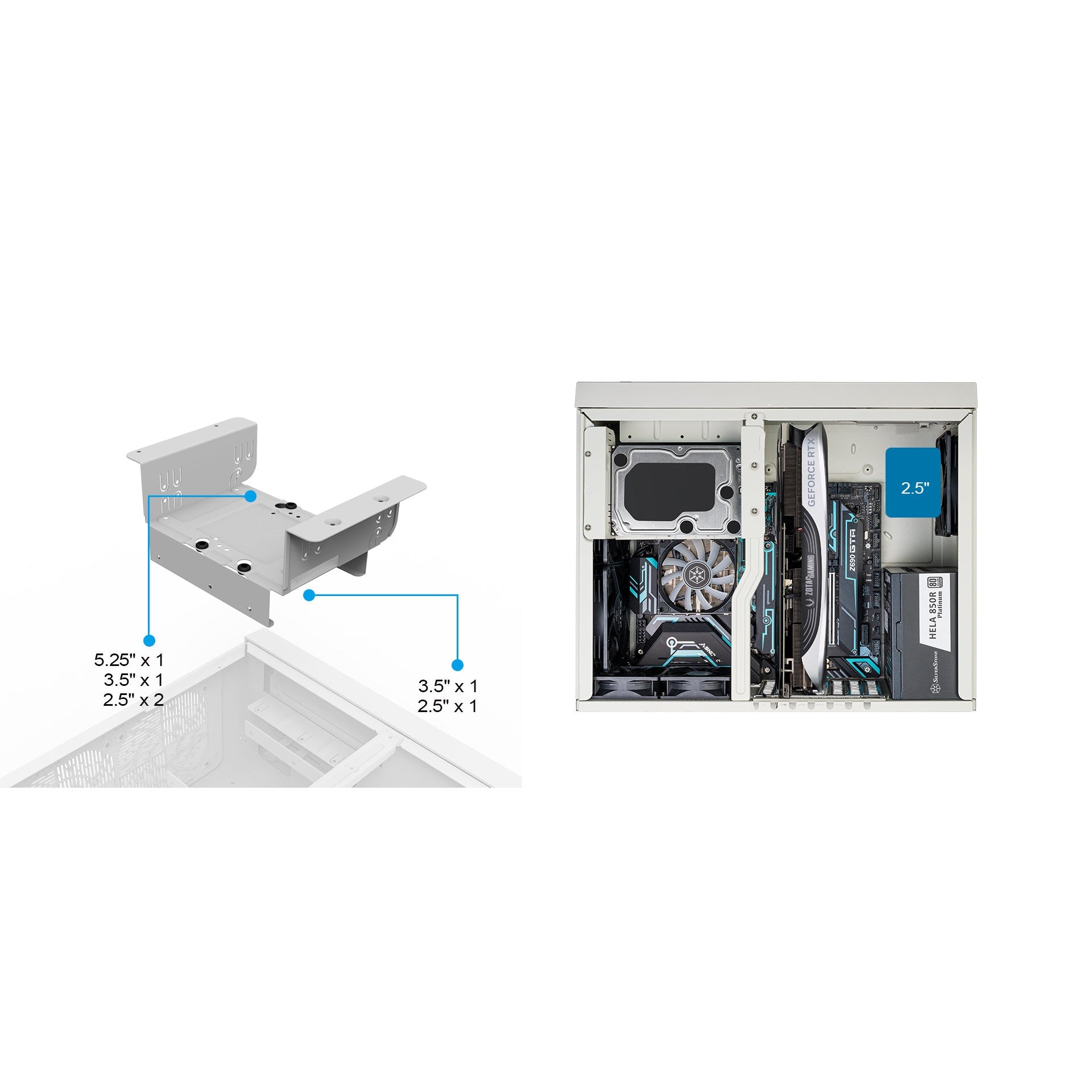

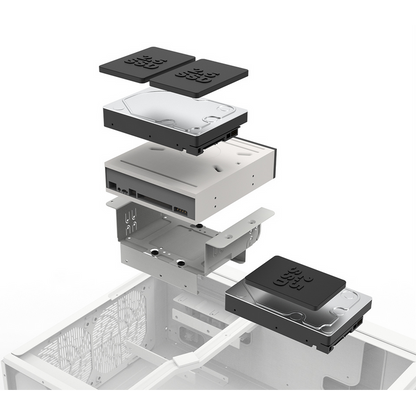

FLP01 features a universal drive cage design supporting all storage drives, including 5.25” ODD, 3.5” HDD, and 2.5” SSD.
Ample Connectivity

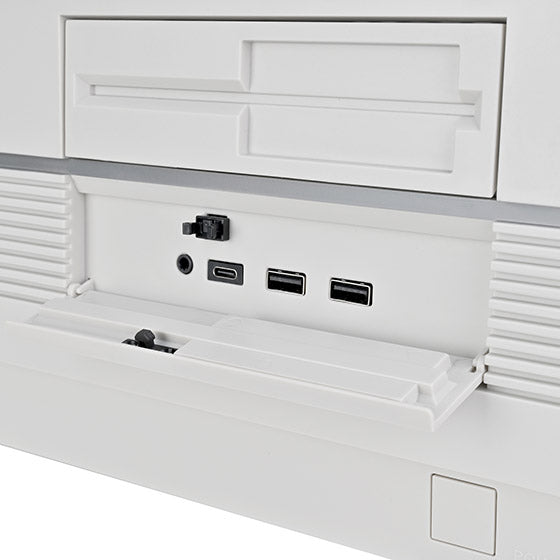

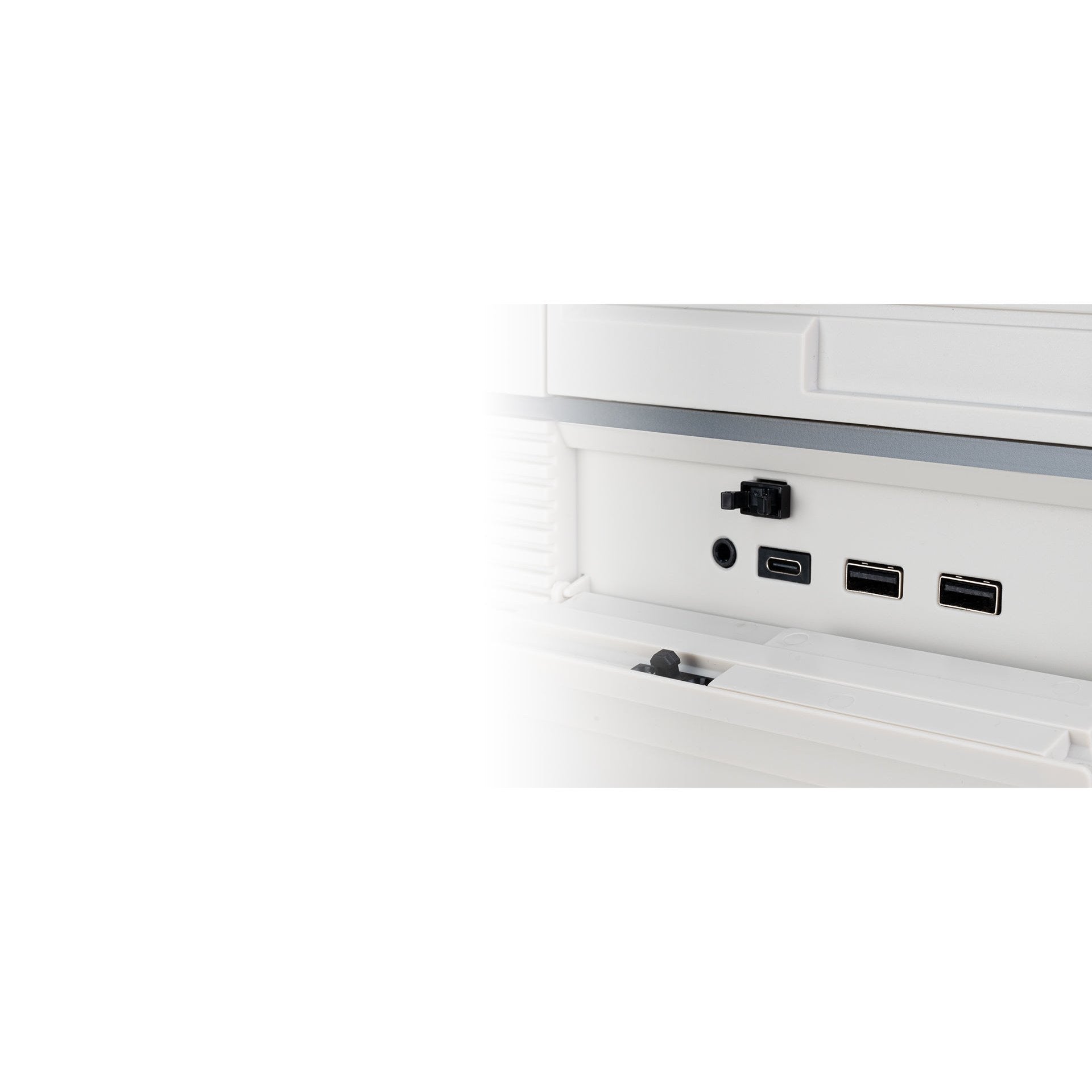

The front I/O port includes 2 x USB 3.0 and 1 x USB Type-C port for fast data transfer and modern connectivity.
Highly Versatile Layout Fueling Creativity and Inventiveness
Tremendous Storage Expansion Flexibility
Excellent Cooling Capabilities
Product Specifications
Model No.
SST-FLP01W
Material
Steel, plastic

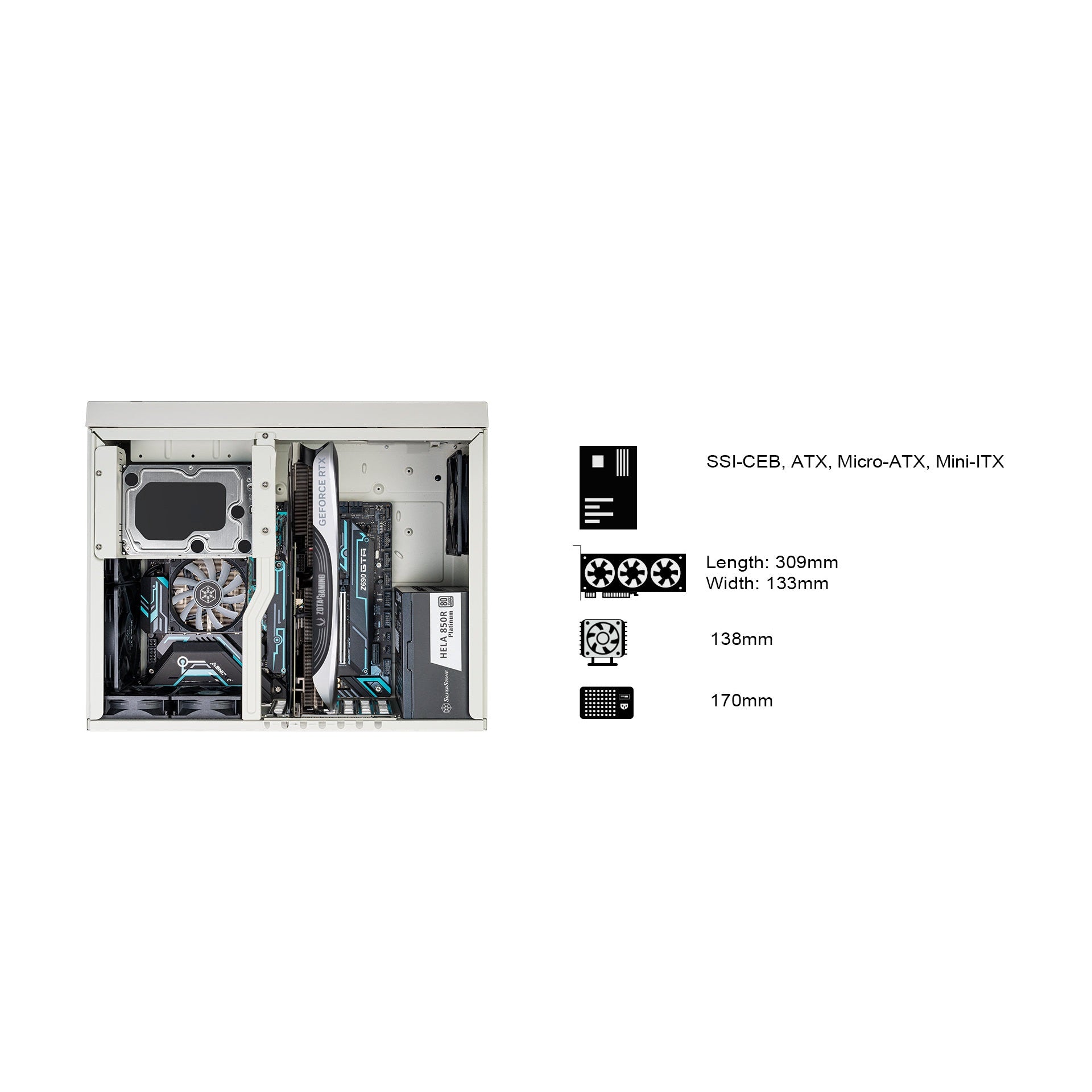

Motherboard
SSI-CEB, ATX, Micro-ATX, Mini-ITX
Drive bay
External

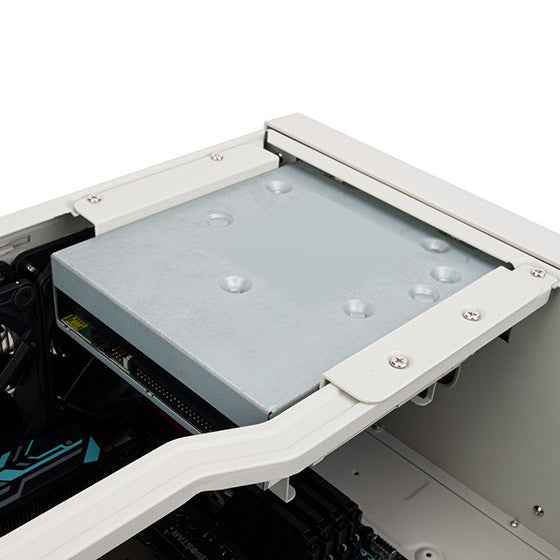

5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2)
Internal
3.5" x 1 (compatible with 2.5" x 1)
2.5" x 1

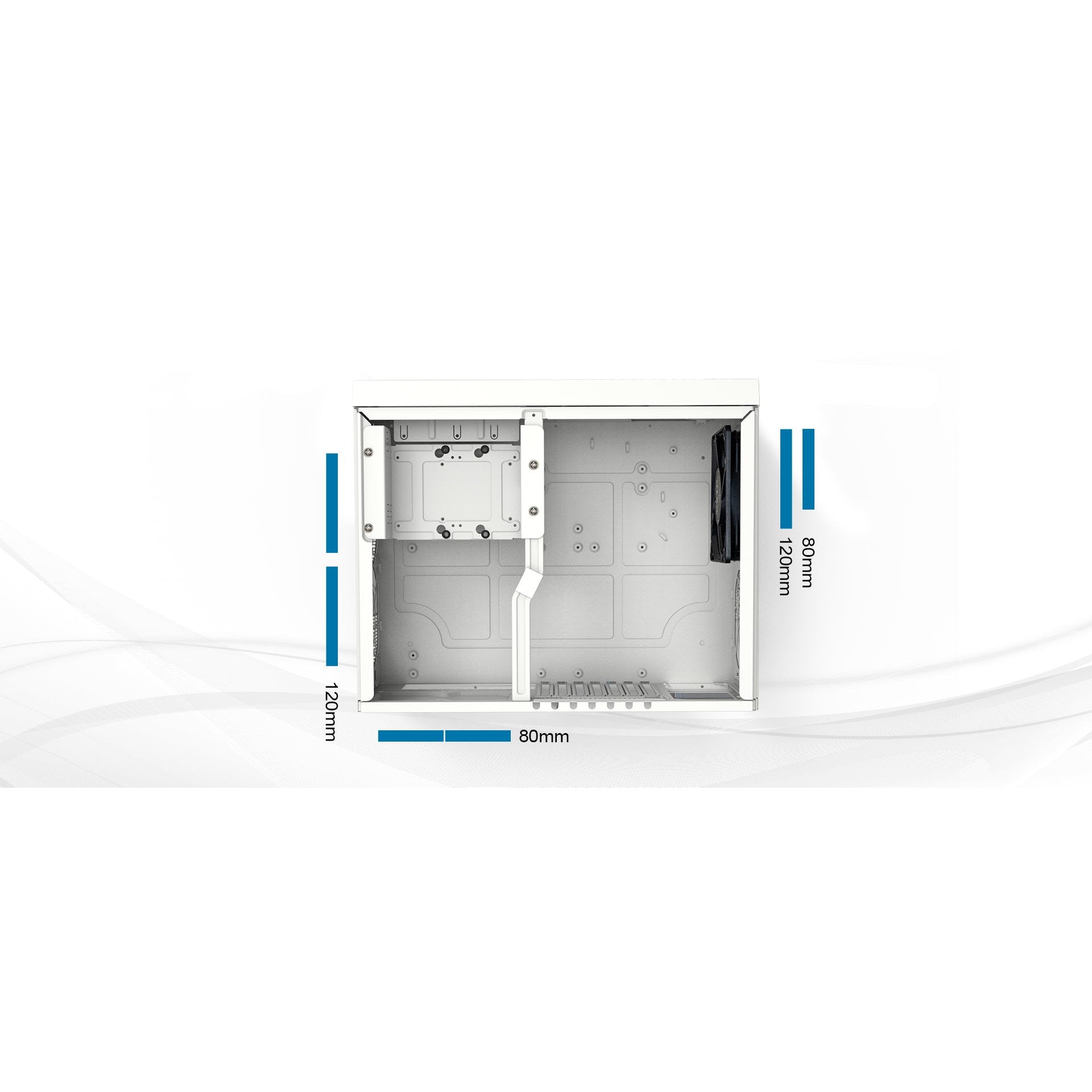

Cooling system

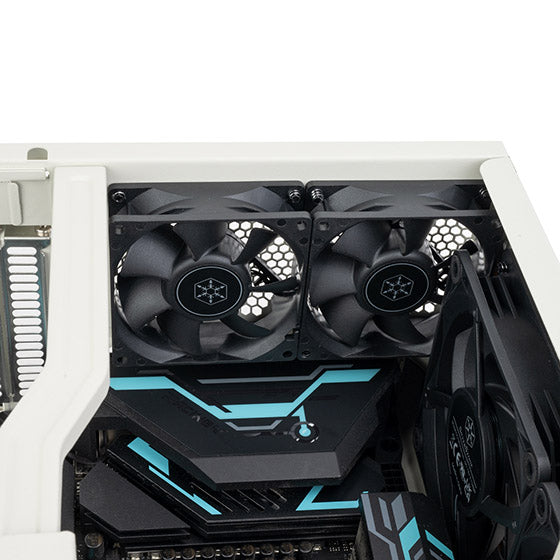

Rear
80mm x 2

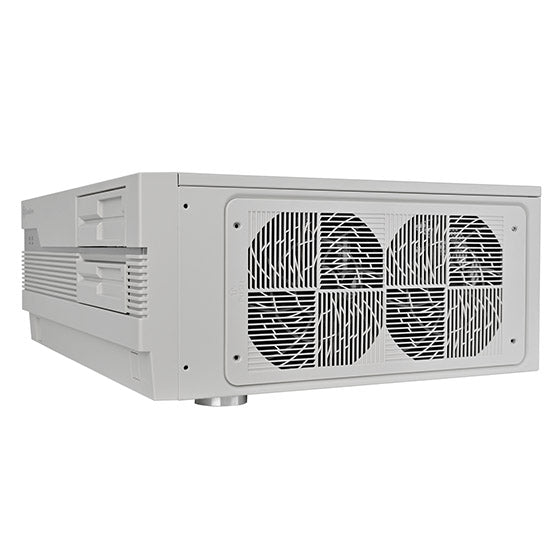

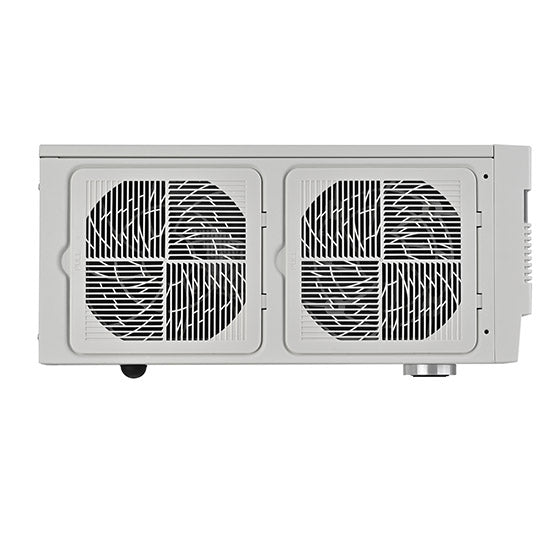

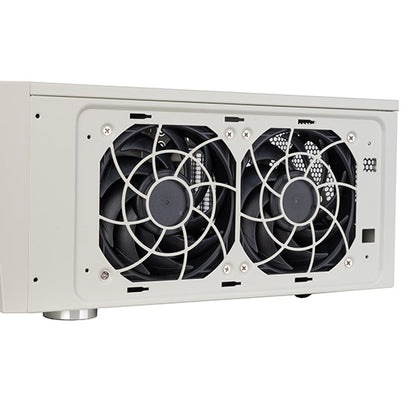

Side

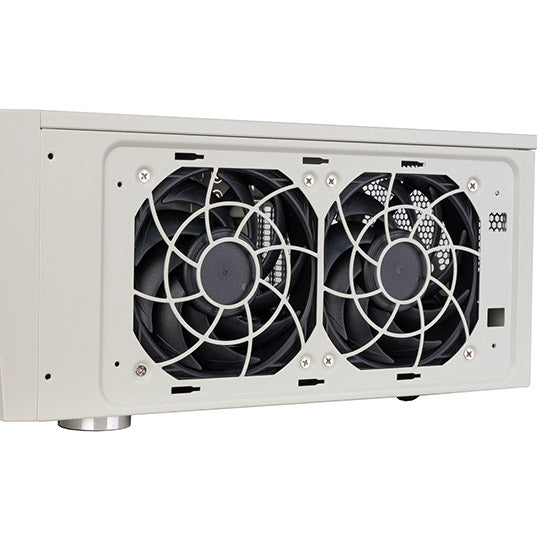

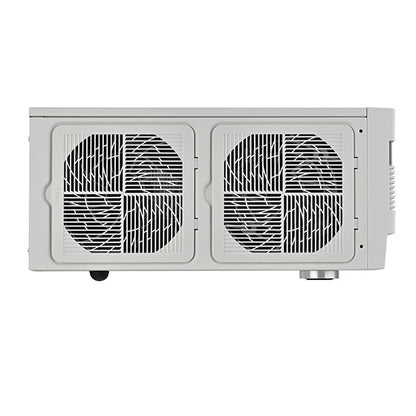

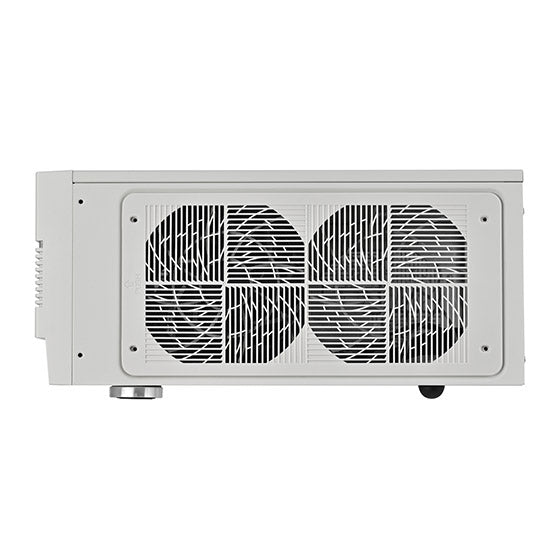

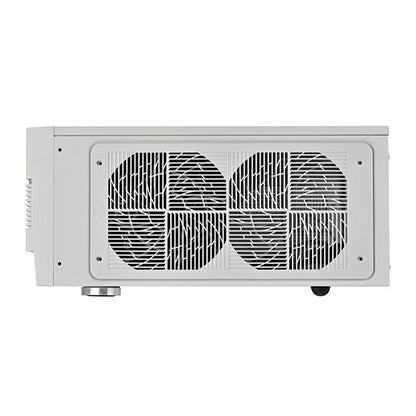

Right: 120mm x 2 (120mm x 1 fan included)
Left: 120mm x 1 / 80mm x 1
Limitation of CPU cooler
88mm (remove ODD if you want install up to 138mm)

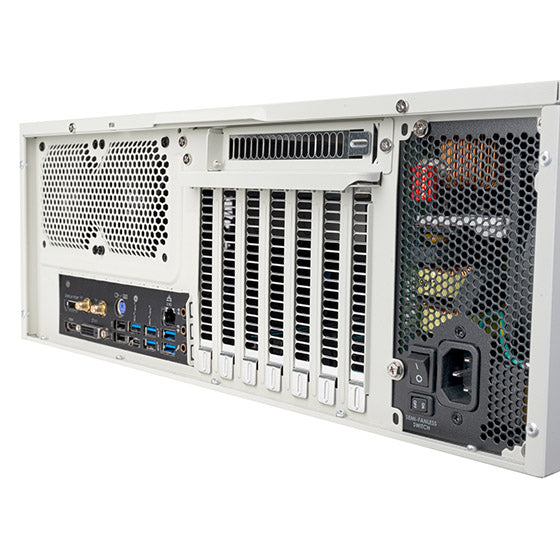

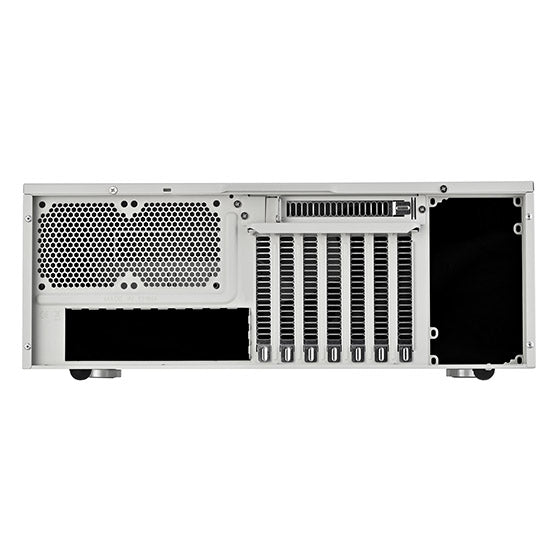

Expansion slot
7+1
Limitation of expansion card
Length： 309mm
Width： 133mm

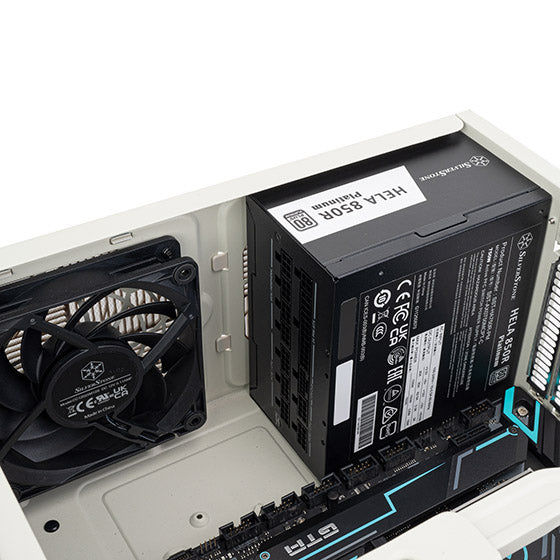

Power supply
Standard PS2 (ATX)
Limitation of PSU
170mm
Front I/O port
USB Type-C x 1
USB 3.0 x 2
Combo audio x 1

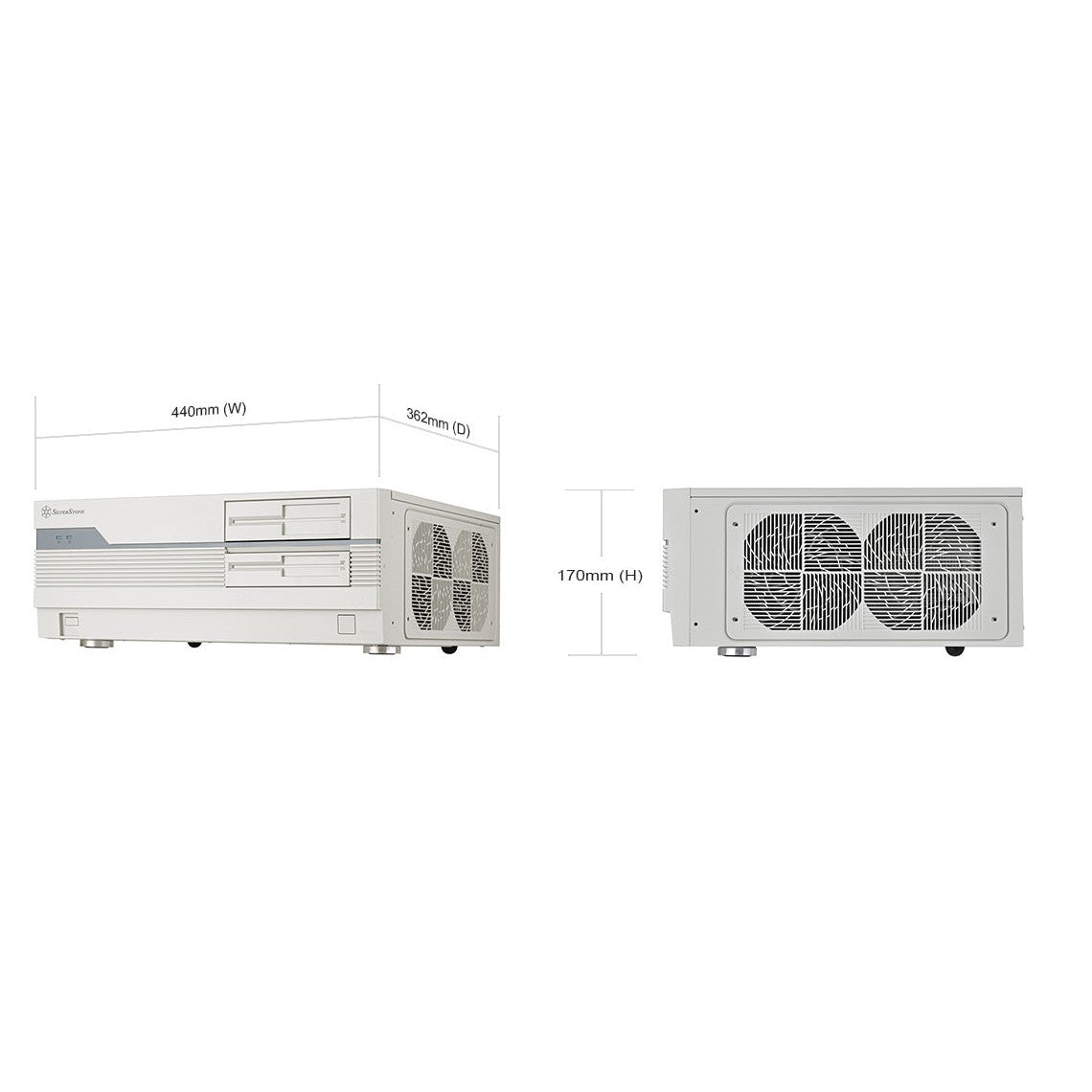

Dimension
440mm (W), x 170mm (H), x 362mm (D), 27.08 litres
17.32" (W), x 6.69" (H), x 14.25" (D), 27.08 litres
Net weight
4.46kg
