Features

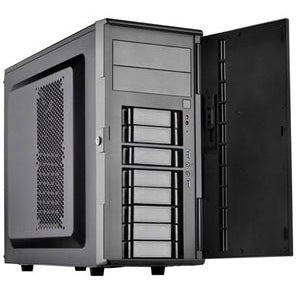

To fulfil the needs of enthusiasts looking for a compact, flexible NAS tower chassis, SilverStone designed the CS380. With the ability to accommodate standard components such as ATX motherboards, standard ATX (PS2) power supplies, dual 5.25" drive bays, standard-sized expansion cards, and even liquid coolers, the CS380 can easily meet the demands for majority of NAS builds. Equipped with two 120mm intake fans, a 120mm rear exhaust fan, and easily removable filters, keeping everything cool and dust-free is as easy as in any SilverStone premium chassis. Safety features such as lockable front door and power button are also included.

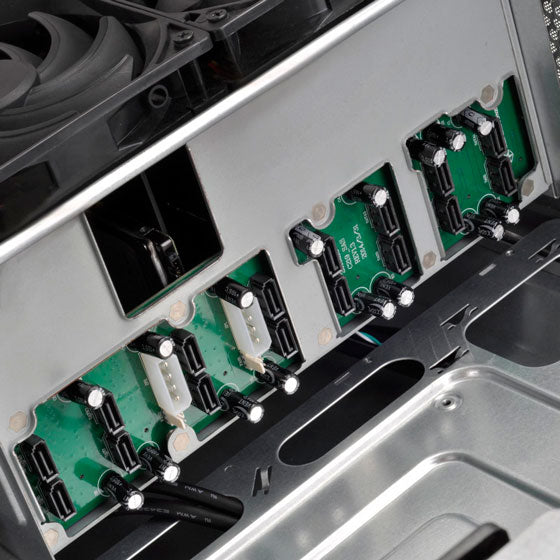

Completing a great chassis structure is a modular, eight hot-swappable drive cage design that support both 3.5" and 2.5" drives. It utilises a custom backplane supporting both SATA and SAS interfaces for increased compatibly with nearly all modern hard drives or SSDs. With a size that is nearly identical to most ATX mid towers, the space-saving CS380 is perfect for anyone looking to build a powerful NAS for home or office.
- Compact mid-tower chassis design with space-saving footprint

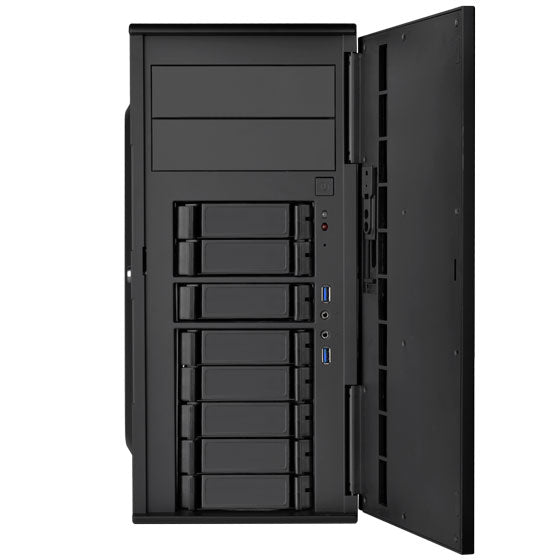

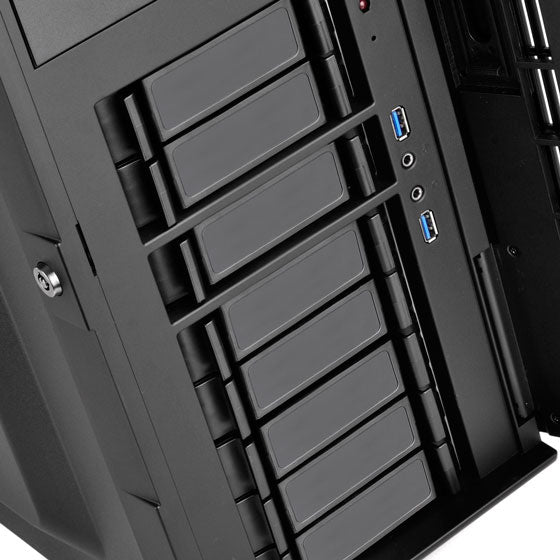

- Supports eight hot-swappable 3.5" or 2.5" SAS/SATA drives with built-in backplane
- Classic SilverStone styling

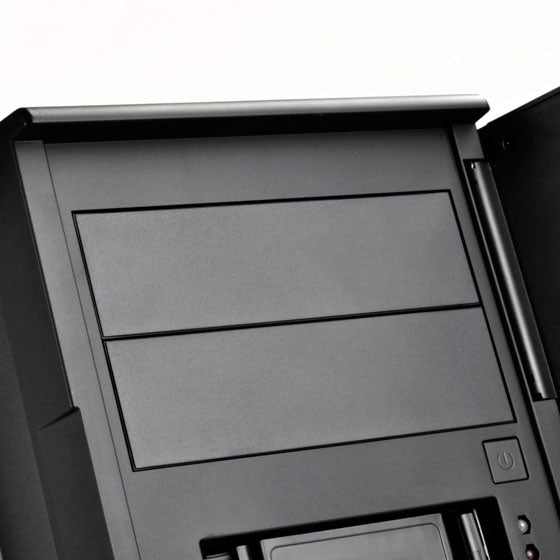

- Includes two flexible 5.25" drive bays for more storage options

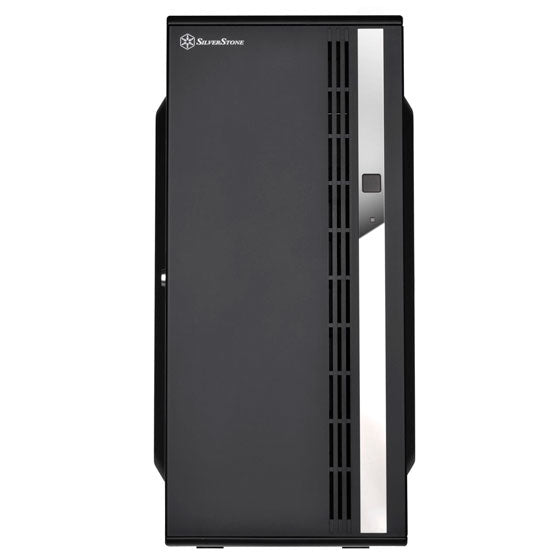

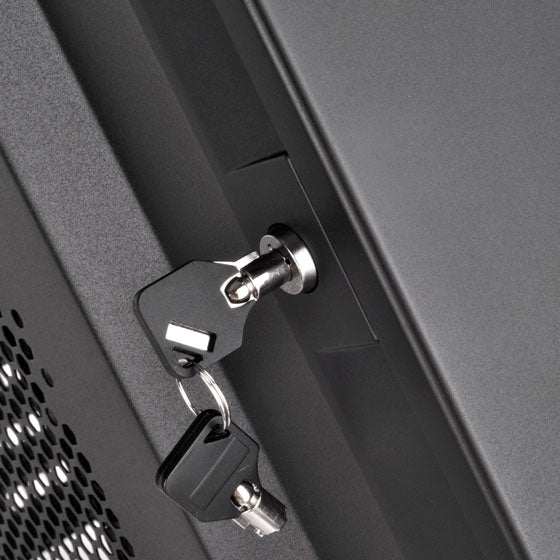

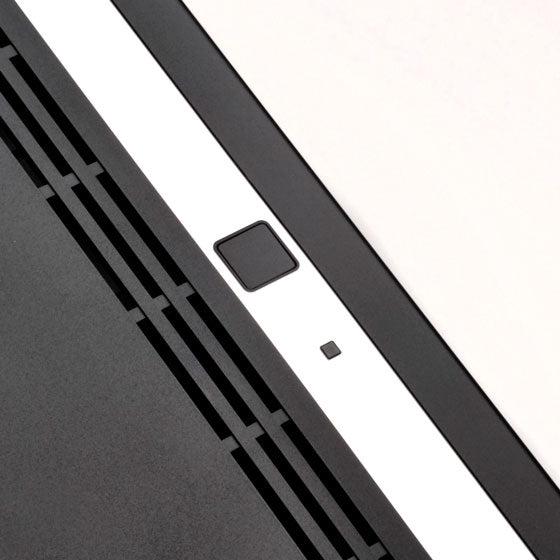

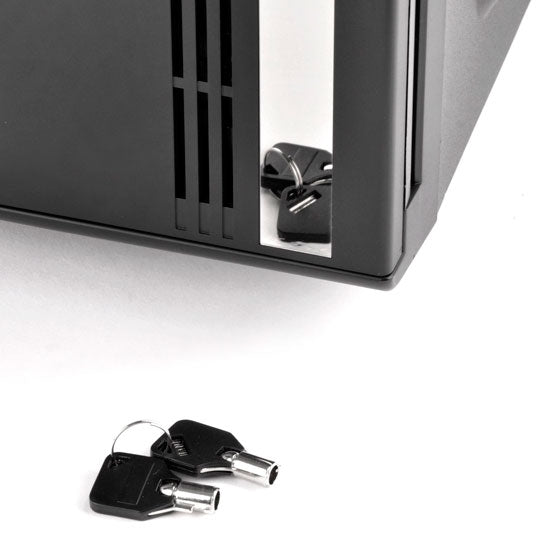

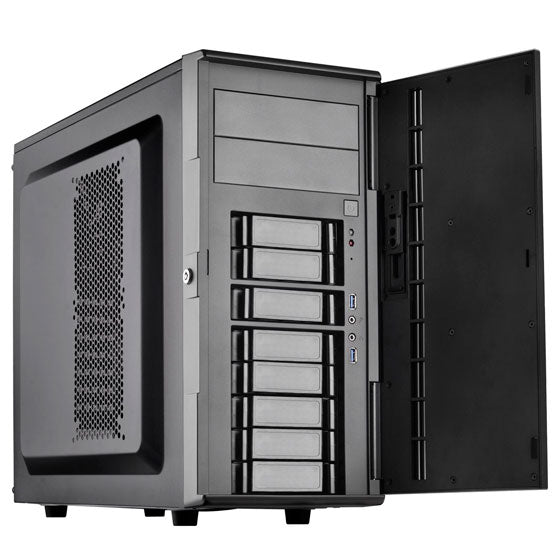

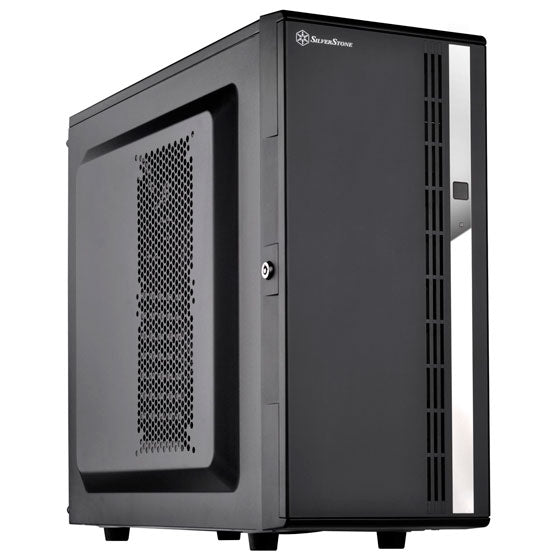

- Lockable front door and power button design

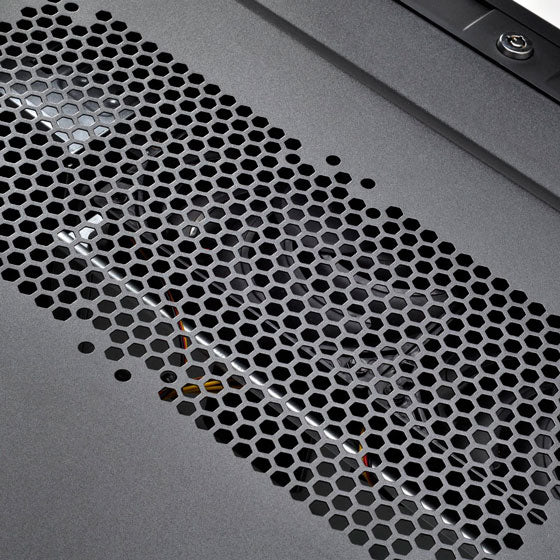

- Includes three 120mm fans with filtered intake vents
Specifications
Model No.: SST-CS380 B
Material: Plastic front door/bezel, steel body
Motherboard: ATX, Micro-ATX, Mini-ITX
Drive Support
External
5.25" x 2
Internal
3.5" SAS**/SATA hot-swap x 8 (2.5" compatible)
Cooling System

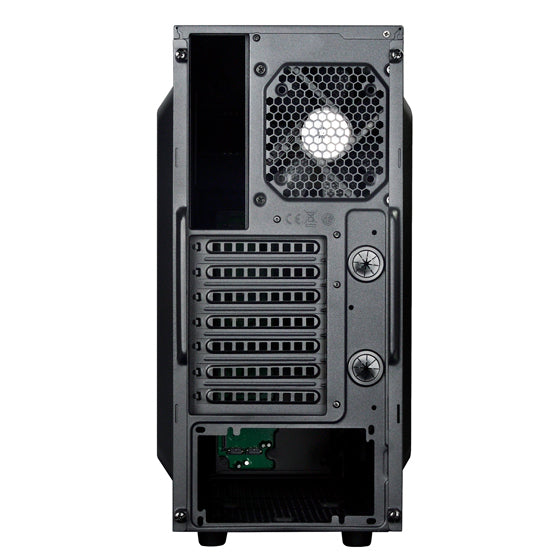

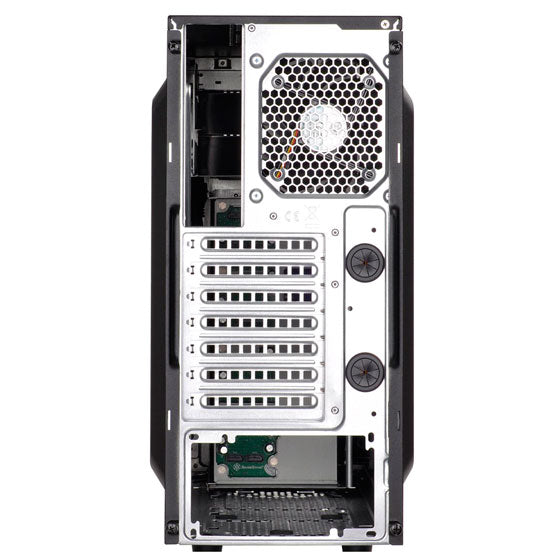

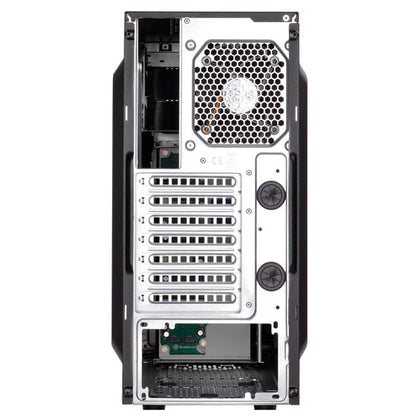

Rear: 1 x 120mm fan, 1200rpm (Compatible with 120mm fan/radiator)

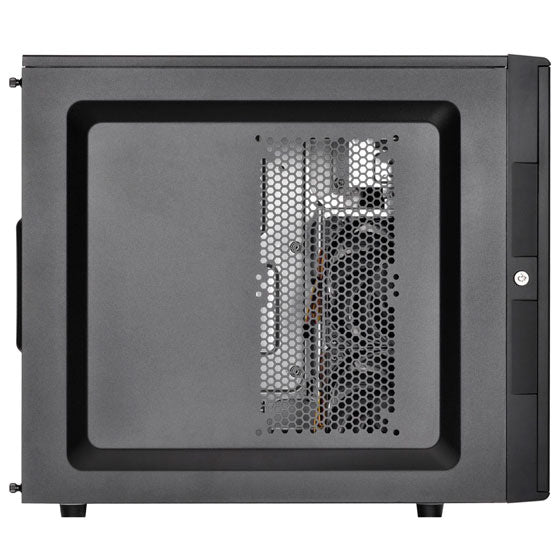

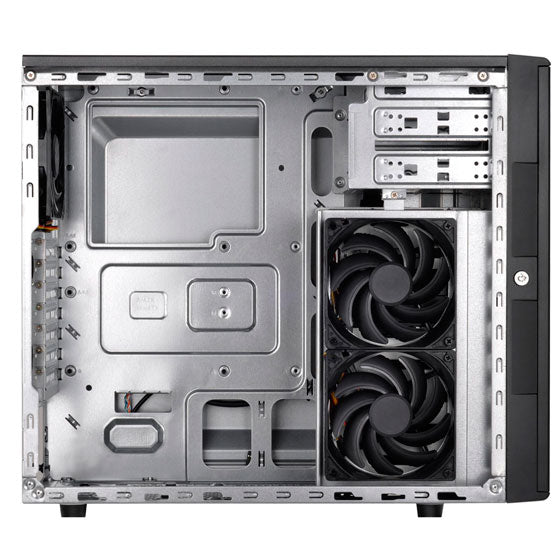

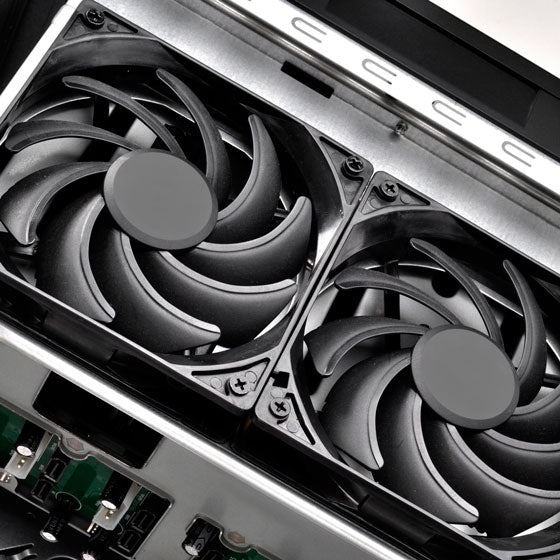

Side: Dedicated drive bracket 120mm fan x 2, 1200rpm

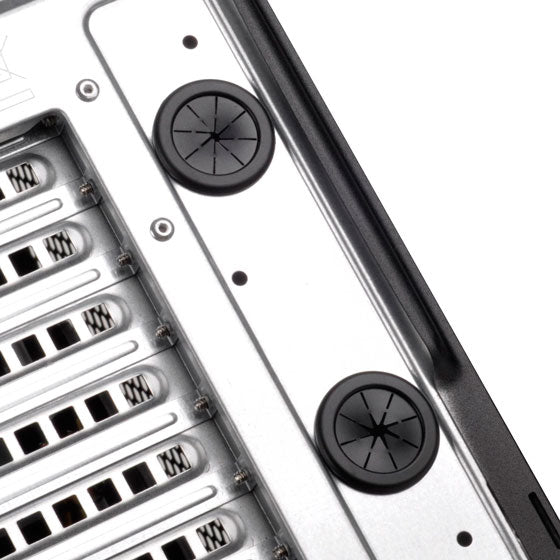

Expansion Slot: 7

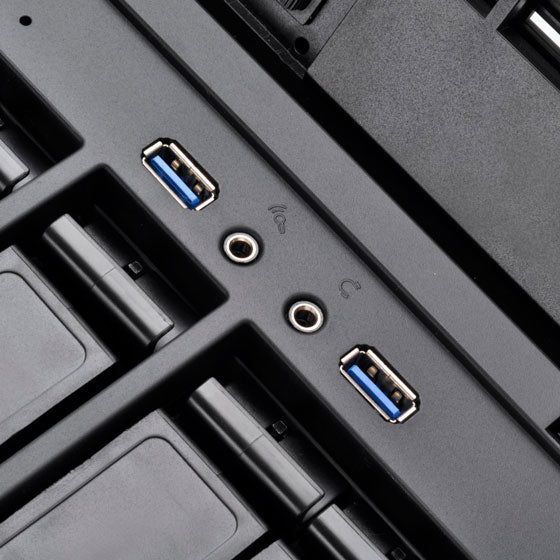

Front I/O Ports
2x USB 3.0 Type-A
1x Audio
1x MIC
Power Supply (PSU): Standard PS2 (ATX)
Limitation of Expansion Card: Compatible up to 9.5" (241mm), width restriction - 5.9" (149mm)
Limitation of CPU Cooler: 146mm

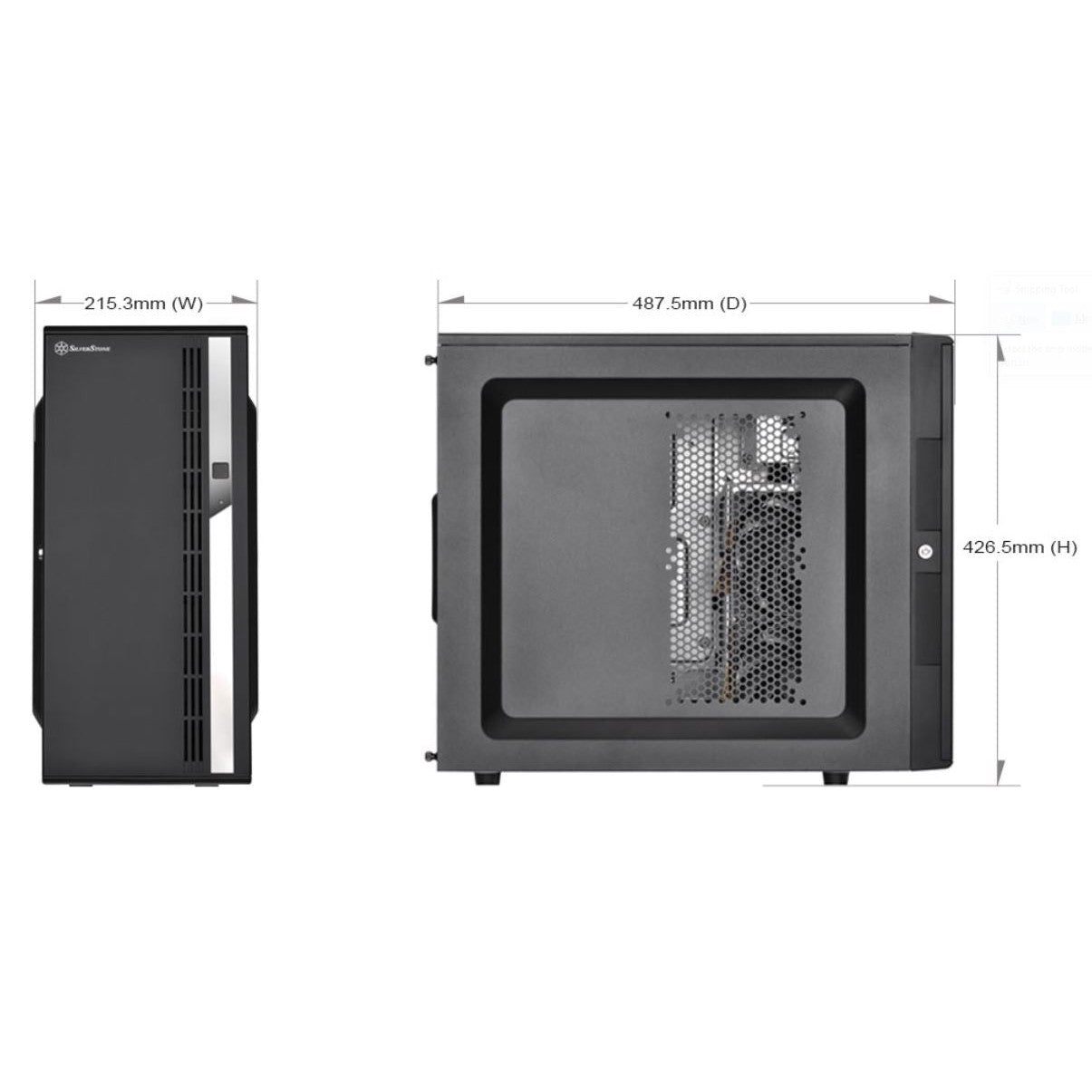

Dimension (W x H x D):
215.3 x 426.5 x 487.5 mm
8.46" x 16.77" x 19.17"
Litreage: 44.7 Litres
Net Weight: 7 kg
* Black interior - serial numbers BSCS380B19200001 or after (V2.0)
** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05)
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
