Shuttle WWN03 4G/LTE Network Extension Kit*

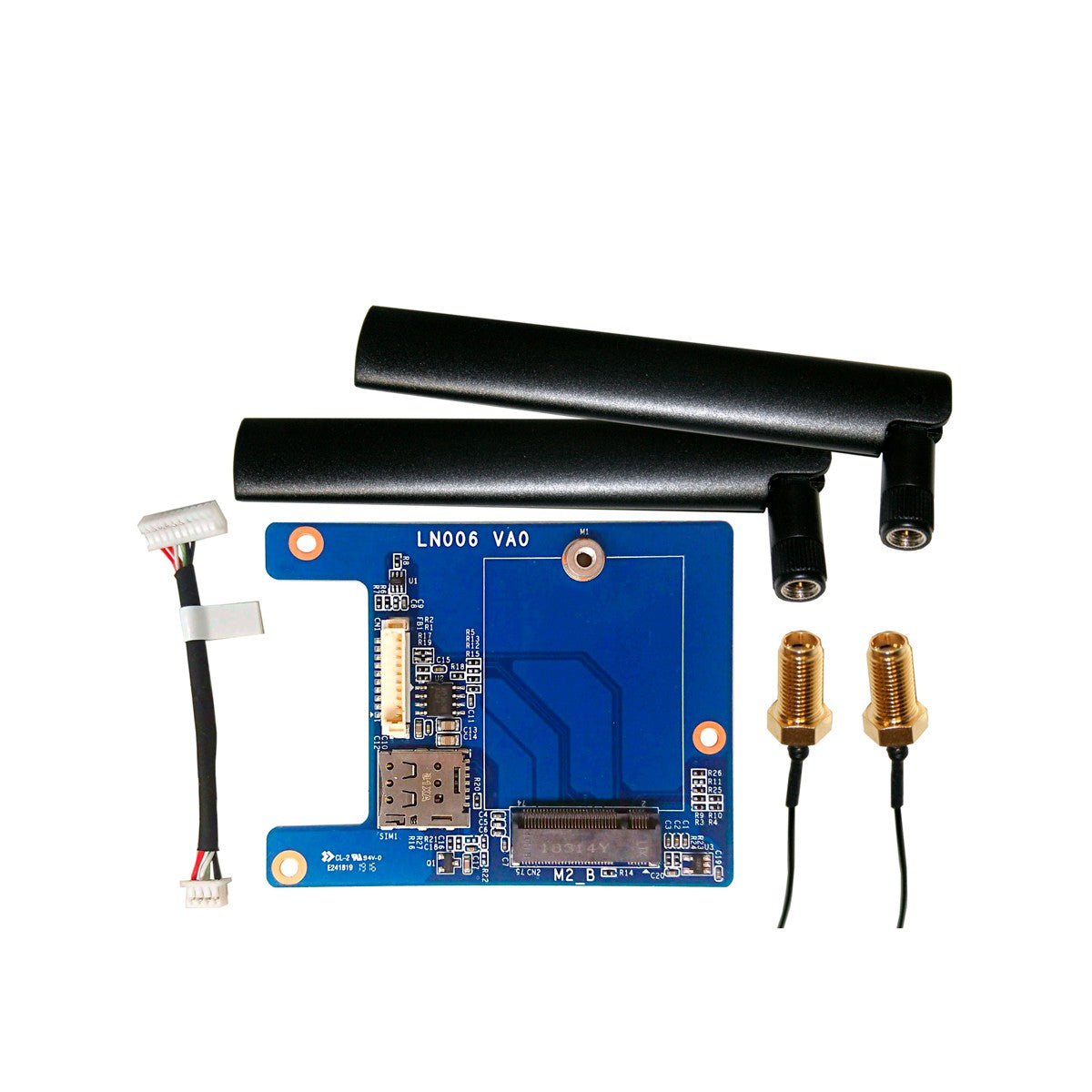

The WWN03 includes a riser adapter card, two antennas with cables to support 4G/LTE modules plus a SIM card for the mobile network.
*4G/LTE module is not included. Suggest SX9954
Features
The Shuttle XPC accessory WWN03 allows compabitle Shuttle XPC slim Barebones to be upgraded with an LTE/4G function for mobile network. The LTE card will occupy the 2.5" bay, so you have to use an M.2 SSD as mass storage device. The required LTE/4G card in M.2-3042 format and an activated Nano SIM card is not included in the scope of delivery.
Specifications
-

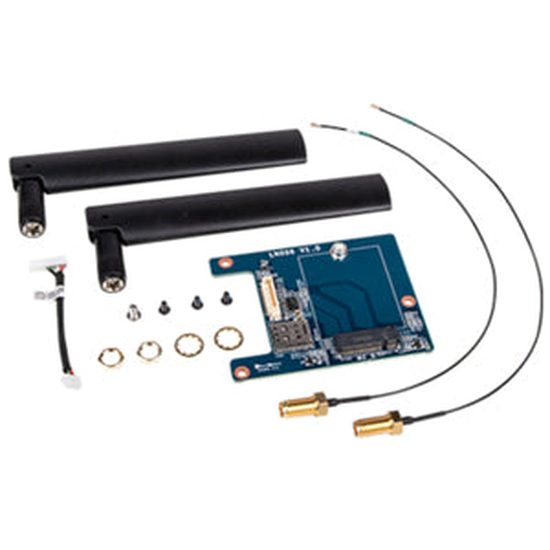

Contents:
- Daughterboard LN006 with USB cable connector
- Fastening screw for M.2/LTE card (two-parts: bolt with screw)
- 3x screw to install LN006 in a 2.5" bay
- 2x LTE/4G antennas
- 2x antenna cables with toothed lock washer and screw nut
- Quick installation guide
-
Adapter card:
- USB connector to connect to the mainboard
- M.2 socket supports one LTE/4G module M.2-3042 Key B
- supports one SIM card in Nano format
-
Two external antennas:
LTE/4G dipole omnidirectional antenna
Multi-band: supports EU frequency bands (800, 1800, 2600 MHz) for GSM/UMTS/LTE and the following frequency ranges: 704~960, 1428~1575, 1720~2170, 2400~2690 MHz
Colour: black
Length overall: 135.7 mm
Dimensions of the antenna body: 114.8 mm x 20.1 mm
Impedance: 50 Ohm
Voltage Standing Wave Ratio (VSWR): <= 3.0
Radiation: Omni
Gain: 2 dBi
Polarisation: vertical
Connector: SMA
-
Two antenna cables:
RF cable lengths: 20 cm
Connectors:
1) SMA Pigtail female
2) I-PEX MHF 4
-
Compatibility:
The WWN03 can be used for
1) Shuttle XPC slim DS10Ux/DS20Ux series - the existing WLAN function can still be used then.
2) Shuttle XPC slim DH32U, DH32U5, DH410, DH410S, DH470, DH610, DH610S, DH670, XH510G2, XH610, XH610V, DL20N, DL20N6, DL20NV2, DL20N6V2, DL30N, DL30N3 - the WLAN accessory WLN-M1 can not be installed at the same time.
Note that two more components are required for operation:
- LTE/4G module M.2-3042 Key B
- SIM card in Nano format
Successfully tested LTE/4G modules with USB interface:
- Sierra EM7455 (CAT 6, for Europa and North America)
- Sierra EM7430 (CAT 6, for APAC)
- Huawei ME906S (CAT 4, for EMEA, Australia, New Zealand)
- Quectel EM06-E (CAT 6, for EMEA, Australia, Brazil)
WWN03 is not compatible to LTE cards with PCIe interface e.g.:
- Fibocom L850-GL-00 LTE module
XPC Accessories Compatibility (Shuttle Website)
Warranty: 36 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
