Shuttle WLN-M WLAN-AC / Bluetooth Combo Kit M.2

Shuttle WLN-M WLAN-AC / Bluetooth Combo Kit M.2

Brand: Shuttle | SKU: WLN-M

$99.00
$99.00 $99.00
Sale Sold out
GST included. Shipping calculated at checkout.

In stock

Found a better price? Request a price match

View full details

WLN-M

Universal WLAN-ac / Bluetooth Combo Kit with M.2 card

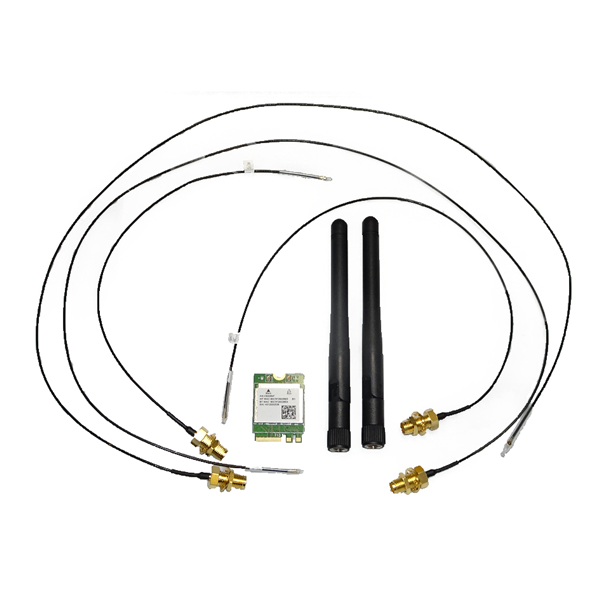

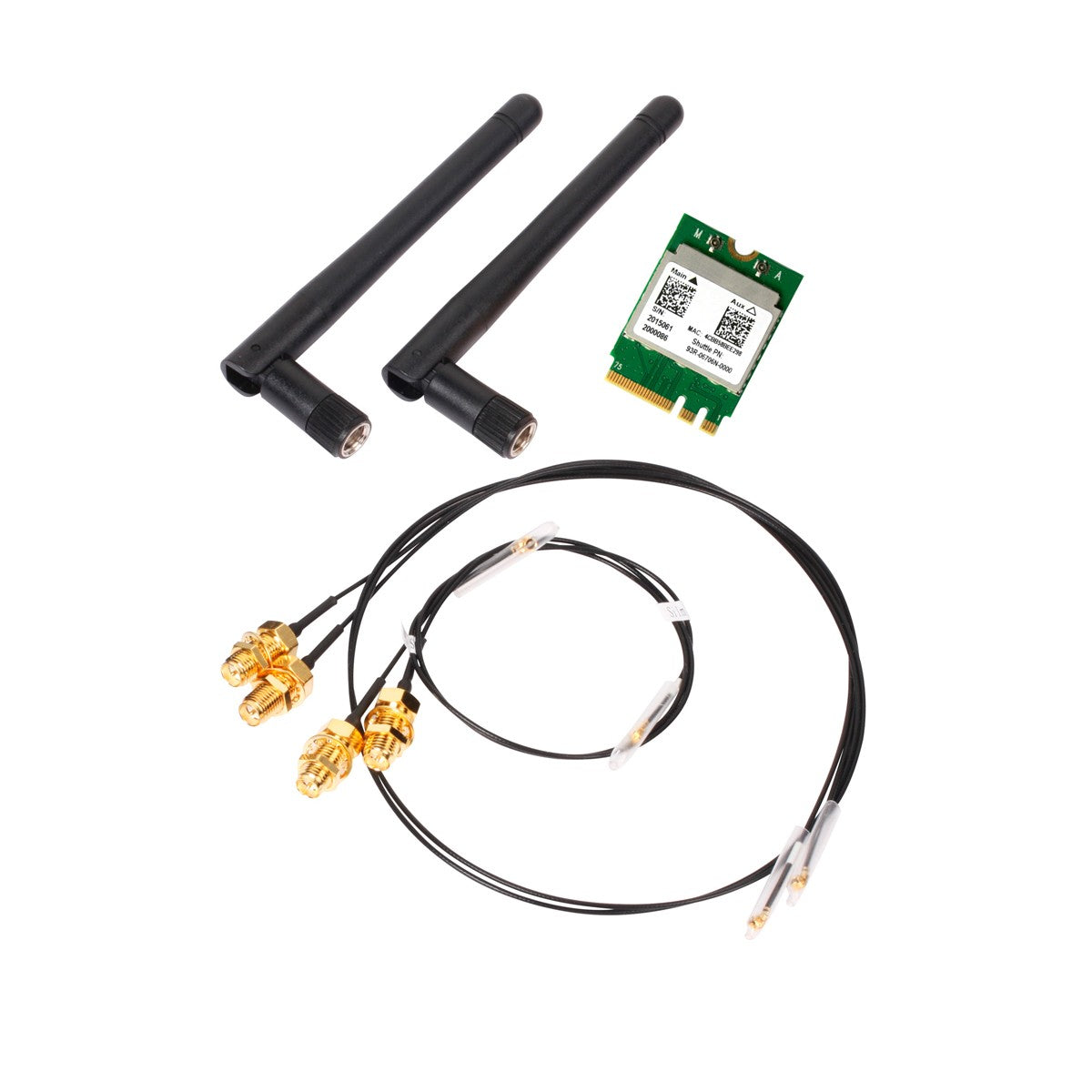

The Shuttle accessory WLN-M is a wireless LAN kit consisting of an M.2-2230 card, two antennas and appropriate cables. The WLN-M is intended for certain Shuttle barebones of the XPC cube and XPC slim series to equip them with the wireless LAN standard according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 4.0.

Note: What are the advantages of WLN-M over a conventional WLAN USB stick?
1) The M.2 card sits in the case and is better protected from tampering and theft.
2) The integrated solution is more appealing.
3) For the best possible efficiency the antenna should be at least 6cm long (half a wavelength at 2.4 GHz) which is a big advantage over the USB stick.
4) This WLAN card is a Combo card which supports both WLAN and Bluetooth.
5) The transmission protocol of the PCI-Express interface is less complex as compared to USB which helps keep processor load lower.


Specifications

  • Contents
    - M.2-2230 (NGFF) WLAN card
    - 2 antenna cables for XPCs slim, length: 21 and 29 cm
    - 2 antenna cables for XPCs cube, length: 53 cm
    - 2 dipole antennas
    - Quick Guide (English, German, French)
    - Windows Driver DVD

  • Compatible with the following Shuttle products:
    Shuttle XPC nano Barebone PCs
    NC02Ux series, NC03Ux series, NC10Ux series

    Shuttle XPC slim Barebone PCs
    DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH20U7, DH02Ux

    Shuttle XPC cube Barebone PCs
    SH110R4, SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8

    Shuttle XPC All-in-One Barebone PCs
    P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx

    Shuttle Edge
    EN01J3, EN01J4, EN01E, EN01B (in combination with Shuttle Accessory LN007)

  • Supported operating systems
    Windows 7, Windows 8.1, Windows 10, Windows 11, Linux (32- / 64-bit)
  • WLAN Standard
    Supports WiFi IEEE 802.11b/g/n/ac in the 2.4 / 5 GHz band, 1T1R
    PCI-Express V1.1 host interface
  • Encryption technology
    Supports WPA2 (IEEE 802.11i with AES), WPA and WAPI
  • Bluetooth Standard
    Supports Bluetooth 4.2 in the 2.4 GHz band, USB 2.0 host interface
  • Maximum PHY data rate:
    72.2 / 150 Mbps using 20 / 40 MHz bandwidth in n-mode
    433.3 Mbps using 80 MHz bandwidth in ac-mode
  • Adapter card:
    Model: AzureWave AW-CB304NF
    Chipset: Realtek RTL8821CE
    M.2-2230 (NGFF) extension card
    Dimensions: 26.65 x 29.85 x 2.35 mm (LWH)
  • Temperature Range: 0~70°C (Operating), -20~70°C (Storage)
  • Humidity: 10~80 Non-Condensing
  • EMC certification: CE, FCC
  • Antenna cables:
    Four WLAN cables with diverse lengths: 21, 29, 53, 53 cm
    Connectors:
    1) RP-SMA Pigtail male
    2) MHF IV (I-PEX4), HSC MXHP32 (Murata) compatible
  • Antennas: two external dipole antennas
    Frequency range: 2.4 / 5 GHz band, omnidirectional
    Total length: 108 mm, diameter: 7.8~10.0 mm



Specifications (PDF)

XPC Accessories Compatibility (Shuttle Website)

Warranty: 36 Months*
