Features

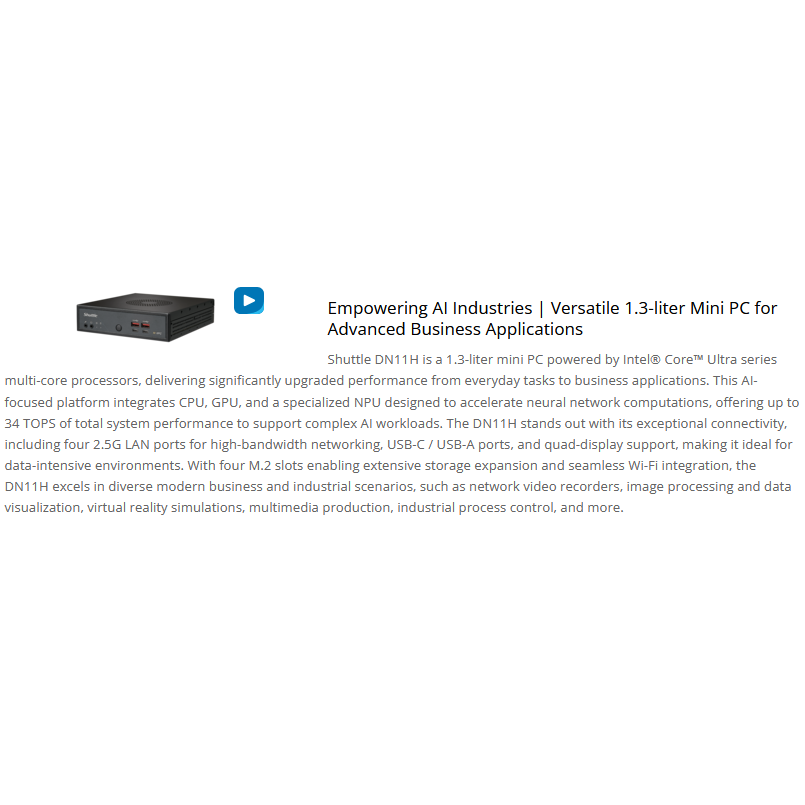

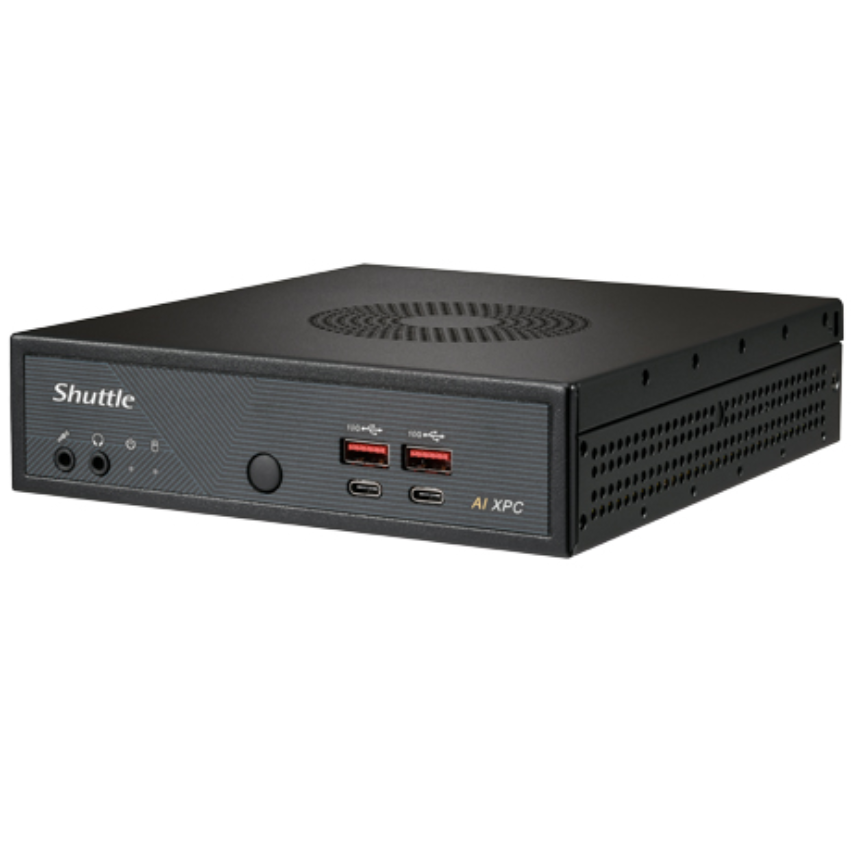

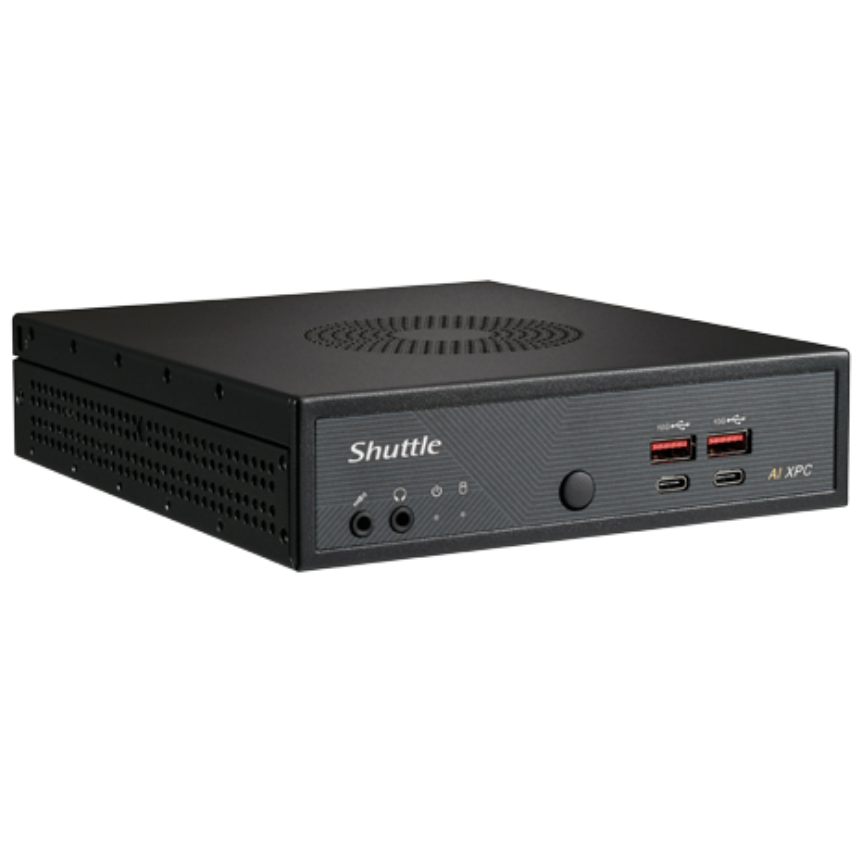

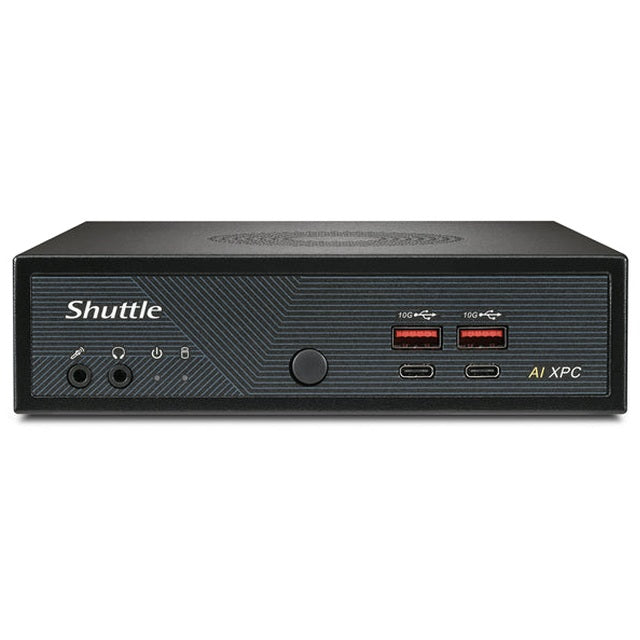

The Shuttle AI XPC slim DN11H7 provides a compact solution for users seeking a powerful computing experience in a small form factor. Powered by an Intel Core Ultra 7 processor with a clock speed of 1.4 GHz and capable of reaching up to 4.8 GHz with turbo boost, this ultra small form factor PC is designed for efficiency. With 16 cores and 24 MB cache memory, it delivers performance suitable for various applications, from basic tasks to more demanding operations. Equipped with Intel Arc Graphics, the DN11H7 supports up to 4 monitors through HDMI and Display Port connections. The system features 2 available slots for M.2 expansion, creating opportunities for enhanced functionality. AI readiness allows users to explore intelligent computing possibilities, making this PC a versatile choice for both home and office settings.
- Compact ultra small form factor design for space-saving installation
- Powerful Intel Core Ultra 7 processor with 16 cores for efficient multitasking
- Supports up to 4 monitors for enhanced productivity
- AI Ready to enable intelligent applications
- Various expansion slots and connections for versatile use
Powerful Processing Capabilities
The Shuttle XPC slim DN11H7 is equipped with an Intel Core Ultra 7 processor that features a base clock speed of 1.4 GHz and can boost up to 4.8 GHz, providing strong performance for diverse tasks.
Versatile Connectivity Options
Featuring a total of 6 interface connections including Display Port, HDMI, and USB 3.2 Gen 2, the DN11H7 allows for easy connectivity with various devices and peripherals.

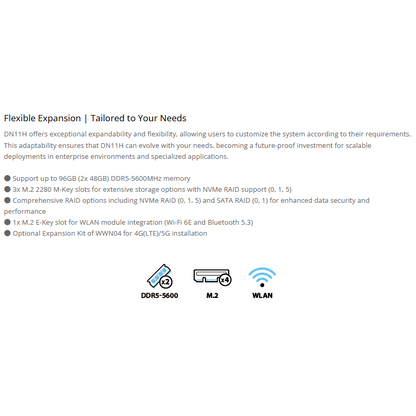

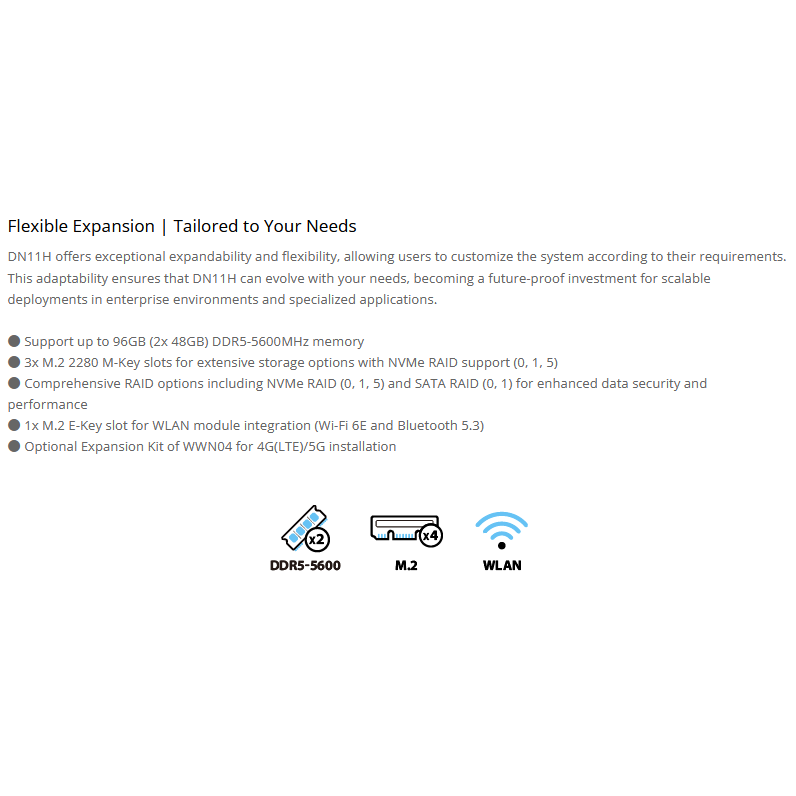

Flexible Expansion Potential
The system includes 3 total M.2 expansion slots with 2 available, offering flexibility to customise and expand functionality as needed.

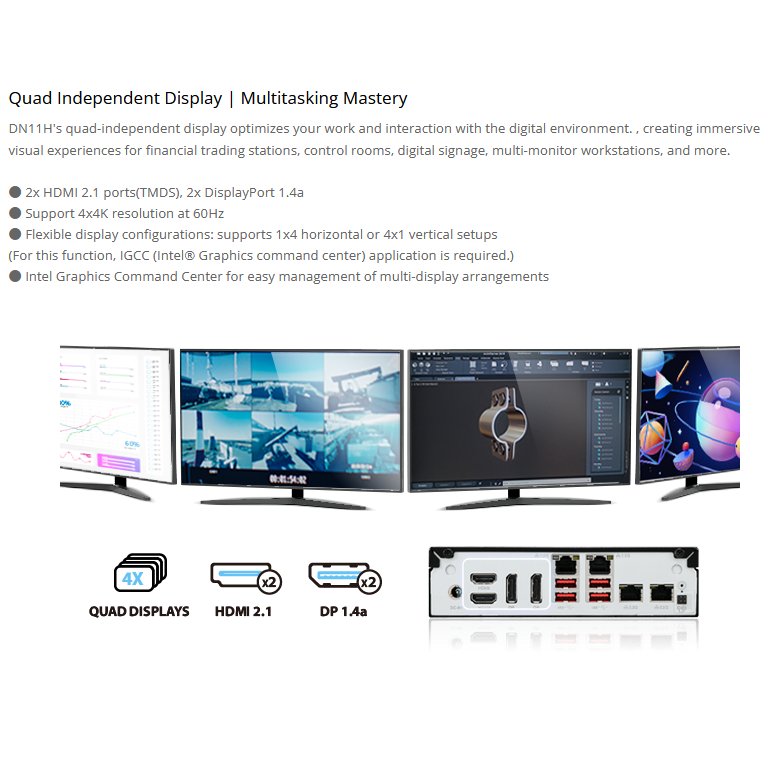

Multi-Monitor support
With the capability to connect up to 4 monitors via HDMI and Display Port, this PC caters to users needing extensive screen real estate for productivity.

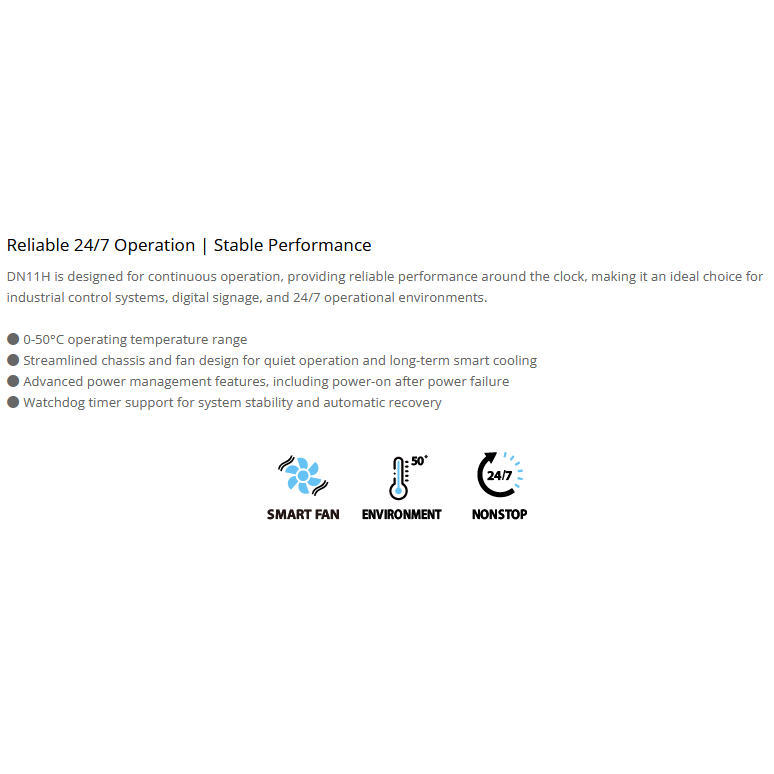

Efficient Operating Conditions
Designed to function in temperatures ranging from 0°C to 50°C with a humidity range of 10-90%, the DN11H7 is reliable for various operating environments.
Specifications
Product Description: Shuttle AI XPC slim DN11H7 | Slim-PC | AI Ready | Core Ultra 7 155H 1.4 GHz | 0 GB RAM | No SSD
Type: Barebone Slim-PC - AI Ready
Product Form Factor: Slim-PC (1.3L)
Processor / CPU: 1 x Intel Core Ultra 7 (Series 1) 155H / 1.4 GHz (up to 4.8 GHz, 16-Core)
Processor Main Features: Intel Smart Cache
Cache Memory: 24 MB
Cache Per Processor: 24 MB
RAM: 0 GB (installed) / 96 GB (max) – DDR5 SDRAM (2 Slots)
Storage Controller: SATA
Hard Drive: No HDD
Optical Storage: No optical drive

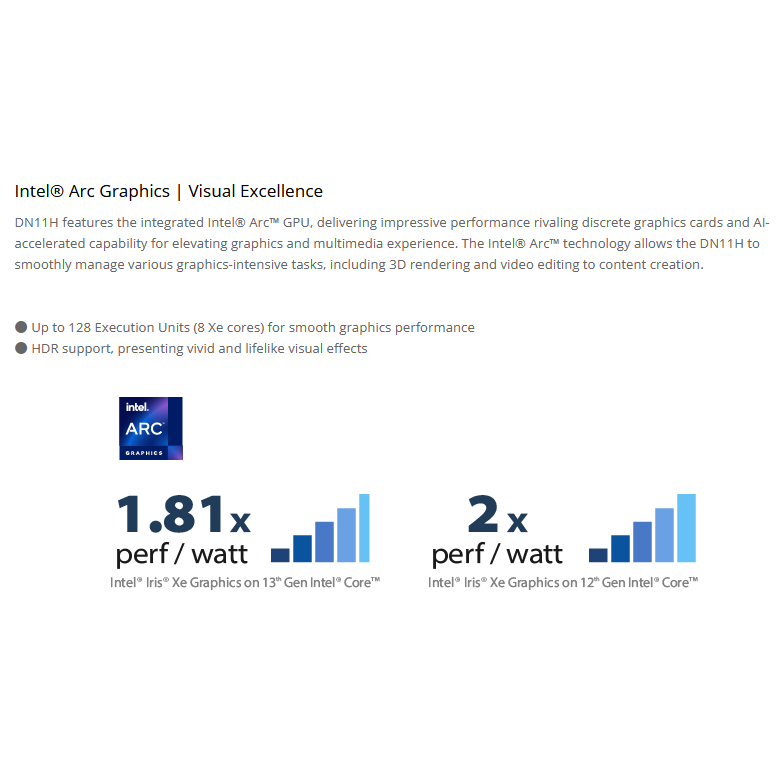

Graphics Controller (GPU): Intel Arc Graphics
Audio Output: Stereo
Networking: 1GbE
OS Provided: No Operating System
Dimensions (WxDxH): 19 cm x 16.5 cm x 4.3 cm
Weight: 1.3 kg
Form factor: 1.3L Chassis
Documents
Quick Guide
Product Data Sheet / Specs
Extended Specifications

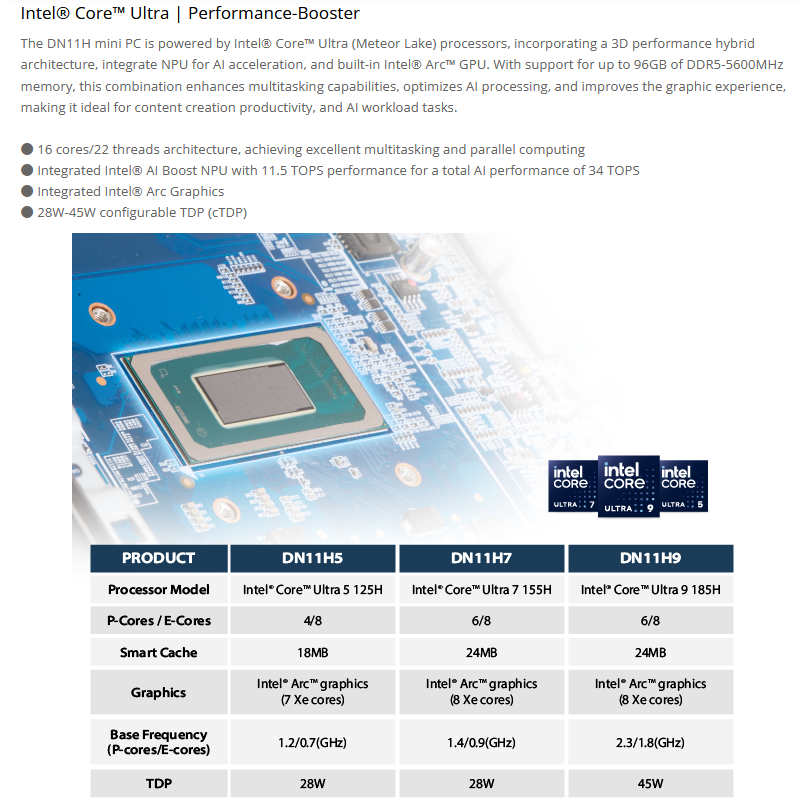

Processor / Chipset

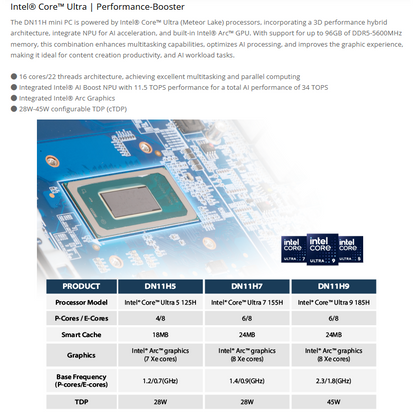

CPU: Intel ® Meteor Lake Core Ultra 7 155H Processor
Clock Speed: 1.4 GHz (P-Core) / 0.9 GHz (E-Core)
Max Turbo Speed: 4.8 GHz (P-Core) / 3.8 GHz (E-Core)
Number of Cores: 16-Core
CPU Qty: 1
Max CPU Qty: 1
Processor Main Features: Intel Smart Cache
NPU: Built in Neural Processing Unit (NPU)
Cache Memory
Installed Size: 24 MB
Cache Per Processor: 24 MB
RAM
Installed Size: 0 GB (installed) / 96 GB (max)
Technology: DDR5 SDRAM
Form Factor: SO-DIMM 262-Pin
Slots: 2 (Total) / 2 (Empty)
Hard Drive
Type: No HDD
Storage Controller
Type: 1 x SATA
Optical Storage
Type: No Optical Drive
Monitor
Monitor Type: None
Graphics Controller
Graphics Processor: Intel Arc Graphics
Video Interfaces: HDMI, Display Port
Max Monitors Supported: 4
Audio Output
Sound Output Mode: Stereo
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

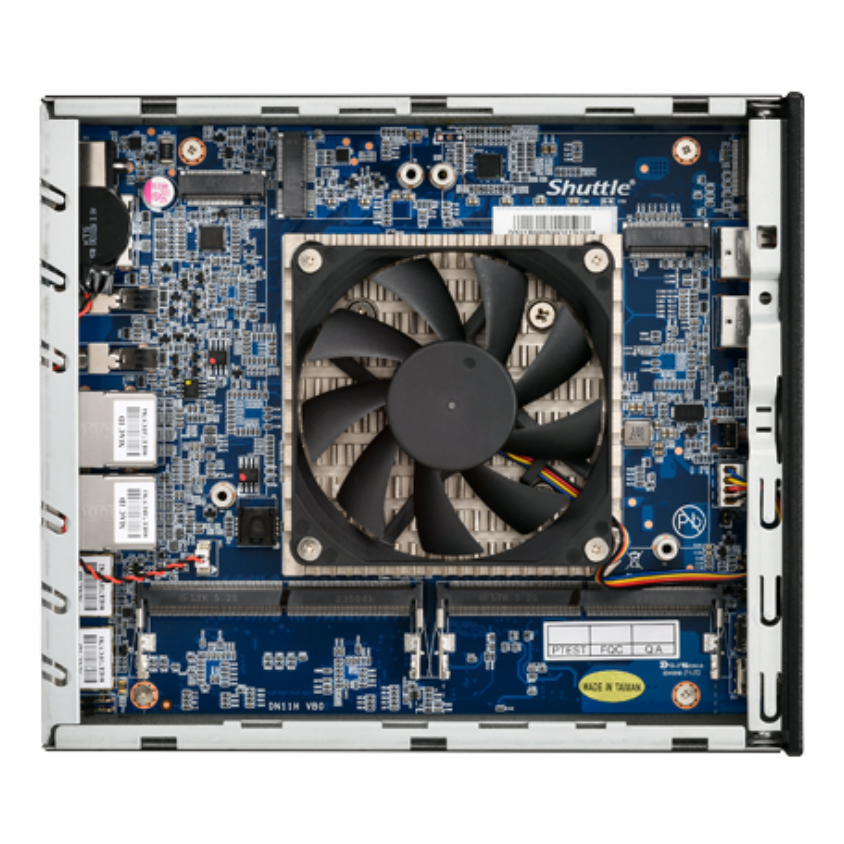

Expansion / Connectivity
Expansion Slots:
2x (free): M.2 2280 M key sockets for NVMe/SATA SSD
1x M.2 2280 M key socket for NVMe SSD/WWN04
1x M.2 2230 Type E key socket for WIFI

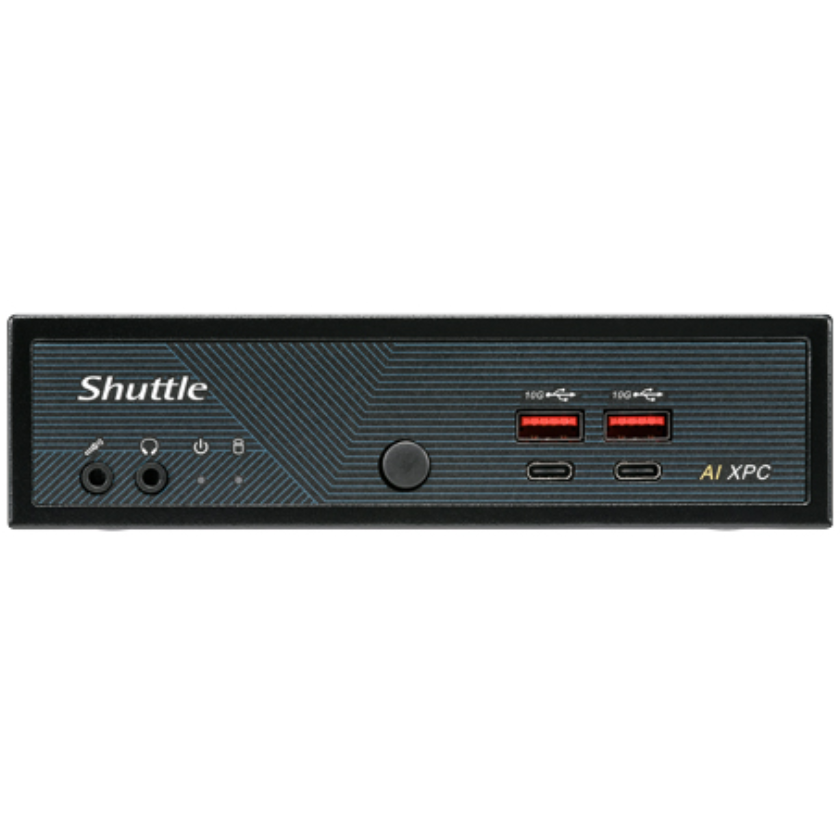

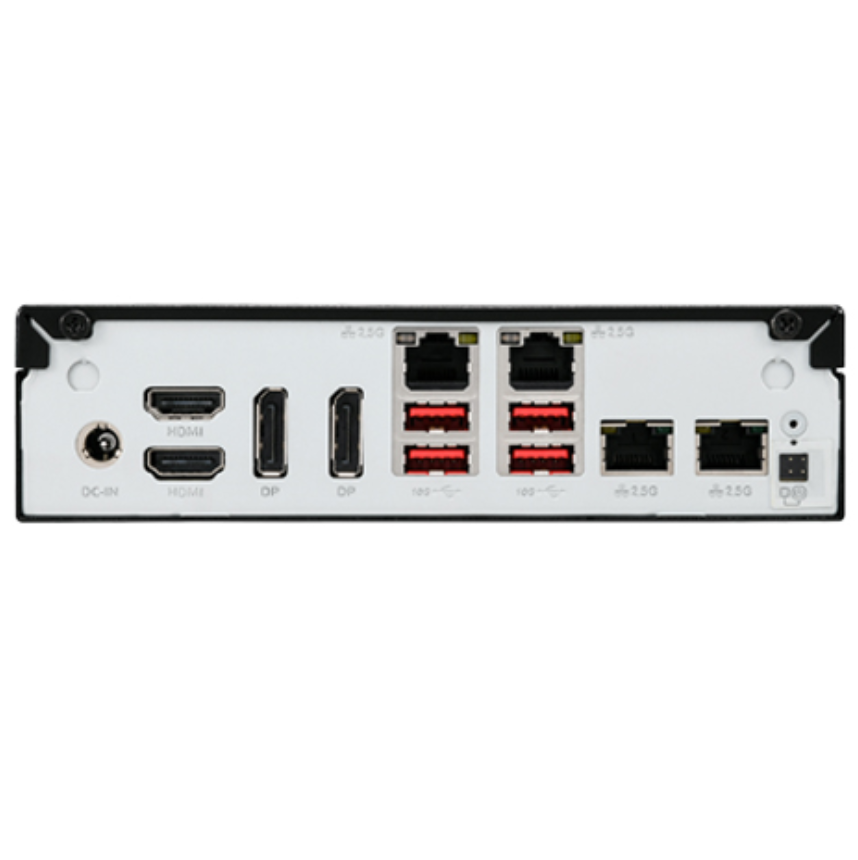

Interfaces
1 x Microphone
1 x Audio Line-Out/Headphones
2 x Display Port
2 x HDMI

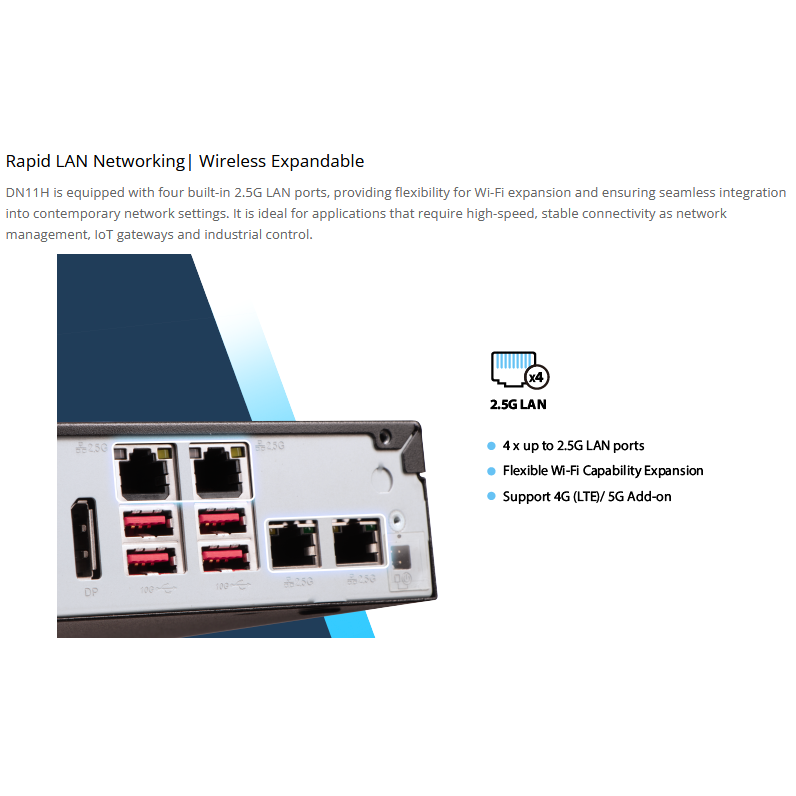

4 x LAN (2.5 Gigabit Ethernet)

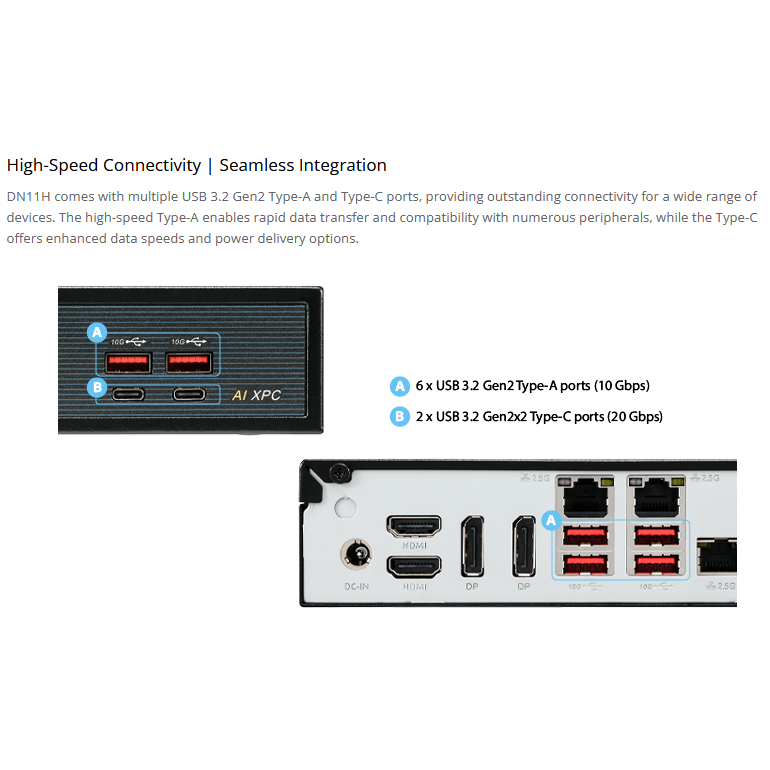

6 x USB 3.2 Gen 2
2 x USB-C 3.2 Gen 2
Power
Device Type: Power Adapter
Power Provided: 120 Watt
Operating System / Software
OS Provided: No Operating System

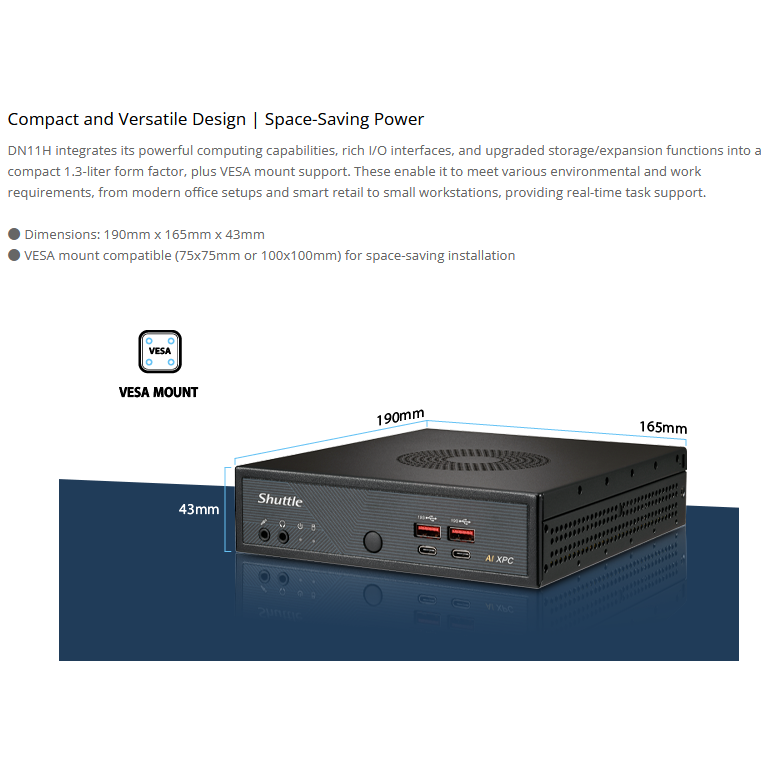

Dimensions & Weight
Width: 19 cm
Depth: 16.5 cm
Height: 4.3 cm
Weight: 1.3 kg
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 50 °C
Humidity Range Operating: 10% - 90% (Non-Condensing)
What’s in the Box
Shuttle AI XPC slim DN11H7
Power Adapter
Warranty: 36 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
