Features

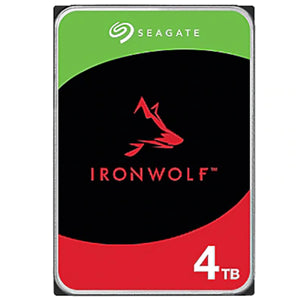

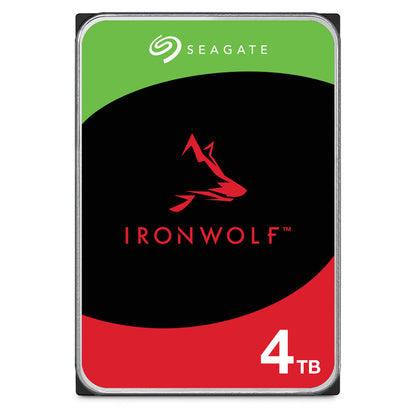

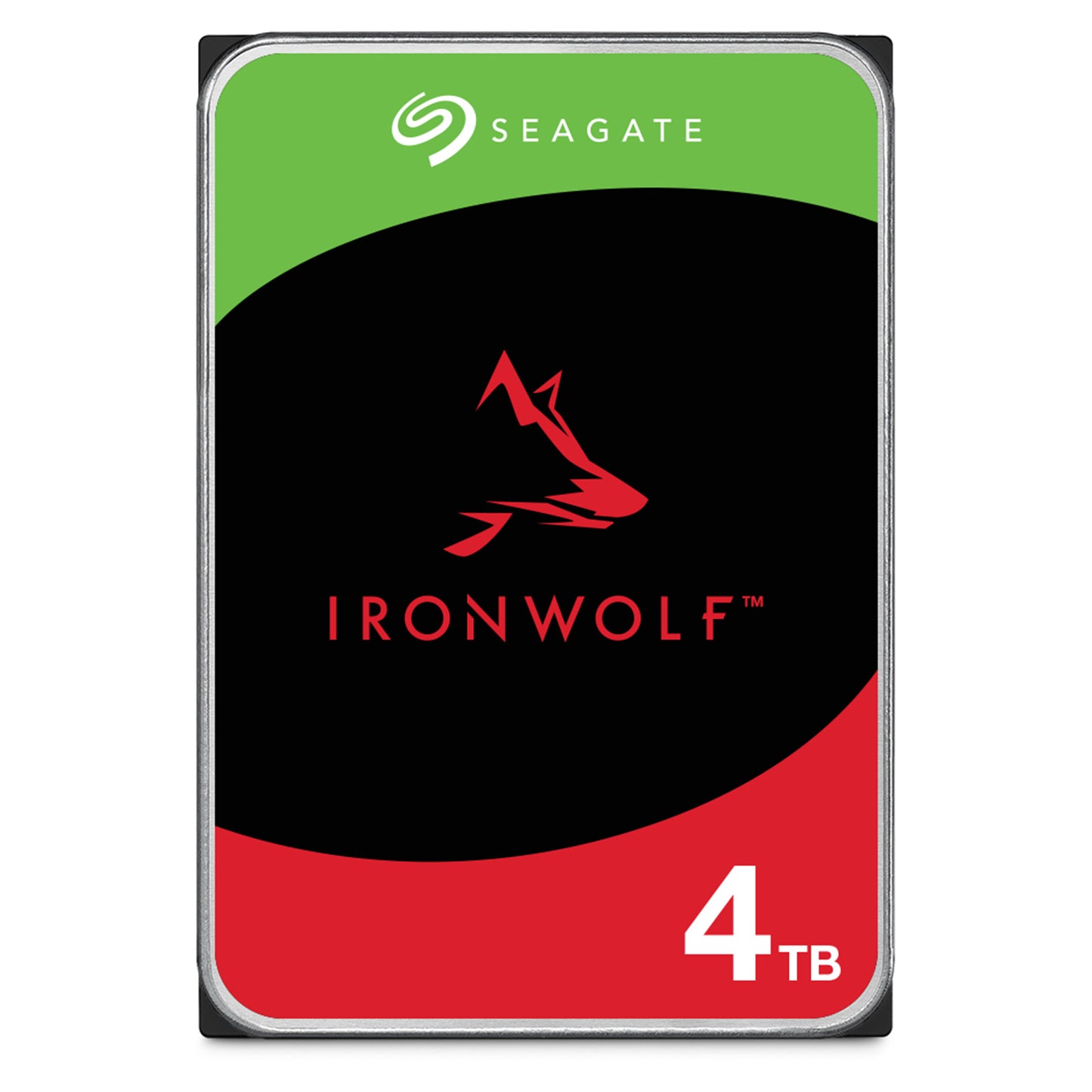

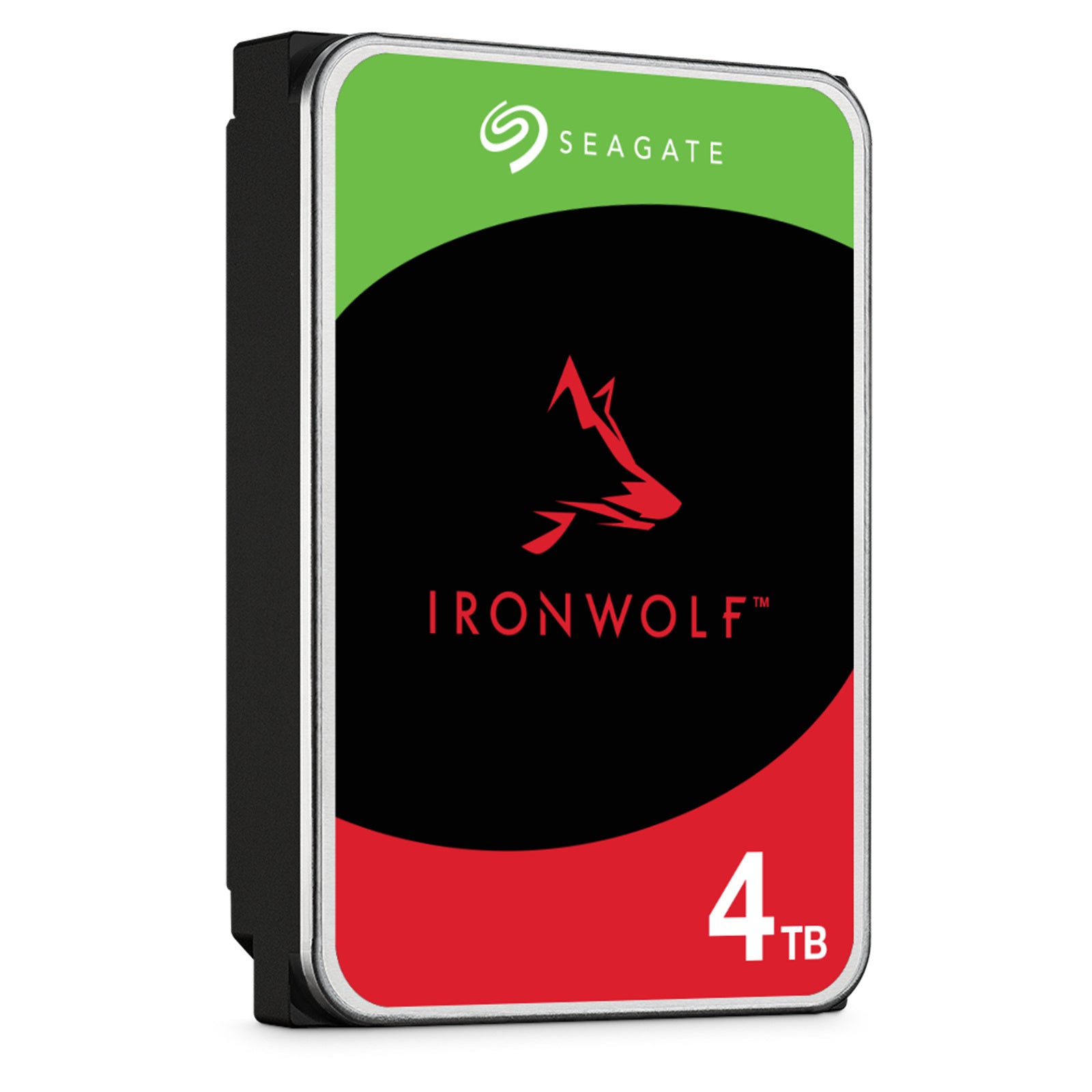

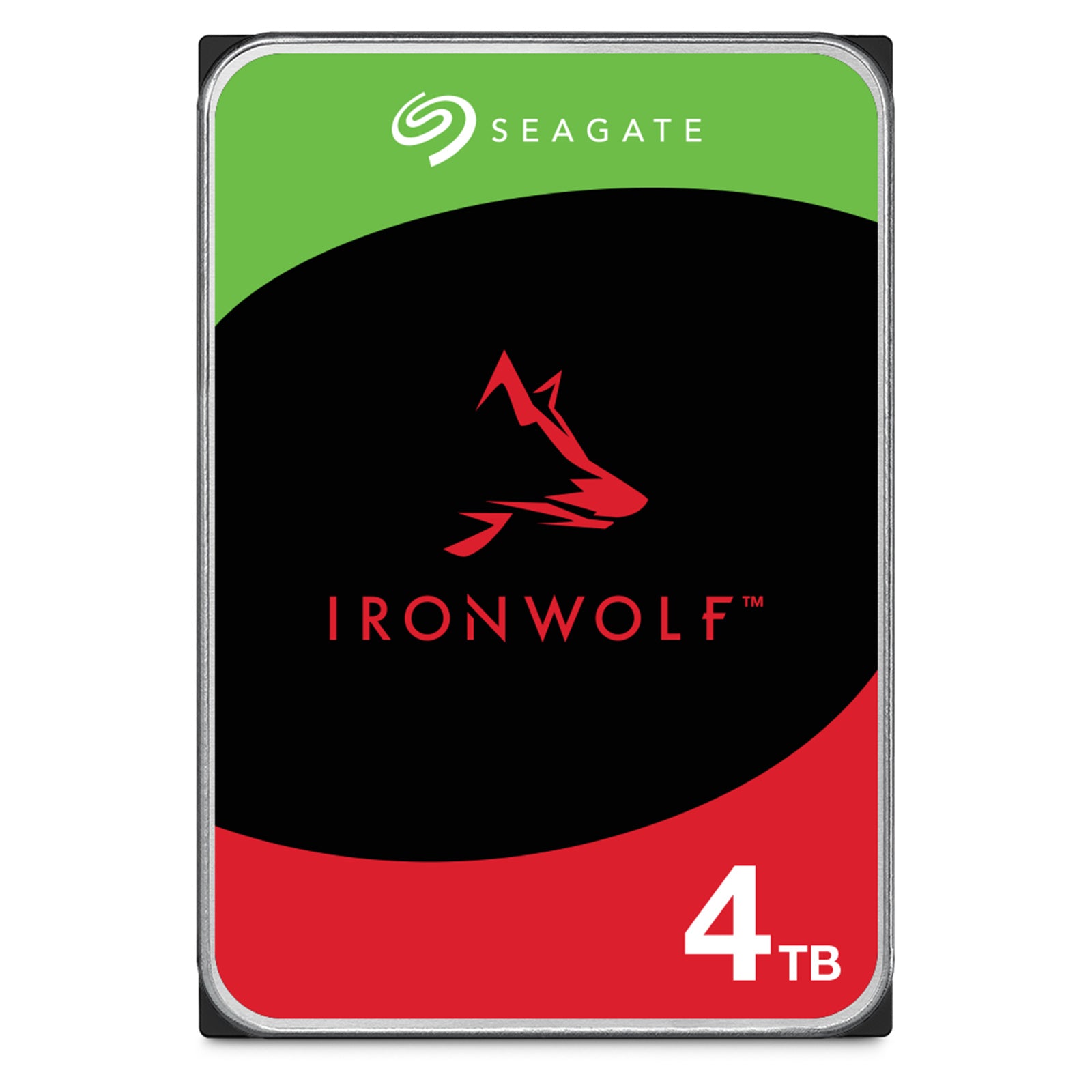

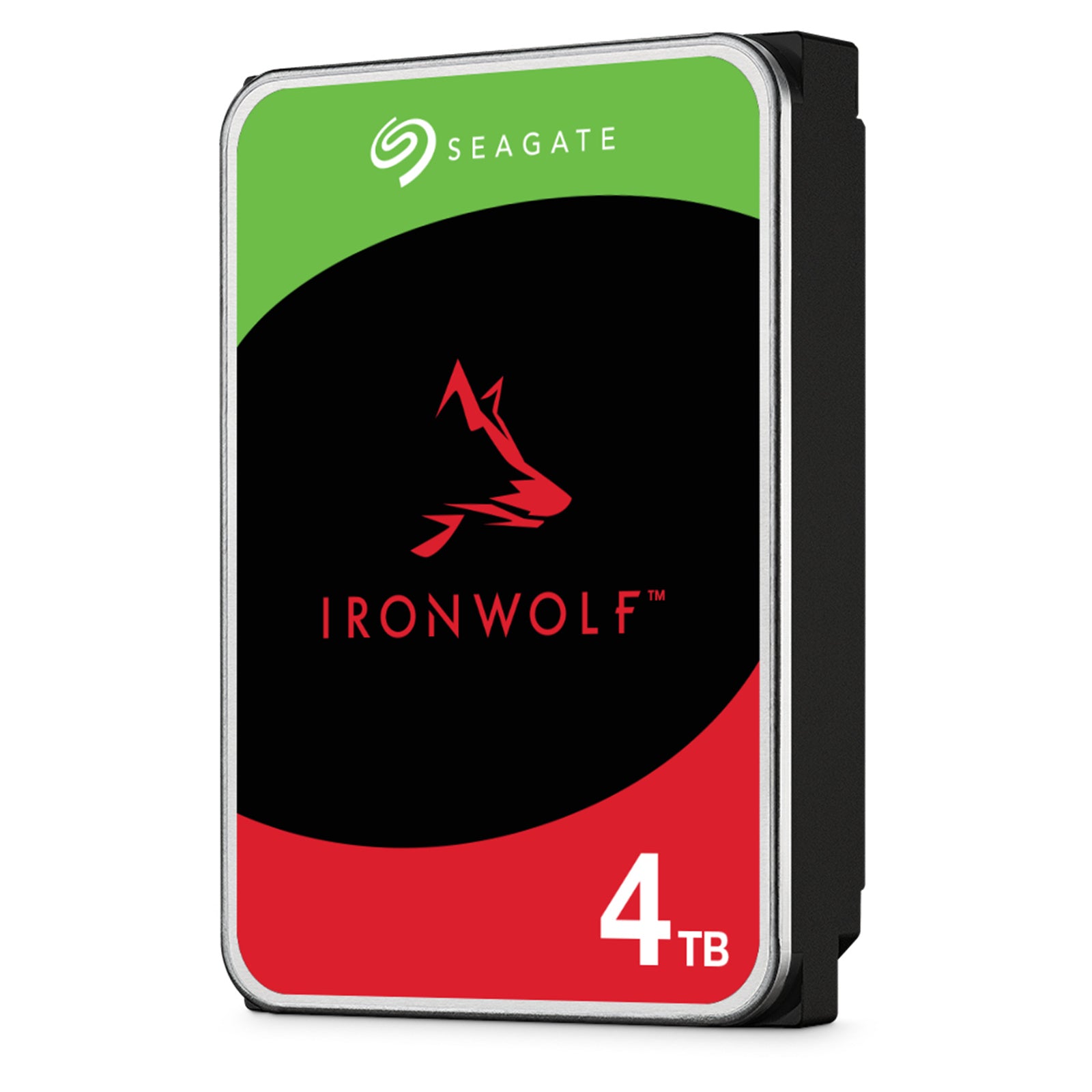

Seagate IronWolf 4TB
Seagate ST4000VN006, 5,400RPM, SATA III 6Gb/s, 3.5in, 4TB capacity, AgileArray, 256MB cache, Tough, ready, and scalable. IronWolf drives are NAS-optimised for 24x7 in NAS enclosures. Tuned with AgileArray and multi-user technology, IronWolf allows you to do more with your NAS.
IronWolf provides a workload rate of 180 TB/year with scalable 24x7 performance that can handle multi-bay NAS environments, as well as capacities up to 4 TB. It fits applications like 1- to 8-bay network attached storage (NAS).
Drive health and data recovery
When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM).
Specifications
Capacity: 4TB
Model Number: ST4000VN006
Interface SATA: 6Gb/s
Drive Bays Supported: 1 -8 Bays
Recording Technology: CMR
Drive Design (Air or Helium): Air
Workload Rate Limit (WRL): 180TB / Year
Rotational & Vibration (RV) Sensor: Yes
Dual-Plane Balance: Yes
Error Recovery Control: Yes
Max. Sustained Transfer Rate OD (MB/s): 202MB/s
Spindle Speed: 5,400 RPM
Cache: 256 MB
Load/Unload Cycles: 600,000
Non-Recoverable Read Errors Rate: Max 1 per 10E14
Power-on Hours: 8,760
Mean Time Between Failures (MTBF, hours): 1,000,000
Rescue Data Recovery Services: 3 Years
Warranty, Limited: 3 Years
Start Up Current, Typical (12V): 1.8 A
Average Operating Power: 4.8 W
Idle Power Average: 3.96 W
Standby Mode/Sleep Mode, Typical: 0.5/0.5 W
Voltage Tolerance, Inc. Noise (5V / 12V): ±5% / ±10%
Operating Temperature (ambient, min °C): 0°C
Operating Temperature (drive reported, max °C): 65°C
Non-Operating Temperature (ambient, min / max °C): -40°C / 70°C
Shock, Operating/Non-operating: 2ms (max): 80 Gs / 300 Gs
Acoustics, Idle (typical, measured in idle 1 state) (dBA): 23 dBA
Acoustics, Seek (typical) (dBA): 27 dBA
Height (mm/in): 20.2mm / 0.795in
Width (mm/in, max): 101.85 mm / 4.01in
Depth (mm/in, max): 146.99 mm/ 5.787in
Weight (g/lb, typical): 490g / 1.08lb
Warranty: 36 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
