Features
NAS Optimised Drives

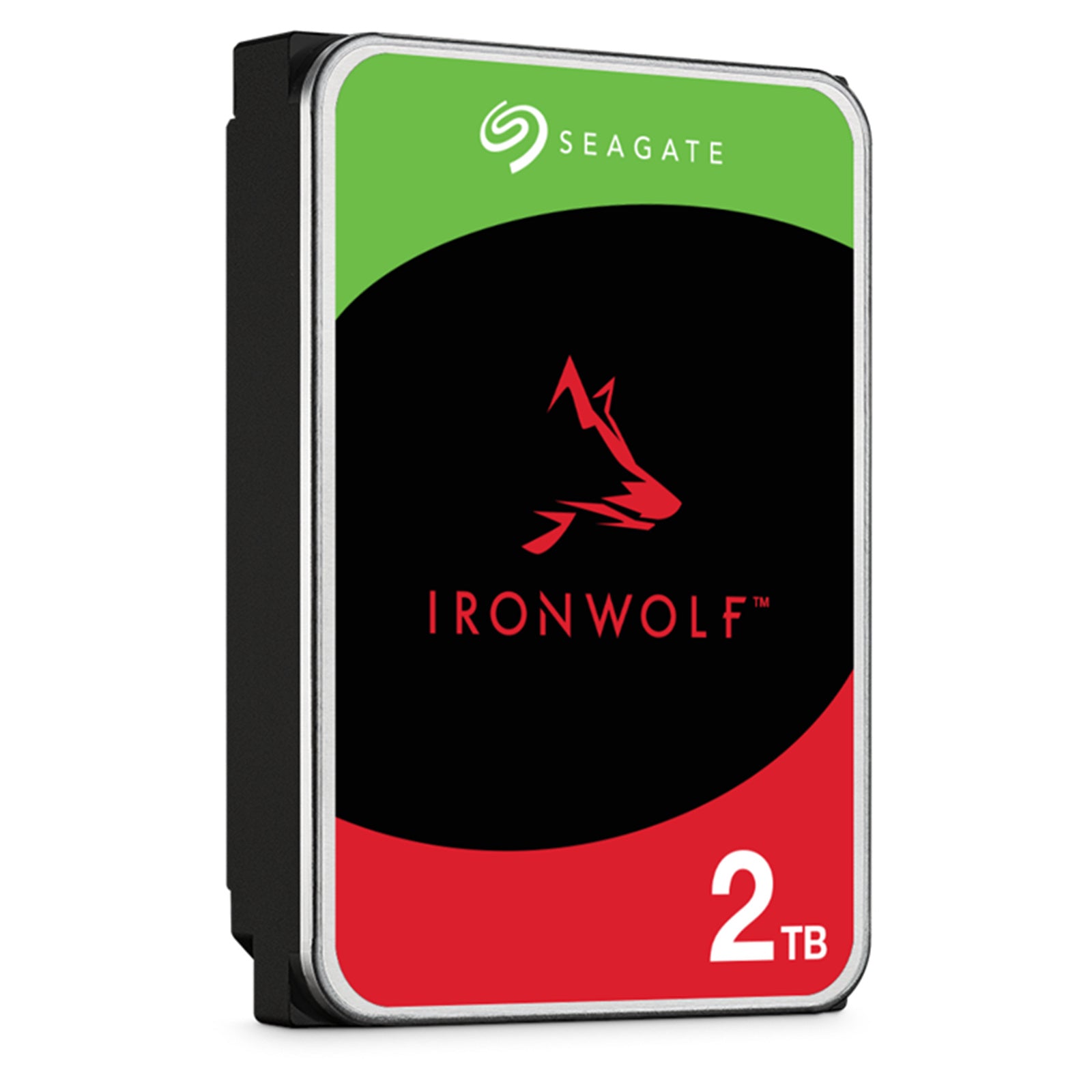

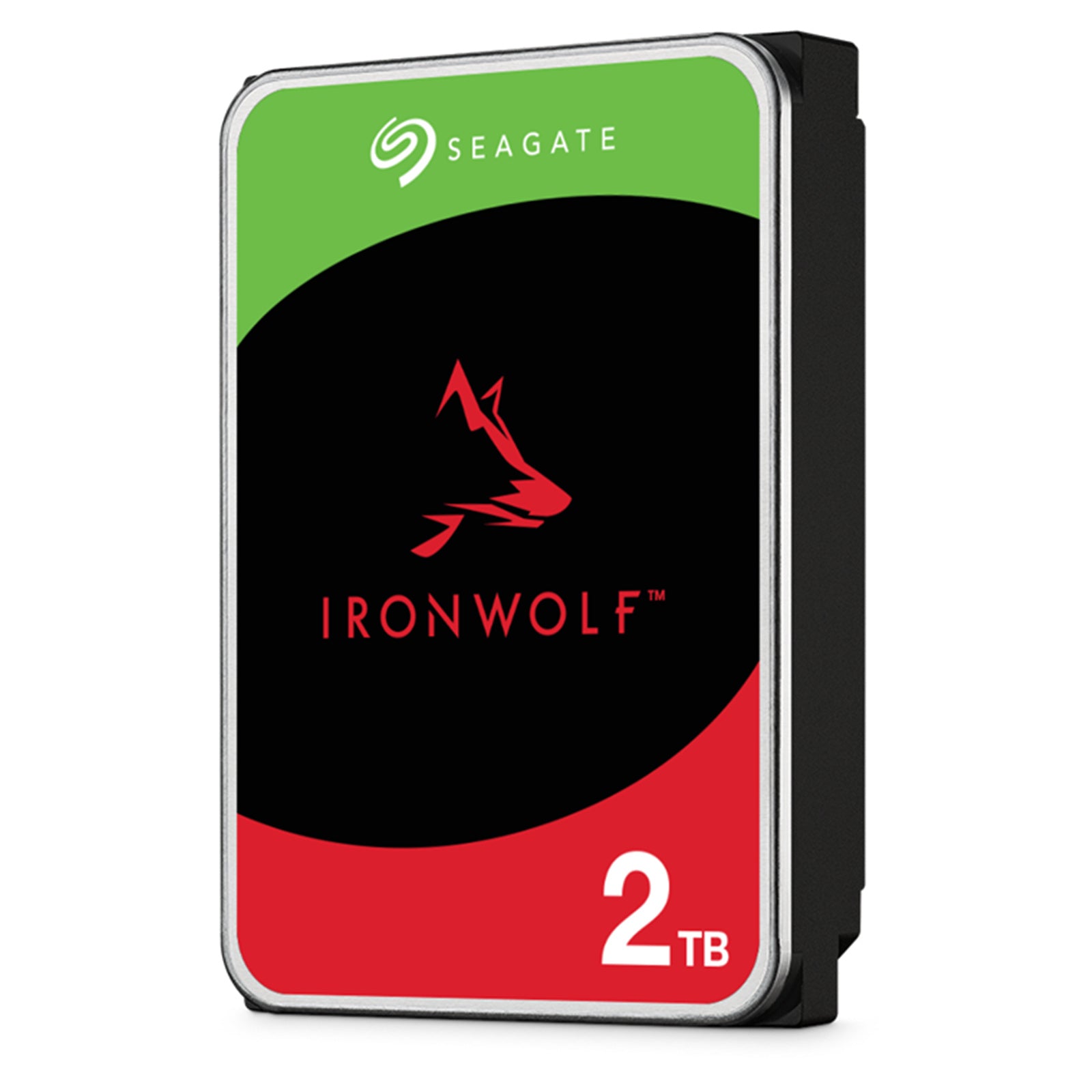

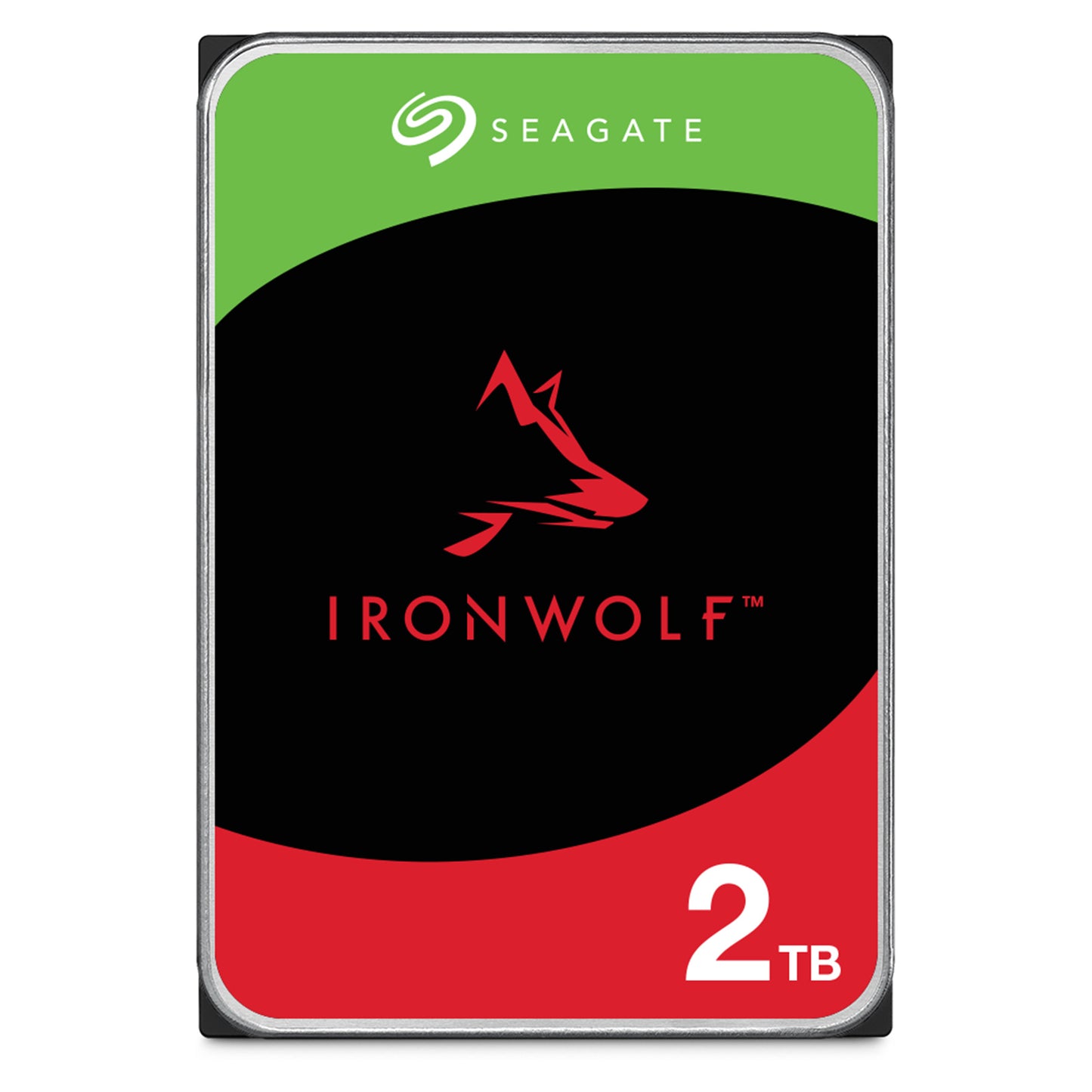

Tough, ready, and scalable, Seagate IronWolf drives are built and optimised for NAS enclosures for home, SOHO, creative professionals, and SMB. IronWolf drives are enhanced with AgileArray technology and rotational (RV) sensors for optimal performance and multi-drive systems.
AgileArray Hard Drive Optimisation for NAS
IronWolf is optimised with AgileArray, built for NAS to provide the ultimate NAS experience. It features dual-plane balancing for consistent performance, RAID-optimised firmware and advanced power management.
The Ultimate Media Server and Private Cloud Duo
Synology NAS paired with Seagate's NAS-optimised IronWolf HDD's deliver the perfect choice for seamless media streaming, file sharing and backing up Windows, Mac, or Android/iOS devices.
Specifications
Interface: SATA III 6 Gb/s
Number of Drive Bays Supported: 1 to 8
Max Sustained Transfer Rate: OD 180 MB/s
Spindle Speed (RPM): 5400
Cache: 256 MB
Load/Unload Cycles: 600,000
Non-Recoverable Read Errors per Bits Read: Max 1 per 10E14
Power-On Hours per Year: 8760
Mean Time Between Failures (MTBF): 1,000,000 Hours
Startup Current (12V typical, amps): 1.8 A
Average Operating Power: 3.1 W
Idle Average: 2.8 W
Power Save Mode: Standby: 0.25 W, Sleep: 0.25 W
Voltage Tolerance: 5 V: ±5%, 12 V: ±10%
Temperature Operating (ambient, min): 0°C
Operating (drive case, max): 65°C
Non-operating (ambient, min): -40°F / -40°C
Non-operating (ambient, max): 158°F / 70°C
Shock Operating 2ms (max): 80 g
Non-operating 2ms (max): 300 g
Acoustics Idle (typical, dBA): 20
Operating (typical, dBA): 21
Workload: 180TB/year
Warranty: 36 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
