Features
WindFree™ Cooling
WindFree™ Cooling is designed to cool down fast with Fast Cooling Mode by maintaining and dispersing the cool air gently and quietly through thousands of air holes to give you the convenience and comfort of split system.
* ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s that lack the presence of cold drafts.
** Tested on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model.
*** Tested on the AR07B9350MA3 model by Intertek, a leading Total Quality Assurance provider to industries worldwide, comparing the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode. Results may vary depending on the actual usage conditions.
Enjoy a more intelligent way of living
AI Auto Cooling
Experience an intelligent way of living with AI Auto Cooling*. To help make life simple and efficient It can automatically optimise the various modes by analyzing the room conditions and usage patterns**. Based on your preferred temperature and the outside temperature, it automatically switches to the most appropriate mode***, including WindFree, fast and normal cooling to help you maintain the optimal room conditions and to help keep you feeling comfortable.
* A Wi-Fi connection and a Samsung account are required.
** Stores user data, preferences and usage patterns to suggest the most useful options.
*** When a Wi-Fi connection is not available, the preferred mode is based on the result of big data analysis.
Reduces energy use by 77%* to save money
WindFree™ Cooling (Energy Saving)
When operating in WindFree™ mode, the outdoor unit consumes over 77% less energy compared to the Fast Cooling mode.*
* Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.
Intelligently connect and control, anytime, anywhere
Built-in Wi-fi with SmartThings
Intelligently connect and control to help ensure your home is comfortable at anytime using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch.*
* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
Whisper quiet
WindFree™ Good Sleep
The WindFree Good Sleep mode can help you to create the ideal sanctuary for sleeping – without an unpleasant cold air flow or noise. Its temperature control and microhole air dispersion with WindFree Cooling can help you to set the environment for a deep, undisturbed sleep to wake up feeling fully refreshed.
* ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s that lack the presence of cold drafts.
** Tested on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model.
*** Tested on the AR07B9350MA3 model by Intertek, a leading Total Quality Assurance provider to industries worldwide, comparing the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode. Results may vary depending on the actual usage conditions.

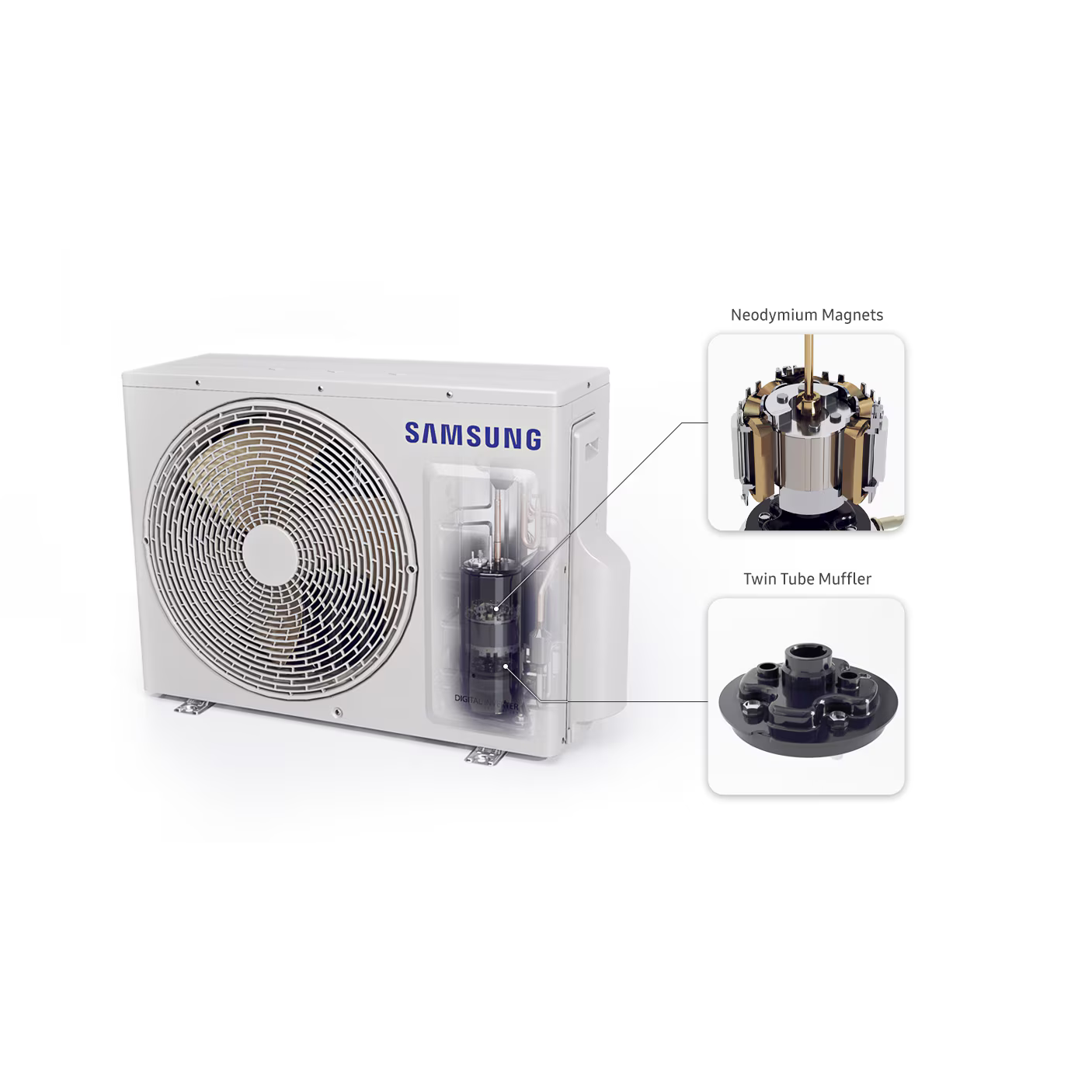

Digital Inverter Boost
Reduces energy by up to 73% and reduces noise by up to 40%
Save money every day with highly energy-efficient Digital Inverter Boost technology. With less moving parts, innovative design, neodymium magnets and a Twin Tube Muffler, the digital inverter works efficiently, quietly and lasts longer. Reducing energy usage by up to 73%*.
* Tested on the AR09TXCAAWKNEU model compared with the Samsung conventional model AQ09TSLXEA.
Designed to cool faster, wider & farther
Fast Cooling
Cool rooms quickly from corner to corner, so you're always comfortable. Digital Inverter technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters to cover larger room sizes.
* Tested on the AR12TXCAAWKEU model compared with the Samsung conventional AQ12EASER model, measuring the time taken to reduce the room temperature from 33°C to 25°C.
** Tested on the AR24TXFCAWKNEU model.
Keep fresh
Auto Clean (3-Steps)
Keep the inside of the air conditioner hygienic with minimal involvement. After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes***. Preventing build of bacteria and odours.
* Models without WindFree™ mode will operate with the blade open, if additional cleaning is required.
** Only available in WindFree™ models that have a humidity sensor.
*** The Auto Clean time will vary depending on the condition of the air conditioner.
Easy to clean anti-bacterial filter
Easy Filter Plus
Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.
* Tested in Korea test lab (FITI). Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

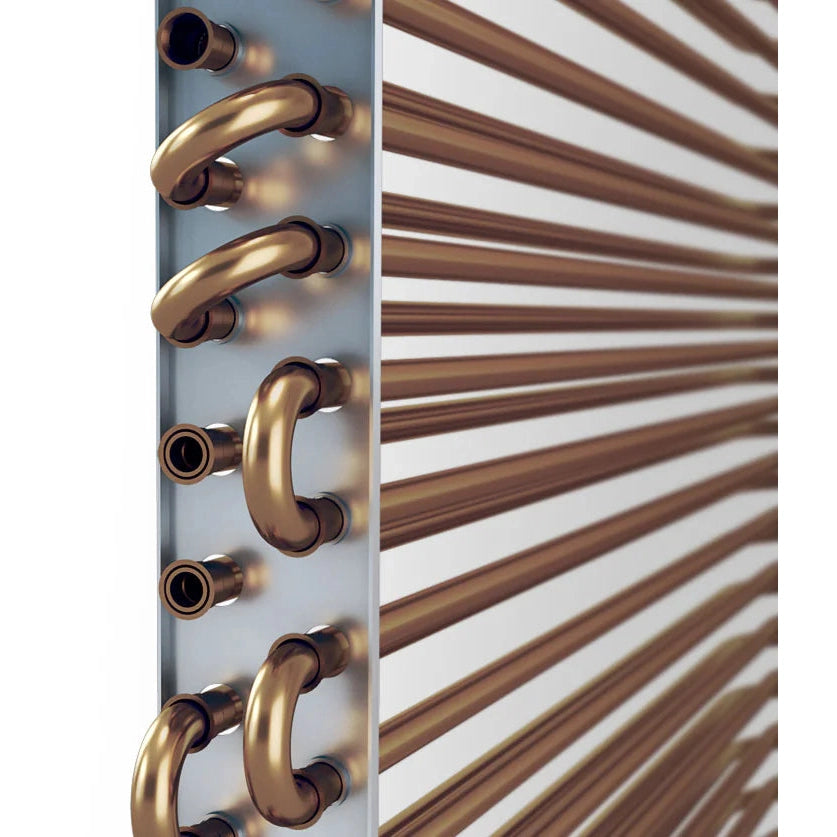

Prevents corrosion for lasting cooling
DuraFin Plus
The outdoor unit heat exchanger is made of corrosion-resistant material to help protect the heat exchanger coil from rusting, helping to maintain the optimal performance of the Heat Exchanger. Its corrosion-resistance was tested using the Salt Spray Test (SST) for 480 hours*.
* Tested on the AR12TXFCAWKNEU model.

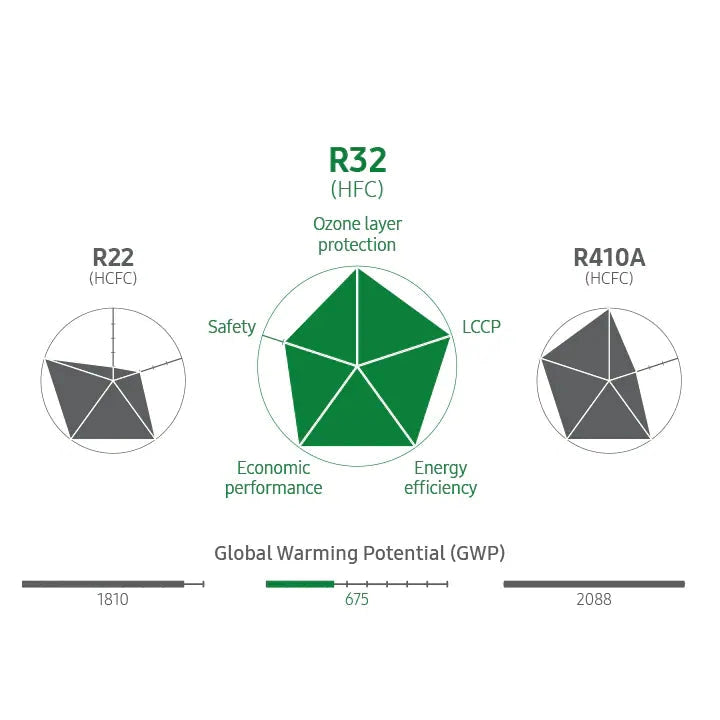

Next generation enviromental refrigerant
R32 Refrigerant
Refrigerants are an essential part of air conditioning and it is important to choose a refrigerant that has a low environmental impact. Samsung has added the new R32 refrigerant to its air conditioning range to minimise the effect on the ozone layer*.
* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.
*The Global Warming Potential (GWP) is a measure of how much energy the emissions of 1 ton of a gas will absorb over a given period of time, relative to the emissions of 1 ton of carbon dioxide (CO2).
Hygienic self-cleaning filter system
Freeze Wash
Maintain the optimum performance with the push of a button. Freeze Wash* quickly freezes the Heat Exchanger and then defrosts the ice. Finally, it dries up any moisture. And it alerts you when it is time for a clean**.
* The Freeze Wash function is only available on certain WindFree™ models.
** Only available on certain models that have Wi-Fi connectivity.
Tri-Care Purification
Keep the air hygienic and maintain the performance of the Heat Exchanger's performance with a Tri-Care Filter. Its 3-layers include a high-density filter that extracts large dust particles, fibres and animal hairs. A Zeolite Coating Filter also helps capture fine dust, and eliminates certain viruses, bacteria and allergens*
* Tested by Korea test lab for anti bacteria & virus, Japan test lab for anti allergy. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use. Sensitive Choice approved for its anti-microbial and anti-bacterial features only.
Stay cool and dry
Dehumidification Mode
Perfect for those hot, humid times when everything is sticky and unbearable, simply put the air conditioning unit in Dehumidification mode to help reduce moisture in the air, and circulate dry air throughout the room.
Specifications
Overview
Capacity (Cooling, Btu/hr): 17061 Btu/hr
Capacity (Cooling, kW): 5.00 kW
EER (Cooling, W/W): 3.60 W/W

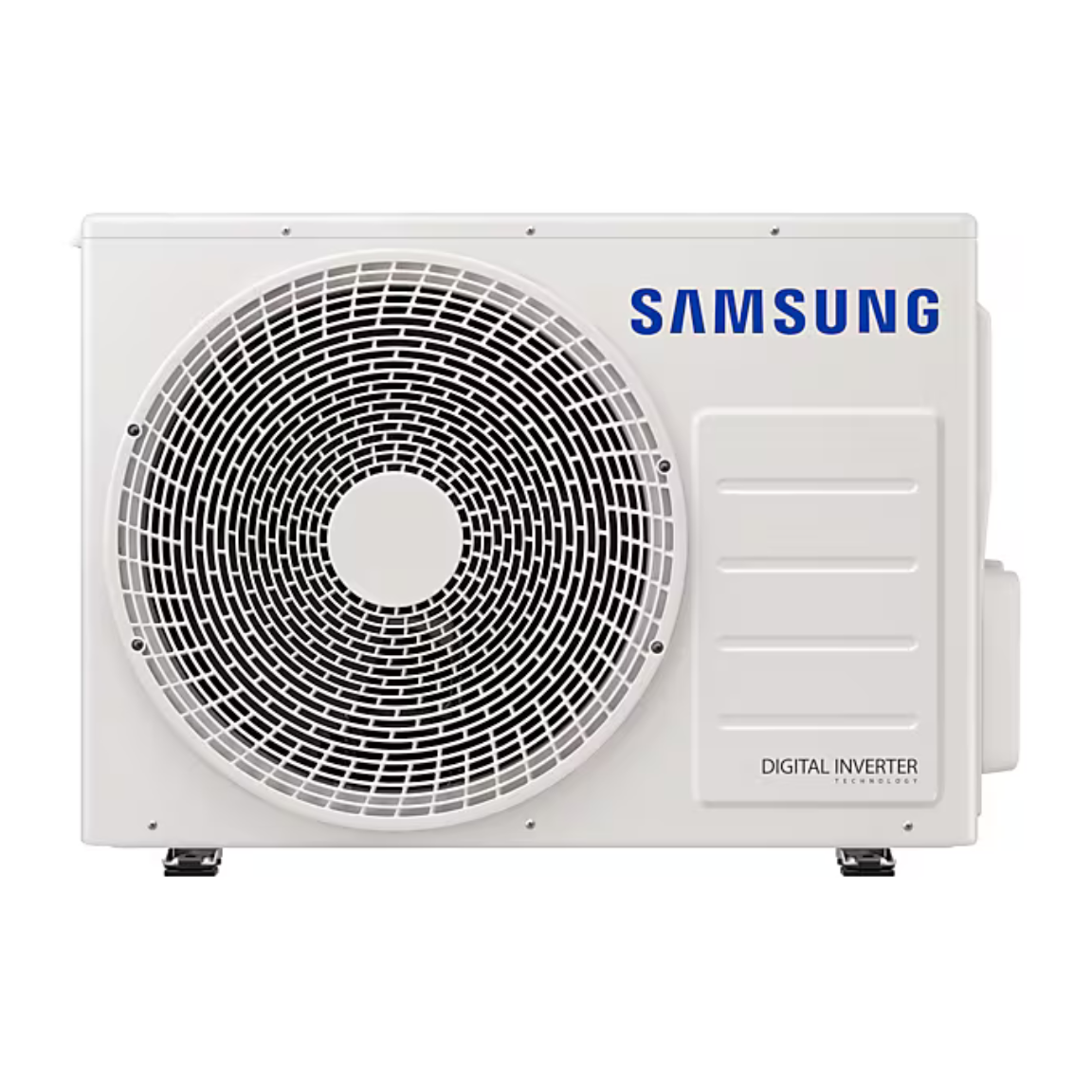

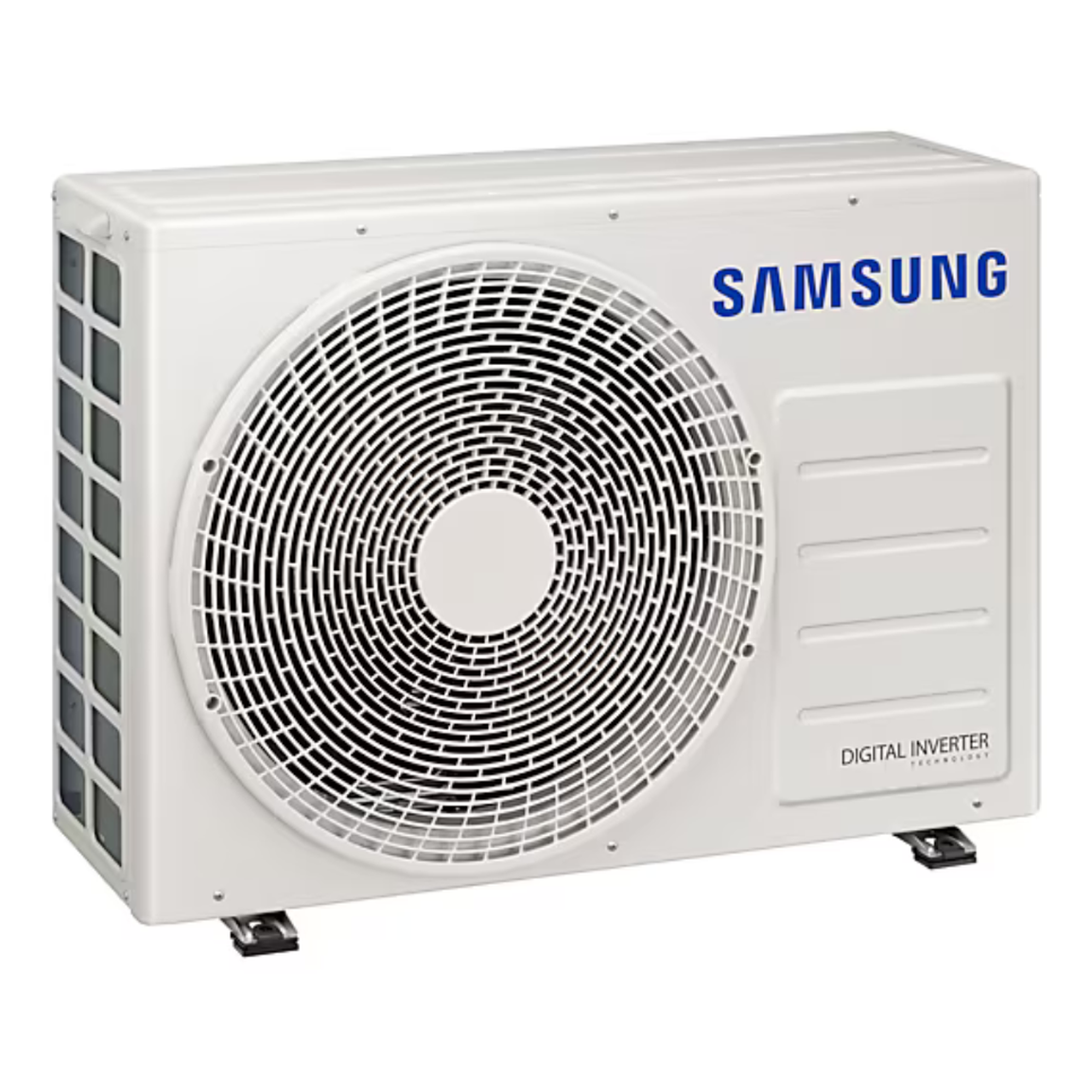

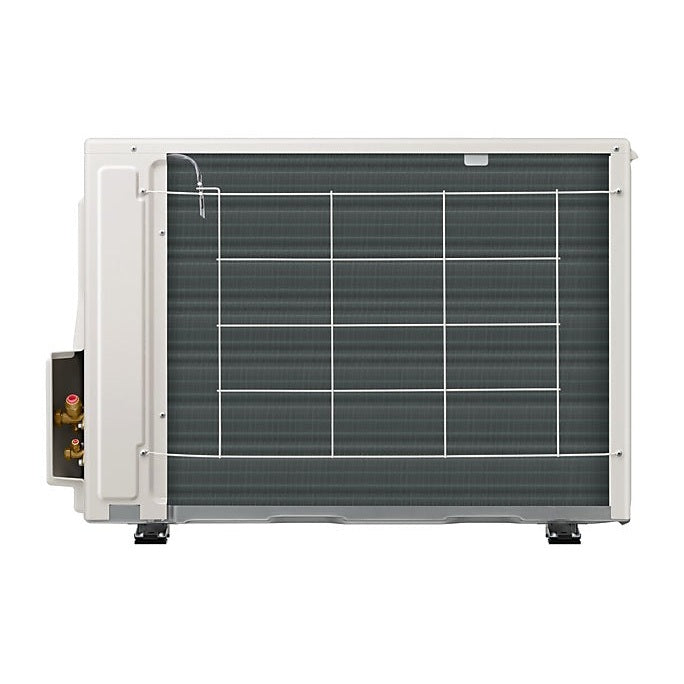

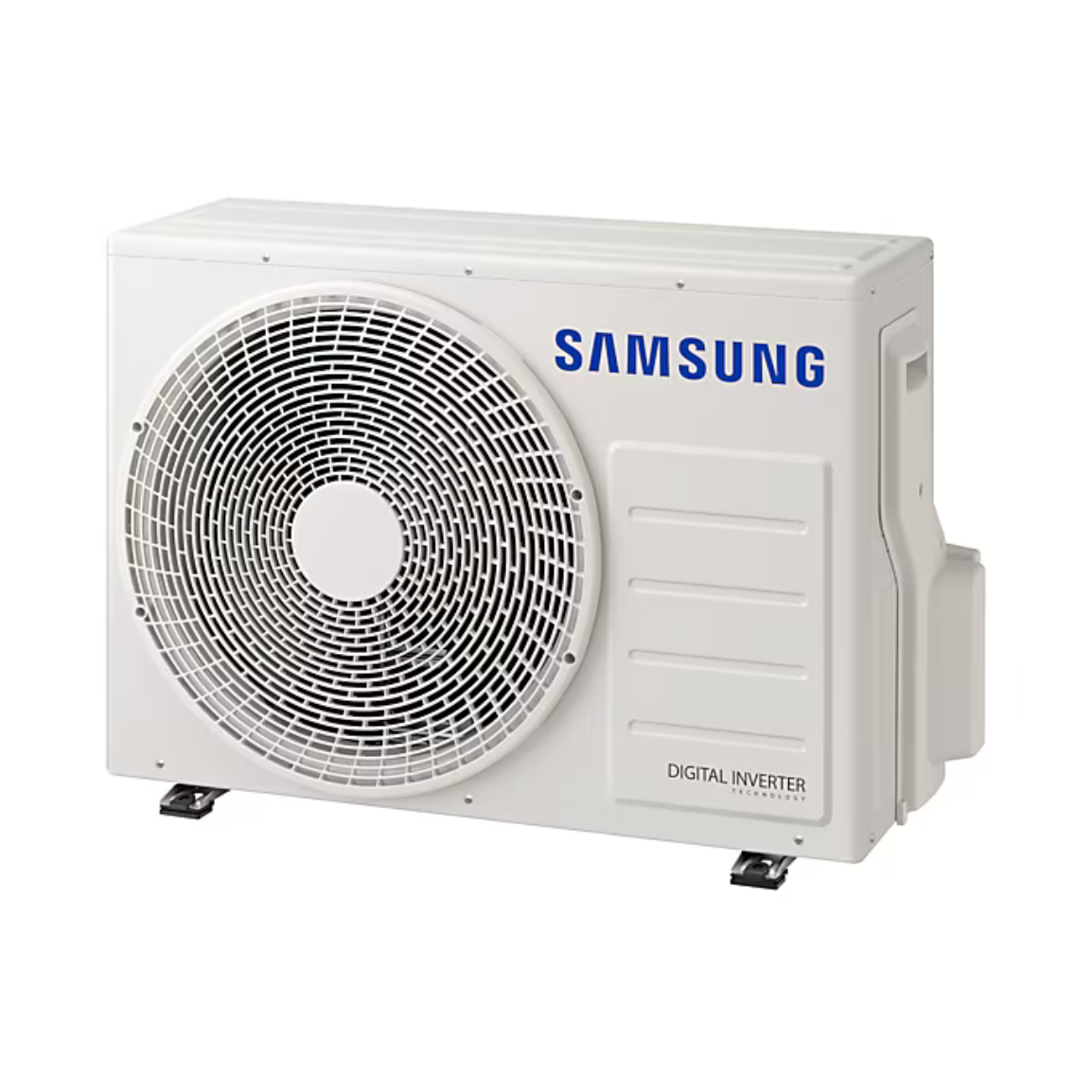

Net Dimension (Outdoor, WxHxD): 880 x 638 x 310 mm
Capacity
Capacity (Cooling, Btu/hr): 17061 Btu/hr
Capacity (Heating, Btu/hr): 20473 Btu/hr
Capacity (Cooling, Min - Max, Btu/hr): 5,459 ~ 22,861 Btu/hr
Capacity (Heating, Min - Max, Btu/hr): 4,436 ~ 27,297 Btu/hr
Capacity (Cooling, kW): 5.00 kW
Capacity (Heating, kW): 6.00 kW
Capacity (Cooling, Min - Max, kW): 1.6 ~ 6.7 kW
Capacity (Heating, Min - Max, kW): 1.3 ~ 8.0 kW
Energy Efficiency
EER (Cooling, W/W): 3.60 W/W
COP (Heating, W/W): 3.53 W/W
EER (Cooling, Btu/hW): 12.27 Btu/hW
COP (Heating, Btu/hW): 12.04 Btu/hW
TCSPF: 5.229 / 5.003 / 5.265
HSPF: 4.608 / 3.876 / 3.317
Energy Efficiency Class for cooling (Grade): C : 3.5 / 3.5 / 3.5, H : 3.0 / 2.0 / 1.5
Noise Level
Sound Power Level (Indoor, Cooling, dBA): 58 dBA
Sound Power Level (Outdoor, Cooling, dBA): 65 dBA
Noise Level (Indoor, High/Low, dBA): 41 / 25 dBA
Noise Level (Outdoor, High/Low, dBA): 51 dBA
Electrical Data
Power Source (Φ/V/Hz): 1 / 220~240 / 50
Power Consumption (Cooling, W): 1390 W
Power Consumption (Heating, W): 1700 W
Operating Current (Cooling, A): 6.4 A
Operating Current(Heating, A): 7.8 A
Physical Specification
Gross Dimension (Indoor, WxHxD): 1115 x 290 x 375 mm (Sold separately)
Gross Dimension (Outdoor, WxHxD): 1023 x 724 x 413 mm
Net Dimension (Indoor, WxHxD): 1055 x 299 x 215 mm (Sold separately)
Net Dimension (Outdoor, WxHxD): 880 x 638 x 310 mm
Gross Weight (Indoor, kg): 13.2 kg (Sold separately)
Gross Weight (Outdoor, kg): 43.1 kg
Net Weight (Indoor, kg): 11.5 kg (Sold separately)
Net Weight (Outdoor, kg): 39.5 kg
Loading Quantity (20/40/40Hft without Pipe): 65 / 138 / 154
Technical Information
Piping Length (Max): 30 m
Piping Height (Max): 15 m
SVC Valve (Liquid (ODxL)): 6.35
SVC Valve (Gas (ODxL)): 12.7
Moisture Removal (l/hr): 2.0 l/hr
Air Circulation (Cooling): 16.6 m3/min
Refrigerant (Type): R32
Refrigerant (Charging, kg): 1.15 kg
Refrigerant (Charging, tCO2e): 0.78 tCO2e
Low Ambient (Cooling, ℃): 16~30 ℃
Outdoor Unit (Compressor Type): BLDC
Outdoor Unit (Anti-Corrosion Fin): Yes
Air Flow
WindFree Cooling: Yes
Air Direction Control (Up/Down): Auto
Air Direction Control (Left/Right): Auto
Air Flow Control Step (Cool/Fan): 5/4
Air Purification
PM 1.0 Filter: No
Tri Care Filter: Yes
Easy Filter Plus (Anti-Bacteria): Yes
Auto Clean (Self Cleaning): Yes
Convenience
SmartThings: Yes
AI Auto Cooling: Yes
Motion Detect Sensor: No
Freeze Wash: Yes
Filter Cleaning Indicatior: Yes
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep On/Off: Yes
24-Hour Timer: Yes
Auto Changeover: Yes
Auto Restart: Yes
Operating Mode
Auto Mode: Yes
Fast Cool: Yes
Good Sleep: Yes
Eco Mode: Yes
Dehumidification: Yes
Fan Mode: Yes
Quiet: Yes
Smart
WiFi Embedded: Yes
App Connectivity
SmartThings App Support: Yes
Samsung 5.0kW AR18BXECNWKNSA Indoor Unit required for a Full Wall-Split System Setup (SOLD SEPARATELY): Please find here
No installation services available. However we may be able to refer a certified installer.
Warranty: 24 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
