Features
- Powered by Android™
- EDLA Certification
- Annotation On
Unlimited Learning Possibilities
The interactive display WAF series, powered by Android OS, enhances education with Google services and a seamless annotation function. Instantly take notes at any moment and empower students to collaborate independently in separate zones, ushering in a new era of interactive education.
An intuitive UX that fits your needs

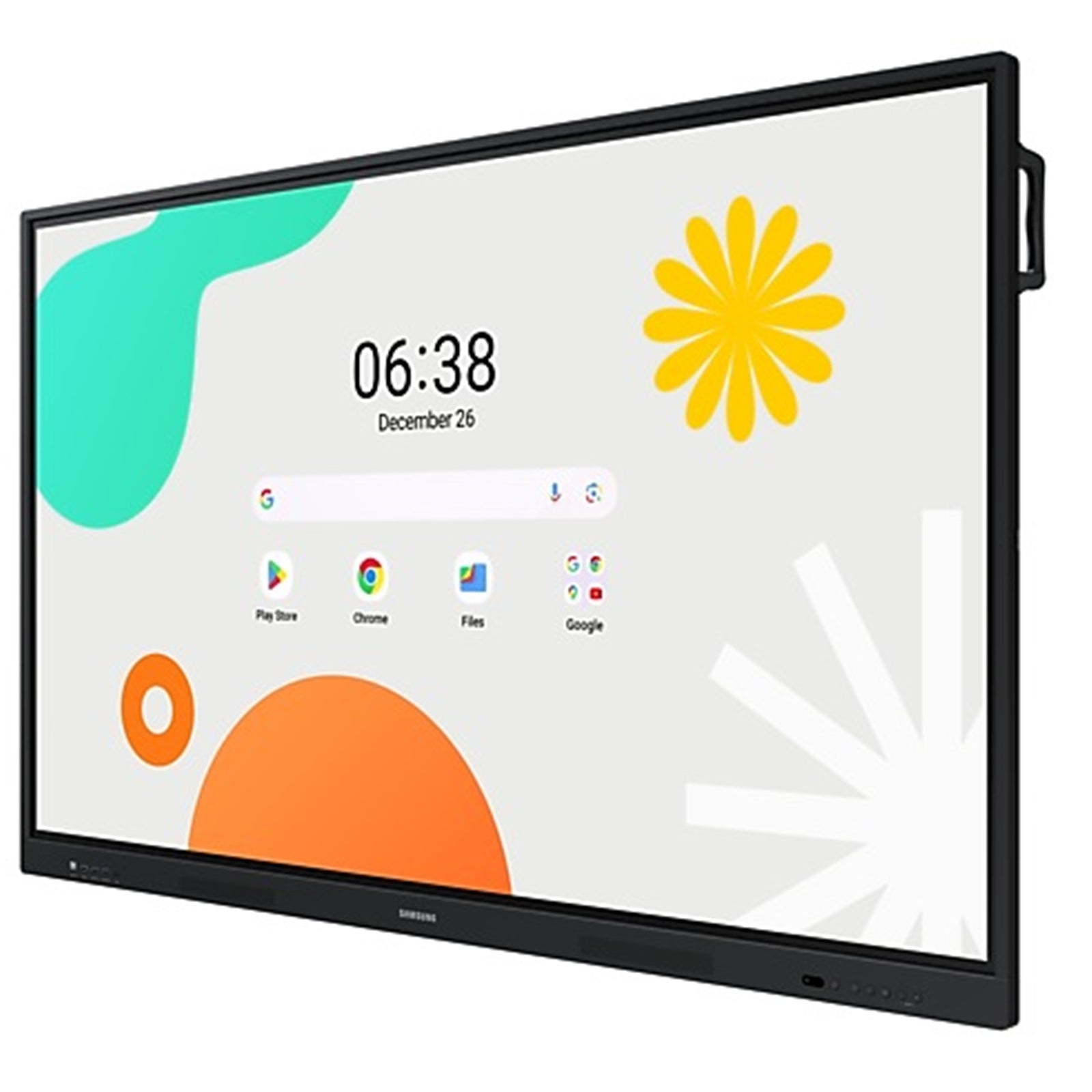

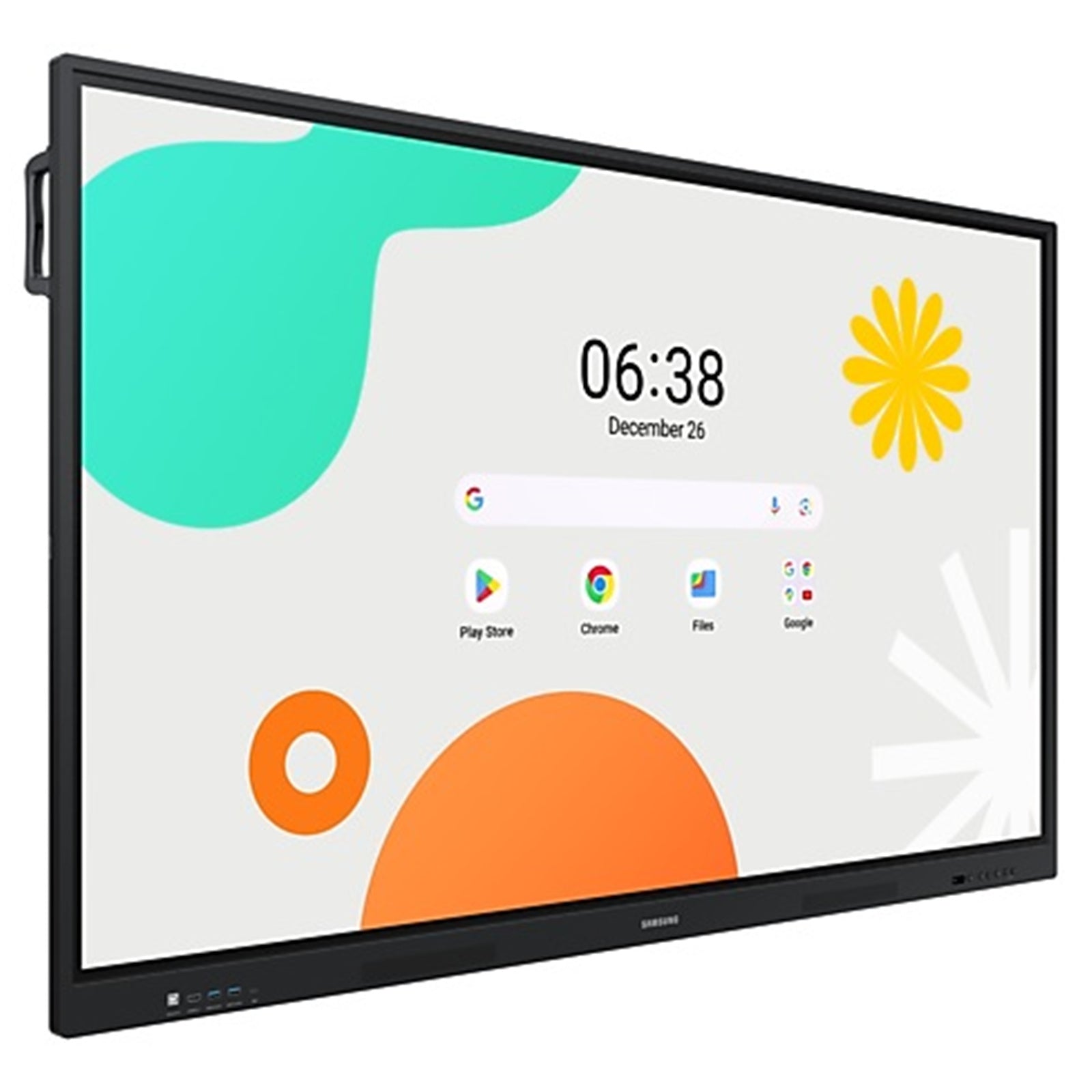

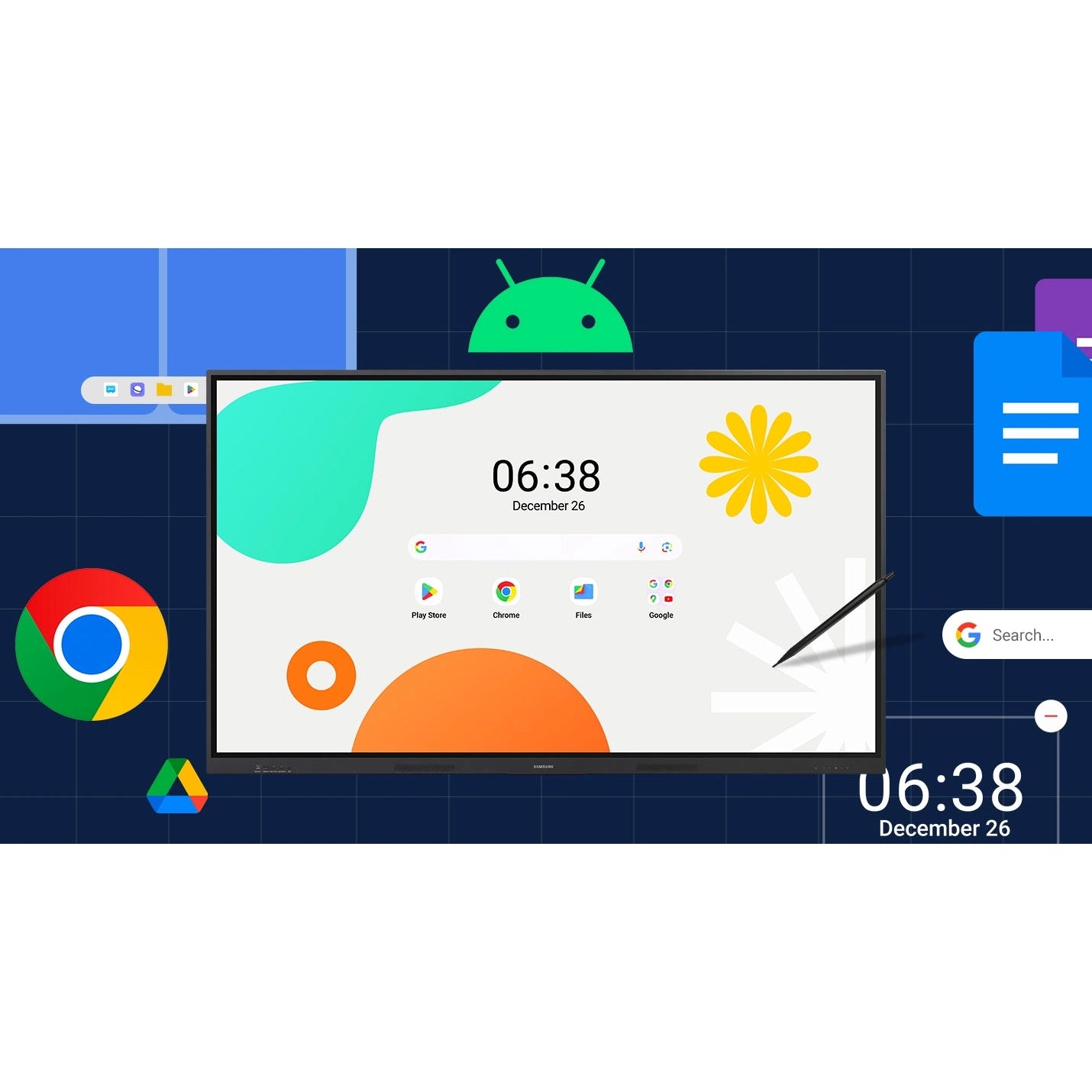

Powered by Android™
The WAF series offers familiarity to its users. It's compatible with other Android devices and provides a variety of widgets and an easily customisable home screen. These features create flexibility in building an environment that suits various learning needs.

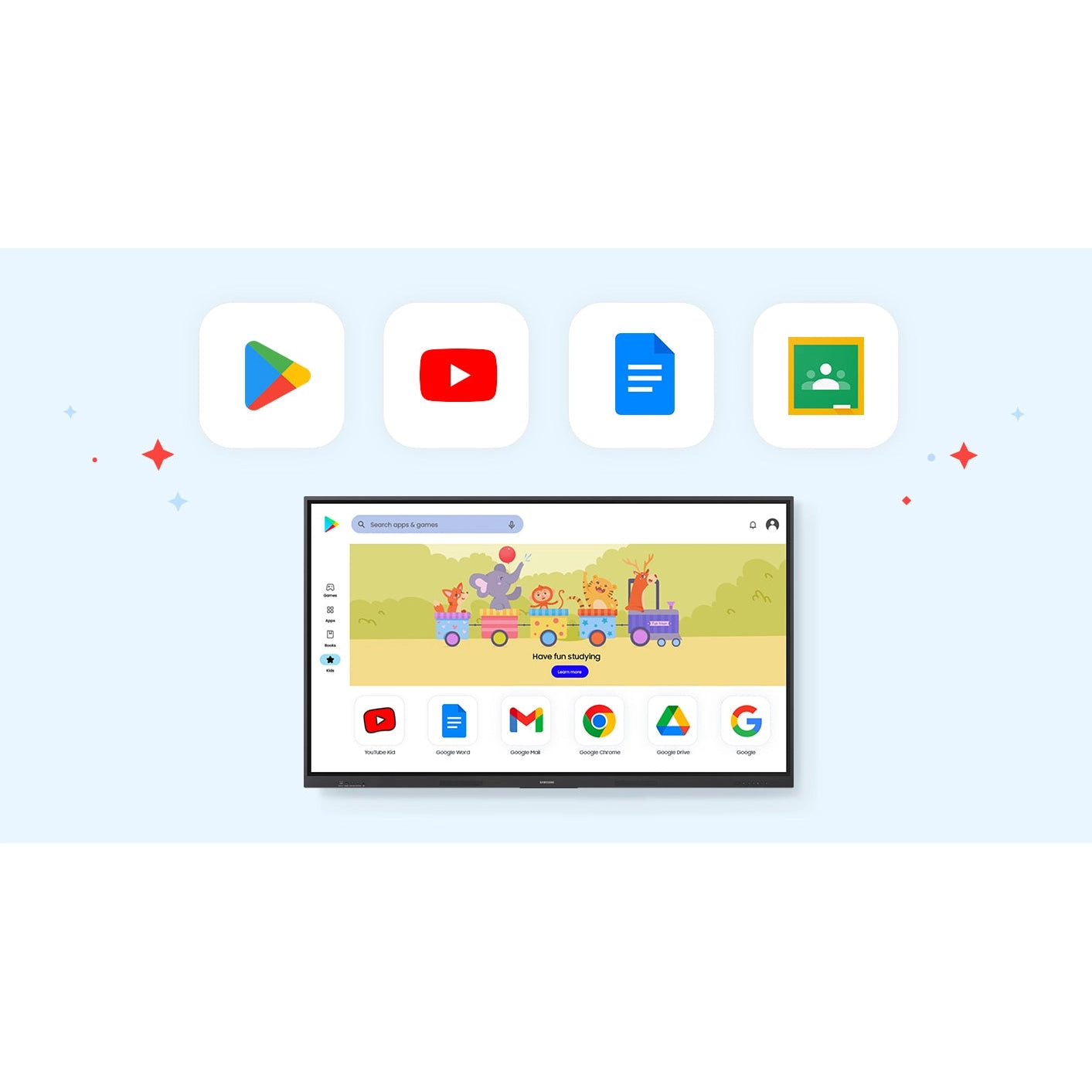

Effortless access to Google services
EDLA Certification
With an EDLA certification, the WAF series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.

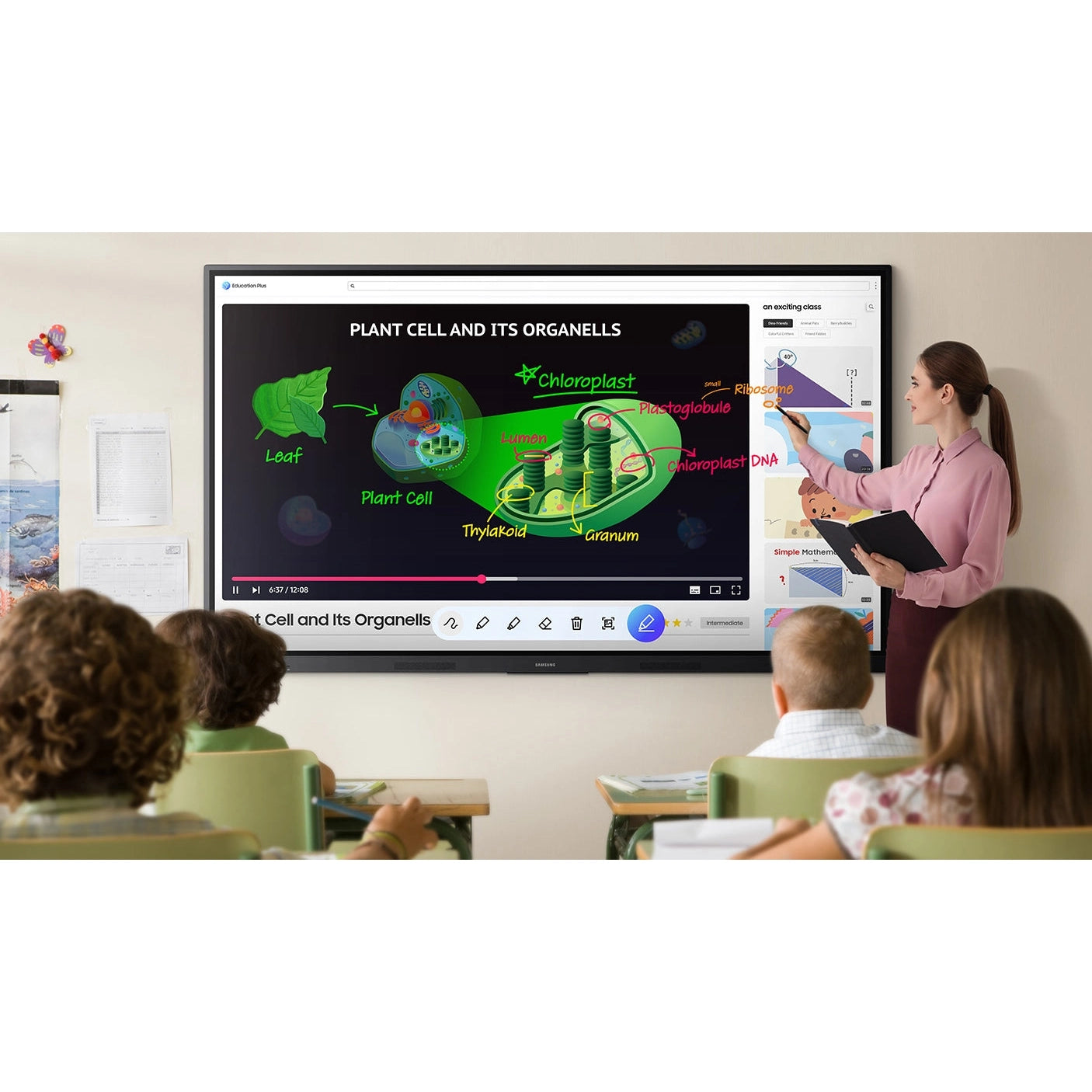

Take notes instantly, anywhere on the screen
Annotation On
The WAF series lets users take notes anytime with a simple press of the always-visible Annotation button. Whether watching a video or viewing any content, users can seamlessly annotate without interruptions, avoiding the need to capture images first and enhancing productivity.

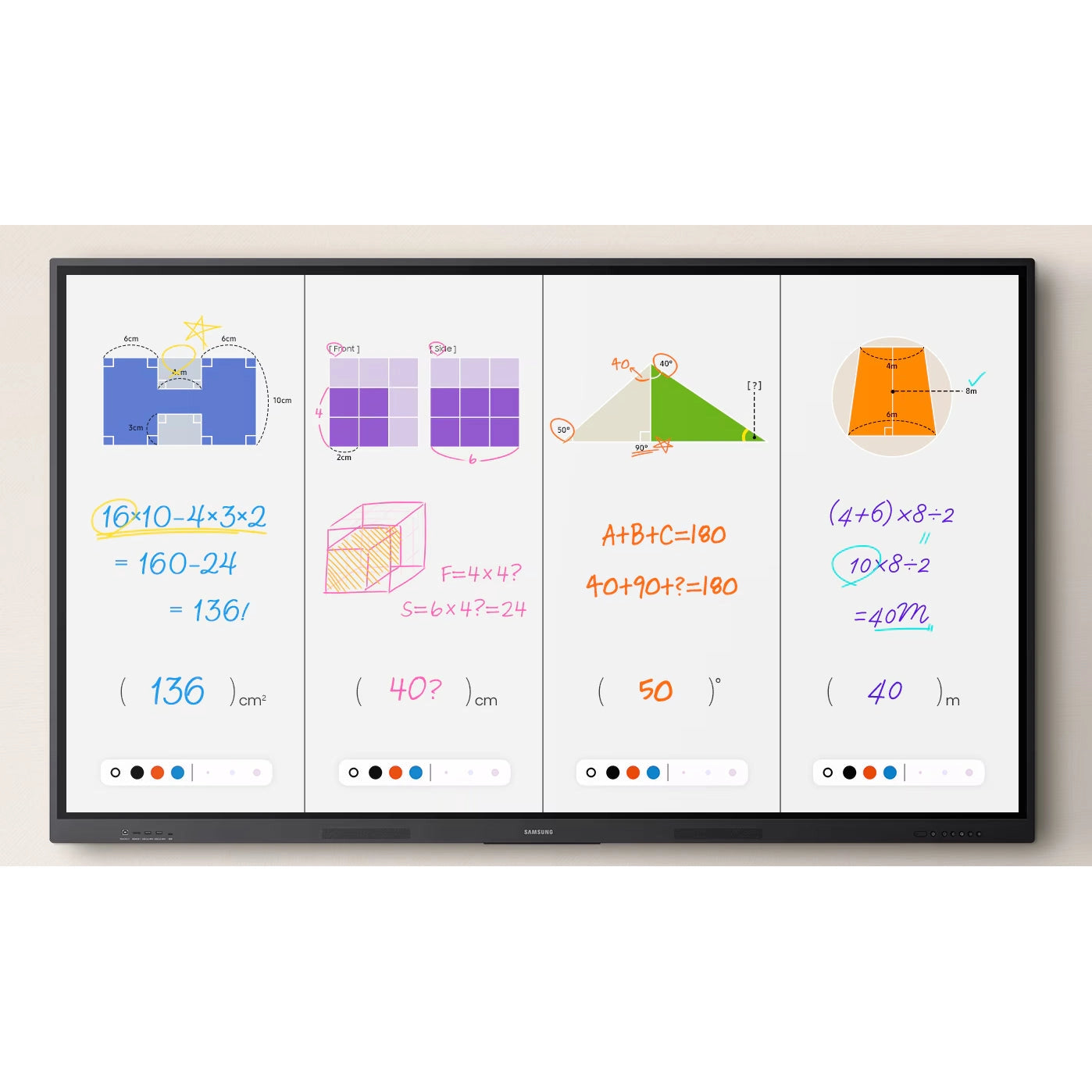

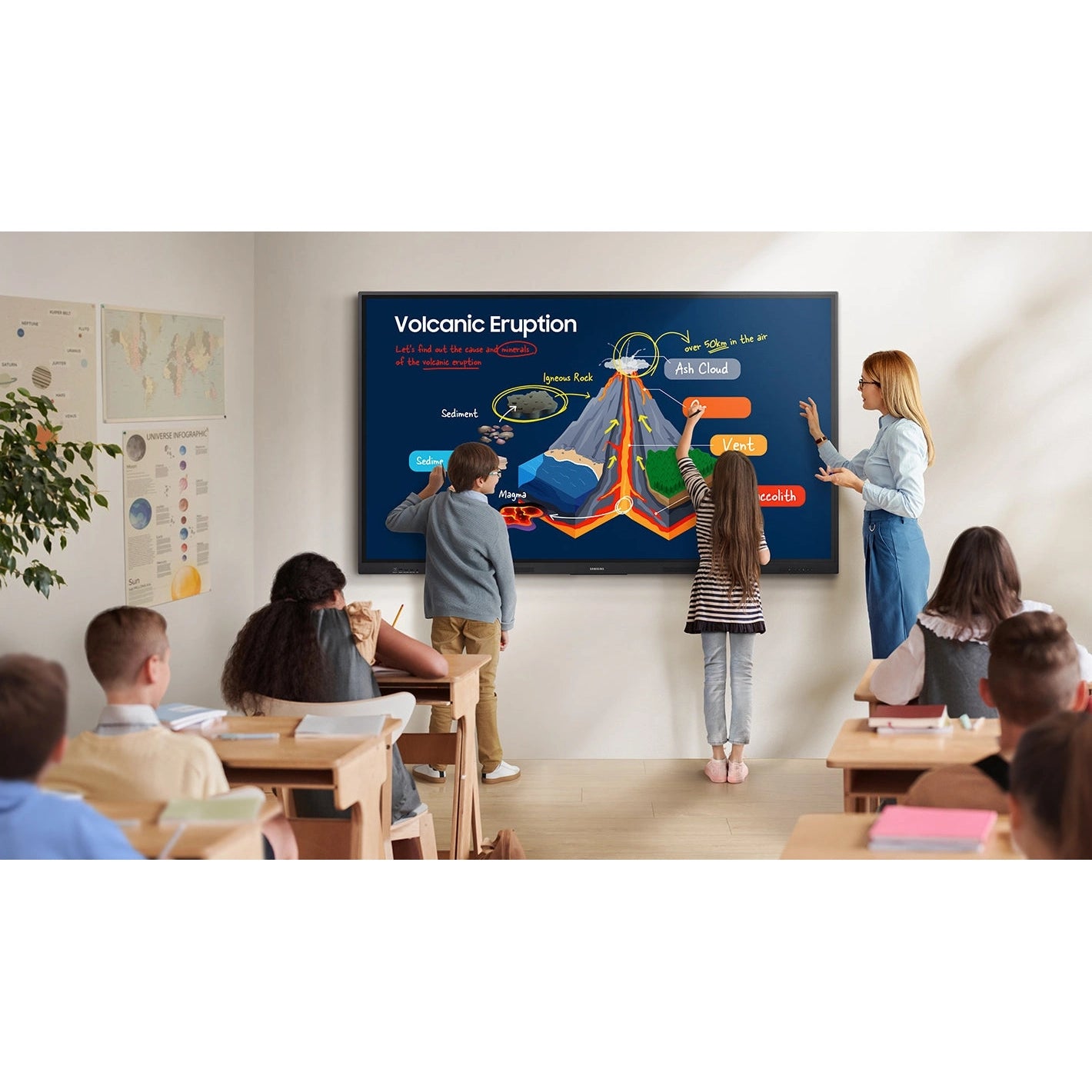

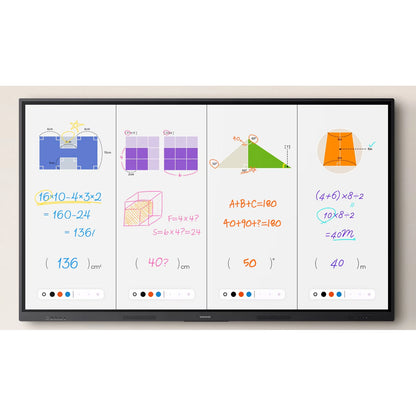

Write independently, learn together
Split Note Mode
The upgraded Note app allows up to four independent note zones on a single page, enabling multiple students to use the whiteboard simultaneously. Students can work in their own zones without affecting others, fostering both collaboration and individual learning.

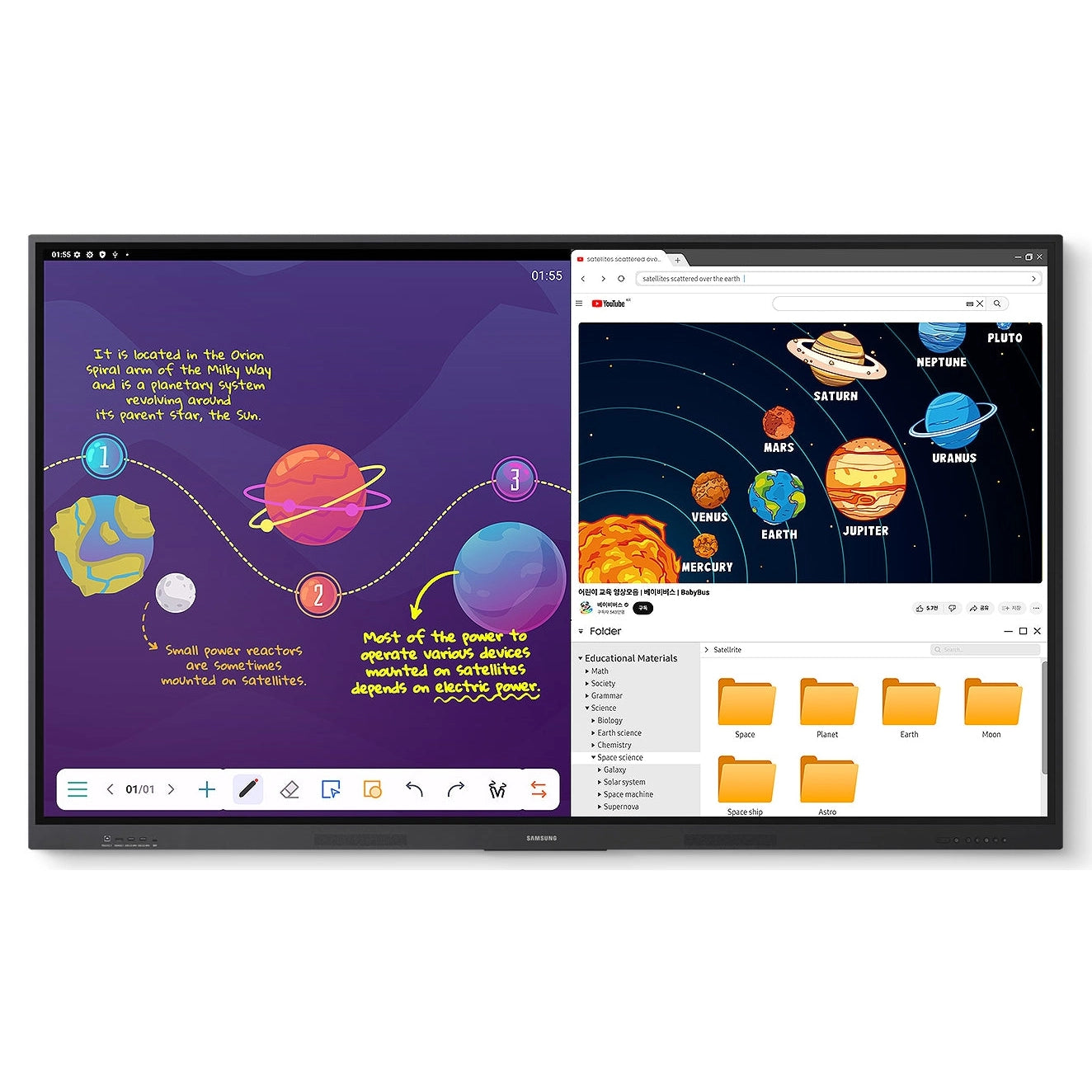

Display multiple screens simultaneously
Easy Multitasking
The split screen and multi-window, enable teachers to easily display information and multitask at the same time on the WAF series. This flexibility provides convenient access to all the screens required to create engaging learning environments.

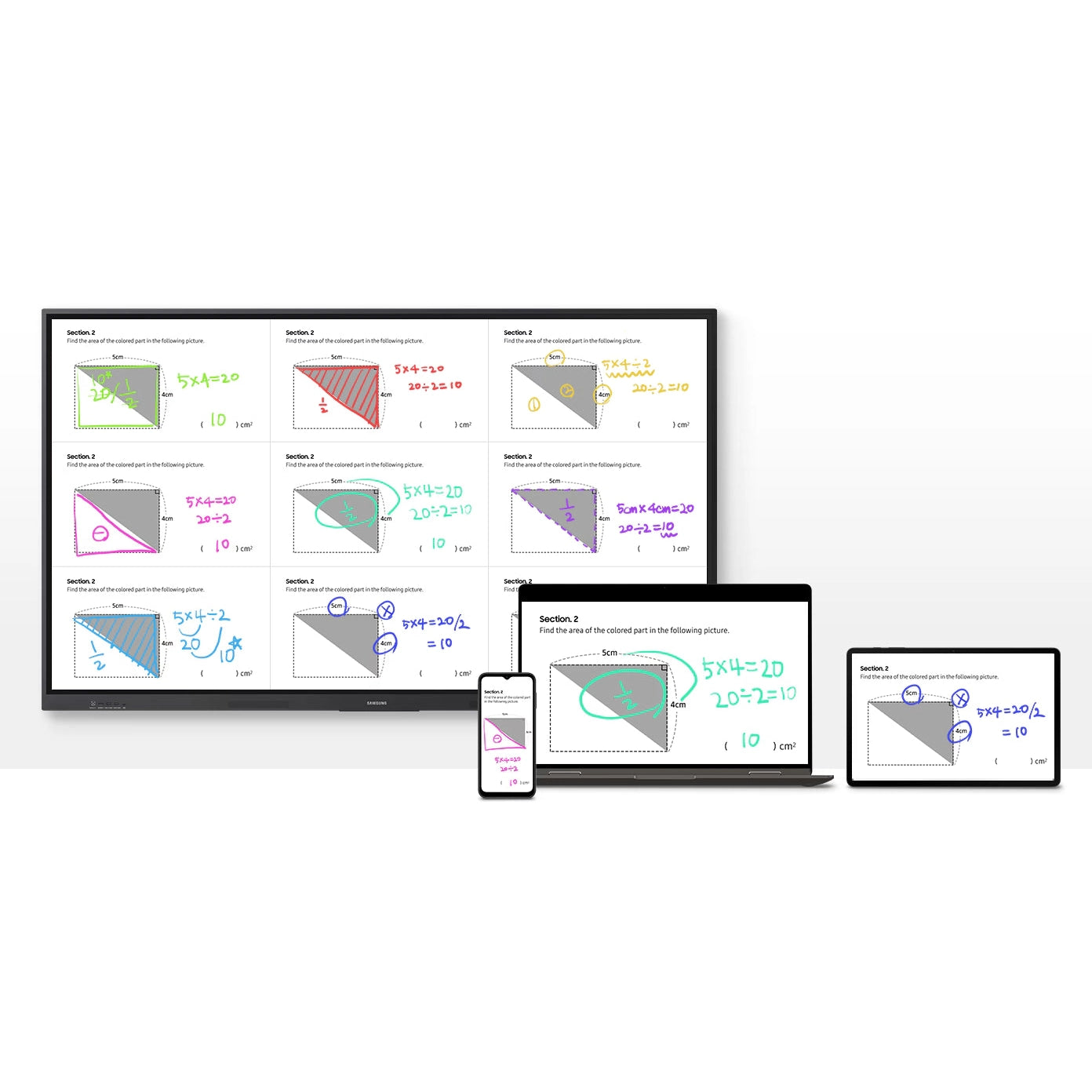

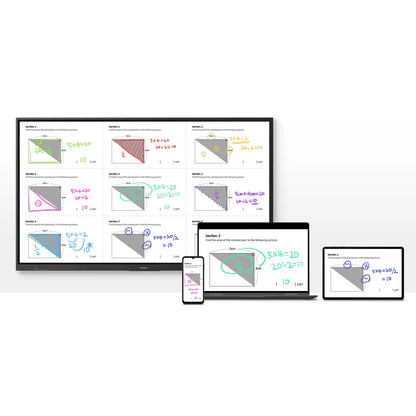

Smart, wireless sharing on multiple devices
Powerful Screen Sharing
The WAF series supports screen mirroring for up to nine devices, increasing student engagement. This feature ensures every student is included and engaged as content can be shared on both the large display and individual devices. It can be used on iOS, Mac, Windows, Android.
Better interaction with best-in-class multi-touch
Multi-point touch drawing
Multiple users can write and draw on the whiteboard at the same time with the display's advanced multi-touch capabilities. Up to 40 simultaneous touchpoints are possible, allowing large groups of students and teachers to collaborate and learn together in a fun and natural way.
Switch pens without changing settings

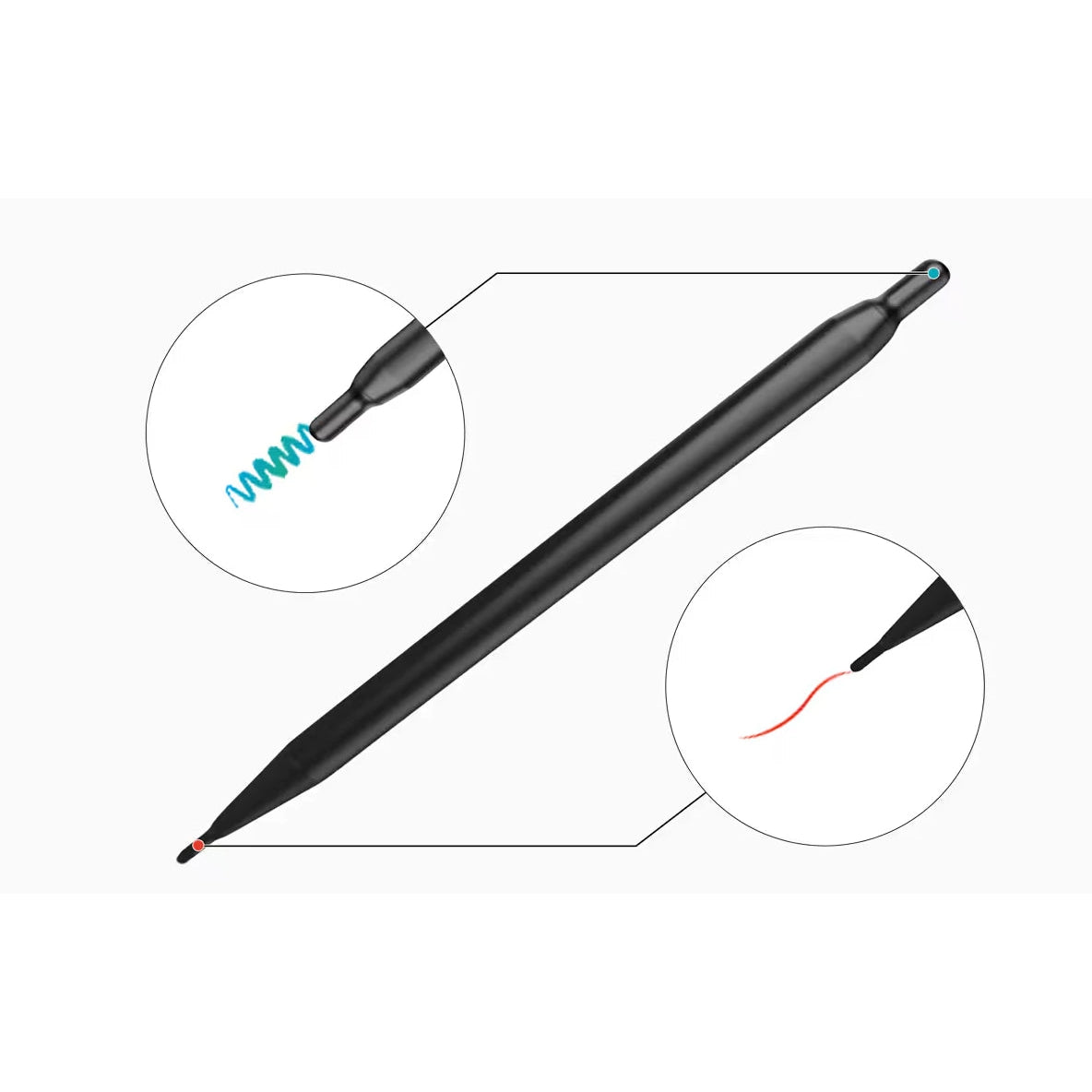

Dual Pen
The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nib applied, users can effortlessly switch between two different colours on the front and back side of the pen - without needing to change the settings or interrupt the flow of the lesson.

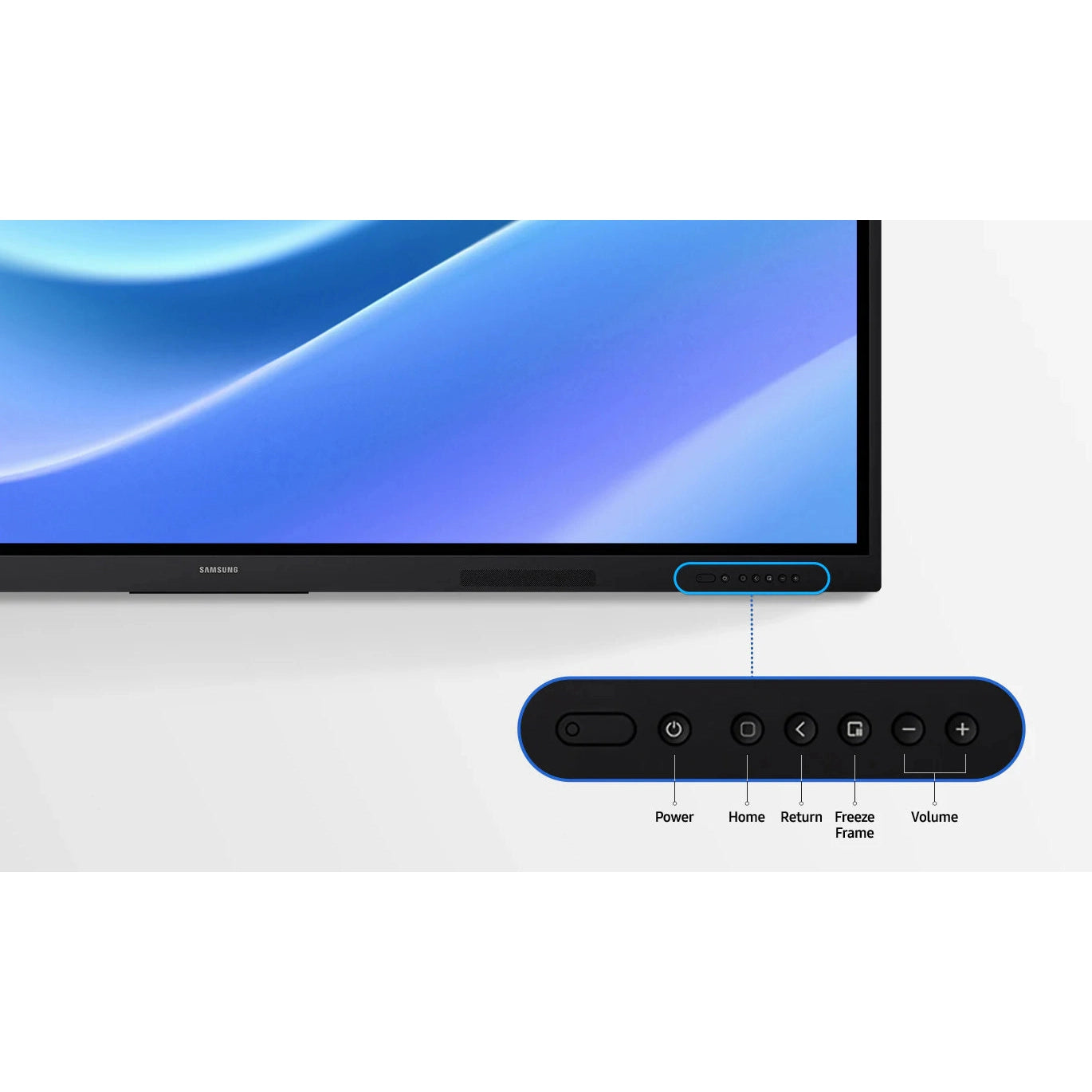

Front panel controls for intuitive navigation
Quick Access Controls
The WAF includes front-facing physical controls for quick access to frequently used functions. These intuitive controls allow users to operate the interactive display more efficiently, enhancing the overall user experience.
Connectivity

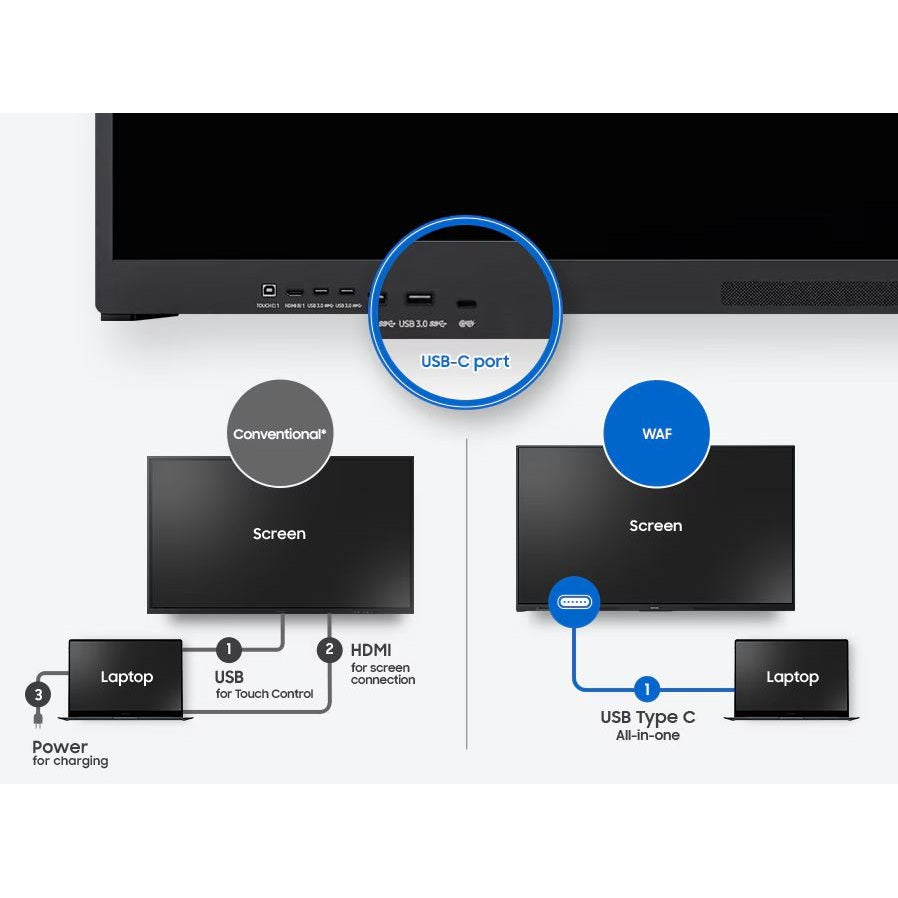

Convenient connectivity with USB-C
3-in-1 USB-C Port
Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65 W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.
*HDMI Out supports FHD/UHD 60Hz

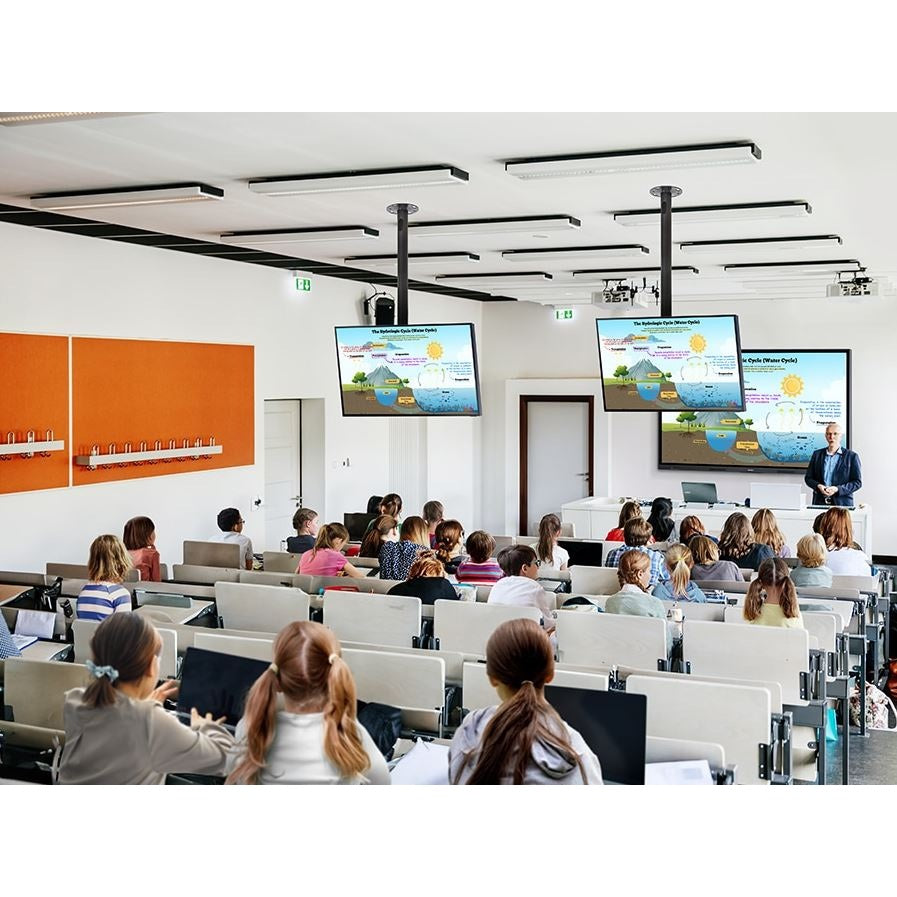

Accessible content for any class size
HDMI out
With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit in the classroom.
*HDMI Out supports FHD/UHD 60Hz
**Additional screens sold separately

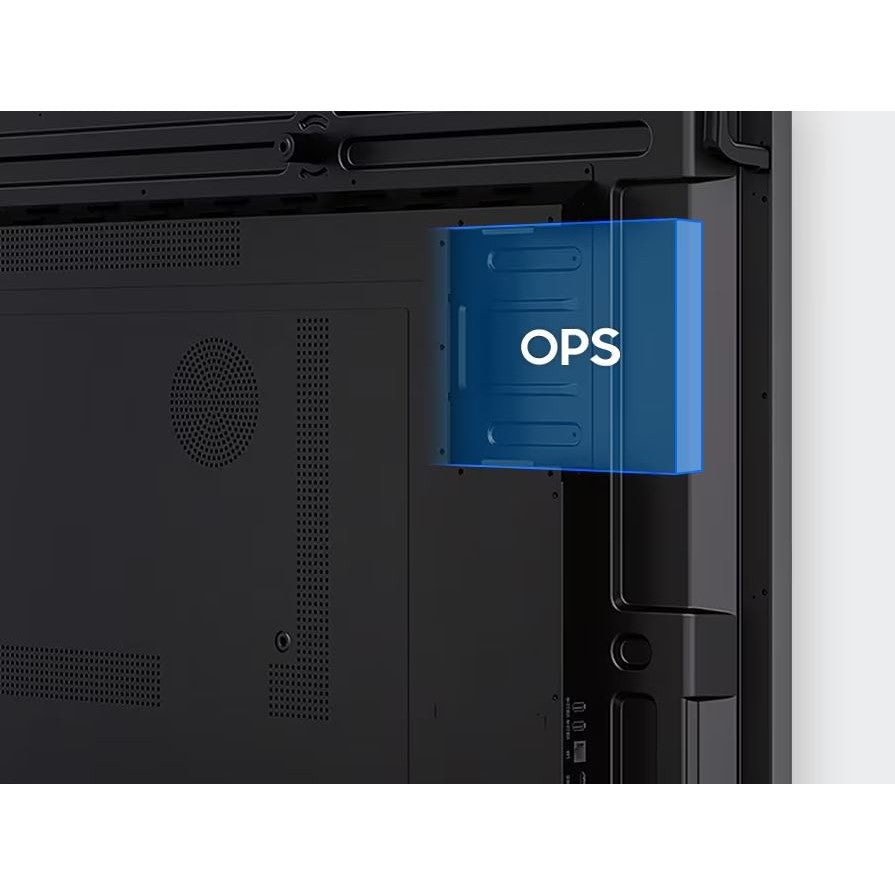

Use your favourite OS for the learning
OPS (Open Pluggable Specification)
The OPS slot in the WAF series can transform the interactive display into a Windows device, eliminating the need for an extra PC or devices. Users will have access to all the features and functionalities they are familiar with from a standard computer, directly on the display.

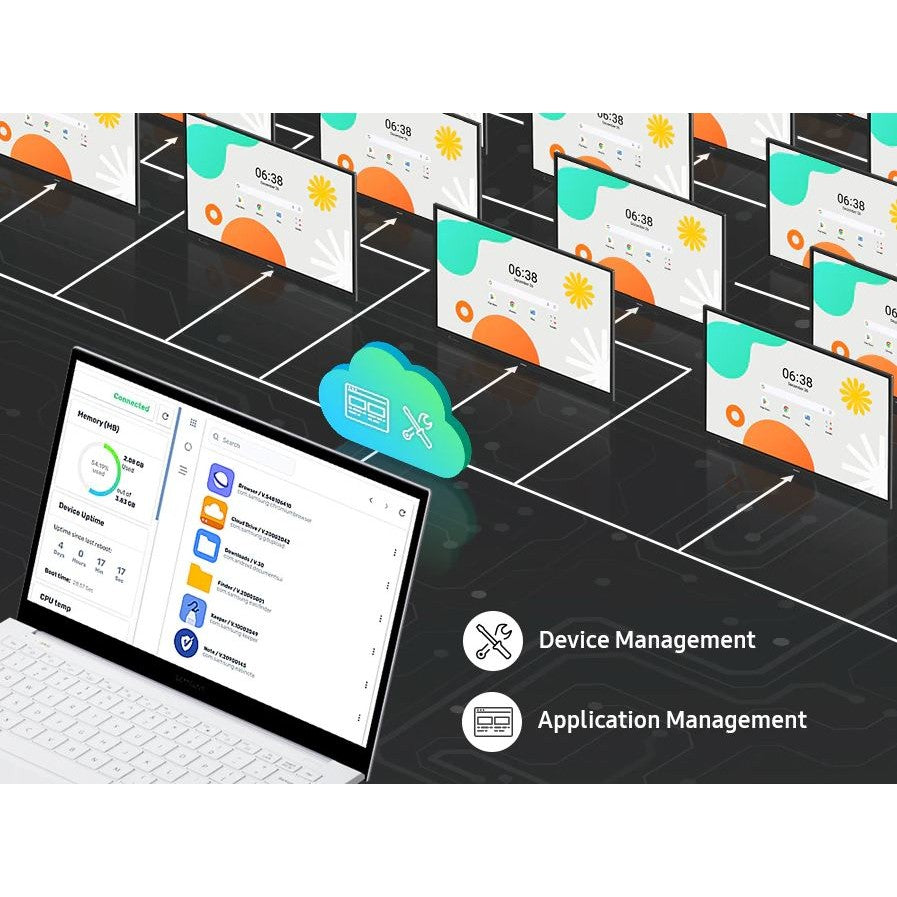

Device Management Solution
Seamless management, efficient operations
Device Management Solution
The Samsung Interactive eBoard series provides a device management solution for advanced educational environments. This solution optimises the remote management of whiteboard settings and applications, designed to assist with operational efficiency and stability.
*The WAF series provides an on‑prem DMS solution, allowing customers to choose an option that best fits their local network requirements.
**UX/UI images are simulated for illustrative purposes. App availability and content may change without notice.
***Charges apply for access to the cloud‑based DMS solution. Pricing policies are subject to change. App availability and content may change without notice
Notify across multiple devices, immediately
Advanced Messaging
Send important messages across campuses, classrooms and public spaces immediately. Urgent communications are displayed on interactive whiteboards so students and other personnel are alerted in real time.
Specifications
Display
Diagonal Size: 65"
Panel Type: IPS
Resolution: 3,840 x 2,160
Pixel Pitch (HxV): 372(H)x372(V)
Brightness (Typ): 400 nits
Contrast Ratio: 1,200:1
Viewing Angle (H/V): 178°/178°
Response Time: 8ms
Colour Gamut: 72%
Glass Haze: 25%
H-Scanning Frequency: 135 kHz
Maximum Pixel Frequency: 78 mHz
V-Scanning Frequency: 60 Hz
Operation Time Support: 12/7
Connectivity
HDMI In: 2
Version of HDMI: 2.1
Version of HDCP: 2.1
USB Ports: 4
Audio In: Stereo Mini Jack
Audio Out: Stereo Mini Jack
Video Out: Yes
RS232 In: Yes
RJ45 In: Yes
WiFi: Wi-Fi 5: 802.11ac
Bluetooth: Yes
Power
Power Supply: AC100-240V 50/60Hz
Power Consumption (On Mode): 409 W
Power Consumption (Sleep Mode): 0.5 W
Dimension
Set Dimension (W x H x D): 1482.1 x 897.5 x 87.7 mm
Package Dimension (W x H x D): 1640 x 1010 x 185 mm
Weight
Set Weight: 36.2 kg
Package Weight: 44.5 kg
Operation Conditions
Temperature: 0°C~40°C
Humidity: 10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount: 600 x 400 mm
Bezel Width: 14.0mm
Bezel Colour: Black
Frame Material: Aluminium
Optional Feature
Touch: Yes
SoC
OS Version: Android-14
Flash Memory Size: 64GB
Touch
Touch Technology: IR
Certification and Compliance
EMC: FCC CFR Title 47, Part 15, Subpart B/EN55032:2015+A11:2020
Safety: IEC62368-1/UL62368-1/IEC60950-1 / IS13252
Warranty: 36 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
