Features

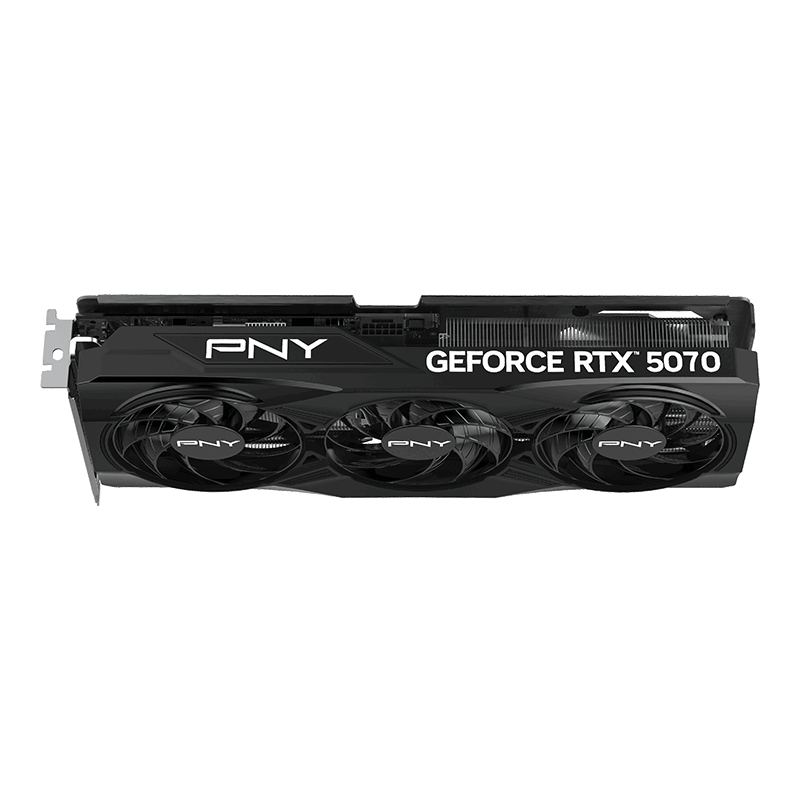

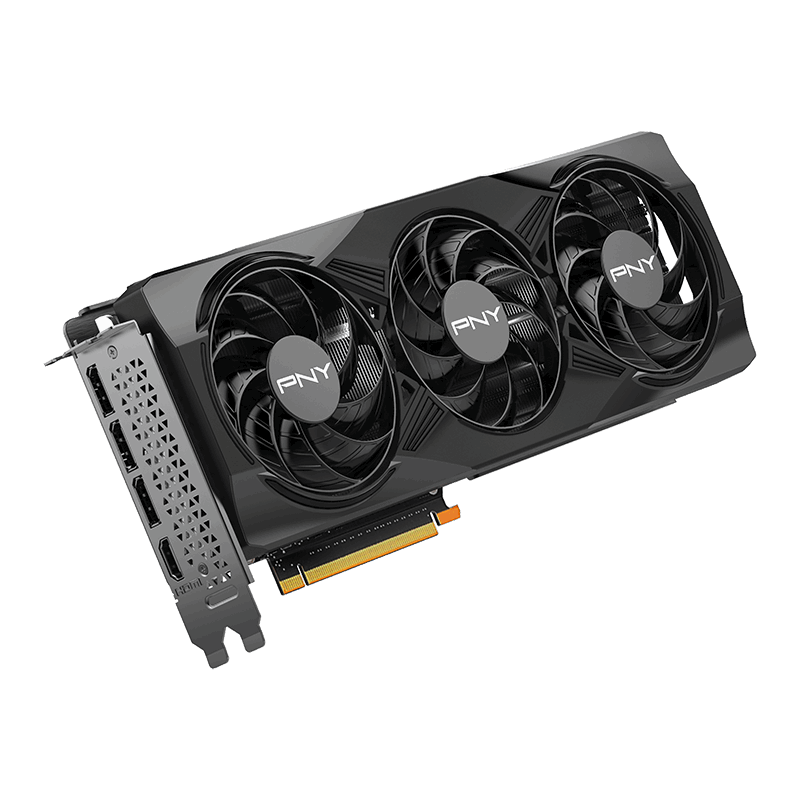

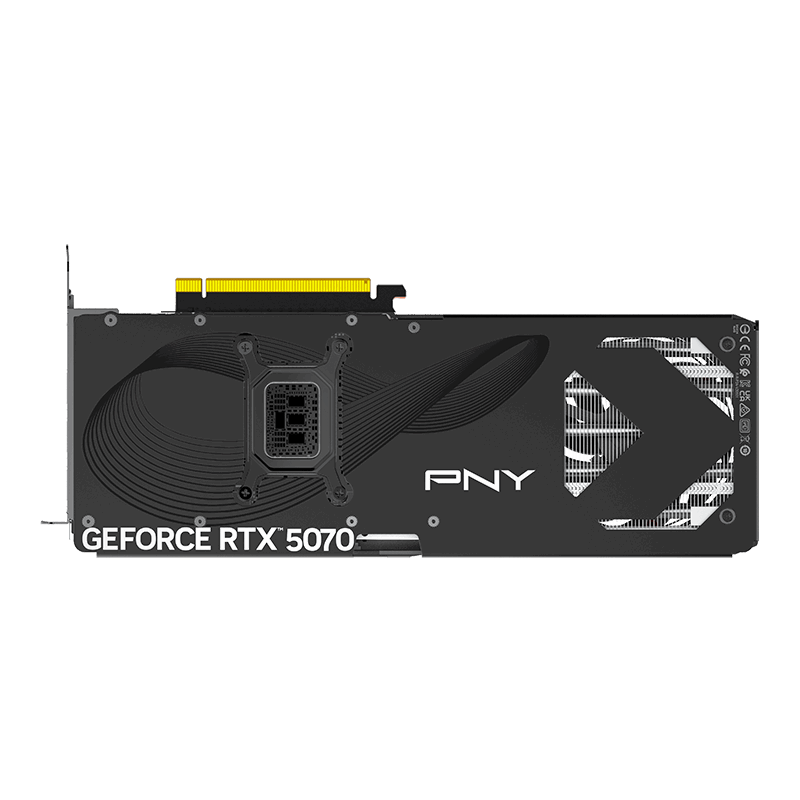

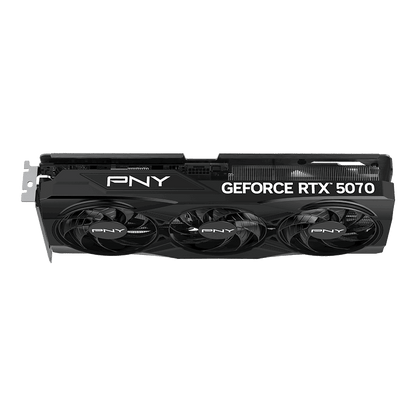

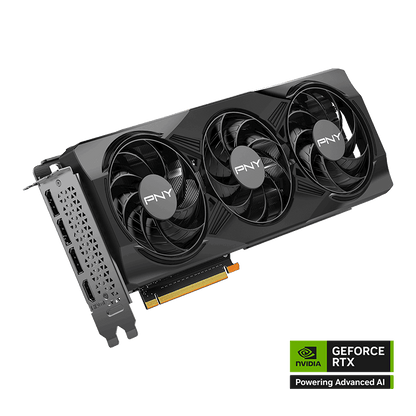

Get game-changing performance with the GeForce RTX™ 5070 OC (OverClocked), powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
- NVIDIA Blackwell Architecture
- 12GB GDDR7 Memory
- 3x Display Port, 1x HDMI®
- 6,144 CUDA® Cores
- 250 W Thermal Design Power
Specifications
PNY Part Number: VCG507012TFXPB1-O
UPC Code: 751492794440
Architecture: Blackwell
CUDA® Cores: 6,144
Base Clock Speed: 2.33 GHz
Boost Clock Speed: 2.59 GHz
Memory Speed (Gbps): 28
Memory Size: 12GB GDDR7
Memory Interface: 192-bit
Memory Bandwidth (GB/sec): Up to 672
TDP: 250 W
NVLink: Not Supported

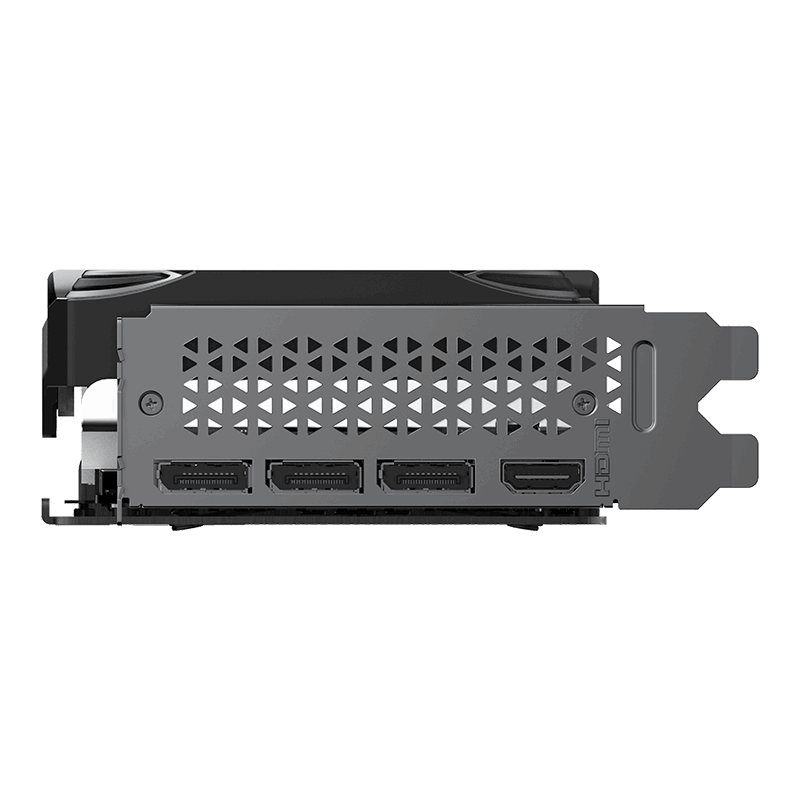

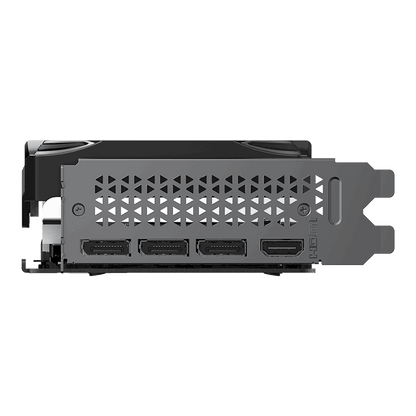

Outputs: DisplayPort 2.1b (x3), HDMI® 2.1b
Multi-Screen: 4
Resolution: 4K at 480Hz or 8K at 165Hz with DSC3
Power Input: One 16-pin (One 16-pin to Two 8-pin)
Bus Type: PCI-Express 5.0 x16
Card Dimensions: 11.80" x 4.73" x1.9"; 2.4 Slot
3Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz
System Requirements
PCI Express-compliant motherboard with one 2.4-width x16 graphics slot
Two 8-pin supplementary power connectors
Total graphics power 250 W
Required system power 650 W2
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection1
1Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.
2Power requirements can be different depending on system configuration.

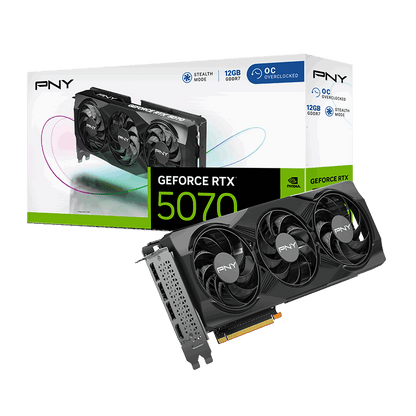

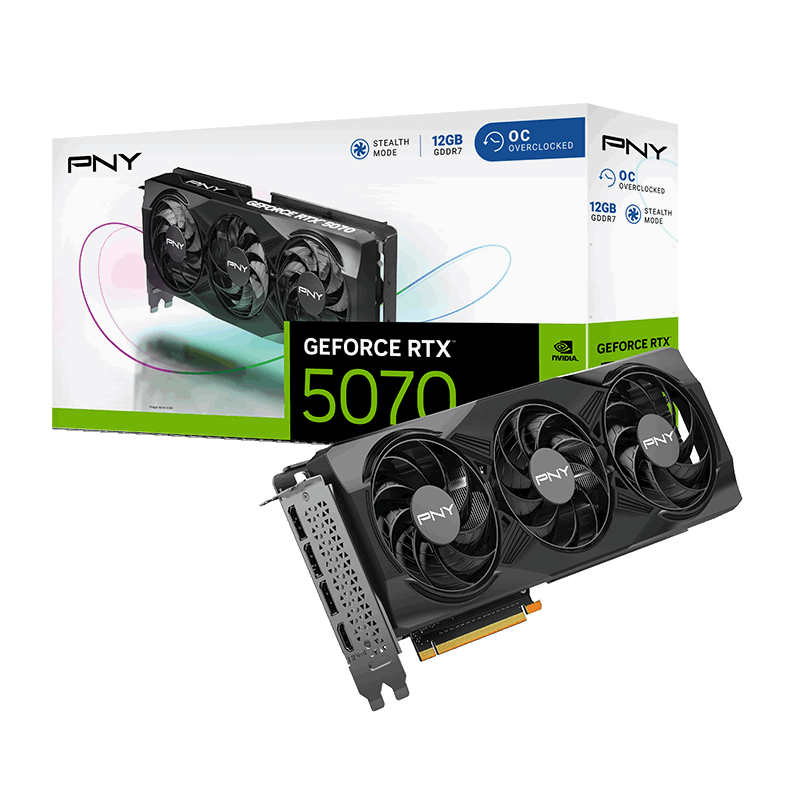

Package Contains

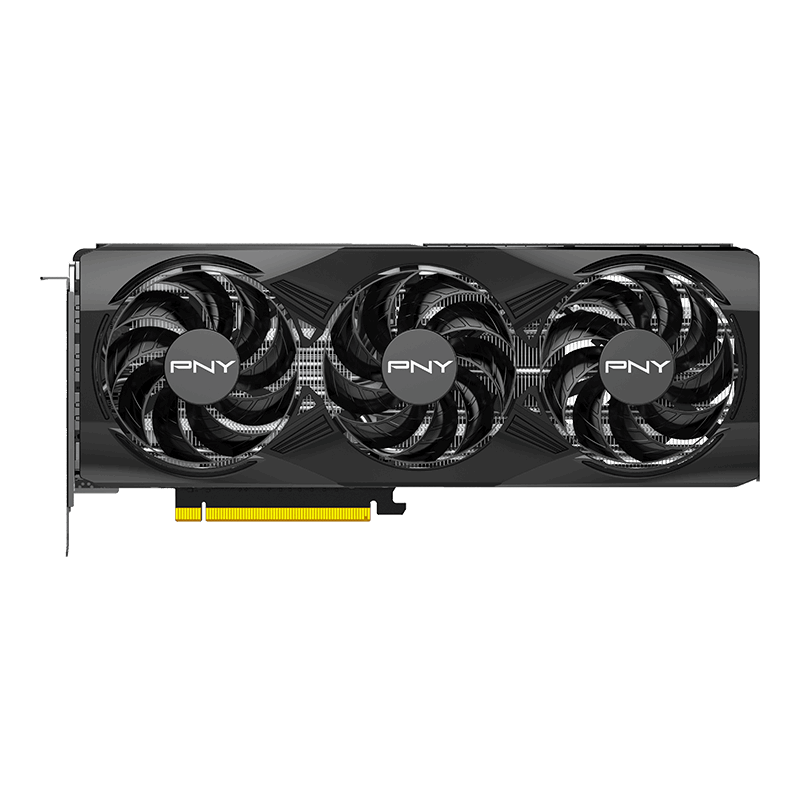

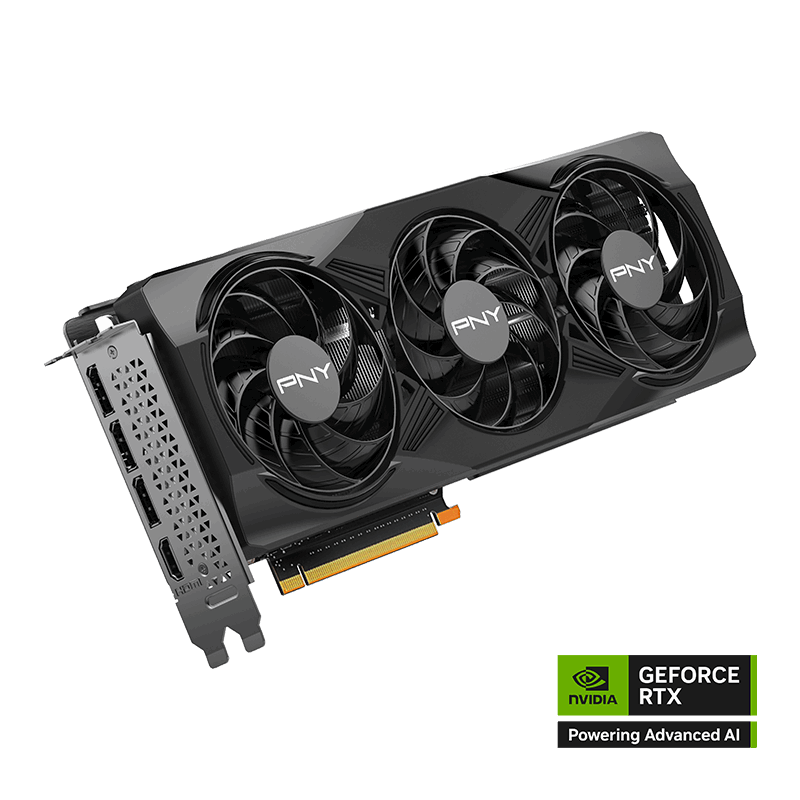

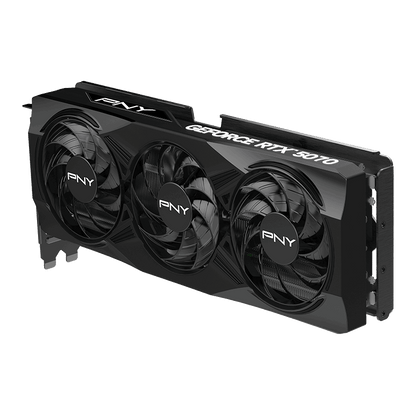

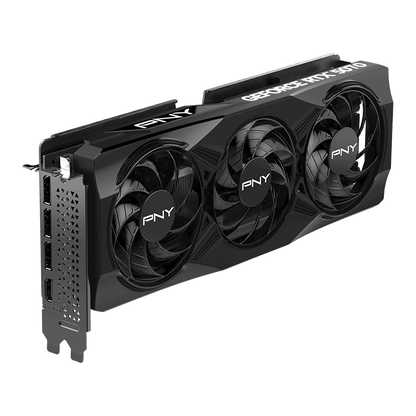

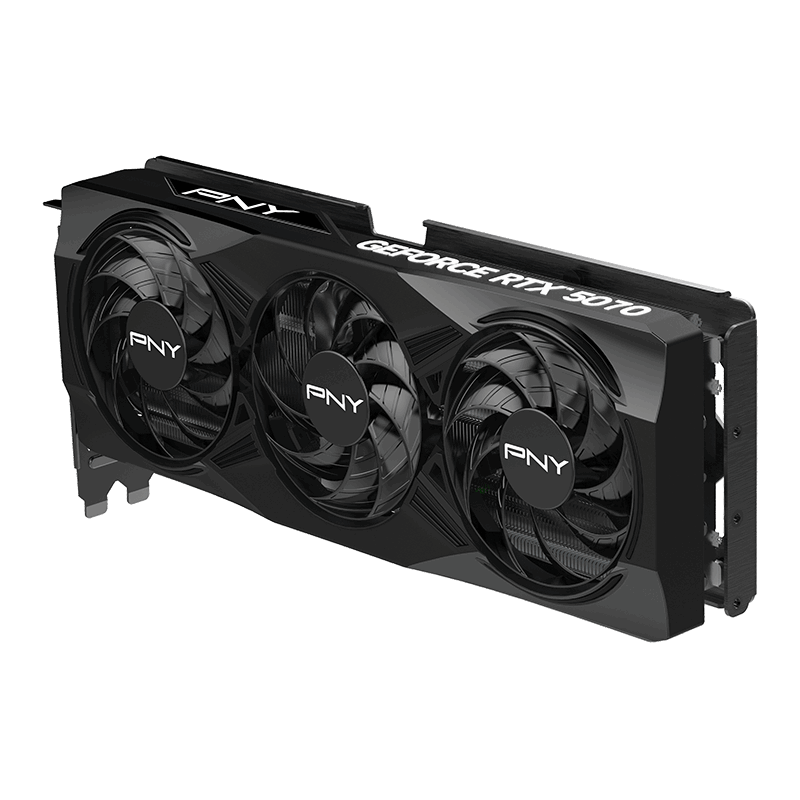

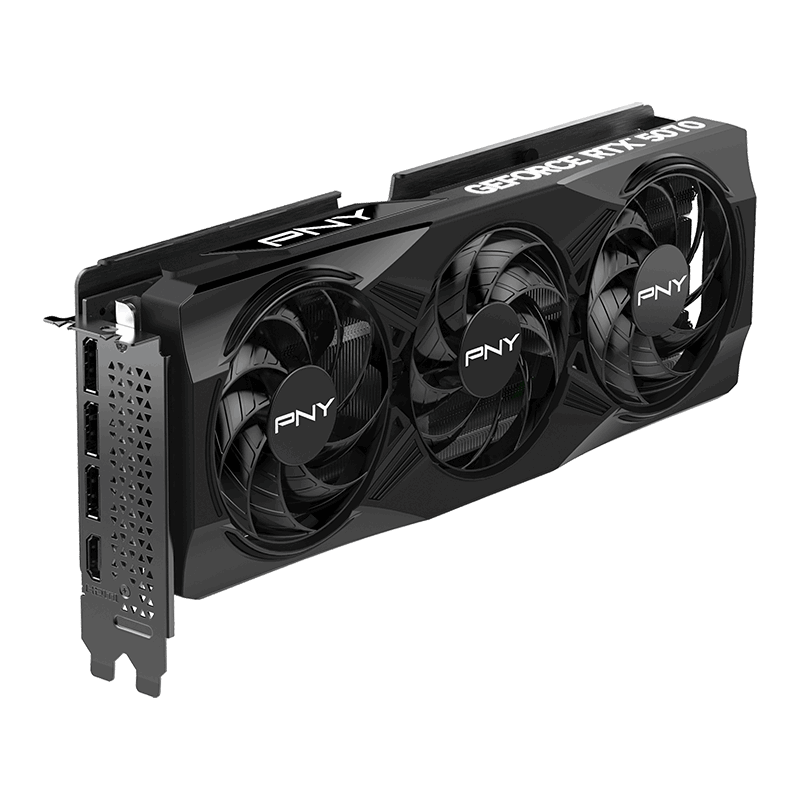

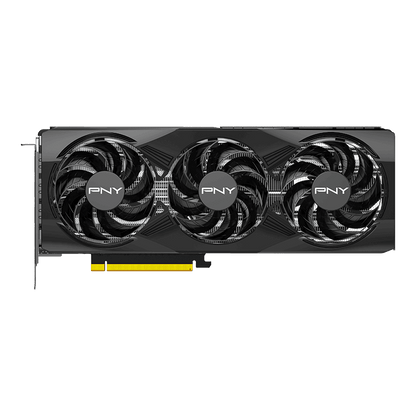

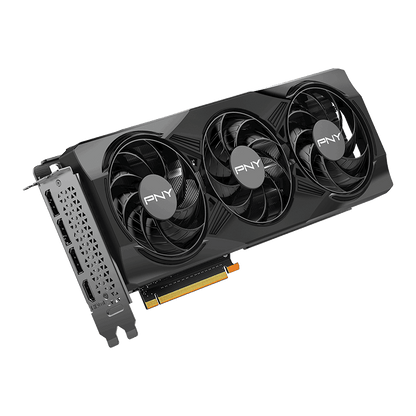

PNY GeForce RTX™ 5070 OC
1x Auxiliary Power Cable
Warranty: 36 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
