Features

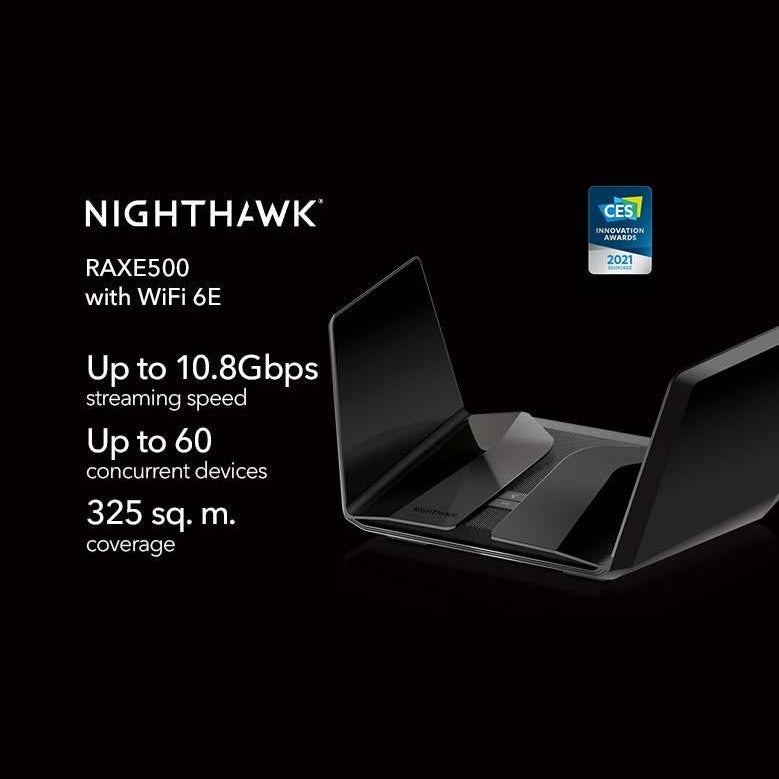

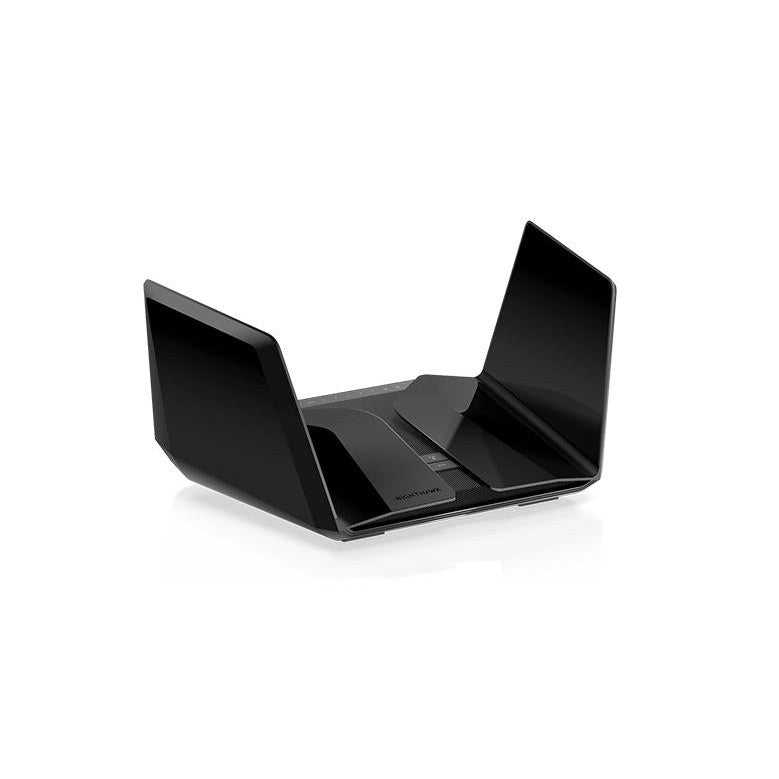

Nighthawk® AXE11000 (RAXE500) Tri-Band WiFi 6E Router (up to 10.8Gbps) with new 6GHz band & NETGEAR Armor™
With new WiFi 6E technology, you can enjoy ultra-fast speeds, smooth streaming, and lower latency for 4K/8K streaming, AR/VR gaming, and video conferencing. Get combined speeds of up to 10.8Gbps and a powerful 1.8GHz quad-core processor that delivers fast and reliable connections for up to 60 devices across 3,500 sq. ft. Protect data, sensitive information, and devices with 1 year of award-winning NETGEAR Armor internet security.
UNMATCHED PERFORMANCE AND COVERAGE
Faster Speed
Up to 10.8Gbps* delivers seamless WiFi to all devices no matter how demanding
Next-Gen WiFi 6E Technology
Adds a 6GHz band for today's new WiFi 6E devices
Stronger WiFi Signals
Pre-optimised antennas deliver more reliable connections and coverage up to 3,500 sq.ft.
FASTER GAMING, FASTER STREAMING
12 simultaneous WiFi streams ensure everyone in your house enjoys no-lag AR/VR gaming, uninterrupted 8K streaming, and smooth video calls all at the same time
WIFI 6E, THE FASTEST WIFI EVER
A new 6GHz band provides the fastest speed and the greatest capacity for new WiFi 6E devices, and reduces data loads on the other two bands so WiFi speed increases for all devices
OUR WIFI SIGNALS JUST GOT BOOSTED
RAXE500 includes proprietary WiFi optimisation and eight optimally positioned antennas to deliver more capacity, stronger and more reliable connections, and less interference to your devices
MULTI-GIG WIRED CONNECTIONS
Use the 2.5G Ethernet port or 2Gbps link aggregation to send Gigabit+ speeds to your most demanding devices, and plug even more wired devices into the four additional Gigabit Ethernet ports
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
EASY SETUP
1. Download the Nighthawk app and follow instructions.
2. Connect RAXE500 Router your modem and power.
TAP. MANAGE. CONTROL. Nighthawk App
Just tap to manage your network, setup guest WiFi access, monitor device and data usage, run speed tests and more.
Specifications
PHYSICAL SPECIFICATION
Dimensions
Folded size: 11.7 x 8.7 x 3.1 in (298 x 221.2 x 78 mm)
Unfolded size: 13.5 x 8.7 x 6.7 in (345 x 221.2 x 169.5 mm)
Weight
1.45 kg (3.2 lb)
TECHNICAL SPECS
WiFi Technology
WiFi 6E (IEEE® 802.11ax) Tri-Band WiFi (AXE11000) 12-Stream
2.4GHz AX: 4x4 (Tx/Rx) 1024/256-QAM 20/40MHz, up to 1.2Gbps
5GHz AX: 4x4 (Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4.8Gbps
New 6GHz AX: 4x4 (Tx/Rx) 1024/256- QAM 20/40/80/160MHz, up to 4.8Gbps
Backwards compatible with IEEE 802.11 a/b/g/n/ac WiFi
Supports new WiFi 6E devices on 6GHz WiFi band
WiFi Speed
AXE11000 (1.2+4.8+4.8Gbps)
WiFi Range
up to 325 square metres (3,500 square feet)
WiFi Band
Tri-Band 6GHz + 5 GHz + 2.4GHz
Beamforming
Improve range and performance for 2.4GHz, 5GHz & 6GHz devices
Ethernet Ports
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN) + one (1) 2.5G/1Gbps Multi-Gig port (configurable)
Processor
Powerful quad-core 1.8GHz processor
USB Ports
Two (2) USB 3.0 ports
Security
NETGEAR Armor™: Advanced cyber threat protection for home network and your connected devices
Guest network access: separate & secure
Automatic firmware update delivers latest security patches to the router
Supports WPA3, the latest and cutting-edge WiFi security protocol
Standards-based WiFi Security (802.11i,128-bit AES encryption with PSK)
VPN Support: Secure access to your home network away from home
REQUIREMENTS
Broadband Internet service (DSL/cable/fiber)
One DSL/cable/fiber modem that has an RJ45 connector
Android® phones, iPhones®, or computers (with a Chrome® or Safari® browser) with Ethernet or WiFi connection
What's in the Box
Contents
1x Nighthawk® AXE11000 Tri-Band WiFi 6E Router (RAXE500)
1x Ethernet cable
1x Quick start guide
1x Power adapter
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
