Features
The NETGEAR AV Line GSM4210PD is designed to cater to the demands of modern networking environments. Featuring PoE+ capabilities, this switch can deliver up to 30W of power per port, making it suitable for powering devices such as IP cameras and access points. With a total of 10 ports, including 8 PoE+ ports, this switch supports high-performance networking through its advanced Layer 3 switching capabilities and a switching capacity of 20 Gbps. The fanless design ensures quiet operation, and the remote management protocols allow for efficient monitoring and control of network performance. This switch is ideal for various applications, providing 128 multicast entries for IPv4 and 4000 for IPv6, as well as support for numerous DHCP servers and IGMP multicast groups. It comes equipped with a robust security framework, including AES67 audio network support and various routing protocols designed to maintain efficient network traffic flow while ensuring device management with features like SNMP and RMON. With its compact desktop or wall-mountable form factor, the NETGEAR GSM4210PD is a versatile solution for deploying reliable network infrastructures.

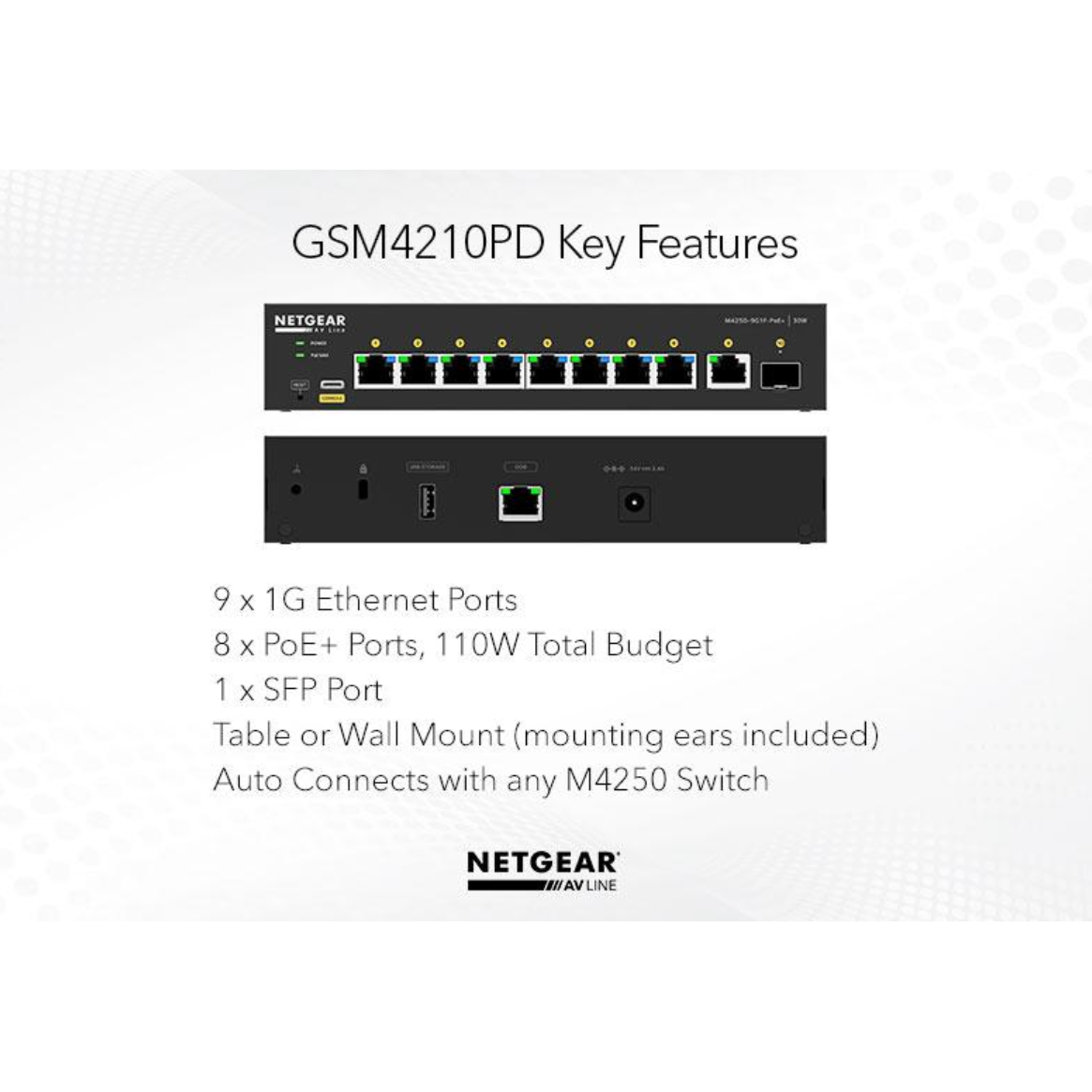

- Provides PoE+ support with 110 W power budget
- Features a total of 10 ports for diverse connectivity options
- Supports remote management protocols including SNMP and HTTPS
- Delivers high performance with a switching capacity of 20 Gbps
- Fanless design ensures silent operation
-
Efficient power distribution
Equipped with PoE+ functionality, this switch can deliver up to 30 W per port, allowing for efficient power distribution to connected devices without the need for additional power adapters. -
Advanced traffic management
Supports advanced Layer 3 switching capabilities and multiple routing protocols, ensuring efficient management of network traffic and optimal performance across devices. -
Versatile connectivity options

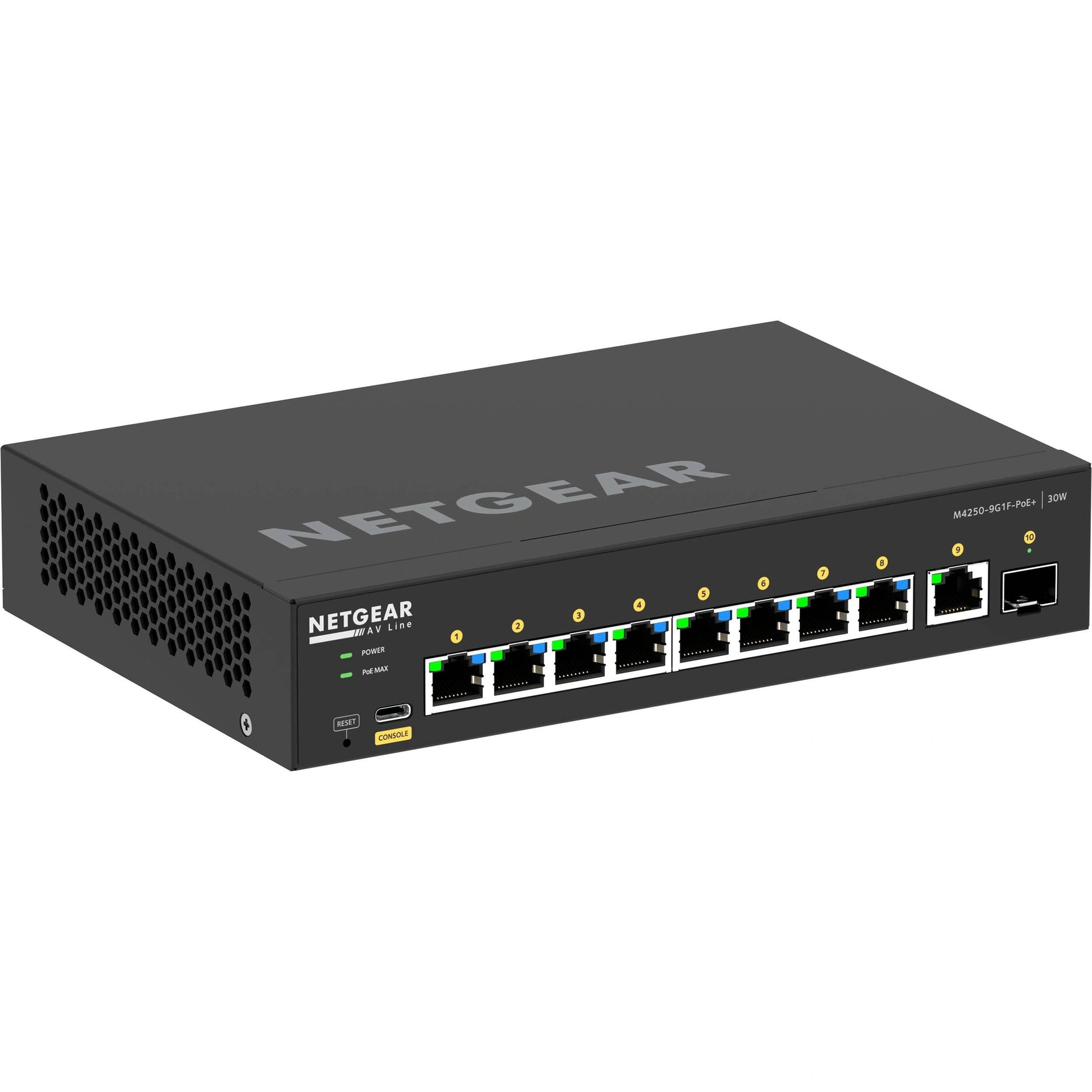

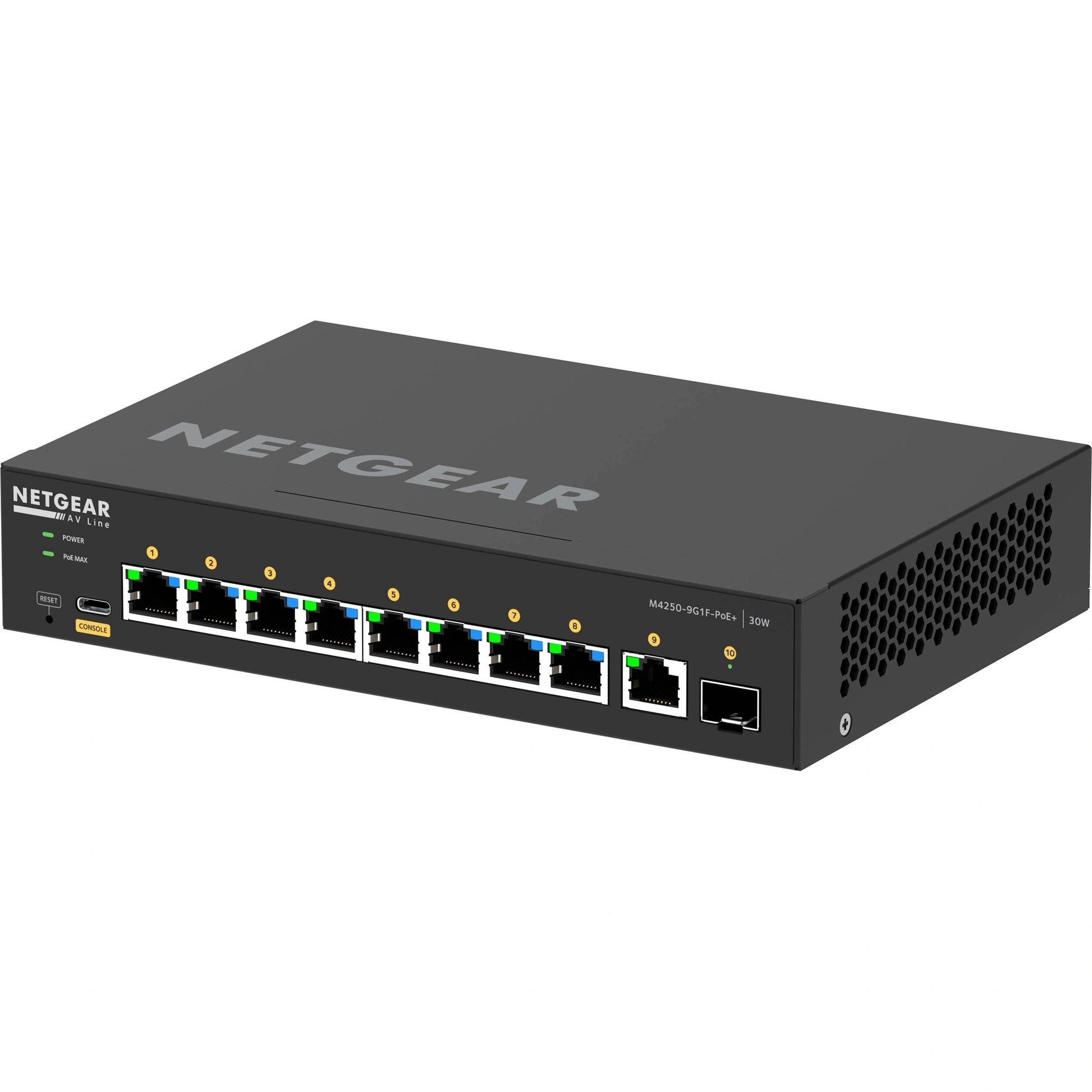

Comprises 8 PoE+ ports and 2 additional ports, including a 1000Base-X SFP, providing versatile connectivity options to cater to a wide range of networking requirements. -
Silent operation
The fanless design enhances usability in environments where noise is a concern, ensuring silent operation while maintaining robust performance. -
Comprehensive security protocols
Integrates AES67 audio network support and a variety of remote management protocols, enhancing network security and management capabilities.
Specifications

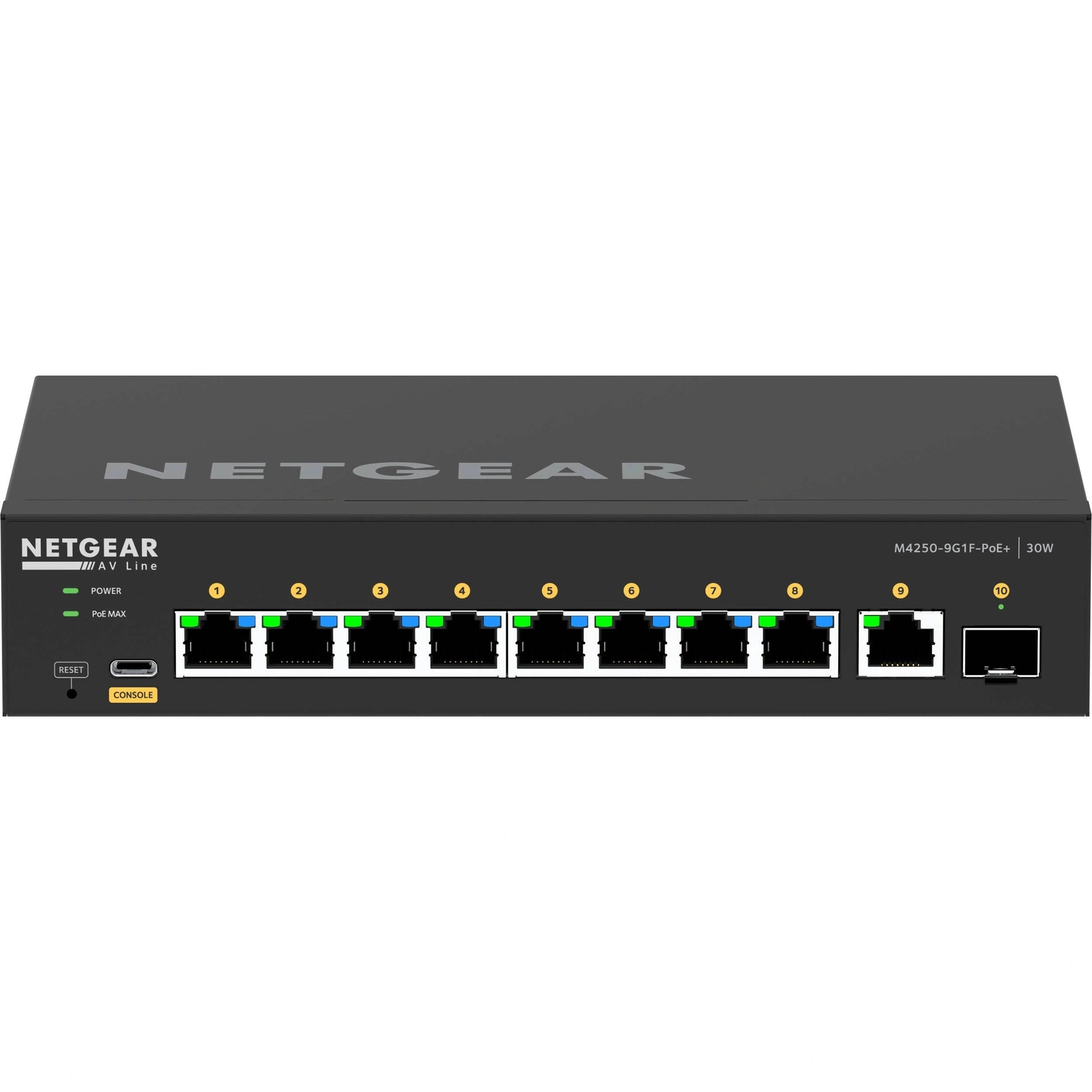

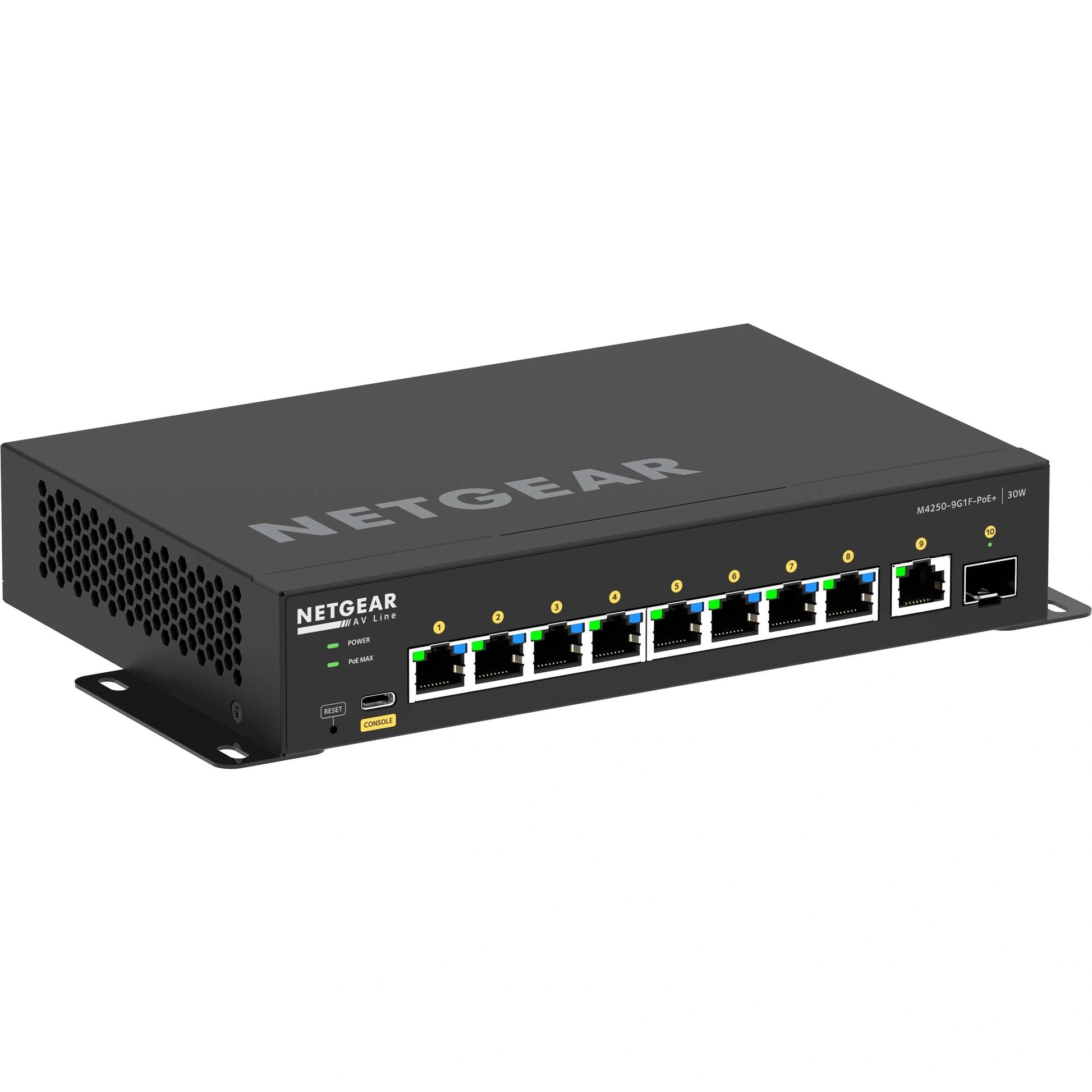

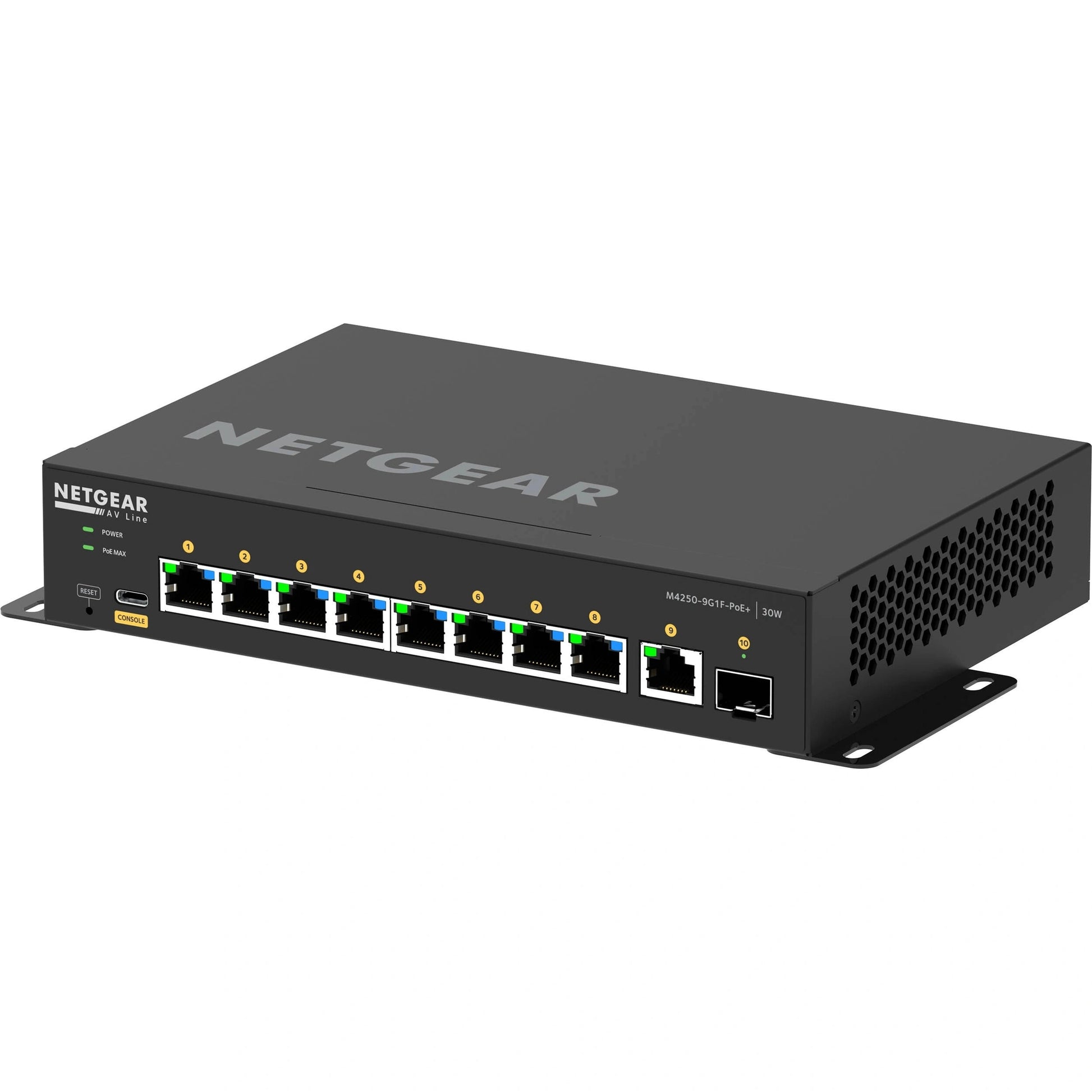

Product Description: NETGEAR AV Line GSM4210PD Switch 10 Ports Managed
General
Device Type: Switch – 10 ports – L3 – Managed
Enclosure Type: Desktop, Wall-Mountable
Subtype: Gigabit Ethernet
Ports: 10 x 10/100/1000 (8 PoE+) + 1 x 1000Base-X SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 110 W
Performance
Switching Capacity: 20 Gbps
Throughput (64-byte packet size): 14.88 Mpps
Packet buffer size: 16 MB
Latency (1 Gbps): 2.27 µs
Capacity
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
IGMP multicast groups: 2000
VLANs supported: 4000
DHCP servers: 2000
DHCP pool (IPv4): 256
DHCP pool (IPv6): 16
Jumbo Frame Support: 12KB
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM
Remote Management Protocol: HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3
Features: IGMP support, fanless, sFlow, PoE timer, DHCP server, AES67 audio network, PIM, PTP, RSPAN
Compliant Standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt
Processor: X ARM A9: 1.25 GHz
Status Indicators: Power, PoE max, fan

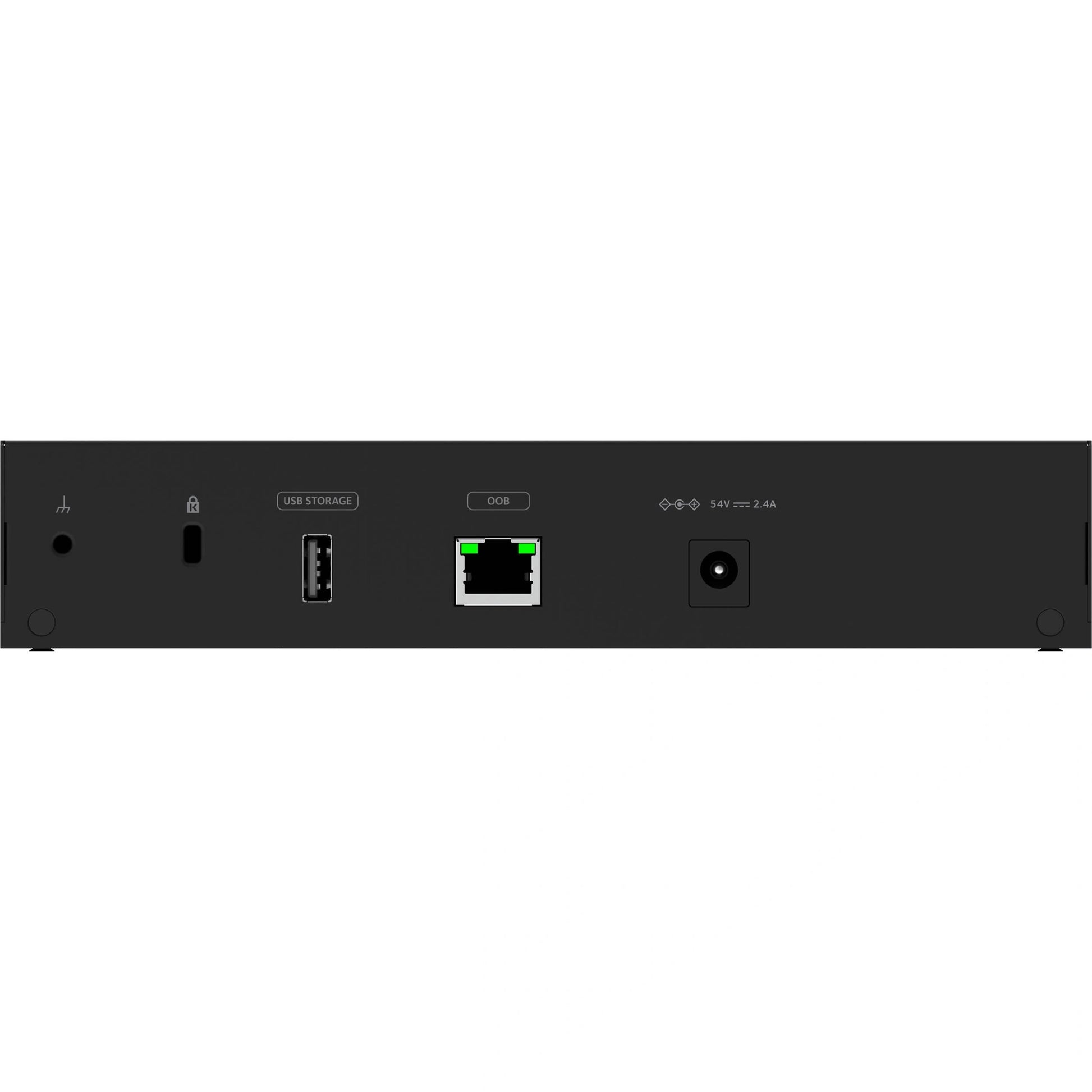

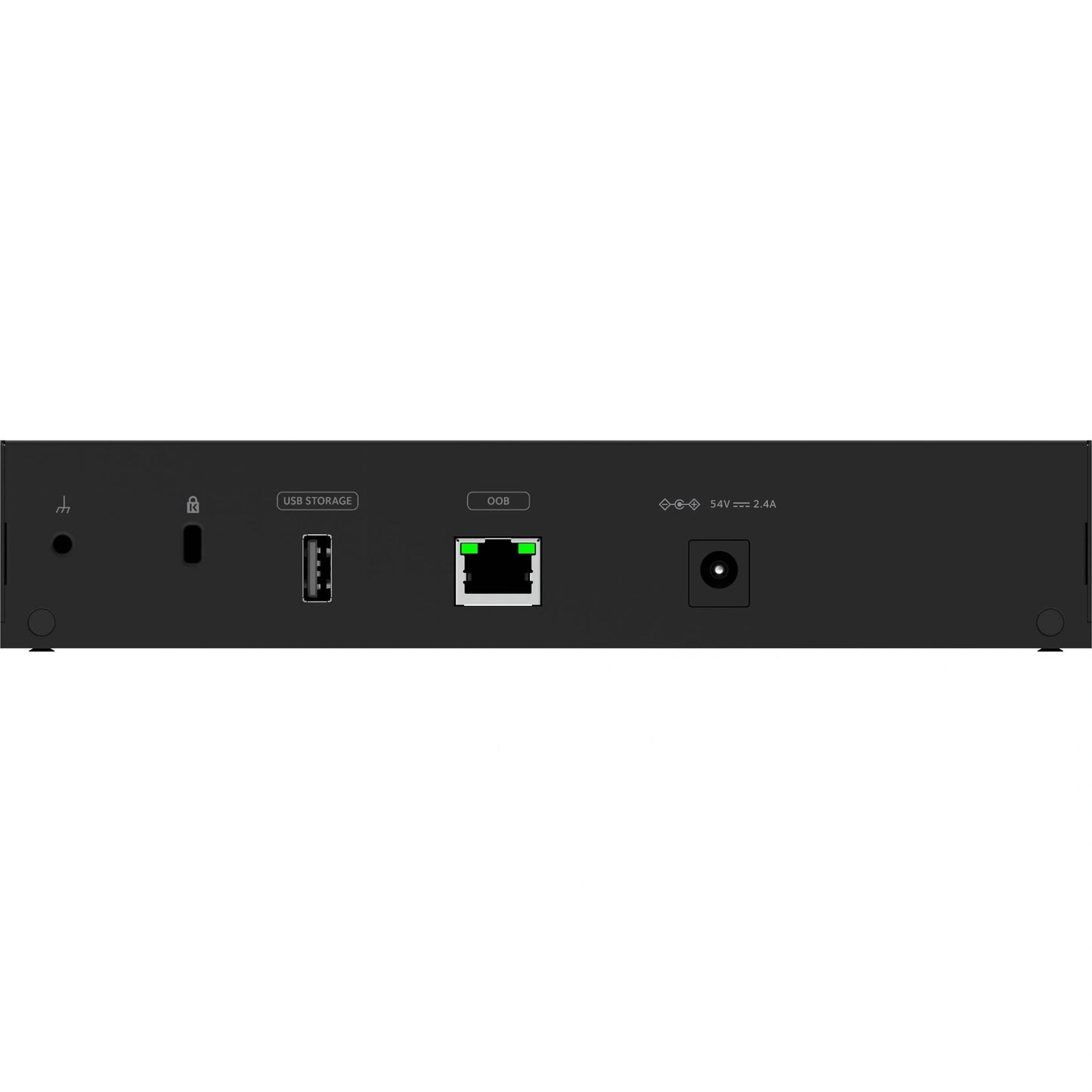

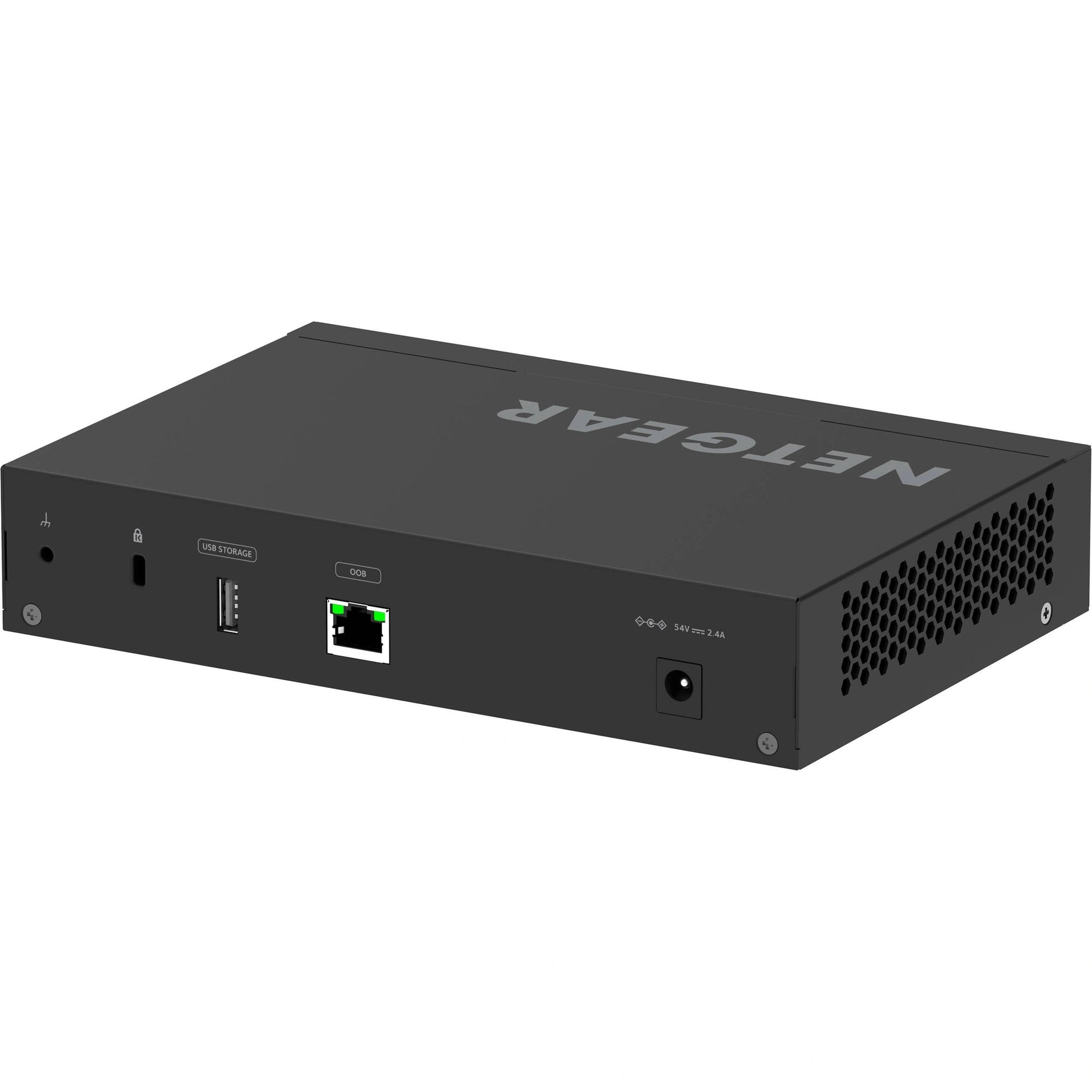

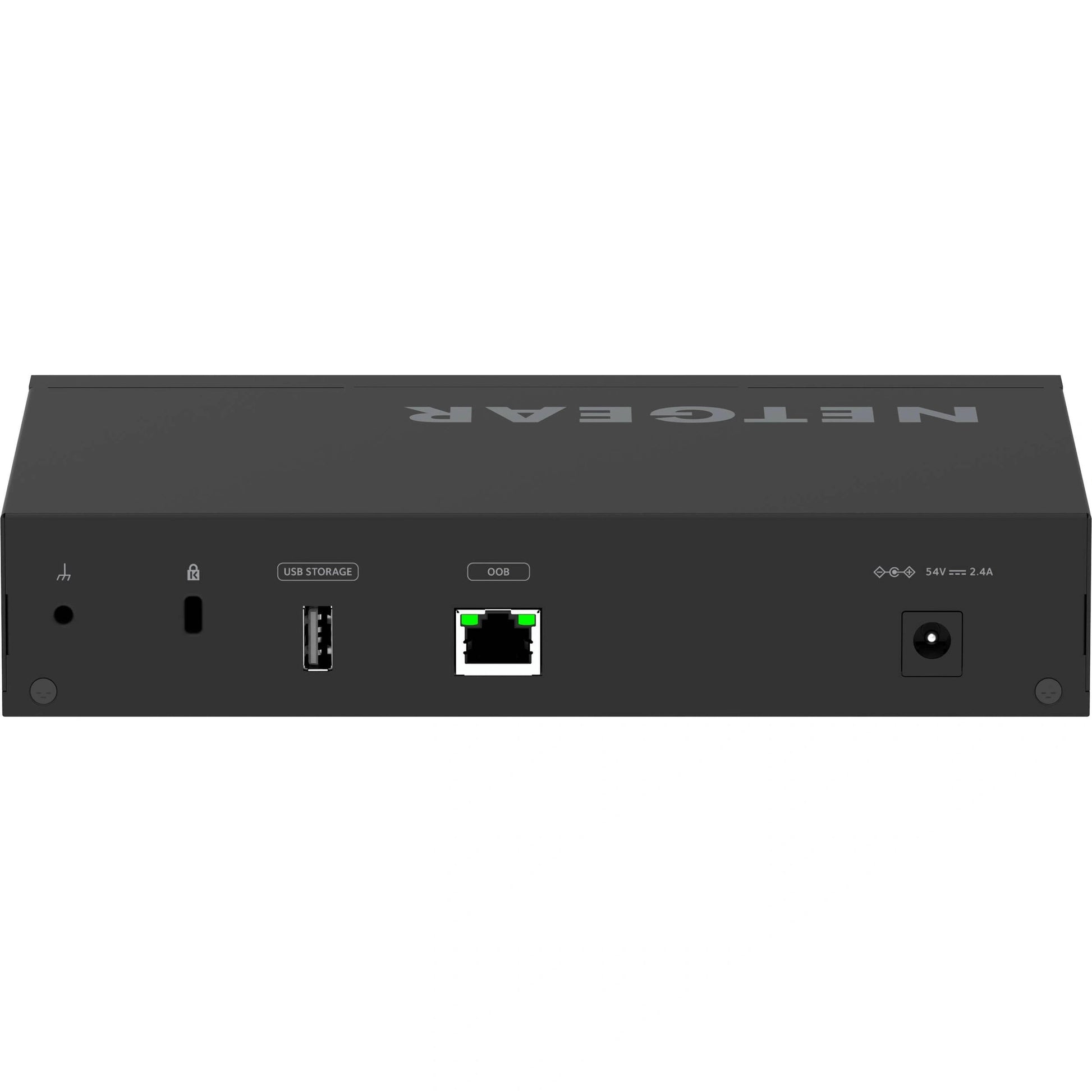

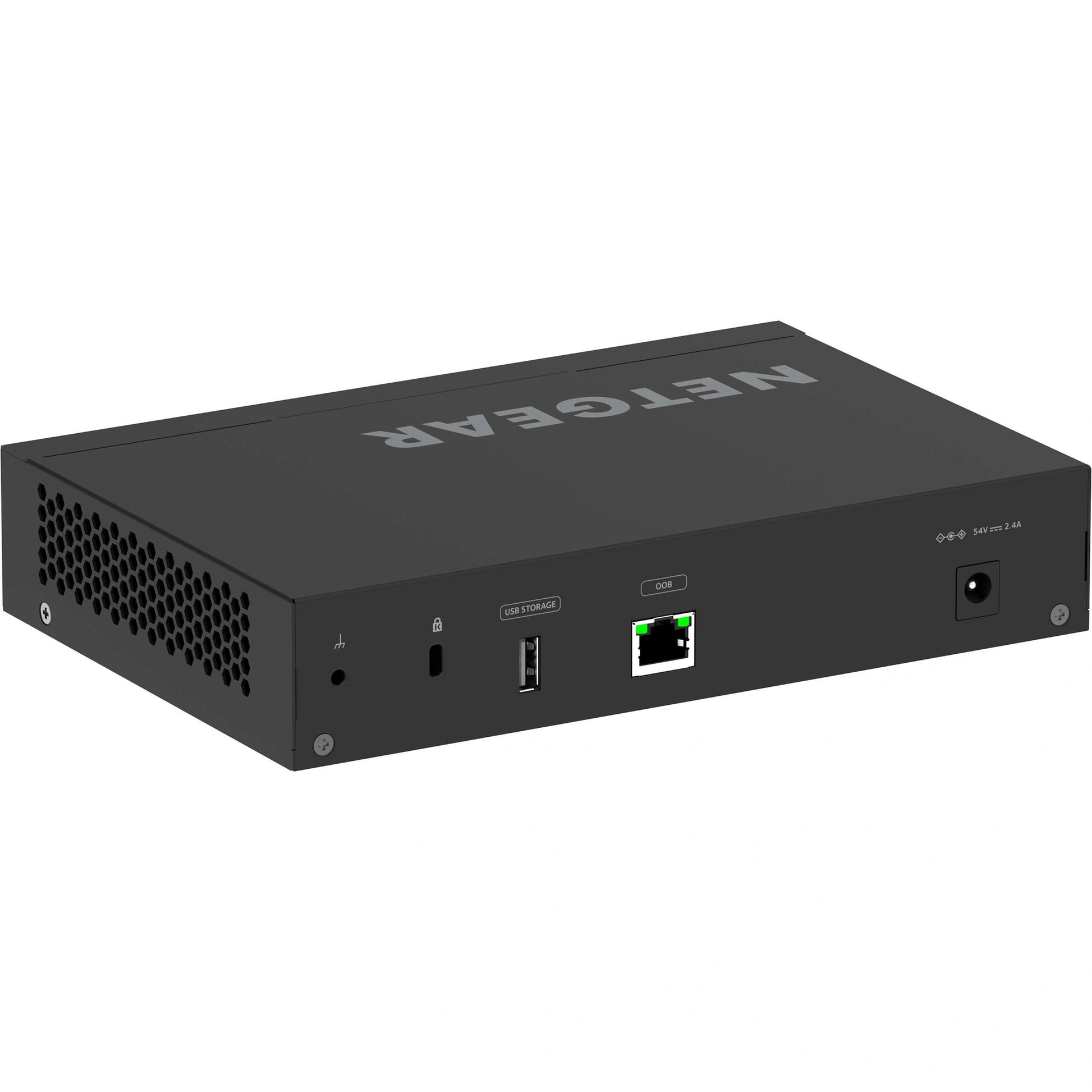

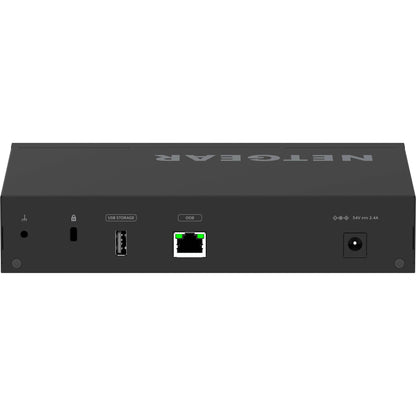

Expansion / Connectivity
Interfaces

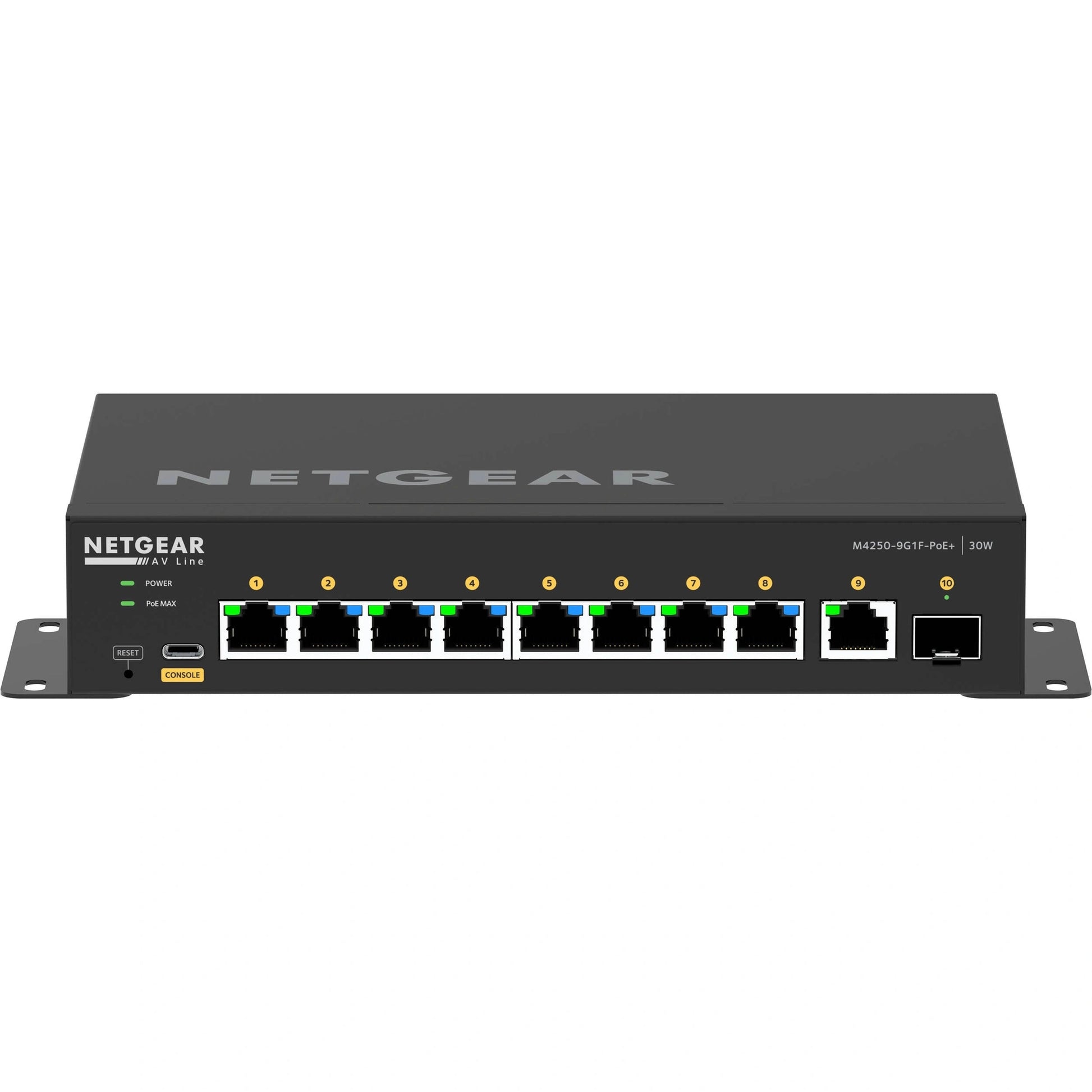

8 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W
2 x 10/100/1000 Base-T RJ-45
1 x 1000Base-X SFP
1 x management (Gigabit LAN) RJ-45
1 x USB Type A storage
1 x console (USB) Type C
Power
Power Device: External power adapter
Installed Qty: 1
Power Consumption Operational: 132.25 Watt
Power Consumption Stand-By: 6.4 Watt
Miscellaneous
Included Accessories: Power Adapter, Mounting Brackets, Rubber Feet
Cables Included: USB-C Cable
Dimensions & Weight
Width: 21 cm
Depth: 14 cm
Height: 4 cm
Weight: 965 g
What’s in the Box
- NETGEAR AV Line M4250-9G1F-PoE+ (GSM4210PD)
- External Power Adapter
- Power cord(s)
- Console USB Type-C cable
- Flat brackets for desktop or wall mounting
- Rubber footpads for tabletop installation
- Installation guide
