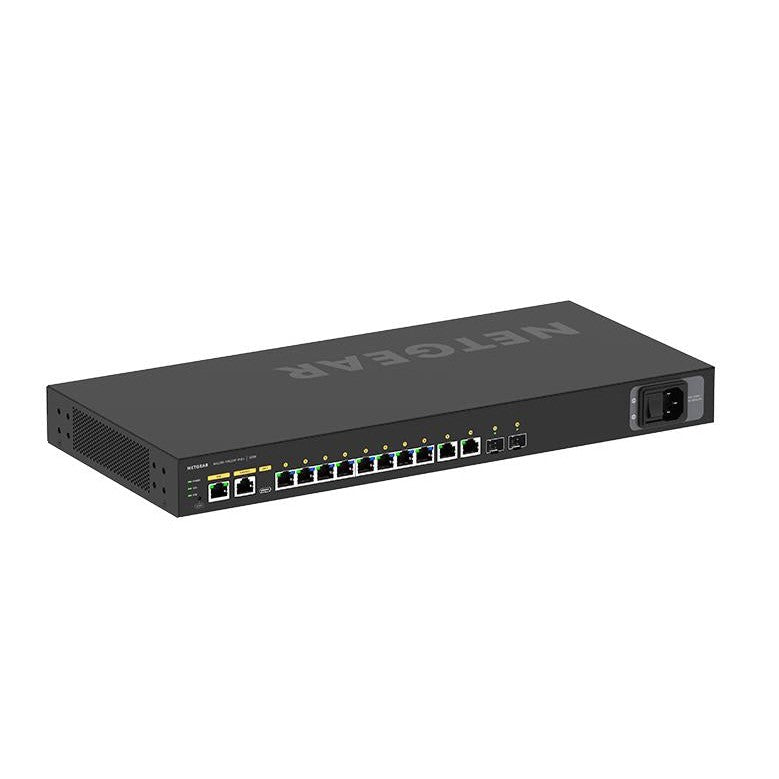

Netgear AV Line M4250-10G2XF-PoE+ (GSM4212PX-100AJS) 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch
-
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port. -
Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications. -
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting. -
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
Physical Specification
Dimensions (WxDxH) : 440 x 200 x 43.2mm
Weight : 2.9kg (6.39lb)
Technical Specs
Primary Port Speed: 1 Gigabit
Number of Ports: 12 (10x 1G, 2x SFP+)
PoE Ports / Budget: 8 PoE+ (30W/port), 240W Budget
IGMP Support: Enhanced (NETGEAR IGMP Plus)
Jumbo Frame Support: Yes, up to 12kb
Acoustics: Fanless or 39.22dB @ 25°C
Power Consumption: With PoE: 306.4W/1046.050Btu/hr; Without PoE: 25W/85.35Btu/hr; Standby without any port connection: 12.96W/44.245Btu/hr
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S)
Third party support : Domotz
What's in the Box
M4250-10G2XF-PoE+ (GSM4212PX)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide
Warranty: 60 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
