Features

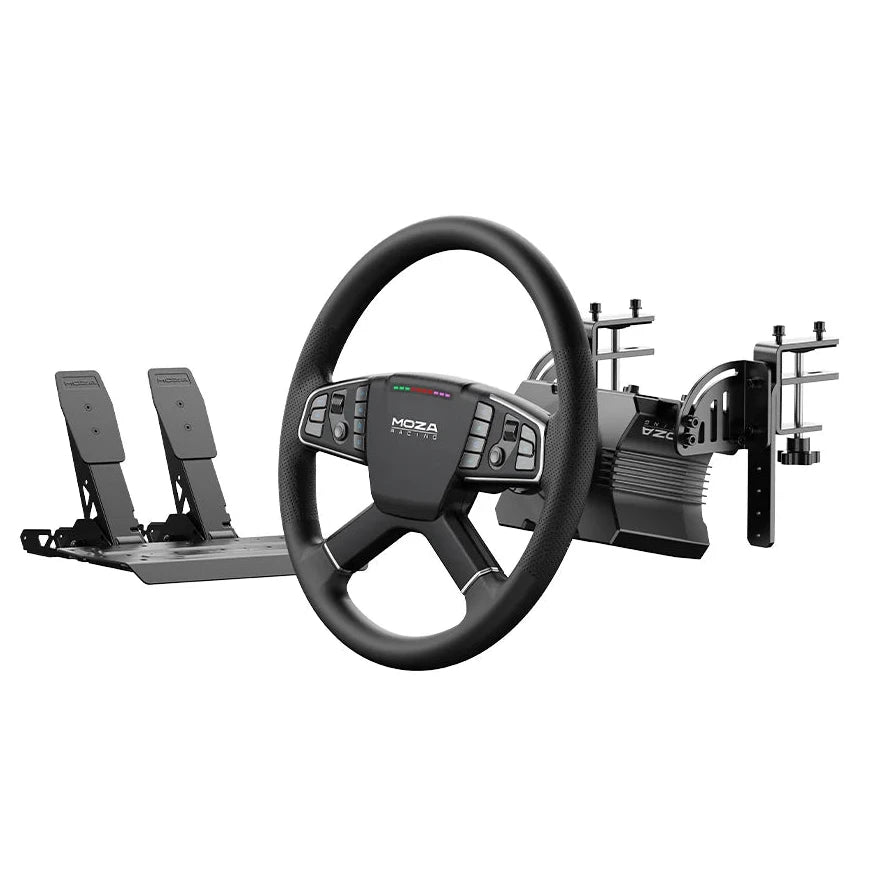

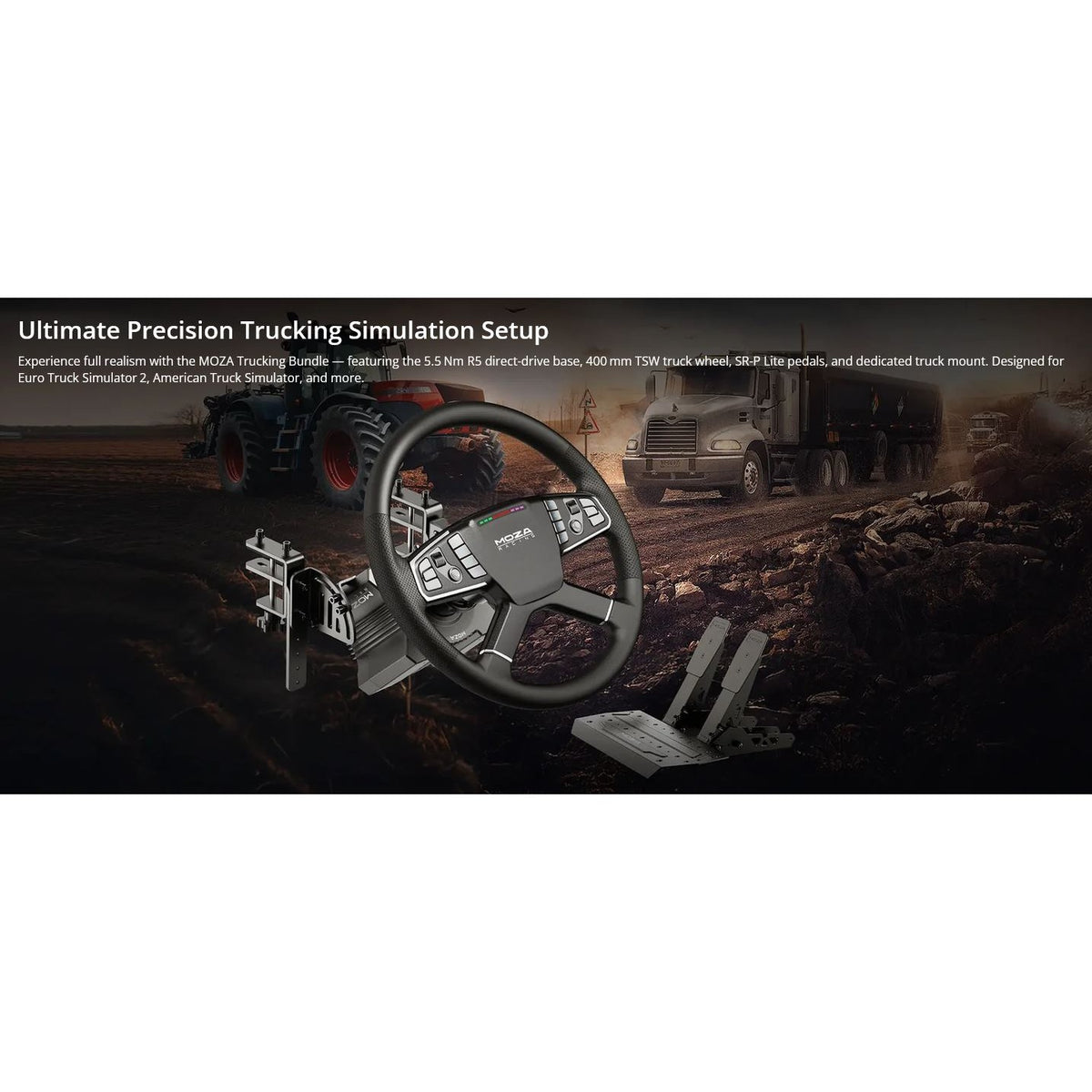

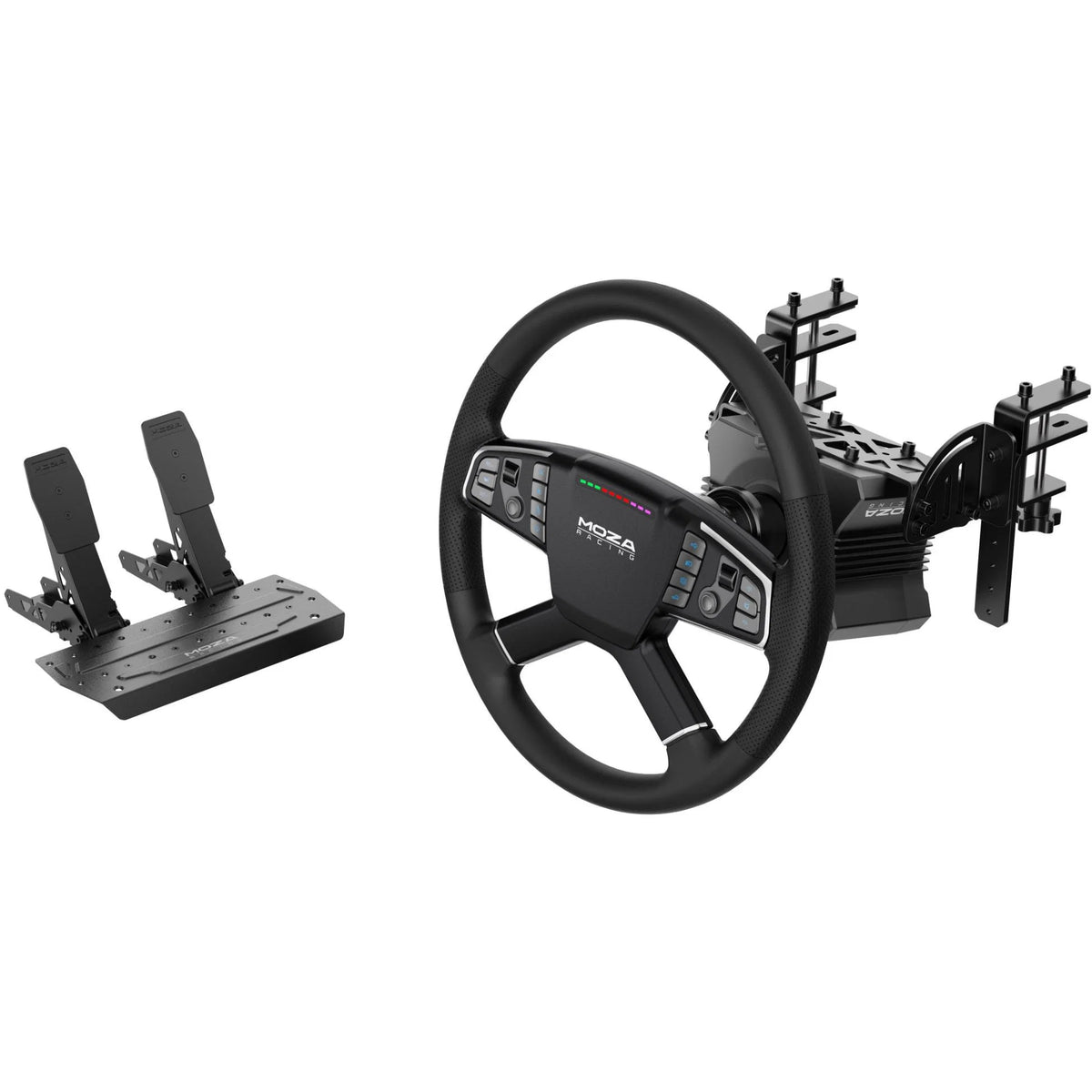

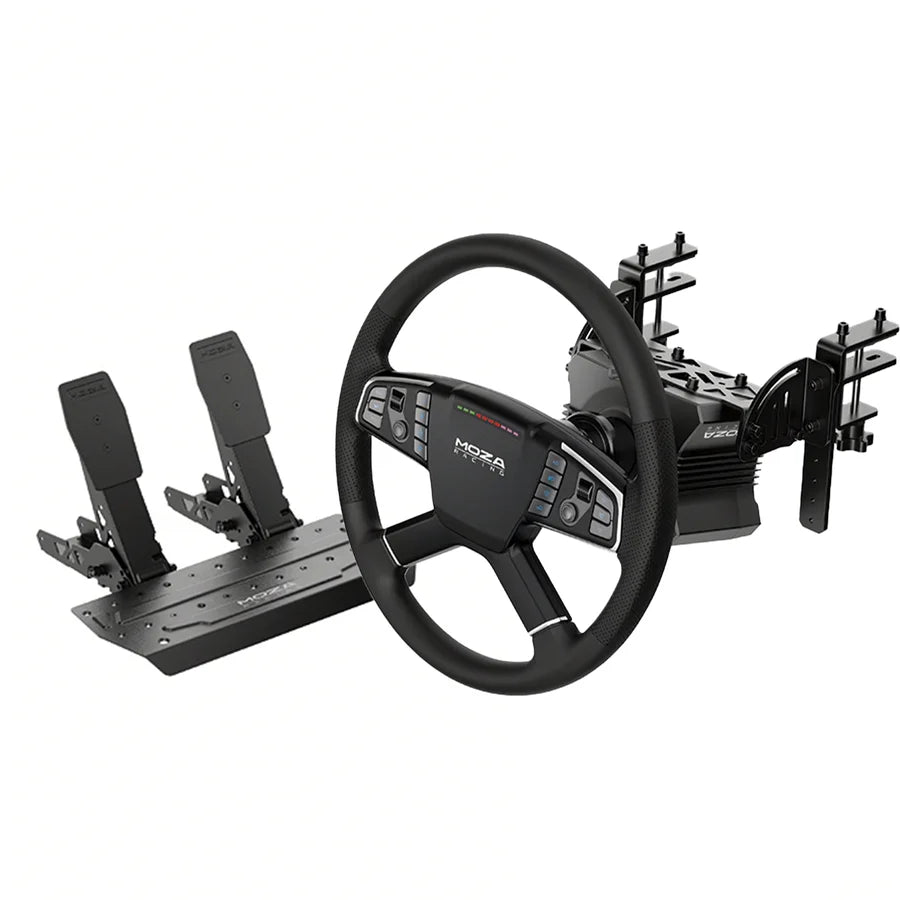

Complete Truck Simulation Setup. The MOZA R5 Truck Driving Simulator Bundle combines the powerful R5 Direct Drive Wheel Base, 400mm TSW Truck Wheel, SR-P Lite Pedals and dedicated Truck Wheel Clamp into one complete PC simulation solution. With 5.5Nm of direct drive force feedback, a realistic truck-sized steering wheel, responsive Hall-effect pedals and extensive physical controls, it is designed for immersive truck, farming, construction and other driving simulation experiences.
The bundle provides everything needed to create a dedicated truck simulation setup, including the R5 wheel base, TSW Truck Wheel, two-pedal SR-P Lite pedal set and adjustable mounting clamp. MOZA Pit House software provides extensive configuration options for force feedback, controls, lighting and pedal response.

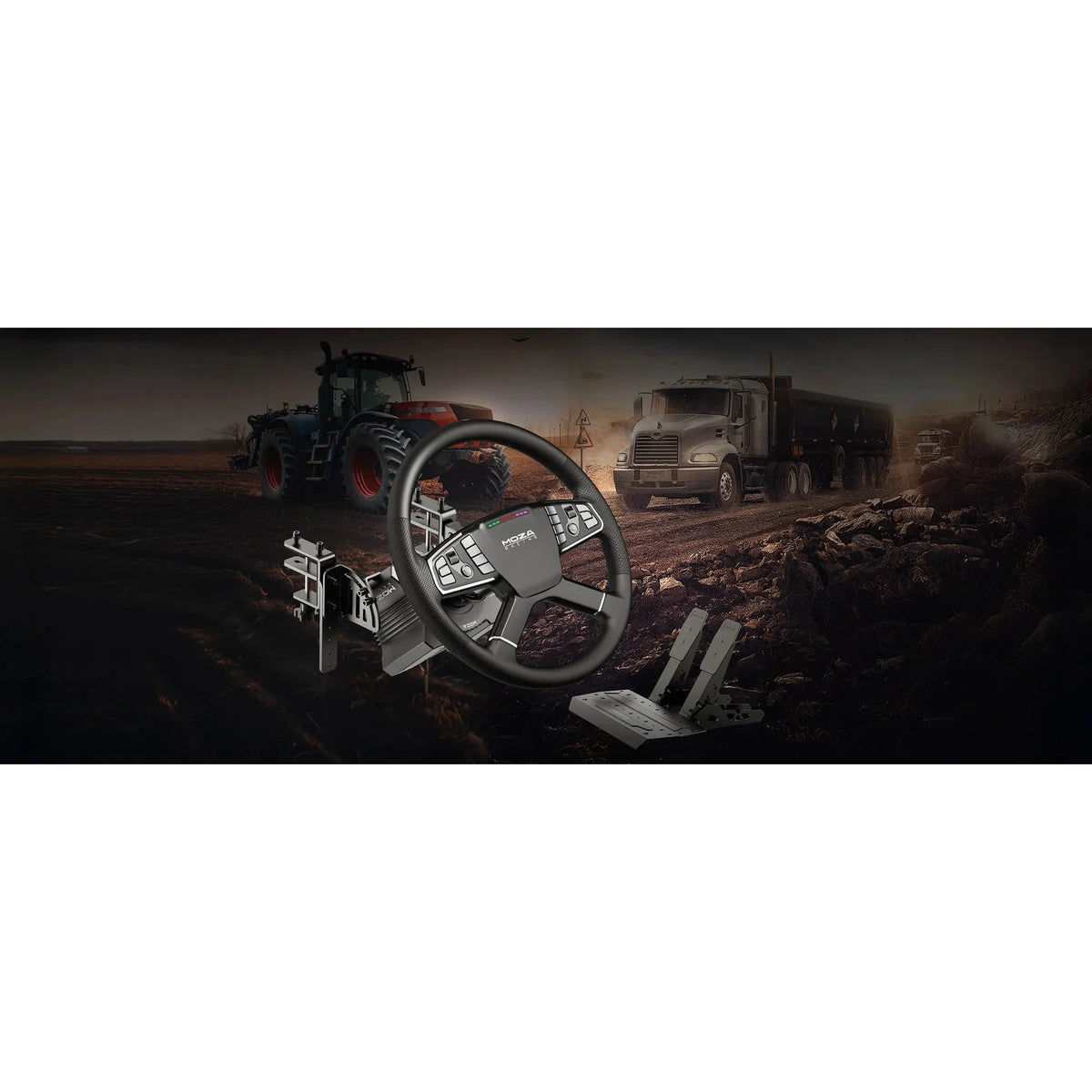

- Complete PC truck simulation bundle with R5 DD Wheel Base, TSW Truck Wheel, SR-P Lite Pedals and Truck Wheel Clamp
- Designed for truck simulation, farming, construction and supported driving simulation titles
- 5.5Nm Direct Drive force feedback from the MOZA R5 wheel base
- 400mm TSW Truck Wheel designed around the size and feel of a real truck steering wheel
- 14 short-travel RGB backlit buttons with truck-focused icons
- 2 aluminium thumbwheels and 2 ultra-thin joysticks for additional controls
- 10 RGB LED light beads with customisable lighting
- 15-bit encoder resolution for precise steering input
- Infinite steering rotation for realistic truck simulation
- High-strength steel SR-P Lite two-pedal set with Hall sensors
- Adjustable pedal spacing and pedal plate height
- Adjustable pedal input curves and input reversal through MOZA Pit House
- Included Truck Wheel Clamp with 0°–75° angle adjustment
- Clamp supports desktops from 3mm to 70mm thick and aluminium profile rigs
- All-aluminium quick release for rapid wheel changes
- Wireless and wired communication between the TSW Truck Wheel and compatible MOZA bases
- MOZA Pit House software support for configuration and customisation
- Online firmware upgrades supported

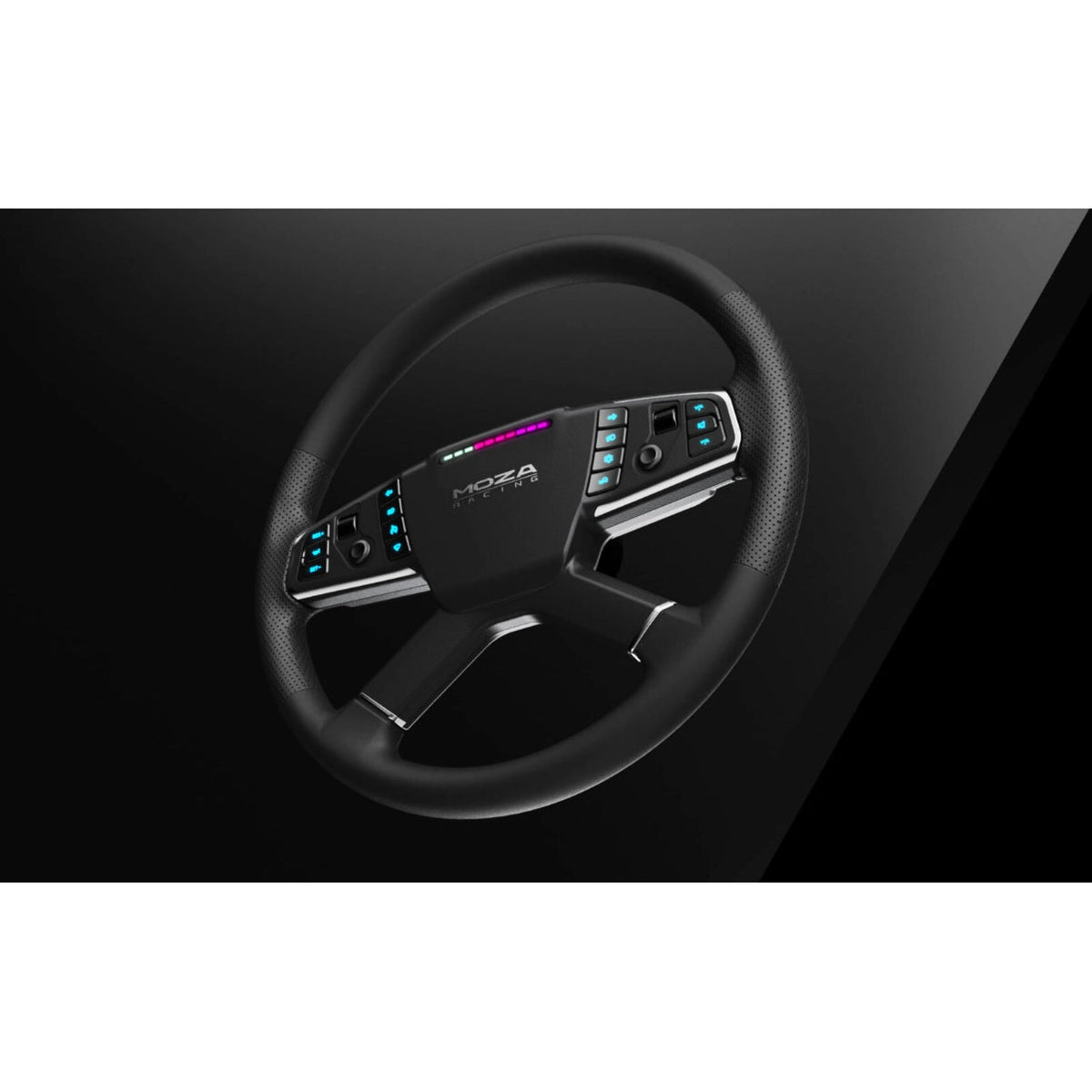

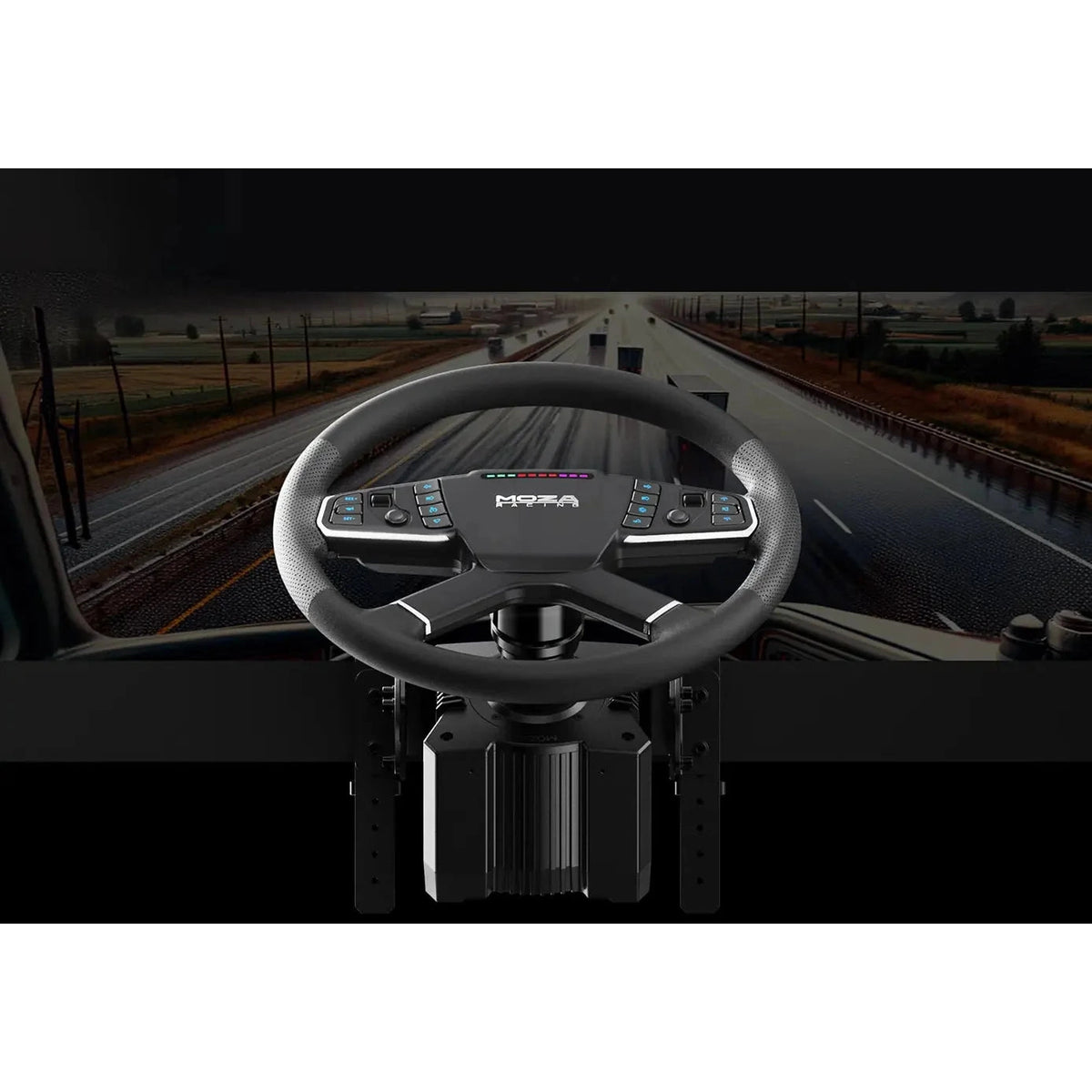

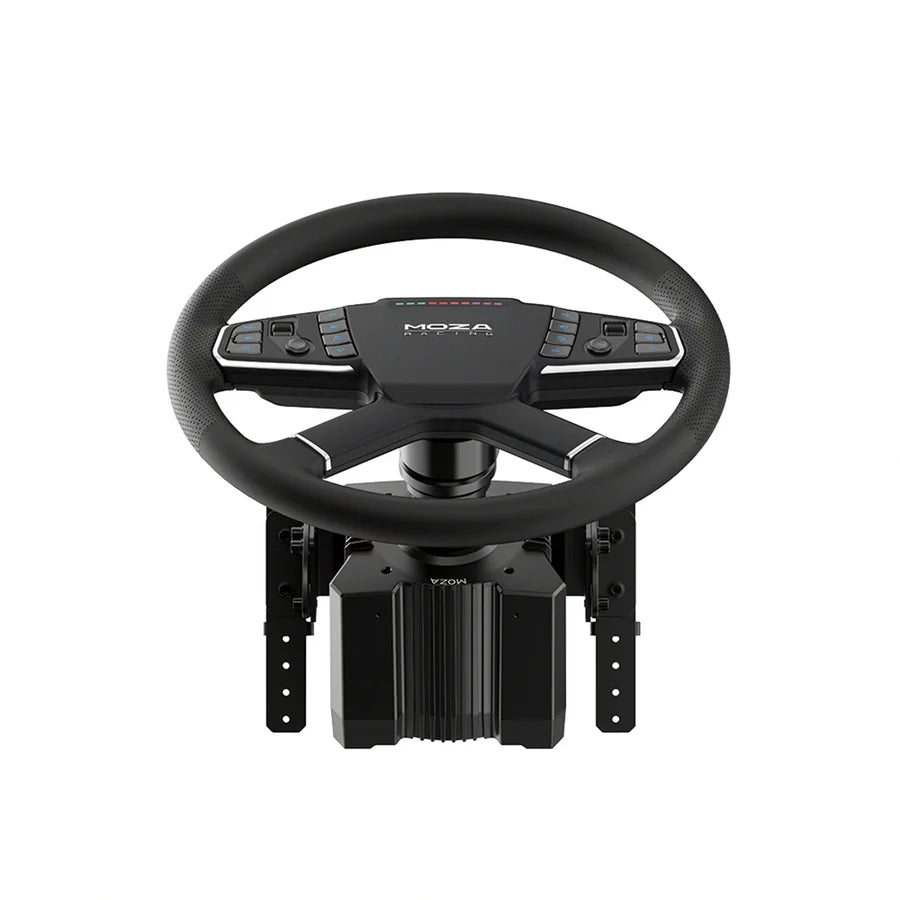

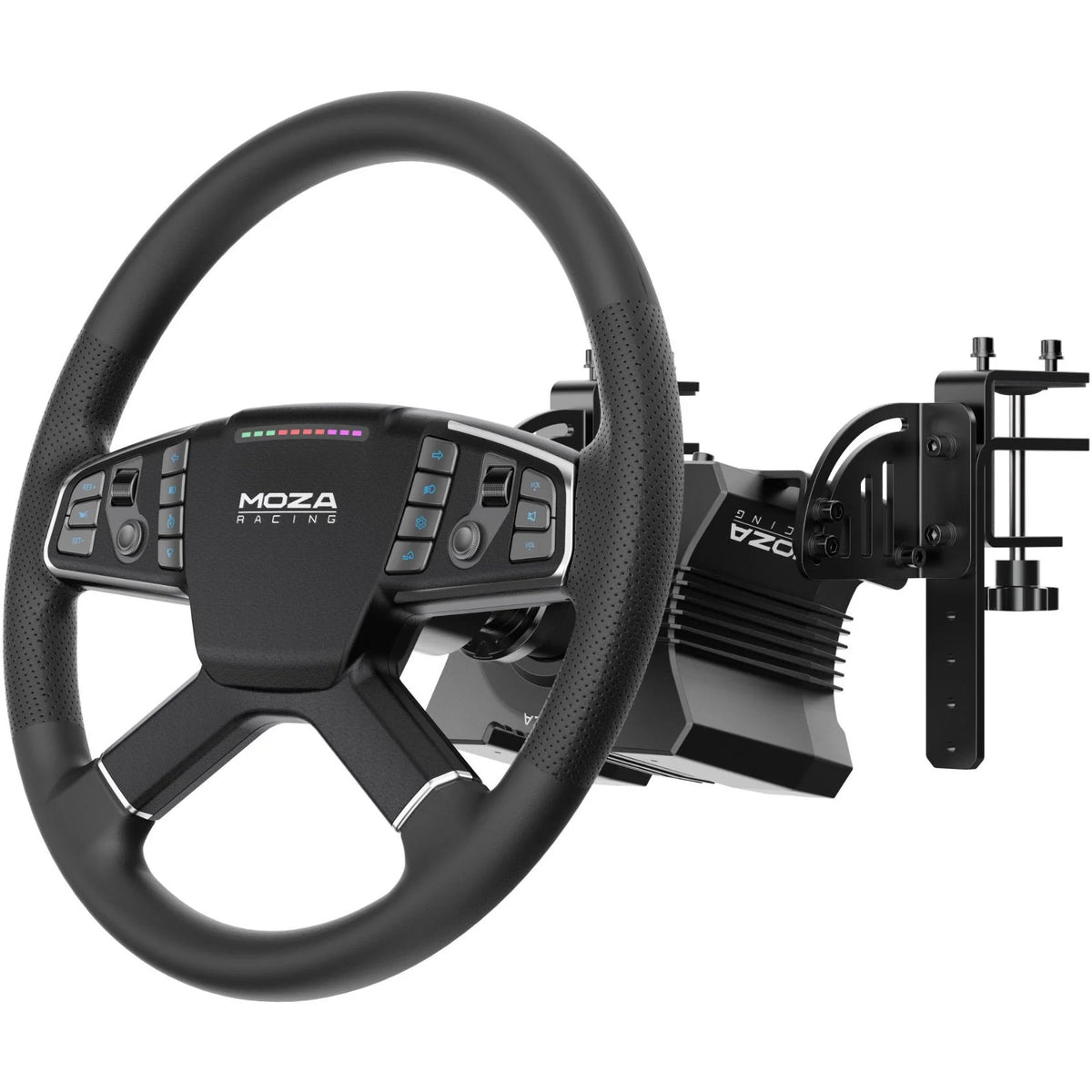

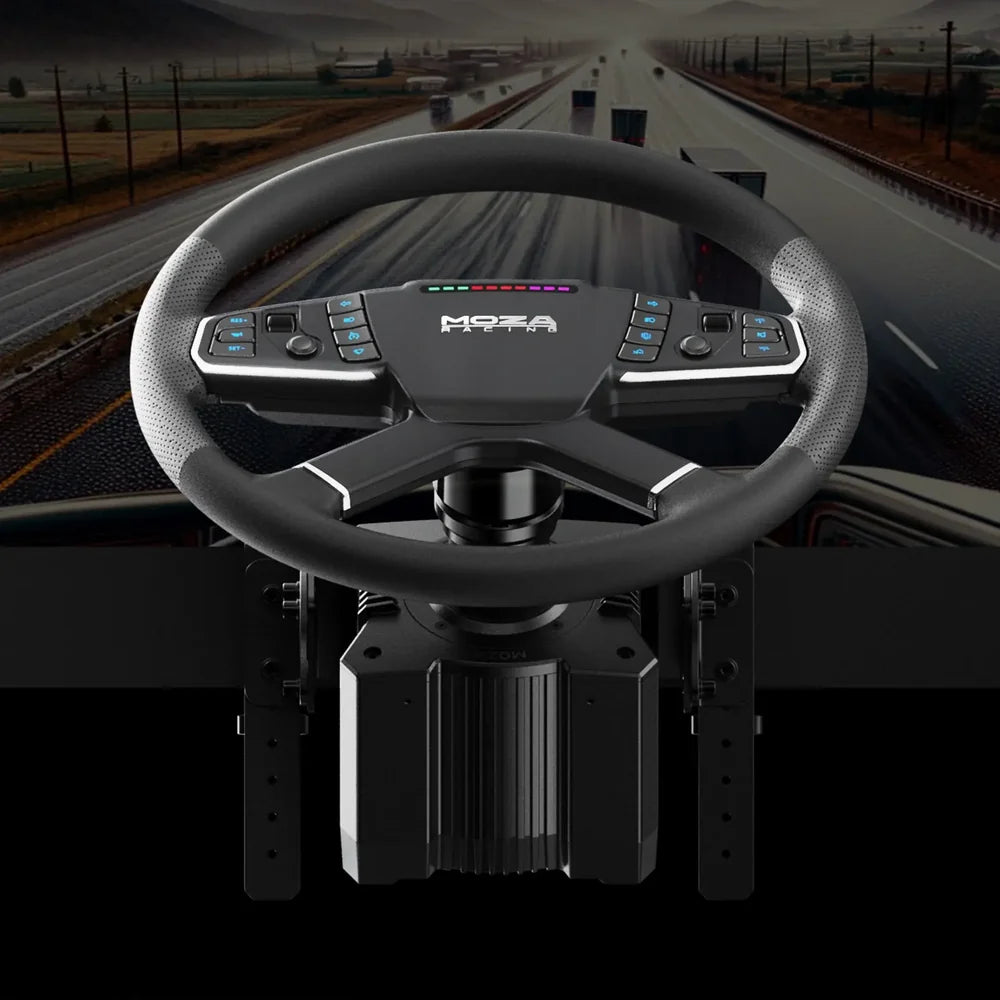

400MM TSW TRUCK WHEEL
The TSW Truck Wheel is purpose-built for truck simulation, using a realistic 400mm diameter and four-spoke design inspired by real truck steering wheels. Chrome-style accents and a large steering rim provide an authentic driving experience suited to truck and heavy-vehicle simulation.

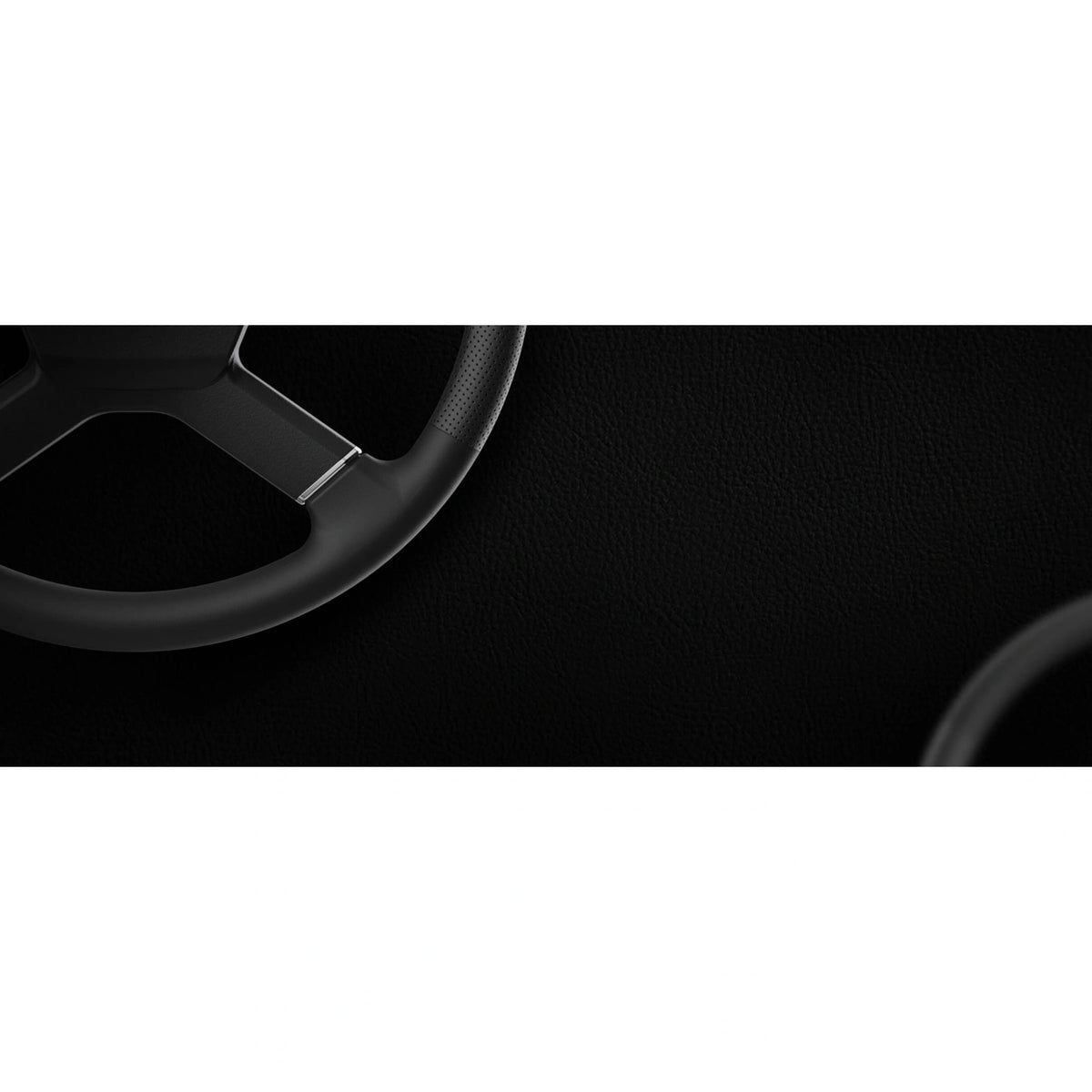

The wheel rim features perforated and textured microfiber leather with hand stitching, providing grip while maintaining a comfortable feel during extended simulation sessions. Its internal frame uses 4mm-thick aerospace-grade aluminium alloy for strength and durability.

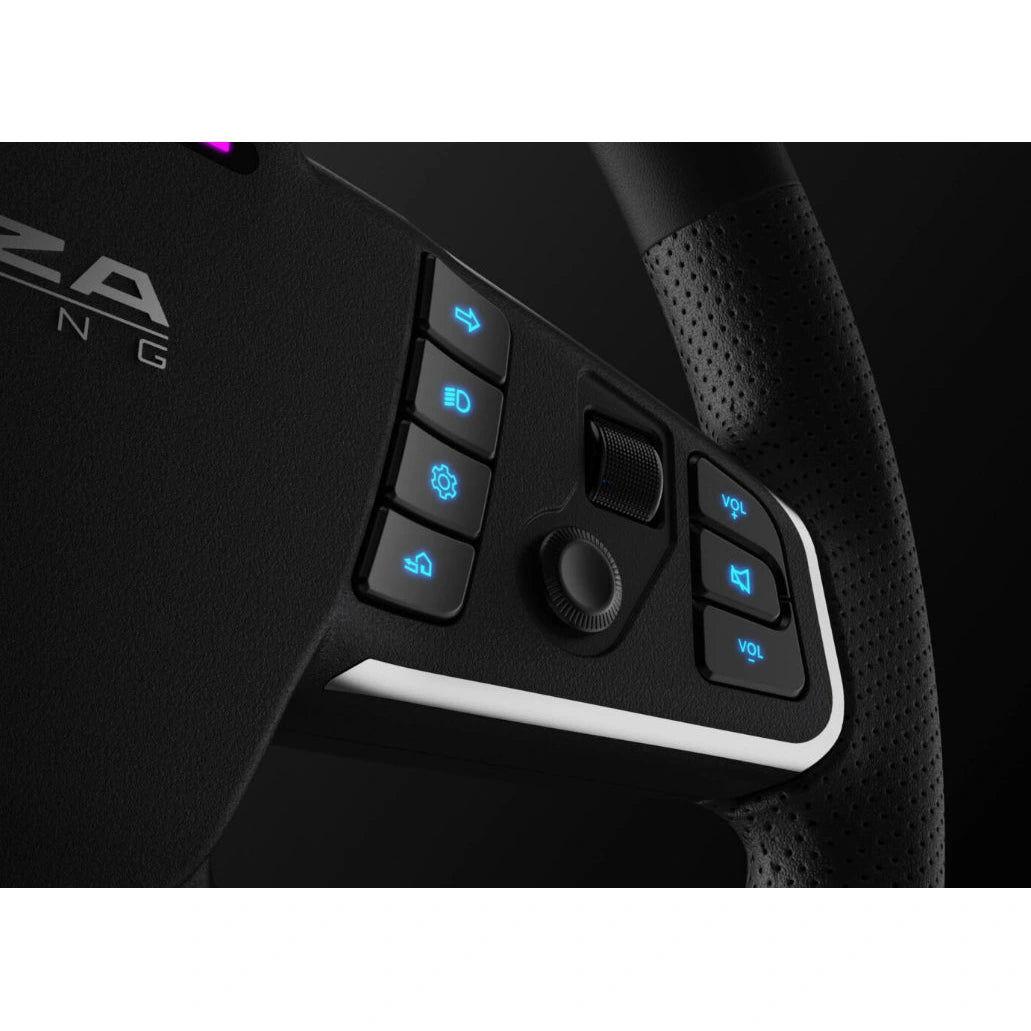

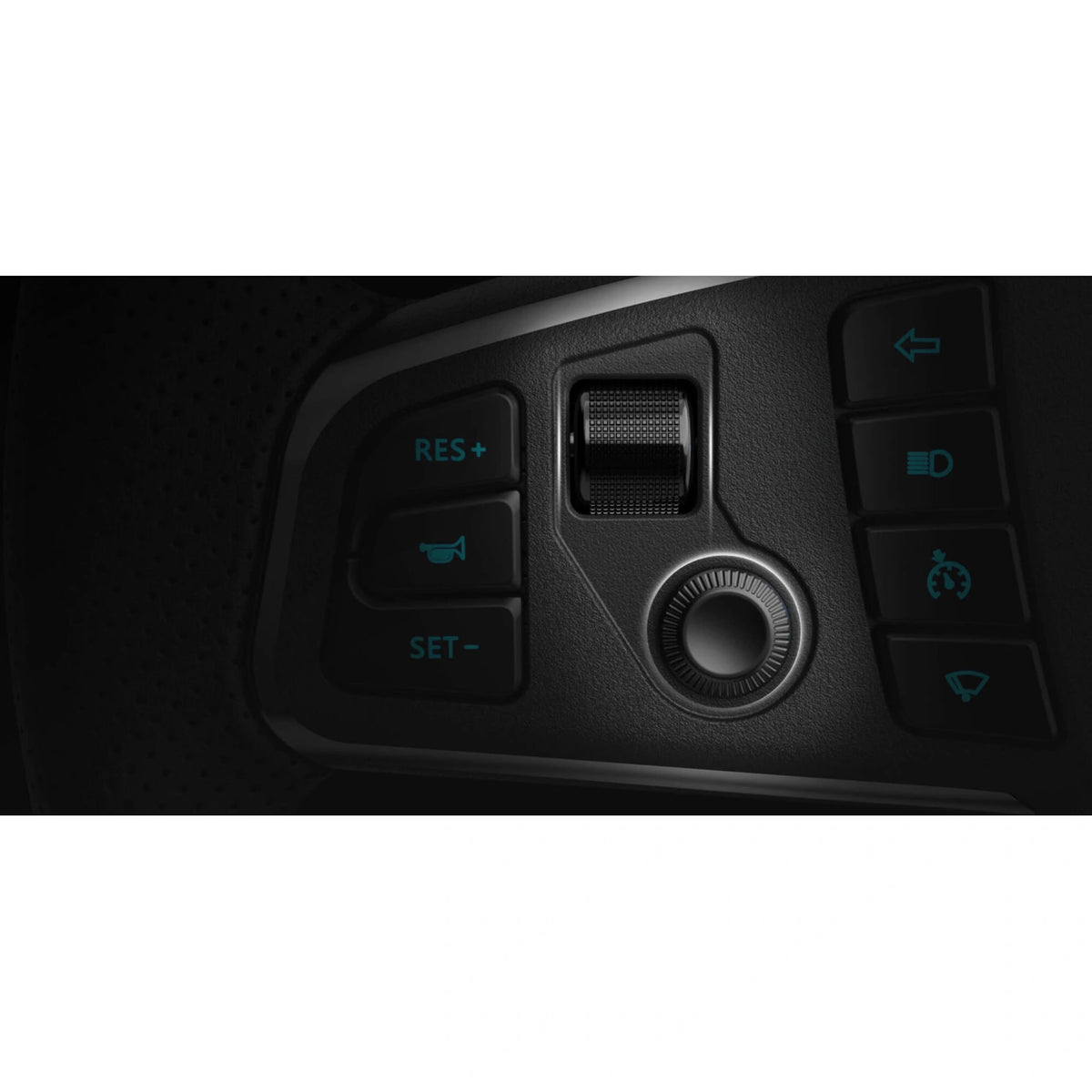

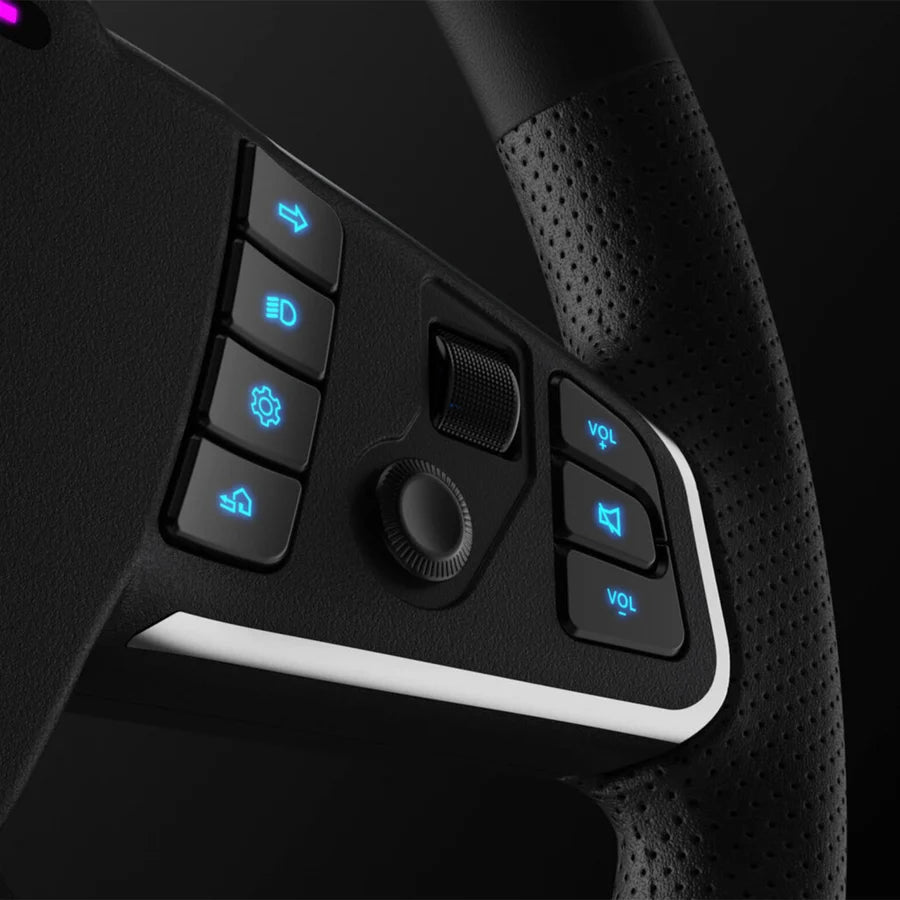

EXTENSIVE TRUCK CONTROLS
The TSW Truck Wheel provides 14 short-travel backlit buttons, two aluminium thumbwheels and two ultra-thin joysticks. The controls are designed to provide convenient access to vehicle and simulation functions without constantly removing your hands from the wheel.

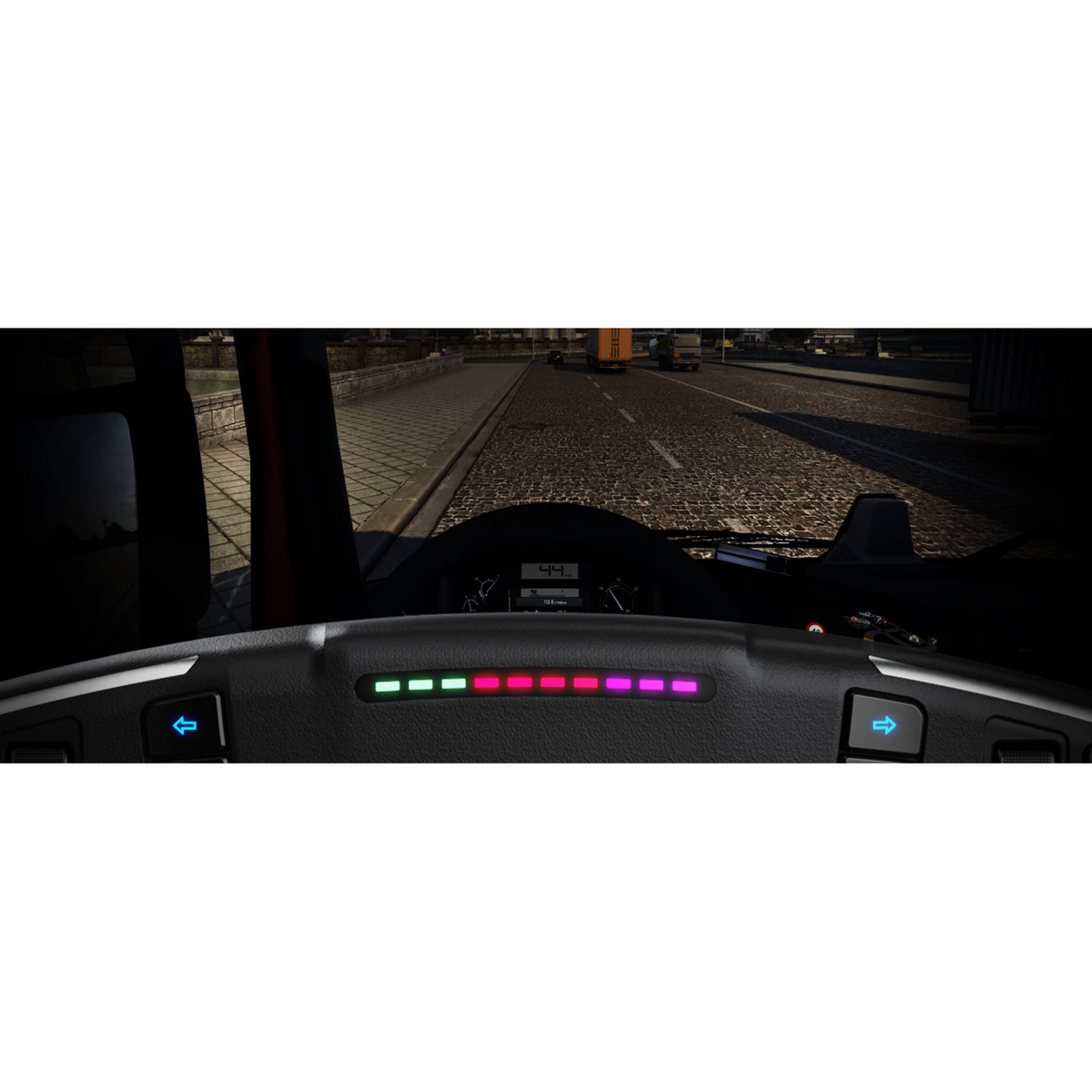

The RGB backlighting supports 16.7 million colours, while the ten RGB LED light beads can be customised for visual feedback and RPM or telemetry information.

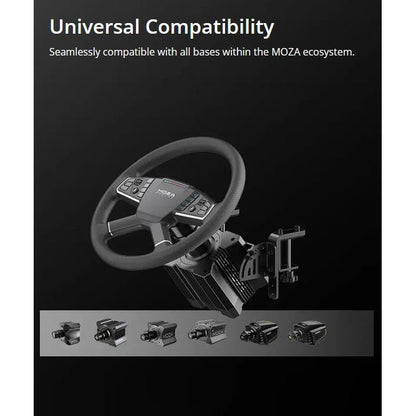

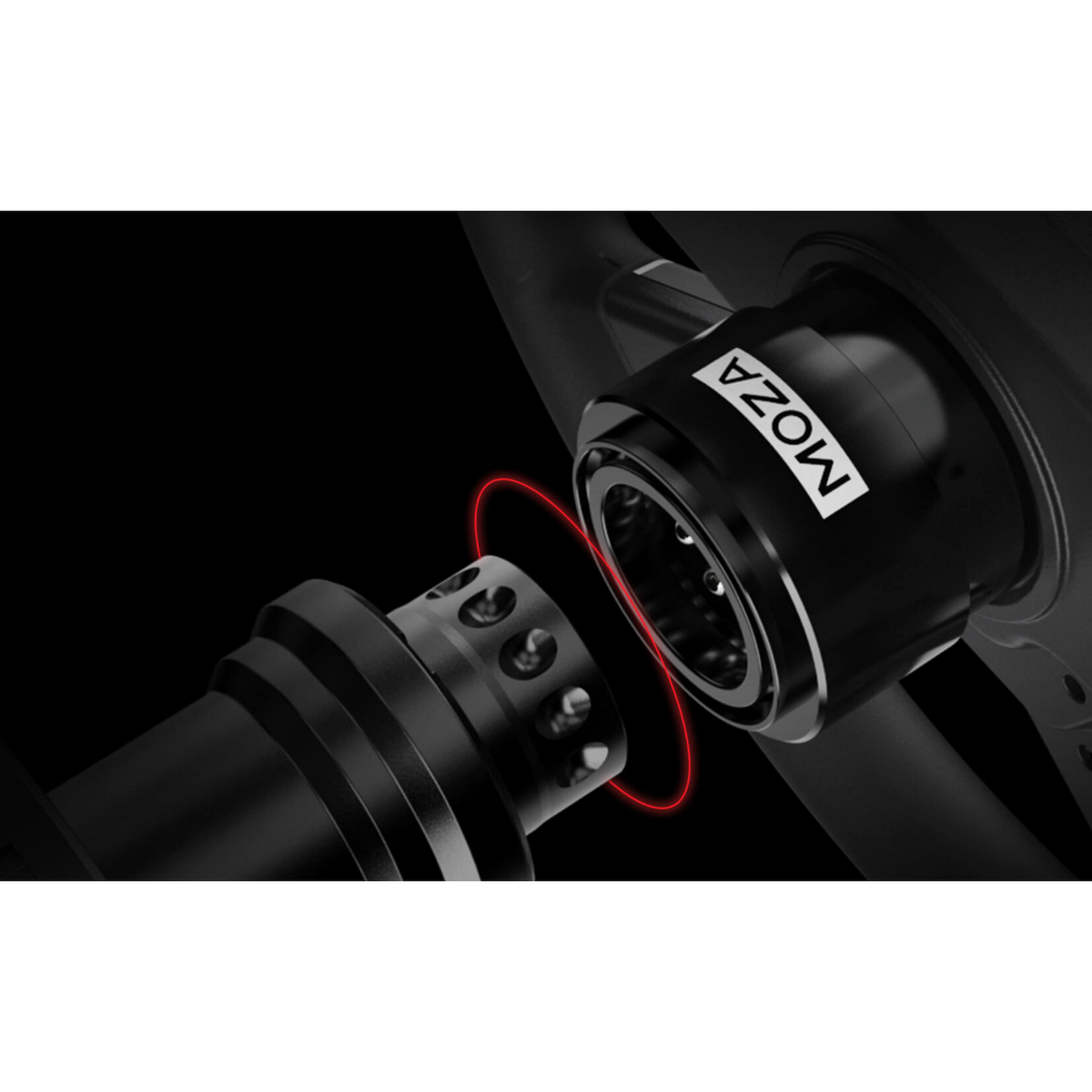

ALL-ALUMINIUM QUICK RELEASE

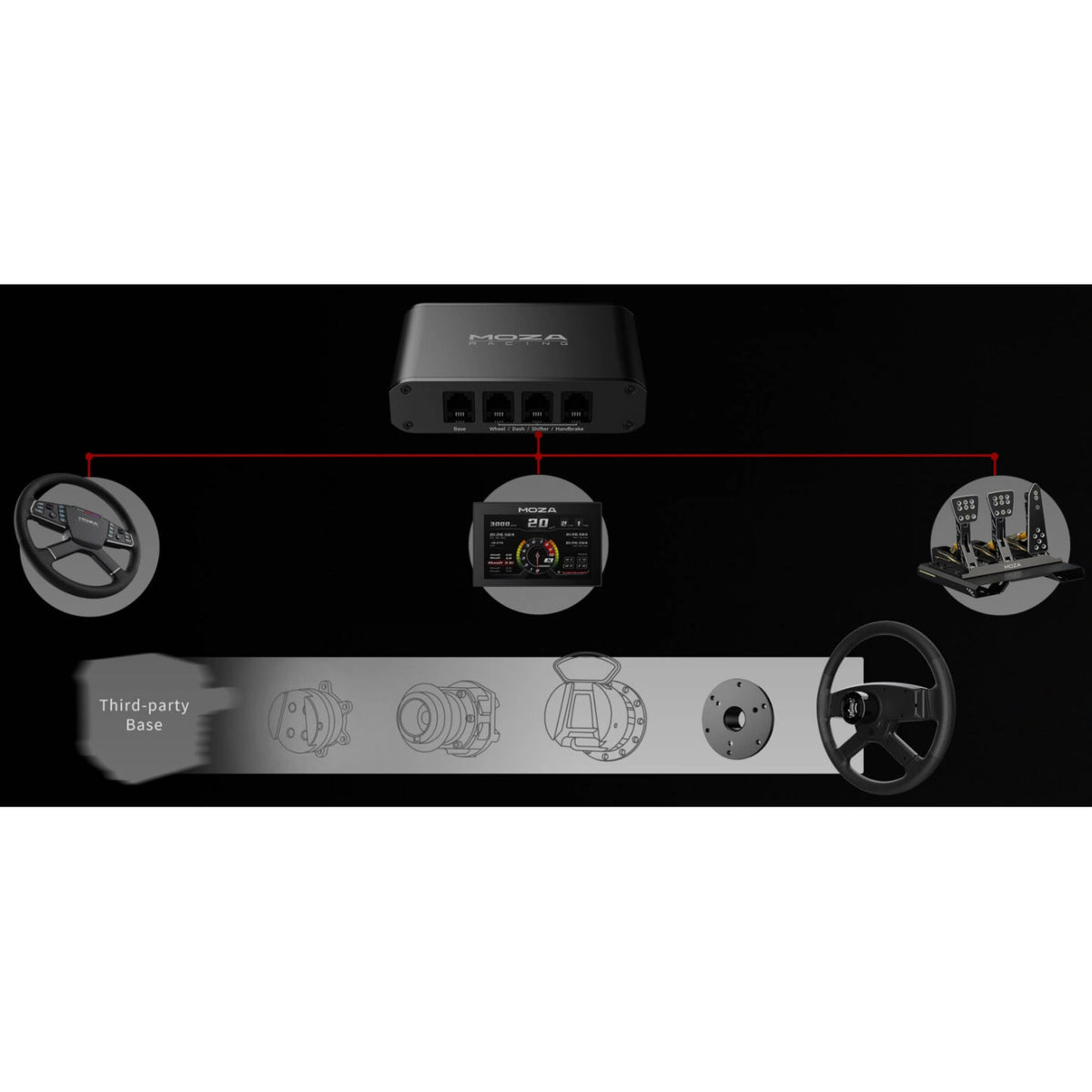

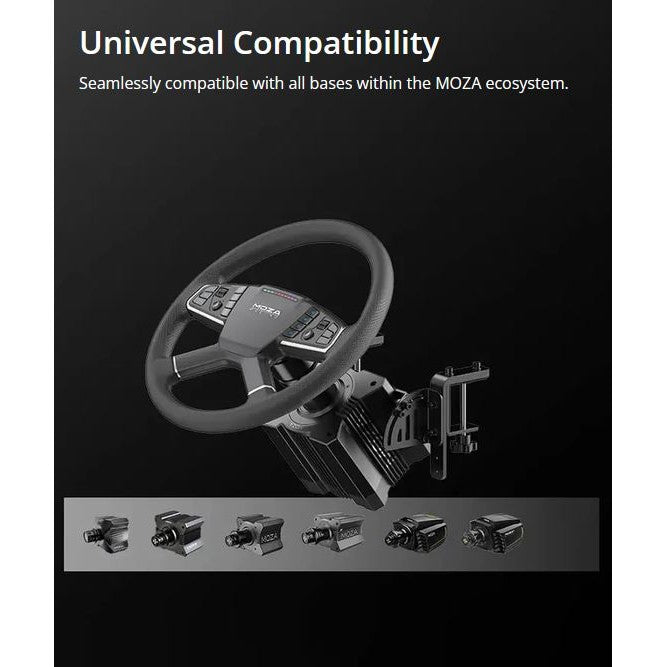

The TSW Truck Wheel uses MOZA's all-aluminium quick-release system for fast and secure wheel changes. The wheel supports wireless and wired communication and is compatible with MOZA wheel bases. Third-party base compatibility is also supported when used with the appropriate MOZA hub.

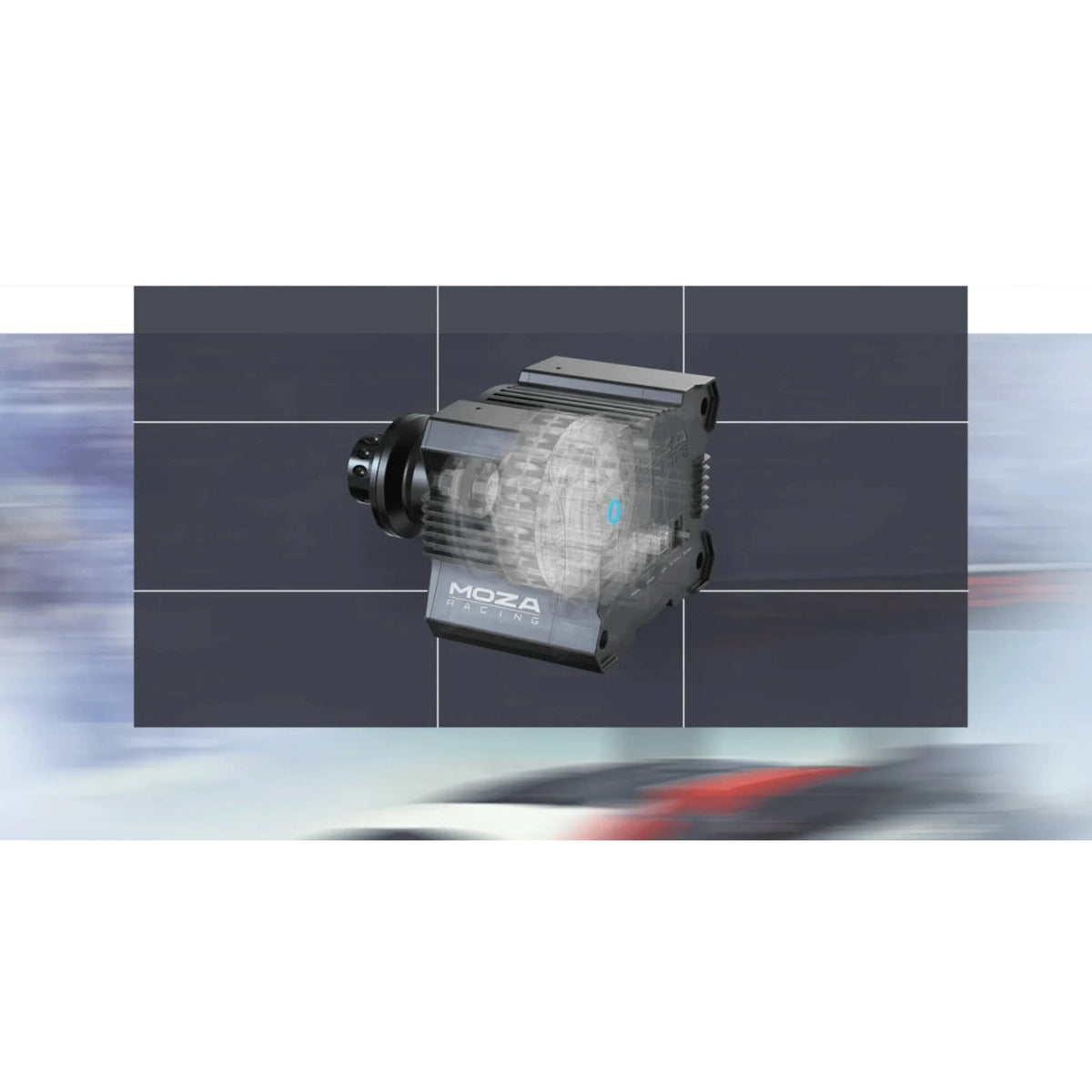

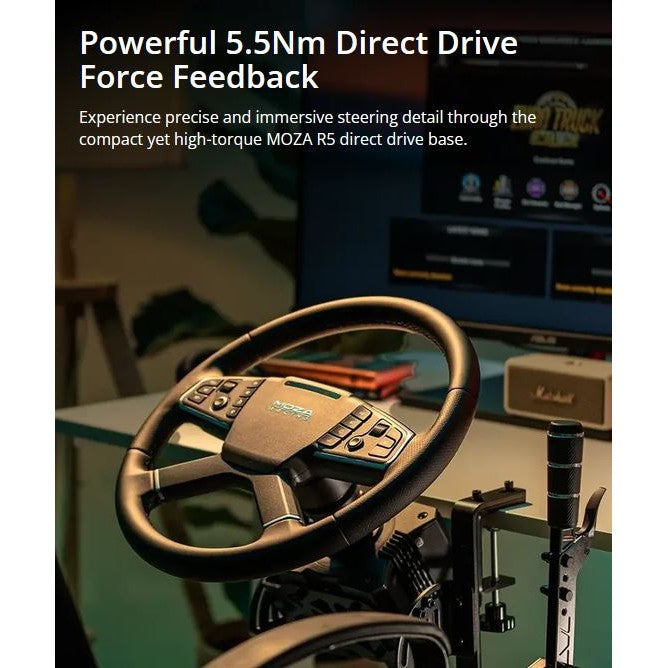

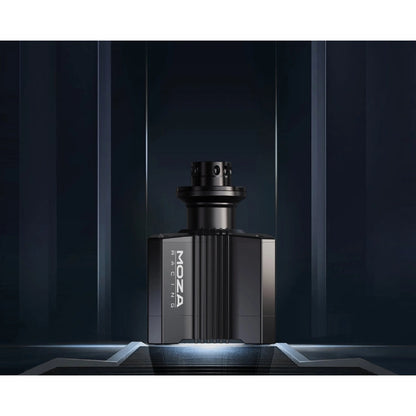

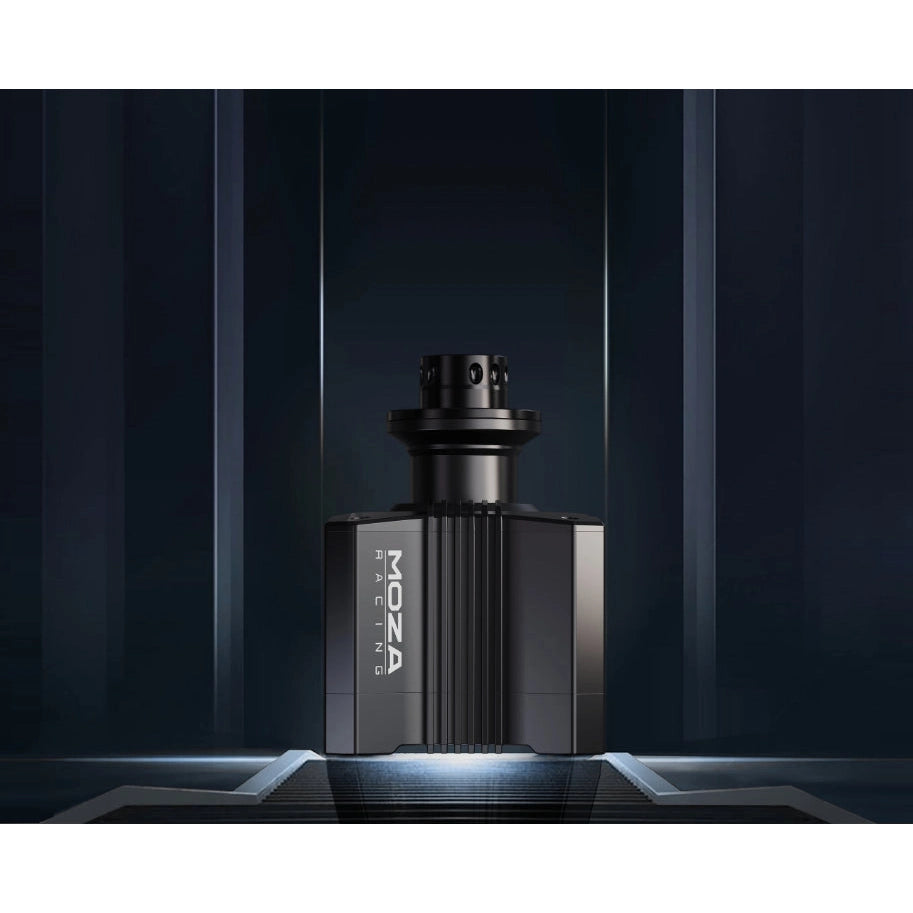

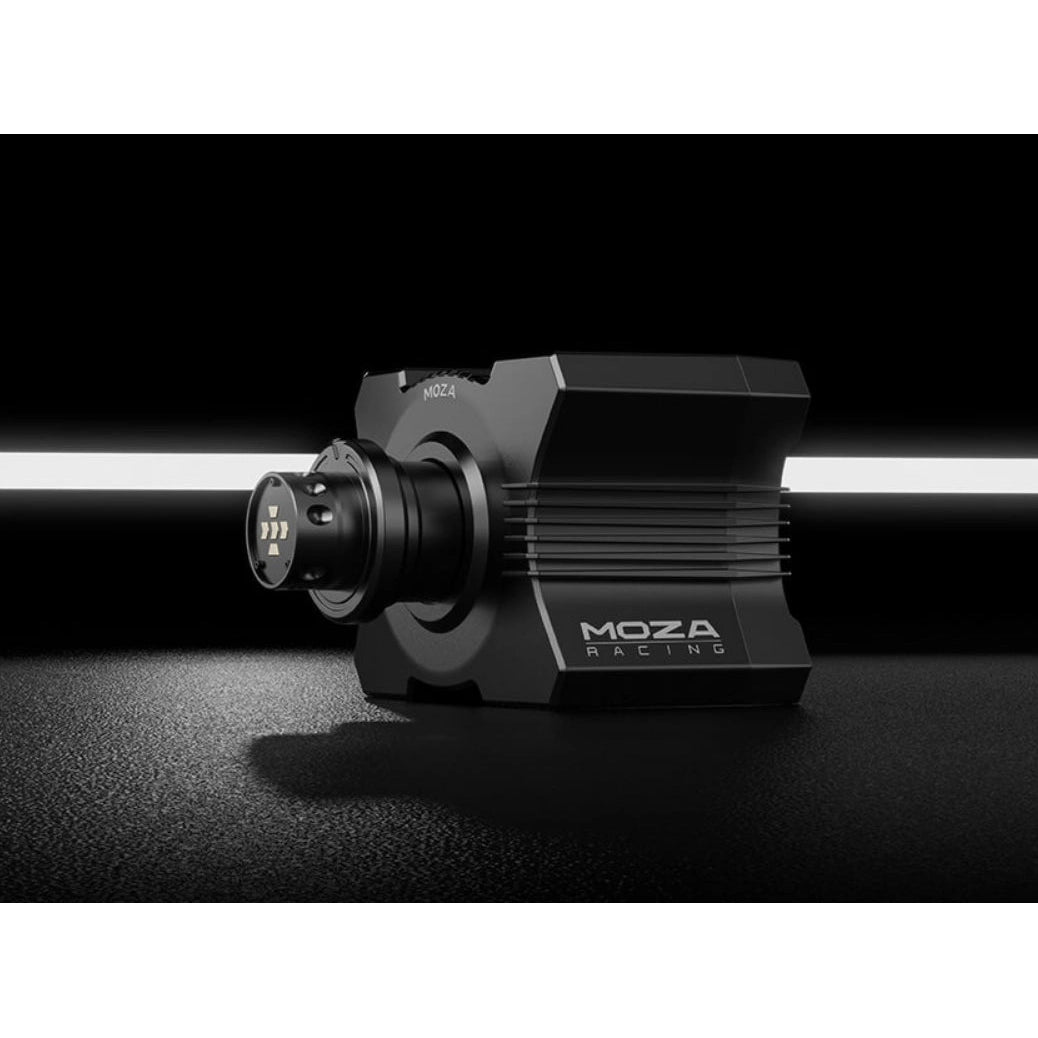

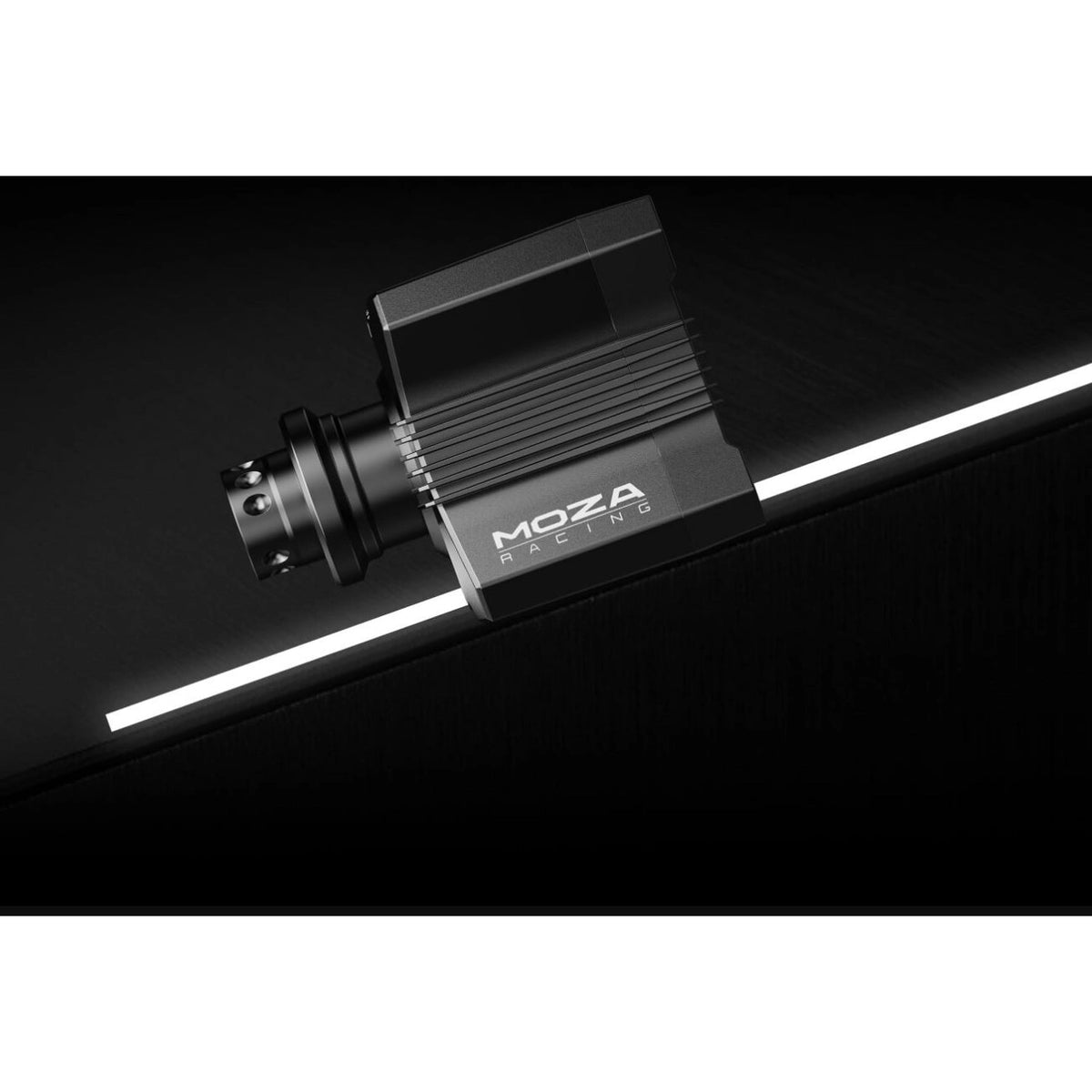

5.5NM R5 DIRECT DRIVE FORCE FEEDBACK

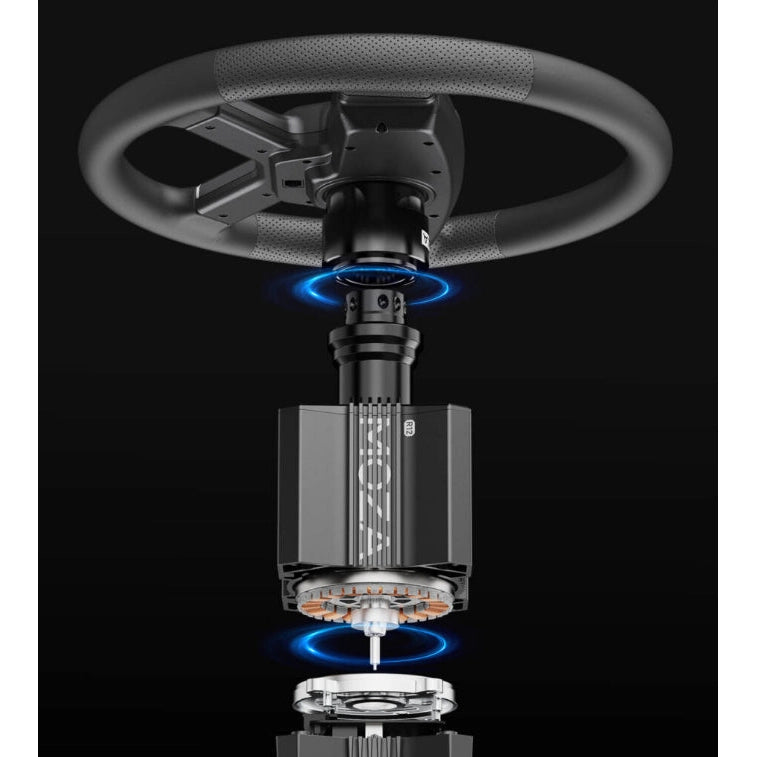

The MOZA R5 DD Wheel Base delivers up to 5.5Nm of direct drive torque for detailed and responsive force feedback. The direct drive system allows road surfaces, steering forces and vehicle behaviour to be communicated directly through the wheel.
The R5 uses an aviation-grade aluminium alloy housing, intelligent temperature control and a 15-bit motor encoder for precise steering input. Its infinite steering rotation is particularly suited to truck simulation, where large steering angles are common.

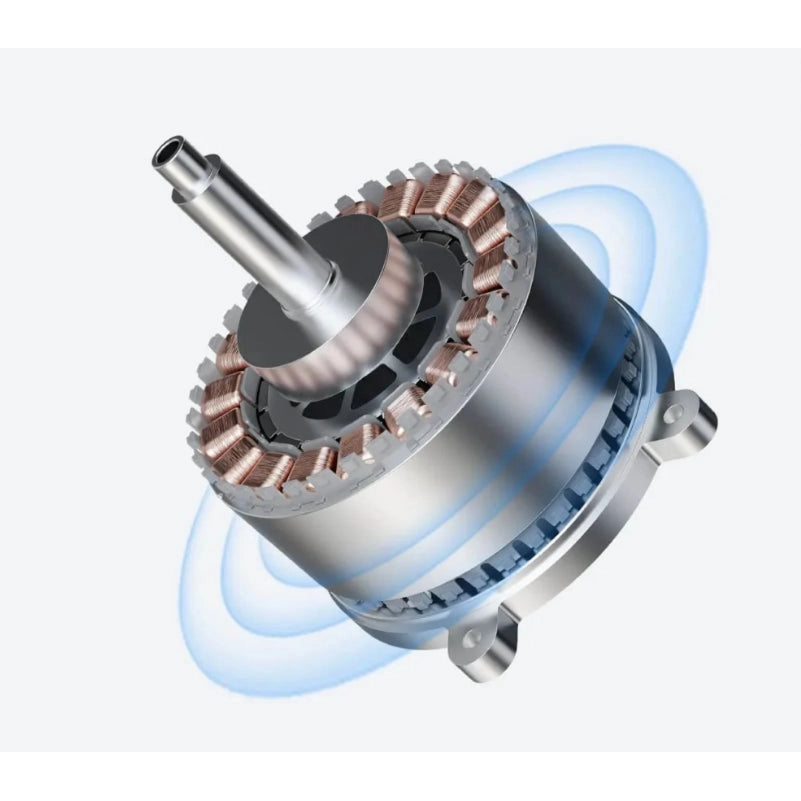

SMOOTH AND PRECISE DIRECT DRIVE

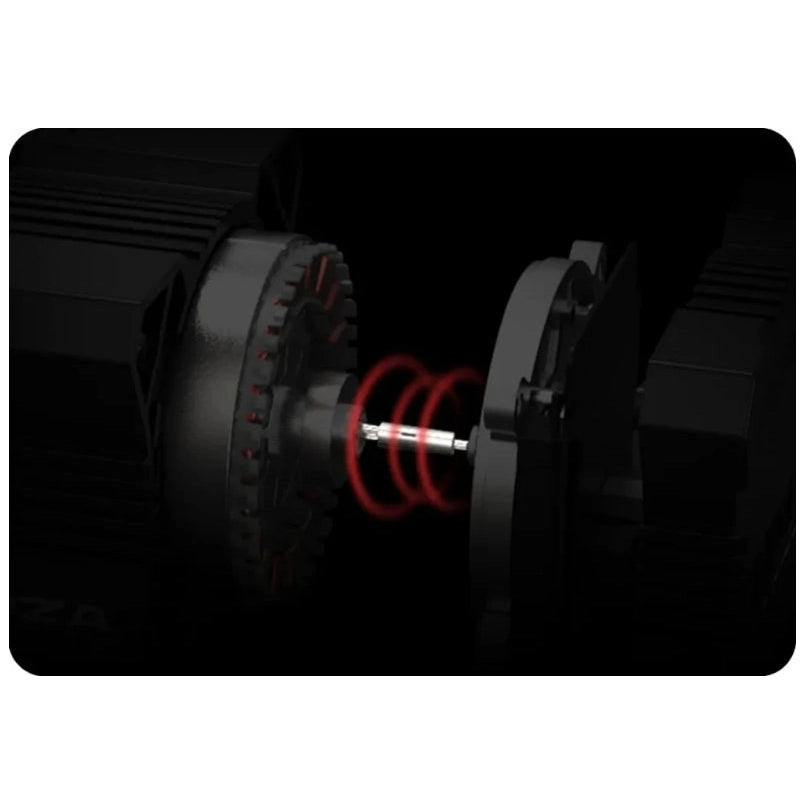

MOZA's motor design focuses on reducing torque ripple and groove torque to provide smoother steering feedback. The R5 also incorporates an industrial conductive slip ring designed for reliable high-speed rotation and long-term operation.

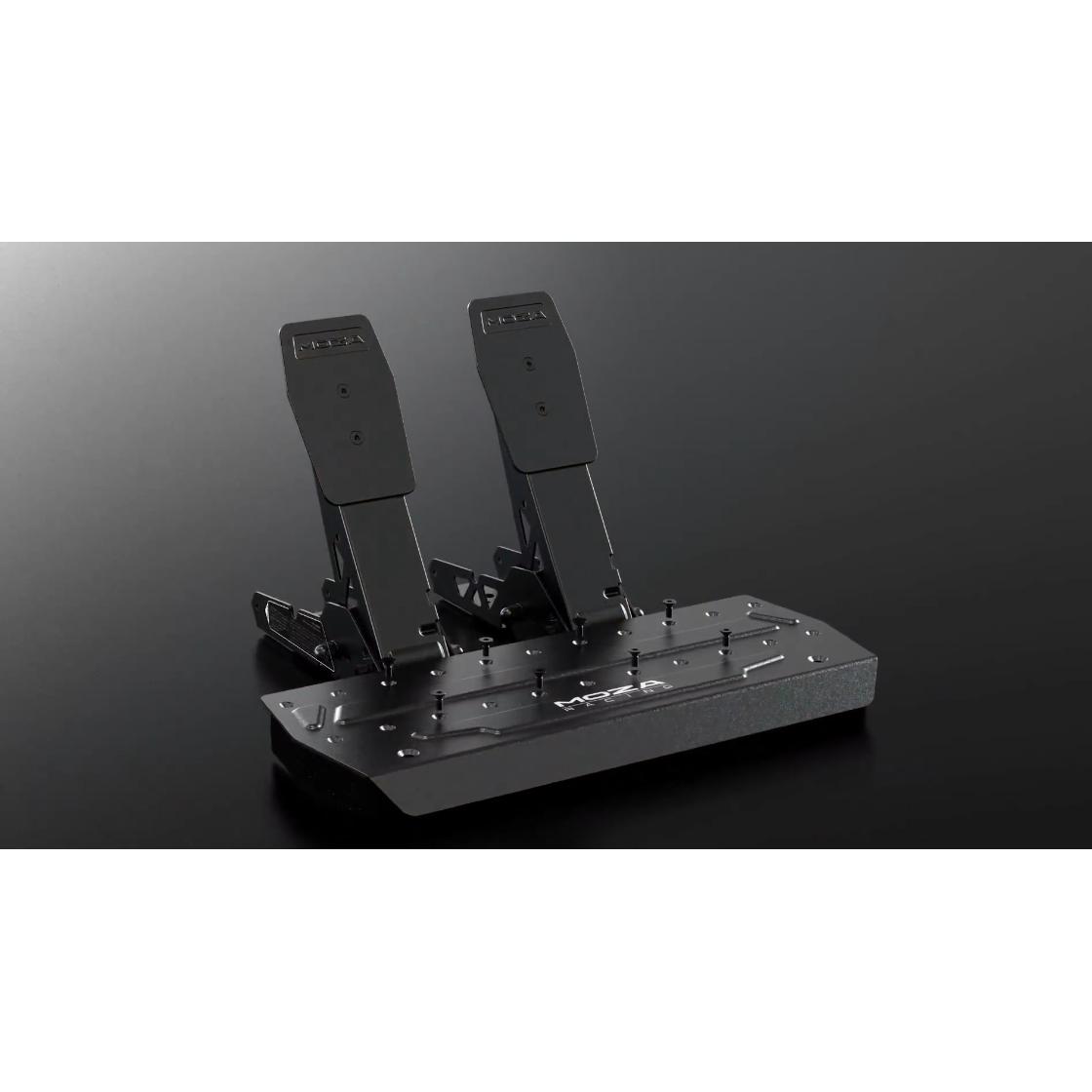

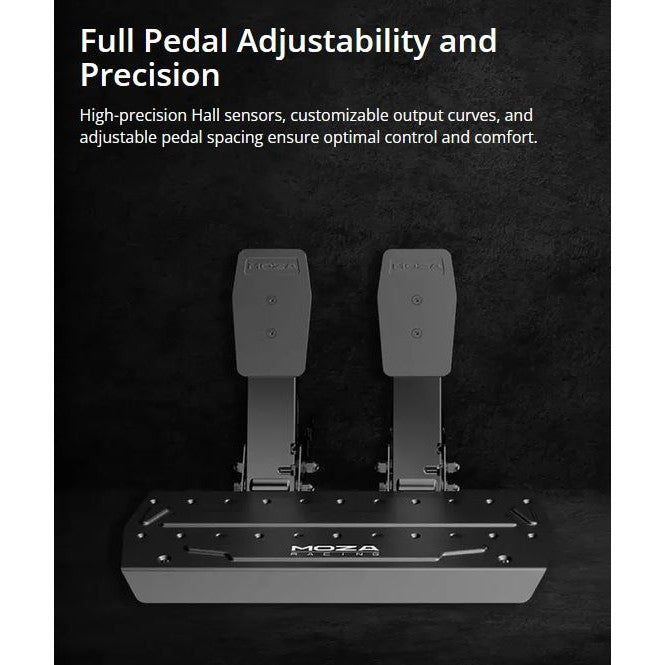

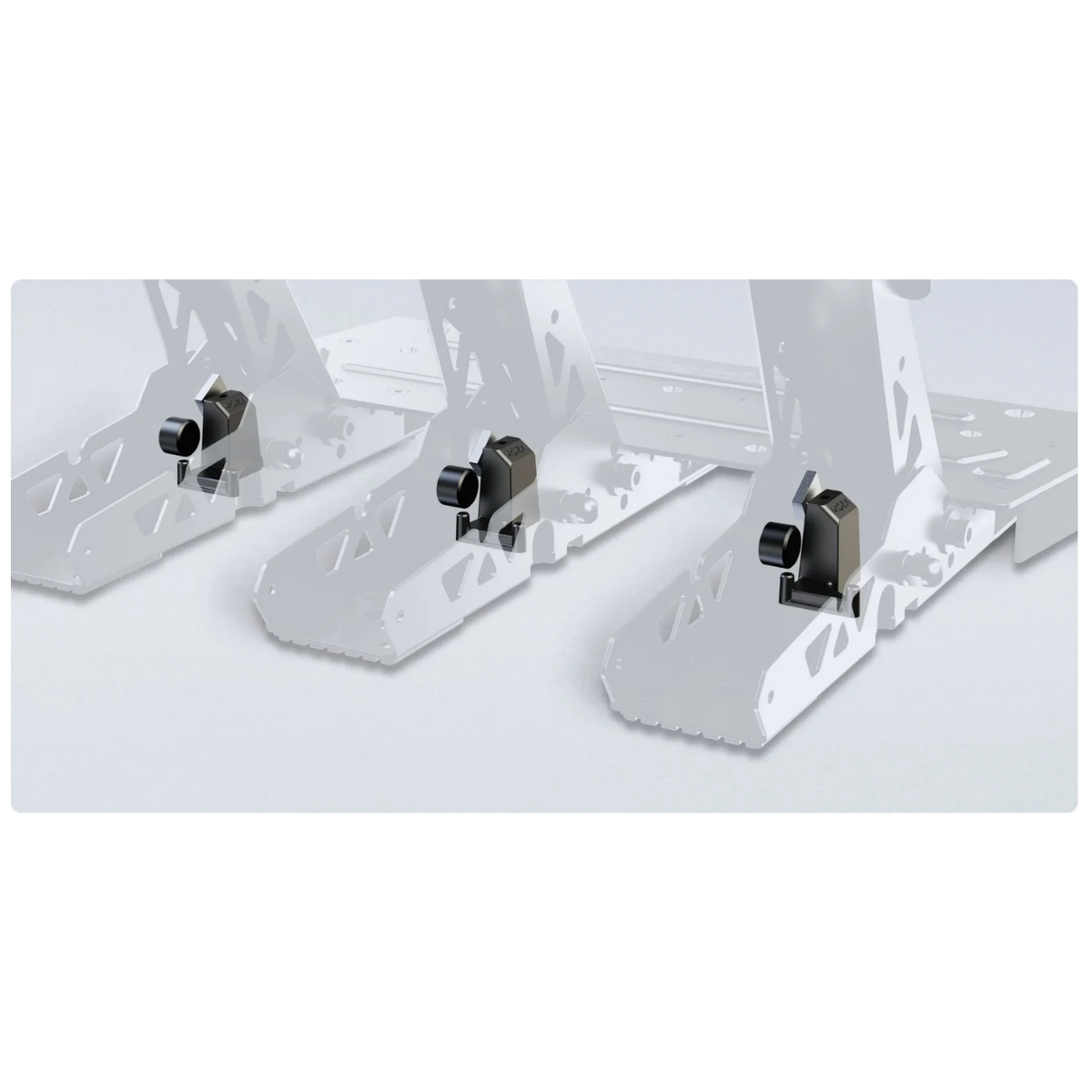

SR-P LITE HALL-EFFECT PEDALS
The included SR-P Lite Pedals use high-strength steel construction and high-precision Hall sensors for consistent throttle and braking input. The two-pedal configuration includes accelerator and brake pedals, with adjustable spacing and pedal plate height.
Using MOZA Pit House, pedal input curves can be customised and pedal input can be reversed to suit different driving styles and mounting configurations. The included anti-slip design also allows the pedals to be used in desktop setups without requiring a complete simulator cockpit.

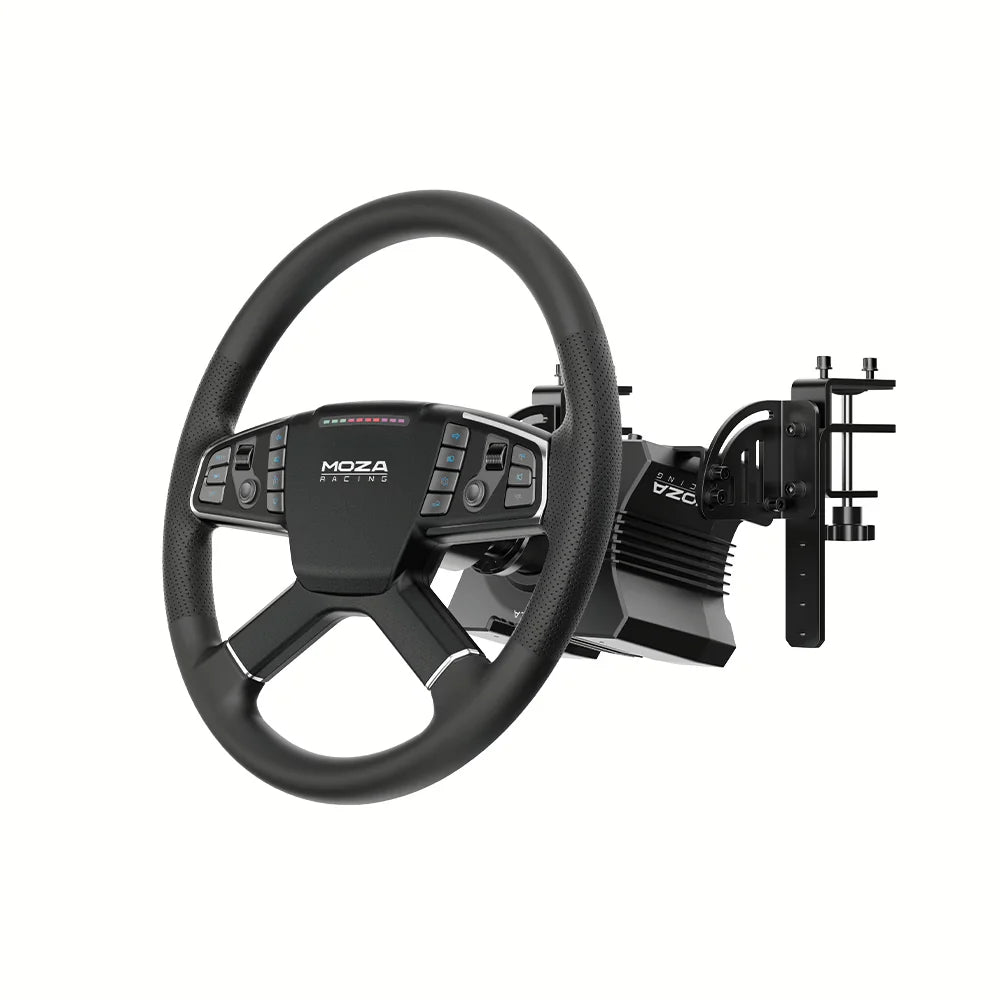

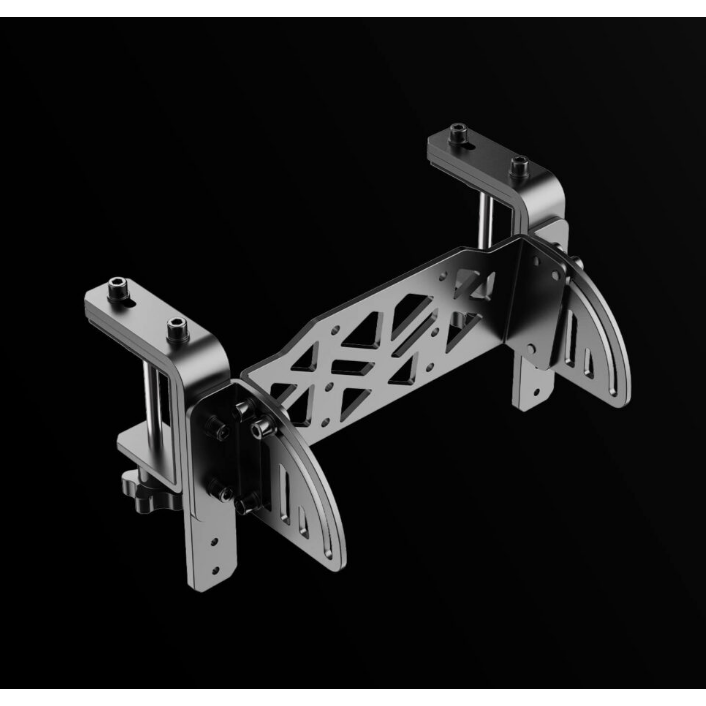

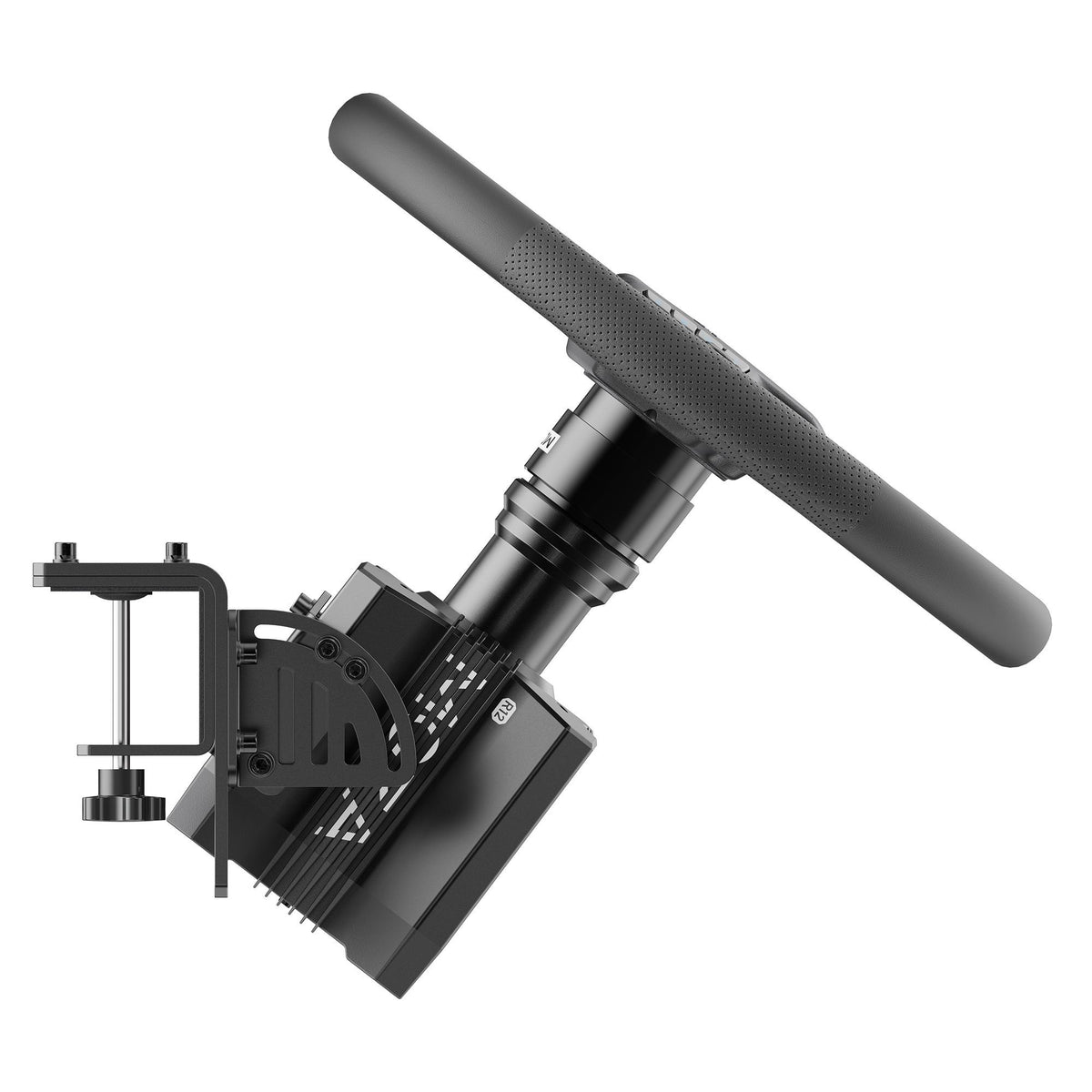

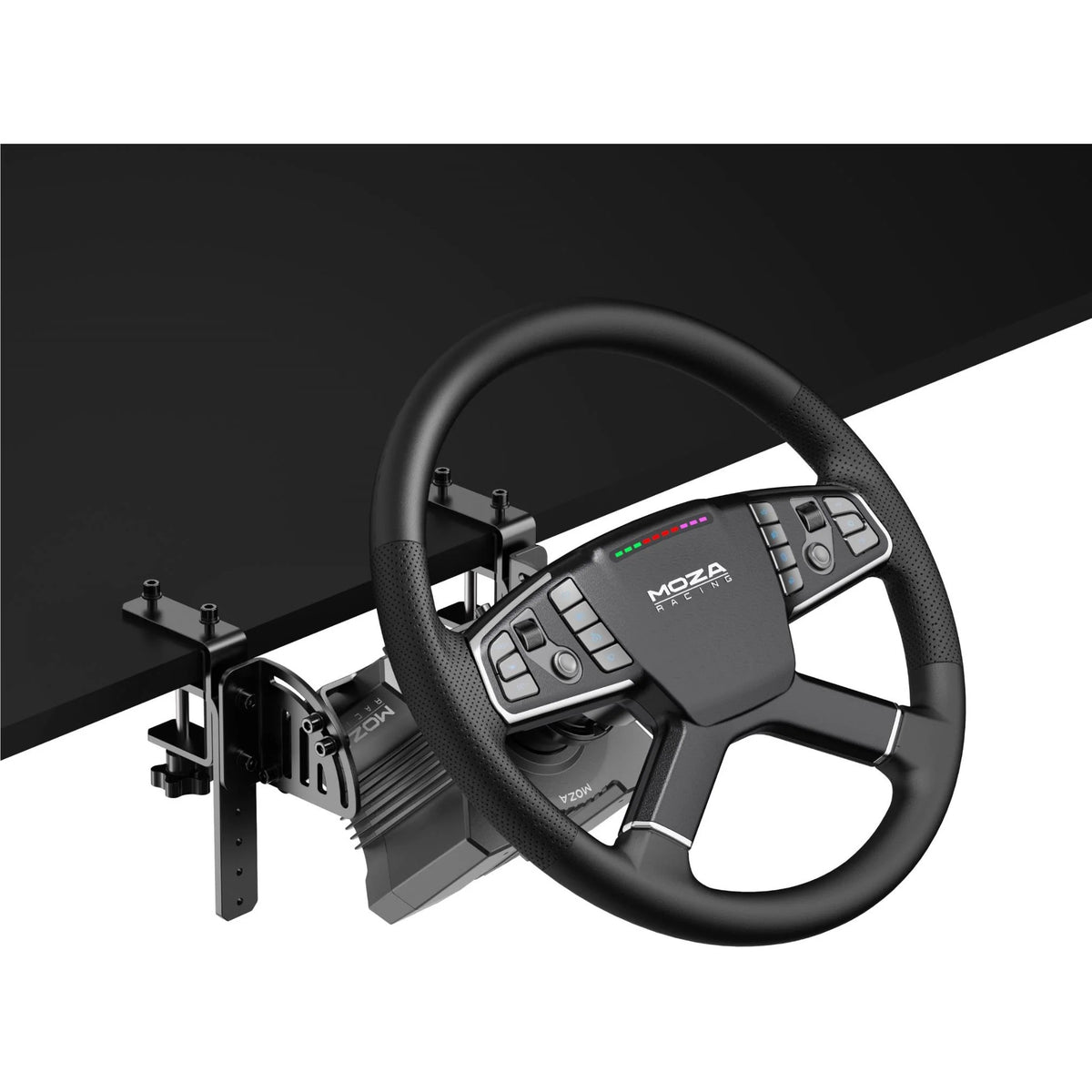

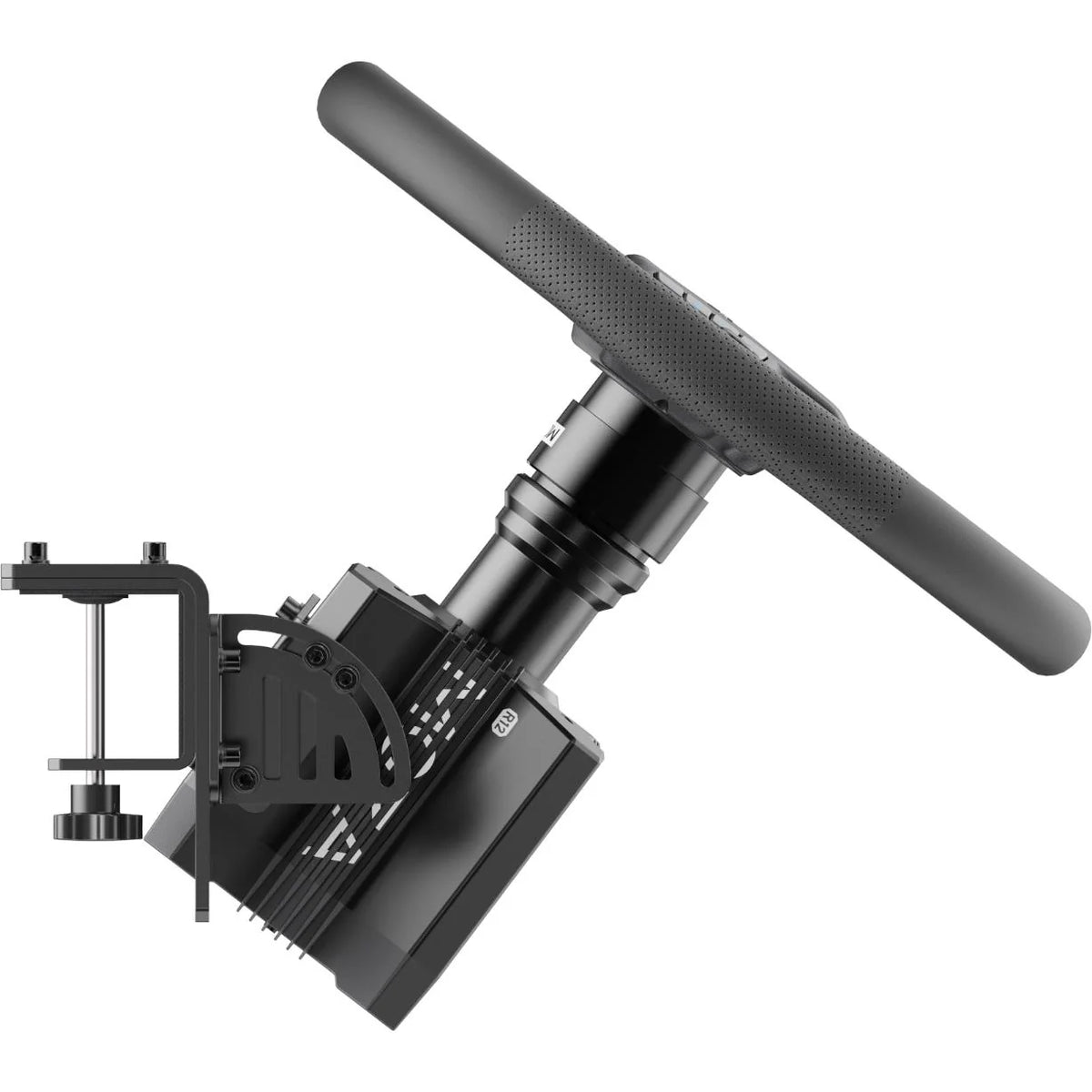

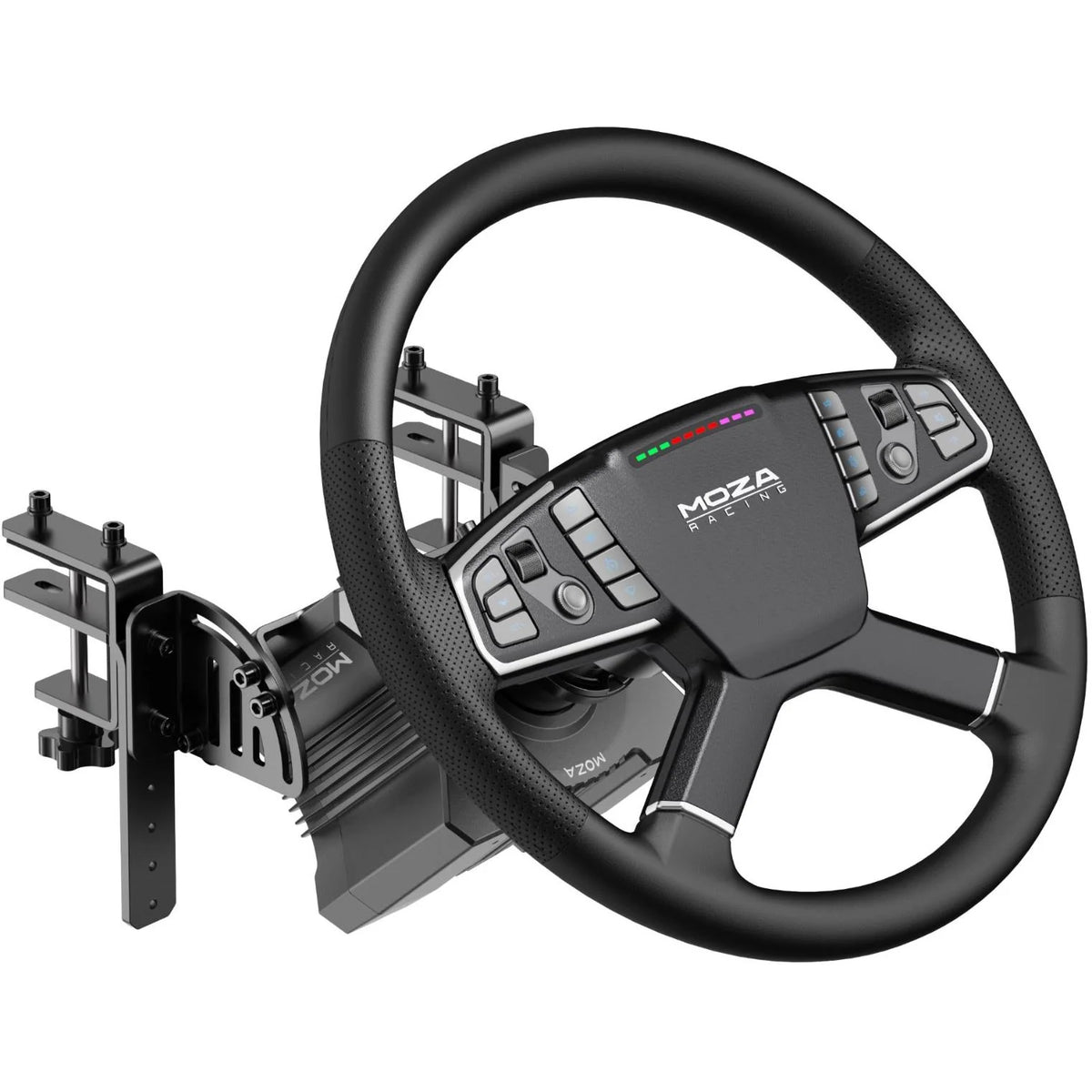

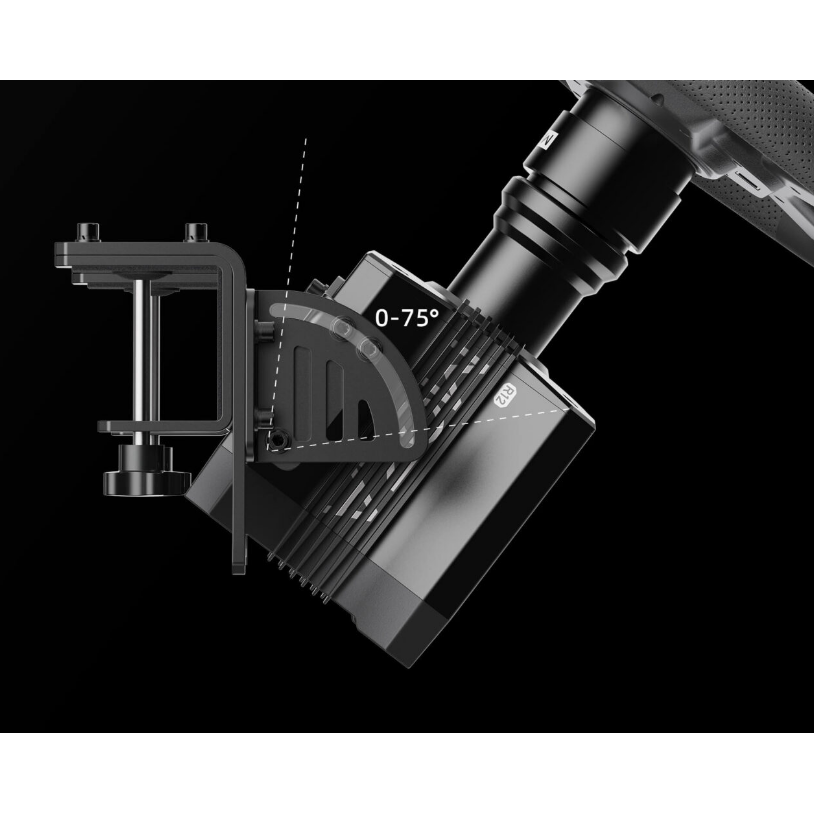

ADJUSTABLE TRUCK WHEEL CLAMP
The included Truck Wheel Clamp is constructed from 4–6mm high-strength steel and provides an adjustable mounting solution for truck simulation setups. The steering wheel angle can be adjusted from 0° to 75° for a comfortable driving position.

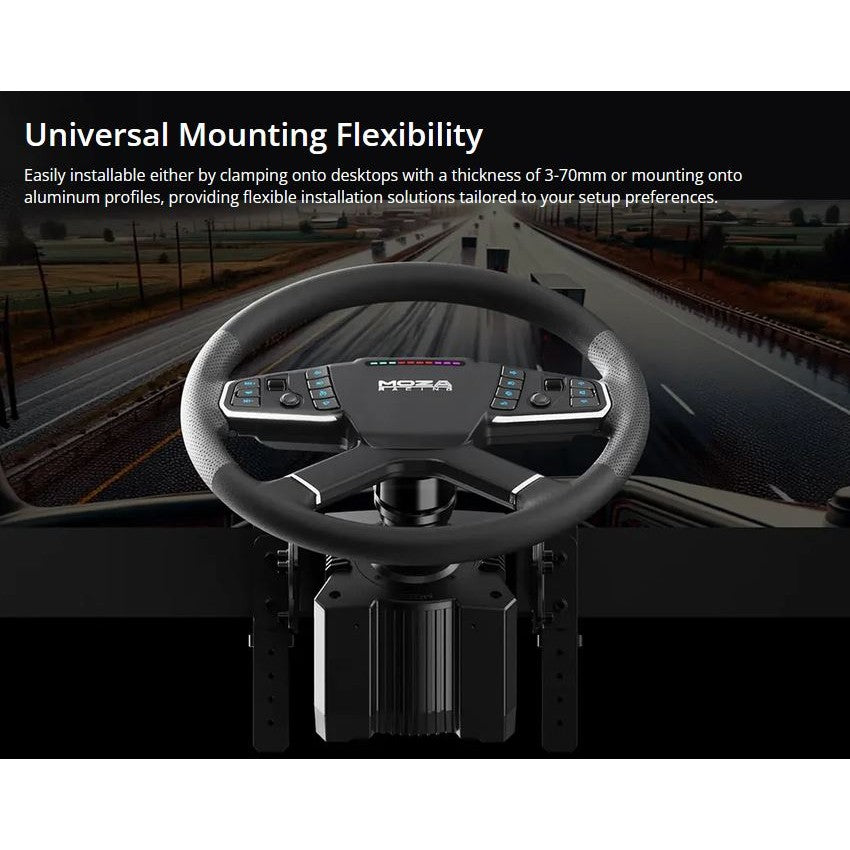

The clamp can be installed on desktops from 3mm to 70mm thick or mounted to aluminium profile simulator rigs. Its flexible mounting design is suitable for truck, farming, construction and other simulation applications.

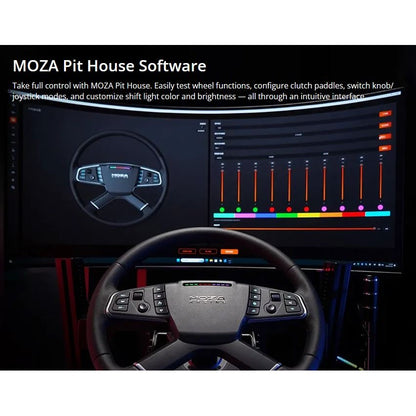

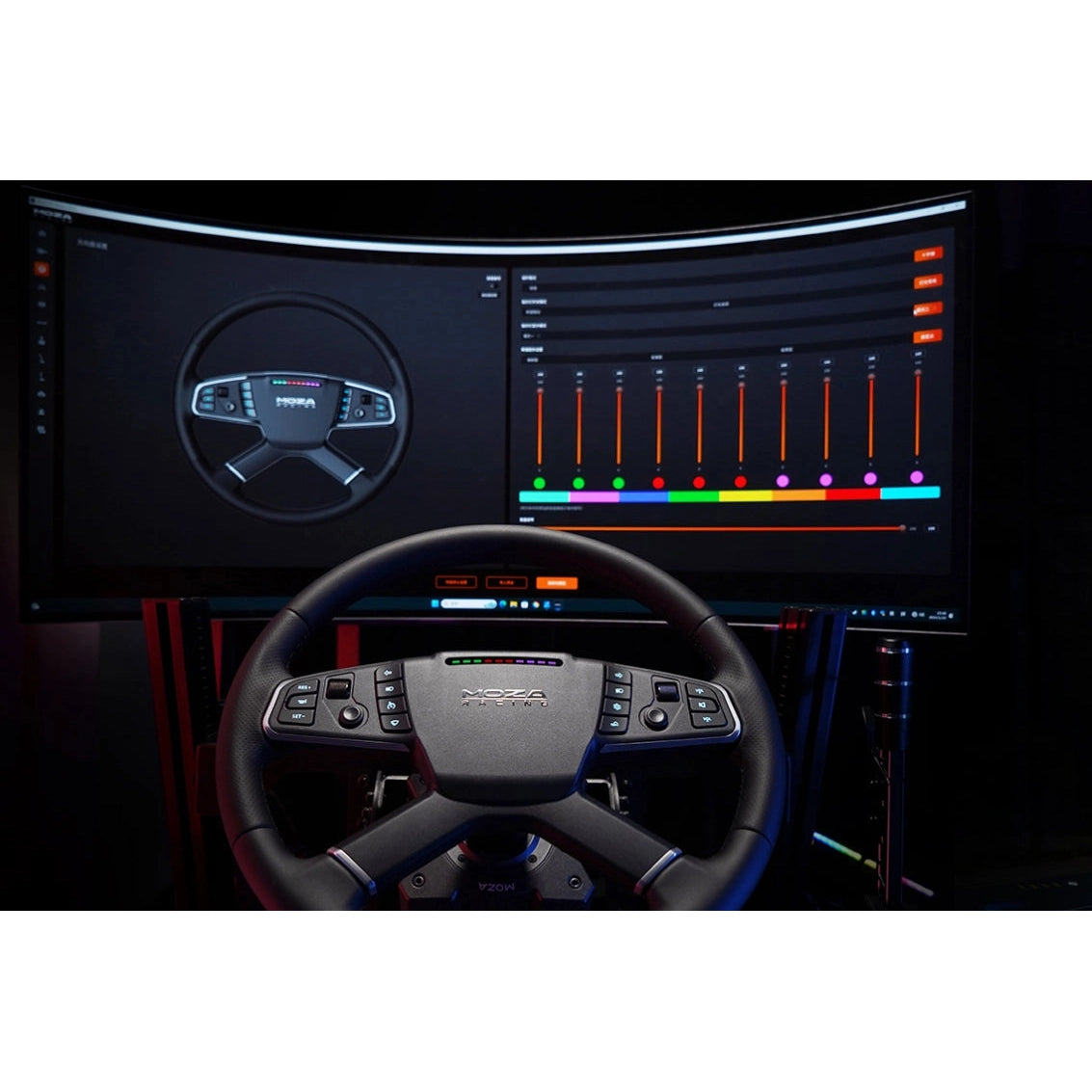

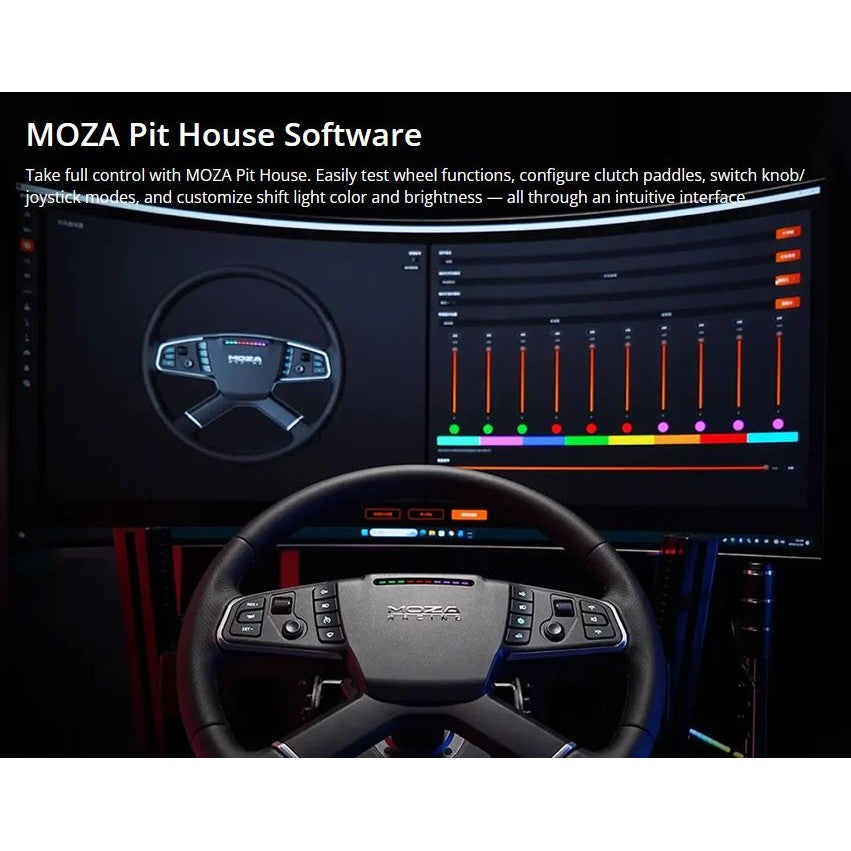

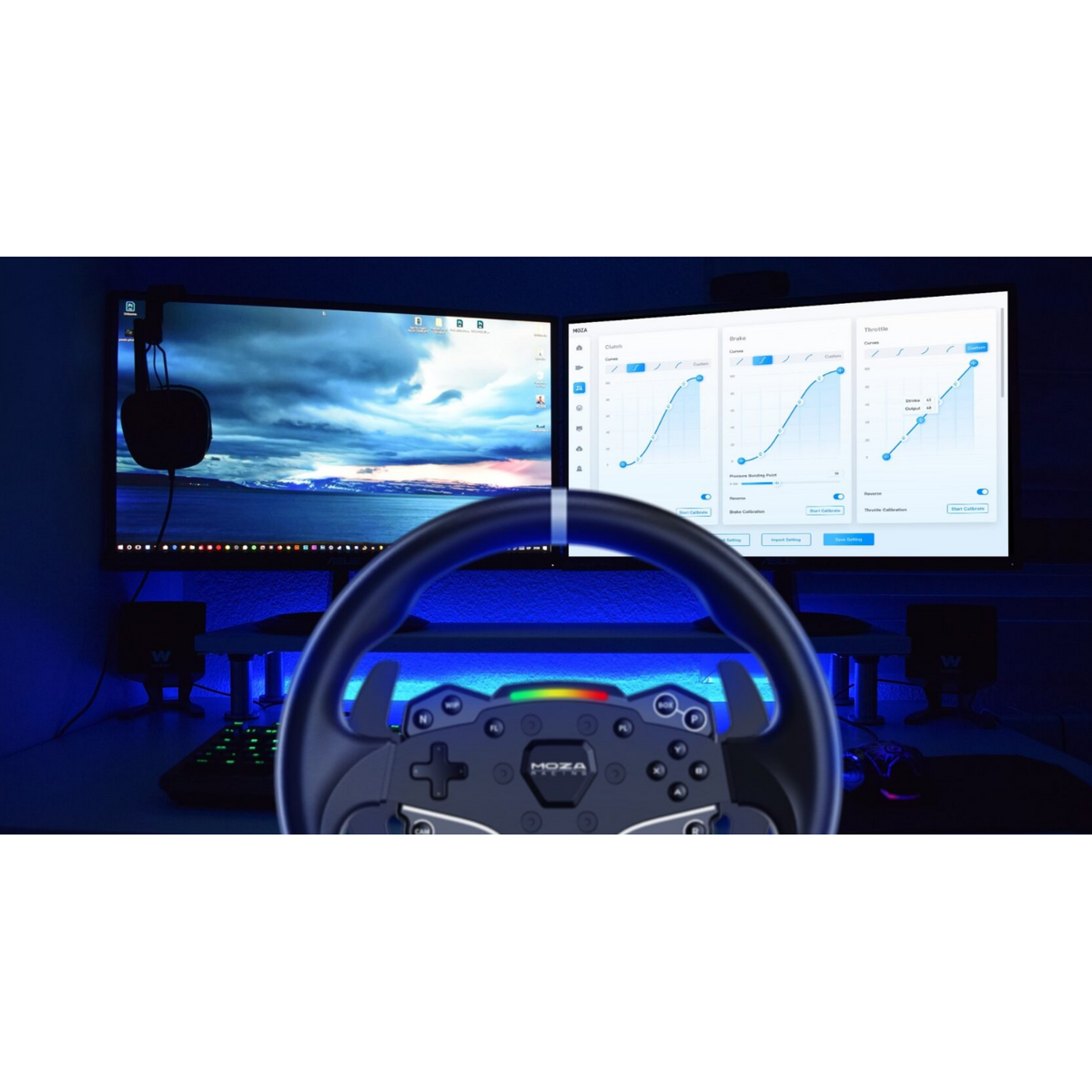

MOZA PIT HOUSE SOFTWARE
MOZA Pit House provides configuration and customisation options for the complete setup. Adjust force feedback, steering behaviour, pedal response, wheel controls, lighting and telemetry settings, while also managing firmware updates and other device settings.

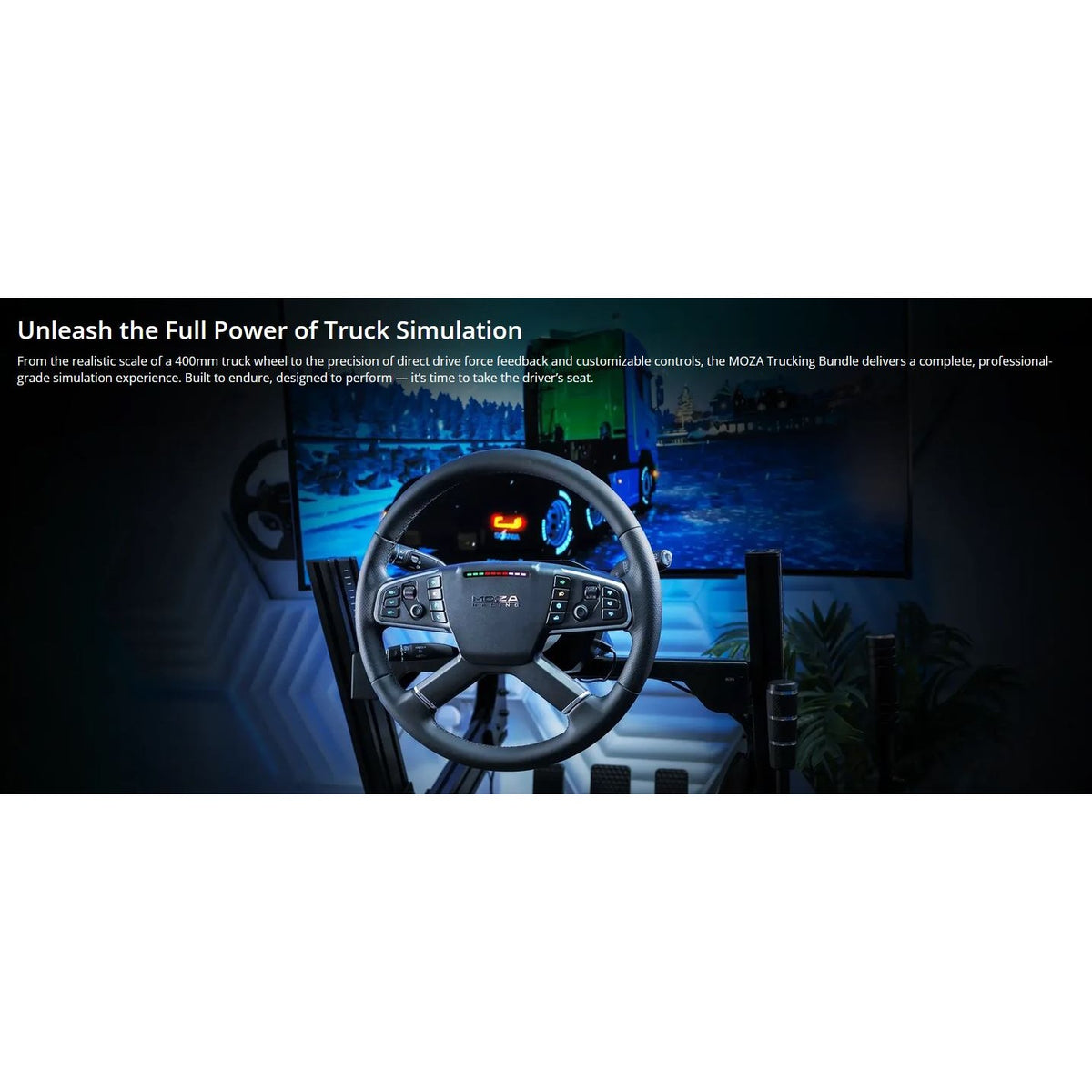

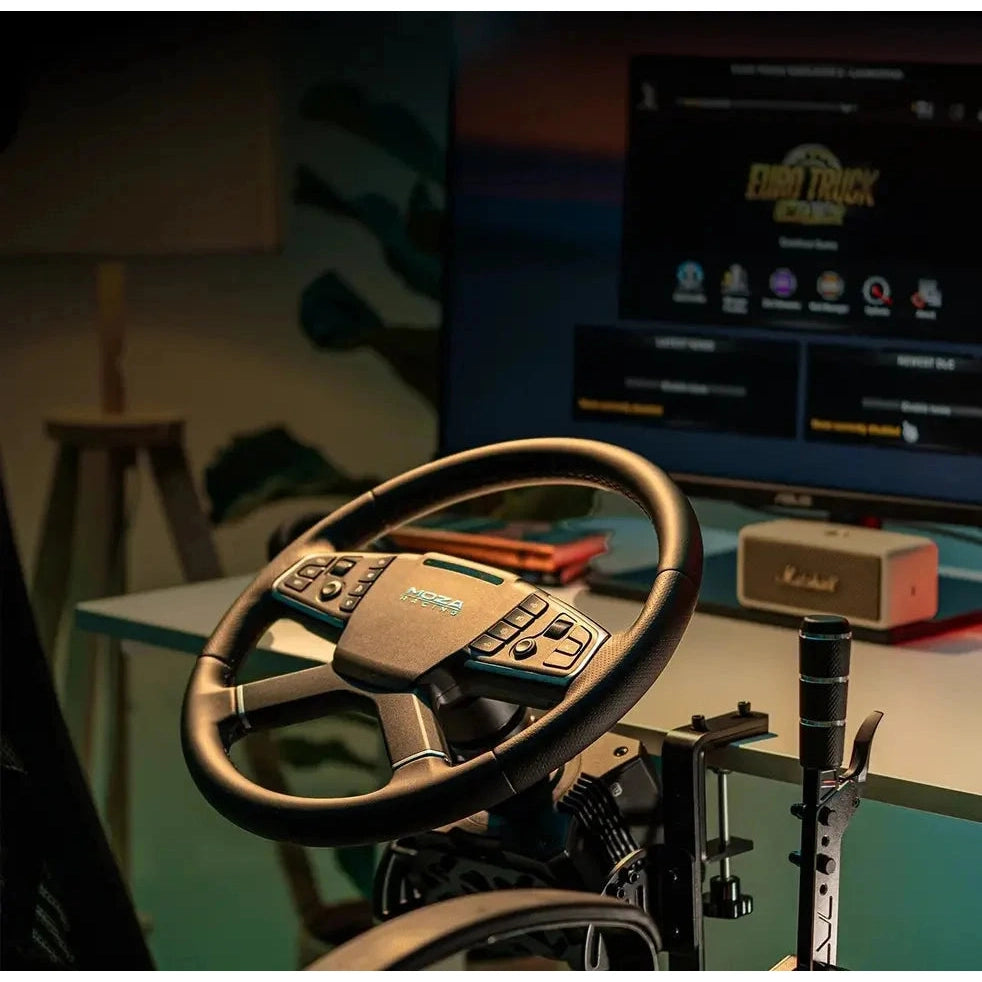

PC SIMULATION READY
The MOZA Truck Driving Simulator Bundle is designed for PC and is suitable for truck simulation titles including Euro Truck Simulator 2 and American Truck Simulator, as well as other compatible driving simulation software.
Specifications
R5 DD Wheel Base
Platform: PC
FFB Drive System: Direct Drive
Peak Torque: 5.5Nm
Maximum Steering Angle: Infinite Rotation
Housing Material: Aviation-grade aluminium alloy
Colour: Black
USB Refresh Rate: 1000Hz
Encoder Resolution: 15-bit
Input Voltage: 110V–220V AC → 12V DC
Quick Release: Supported
App Functions: Supported
Online Firmware Upgrade: Supported
Mounting Method: 4-hole bottom mounting
Desktop Mounting Clip: Standard
Emergency Stop Switch: Optional
Interface: Power, Data, Display, Pedals, Wheel Input
TSW Truck Wheel
Diameter: 400mm
Wheel Rim Material: Aerospace-grade aluminium
Spoke and Hub Casing: Polymer composite
Backlit Buttons: 14
Aluminium Thumbwheels: 2
Ultra-thin Joysticks: 2
RGB LED Light Beads: 10
LED Colours: 16.7 million
Intelligent Telemetry: Supported
Release Method: All-aluminium quick release
Communication: Wireless and wired
Compatibility: MOZA bases; third-party bases via MOZA Hub
Truck Mount: Included
SR-P Lite Pedals
Material: High-strength steel
Plate Material: High-strength steel
Colour: Black
Pedal Sensor Type: Hall sensor
Pedal Spacing: Adjustable
Pedal Plate Height: Adjustable
Pedal Input Adjustment: Supported
Pedal Input Reversal: Supported
Pedal Output Curve Adjustment: Supported
Dimensions: 350 × 270 × 140mm
Pedal Configuration: 2 pedals (Brake and Accelerator)
Clutch: Not included
Truck Wheel Clamp
Material: High-strength steel
Dimensions: 160 × 155 × 200mm
Desktop Thickness Compatibility: 3-70mm
Angle Adjustment Range: 0°-75°
Mounting: Desktop clamp or aluminium profile
System Requirements
PC:
PC-compatible system with USB connection
Compatible simulation software such as Euro Truck Simulator 2, American Truck Simulator and other supported PC simulation titles

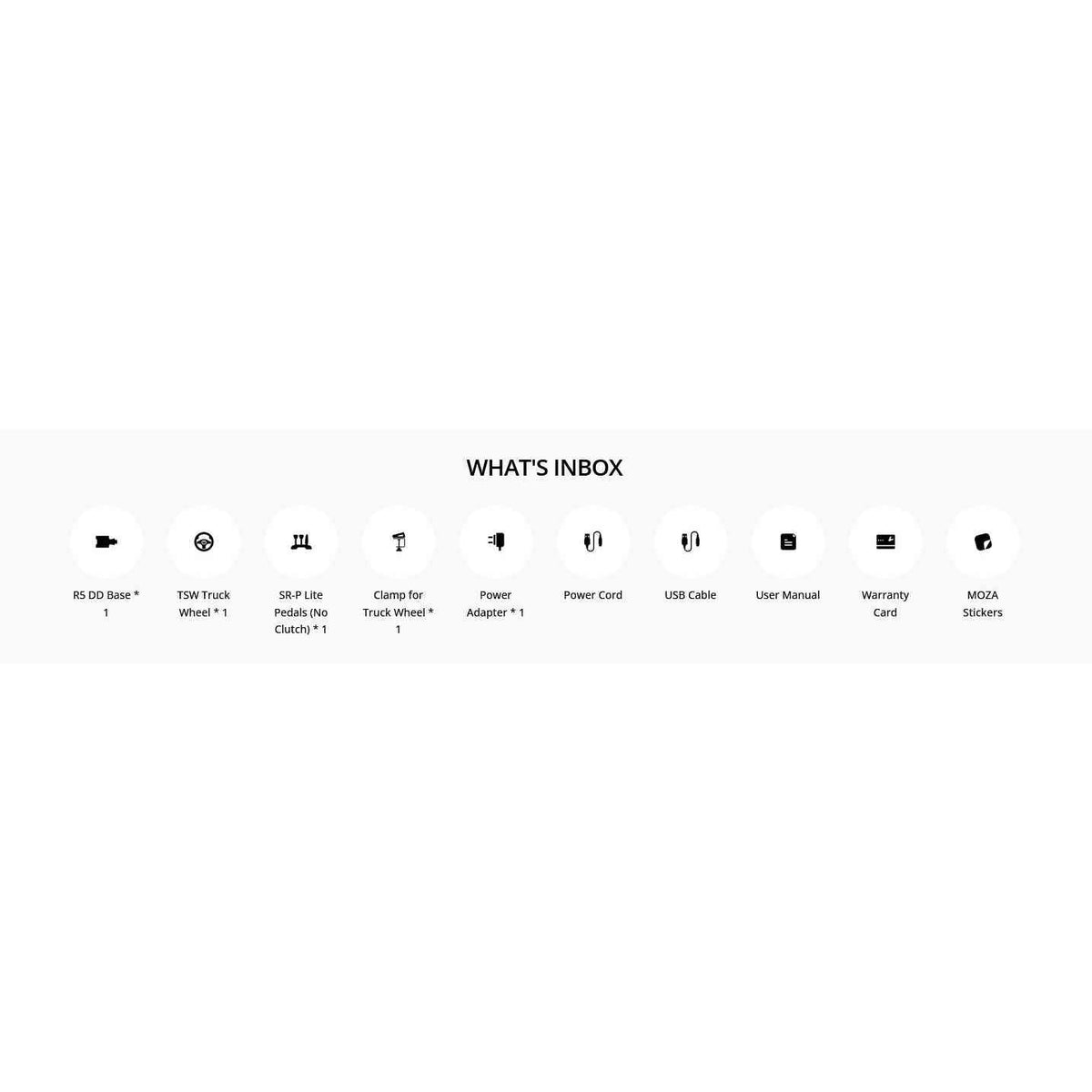

What's in the Box
- 1x MOZA R5 DD Wheel Base
- 1x MOZA TSW Truck Wheel
- 1x MOZA SR-P Lite Pedals (2-Pedal Configuration)
- 1x MOZA Truck Wheel Clamp
- 1x Power Supply
- 1x Power Cord
- 1x USB Cable
- 1x Toolkit
- User Manual
- Warranty Card
- MOZA Stickers
Additional Information
Condition: New
Product Type: Sim Wheel & Pedal Bundles
Platform: PC
Manufacturer: MOZA Racing
Brand: MOZA
Model (MPN): RS071
Colour: Black
Connectivity / Sockets: USB
Lighting Type: RGB
Barcode: 6973137270667
Package Weight: 14.9 kg
Please note: The SR-P Lite pedal set included with this bundle contains two pedals (brake and accelerator) and does not include a clutch pedal. Compatible software is required. Third-party wheel-base compatibility may require the appropriate MOZA hub or adapter.
We strive to provide accurate product information, however, specifications, features and availability may change without notice and occasional errors may occur. For the most accurate and current specifications, please refer to the manufacturer's official website.
FAQs
What platforms and games are supported by the MOZA Trucking Bundle?
The MOZA Trucking Bundle is designed for use on PC and supports a wide range of trucking simulation titles, including Euro Truck Simulator 2 and American Truck Simulator. With MOZA Pit House software, users can configure their setup and customise force feedback, controls, lighting and other settings.
Is the steering wheel true to real-world truck dimensions?
Yes. The TSW Truck Wheel features a 400mm diameter, a common size for real commercial truck steering wheels. It combines a four-spoke design with chrome-style accents and a large steering rim to provide a realistic truck driving feel.
I am new to MOZA products. Can I use this bundle with third-party equipment?
Yes. The TSW Truck Wheel supports third-party wheel bases when used with the appropriate MOZA Universal Hub. This provides additional flexibility for users who want to integrate the TSW Truck Wheel into an existing simulator setup.
Does the direct drive base provide realistic force feedback?
Yes. The MOZA R5 Direct Drive Base delivers up to 5.5Nm of peak torque. Its direct drive motor, low torque ripple and 15-bit encoder provide precise steering feedback and detailed force feedback across a wide range of driving conditions.
How is the wheel mounted? Is it stable for desktop use?
The included Truck Wheel Clamp is constructed from 4–6mm high-strength steel and supports angle adjustment from 0° to 75°. It can be securely mounted to desktops from 3mm to 70mm thick or fixed to aluminium profile simulator rigs, providing a stable and flexible mounting solution.
Does the bundle include a clutch pedal?
No. The included SR-P Lite pedal set is a two-pedal configuration consisting of a brake and accelerator. A clutch pedal is not included with this bundle.
Can the steering wheel be used with MOZA wheel bases other than the R5?
Yes. The TSW Truck Wheel is compatible with MOZA wheel bases. It can also be used with compatible third-party wheel bases via the appropriate MOZA Universal Hub.
Is the TSW Truck Wheel connected wirelessly or by cable?
The TSW Truck Wheel supports both wireless and wired communication, providing flexible connection options depending on the compatible wheel base and setup.
Can I adjust the pedals to suit my setup?
Yes. The SR-P Lite Pedals feature adjustable pedal spacing and pedal plate height. MOZA Pit House also allows users to customise pedal input curves and reverse pedal input to suit different mounting configurations.
What software is used to configure the MOZA Trucking Bundle?
MOZA Pit House is used to configure and customise the setup, including force feedback, steering behaviour, pedal response, wheel controls, RGB lighting, telemetry settings and firmware updates.
Can the Truck Wheel Clamp be mounted to an aluminium profile simulator rig?
Yes. In addition to desktop mounting, the included Truck Wheel Clamp can be mounted to compatible aluminium profile simulator rigs.
What is included in the MOZA Trucking Bundle?
The bundle includes the MOZA R5 DD Wheel Base, TSW Truck Wheel, SR-P Lite two-pedal set, Truck Wheel Clamp, power supply, power cord, USB cable, toolkit, user manual, warranty card and MOZA stickers.
Is the MOZA Trucking Bundle compatible with PlayStation or Xbox?
The MOZA Trucking Bundle is designed for PC. It is not designed for direct use with PlayStation or Xbox consoles.
