Features

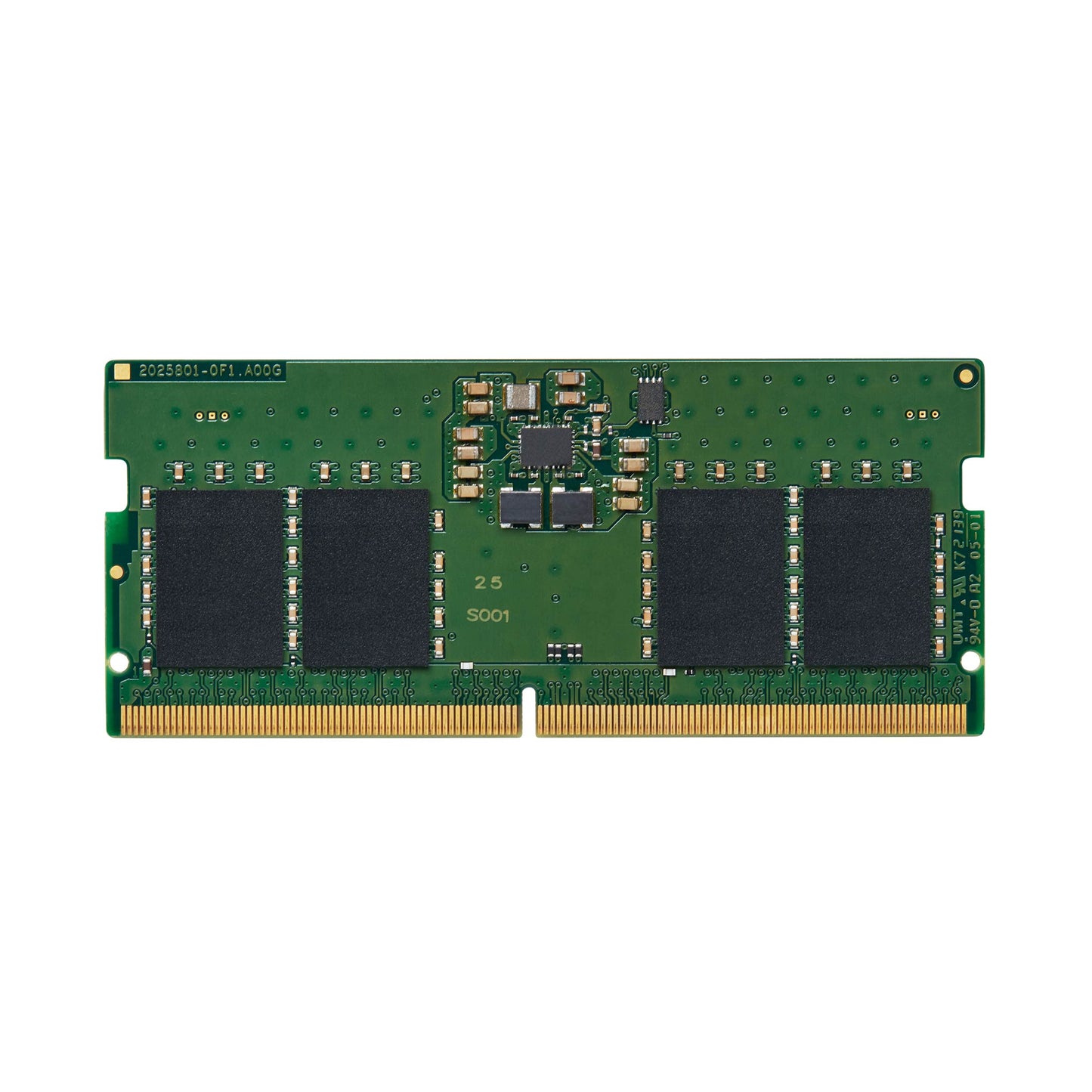

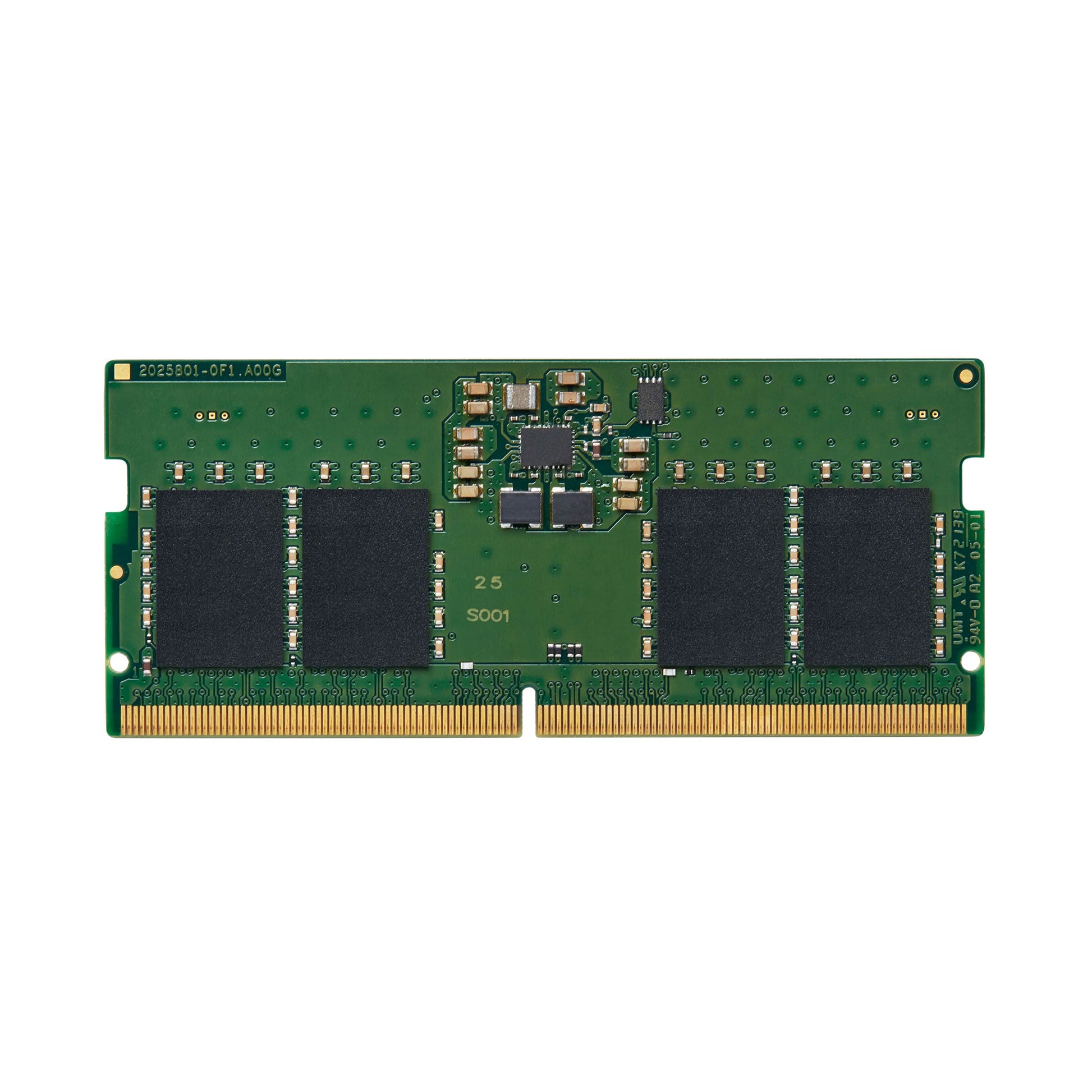

KINGSTON KVR48S40BS6-8 8GB DDR5 4800MT/s Non-ECC Memory RAM SODIMM
KVR48S40BS6-8 is a 1G x 64-bit (8GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Specifications
SKU: KVR48S40BS6-8
EAN/UPC Code: 740617327090
Brand: Kingston
Memory Capacity: 8GB (1x 8GB)
Module Quantity: 1 Module
Speed (Data Rate): 4800MT/s (PC5-38400)
Module Type: SODIMM
Error Check: Non-ECC
Model/Series/Type: KVR
CAS Latency: CL40
Form Factor: DDR5
Rank: 1R (Single Rank)
Pins: 262 Pin
Operating Temperature: 0°C to 85°C
Storage Temperature: -55°C to +100°C
DRAM Density: 16Gbit
Memory Voltage: 1.1v
Memory Depth: 1G
Product Type/Family: RAM
Chip Organization: x16
Data Width: X64
CL(IDD): 40 cycles
Row Cycle Time (tRCmin): 48ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin): 295ns (min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V - 0
Power Supply
• VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC

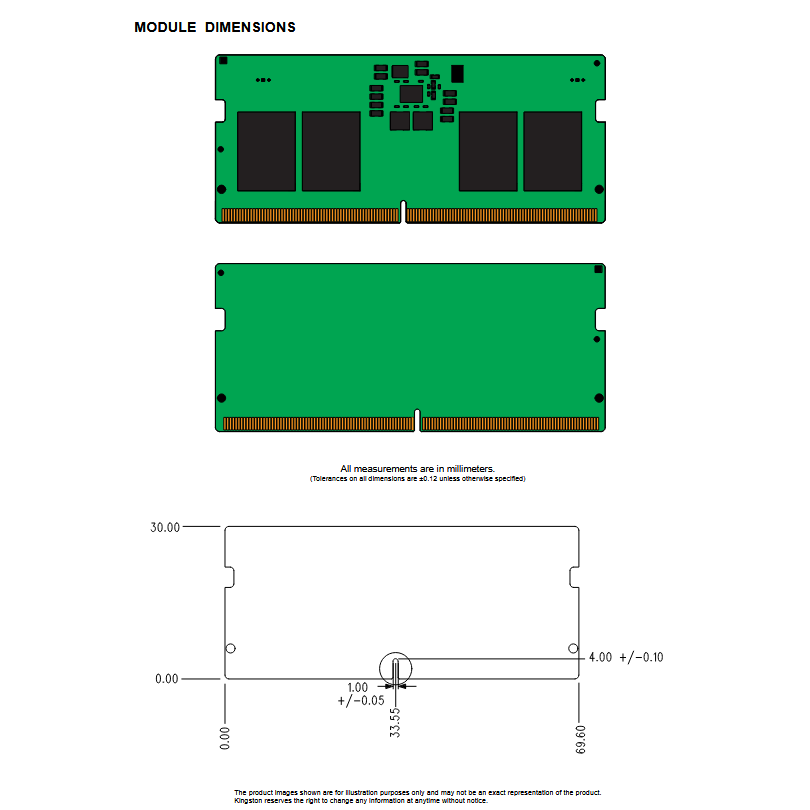

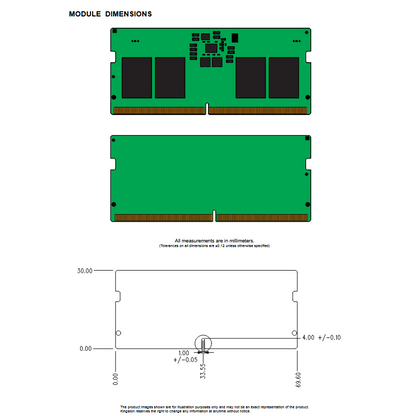

• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Warranty: 60 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
