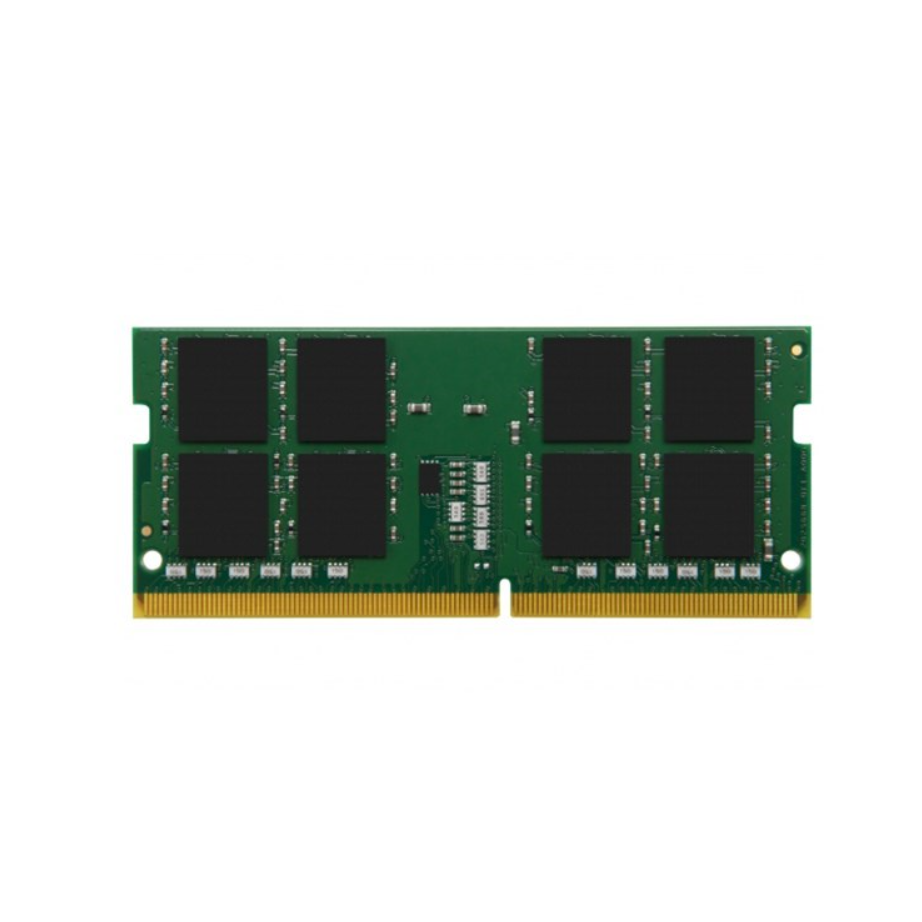

KVR32S22S6/8
8GB 1Rx16 1G x 64-Bit PC4-3200
CL22 260-Pin SODIMM
FEATURES
This document describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
CL(IDD) 22 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh 350ns(min.)
Command Time (tRFCmin) 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0o C to +85o C
Storage Temperature -55o C to +100o C
??? Power Supply: VDD = 1.2V Typical
??? VDDQ = 1.2V Typical
??? VPP = 2.5V Typical
??? VDDSPD = 2.2V to 3.6V
??? Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
??? Low-power auto self refresh (LPASR)
??? Data bus inversion (DBI) for data bus
??? On-die VREFDQ generation and calibration
??? Single-rank
??? On-board I2 serial presence-detect (SPD) EEPROM
??? 8 internal banks; 2 groups of 4 banks each
??? Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
??? Selectable BC4 or BL8 on-the-fly (OTF)
??? Fly-by topology
??? Terminated control command and address bus
??? PCB: Height 1.18??? (30.00mm)
??? RoHS Compliant and Halogen-Free
