KF556C40BBAK2-64
64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-5600 CL40 288-Pin DIMM Kit
DESCRIPTION

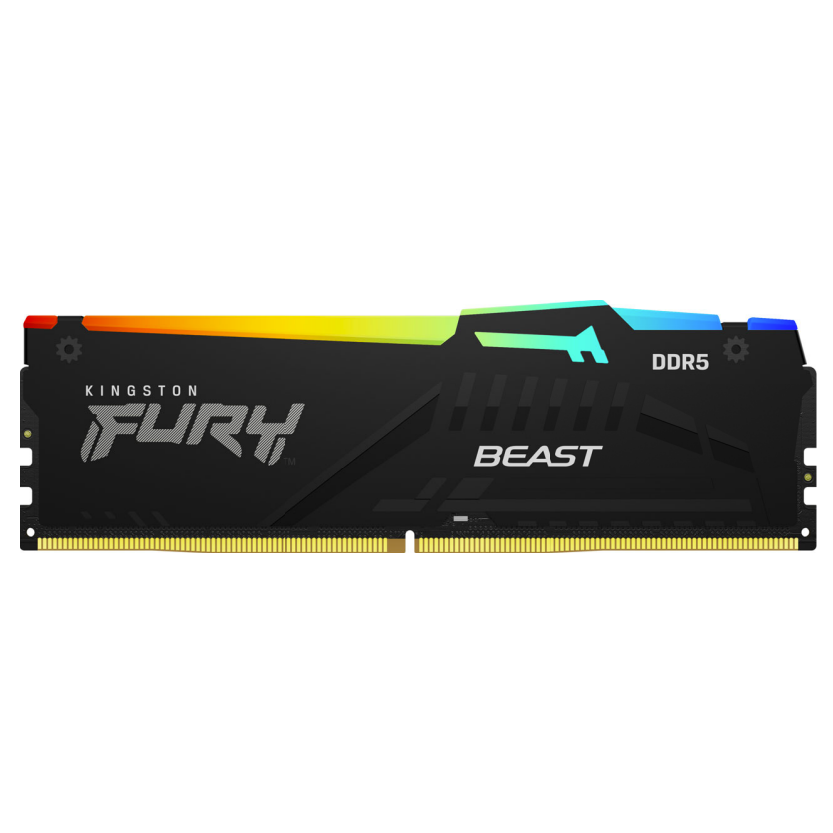

Kingston FURY KF556C40BBAK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports Intel?? Extreme Memory
Profiles (Intel?? XMP) 3.0. Total kit capacity is 64GB. Each
module has been tested to run at DDR5-5600 at a low latency timing
of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
SPECIFICATIONS
CL(IDD) 40 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh 295ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0oC to +85oC
Storage Temperature -55oC to +100oC
FEATURES
??? Power Supply: VDD = 1.1V Typical
??? VDDQ = 1.1V Typical
??? VPP = 1.8V Typical
??? VDDSPD = 1.8V to 2.0V
??? On-Die ECC
??? Height 1.66??? (42.23mm), w/heatsink
