DESCRIPTION

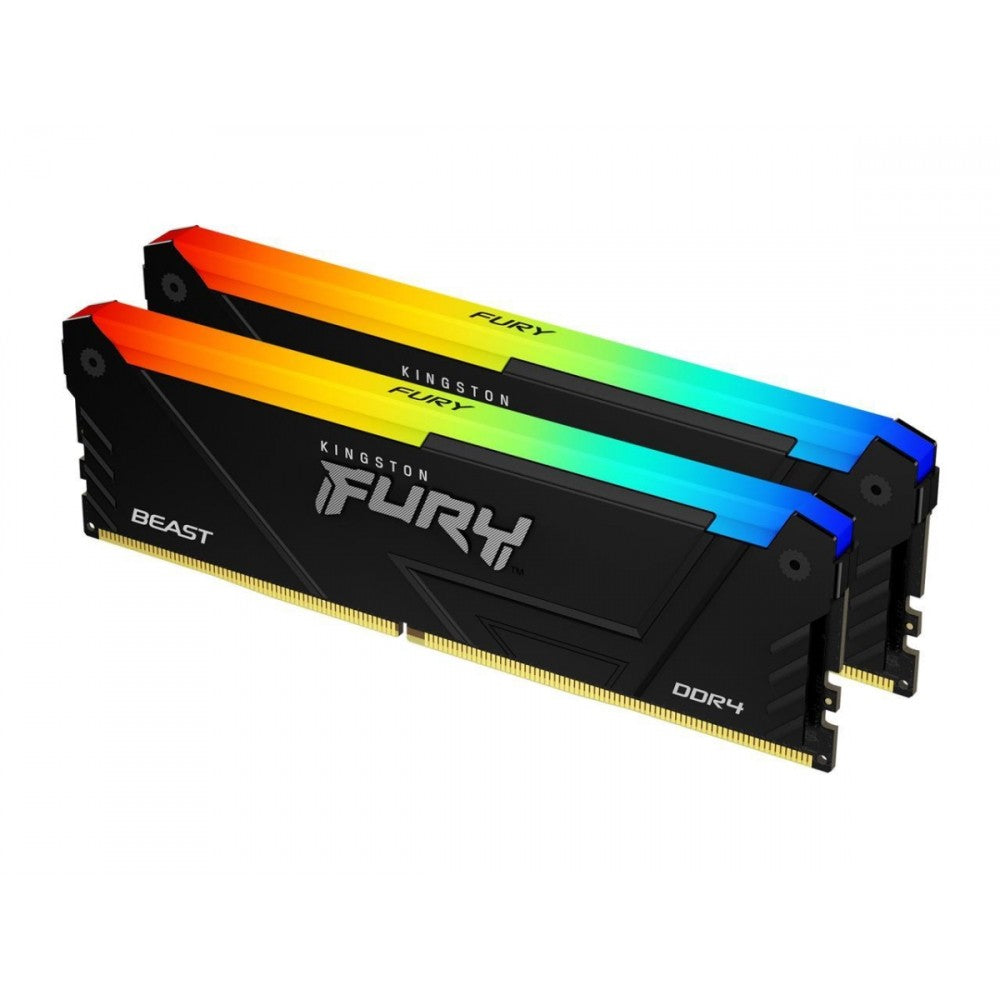

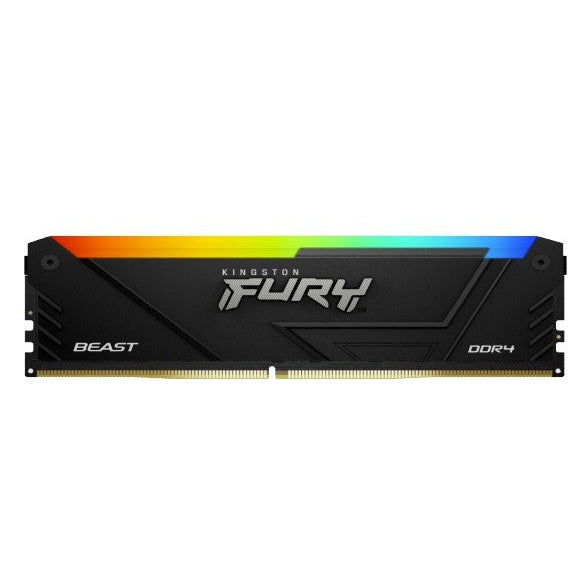

Kingston FURY KF432C16BB12AK2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel?? Extreme Memory Profiles (Intel?? XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3200 at a low latency timing
of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
SPECIFICATIONS
CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh 350ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0oC to +70oC
Storage Temperature -40oC to +85oC
FEATURES
??? Power Supply: VDD = 1.2V Typical
??? VDDQ = 1.2V Typical
??? VPP = 2.5V Typical
??? VDDSPD = 2.2V to 3.6V
??? On-Die termination (ODT)
??? 16 internal banks; 4 groups of 4 banks each
??? Bi-Directional Differential Data Strobe
??? 8 bit pre-fetch
??? Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
??? Height 1.69??? (43mm), w/heatsink
