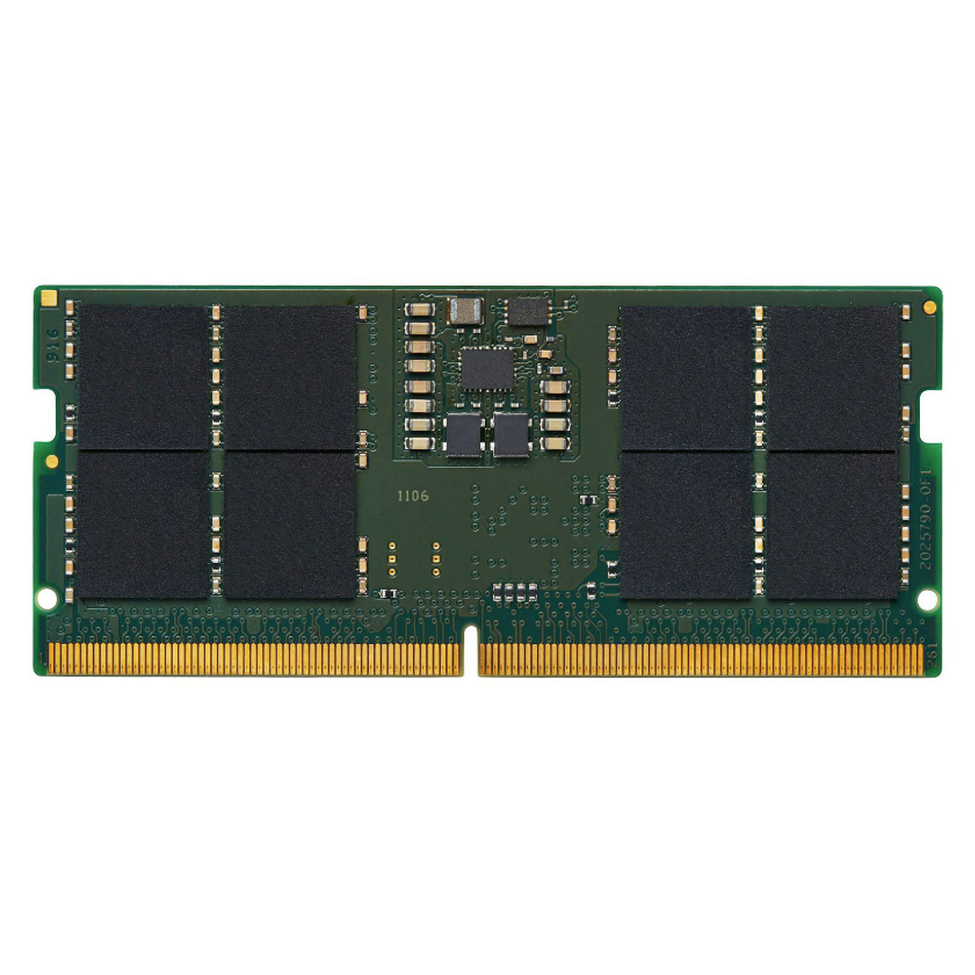

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8,memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
SPECIFICATIONS
CL(IDD) 46 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh 295ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0 o C to +85o C
Storage Temperature -55 o C to +100 o C
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18in (30.00mm)
RoHS Compliant and Halogen-Free
