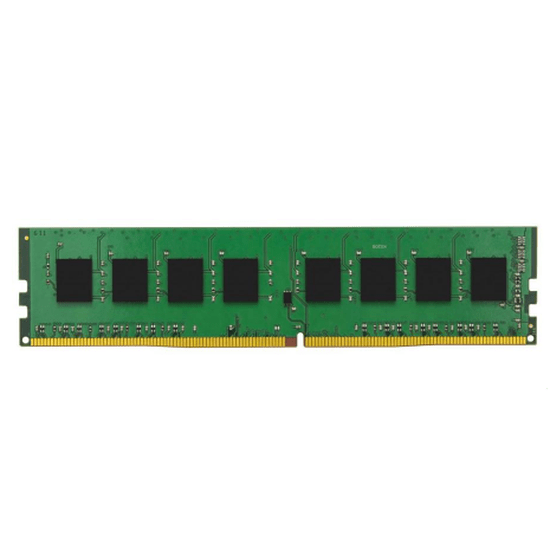

KVR32N22D8/16
16GB 2Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMM
Features
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23in (31.25mm)
RoHS Compliant and Halogen-Free
