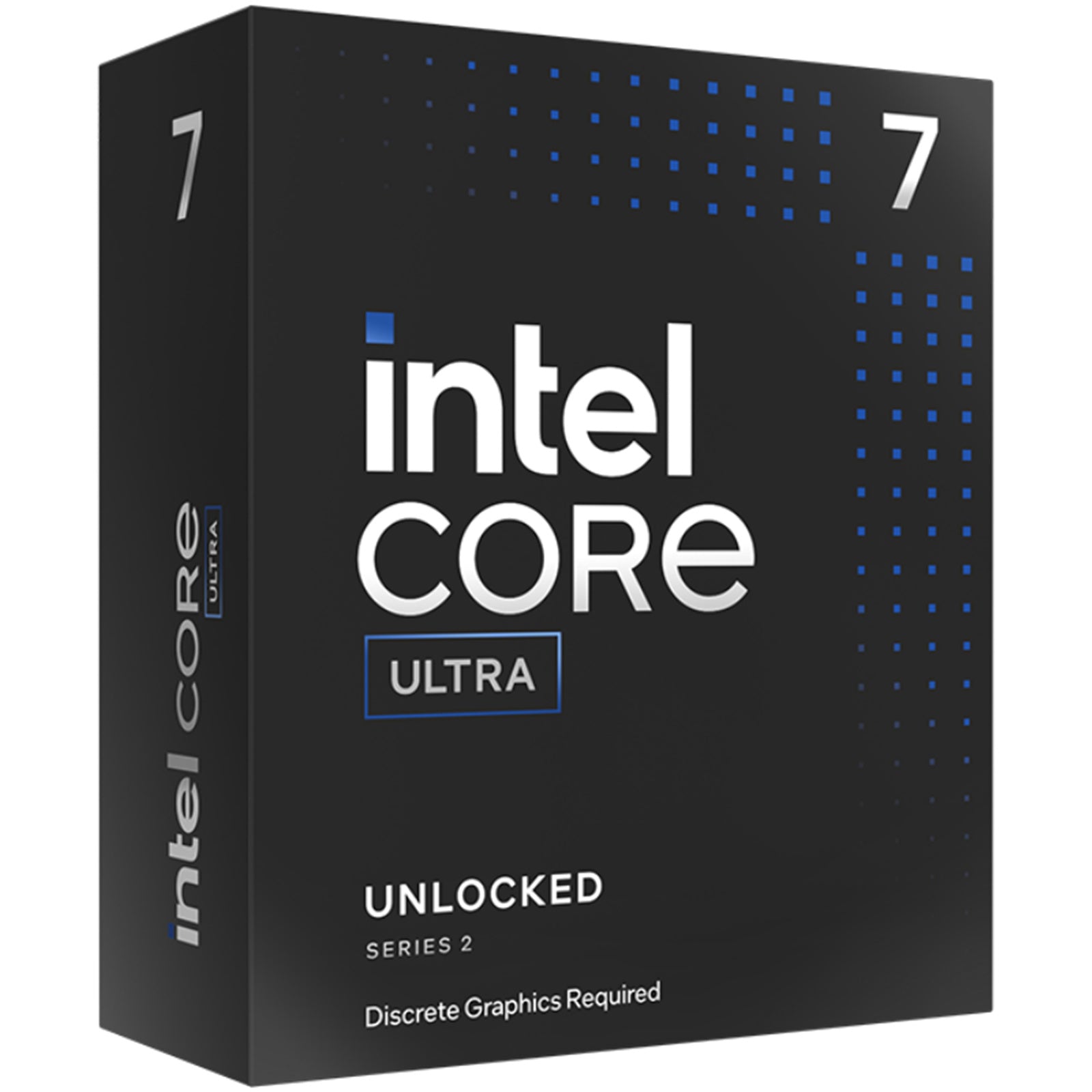

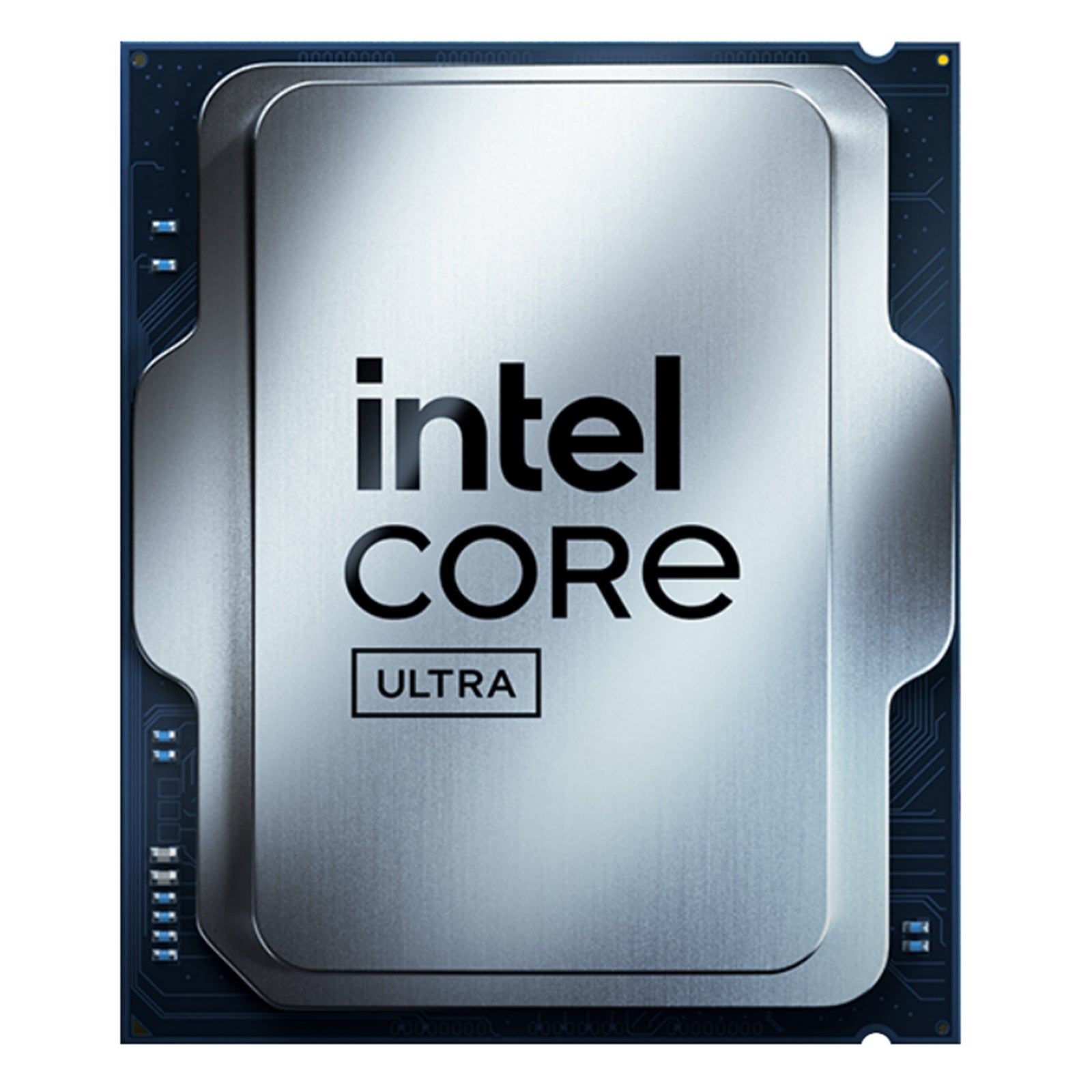

Intel Core Ultra 7 265KF 20 Core 5.5GHz LGA1851 CPU Processor Unlocked (No Integrated Graphics)
The latest Intel Core Ultra processors (Series 2) enable you to use the most AI experiences across desktop and mobile-making everything you do easier, faster, and better.
Specifications
Essentials:
• Product Collection: Intel Core Ultra Processors (Series 2)
• Code Name: Products formerly Arrow Lake
• Vertical Segment: Desktop
• Processor Number: 265KF
• Overall Peak TOPS (Int8): 25
CPU Specifications:
• Total Cores: 20
• # of Performance-cores: 8
• # of Efficient-cores: 12
• Total Threads: 20
• Max Turbo Frequency: 5.5 GHz
• Intel Turbo Boost Max Technology 3.0 Frequency: 5.5 GHz
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core Base Frequency: 3.9 GHz
• Efficient-core Base Frequency: 3.3 GHz
• Cache: 30 MB Intel Smart Cache
• Total L2 Cache: 36 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 250 W
• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
• AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography: TSMC N3B
Memory Specifications:
• Max Memory Size (dependent on memory type): 256 GB
• Memory Types: Up to DDR5 6400 MT/s
• Maximum Memory Speed: 6400 MHz
• Max # of Memory Channels: 2
NPU Specifications:
• NPU Name: Intel AI Boost
• NPU Peak TOPS (Int8): 13
• Sparsity Support: Yes
• Windows Studio Effects Support: Yes
• AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options:
• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Intel Thunderbolt: Yes
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4,1x8+4x4
• Max # of PCI Express Lanes: 24
Package Specifications:
• Sockets Supported: FCLGA1851
• Thermal Solution Specification: PCG 2020A
• Max Operating Temperature: 105°C
Advanced Technologies:
• Intel Volume Management Device (VMD): Yes
• Intel Gaussian & Neural Accelerator: 3.5
• Intel Thread Director: Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Max Technology 3.0: Yes
• Intel Turbo Boost Technology: 2.0
• Intel 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep Technology: Yes
• Thermal Monitoring Technologies: Yes
Security & Reliability:
• Intel Standard Manageability (ISM): Yes
• Intel Control-Flow Enforcement Technology: Yes
• Intel AES New Instructions: Yes
• Secure Key: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel OS Guard: Yes
• Intel Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
Warranty: 36 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
