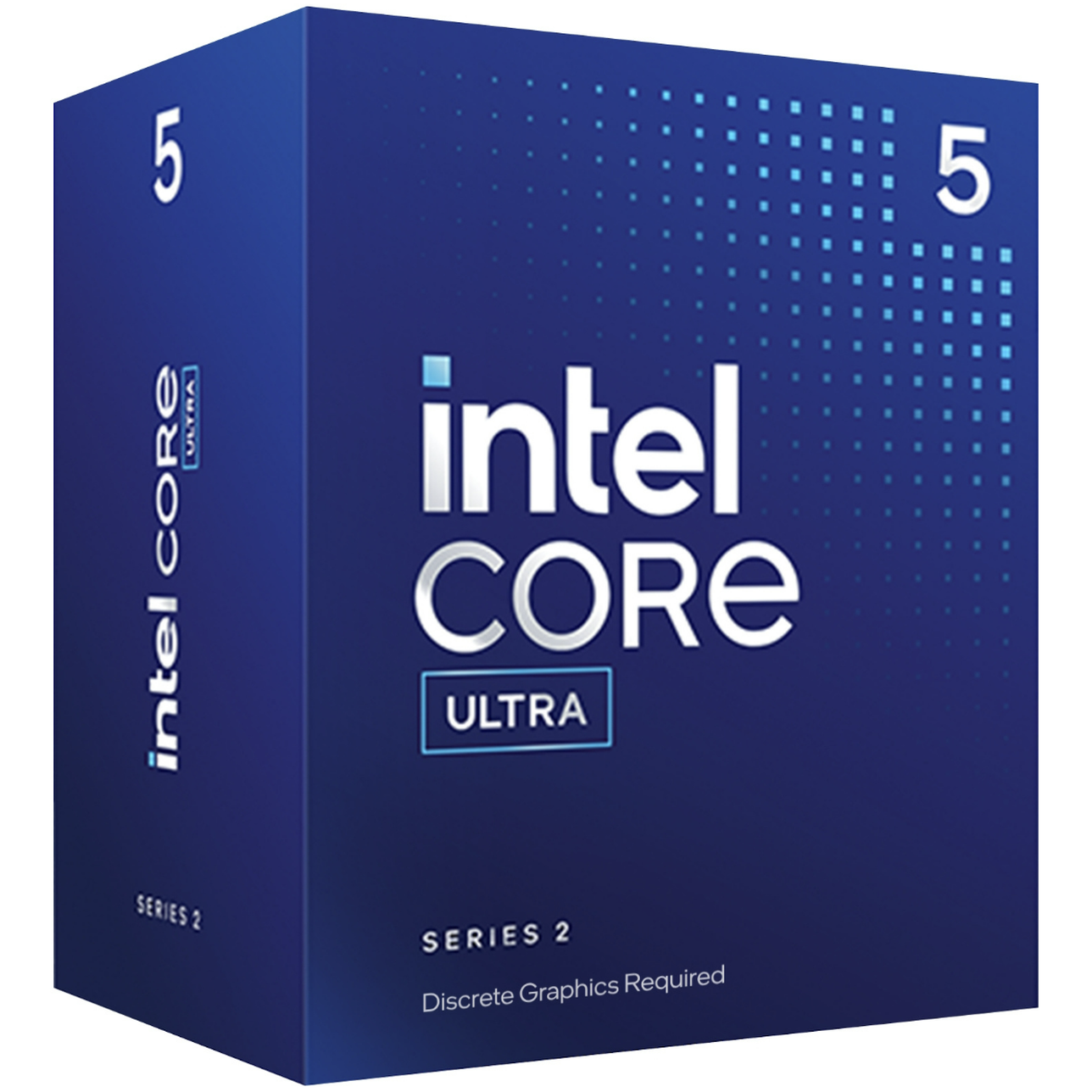

Product Collection Intel Core Ultra Processors (Series 2)
Code Name Products formerly Arrow Lake
Vertical Segment Desktop
Processor Number 225F
Overall Peak TOPS (Int8) 19
CPU Specifications
Total Cores 10
# of Performance-cores6
# of Efficient-cores4
Total Threads 10
Max Turbo Frequency 4.9 GHz
Performance-core Max Turbo Frequency 4.9 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Performance-core Base Frequency 3.3 GHz
Efficient-core Base Frequency 2.7 GHz
Cache 20 MB Intel Smart Cache
Total L2 Cache22 MB
Processor Base Power 65 W
Maximum Turbo Power 121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU Yes
AI Software Frameworks Supported by CPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography TSMC N3B
Supplemental Information
Embedded Options Available No
Use Conditions PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 6400 MT/s
Max # of Memory Channels 2
NPU Specifications
NPU Name Intel AI Boost
NPU Peak TOPS (Int8) 13
Sparsity SupportYes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPUOpenVINO???, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision4
Max # of DMI Lanes8
Intel Thunderbolt 4 Yes
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ??? Up to 1x16+2x4, 2x8+2x4,
1x8+4x4
Max # of PCI Express Lanes 24
Package Specifications
Sockets Supported FCLGA1851
Thermal Solution Specification PCG 2022C
Max Operating Temperature 105°C
Advanced Technologies
Intel Volume Management Device (VMD) Yes
Intel Gaussian & Neural Accelerator 3.5
Intel Thread Director Yes
Intel Speed Shift Technology Yes
Intel Turbo Boost Technology 2.0
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Security & Reliability
Intel Standard Manageability (ISM) Yes
Intel Control-Flow Enforcement Technology Yes
Intel AES New Instructions Yes
Secure Key Yes
Intel Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel OS Guard Yes
Intel Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
