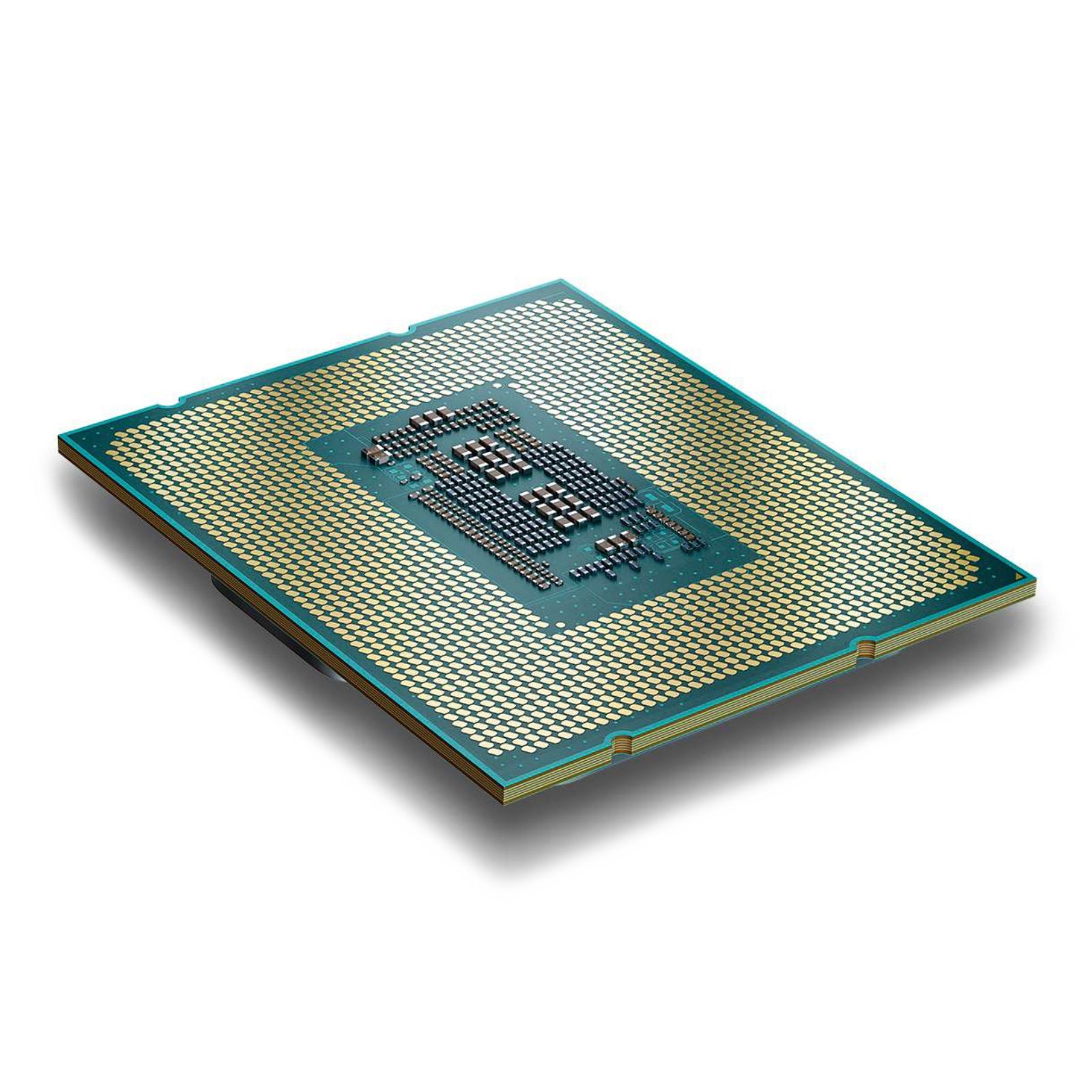

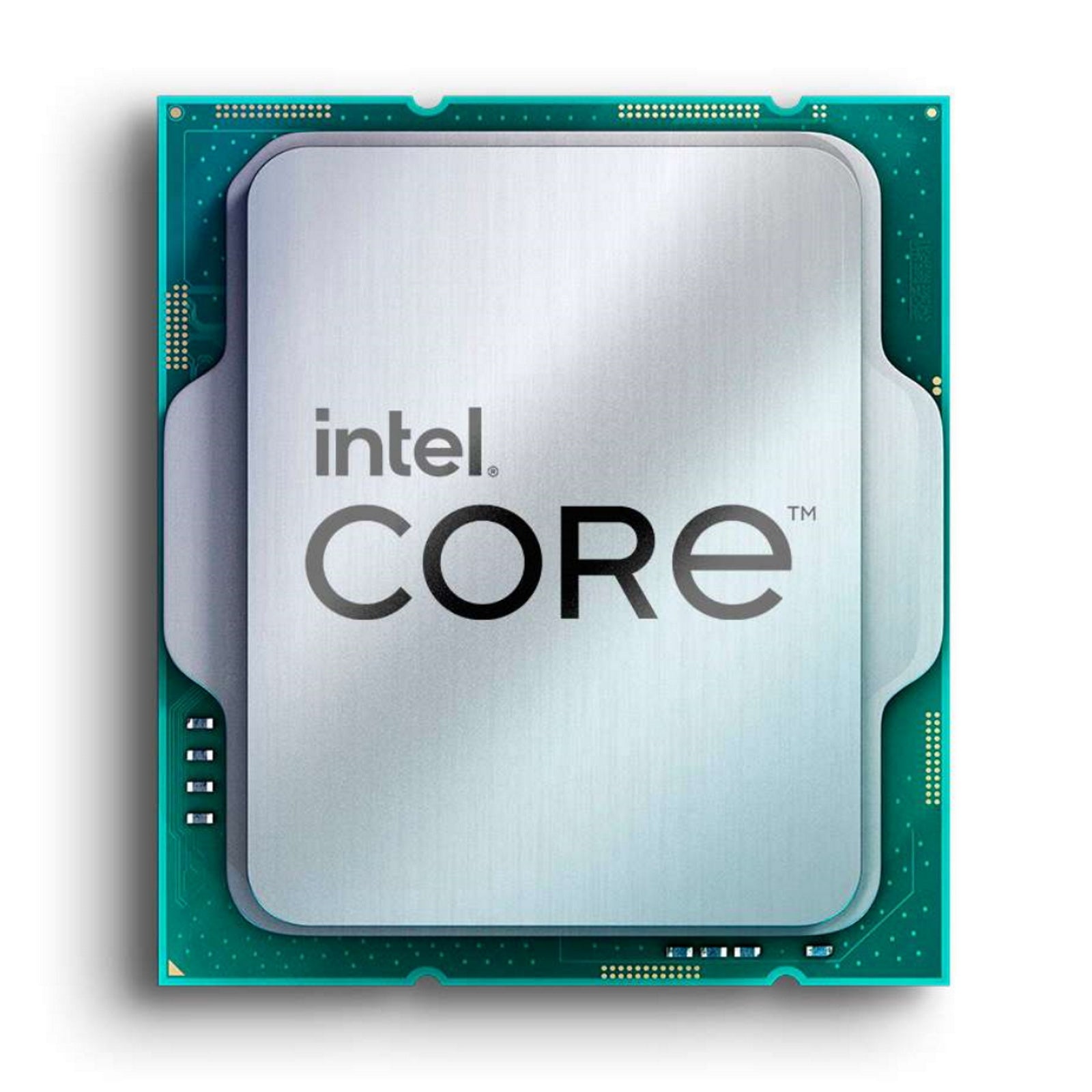

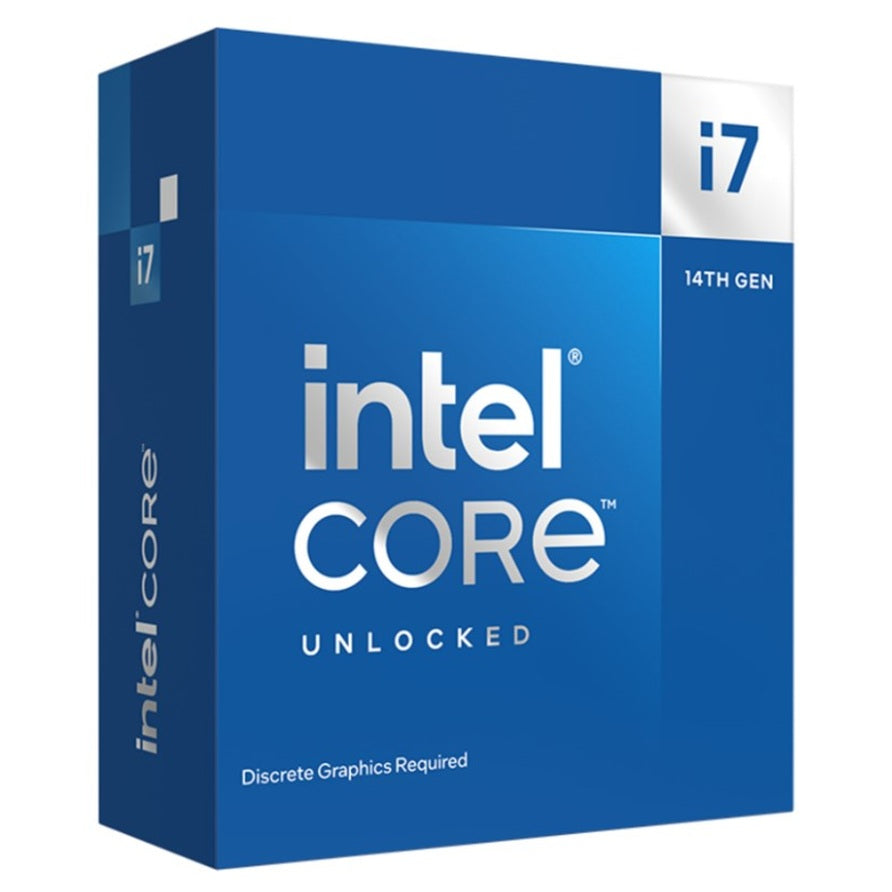

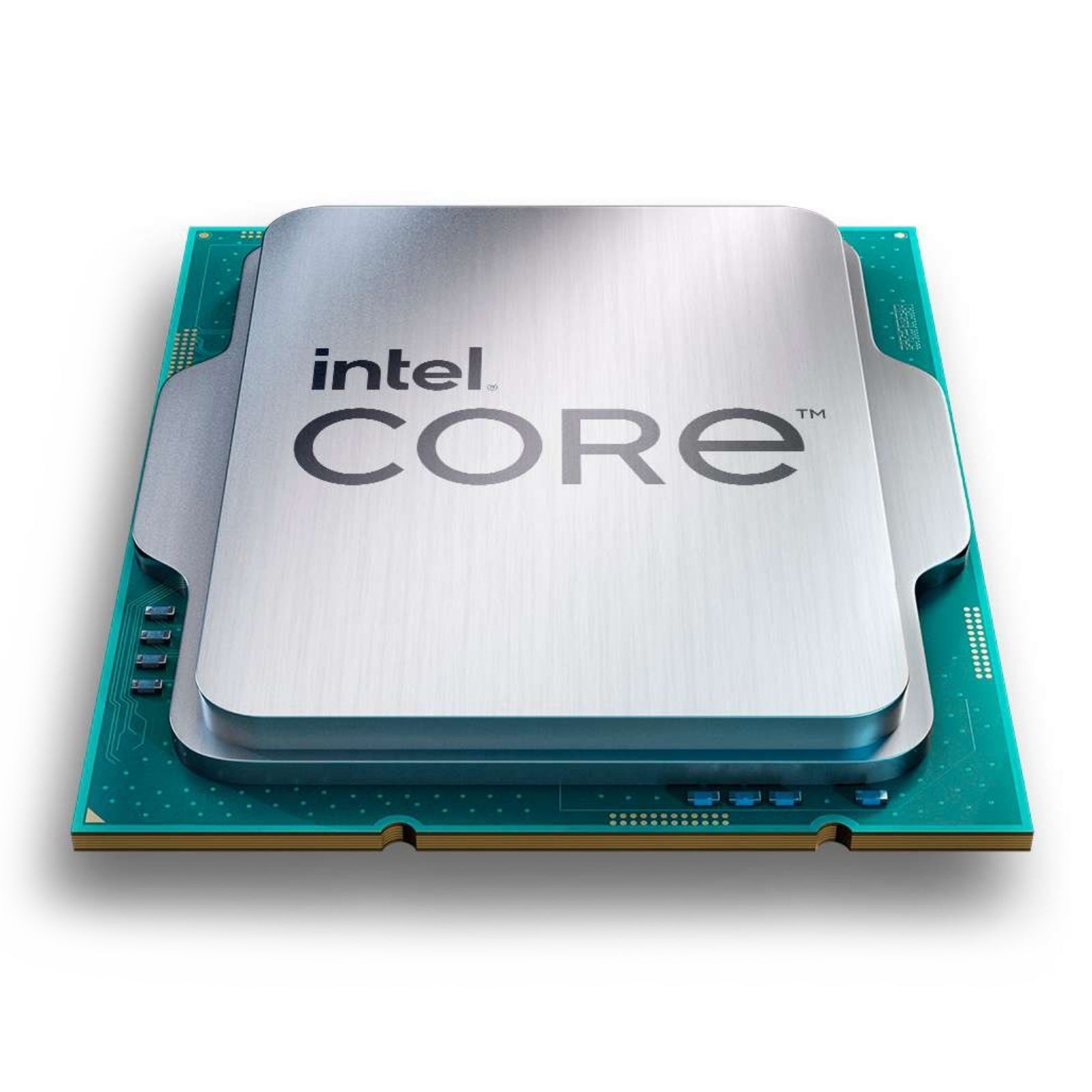

The Intel Core i7-14700KF Desktop CPU is designed to meet the needs of today's gamers, it works best with Z790 Motherboards.
Specifications
Essentials
Product Collection: Intel® Core™ i7 Processors (14th Gen)
Code Name: Products formerly RAPTOR LAKE
Vertical Segment: Desktop
Processor Number: i7-14700KF
Lithography: Intel 7
Use Conditions: PC/Client/Tablet
CPU Specifications
Total Cores: 20
# of Performance-Cores: 8
# of Efficient-Cores: 12
Total Threads: 28
Max Turbo Frequency: 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
Performance-Core Max Turbo Frequency: 5.5 GHz
Efficient-Core Max Turbo Frequency: 4.3 GHz
Performance-Core Base Frequency: 3.4 GHz
Efficient-Core Base Frequency: 2.5 GHz
Cache: 33 MB Intel® Smart Cache
Total L2 Cache: 28 MB
Processor Base Power: 125 W
Maximum Turbo Power: 253 W
Supplemental Information
Embedded Options Available: No
Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 5600 MT/s // Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20
Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020A
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel® Standard Manageability (ISM): Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Warranty: 36 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
