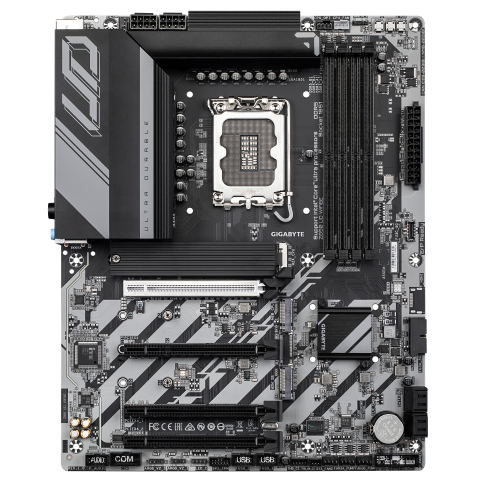

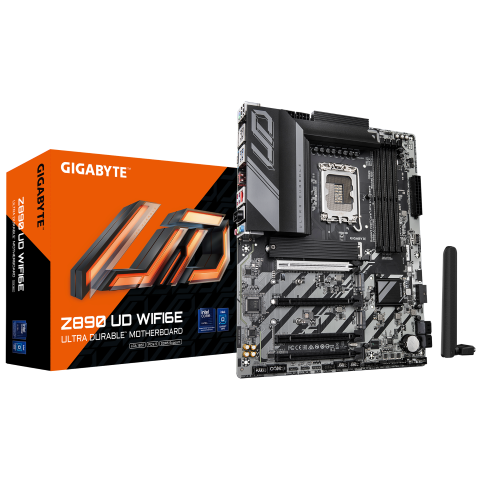

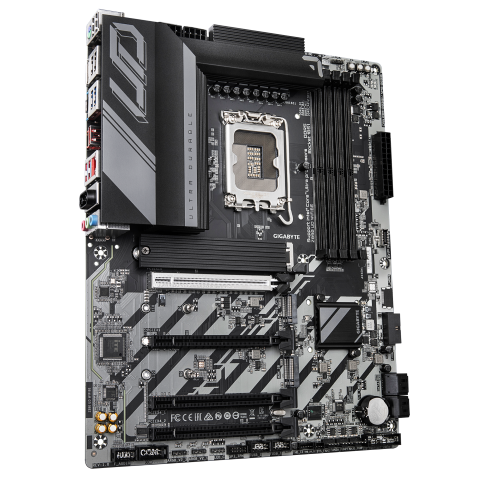

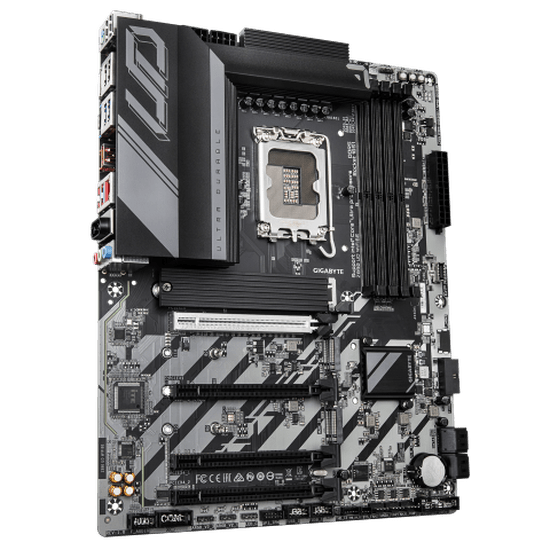

Gigabyte Z890 UD WIFI 6E Motherboard

GIGABYTE Z890 UD WIFI6E MOTHERBOARD

Z890 UD WIFI6E

Key Features

??        Supports Intel?? Core??? Ultra processors (Series 2)

??        Digital twin 12+1+2 phases VRM solution

??        D5 Bionic Corsa for Infinite Memory Performance

??        AORUS AI SNATCH : Auto-Overclocking Software by AI models

??        AI Perfdrive : Provides optimal and customized BIOS preset profile for users

??        Premium Compatibility : 4*DDR5 with XMP Memory Module Support

??        WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

??        EZ-Latch : PCIe x16 Slot with Quick Release Design

??        Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

??        New Power Monitor in  HWinfo for real-time monitoring on CPU power phases

??        Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

??        Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

??        Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax

??        Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

• CPU
  LGA1851 socket: Support for Intel?? Core??? Ultra Processors
  L3 cache varies with CPU
  * Please refer to "CPU Support List" for more information.
• Chipset
  Intel?? Z890 Express Chipset
• Memory
  Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel?? HD Graphics support:
  - 1 x USB4?? USB Type-C?? port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version


  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
