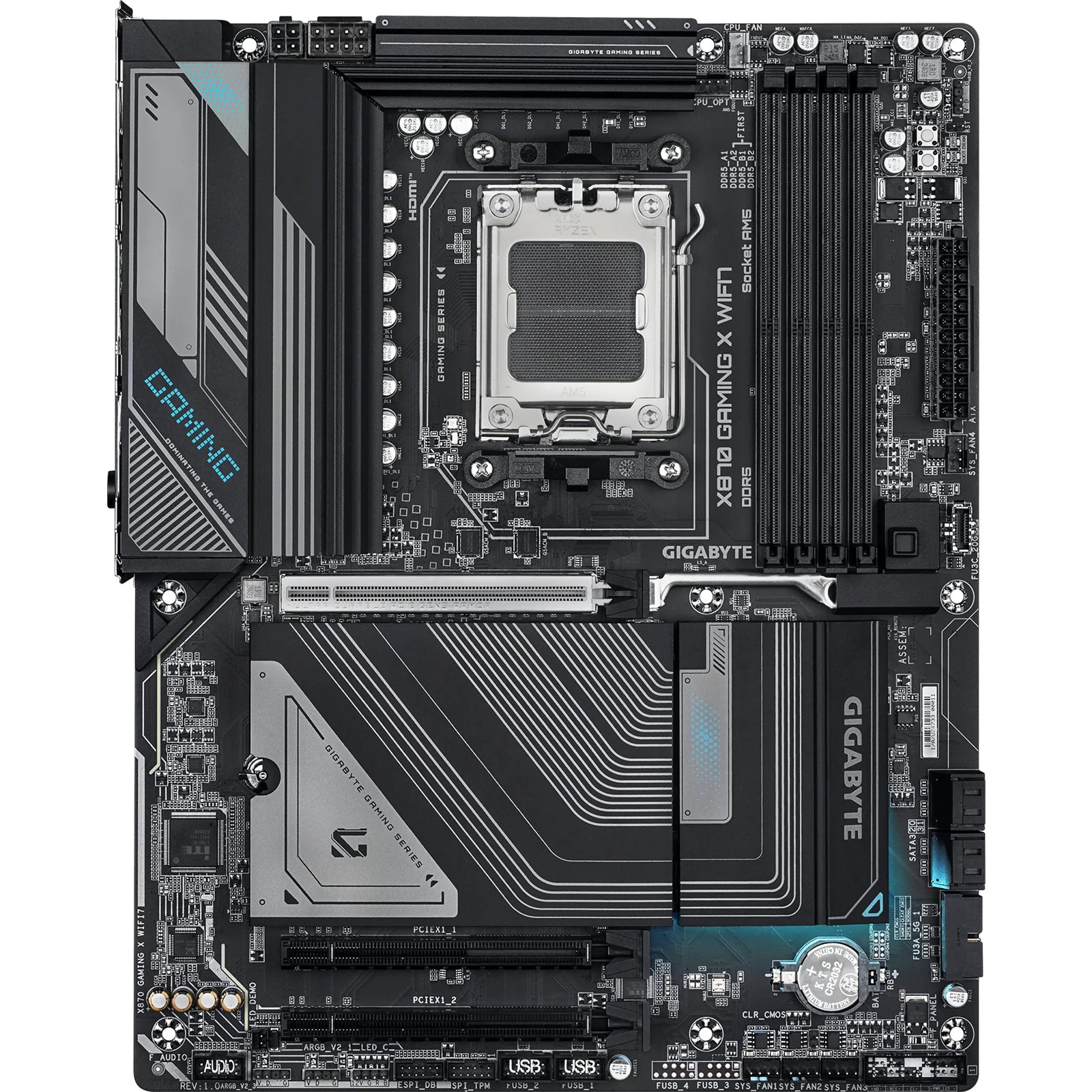

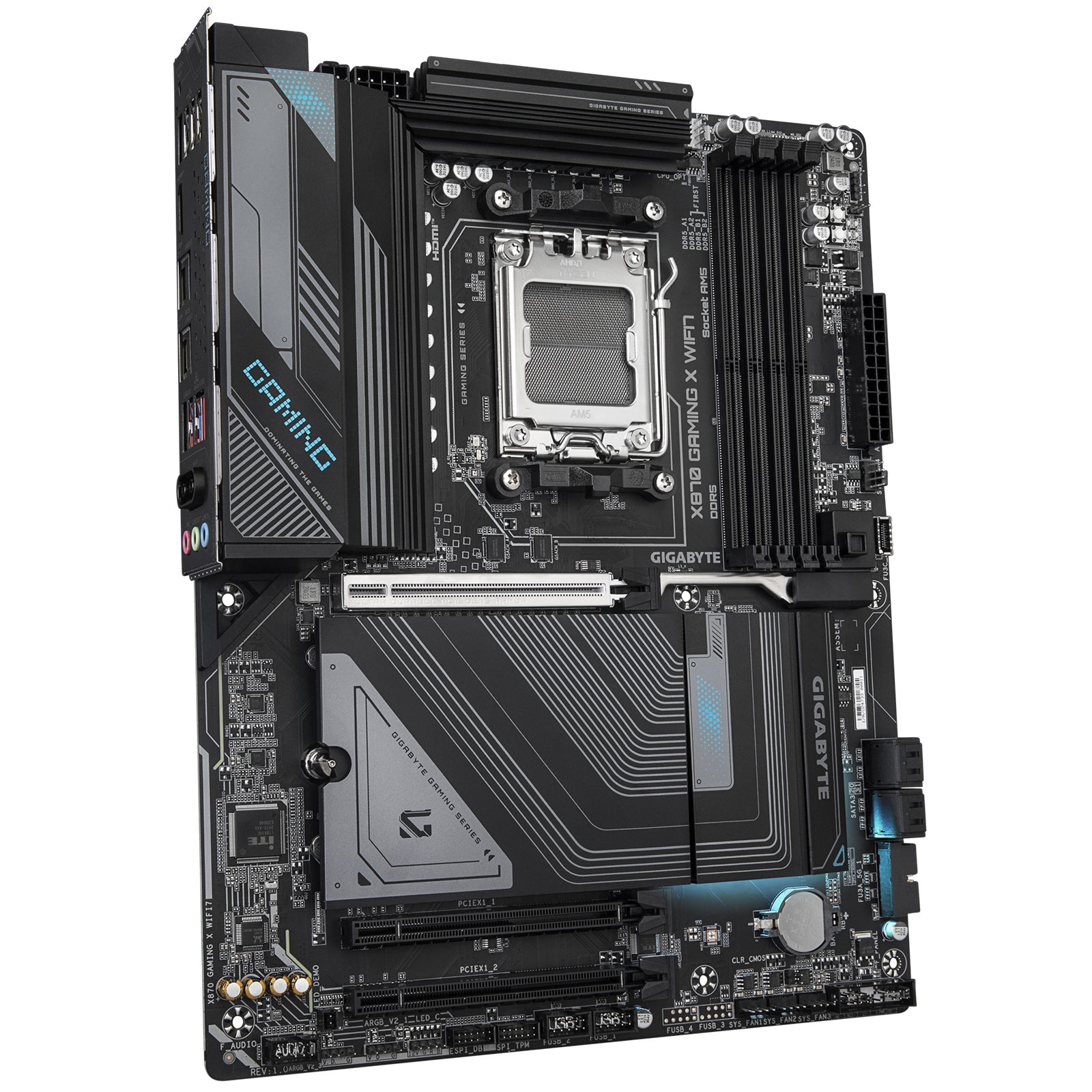

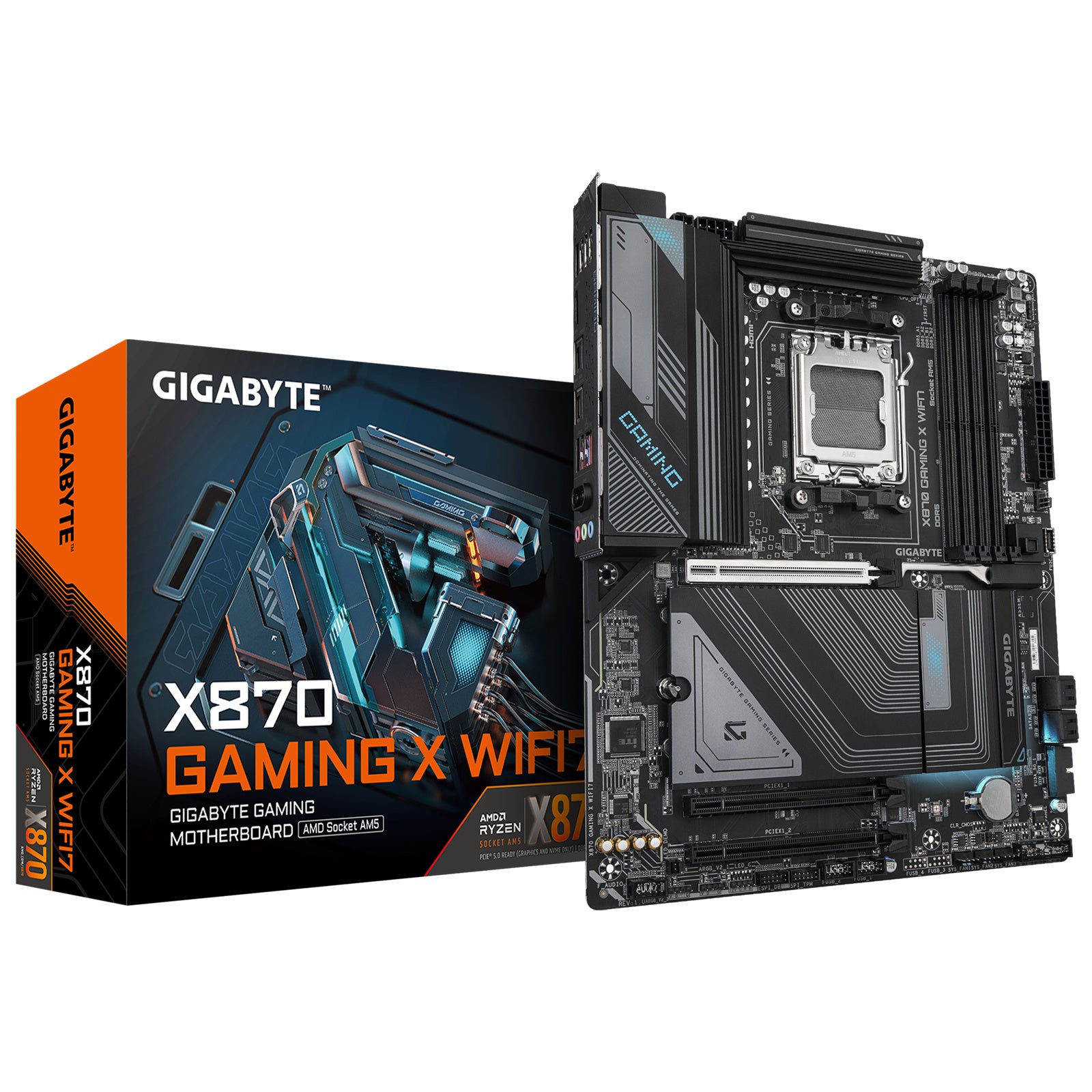

Gigabyte X870 Gaming X WIFI 7 Motherboard

Gigabyte X870 Gaming X WIFI 7 Motherboard

Brand: Gigabyte | SKU: X870 GAMING X WIFI7

$598.00
$598.00 $598.00
Sale Sold out
GST included. Shipping calculated at checkout.

In stock

Found a better price? Request a price match

View full details

X870 GAMING X WIFI7

Key Features

AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital twin 16+2+2 phases VRM solution

Dual Channel DDR5 4*DIMMs with AMD EXPO Memory Module Support

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click M.2 heatsinks with screwless design

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Ultra-Fast Storage 3*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal VRM Thermal Armor Advanced  & M.2 Thermal Guard Ext.

Fast Networking 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

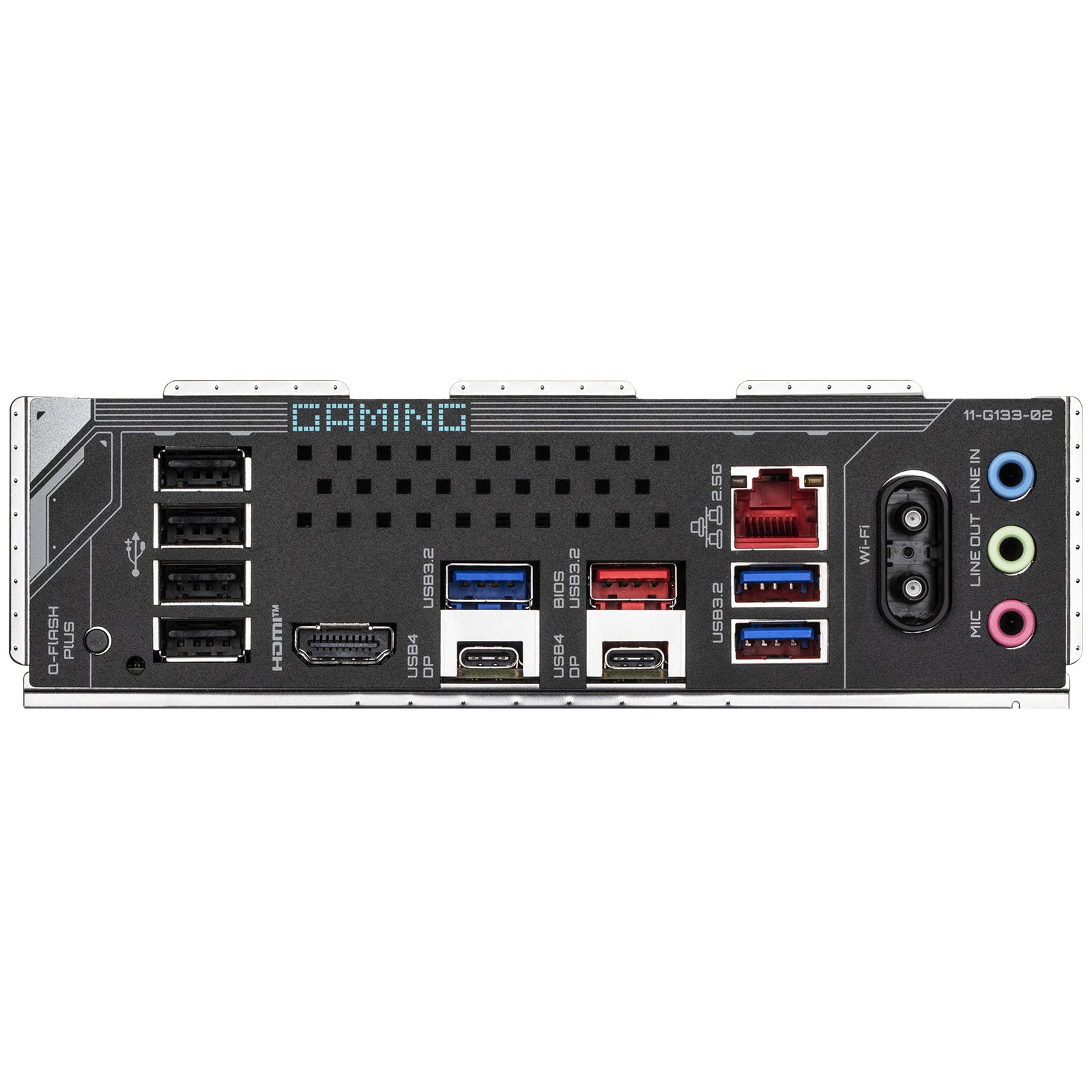

Extended Connectivity Dual USB4 Type-C with DP-Alt, HDMI

Tech Specs:


  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen 9000 Series Processors/
    AMD Ryzen 8000 Series Processors/
    AMD Ryzen 7000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
    AMD X870
  • Memory
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
    - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

    * Support for DisplayPort 1.4 version and HDR.


    Integrated Graphics Processor with AMD Radeon??? Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support native HDMI 2.1 TMDS compatible ports.


    (Graphics specifications may vary depending on CPU support.)
  • Audio
    Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 160MHz wireless standard

    Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

  • Expansion Slots
