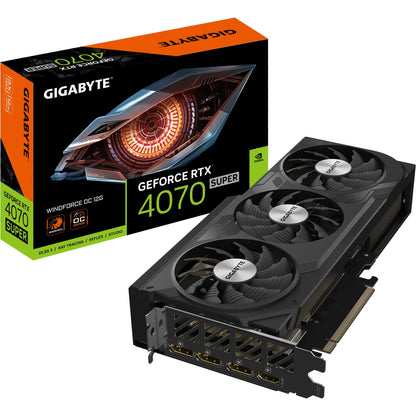

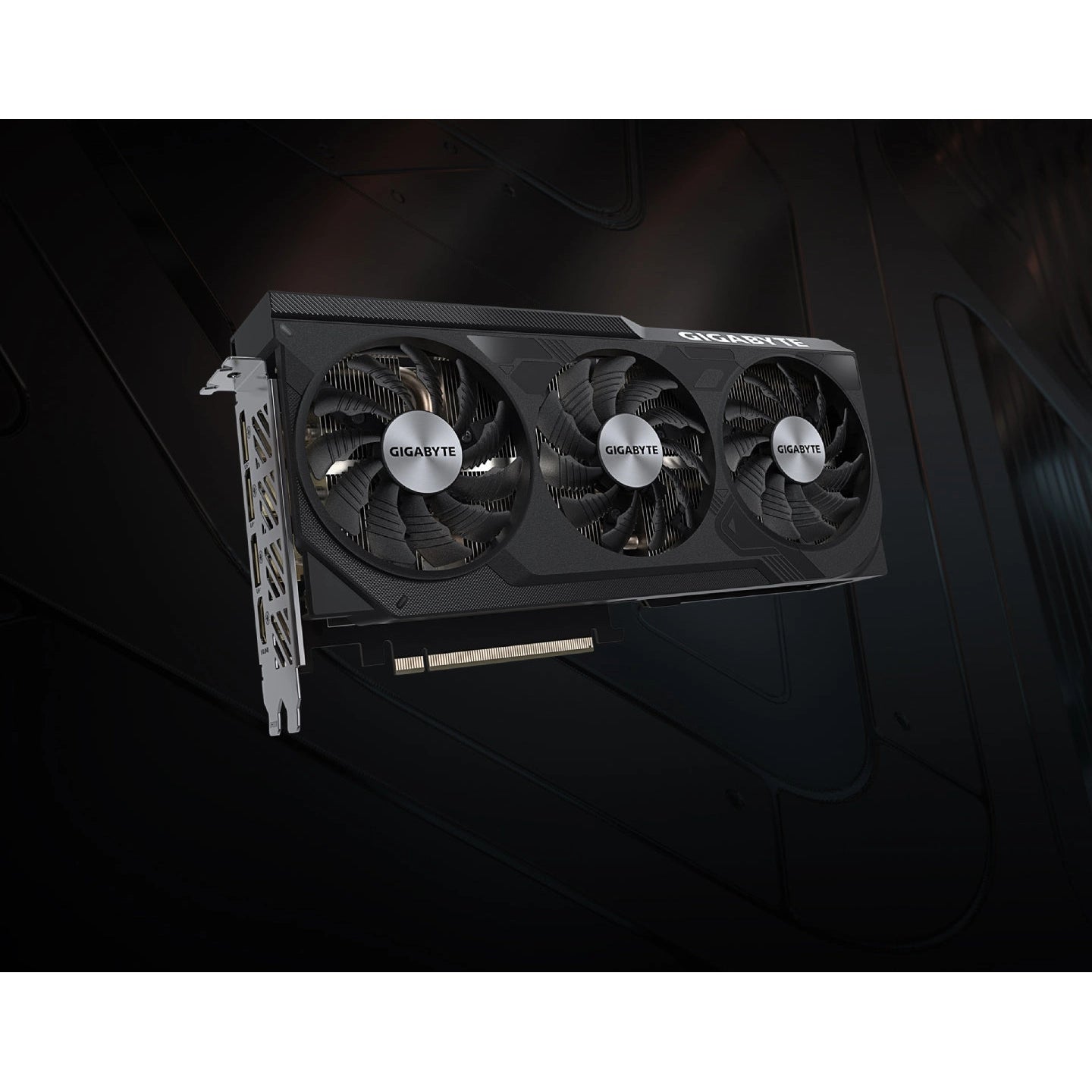

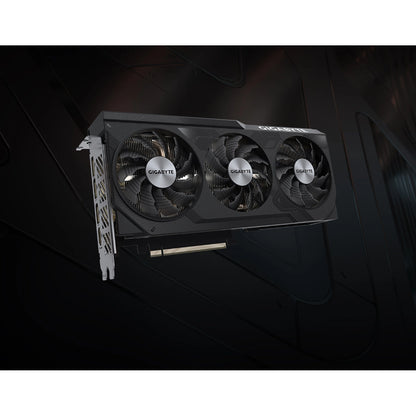

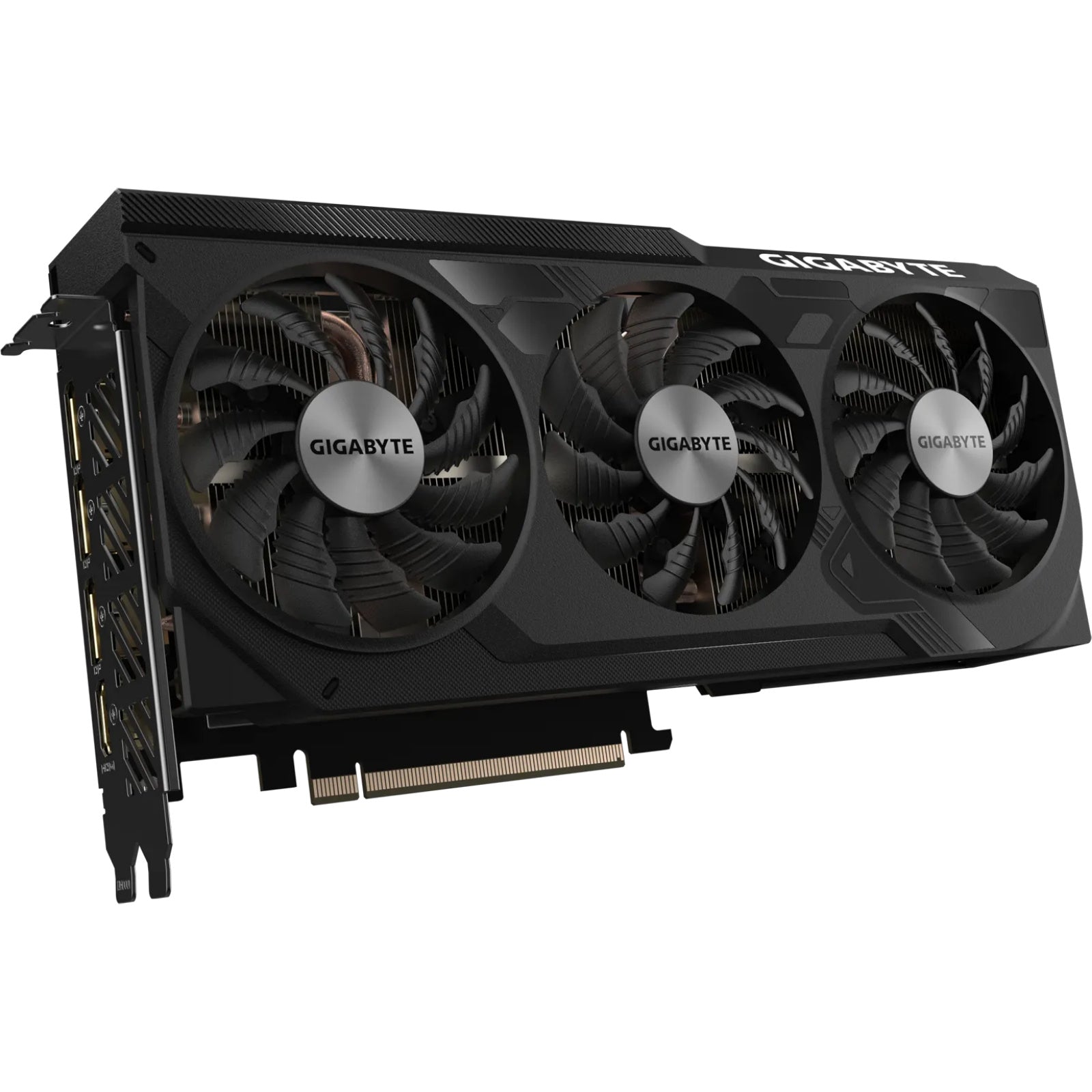

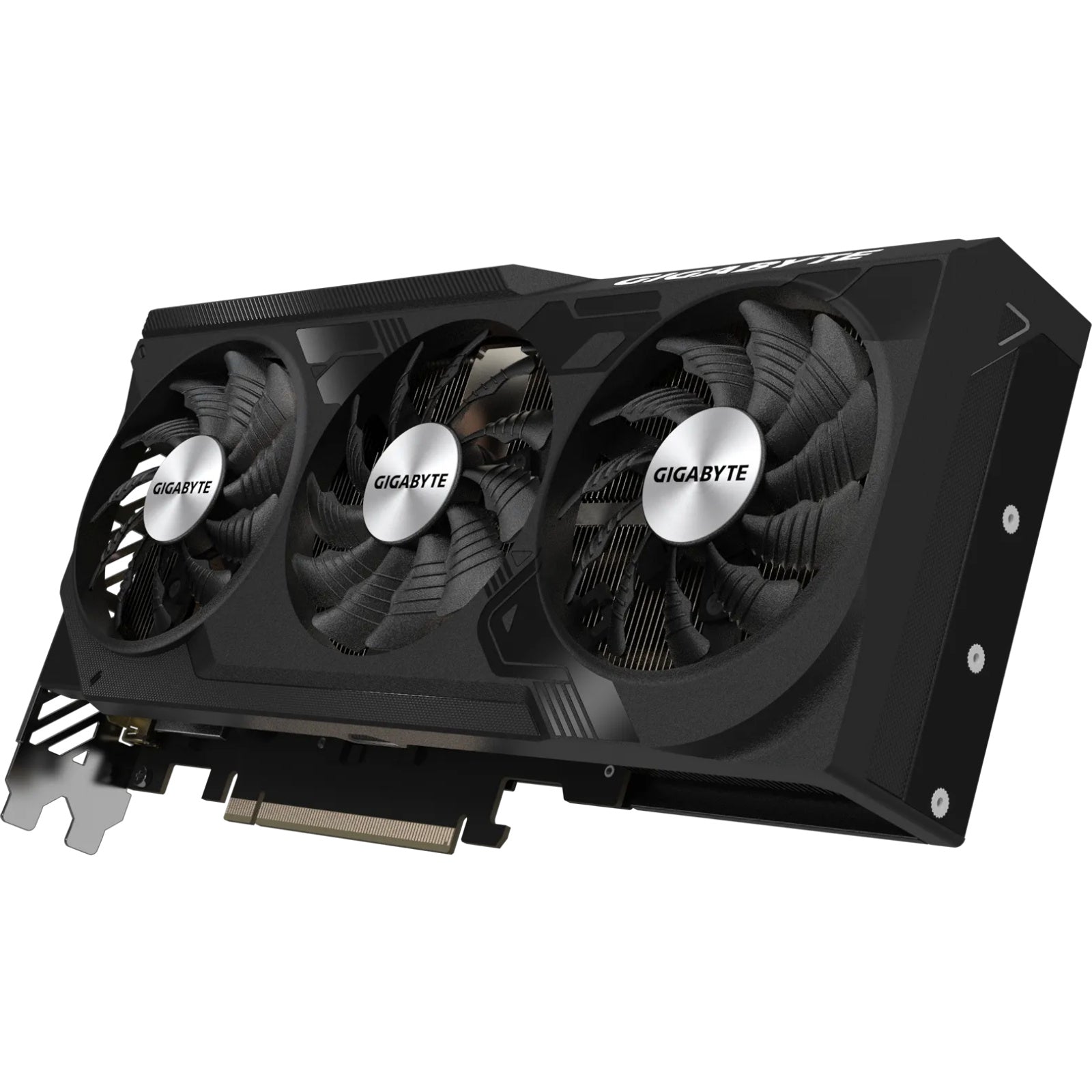

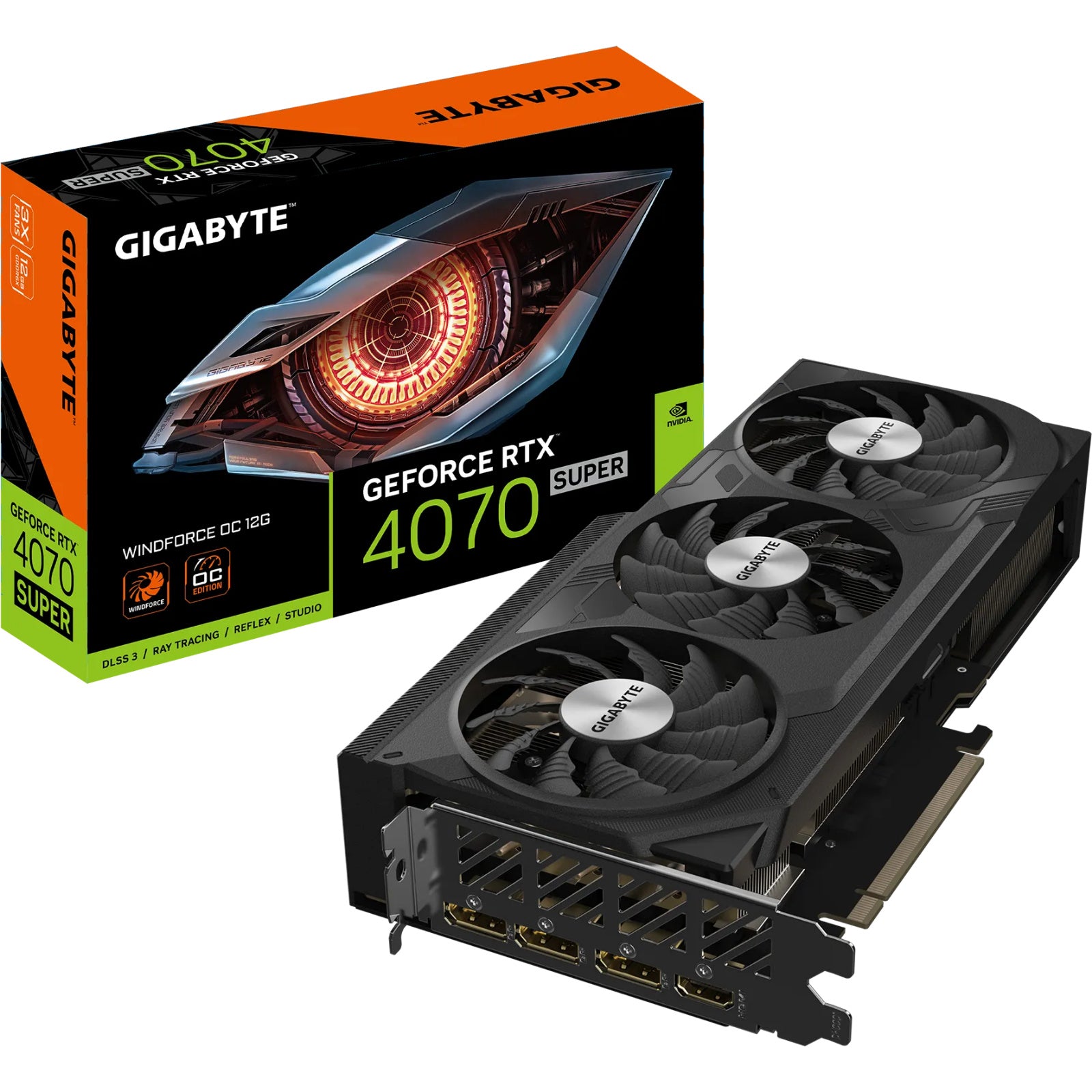

Gigabyte NVIDIA GeForce RTX 4070 SUPER WindForce OC 12GB GDDR6X Graphics Card
Features:
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 SUPER
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate
- CORE CLOCK 2505 MHz (Reference card: 2475 MHz)

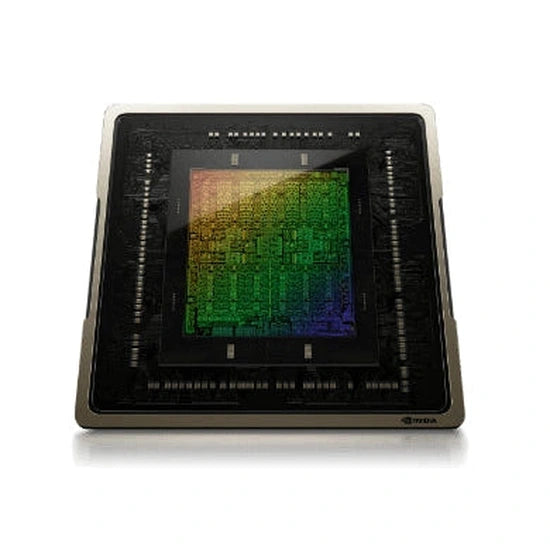

NVIDIA Ada Lovelace Architecture
Designed to Give You Superpowers
New Streaming Multiprocessors
Up to 2X performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4X performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
Up to 2X ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers

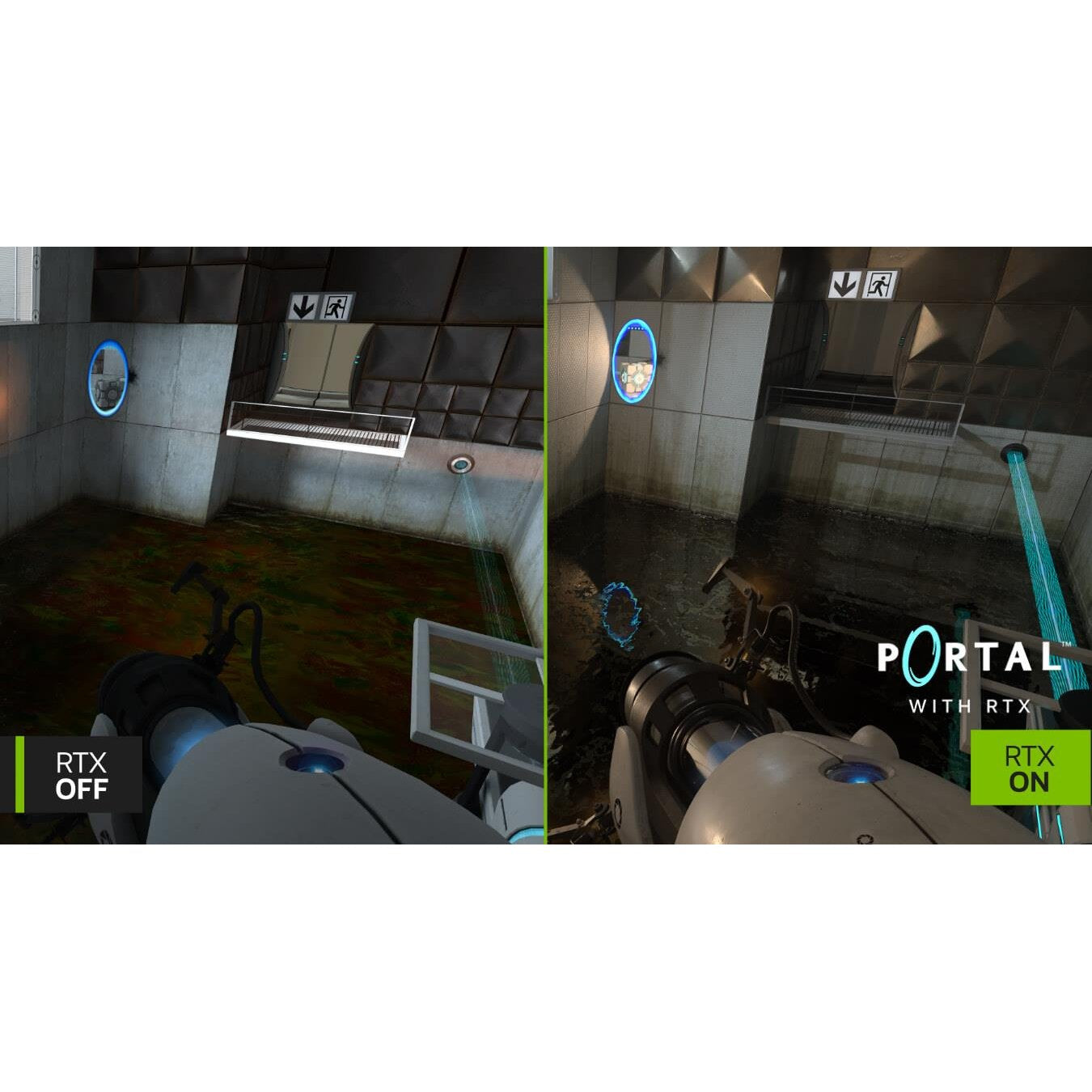

Ray Tracing - Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

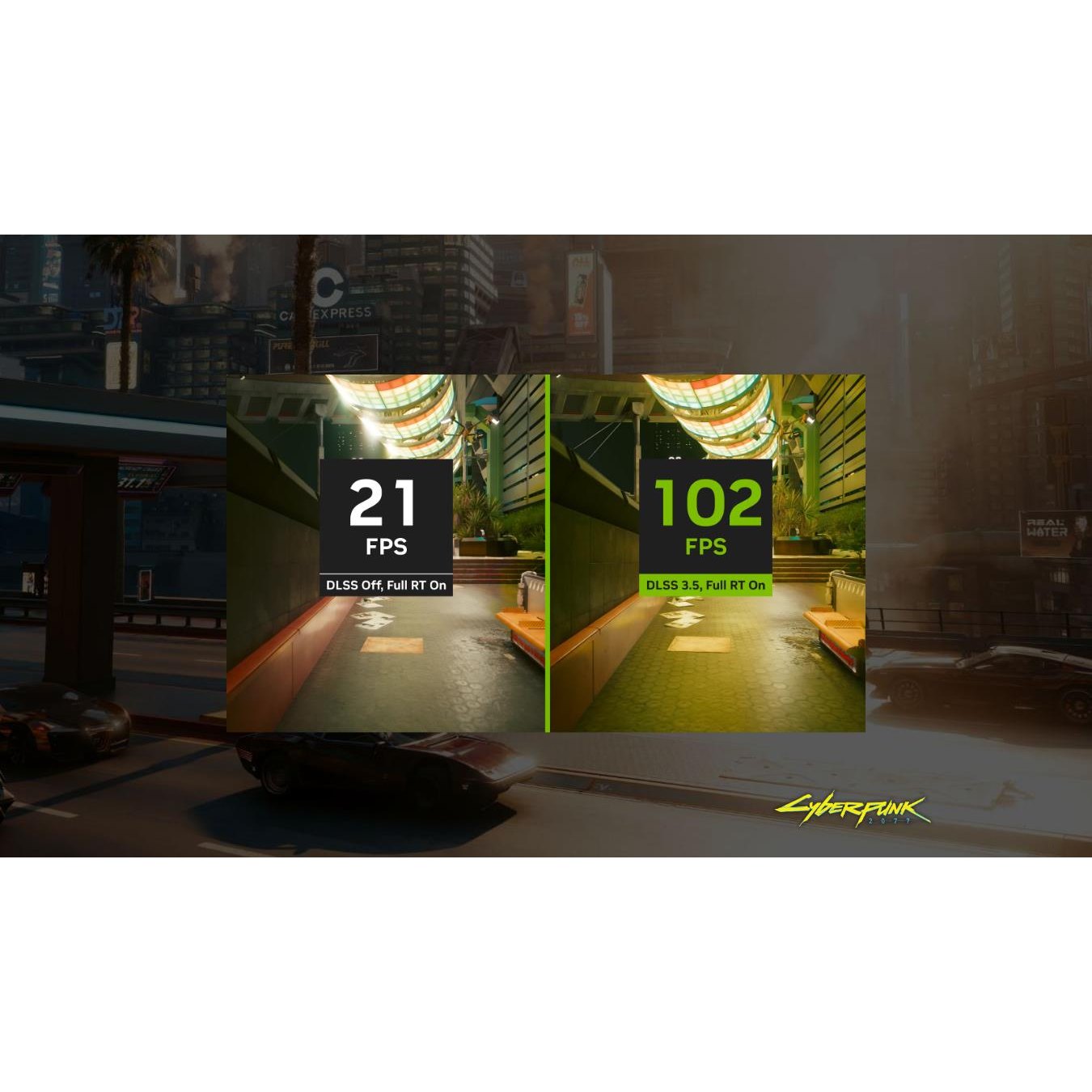

NVIDIA DLSS 3 - Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
*Captured with GeForce RTX 4090 at 3840 x 2160, highest game settings and RT Overdrive mode.

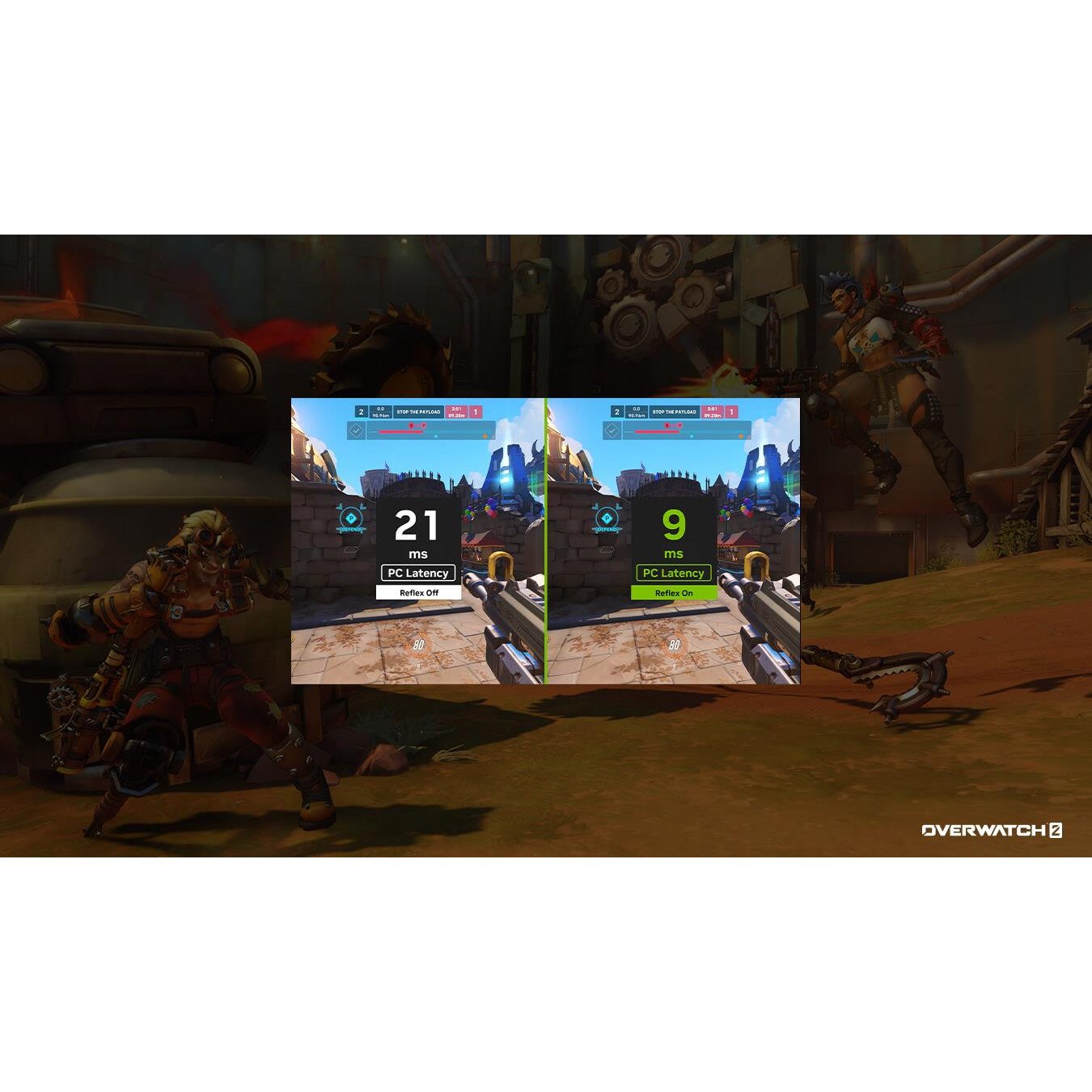

NVIDIA Reflex - Victory measured in milliseconds
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
*Captured with GeForce RTX 4090 at 3840 x 2160, high game settings
Get next-level AI performance on GeForce RTX. - Further With AI, Faster on RTX
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.

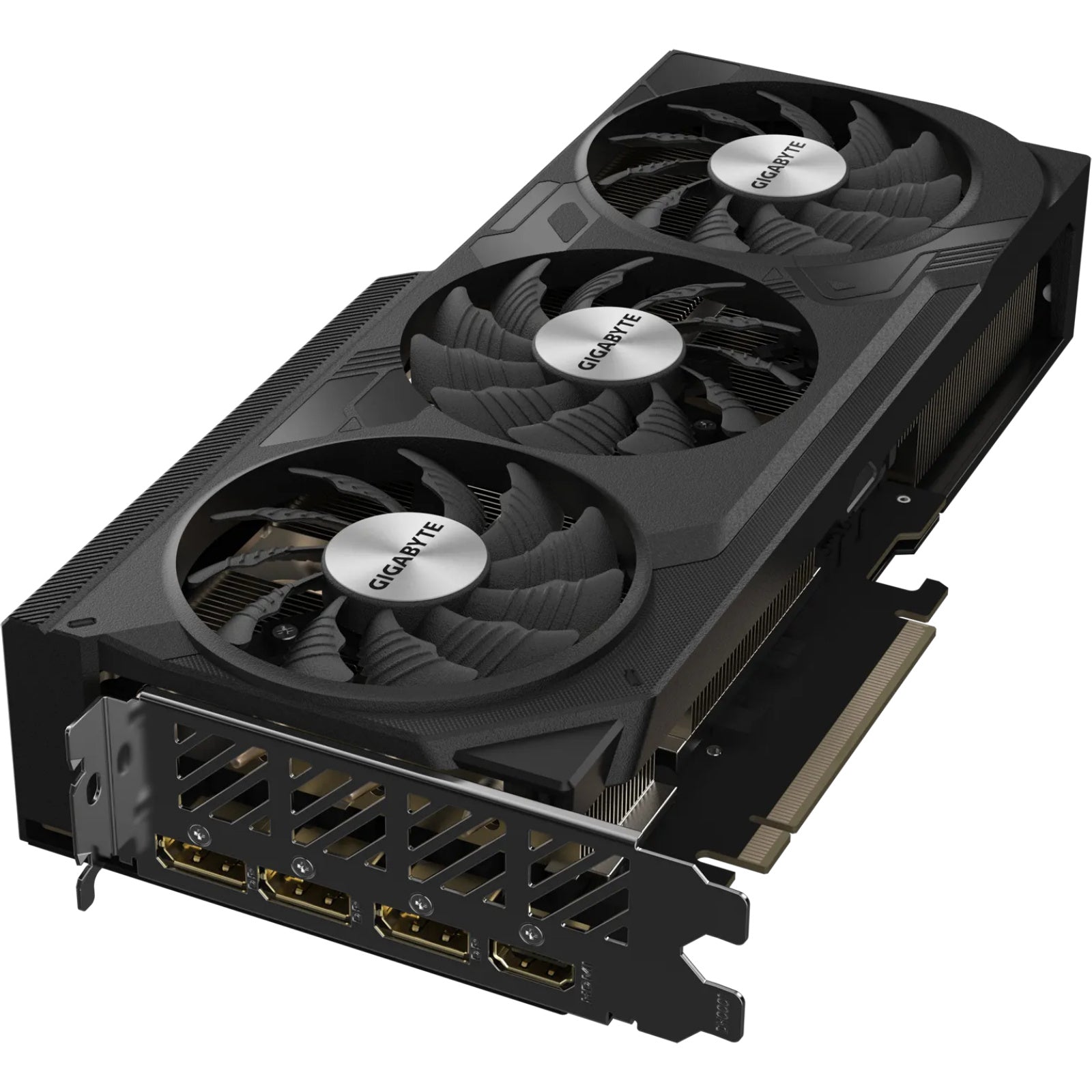

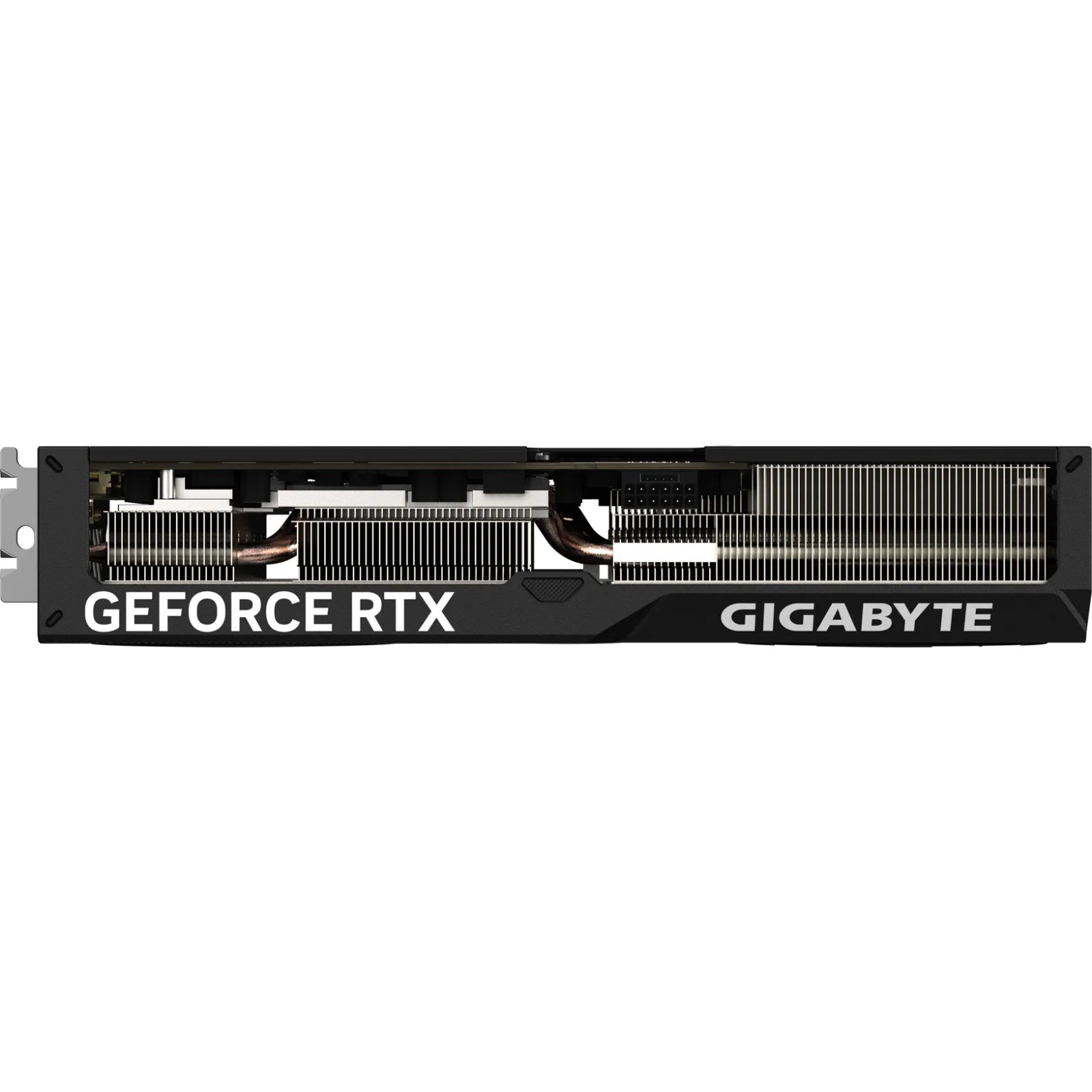

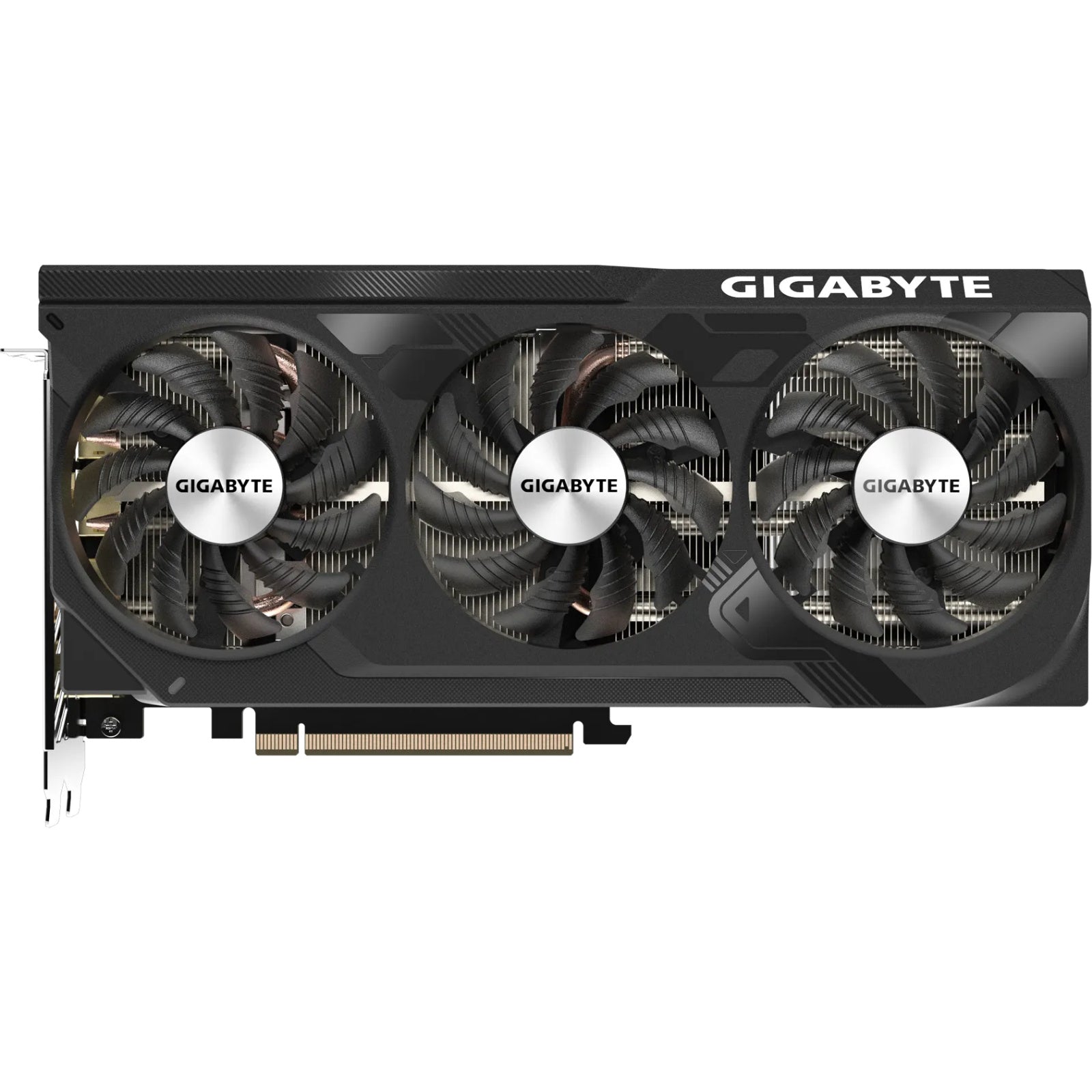

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

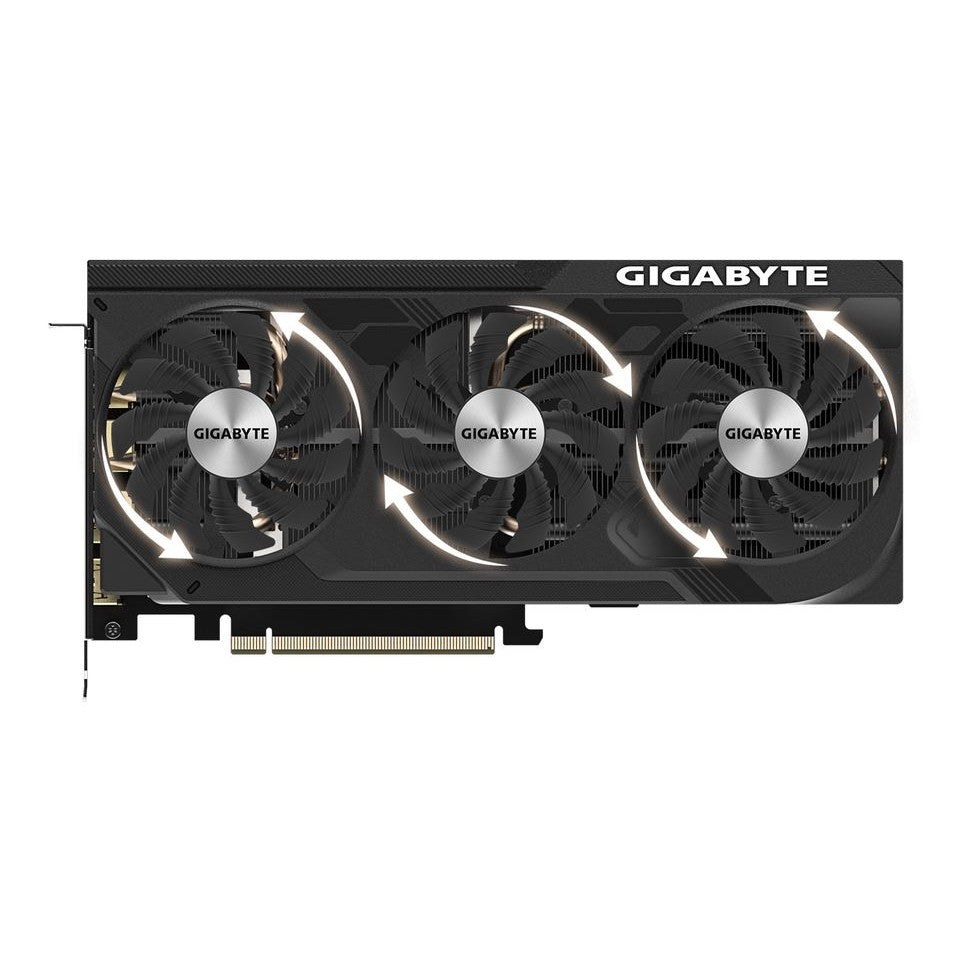

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

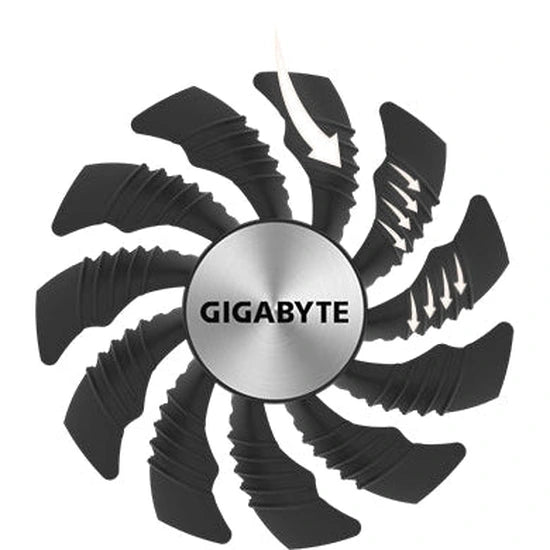

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

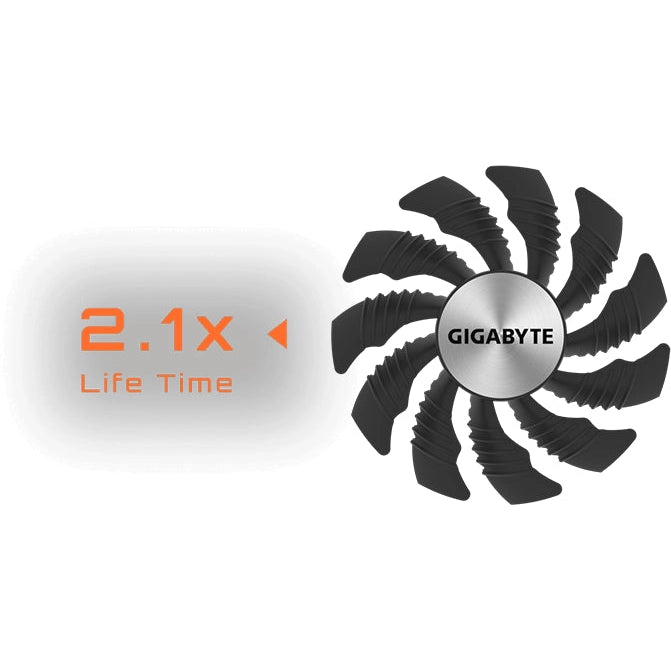

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

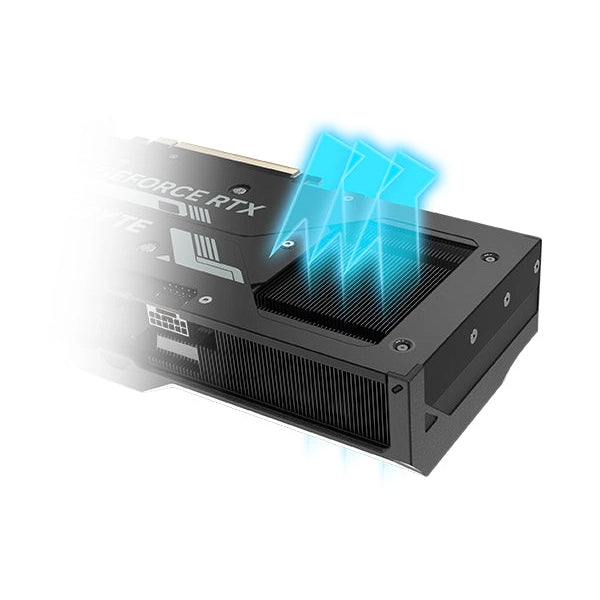

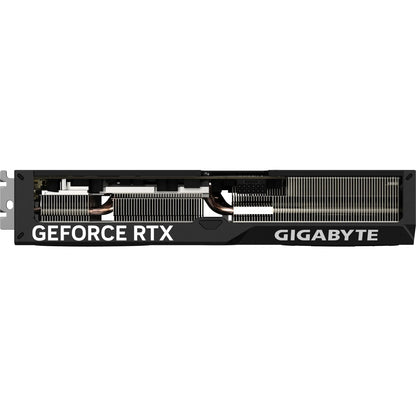

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

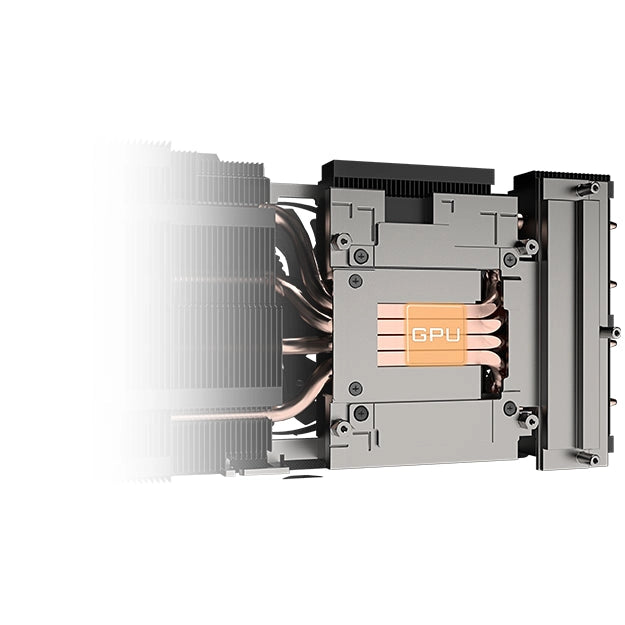

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

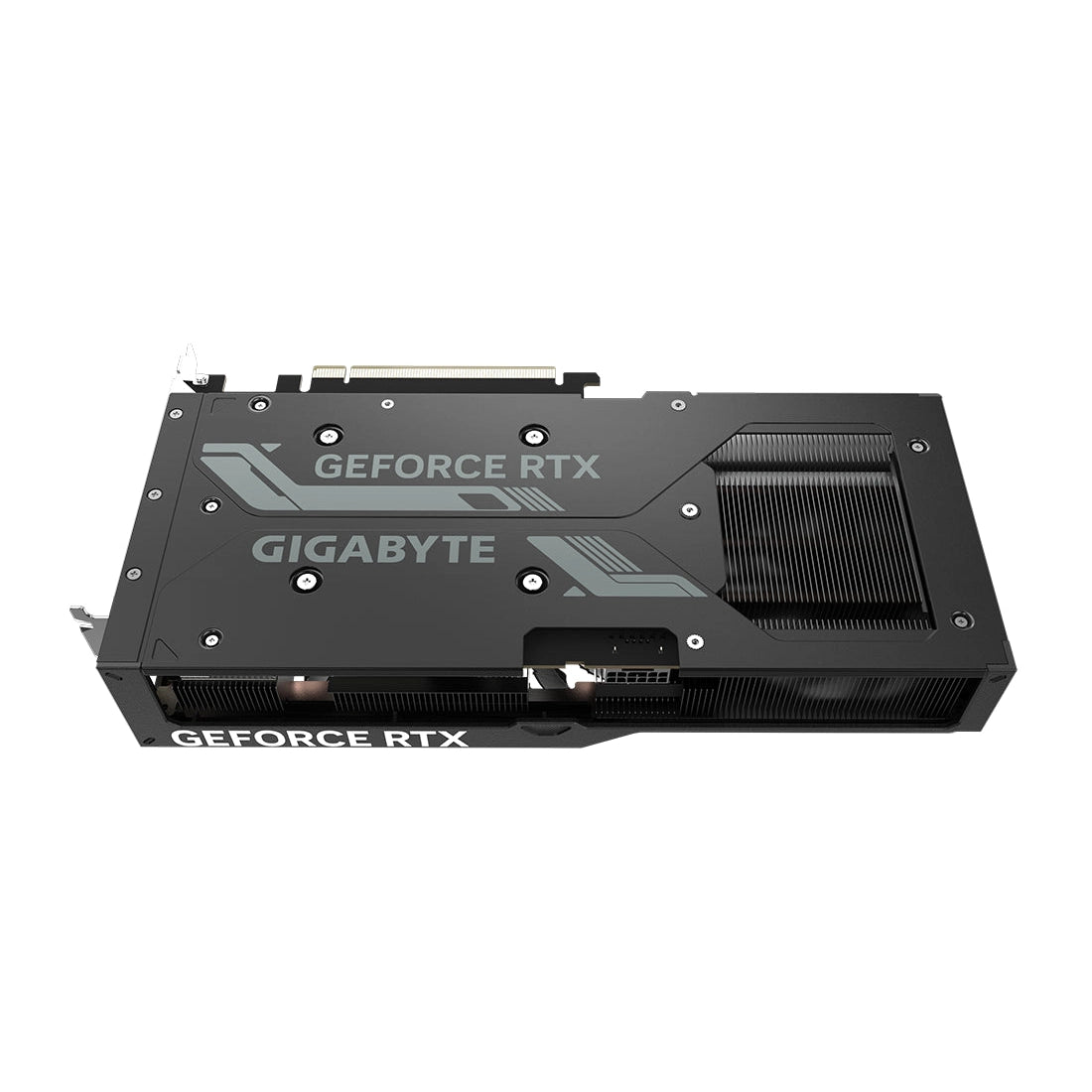

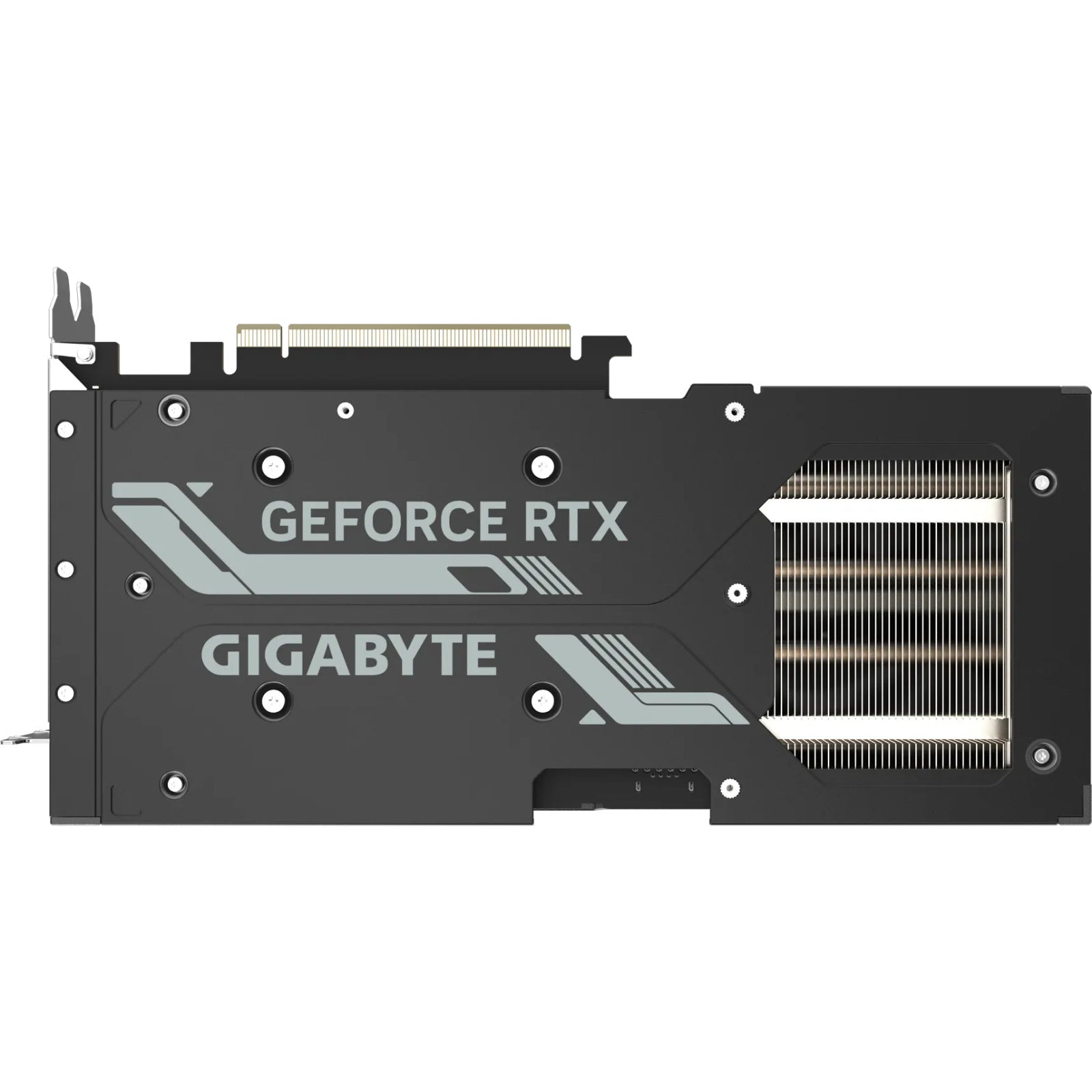

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
BUILD STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

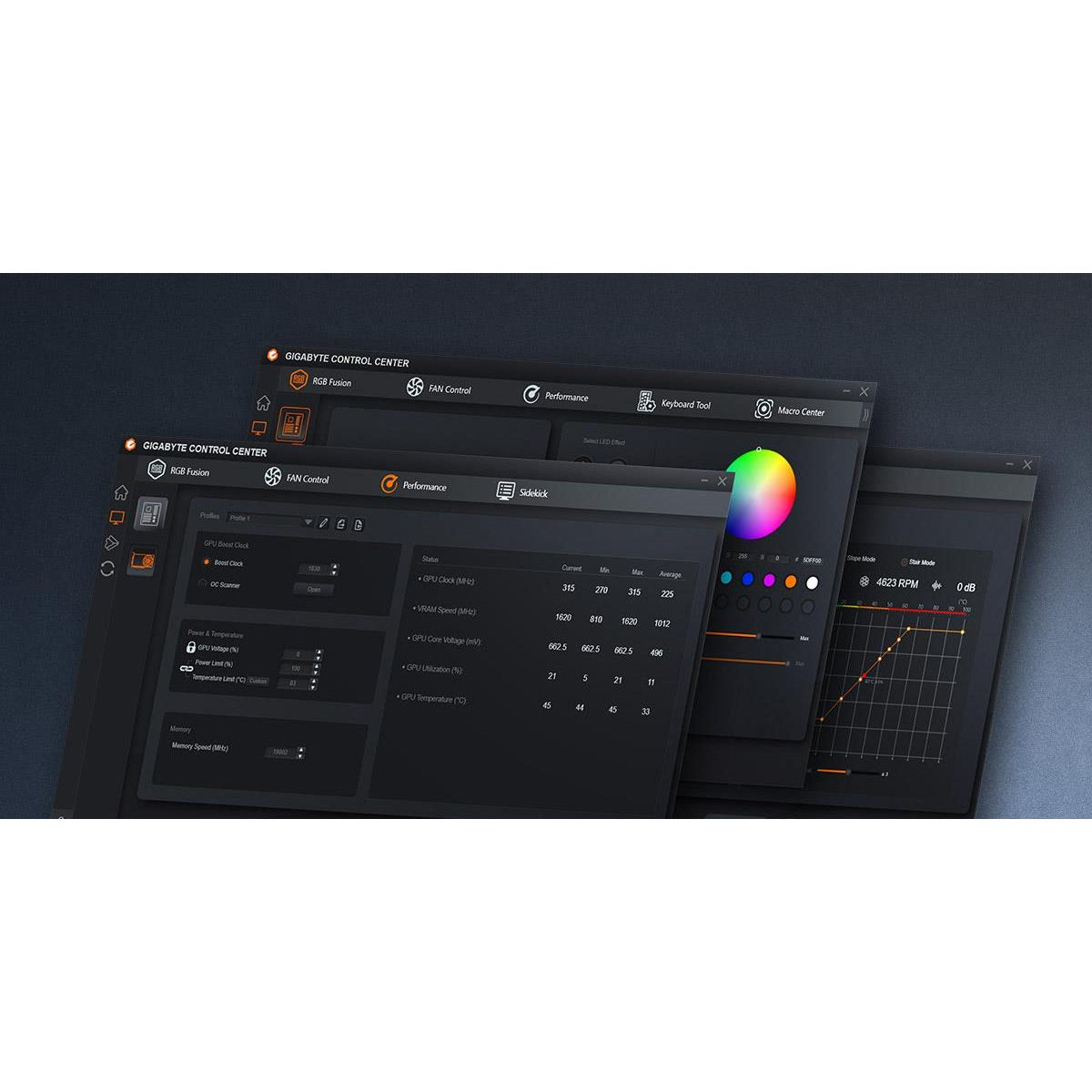

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
Graphics Processing
GeForce RTX™ 4070 SUPER
Core Clock
2505 MHz (Reference card: 2475 MHz)
CUDA® Cores
7168
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCIe 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=261 W=126 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
16 pin *1

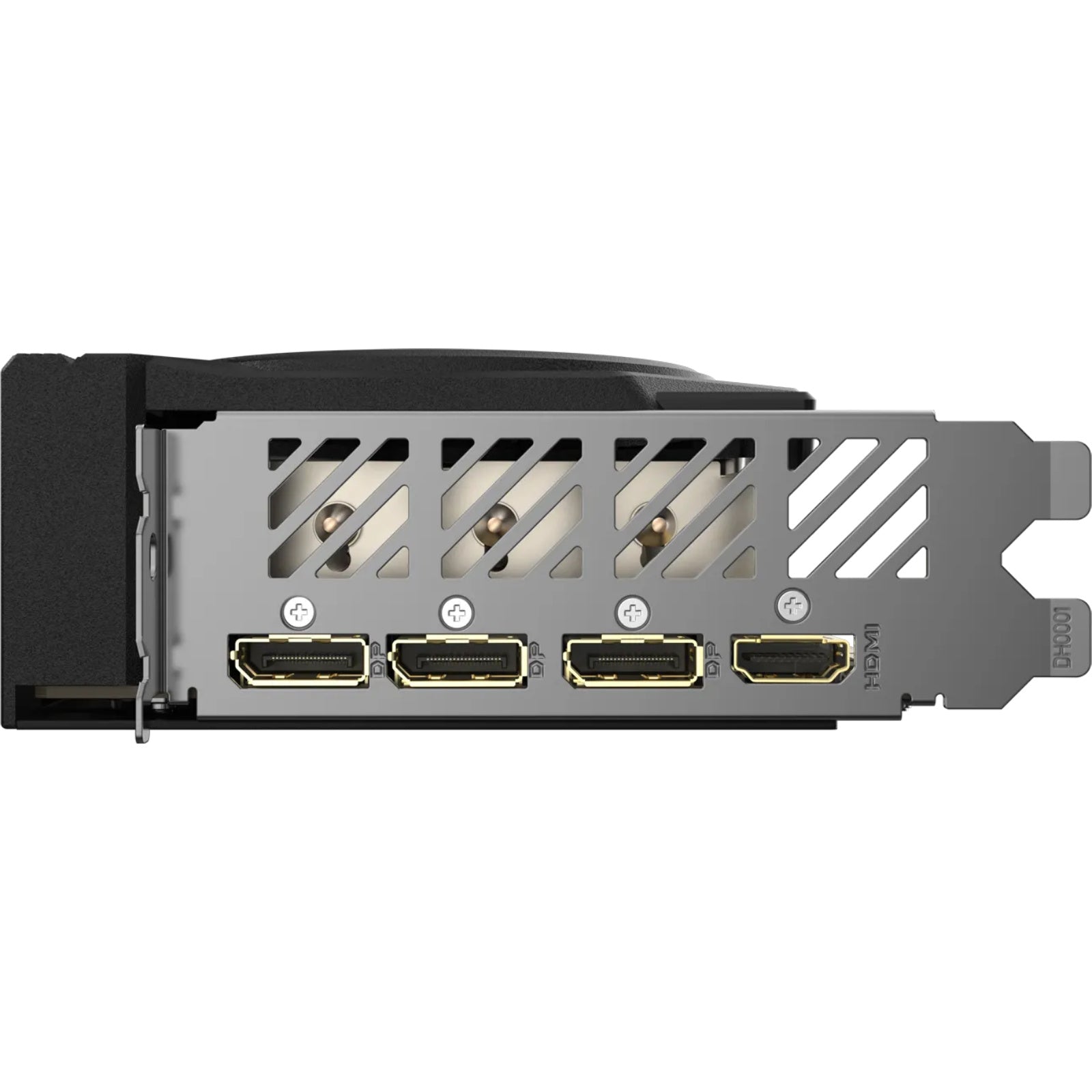

Output
DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories
1. Quick guide

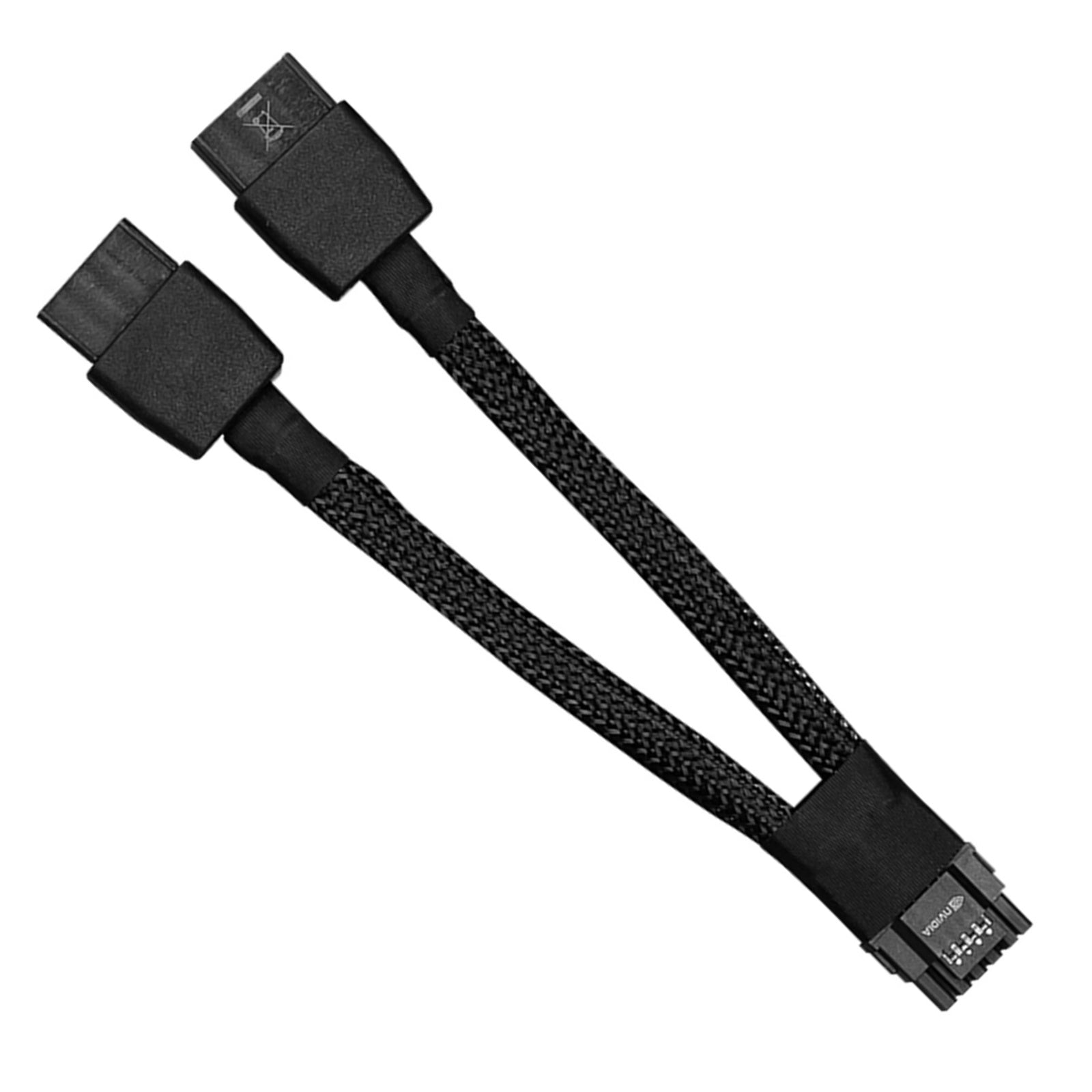

2. One 16 pin two 8-pin power adaptor
