Features
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

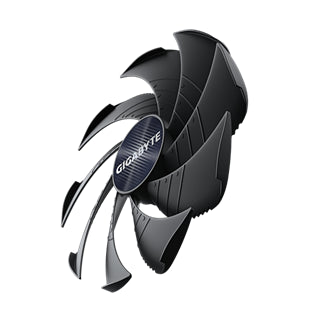

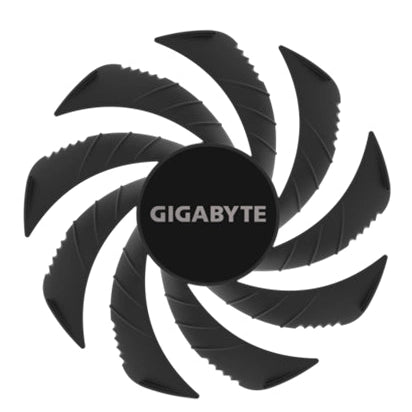

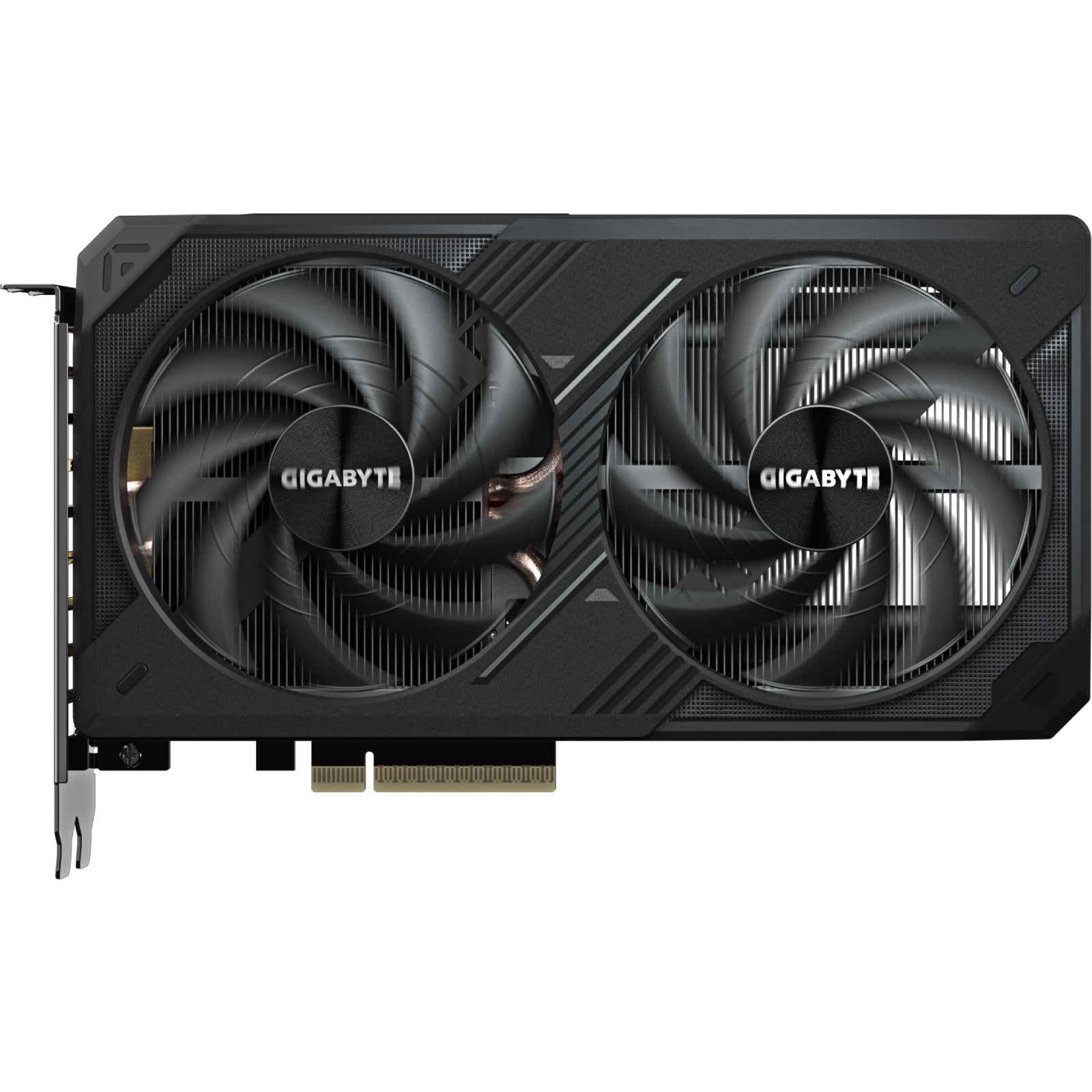

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

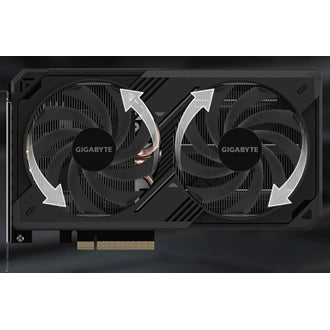

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

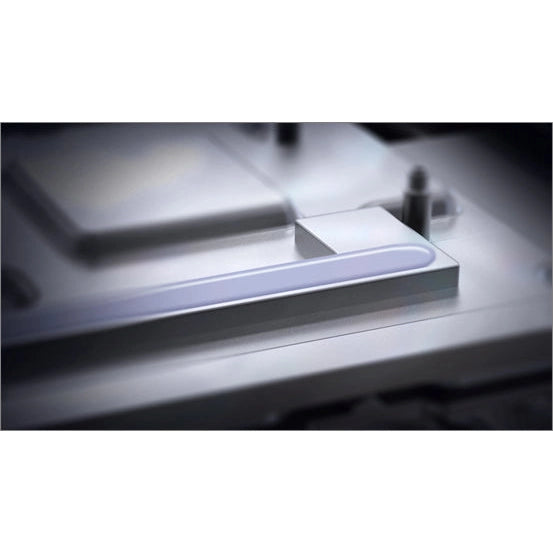

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

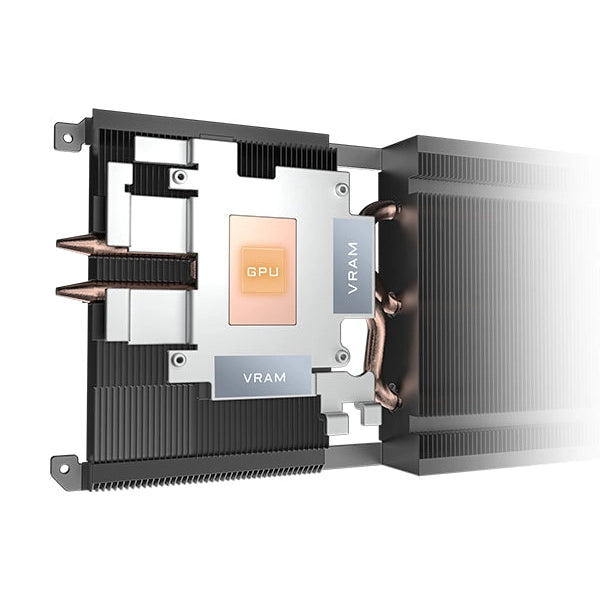

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

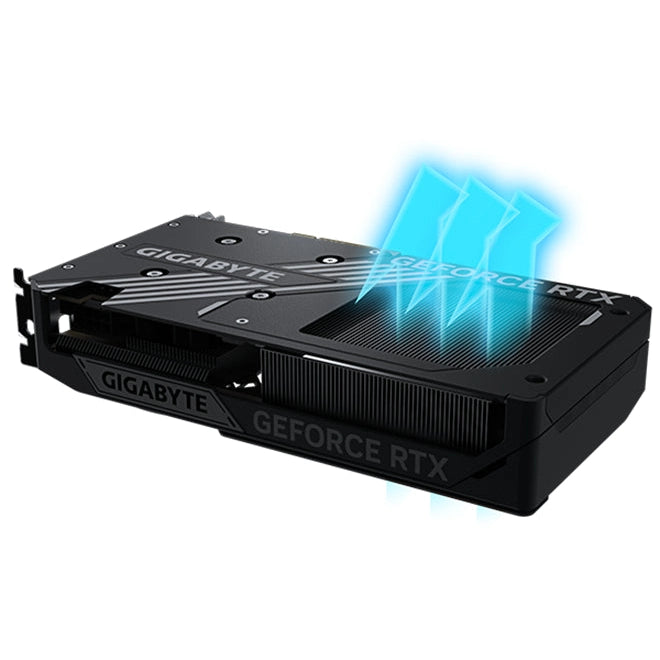

SCREEN COOLING
The extended heatsink allows air to pass through, effectively dissipating heat.

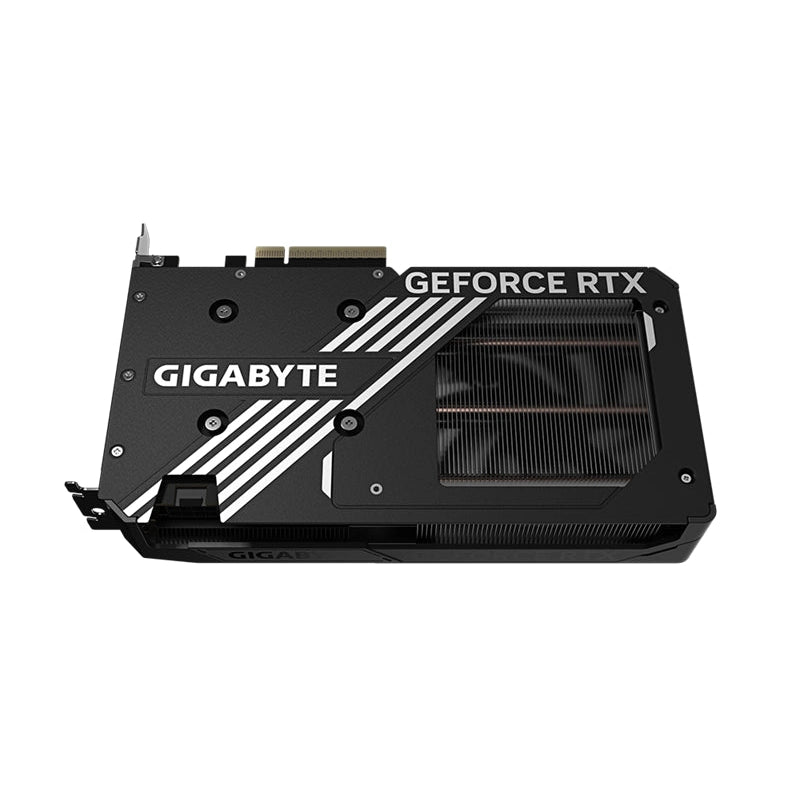

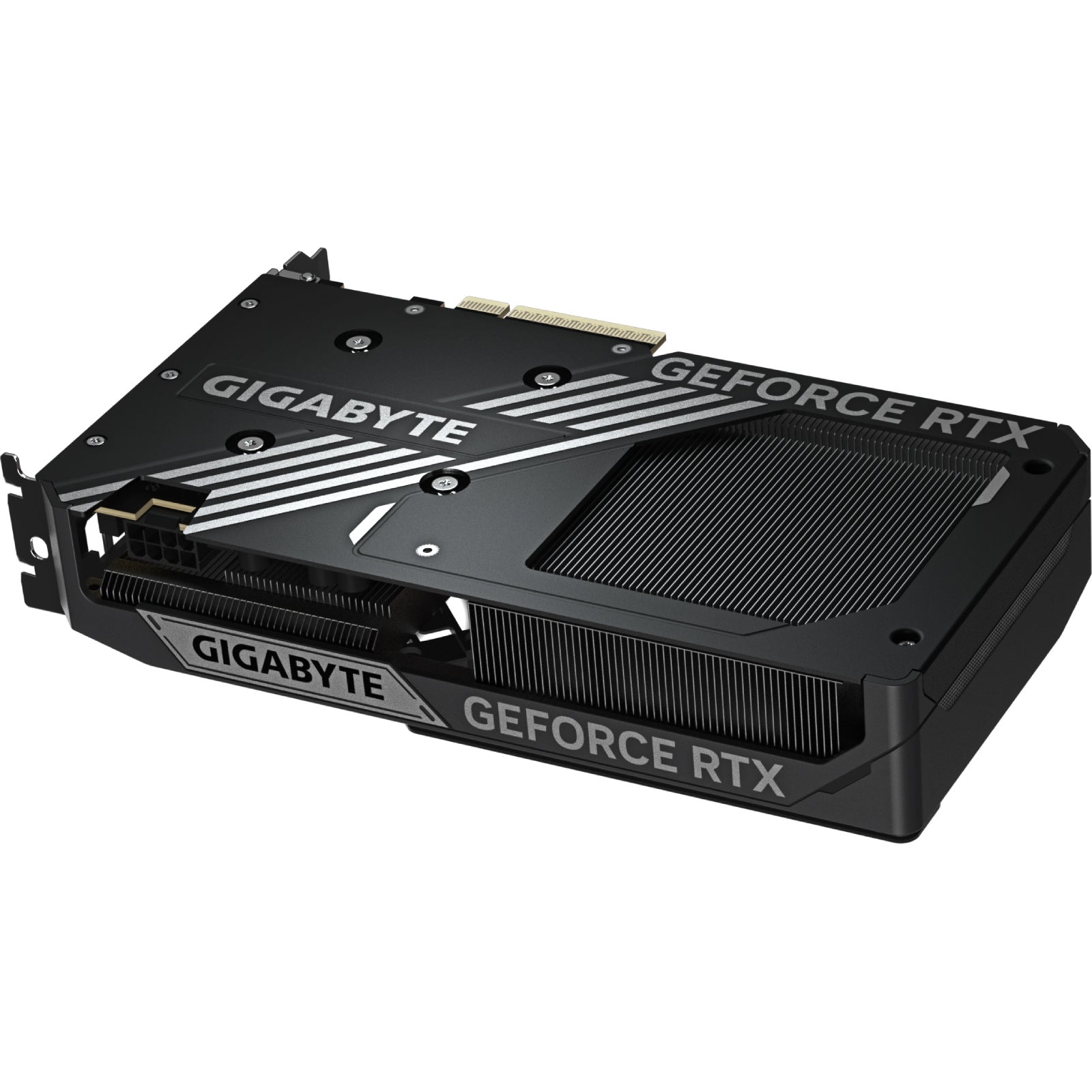

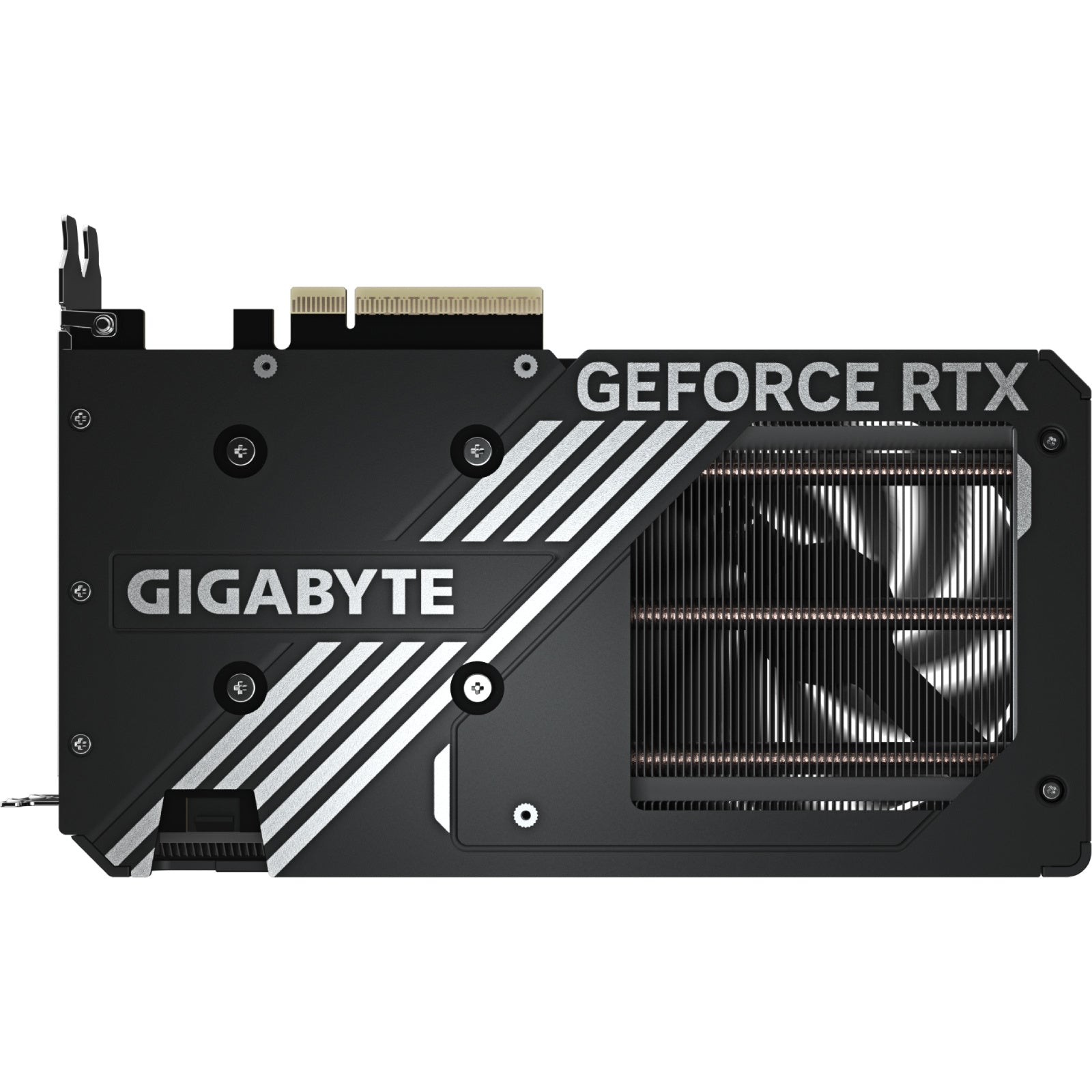

METAL BACKPLATE
The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

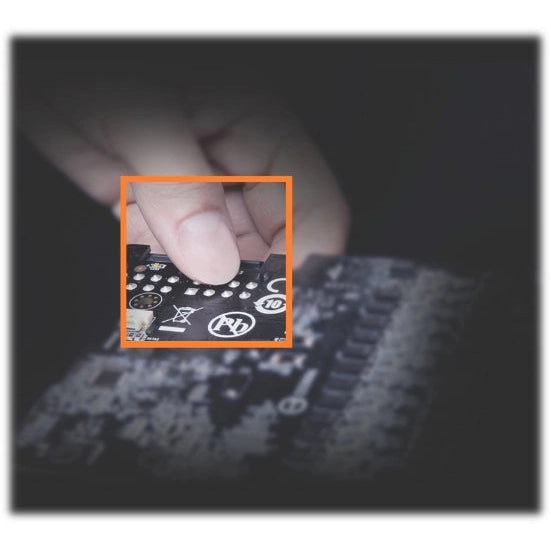

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

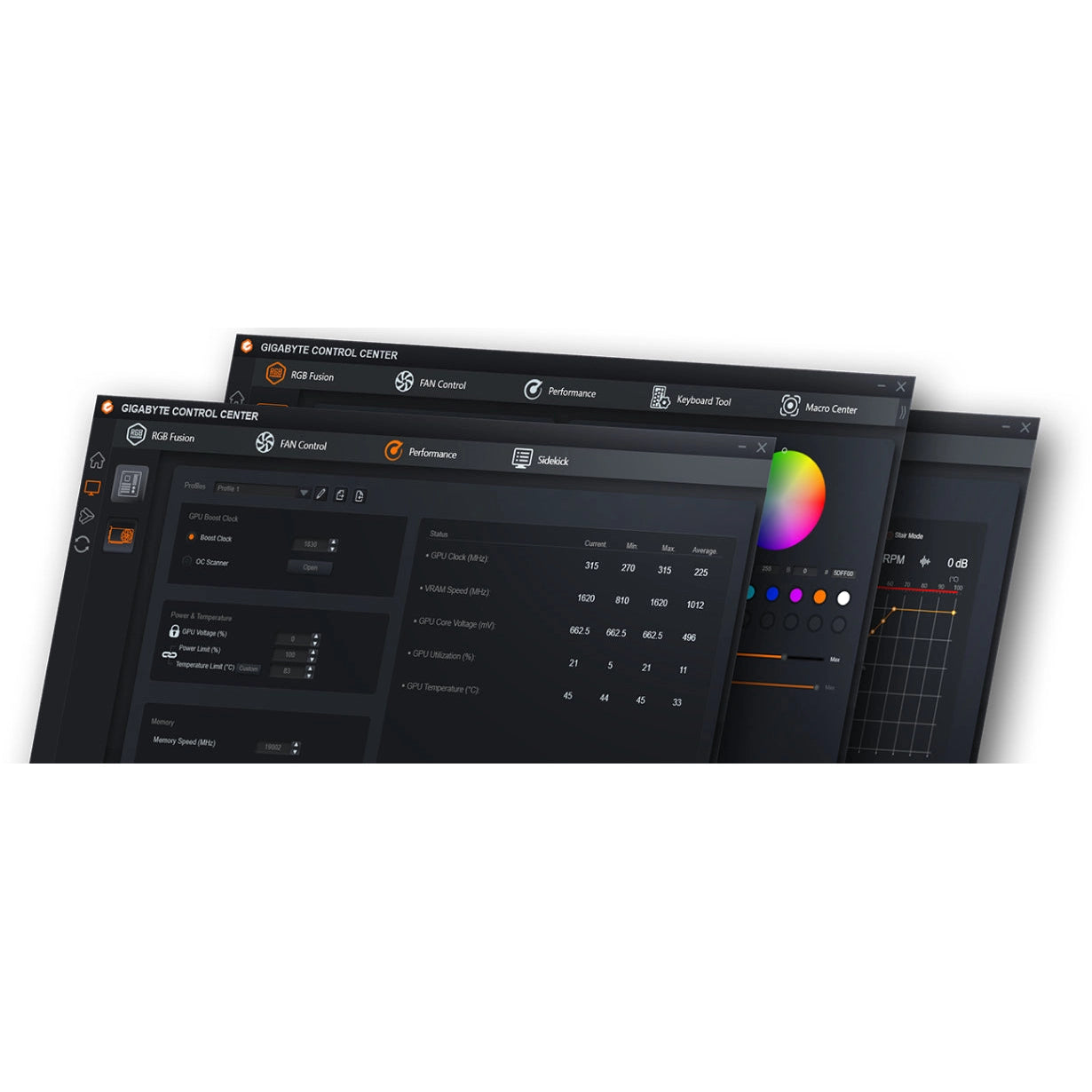

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AI TOP UTILITY
GIGABYTE Graphics Cards are tested and validated under the actual AI training workloads, making them also perfectly fit into the AI TOP Solution paired with other AI TOP series hardware, AI TOP Utility, and AI TOP Tutor software.
GIGABYTE AI TOP is an all-around solution and has advantages ahead of traditional AI training methods.
Supports the most common open-source LLMs, it features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, and even more, doing training in any place even on your desk.
The GIGABYTE GeForce RTX 50 Series fully support AI TOP Utility.
Specifications
Graphics Processing: GeForce RTX™ 5060 Ti
Core Clock: 2587 MHz
CUDA® Cores: TBD
Memory Clock: 28Gb/s
Memory Size: 16GB
Memory Type: GDDR7
Memory Bus: 128 bit
Card Bus: PCI-E 5.0
Digital Max Resolution: 7680x4320 (8K UHD)
Multi-view: 4
Card Size: L=208mm W=120mm H=40mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: 4.6
Recommended PSU: 650W

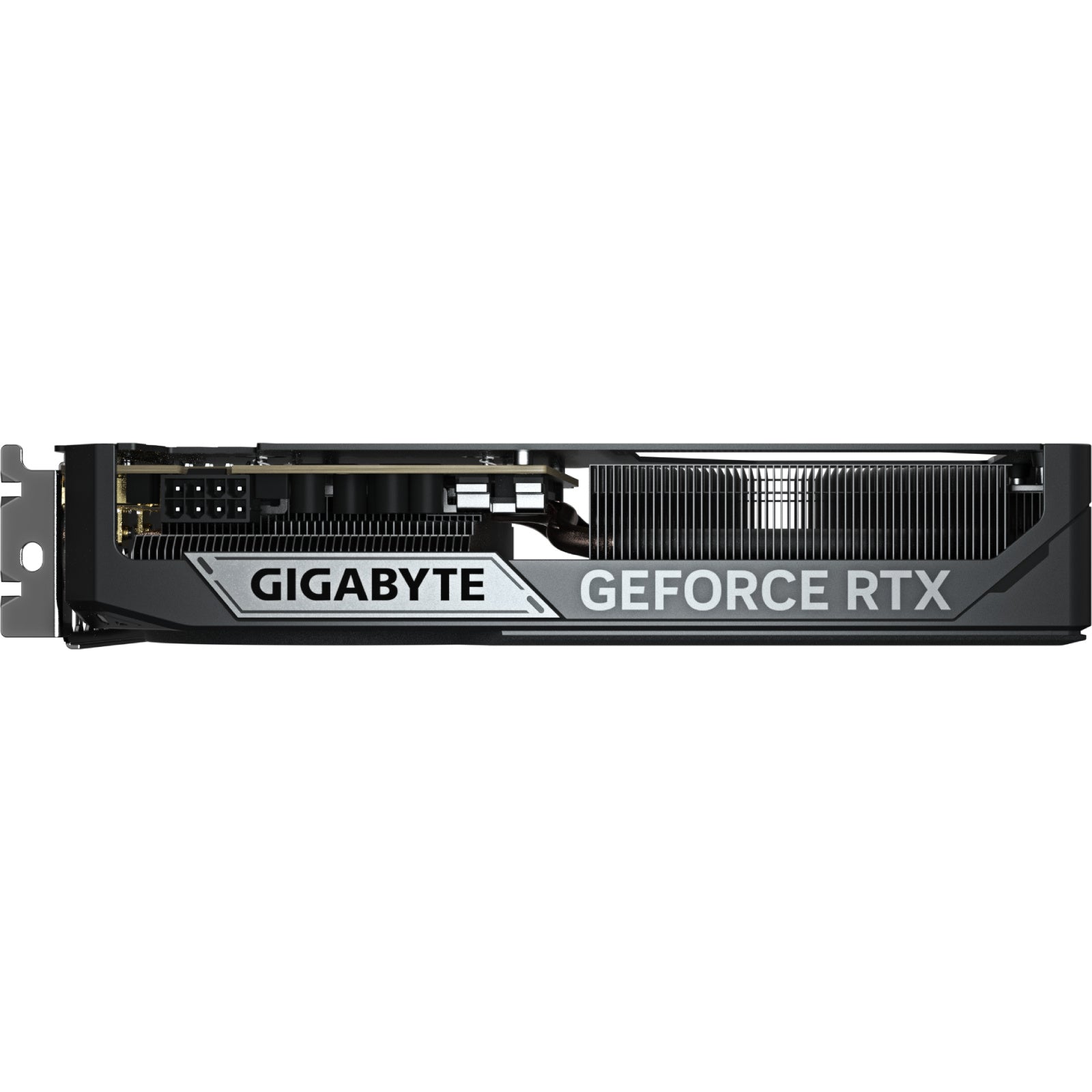

Power Connectors: 8 Pin*1

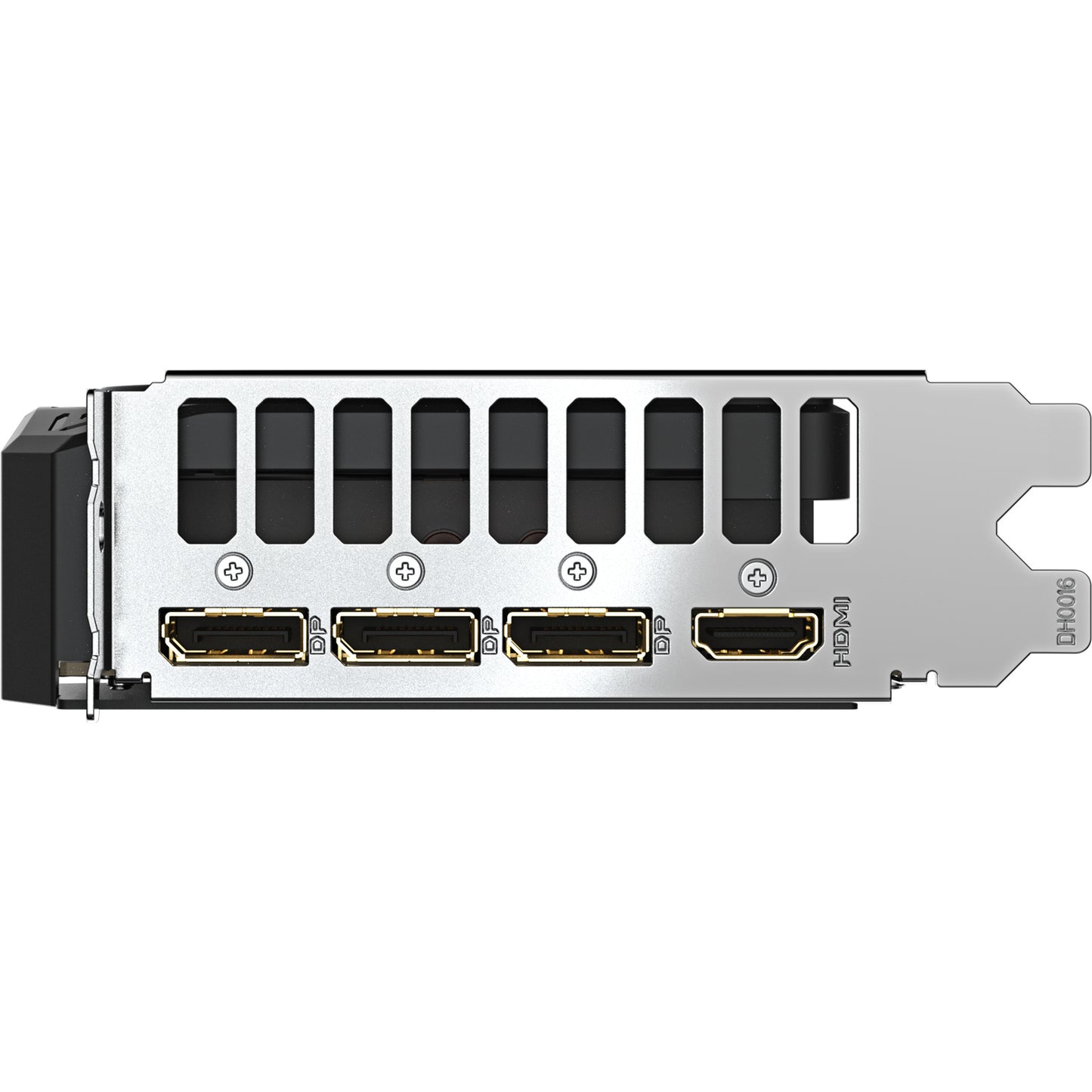

Output: 3x DisplayPort 2.1b // 1x HDMI 2.1b
RGB Lighting: N/A
Accessories
Quick Guide
Warranty: 36 months*
