Features

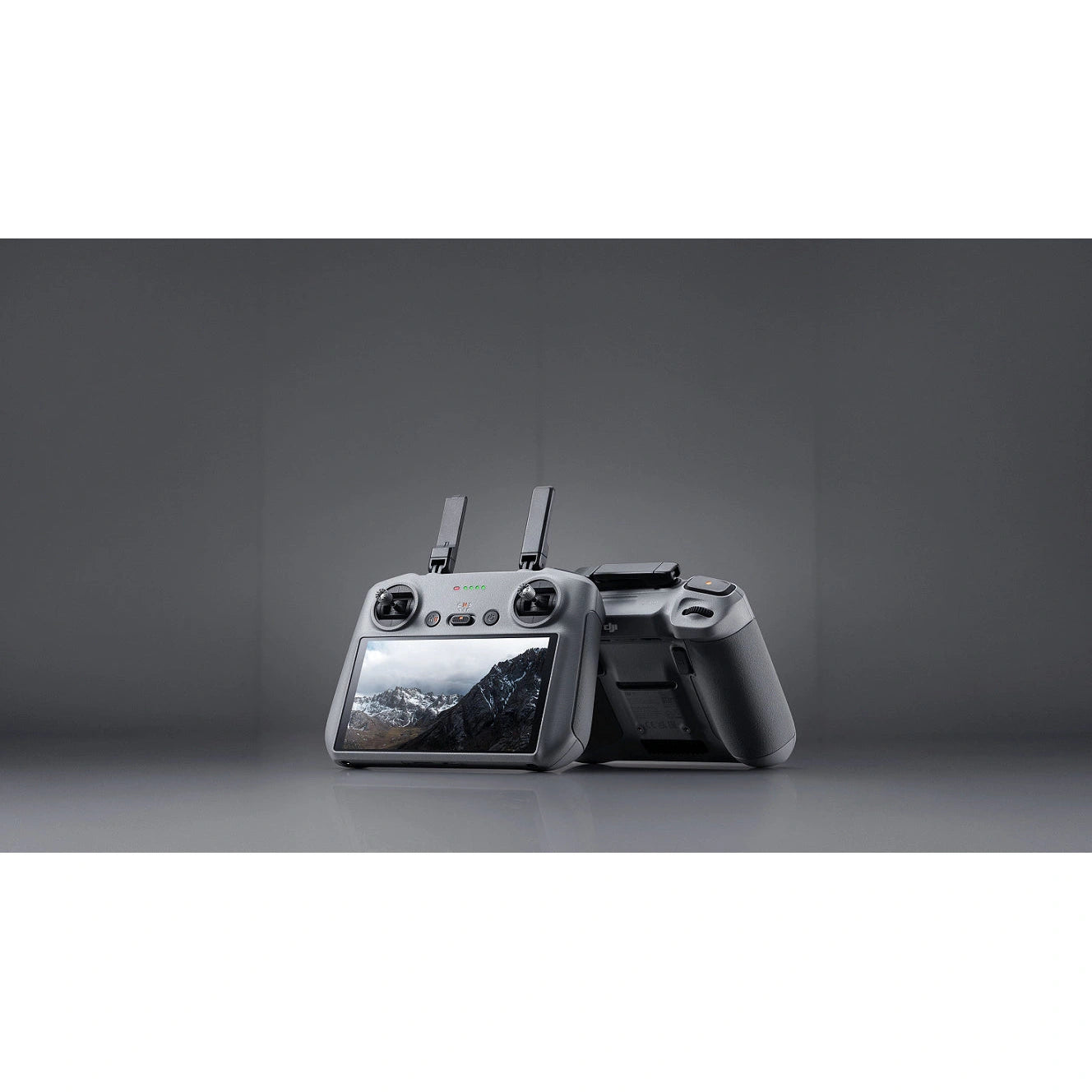

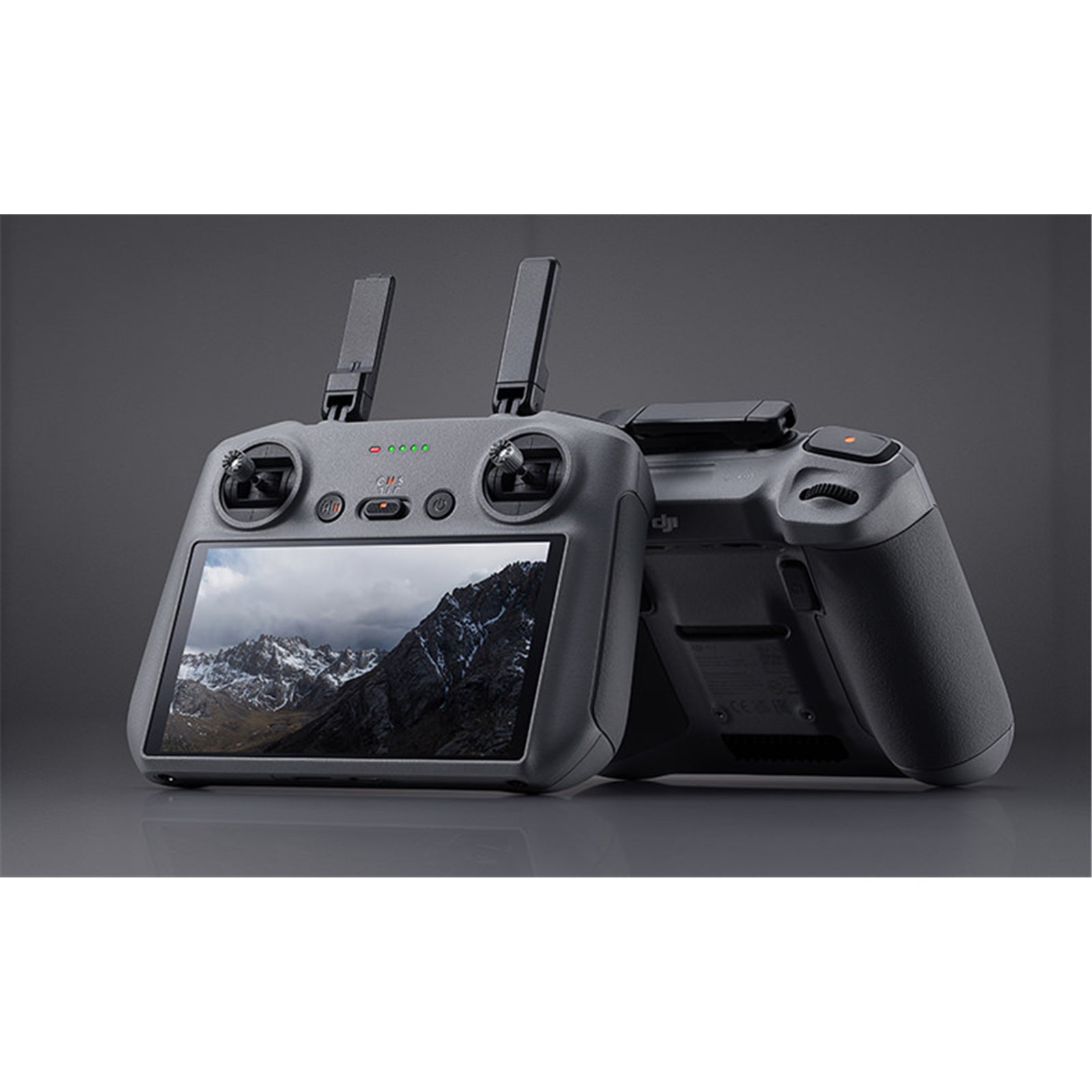

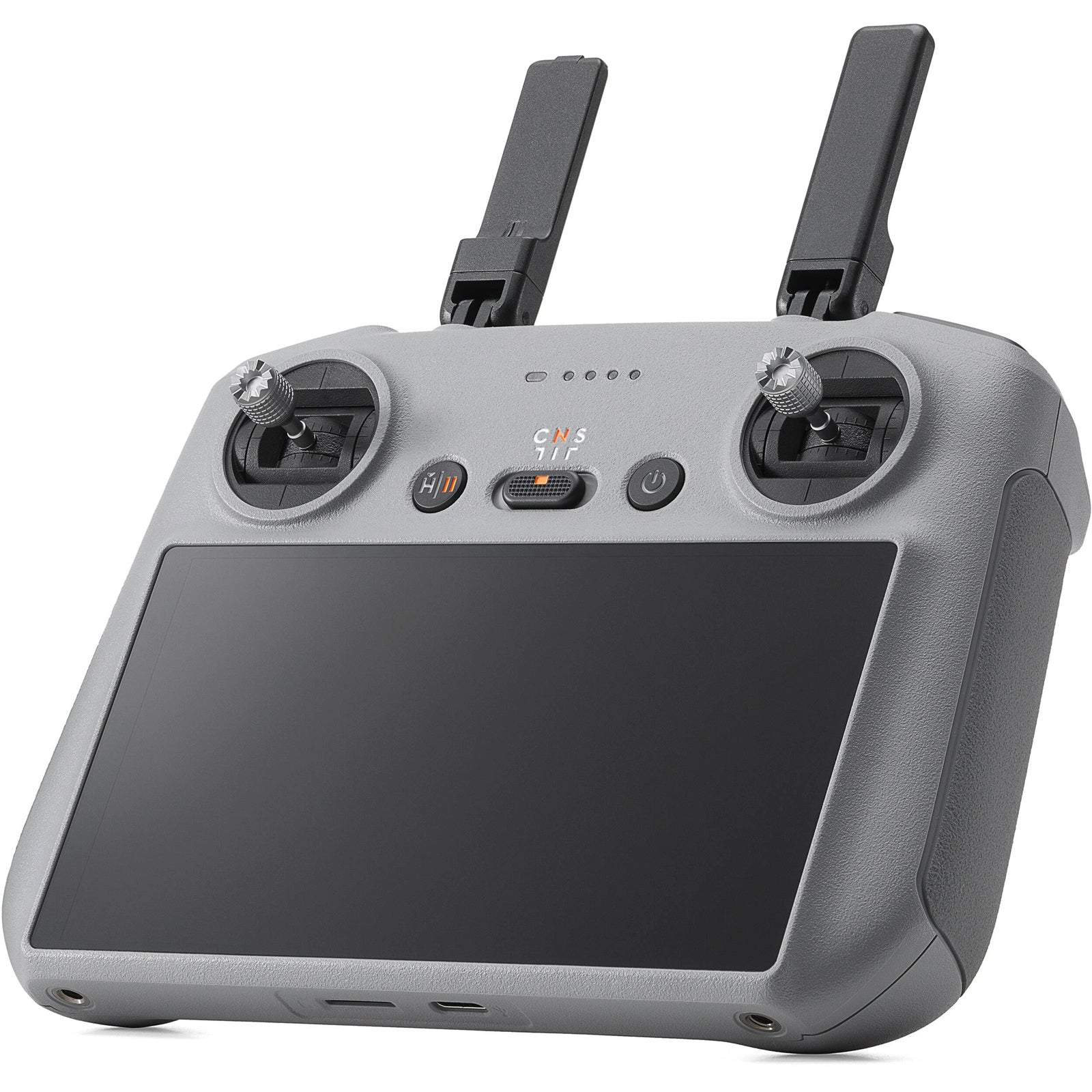

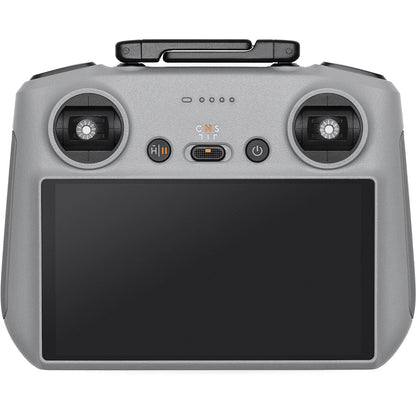

Combining sleek design with outstanding performance, DJI RC 2 is a next-gen camera-drone remote controller that gives pilots advanced control and exceptional convenience. Its lightweight body houses a stunning 5.5-inch FHD display and a new processor
And the new O4 video transmission system provides an extended range (20km max range*) with an antenna system comprised of two transmitters and four receivers. Immerse yourself in any creative shot and capture spectacular moments with ease.
*Measured in an outdoor, open environment, without interference, and with FCC compliance (reduced to 10 km for SRRC/CE/MIC). The above data shows the farthest communication range for one-way, non-return flights. Pay attention to reminders in the app during your flight.
Powerful Processor
DJI RC 2 is equipped with a powerful processor that features improved CPU and GPU performance. This ensures ultra-smooth app and system operation, delivering a seamless and intuitive control experience with every flight.
Video Transmission System
The next-gen DJI O4 video transmission technology supports 2.4GHz, 5.1GHz, [1] and 5.8GHz frequency bands, providing DJI RC 2 with enhanced anti-interference capabilities. When paired with drones that are compatible with O4, [2] such as DJI Air 3, DJI RC 2 can achieve crystal-clear, low-latency video transmission within a 20km max range. [3]

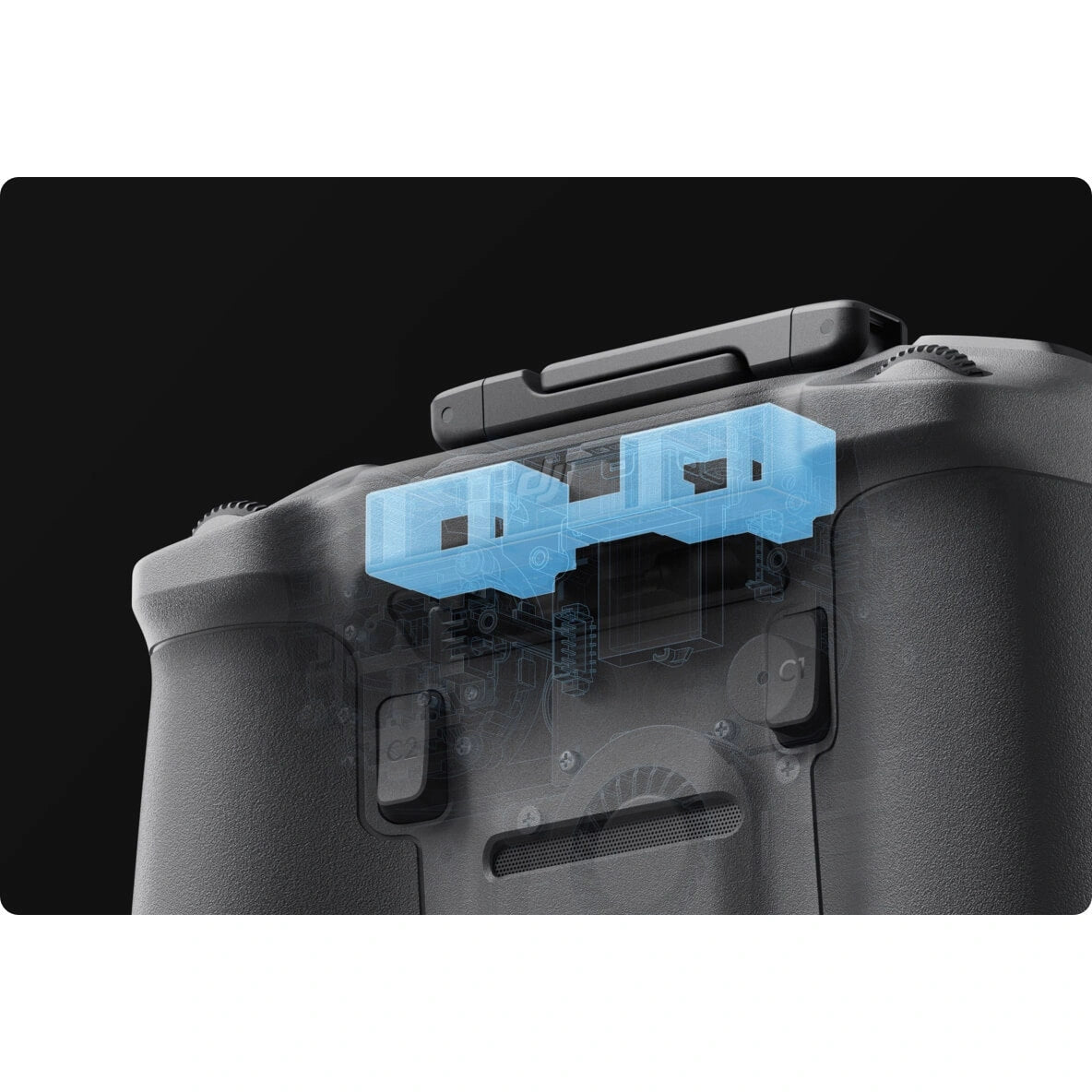

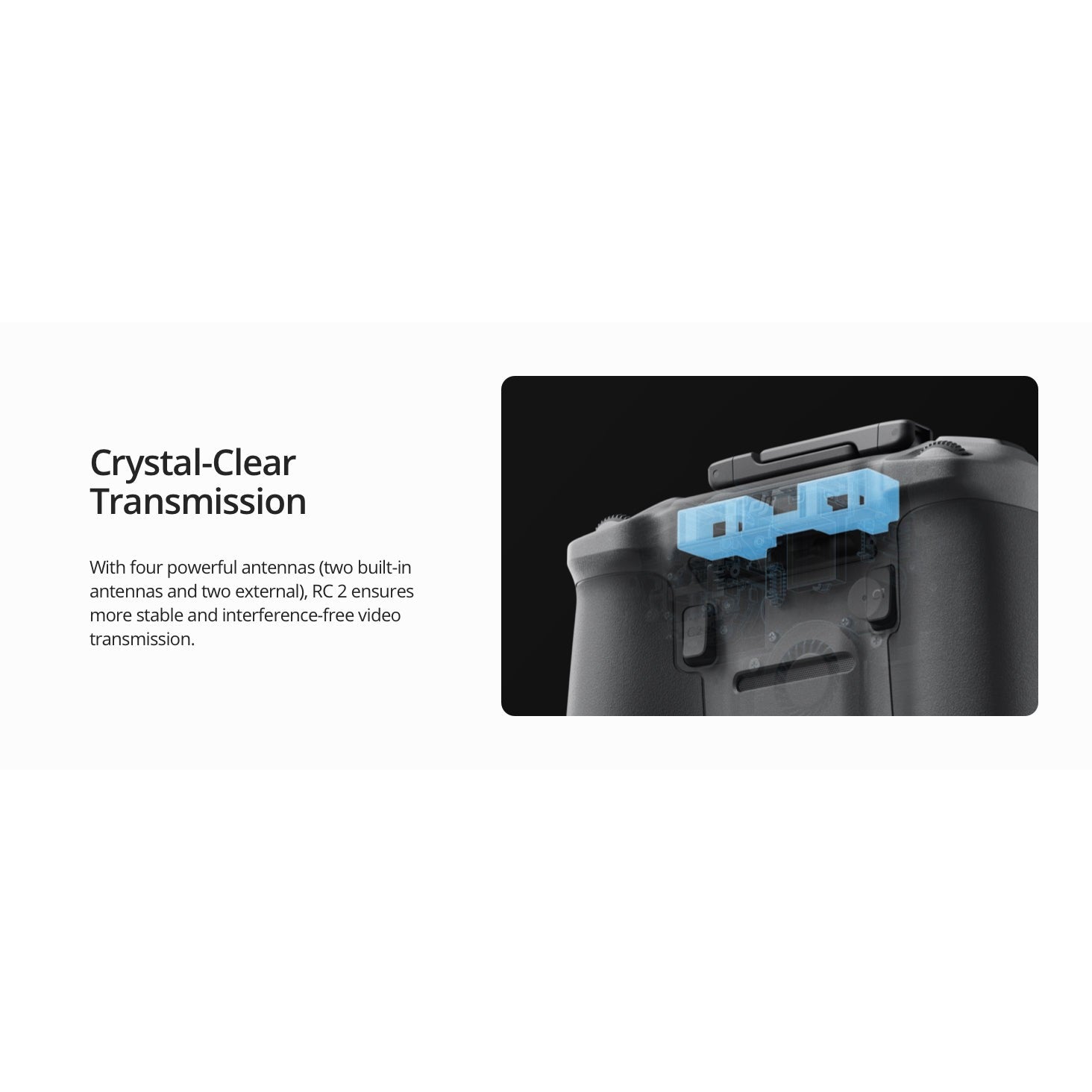

2T4R Antennas
DJI RC 2 integrates two built-in and two external antennas, supporting a dual-transmitter quad-receiver system. This doubles the number of both transmitter and receiver antennas compared to the previous generation RC, enhancing signal strength and further improving transmission performance for smooth control and safer flights.

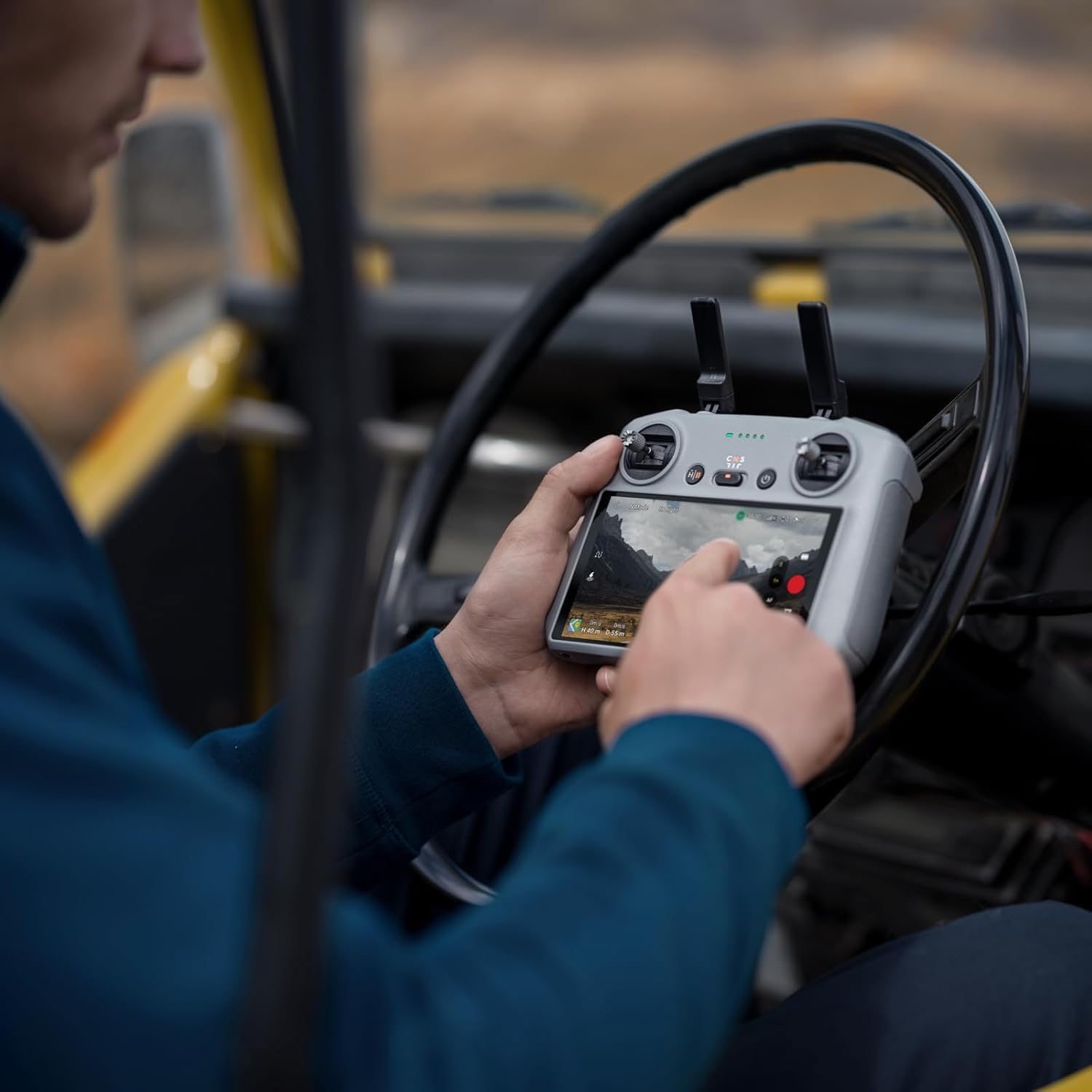

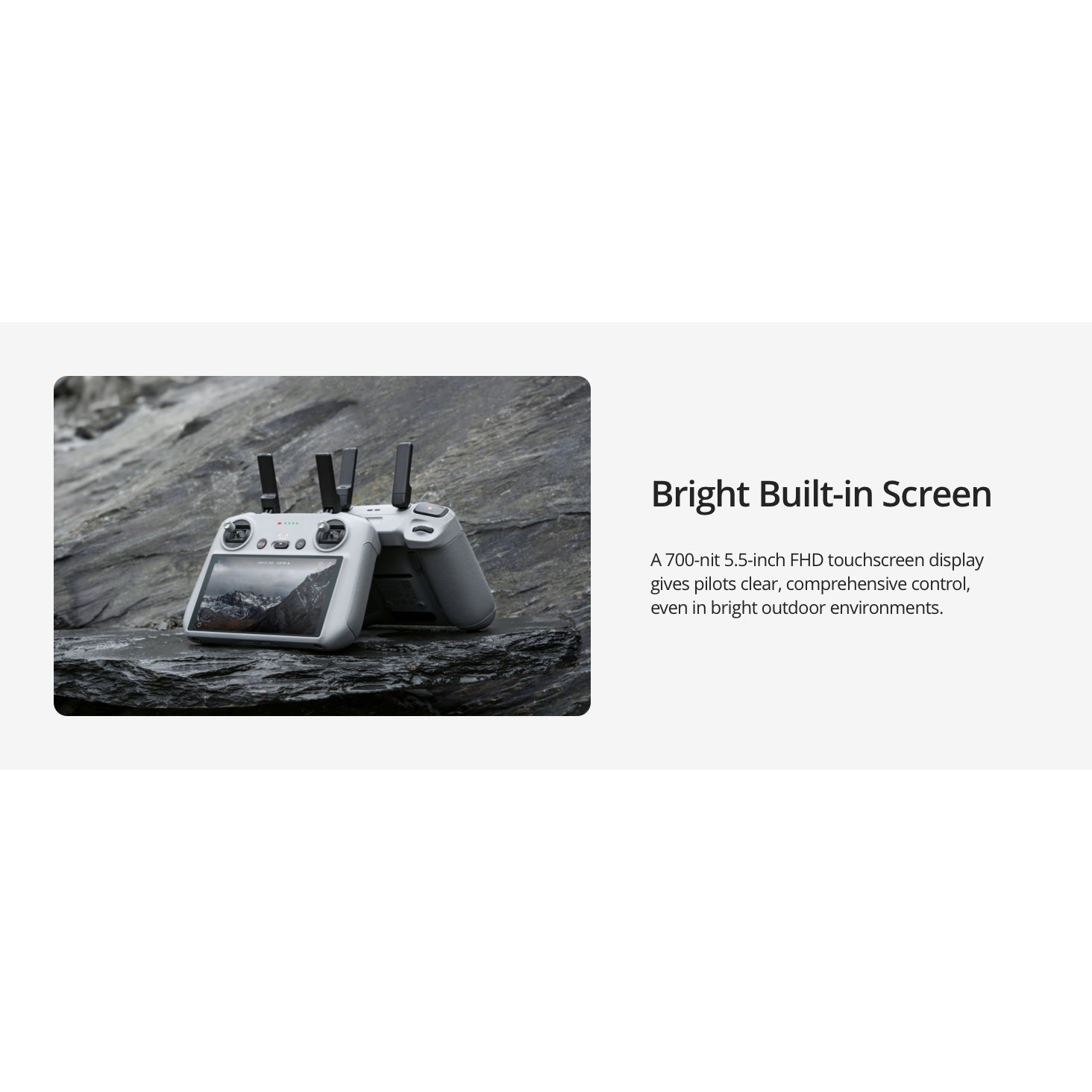

FHD Screen

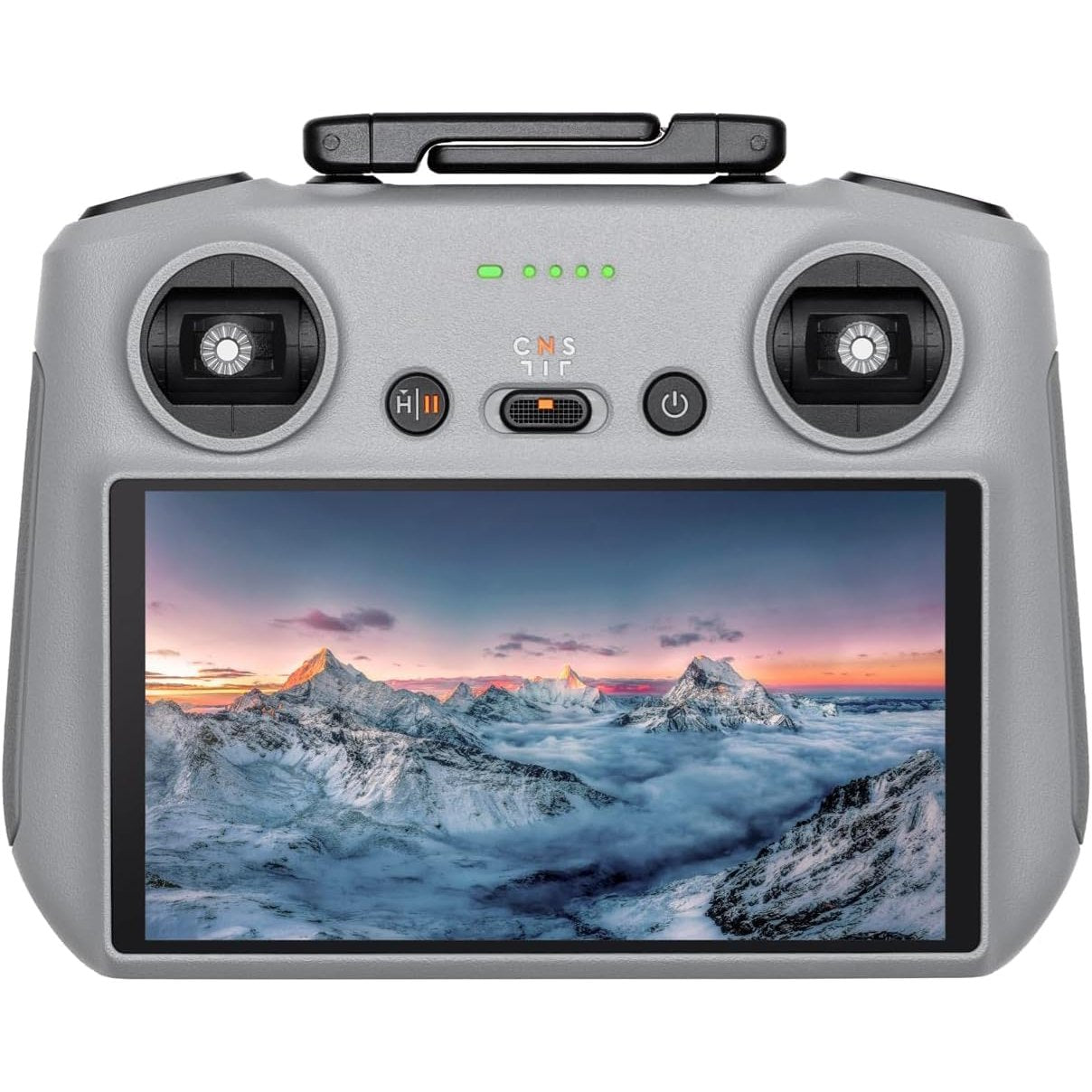

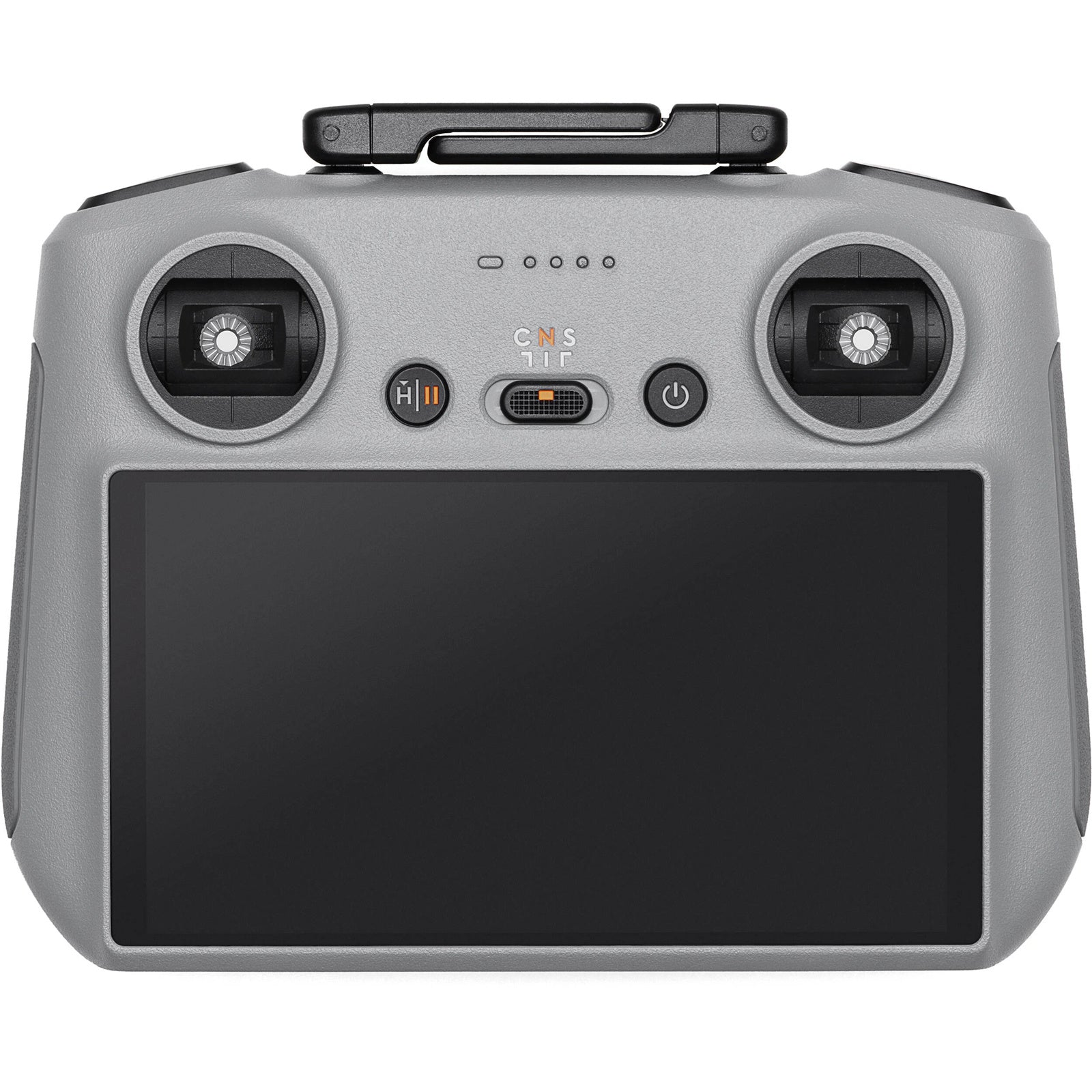

DJI RC 2 features a 5.5-inch 1920 x 1080 built-in FHD display capable of maintaining 700 nits of high brightness.
Storage Capacity
DJI RC 2 comes with 32 GB of built-in storage, [4] allowing for direct screen recording and caching. It also supports microSD card expansion for an additional storage option.

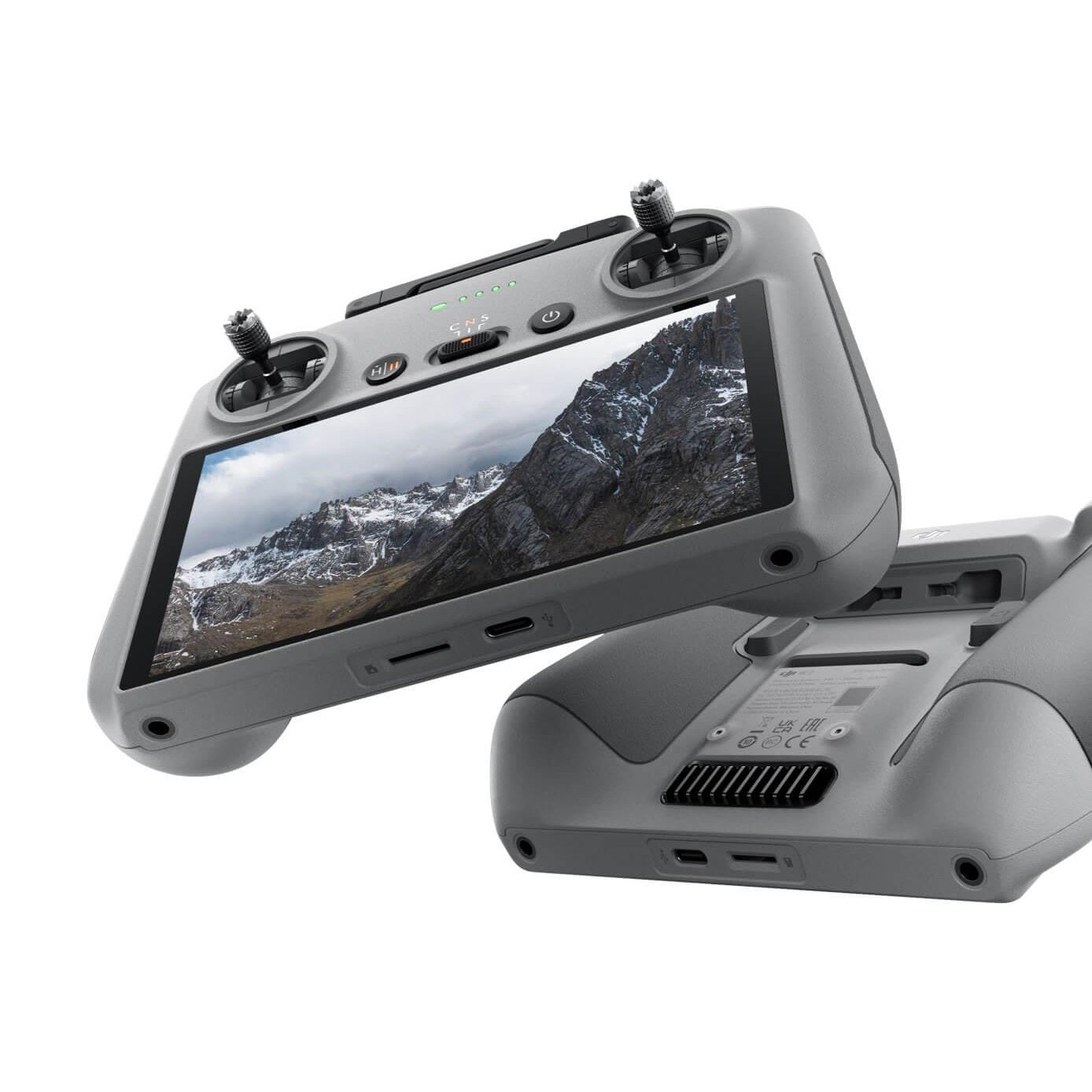

Light and Compact
Even with improved processing and video transmission performance, added antennas, and an active-cooling design, DJI RC 2 weighs just 420 grams. [5] This ensures a comfortable grip and effortless control, especially during extended use.
Notes
1. Available for use only in countries or regions where permitted by local laws and regulations.
2. When connecting to other drones, DJI RC 2's video transmission technology will switch to the video transmission specifications used by that drone's technology, and the video transmission distance will also change accordingly. For drone models compatibale with DJI RC 2, please check the Specs page.
3. Measured in an outdoor, open environment, without interference, and with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.
4. The actual available storage space is approximately 21 GB.
5. Weight measured using a production model DJI RC 2 in a controlled test environment and should be used for reference only.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI Website.
Specifications
Video Transmission
Operating Frequency:
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Antenna: 4 Antennas, 2T4R
Transmitter Power (EIRP):
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
Wi-Fi
Protocol: 802.11 a/b/g/n/ac/ax
Operating Frequency:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP):
2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol: Bluetooth 5.2
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): < 10 dBm
Screen
Resolution: 1920 x 1080
Dimensions: 5.5 inches
Frame Rate: 60 fps
Brightness: 700 nits
Touch Control: 10-point multi-touch
General Specs
Battery: 18650 Li-ion, 22.32Wh (3.6V, 3100mAh x2)
Charging Type: Supports up to 9V/3A fast charge.
Charging Time: 1.5 hours (with 9V/3A charger)
Operating Time: Max 3 hours
Tested in a 25° C (77° F) laboratory environment with DJI RC 2 connected to DJI Air 3 in normal flight status and recording 1080p/60fps video.
Operating Temperature: -10° to 40° C (14° to 104° F)
Storage Temperature:
Within one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature: 5° to 40° C (41° to 104° F)

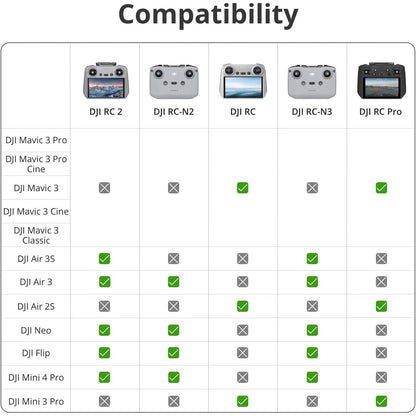

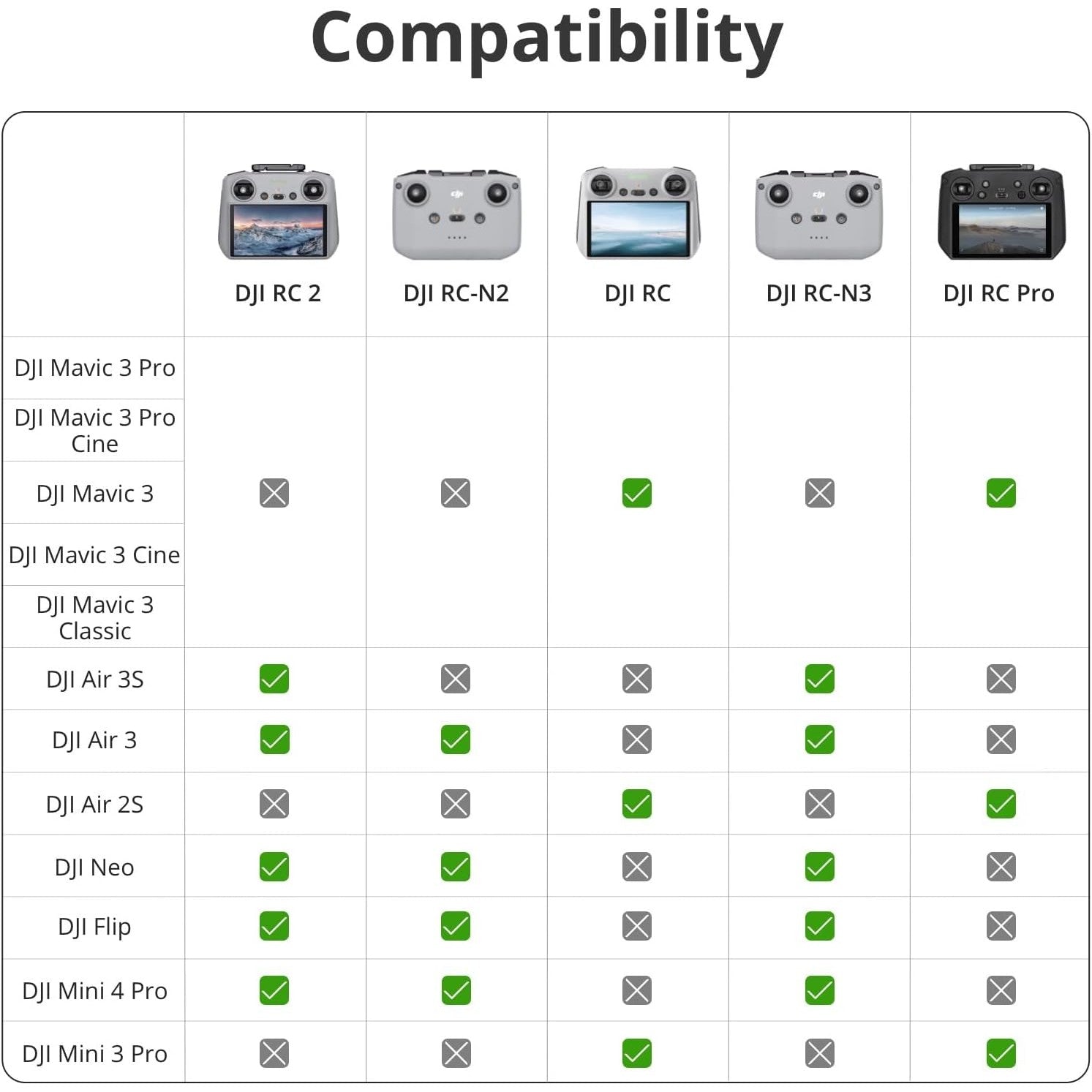

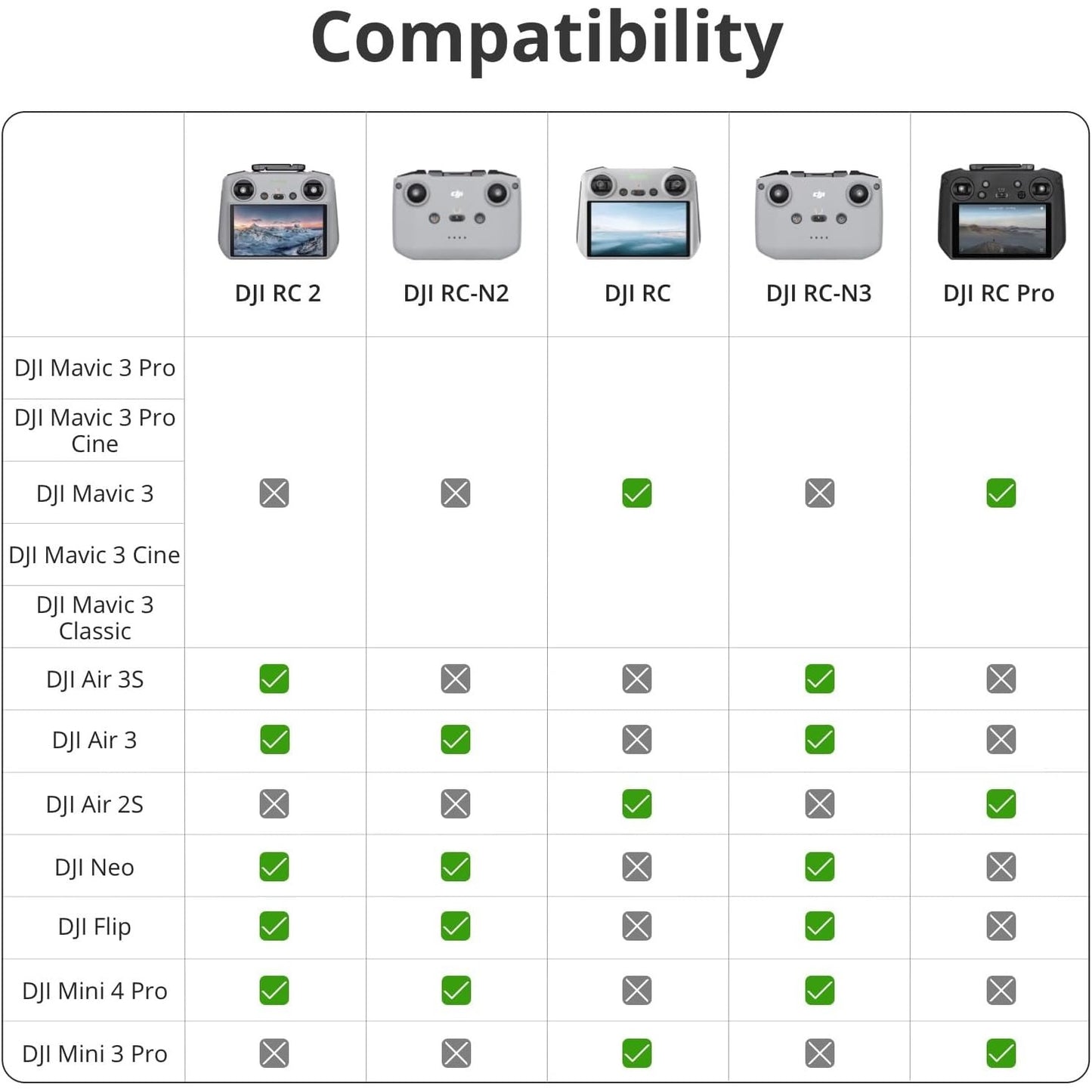

Compatibility/Supported Aircraft Models:
DJI Air 3
DJI Air 3S
DJI Avata 360
DJI Flip
DJI Lito 1
DJI Lito X1
DJI Mini 4 Pro
DJI Neo
DJI Neo 2
etc.
Please note: Will support more DJI aircraft in the future. Visit the official DJI website for the latest information.
Global Navigation Satellite System: GPS + BeiDou + Galileo
Dimensions:
Without Control Sticks (L×W×H): 168.4 x 132.5 x 46.2 mm
With Control Sticks (L×W×H): 168.4 x 132.5 x 62.7 mm
Weight: Approx. 420 g
Model: RC 2, RC2
Storage
Internal Storage Capacity:
32GB + Expandable Storage (with MicroSD Card)
The actual available storage space is approximately 21 GB.
Supported SD Cards: UHS-I Speed Grade 3 rating microSD card or above.
Recommended microSD Cards:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
Lexar 256GB V30 A2 microSDXC
Samsung EVO 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Kingston 256GB V30 microSDXC
What's in the Box
1x DJI RC 2 Remote Controller
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
