Features

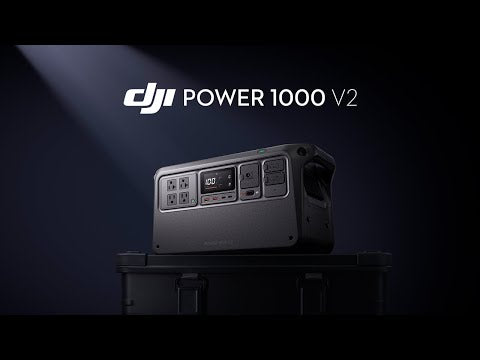

DJI Power 1000 V2 offers a 1024Wh battery capacity and supports a continuous 2600W output until the battery runs out[1], reliably running over 99 percent [9] of everyday devices. It also supports DJI drone battery [25] fast charging[4], improving content creation efficiency. In home backup and emergency scenarios, it can connect up to five 2048Wh expansion batteries [10][11], boosting the capacity to an incredible 11,264 Wh and offering solid backup power for household electricity needs.
DJI Drone Super Fast Charging
When used with compatible accessories, DJI Power 1000 V2 enables SDC Super Fast Charging [4] for select DJI drone batteries [25], enabling takeoff in as little as half an hour. With three drone batteries, you can fly and film continuously throughout the day.
Fast and Flexible Recharging
DJI Power 1000 V2 can be recharged via grid power, solar power, and car power. Whether indoors or on the go, you can choose the best charging method, ensuring a reliable power supply and greater convenience.
Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, it takes only 37 minutes to go from zero to 80% [7] and 56 minutes to full. Even if you start charging it right before heading out, it gives you the confidence to set off whenever you need.
Solar Power
Economical and environmentally friendly, DJI Power 1000 V2 can be recharged via the DJI Power Solar Panel Adapter Module (MPPT) [12], or the DJI Power 1.8kW Solar/Car Super Fast Charger [4] with up to 1800W [13] solar input, taking only 40 minutes to charge 1024 Wh.
Car Power
Easily supercharge any road trip with the DJI Power 1kW Super Fast Car Charger [11] or the 1.8kW Solar/Car Super Fast Charger. [11] These charges utilize the excess electricity from your car's alternator to quickly recharge the DJI Power 1000 V2, suitable for regular cars and RVs. [24] With expansion batteries, it takes just 78 minutes [15] to charge the power station from zero to full.
Upgraded Safety Design [5]
Safety is a top priority for DJI Power 1000 V2, with careful attention paid to each detail ranging from its body structure and cell chemistry to the system software.
For the battery cell, we've chosen LFP (Lithium Iron Phosphate). It's safe and won't explode even if punctured. It boasts a long lifespan, retaining 80 percent capacity after 4000 cycles[16]. [16] With one full charge cycle per day, it can serve for ten years[6]. [6]
The BMS intelligent battery management system provides comprehensive protection. With 19 temperature sensors constantly monitoring heat dissipation, the device operates normally even at high temperatures up to 45° C (113°F° F)[20]. Additionally, 25 fuses provide circuit protection for each module. If the safety threshold for electricity usage is surpassed, the protective mechanism for power supply and recharging activates automatically, leaving no room for accidents.
The BMS system uses a new potting process to protect the inverter, ensuring safe operation in rain, condensation, and salt spray conditions [17]. This makes it ideal for worry-free use while camping by the sea or driving in high-altitude areas.
The power station is made of flame-retardant materials, ensuring that drops and impacts do not cause open flames. [19] It also has a static pressure bearing capacity of up to 11 ton [20], making it exceptionally reliable.
DJI Power 1000 V2 has aced all tests and secured certification from the Japan Fire and Disaster Prevention Association. It's a game-changer in disaster preparedness boosting safety, functionality, and convenience, providing reliable protection for peace of mind.
UPS Mode: Seamless Power Backup
When an electrical device is connected to a powered-on DJI Power 1000 V2 via an AC output port and both are receiving grid power, the Power 1000 V2 defaults to UPS (Uninterruptible Power Supply) mode. In the event of a sudden power outage, DJI Power 1000 V2 can start powering the connected device(s) within 0.01 seconds[20], ensuring continuous operation and providing you with peace of mind.
Sleep Undisturbed With Ultra-Quiet Performance
When charging, the DJI Power 1000 V2 operates as quietly as 26 dB, [3] making it virtually unnoticeable even in quiet environments. Whether you're camping overnight or resting indoors, it runs quieter than the wind and no louder than a silent air conditioner.
Dual 140W USB-C Ports for Next-Gen Fast Charging
DJI Power 1000 V2 features dual 140W USB-C output ports, [2] delivering a combined 280 W, which is 40% more than typical dual 100W USB-C setups on the market. It easily meets the demands of most USB-C devices and supports up to PD 3.1 140W fast charging for high-performance laptops.
Remote Control via App
DJI Power 1000 V2 can be directly connected to the new DJI Home app. The interface is simple and user-friendly, allowing you to remotely switch AC output on or off, adjust parameters, and monitor the power status in real-time. In addition to the power station itself, you can also view and adjust the parameters of the expansion battery and the 1kW and 1.8 kW Super Fast Chargers. No matter where you are, you can easily manage DJI Power devices for a smarter, more efficient experience.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, Power 1000 Portable Power Stations have 3* years warranty, Batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI Website.
Notes
* The appearance of products sold in different countries and regions may vary. Refer to the actual item.
1. Under standard indoor conditions of 25° C (77° F), Power 1000 V2 can deliver a continuous output of 2600 W until fully discharged. Data was tested in a controlled laboratory environment.
2. The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
3. Measured at a distance of 100 cm from the Power 1000 V2 while charging in Standard Recharge Mode. For reference only.
4. Requires certain accessories, which are sold separately.
5. Compared with DJI Power 1000.
6. Based on the correct usage of the product, DJI Power 1000 V2 will have an approximate lifespan of 10 years, calculated on the basis of completing one full recharge/discharge cycle nearly every day. This data is for reference only. Actual user experience may vary.
7. Data tested under laboratory conditions at 25° C (77° F) and should be used for reference only. To achieve the maximum grid recharging power of 1440 W, the battery level must be at least 60%, and the ambient temperature should be between 20° C and 35° C (68° F and 95° F).
8. The default warranty period is five years. Certain accessories are not included in the 5-year warranty coverage. Please refer to the after-sales service policy for full details.
9. Device power does not exceed 2600 W.
10. DJI Power 1000 V2 can connect up to five expansion batteries, which provide up to 11,264 Wh when fully charged.
11. Sold separately.
12. Each Solar Panel Adapter Module (MPPT) can connect one to three solar panels. Power 1000 V2 supports up to two adapter modules simultaneously, allowing connection of up to six panels. It can also connect to one panel via the DJI Power Car Power Outlet to SDC Power Cable.
13. DJI Power 1.8kW Solar/Car Super Fast Charger's MC4 Solar Panel Cable supports up to 1200W solar input. In the meantime, its XT90 Car/Solar Charging Port can be expanded to an MC4 connector using the separately sold DJI Power 1.8kW Super Fast Charger XT90 to MC4 Adapter Cable, providing an additional 600W solar input. To achieve the maximum 1800W solar input for Power 1000 V2, it must be used with DJI Power Expansion Battery 2000, the 2048Wh Expansion Battery.
14. Measured under 25° C (77° F) laboratory conditions. For reference only.
15. Measured at an ambient temperature of 25° C (77° F) when the 1kW Super Fast Car Charger connects to a 12V or 24V car system and recharges DJI Power 1000 V2 at a maximum power of 1000 W via the vehicle's alternator.
16. One cycle is defined as a complete charge and discharge. Tested in a 25°C (77° F) laboratory environment, with DJI Power 1000 V2 recharged in Standard Mode and discharged at 1000W output power to external devices.
17. To ensure product performance, do not operate in rainy environments for more than 3 minutes, in condensation for more than 30 minutes, or in salt fog for more than 8 hours. Avoid prolonged exposure to condensation or salt fog.
18. Supports use at altitudes up to 5000 m. Supports use in environments as low as -10° C (14° F). Data was tested in a controlled laboratory environment.
19. The power station can continue to function normally after being held with both hands and dropped from a height of 50 cm onto dry mud.
20. Data was tested in a controlled laboratory environment.
21. At ambient temperatures between 0° C and 45° C (32° F and 113° F), the 1kW Super Fast Car Charger can recharge DJI Power 1000 V2 at a maximum power of 1000 W via the car's alternator. Data was tested in a controlled laboratory environment.
22. Both the DJI Power 1.8kW and 1kW Super Fast Chargers can stabilize battery voltage at 13.5 V. Depending on the voltage status, they can either recharge Power 1000 V2 (when the voltage is above 13.5 V) or supply power from Power 1000 V2 to the battery (when the voltage is below 13.5 V). Hybrid and fully electric vehicles are currently not compatible with DJI Power 1.8kW Solar/Car Super Fast Charger or DJI Power 1kW Super Fast Car Charger, due to differences in generator operation compared to traditional fuel-powered vehicles.
23. Measured at an ambient temperature of 25° C (77° F) when the 1.8kW Super Fast Charger connects to a 12V or 24V car system, providing up to 1200W solar power and 600W car power simultaneously to recharge Power 1000 V2 and the expansion battery. This data is for reference only. Data was tested in a controlled laboratory environment.
24. In different countries or regions, a compatible power adapter cable needs to be purchased separately.
25. For more details on fast-charge-supported DJI drones, refer to the FAQ Page.
Specifications
General
Model: DYM1000V2H
Cell Chemistry: LFP (Lithium Iron Phosphate)
Capacity: 1024 Wh
Cycle Life:
Maintains over 80% capacity after 4000 cycles.
One cycle is defined as a complete charge and discharge. Tested in a 25°C (77°F) laboratory environment, with DJI Power 1000 V2 recharged in Standard Mode and discharged at 1000W output power to external devices.
Net Weight: Approx. 14.2 kg
Dimensions (L x W x H): 448 x 225 x 230 mm
Number of Ports:
AC Output × 4 (For regions using CN, US, and JP standards)*
AC Output × 2 (For other countries and regions)*
USB-C × 2
USB-A × 2
SDC × 1
SDC Lite × 1
AC Input × 1
* Models for regions using CN, US, and JP standards feature four AC output ports. Due to differing port sizes, models for other regions include only two.
Max Operating Altitude: 5000 m
Output Specifications
AC Output:
DYM1000V2H: AC 220-240 V, 50/60 Hz, max current: 10.9 A
AC output data varies by country and region.
AC Output (Bypass Mode):
DYM1000V2H: AC 220-240 V, max current: 10 A
USB-A Output:
5 V, 3 A
9 V, 2 A
12 V, 2 A
Max output power per channel: 24 W
USB-C Output:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 5 A
28 V, 5 A (EPR)
Max output power per channel: 140 W*
* The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
SDC Output:
SDC: 9-28 V or 32-58.4 V, max current: 42 A (for DJI drone fast charging and more)
SDC Lite: 9-27 V, max current: 10 A
Both SDC and SDC Lite ports support extensive accessory expansion.
Input Specifications
AC Input:
DYM1000V2H
AC 220-240 V, 50/60 Hz, max current: 6.5 A
AC 220-240 V, 50/60 Hz, max current: 10 A (Bypass mode)
SDC Input:
SDC: DC 32-58.4 V, max current: 60 A
SDC Lite: DC 32-58.4 V, max current: 8 A
Both SDC and SDC Lite ports support extensive accessory expansion.
Operating Temperature
Power Supply Temperature: -10° to 45° C (14° to 113° F)
Recharging Temperature: 0° to 45° C (32° to 113° F)
Storage Temperature: -10° to 45° C (14° to 113° F)
Wi-Fi and Bluetooth
Transmitter Power (EIRP):
Wi-Fi (802.11 b/g/n): 2.4000-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
Bluetooth 5.0: 2.4000-2.4835 GHz: < 7 dBm
What's in the Box
DJI Power 1000 V2 Power Station
DJI Power AC Power Cable (AU/NZ Plug)
Warranty: 36 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
*DJI Power Stations come with 3 Years Warranty, and can be extended to 5 Years Warranty once customers register DJI Power Station S/N on DJI Service Webpage.
