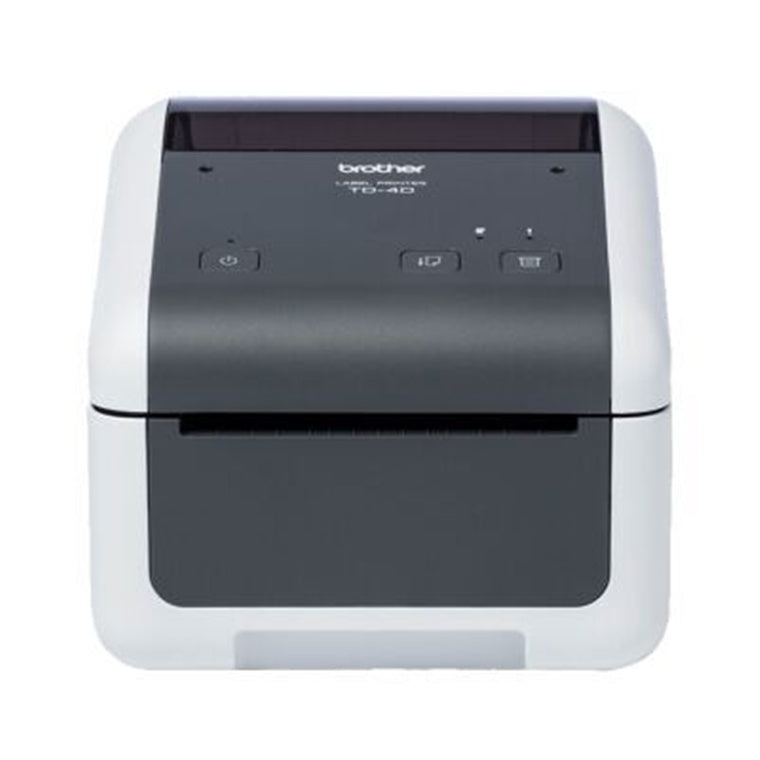

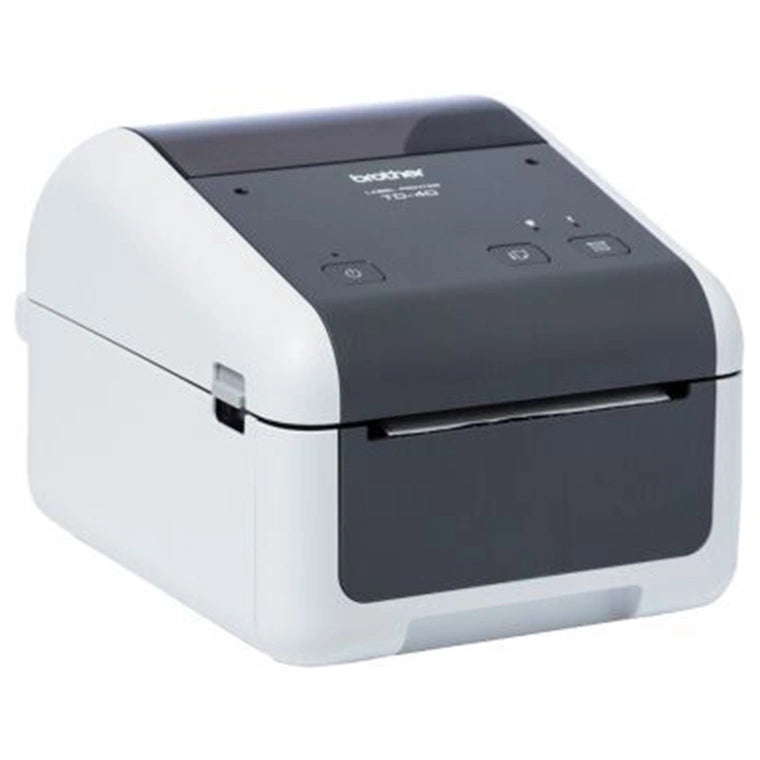

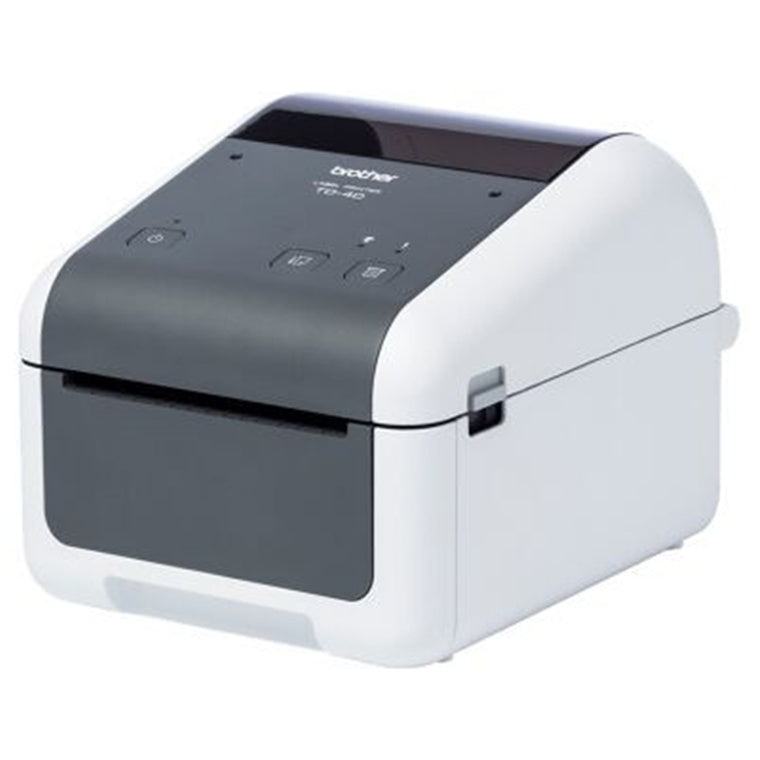

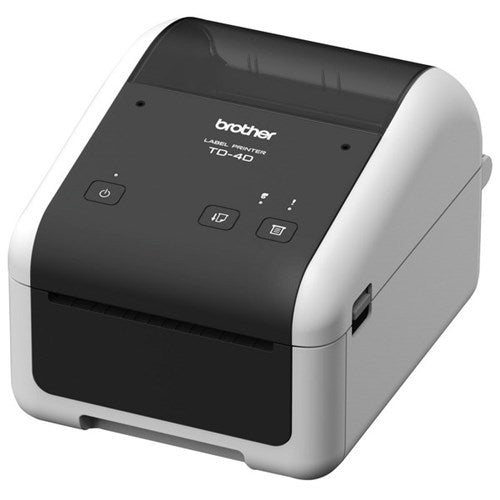

Brother TD4420DN Desktop Thermal Labeller Desktop Network Printer
Ethernet, USB, Serial, Print width up to 104mm wide, Direct Thermal, Network connectivity
Suitable for NZ Post, Courier Post or other Shipping Labels
1.83kg
Features
With 203dpi and print speeds up to 8ips, 4" desktop network thermal printers affordably print barcode labels, tags, and receipts for SMB supply chain operations. Ideal for inventory, shipping, barcode, and shelf labelling, these precision-built barcode label printers deliver the right levels of performance, quality, and integration at an exceptional value. Experience fast spindle-less media loading, Windows compatibility, ZPL II emulation, intuitive design software, and Brother template mode. Now, you can easily and affordably produce the labels you need, with the reliability and support that only Brother delivers
- Improved thermal image capability: Prints up to a full roll of labels at up to 8ips in a single print job
- Helps increase productivity and higher print job volume from a desktop printer
- Wide Range of Compatible Software Solutions Seamless integration with backwards compatibility with virtually any competitive desktop printer
- Complete Thermal Printing Solution: Includes Design Software Comes with virtually everything needed to design and print high quality media right out of the box
- Direct Thermal Technology has the Fewest Moving and Total Parts Required to Print Dependable printing technology that produces barcodes that are accurate and scan reliably
- Innovative Media Width Sensor Accurate and faster media calibration
- Spindle-Less, Spring Loaded Media Guides with Adjustable Open-and-Lock Position True drop-in and easier media loading experience
- Future Proof Optional Accessories: Purchase Only What is Needed Purchase easy to install optional accessories when needed after deployment
- Ambidextrous Top Cover Latches Open top cover from either side of the printer
- Field Replaceable Print Head and Platen Roller Easy to replace print head and platen roller without any tools
Redeem your Brother Cashback (If applicable)
To redeem any Brother cashback that may be applicable to your printer purchase (cash back offers and valid dates are shown in the product title) click here
Specifications
Certifications
Energy Conservation Certifications Energy Star
Communications
Communications Certifications
USB v2.0 (Full Speed), RS-232C Serial, LAN Ethernet 10/100Base-TX
Communications Interface(s)
USB, Serial, LAN
Communications Security Protocols:
802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS,EAP-MD5)
Compatibility
Operating System Compatibility
Windows 10 (32/64bit), Windows Server 2003, Windows 8 (32/64bit), Windows 7 (32/64bit), Windows XP, Android v2.2 or later, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Linux Red Hat and Debian
Print Driver Compatibility
Windows, Linux
Consumables
Consumable Format
Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media
Consumable Max Roll OD Size
5" (127mm)
Consumable Roll Core ID Size
All Core Sizes Down to 0.50" (Inside Diameter)
Consumable Thickness
Receipt: 2.3mil to 3.5mil (0.058mm to 0.090mm), Label: 3.1mil to 6.7mil (0.080mm to 0.170mm), Tag: 3.5mil to 5.3mil (0.090mm to 0.135mm)
Consumable Types
Receipts, Labels, Tags, Wristbands
Media Width Max
4.65" (118mm)
Media Width Min
0.75" (19mm)
Dimensions
Unit Dimensions (W x D x H)
180mm x 224mm x 155mm
Unit Weight
2.08 kg without Media and Options
Environment Compatibility
Operating Environment
32°F - 104°F (0°C - 40°C) / 20% - 85%
Storage Environment
-4°F - 140°F (-20°C - 60°C) / 5% - 90%
General
Available Memory
64MB Flash (40MB Template / Database) / 256MB SDRAM
Channel Protected
Yes
Flash Memory
64MB Flash (40MB Template / Database)
Media Exit Features
Tear Up, Peeler, Cutter
Media Exit Options
Label Peeler
Media Feed Features
Drop In Roll, Adjustable Roll Holder, External Slot
RAM
256MB SDRAM
User Interface
3 Switches (Power, Feed, Print), 3 LEDs (Power, End of Roll, Status)
Power
Power Source Options
AutoRanging Power Supply
Power Supply
24VDC 5A (PA-AD-002)
Print
Print Resolution
203 dpi
Print Technology
Direct Thermal
Print Width Maximum
4.27" (108.4mm)
Printer Type
Desktop
Print Features
2 Dimensional Barcodes
PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
Bitmap Fonts
Helsinki, Brussels, Letter Gothic Bold, Gothic, San Diego, Brougham
Emulations
Raster, ESC/P, P-touch Template, ZPL II®, CPCL
Linear Barcodes
Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET
Media Sensor Types
Transmissive (Gap, Hole), Reflective (Adjustable Position Black Bar, Hole), Out of Paper, Peeler (Optional)
Outline Fonts
Helsinki, Brussels, Letter Gothic, Gothic
Print Commands
ZPL II®, CPCL, Raster Graphics, Text (Template) ESC P
Stored Templates
Up to 99
Warranty: 24 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
