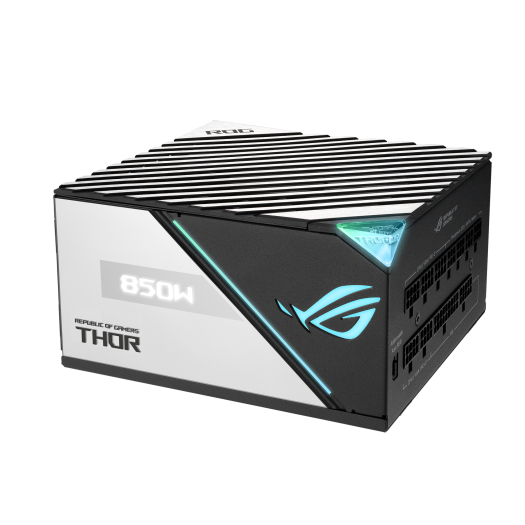

ROG THOR 850W Platinum II
ROG Thor 850W Platinum II is the quietest PSU in its class.
Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
A 135mm wing-blade fan with PWM control delivers lower noise and keeps thermals in check.
Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.
OLED display monitors power draw in real time.
Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
Tech Specs
ROG THOR 850W Platinum II
Dimensions
160 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 71A 0.3A 3A
Combined Load
100W 100W 852W 3.6W 15W
Total Output
850W
Connectors
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 3 SATA x 10 PERIPHERAL x 6
Package Contents
Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x3 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-2 Cable x1 (400+120mm) SATA 1-to-4 Cable x2 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 4 Sleeved Cable Combs (6-pin) x 2 Sleeved Cable Combs (8-pin) x 6 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 10 User Manual x 1
Weight
1.865kg (Single)
AURA SYNC
ARGB
0dB Fan Button
Yes
Cybenetics Noise Level Certification
A++
