Features

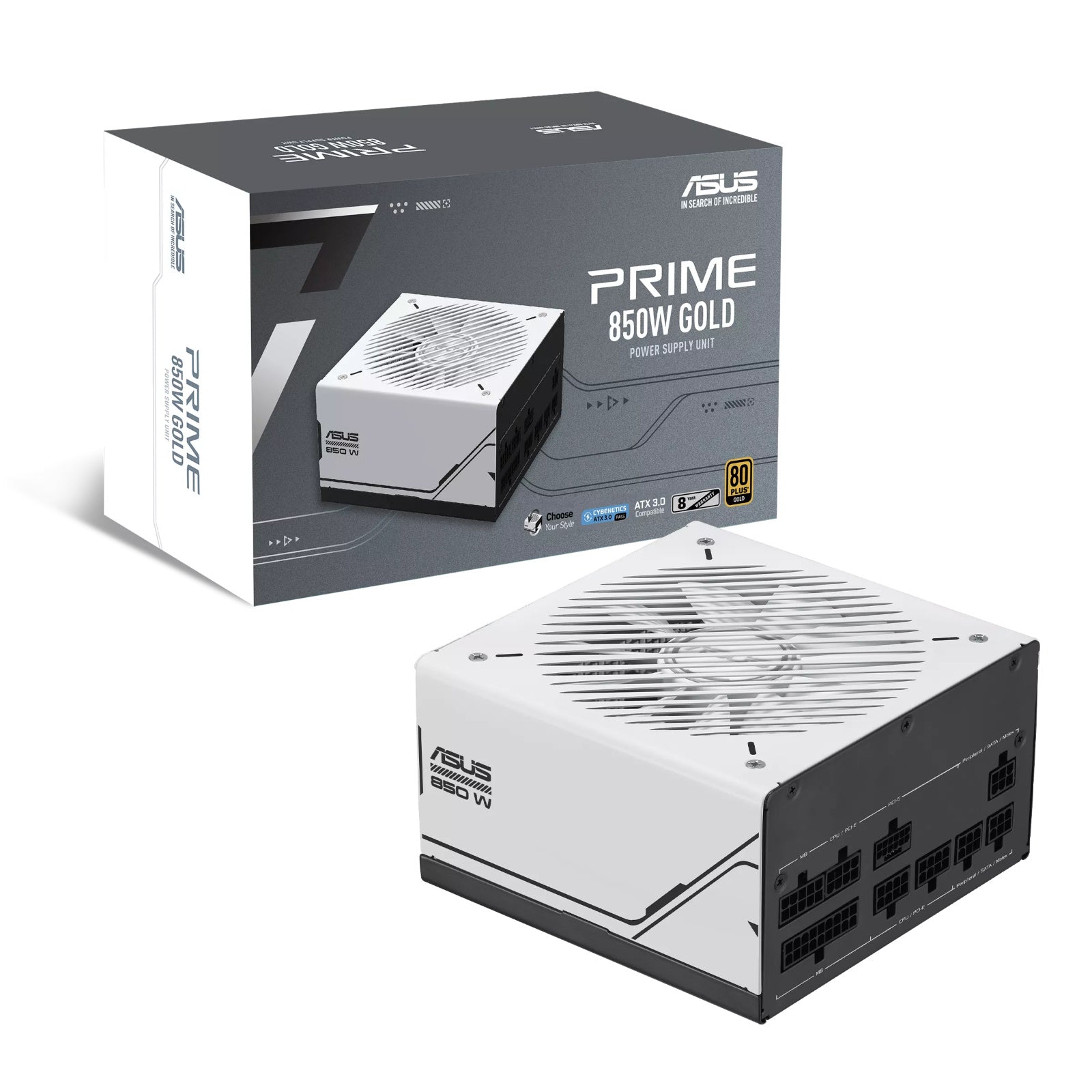

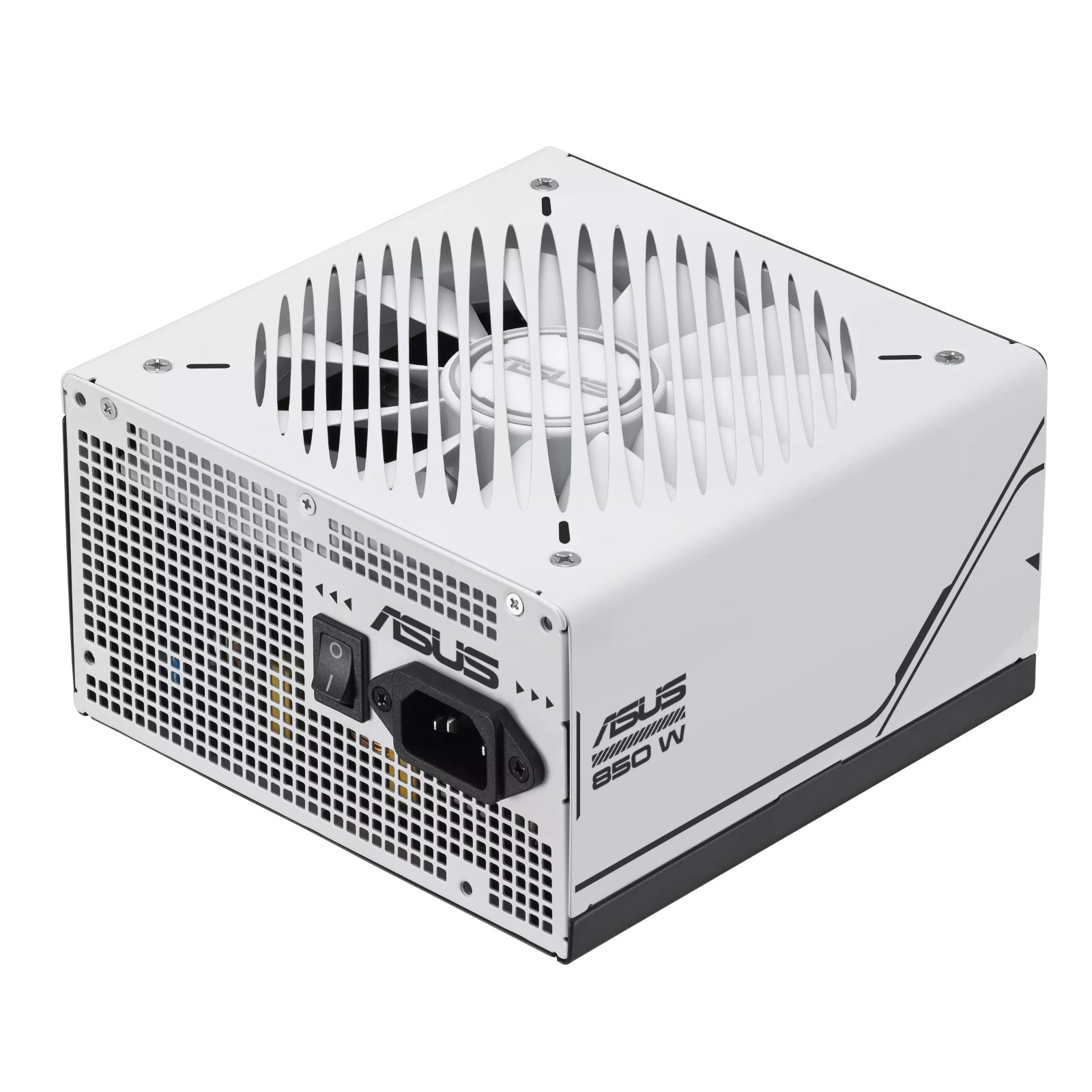

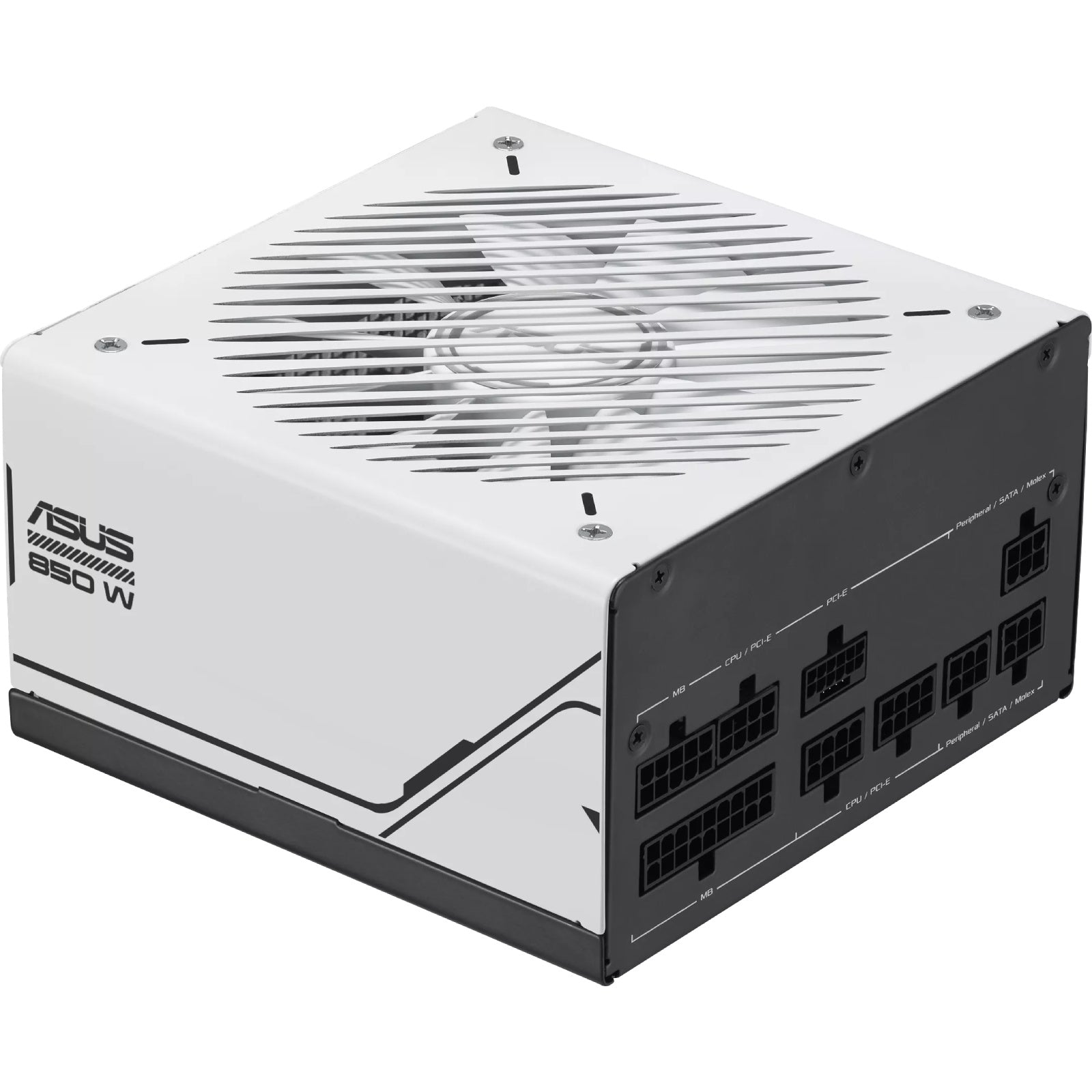

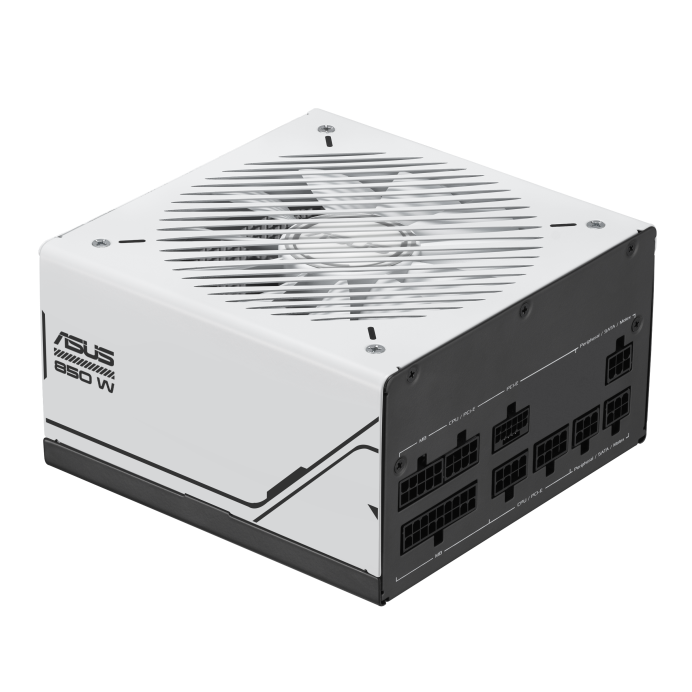

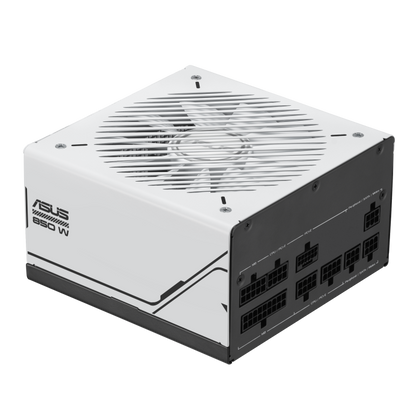

ASUS Prime 850W Gold
ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

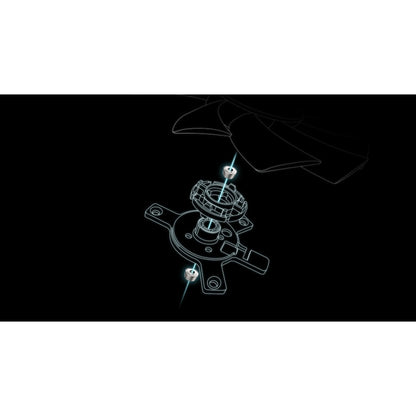

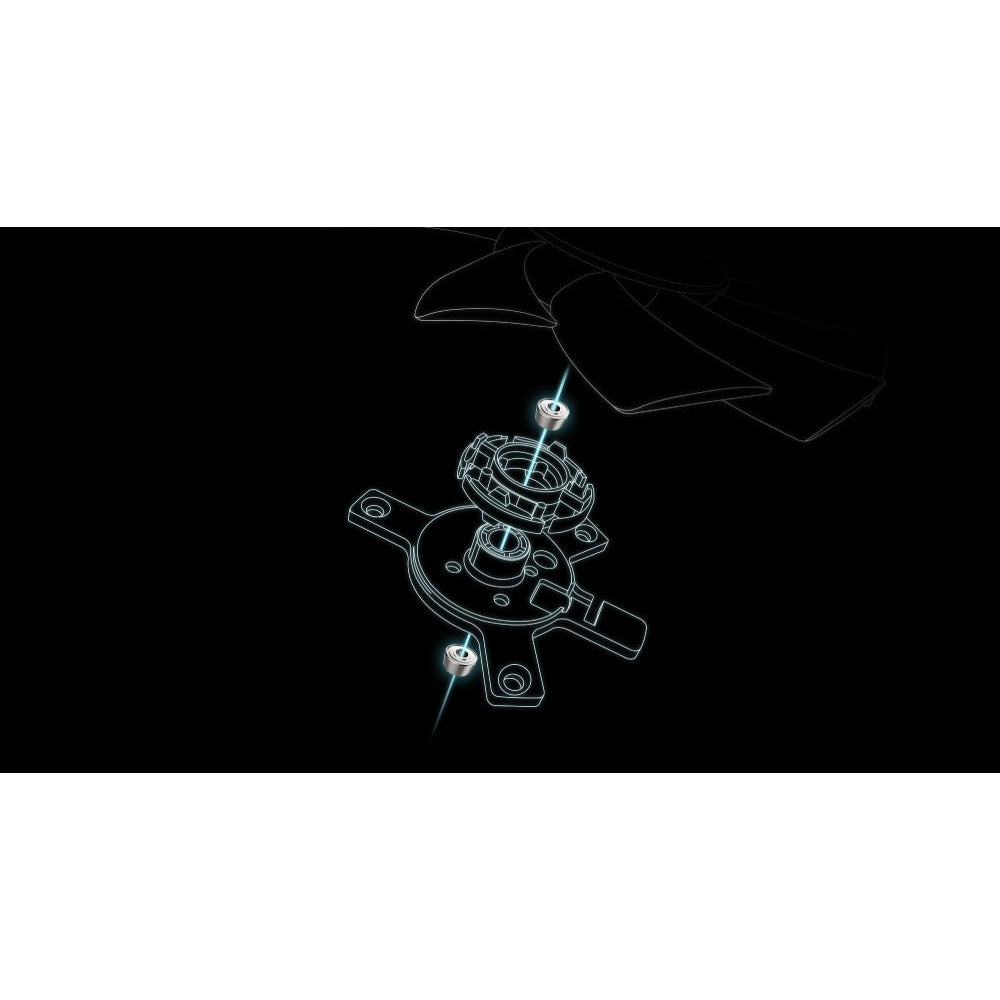

DUAL BALL FAN BEARINGS

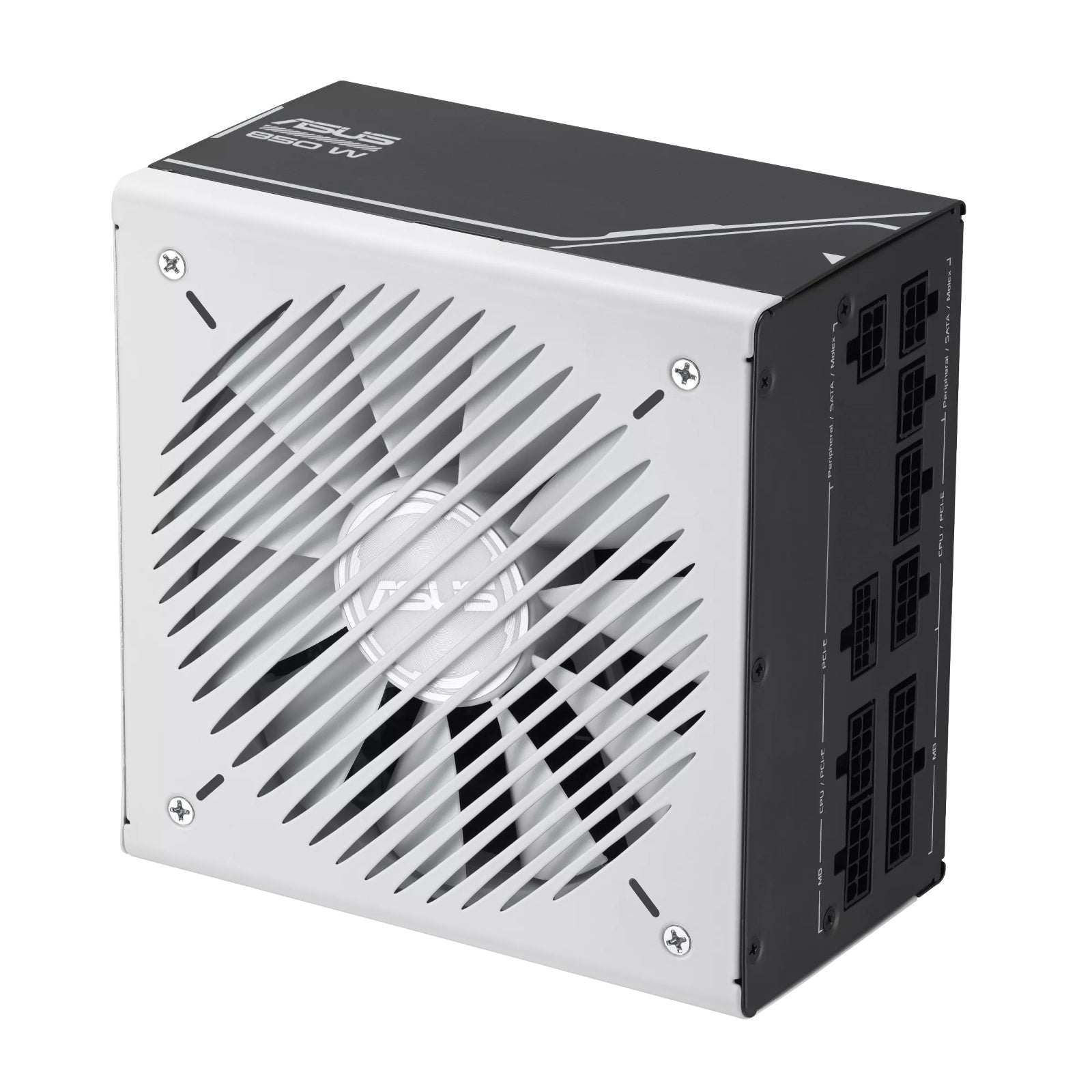

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

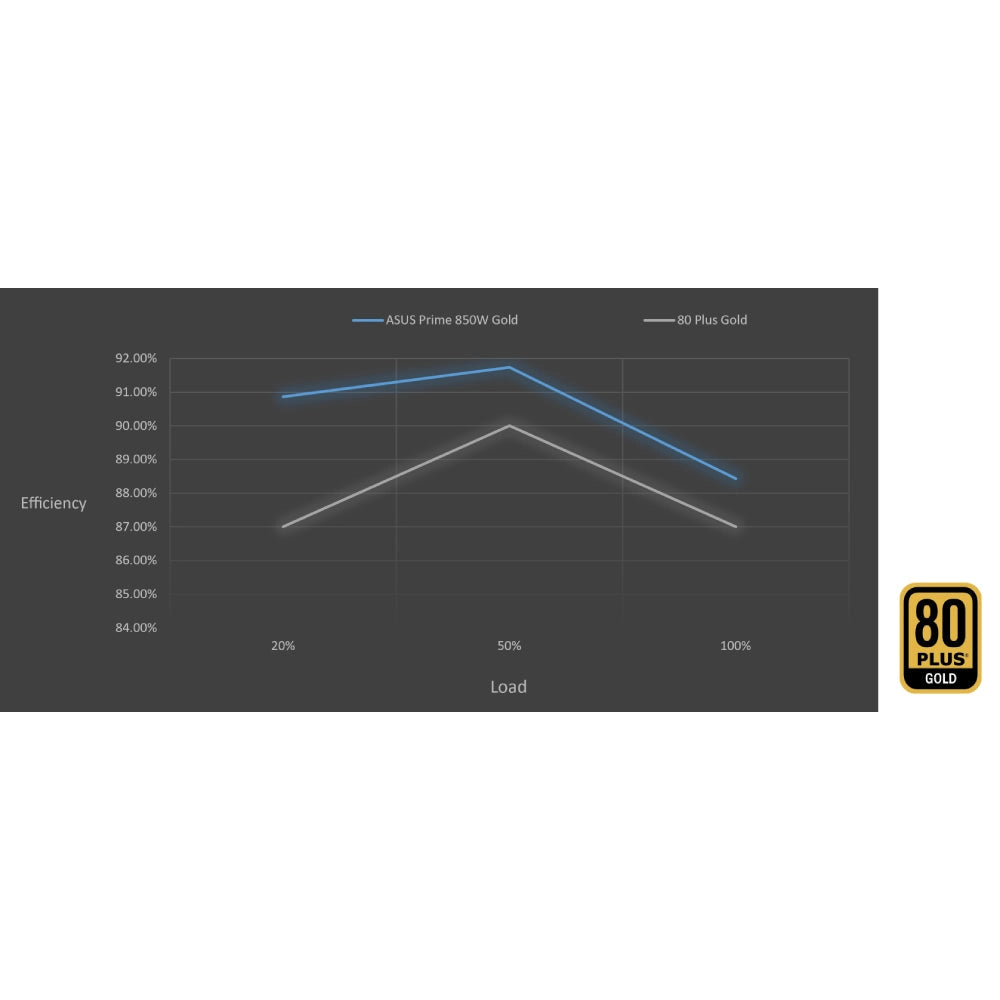

80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation - affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

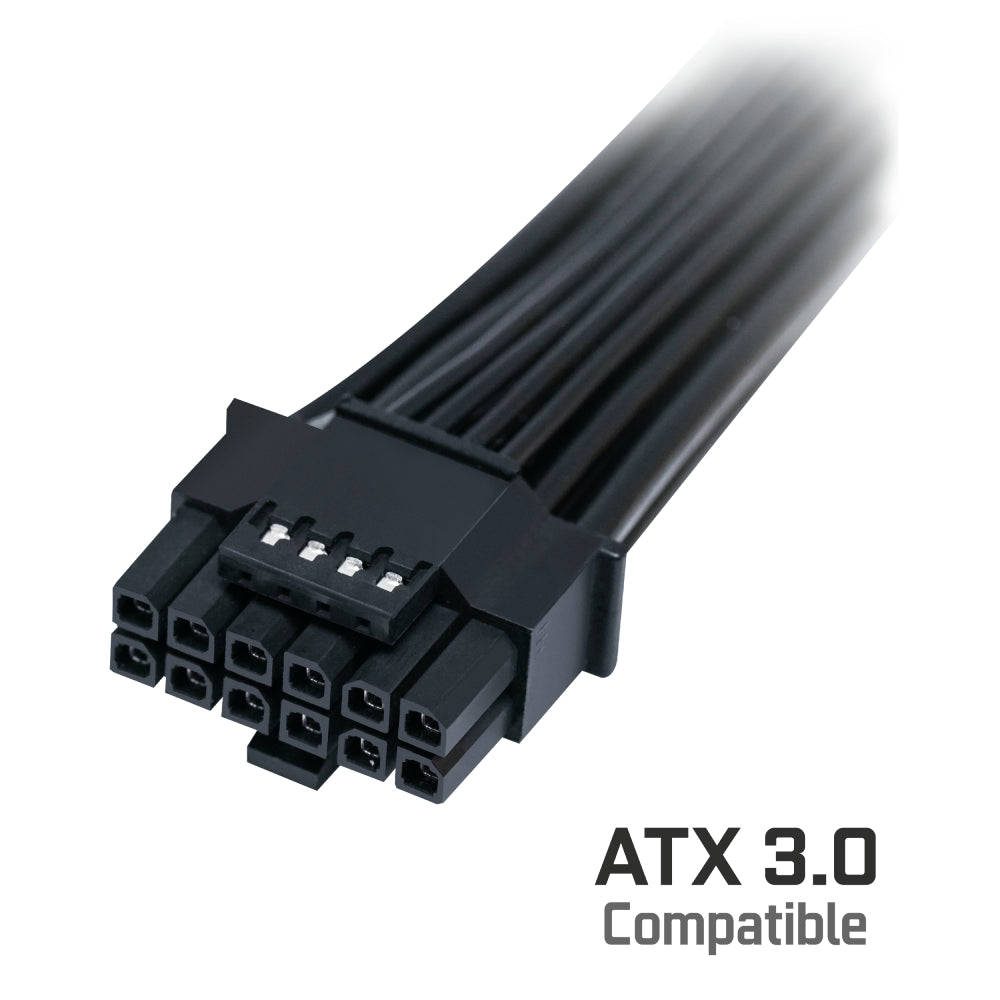

ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

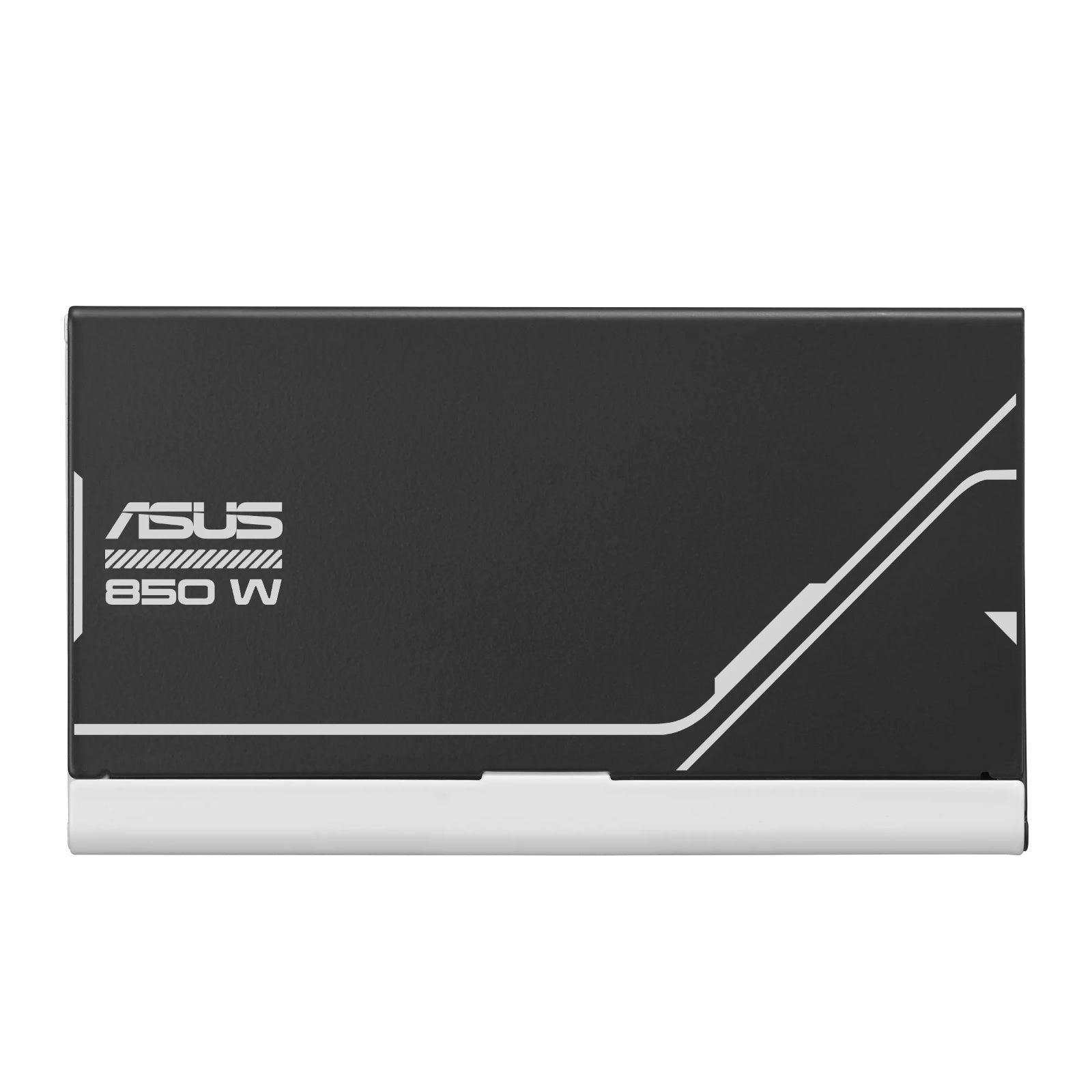

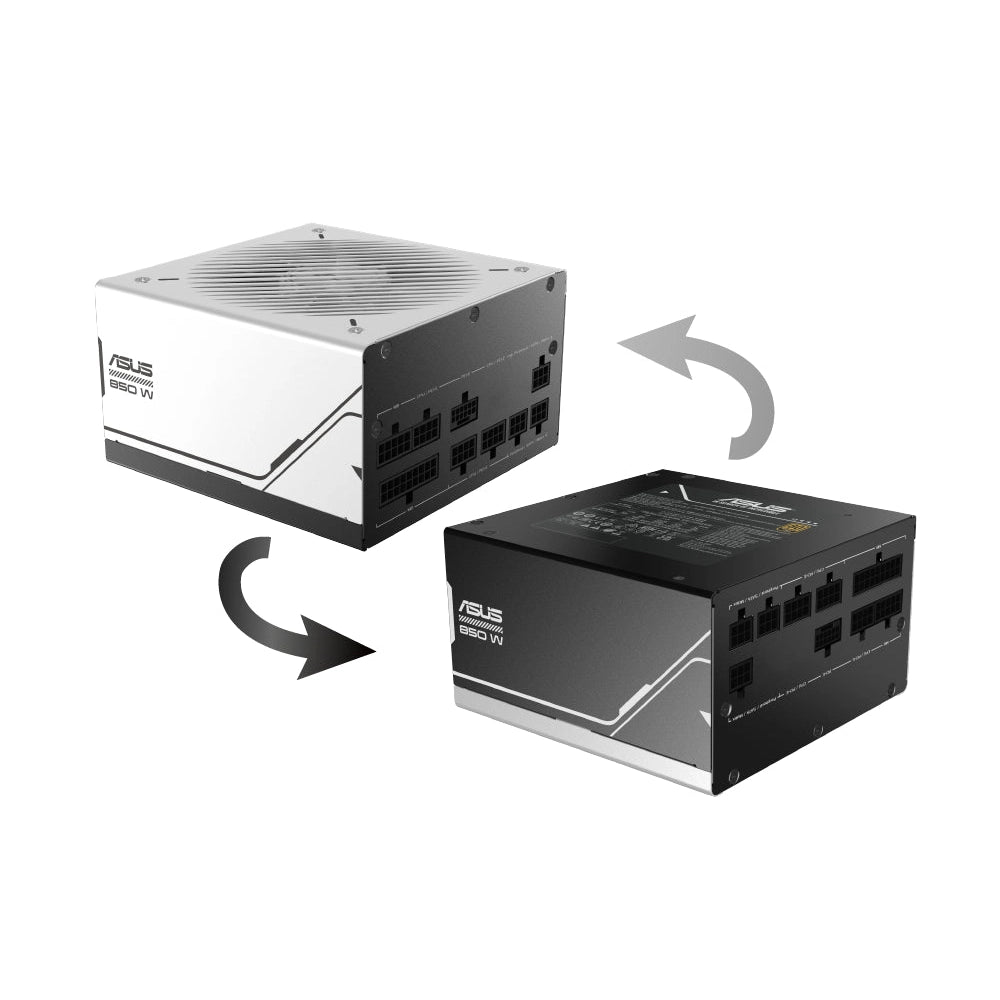

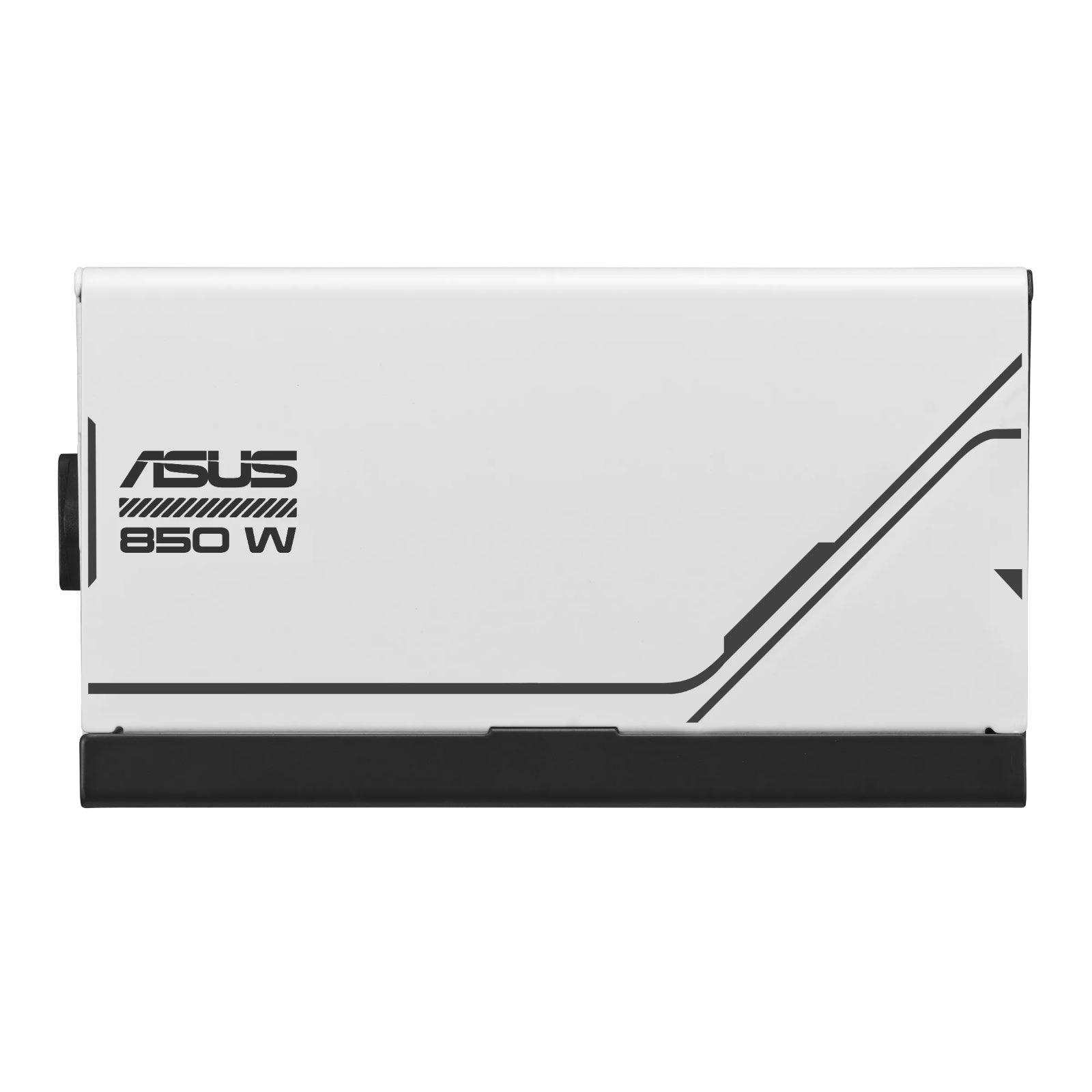

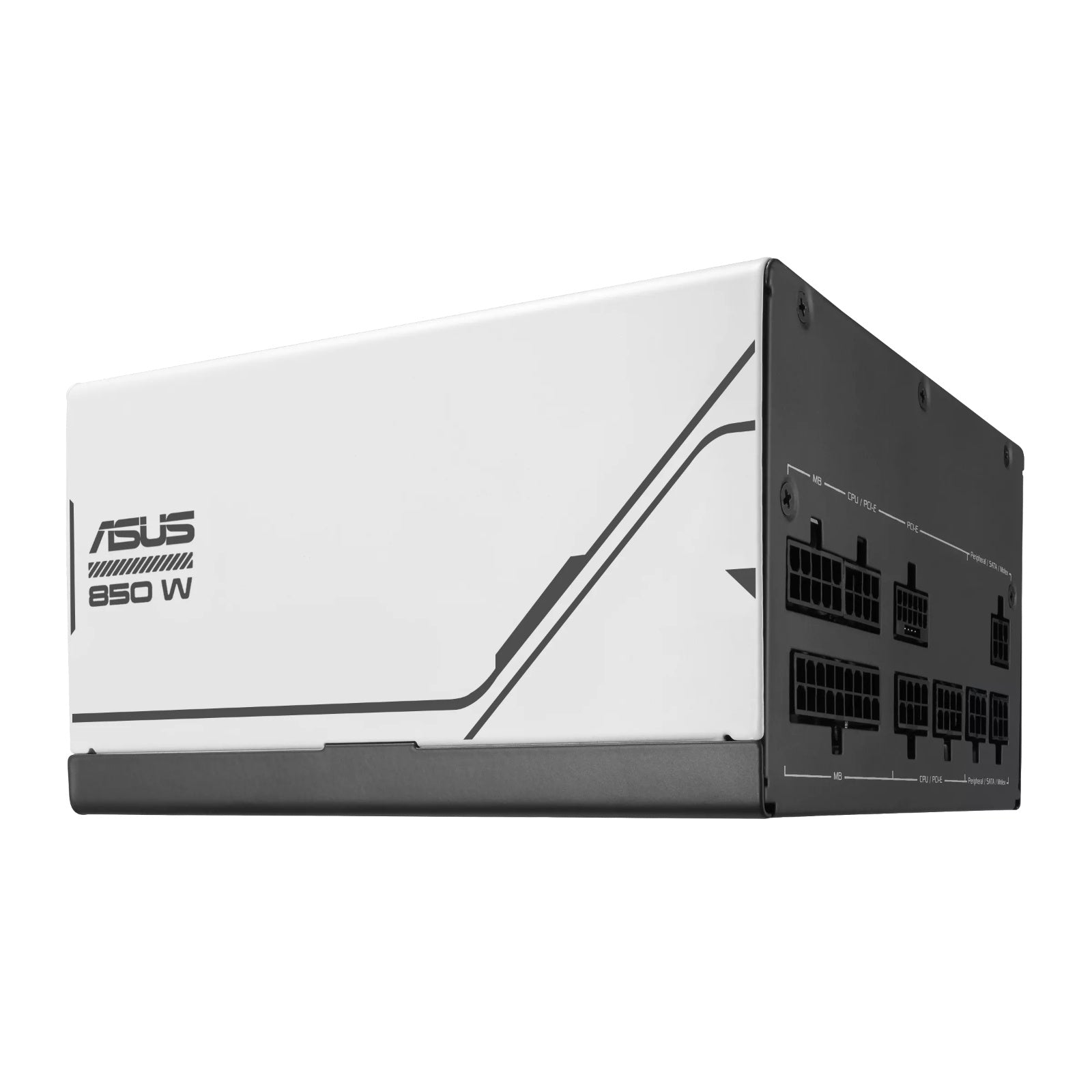

CHOOSE YOUR STYLE
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
Specifications
Model: AP-850G
Intel Form Factor: ATX12V
ATX 3.0: Yes
Dimensions: 150 x 150 x 86 mm
Efficiency: 80 Plus Gold
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS

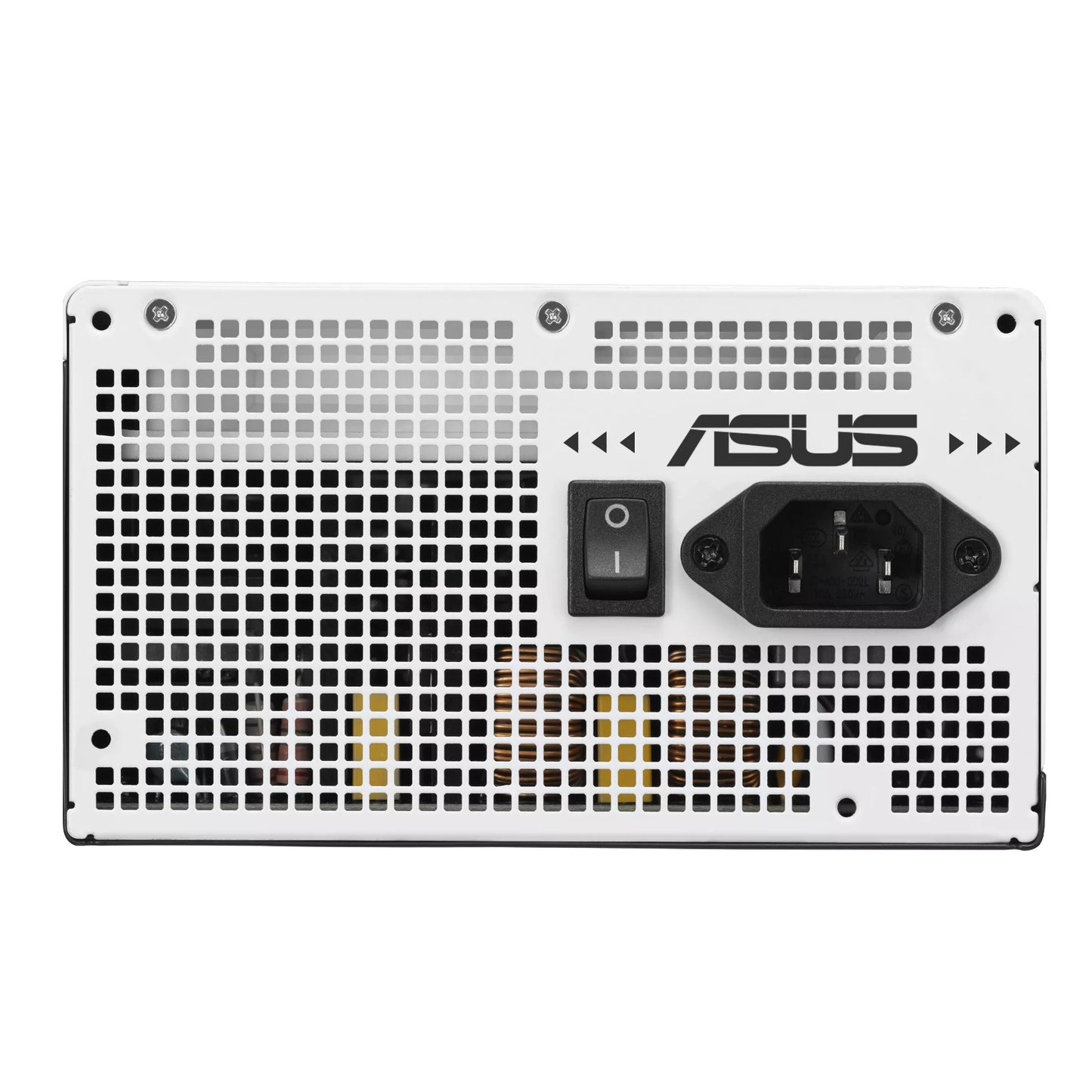

AC Input Range: 100-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 20A20A70.5A 0.3A 2.5A
Combined Load: 110W 110W 846W 3.6W 12.5W
Total Output: 850W
Weight: 1.502 kg (single PSU)
0dB Fan Button: No

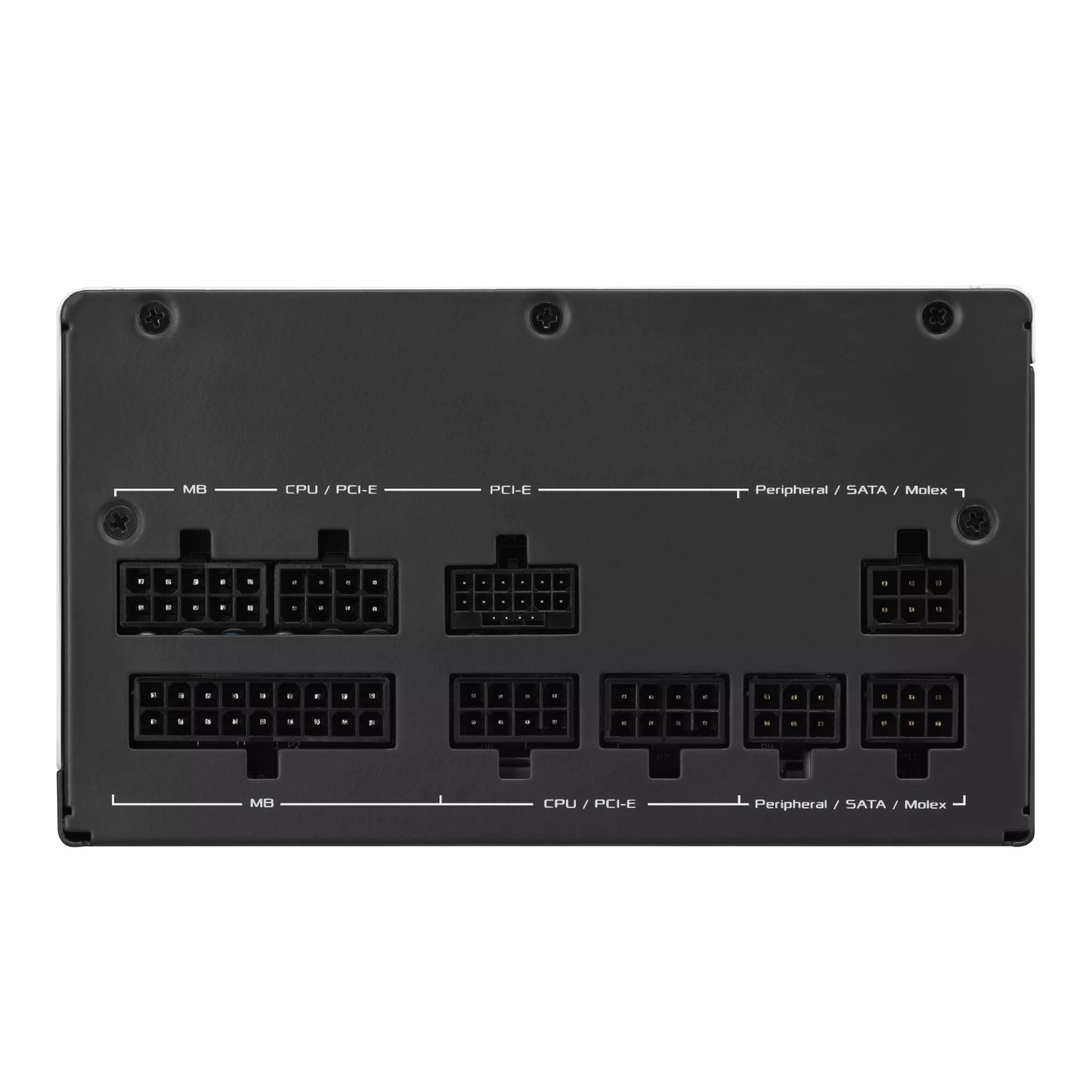

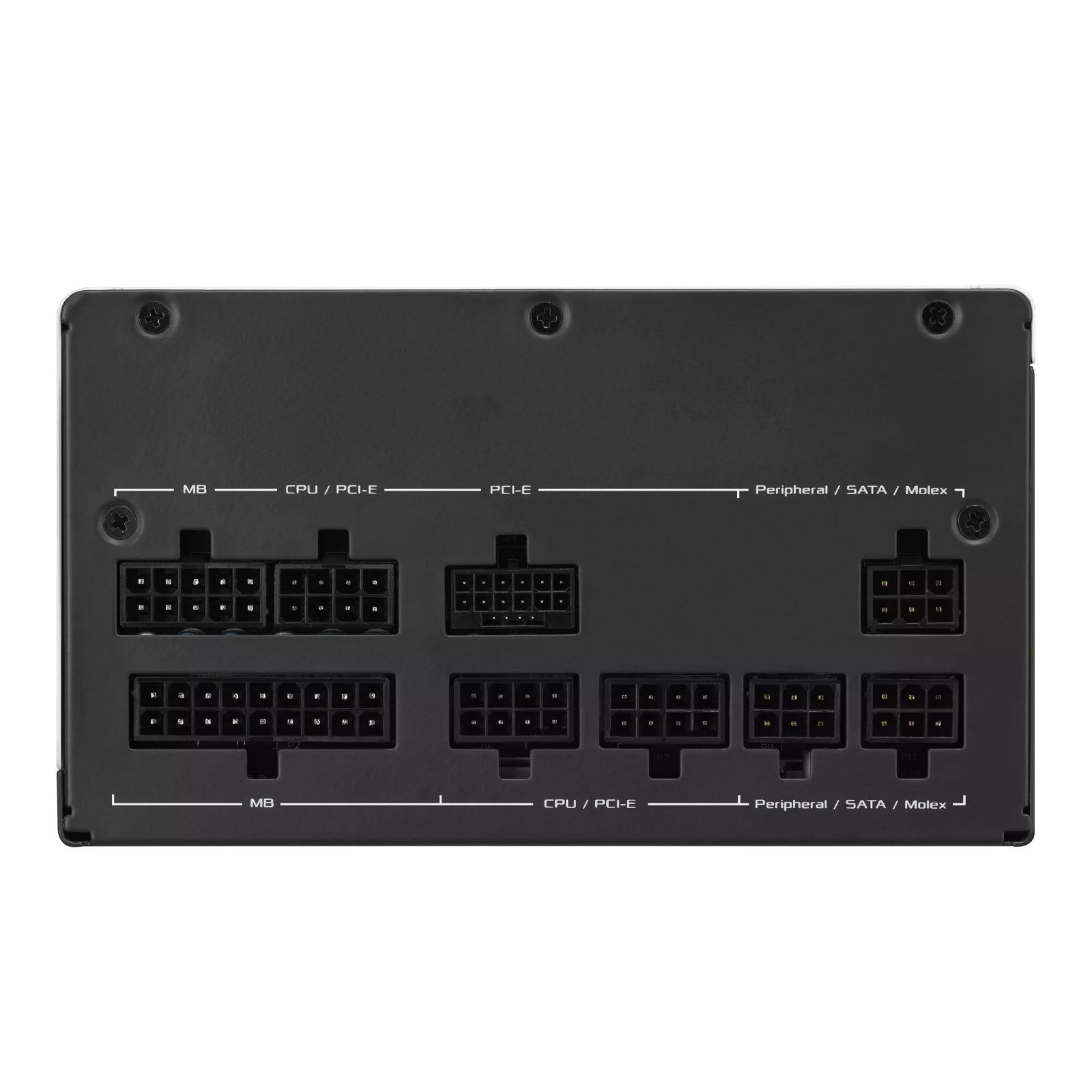

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Package Contents
1x ASUS Prime 850W Gold Power Supply
1x Power Cord
1x Motherboard Power Cable (610mm)
2x CPU Cable (650mm)
1x PCI-E Gen 5 16-pin Cable (675mm)
1x PCI-E (16-pin to 8-pin-8-pin) Cable (675mm)
1x PCI-E 1-to-1 Cable (675mm)
1x SATA 1-to-2 Cable (400+120mm)
1x SATA 1-to-3 Cable (400+120+120mm)
1x Peripheral 1-to-3 Cable (400+150+150mm)
1x User Manual
Warranty: 96 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
