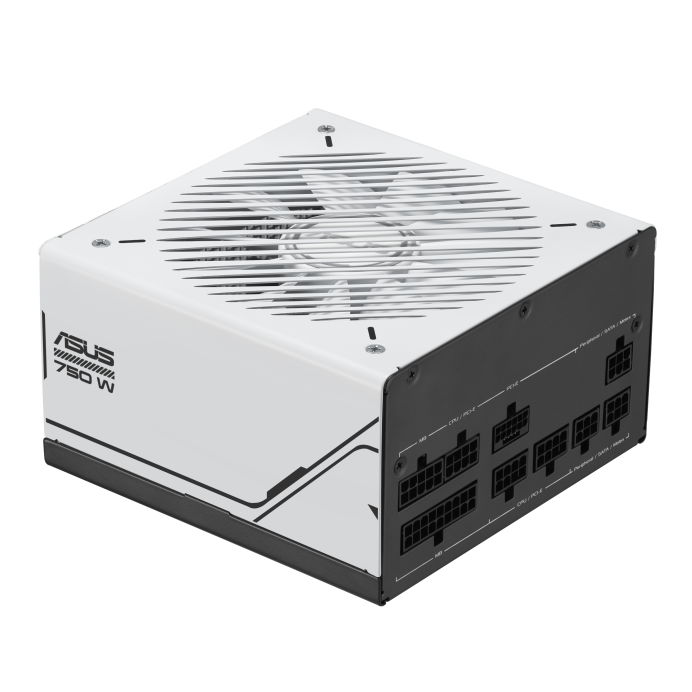

ASUS Prime 750W 80 PLUS Gold Fully Modular ATX 3.0 Power Supply - AP-750G

The ASUS Prime 750W Gold delivers efficient and reliable power for gaming PCs, creator workstations, and everyday high-performance desktop systems. Featuring premium components, a fully modular cable design, and compliance with the latest ATX 3.0 standard, it provides stable power delivery for modern hardware while supporting next-generation graphics cards.

Equipped with dual ball fan bearings for extended durability, 80 PLUS Gold certified efficiency, and a native 16-pin PCIe power cable for PCIe 5.0 graphics cards, the ASUS Prime 750W Gold is built for dependable long-term performance.

Backed by an 8-year ASUS warranty for added peace of mind.

ASUS Prime 750W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

Dual Ball Fan Bearings:
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

80 Plus Gold Certification:
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 Compatible:
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

Choose Your Style:
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.

Key Features

• 750W continuous power output
• 80 PLUS Gold certified for high efficiency
• Fully modular cable design for cleaner cable management and improved airflow
• ATX 3.0 compatible
• Includes a native 16-pin PCIe cable compatible with PCIe 5.0 graphics cards
• 135mm dual ball bearing cooling fan for extended lifespan
• Premium low-ESR capacitors for reliable power delivery
• Comprehensive protection: OPP, OVP, UVP, SCP, OCP and OTP
• Active Power Factor Correction (Active PFC)
• 8-Year ASUS Warranty

Specifications

Brand: ASUS
Model: AP-750G
Manufacturer Part Number: 90YE00U1-B0ZA00
UPC: 197105268951
Product Type: Fully Modular ATX Power Supply
Total Output: 750W
Form Factor: ATX12V
ATX Standard: ATX 3.0
Efficiency Certification: 80 PLUS Gold
PFC: Active PFC
Dimensions (L × W × H): 150 × 150 × 86 mm
Weight: 1.466 kg
AC Input: 100-240V AC
DC Output: +3.3V, +5V, +12V, -12V, +5VSB
Protection Features: OPP, OVP, UVP, SCP, OCP, OTP
RoHS Compliant: Yes

Maximum Output

+3.3V: 20A
+5V: 20A
+12V: 62A
-12V: 0.3A
+5VSB: 2.5A

Combined Power
+3.3V & +5V: 110W
+12V: 744W
-12V: 3.6W
+5VSB: 12.5W

Power Connectors

• 1 × 24/20-pin Motherboard
• 2 × 4+4-pin CPU
• 1 × 16-pin PCIe (PSU and connector side)
• 3 × PCIe 8-pin
• 5 × SATA
• 3 × Peripheral (Molex)

Package Contents

• 1 × ASUS Prime 750W 80 Plus Gold Power Supply
• 1 × Power Cord
• 1 × Motherboard Power Cable (610 mm)
• 2 × CPU Cables (650 mm)
• 1 × PCIe Gen 5 16-pin Cable (675 mm)
• 1 × PCIe (16-pin to 8-pin-8-pin) Cable (675 mm)
• 1 × PCIe 1-to-1 Cable (675 mm)
• 1 × SATA 1-to-2 Cable (400 + 120 mm)
• 1 × SATA 1-to-3 Cable (400 + 120 + 120 mm)
• 1 × Peripheral 1-to-3 Cable (400 + 150 + 150 mm)
• 1 × User Manual

Warranty: 96 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
