Features
12" XGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making.

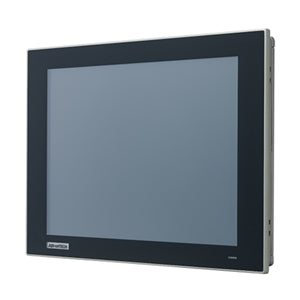

The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen.
Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in
industrial environments such as smart factory and machine automation display applications.
- 12" XGA with 50,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
Specifications
General
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
FPM-212: 311.8 x 238.0 x 53 mm (12.27 x 9.37 x 2.08 in)
Enclosure
Front panel: Die cast magnesium alloy
Rear cover: Die-casting aluminum
Mount Options
Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input
FPM-2XX-R8AE : External 36 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 3 A output (included)
Video Port
HDMI, DP, and VGA
Weight (Net)
3.2 kg
Power Consumption
FPM-212-R8AE 17.91(idle), 19.01(Max)
LCD Display
Display Type
XGA
Display Size
12"
Max. Resolution
1024 x 768
Max. Color
16.2M
Viewing Angle (H/V °)
178/178
Luminance (cd/m²)
600
Backlight Life
50,000 hr
Contrast Ratio
1000:1
Touchscreen
Type
5-wire analog resistive
Interface
USB
Light Transmission
Above 75%
OS Support
Windows XP, Vista,7, 8,10,XPe and Linux
Environment
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Humidity (Storage)
10 ~ 90% non-condensing
IP Rating
IP-66 graded front panel
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
-----
12" Touchscreen, HDMI + DP input Slim Design, 12VDC input (AC adapter supplied - however power cord is still required - suggest CA5355) 600 cm/m2, USB touch interface
