Features

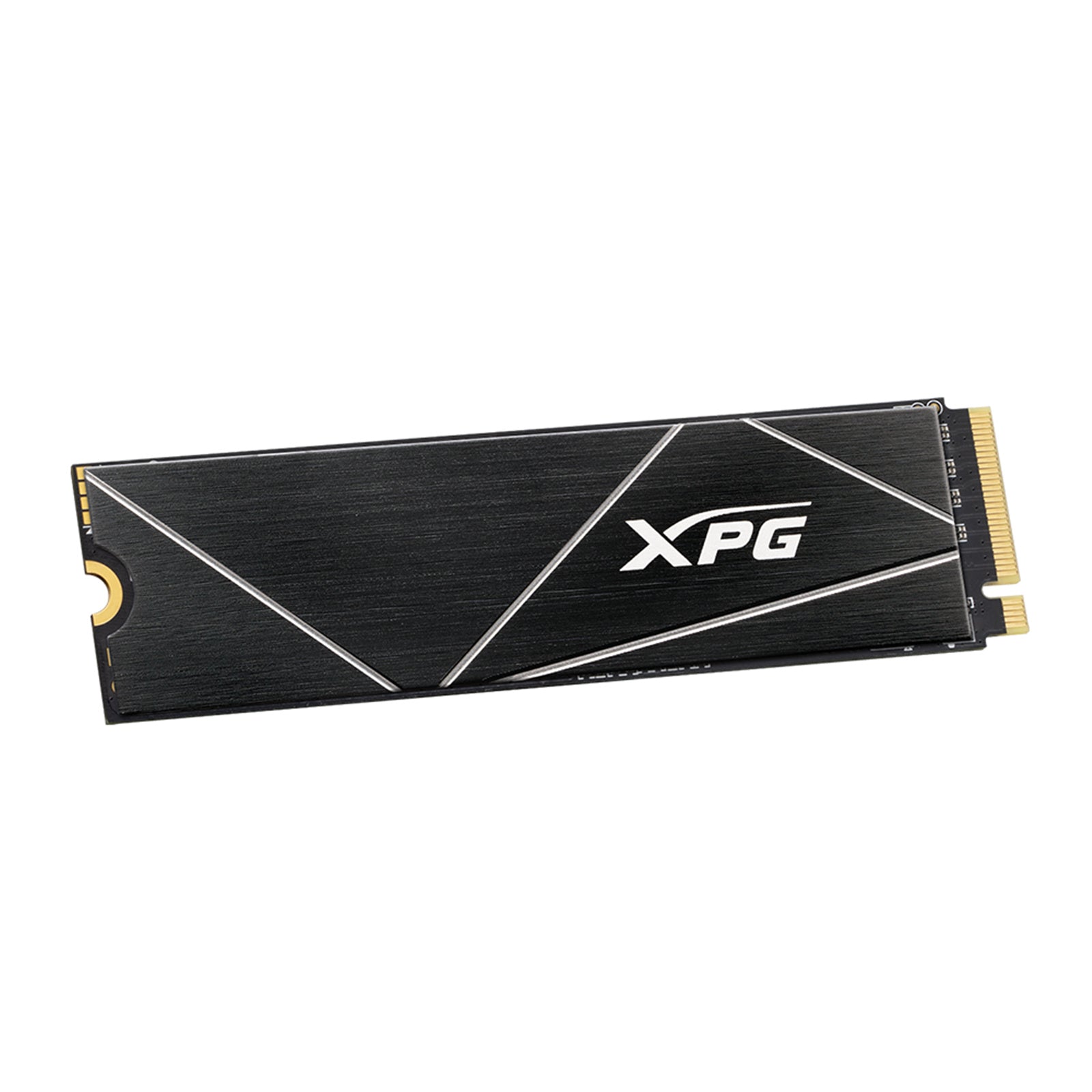

GAMMIX S70 BLADE - SHARP AS A BLADE

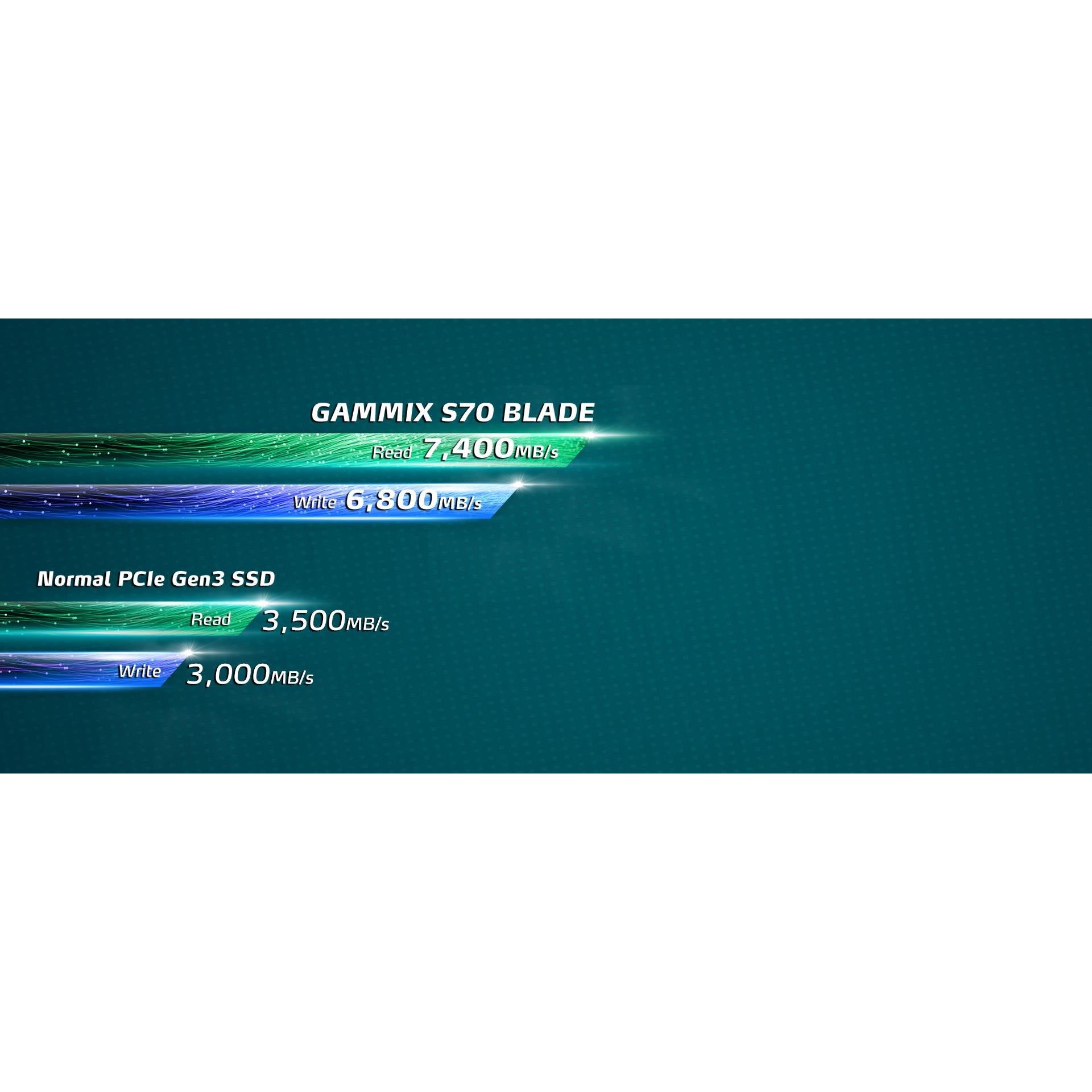

Speed Ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.

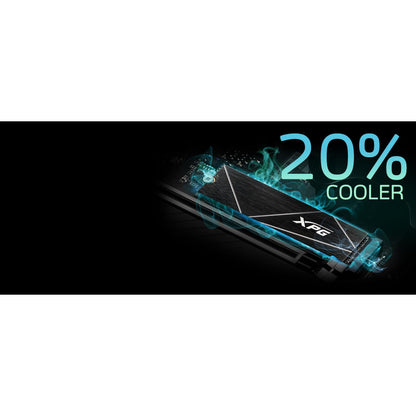

Cool in the Heat of Battle

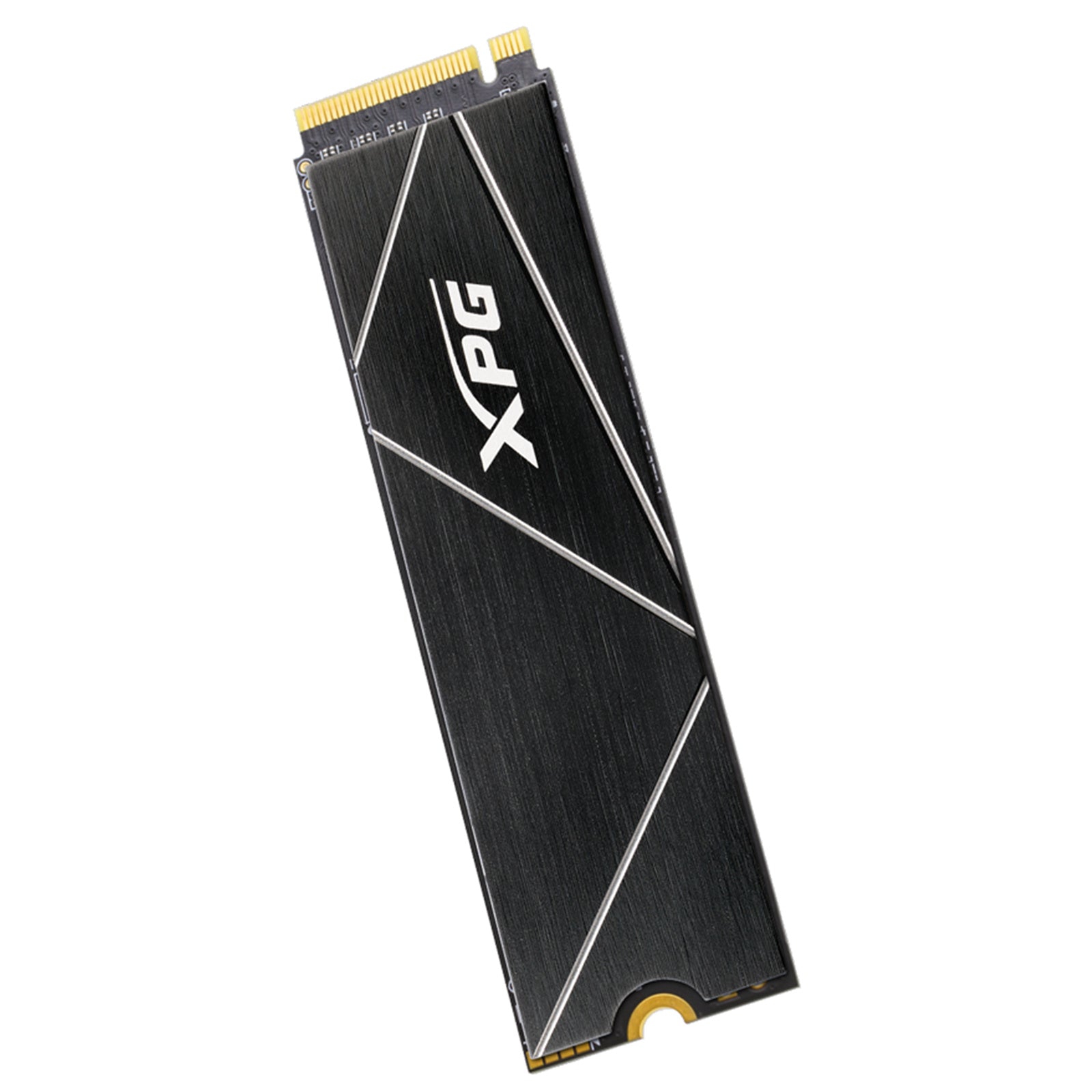

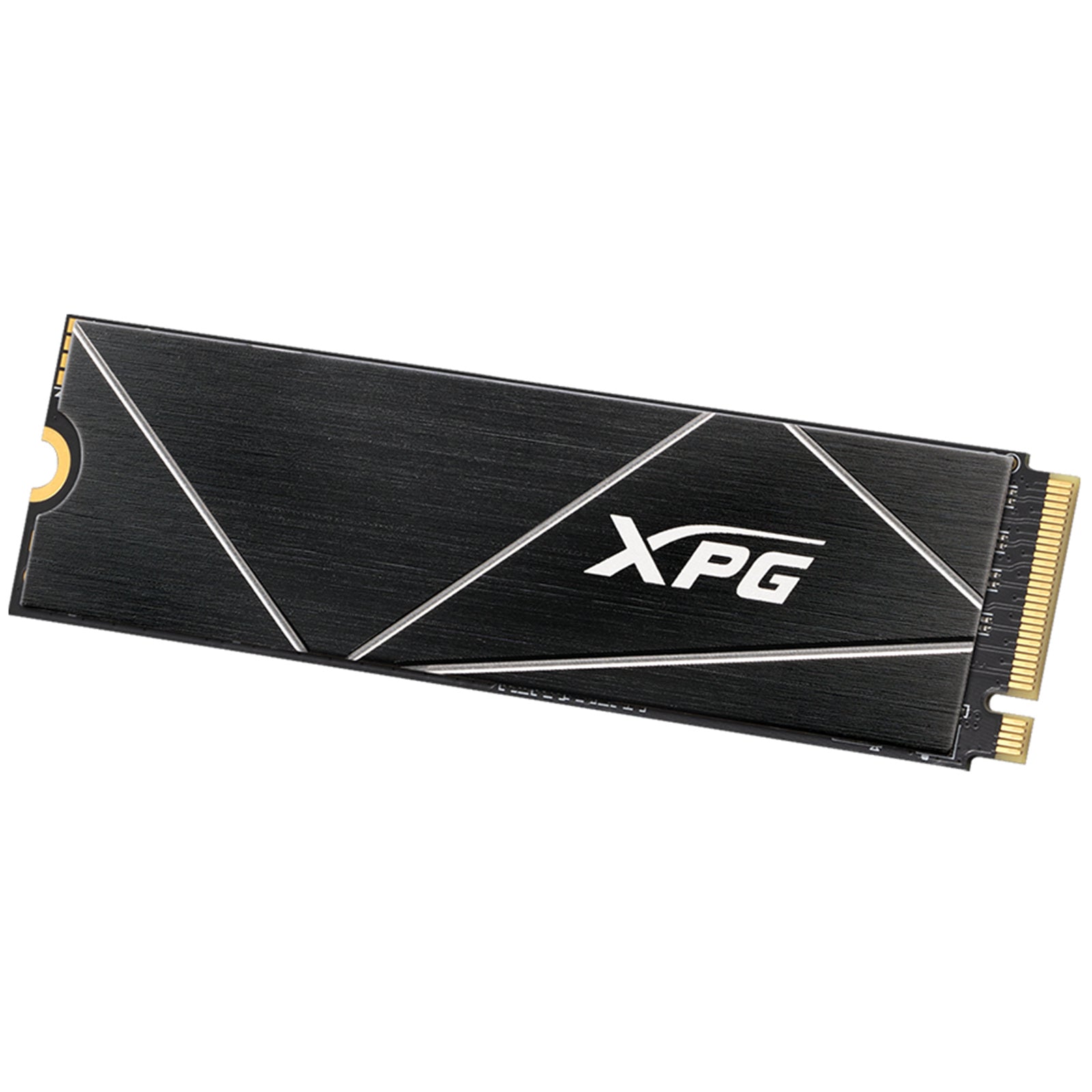

Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.

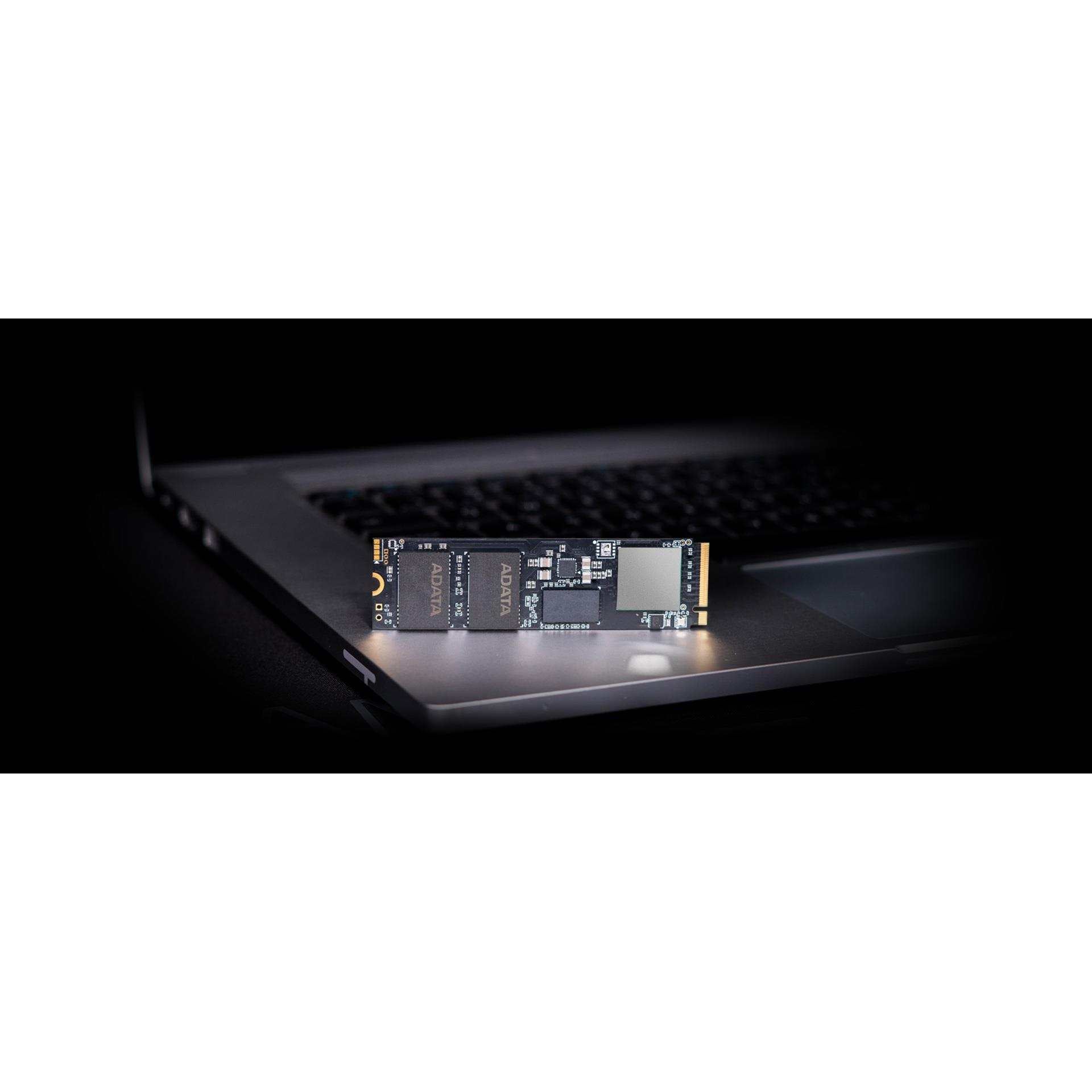

Perfect for Compact and Thin Devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.

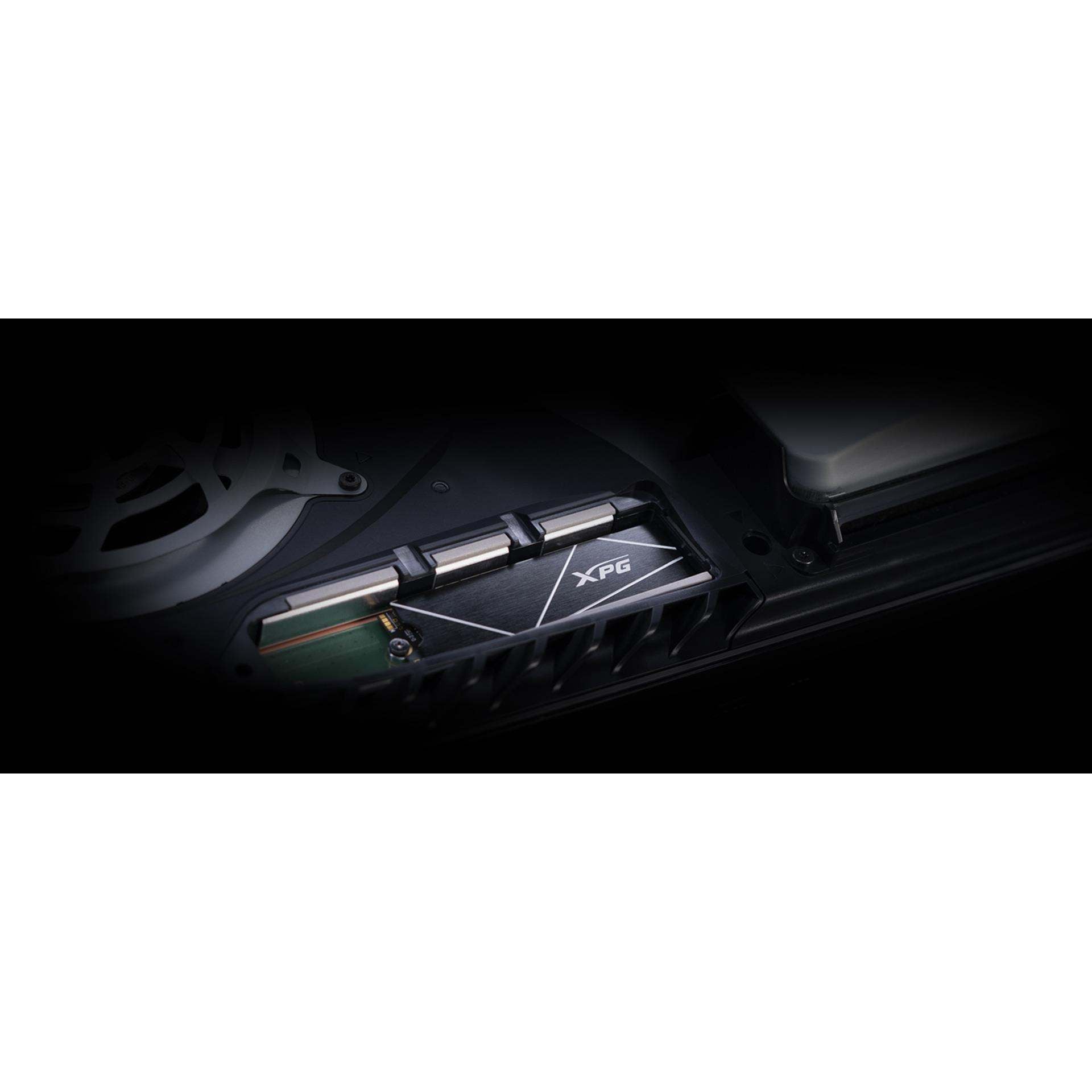

Works with PS5
Got a PS5 and need more capacity? The GAMMIX S70 BLADE is your answer. Plug one into your PS5 and enjoy better, smoother performance over the built-in storage.
*According to the announcement from Sony Interactive Entertainment Co., Ltd., even if the continuous reading and writing speed is higher than the official standard, not all in-game performance features will match the built-in solid state drive of the PS5 console.
**Under the operating environment of the PS5, the sequential read speed of all capacities measured at 6300MB/s.

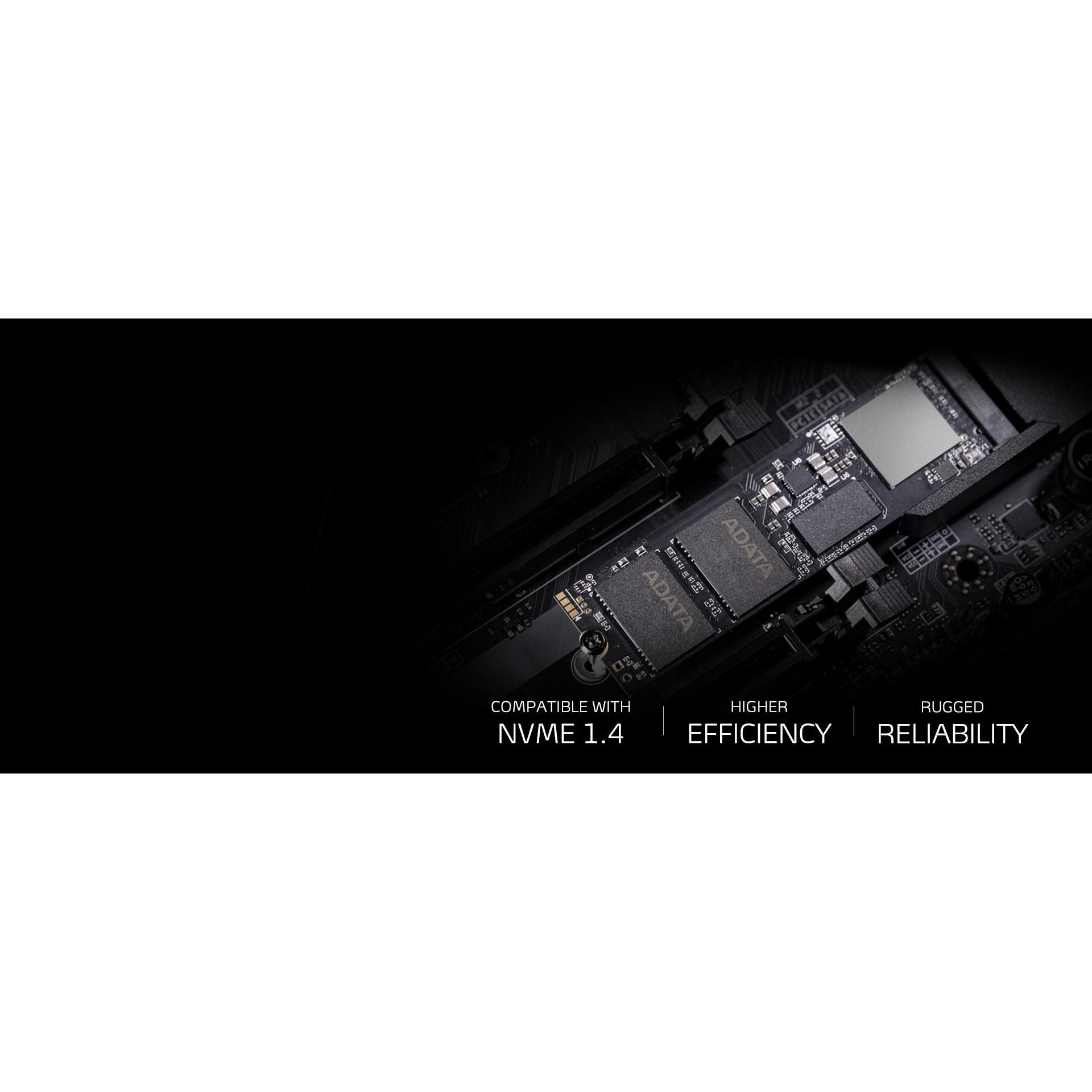

Made to Perform
- Compliant with NVMe 1.4
- Higher capacities and enhanced efficiency and durability with 3D NAND Flash
- M.2 2280 specification: supports the latest generation PCIe 4.0 platform
- Perfect for avid gamers, overclockers, and PC enthusiasts
Boosting Your Performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.
The Ultimate Game Cache
Equipped with 3D NAND Flash memory, the S70 BLADE offers capacities of up to 4TB. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity.

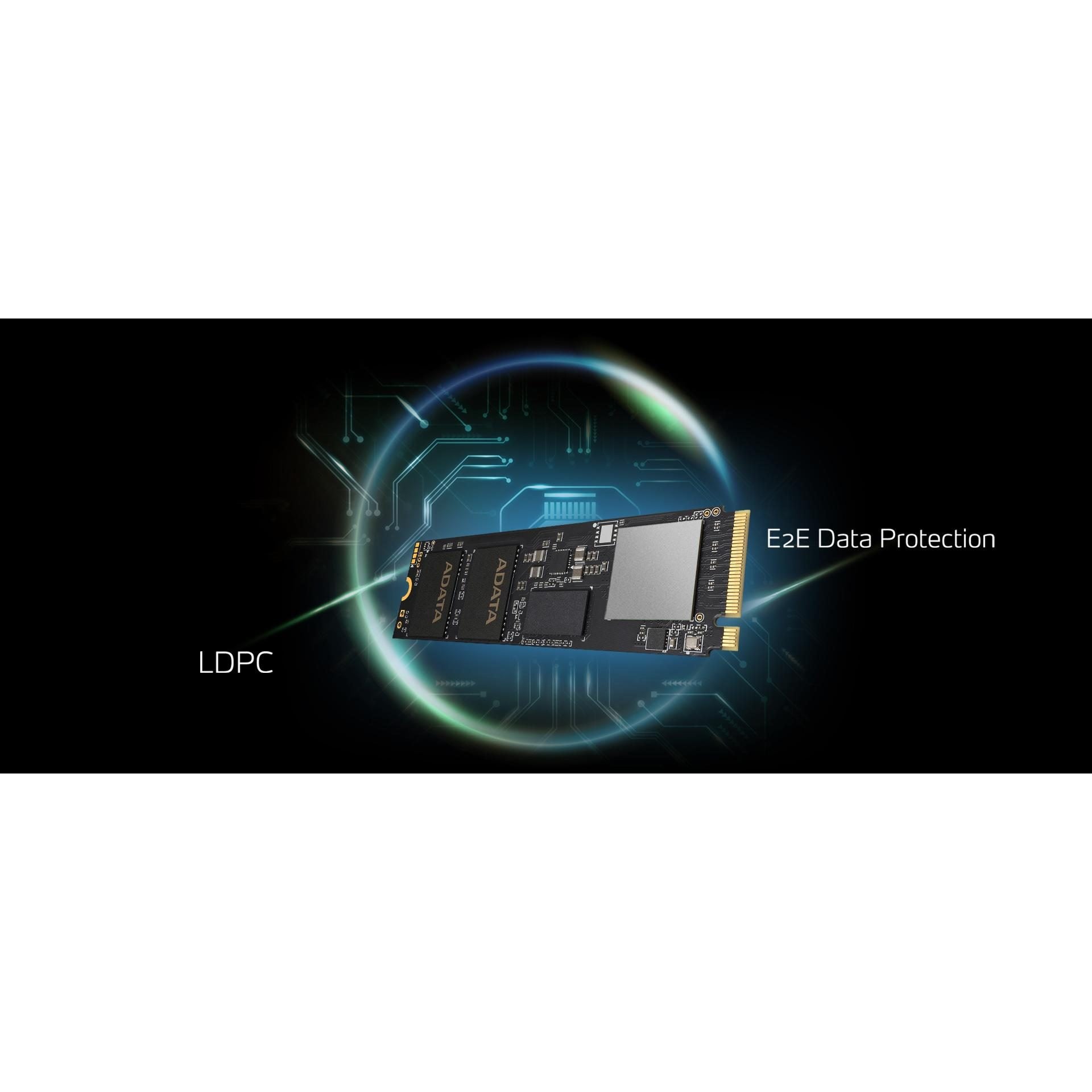

Security and Integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.

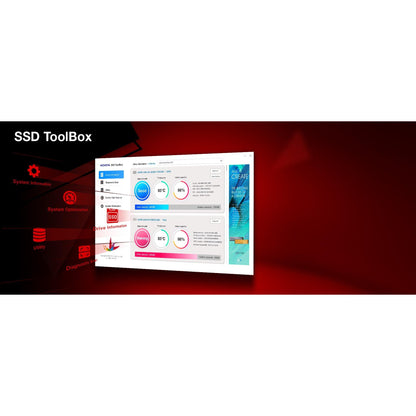

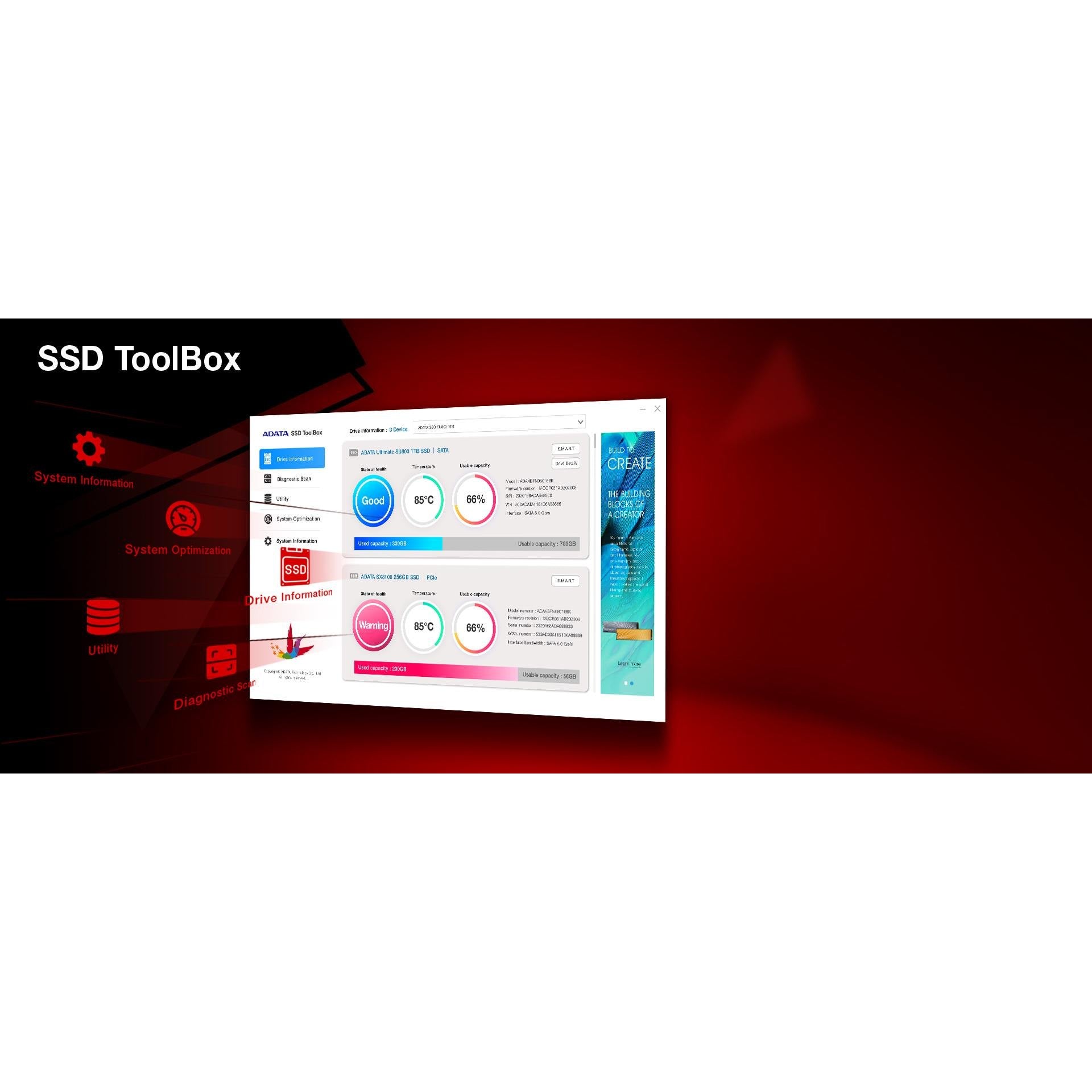

SSD Toolbox
SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.
Specifications
Capacity: 1TB
Form Factor: M.2 2280
NAND Flash: 3D NAND
Controller: IG5236
Dimensions (L x W x H):
80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink),
80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)
Weight: 7g / 0.24oz
Interface: PCIe Gen4x4
Sequential Read (Max*): Up to 7400MB/s (PC/Laptop), Up to 6300MB/s (PS5)
Sequential Write (Max*): Up to 5500MB/s
4KB Random Read IOPS (Max*): Up to 740K
4KB Random Write IOPS(Max*): Up to 740K
Operating Temperature: 0°C - 70°C
Storage Temperature: -40°C - 85°C
Shock Resistance: 1500G / 0.5ms
MTBF: 2,000,000 hours
Terabytes Written (TBW) (Max Capacity*): 740TB
Remark
This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.
Test system configuration : Motherboard ASRock X570 Taichi, CPU AMD Ryzen 7 5800X, CrystalDiskMark 7.0.0
The SSD is based on the TBW or Warranty period.
Visit www.xpg.com/us/support for more details.
Warranty: 60 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
