Features
- PCIe Gen3 x4 interface
- Excellent read/write performance
- Heat sink keeps things 15% cooler
- Great upgrade option for creators
- High capacities
- Supports NVMe 1.4
- LDPC & AES 256-bit encryption
- Supports Host Memory Buffer (HMB)
Enhancing Your Creativity
The LEGEND 710 utilises PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.
Keeping Things Cool

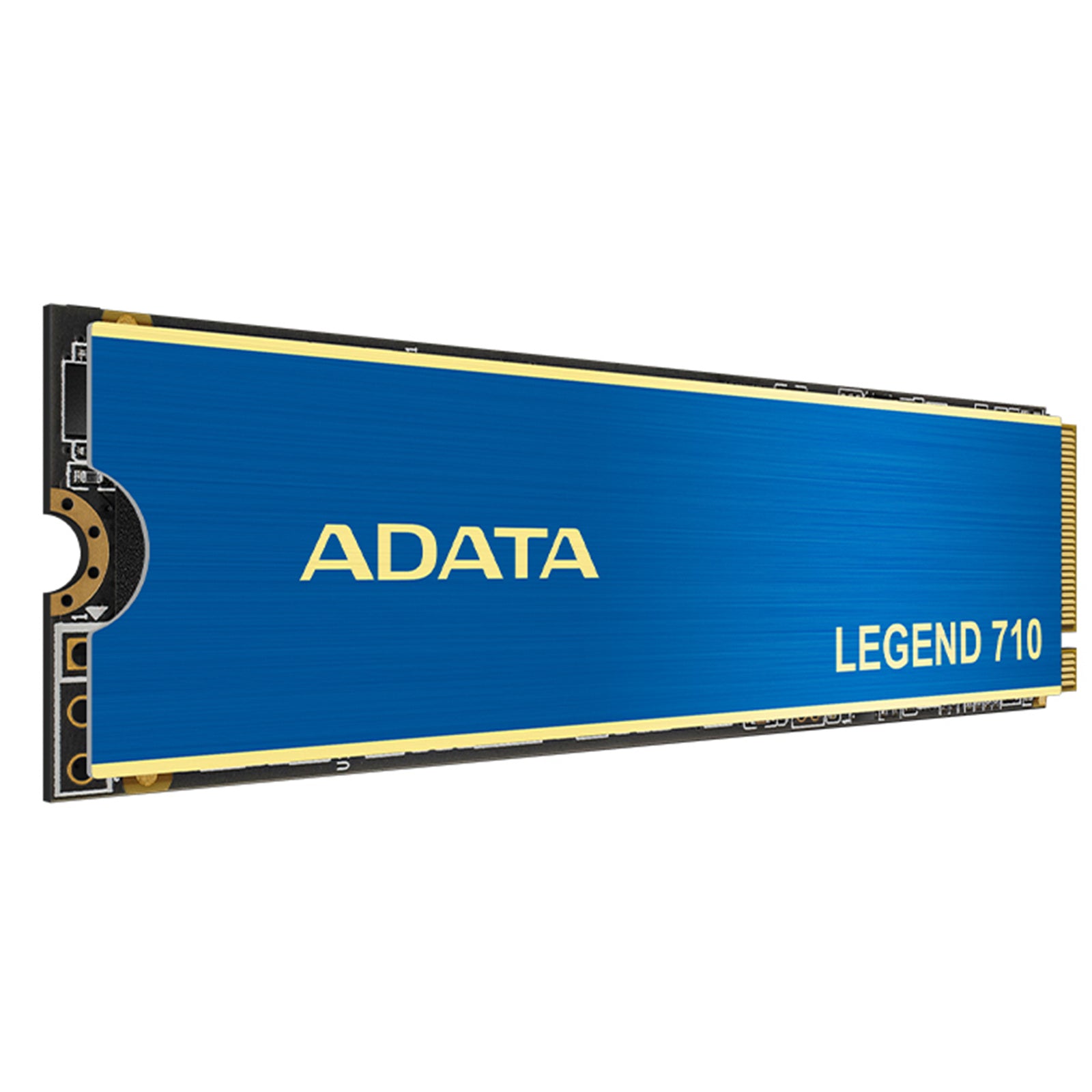

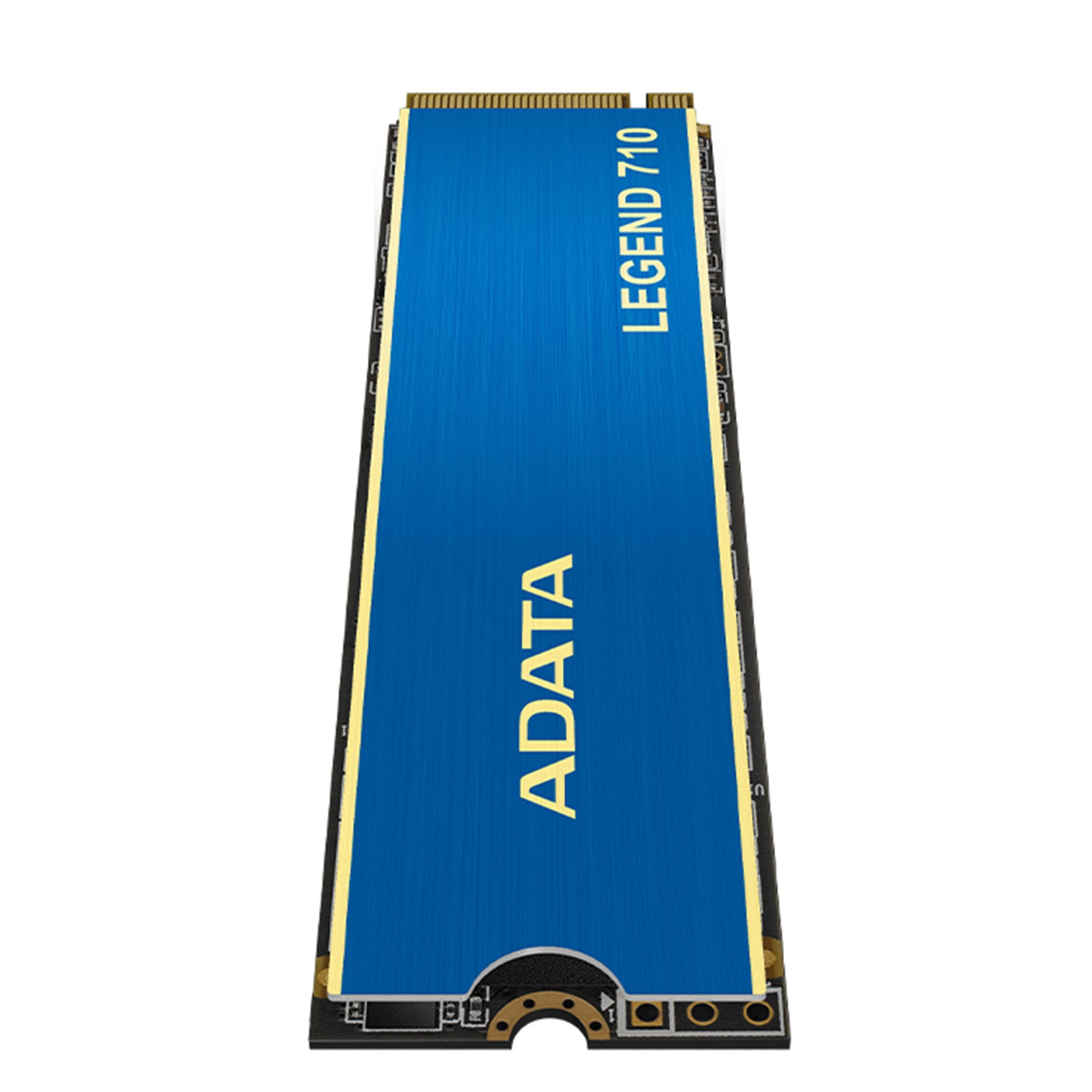

The LEGEND 710's understated but elegant heat sink design is characterised by a regal blue colour scheme with an exquisite golden-coloured trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.
Helping You Create Better
Creativity can't wait! The LEGEND 710 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.
Protecting Your Creations
With LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 710 ensures accurate data transmissions and security.
SSD Toolbox

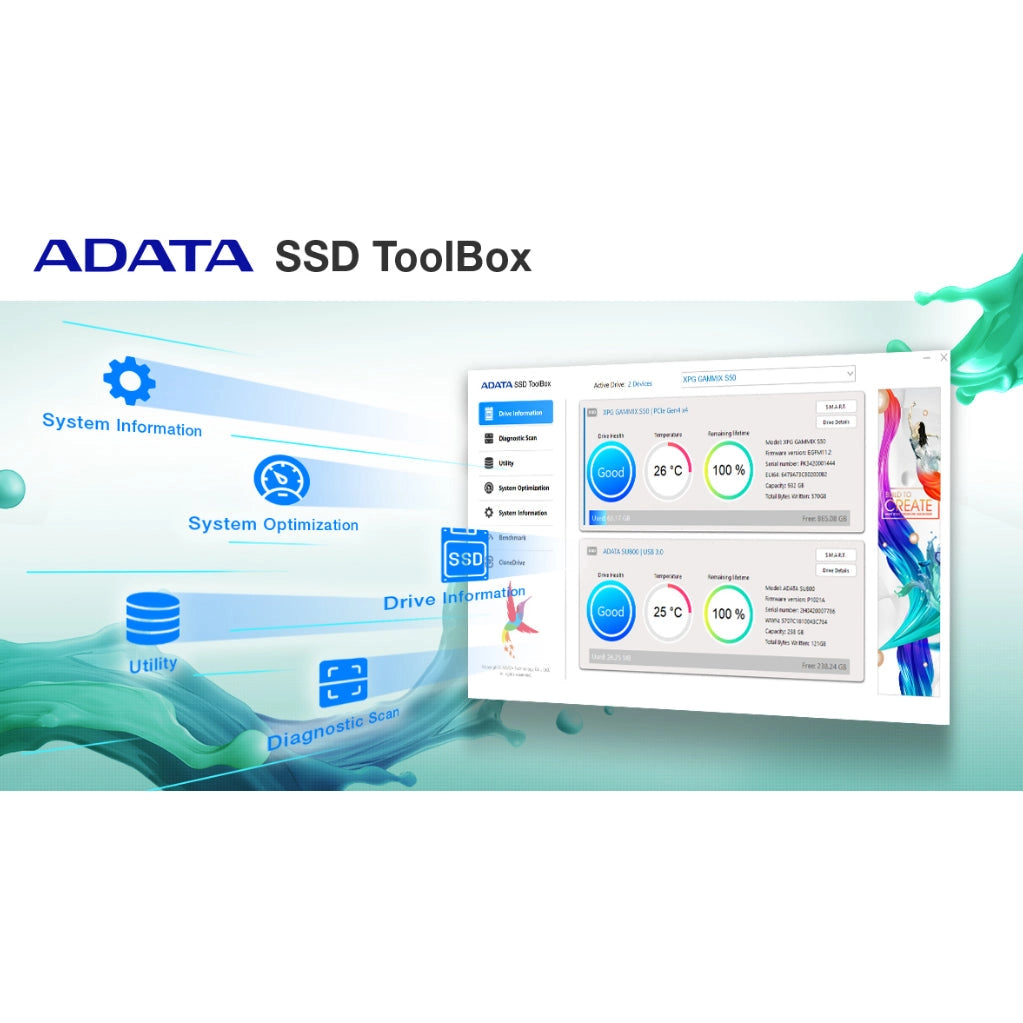

SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.
Specifications
Capacity: 1TB
Form Factor: M.2 2280
NAND Flash: 3D NAND
Controller: RTS5766DL
Dimensions (L x W x H)
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)
80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)
Weight
9g / 0.32oz (with heat sink)
6.2g / 0.22oz (without heat sink)
Interface: PCIe Gen3 x4
Sequential Read (Max): Up to 2,400MB/s
Sequential Write (Max): Up to 1,800MB/s
4KB Random Read IOPS(Max): Up to 200K
4KB Random Write IOPS(Max): Up to 150K
Operating Temperature: 0°C - 70°C
Storage Temperature: -40°C - 85°C
Shock Resistance: 1500G/0.5ms
MTBF: 1,500,000 hours
Terabytes Written (TBW): 260TB
Warranty: 36 months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
