Features
24/7 Stunning Visual Experience

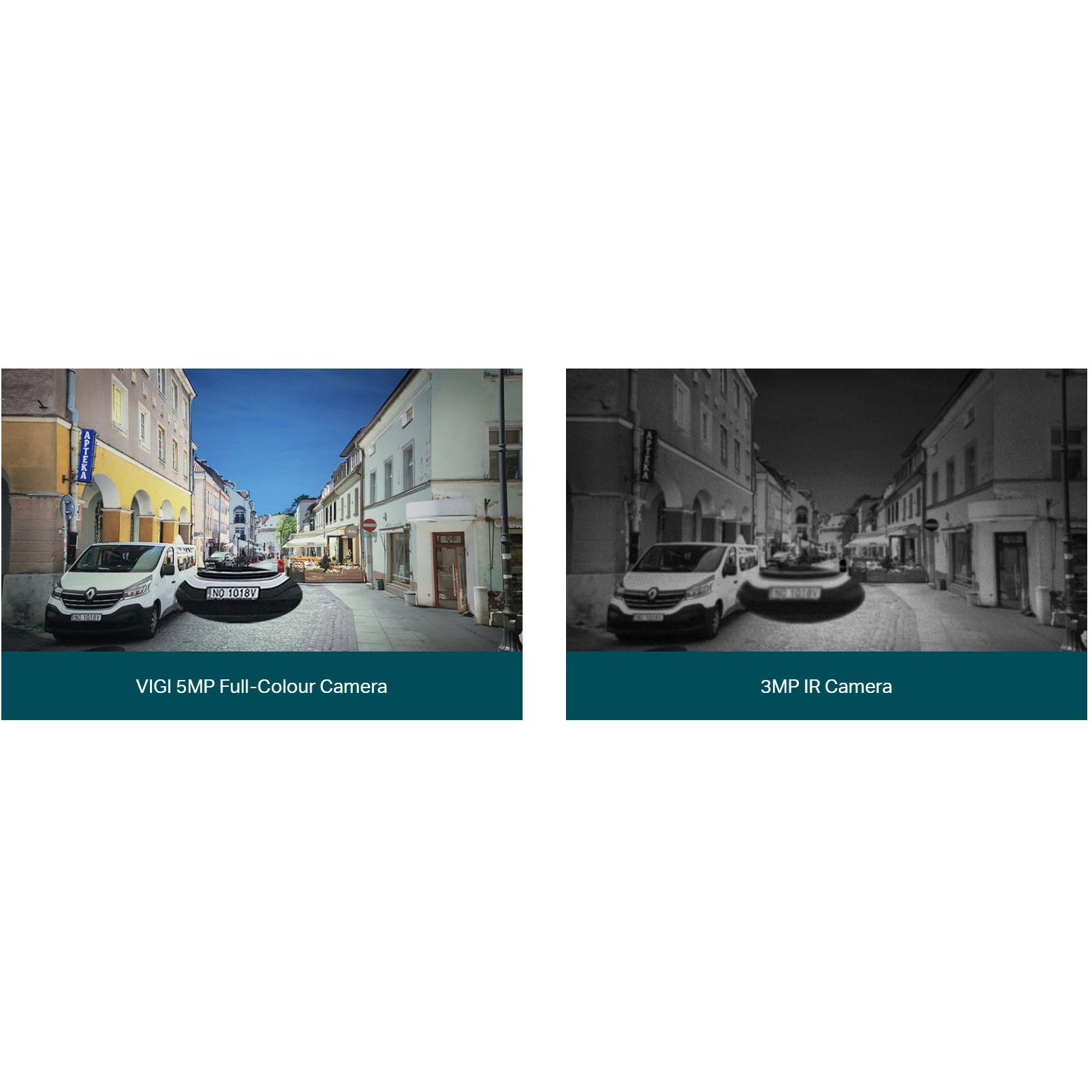

5MP Super-High Definition
Monitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 5MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

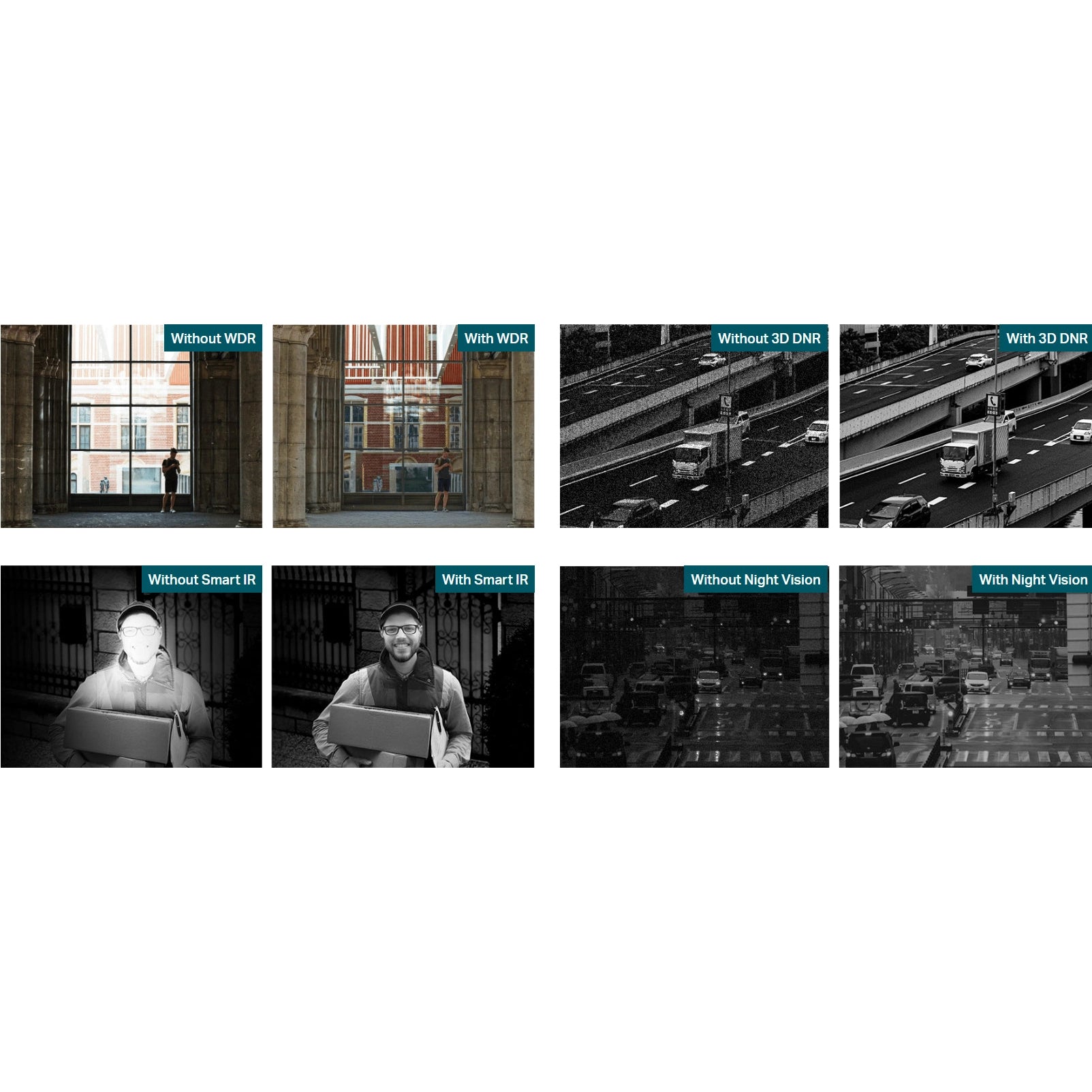

SmartVid - Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customise alarm rules to match your monitoring needs and receive more accurate event notifications.
People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

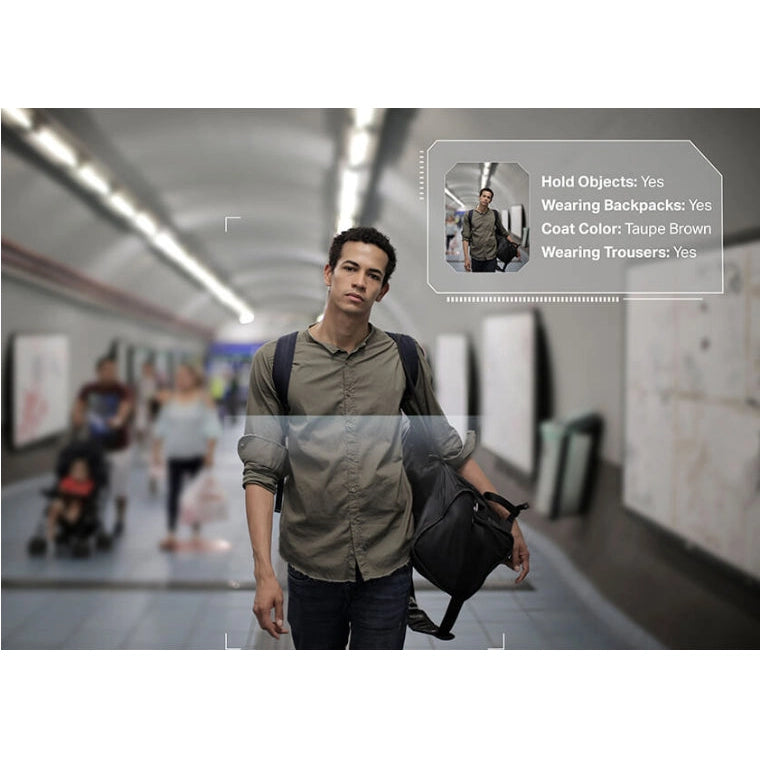

People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.

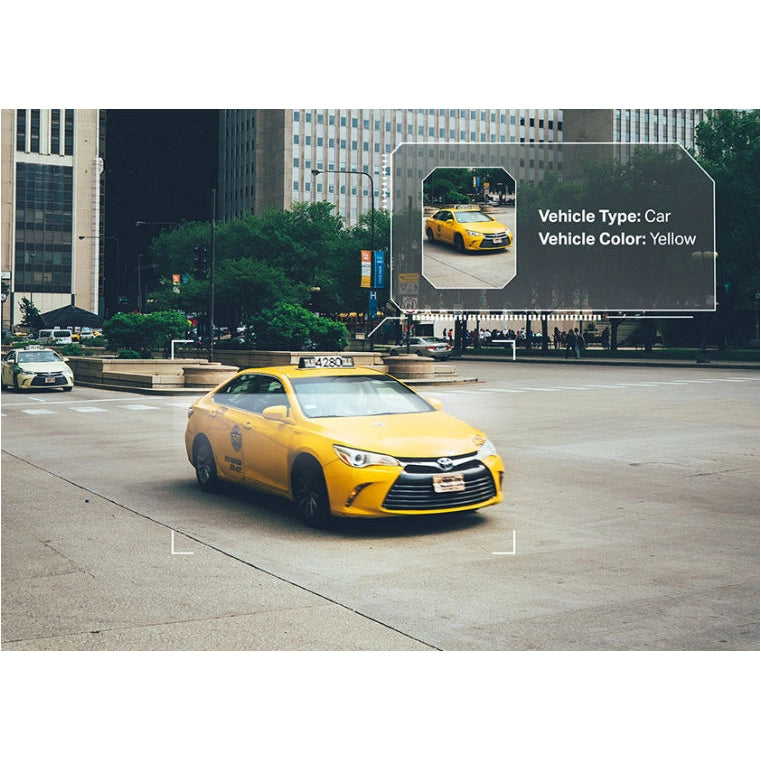

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle colour and type for targeting meaningful events in a short time.
No More Silent Surveillance
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

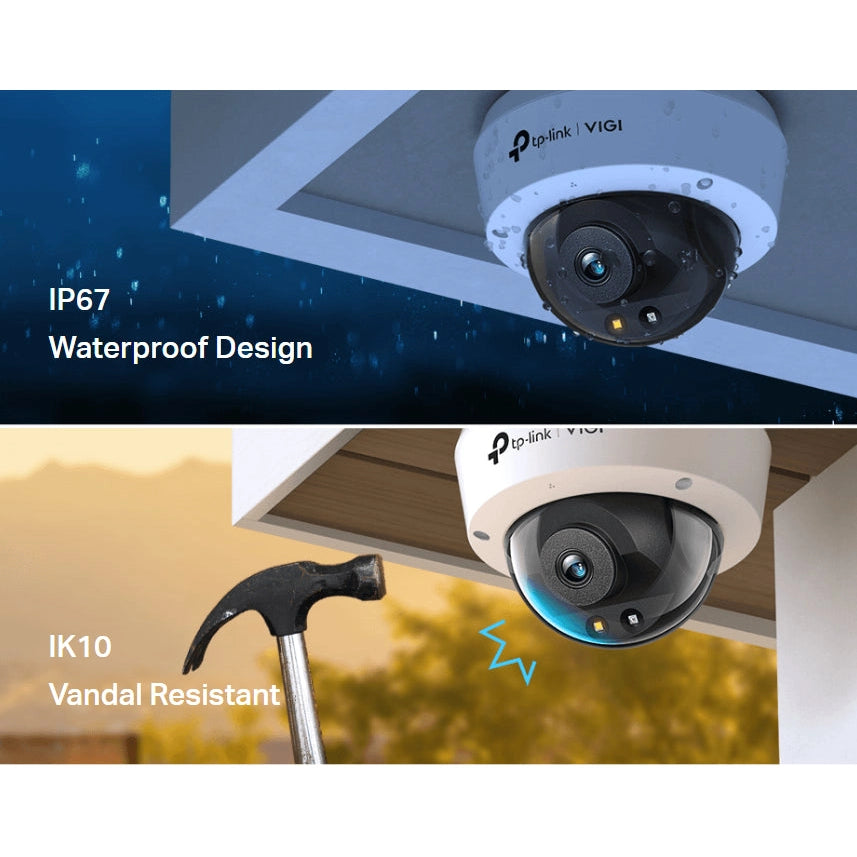

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

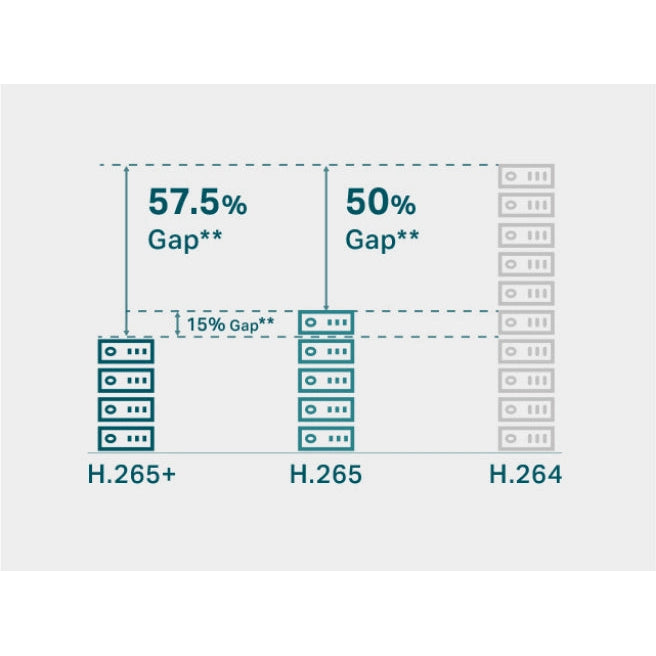

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

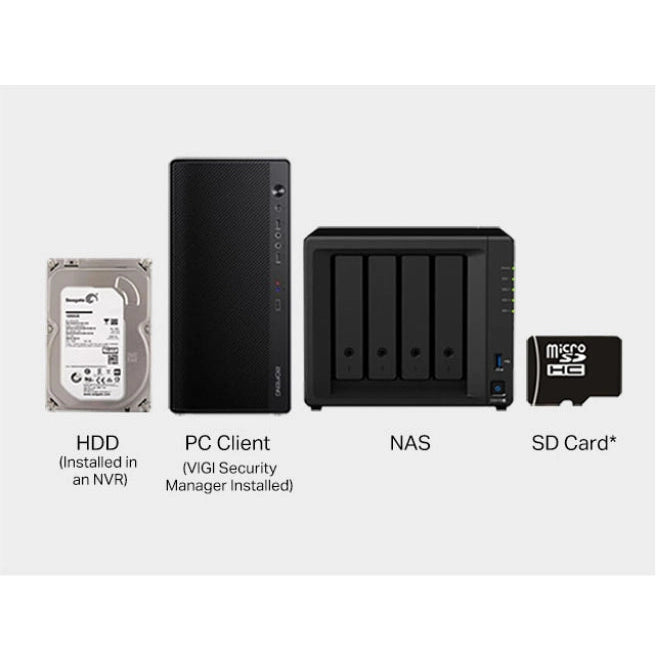

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

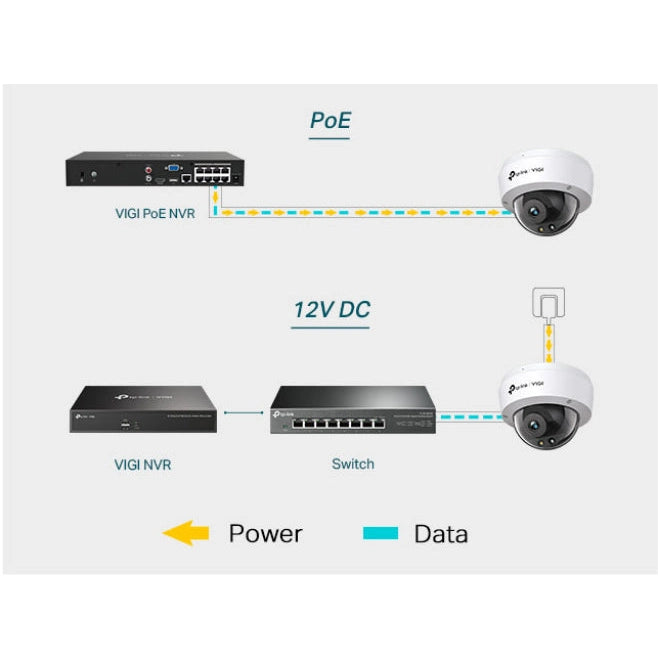

PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

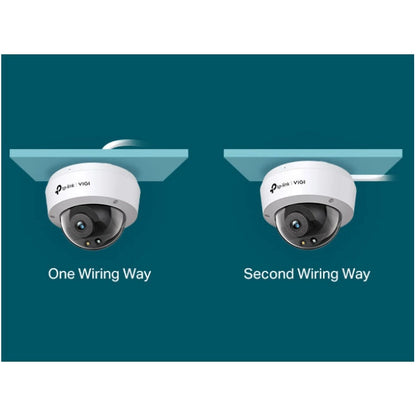

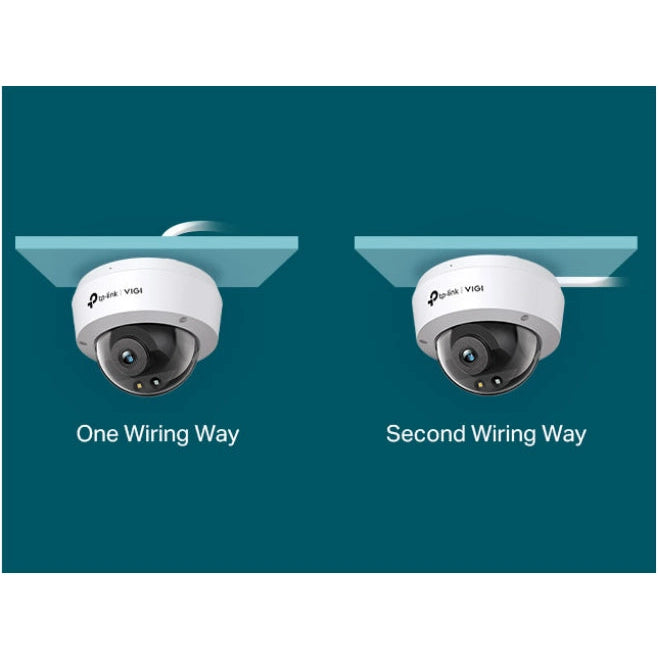

Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
Specifications
CAMERA
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Day/Night/Auto/Schedule-Switch
LENS
Type: Fixed Focal Lens
Focal Length: 2.8/4 mm
Aperture: 2.8 mm: F1.6 / 4 mm: F1.6
FOV:
2.8mm: Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount: M12*P 0.5
DORI Distance:
2.8mm
Detect: 64m (209ft)
Observe: 27m (87ft)
Recognise: 13m (42ft)
Identify: 6 m (21ft)
4mm
Detect: 80m (262ft)
Observe: 33m (109ft)
Recognise: 16m (52ft)
Identify: 8m (26ft)
ANGLE ADJUSTMENT (MANUAL)
Range: Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED: Quantity: 1 / Range: 30m / Wave Length: 850nm
White LED: Quantity: 1 / Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2880x1620
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 / Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type: Main Profile
H.265+ Main Stream Supported
Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps / Sub-Stream: 64 Kbps to 512 Kbps
Image Settings:
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: 120dB
SNR: = 52dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Input: Yes
Audio Compression: Yes
Audio Sampling Rate: 8khz
Environment Noise Filtering: Yes
Audio Bit Rate: 64kbps (G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Google Chrome® 57 and above / Firefox® 52 and above / Safari® 11 and above / Microsoft® Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: NAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT
Smart Event:
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event:
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage:
Memory Card Video Recording, Message Push, White Light Flashing
Output Notification:
Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics:
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection:
Supports Simultaneous Detection and Capture of Human Body and Vehicle
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support Micro SD Card, up to 256GB
Built-in Microphone: Yes; Records anything going on within a 15ft radius of the camera
GENERAL
Operating Temperature: -30°C - 60°C
Storage Temperature: -40°C - 60°C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Material: Plastic
Net Weight: 0.28kg
Gross Weight: 0.47kg
Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug / PoE (802.3at, Class 0)
Power Consumption: Maximum:
7W / Typical (Day Mode): 1.5W
Typical (Night Mode with IR LED): 2.5W
Typical (Night Mode with White LED): 2.8W
Protection: IP67, IK10
Product Dimensions (L x W x H): Φ115 x 85.7mm
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
