Features

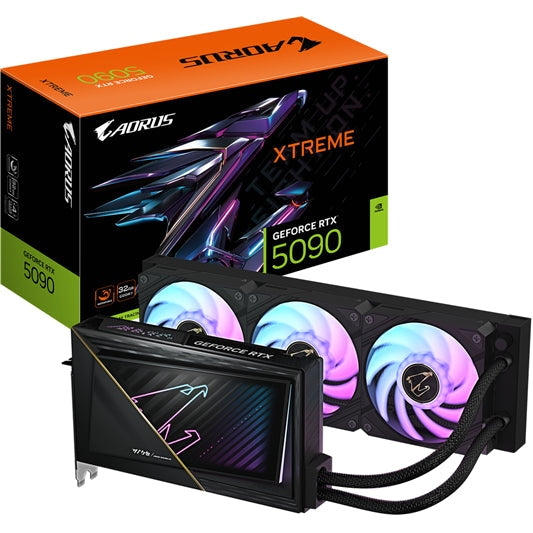

AORUS GeForce RTX™ 5090 XTREME WATERFORCE 32G
- Powered by GeForce RTX™ 5090
- Integrated with 32GB GDDR7 512bit memory interface
- WATERFORCE all-in-one cooling system
- Liquid metal thermal grease for GPU
- Server-grade thermal conductive gel
- 360mm radiator with three 120mm ARGB fans
- RGB Lighting
- Protective metal back plate
NVIDIA Blackwell Architecture - The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benefits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
OPTIMIZED 360MM ALUMINUM RADIATOR
The triple-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cooler under high overclocks.
3X 120MM ARGB FANS
The triple-fan design can generate more airflow for better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can choose various light effects via GIGABYTE CONTROL CENTER (GCC).
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
LIQUID METAL THERMAL GREASE FOR GPU
To address the thermal demands of high-wattage GPU, we utilize liquid metal thermal grease, which offers up to 10X the thermal conductivity coefficient of traditional silicon grease. This maintains low GPU temperature and effectively reduces temperature surge during power draw fluctuation. The multiple layers of protection, including PCB coating, UV resin, and multiple fences, prevent liquid metal leakage and ensure stable and reliable operation.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER BASE PLATE
Without any extra fan on the card, WATERFORCE provides the best cooling solution for the GPU/VRAM/MOSFET. The copper plate efficiently dissipates the heat to result in a real silent environment.
SUPERIOR WATER CHANNEL DESIGN
The water channel extends to the MOSFET area, allowing the liquid to dissipate the heat more efficiently. The graphics card not only takes care of the cooling on the GPU but also other critical components for superior performance and stability.
EASY INSTALLATION
With the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.
BRAIDED FEP TUBES
With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
PROTECTIVE METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
SUPERIOR CRAFTSMANSHIP
EXTREME OVERCLOCKING
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
PCB COATING
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
Graphics Processing: GeForce RTX™ 5090
Core Clock: TBD
CUDA® Cores: TBD
Memory Clock: 28 Gbps
Memory Size: 32 GB
Memory Type: GDDR7
Memory Bus: 512 bit
Card Bus: PCI-E 5.0
Digital Max Resolution: 7680 x 4320
Multi-view: 4
Card size: TBD
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: OpenGL 4.6
Recommended PSU: TBD
Power Connectors: 16 pin*1
Output: DisplayPort 2.1a *3 / HDMI 2.1b *1
Accessories
1. Quick guide
2. Warranty notice
3. 1x 12V-2x6 to 4x PCIe 8pin adapter
4. AORUS identity stickers
