ASUS NUC LAN & USB Add-On Assembly Module Accessory NUCIOALUWS (Tall Kit Only)
Add-On for Intel I255-LM 2.5GbE LAN and Dual USB 2.0 Ports
M.2 2242 B-Key Expansion Module
OVERVIEW
The ASUS LAN and USB Add-On Module (NUCIOALUWS) is the ideal solution for expanding the connectivity capabilities of compatible ASUS / Intel NUC Tall chassis systems. Featuring an Intel I255-LM 2.5GbE controller, this expansion module adds an additional 2.5 Gigabit Ethernet port along with two USB 2.0 ports via the internal M.2 2242 B-Key expansion interface.
Designed for business, networking, virtualisation, firewall, and edge computing applications, this integrated module provides enhanced wired networking and expanded peripheral connectivity while maintaining a clean OEM-style installation within supported Tall NUC chassis models.
With this add-on module installed, your NUC gains greater flexibility for advanced networking configurations, additional USB device support, and expanded connectivity options for a more versatile computing experience.
Expand the connectivity of your compatible ASUS / Intel NUC Pro Tall chassis system with the ASUS NUC LAN & USB Add-On Assembly Module. Designed specifically for supported Tall (“H”) NUC models with the rear expansion bay, this compact module adds an additional Intel-powered Ethernet port plus dual USB 2.0 ports for enhanced networking and peripheral connectivity.
Ideal for business, home lab, firewall, virtualisation, kiosk, and edge computing applications, the module integrates directly into the dedicated rear expansion slot found on supported Tall NUC chassis models.
Key Features

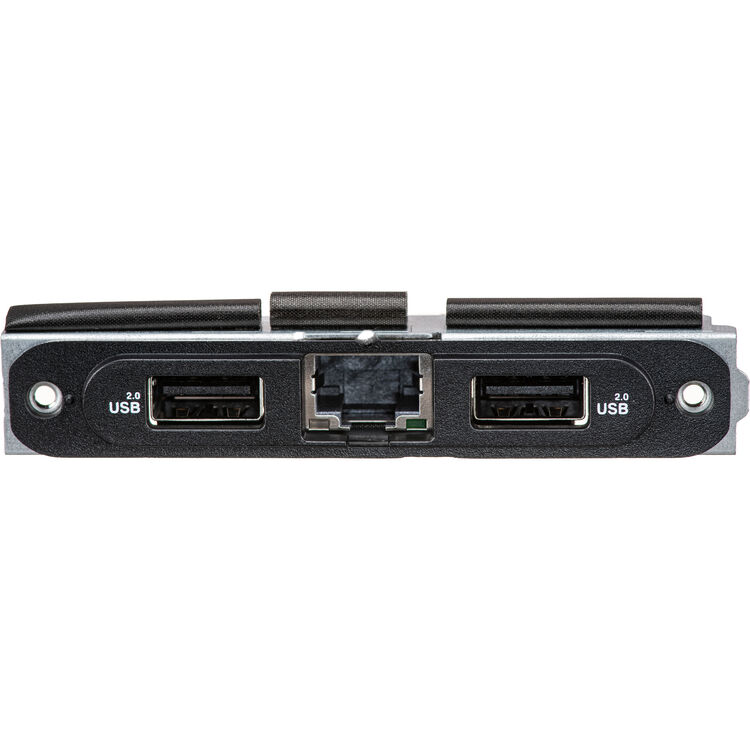

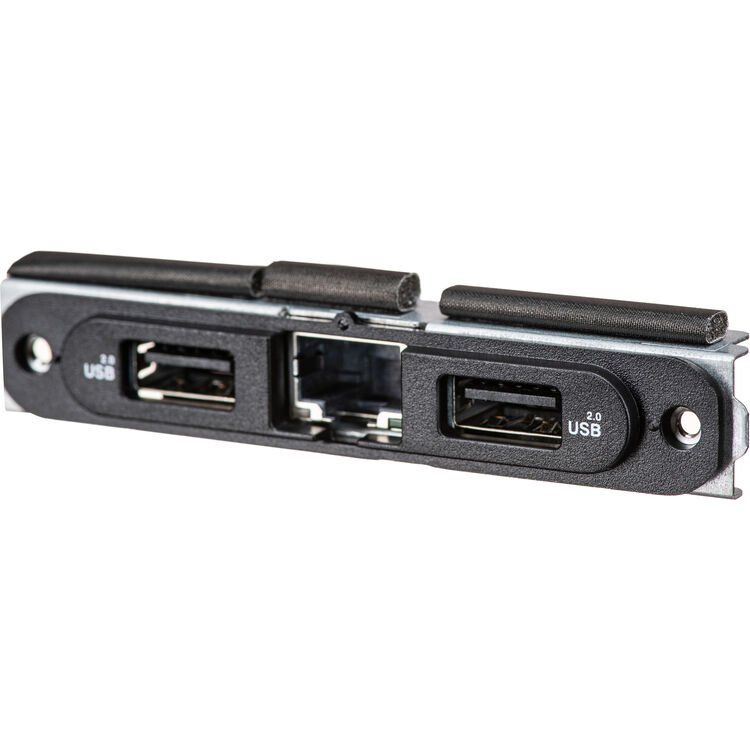

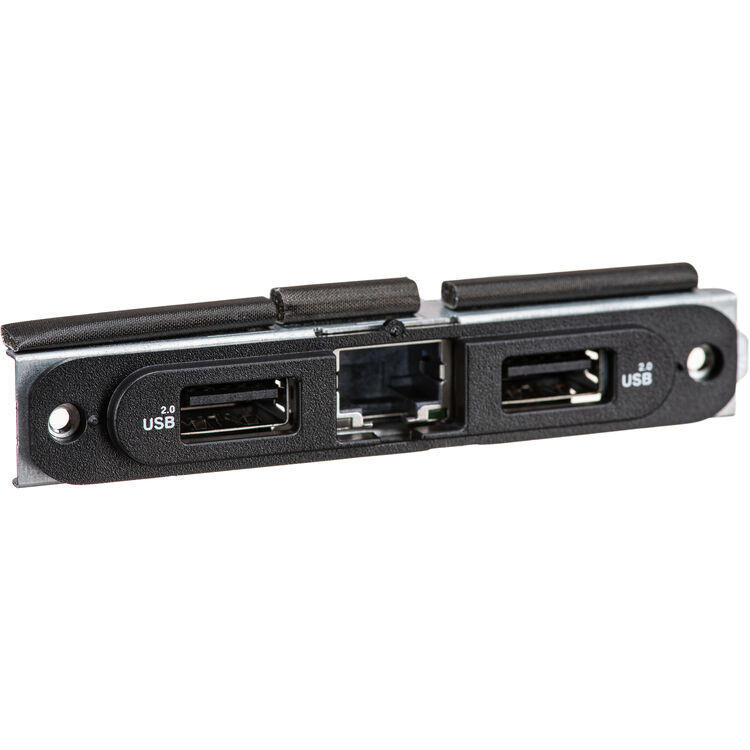

- Adds an additional RJ45 2.5GbE Ethernet LAN port
- Includes 2x USB 2.0 rear ports
- Powered by the Intel I255-LM Ethernet Controller for reliable wired networking

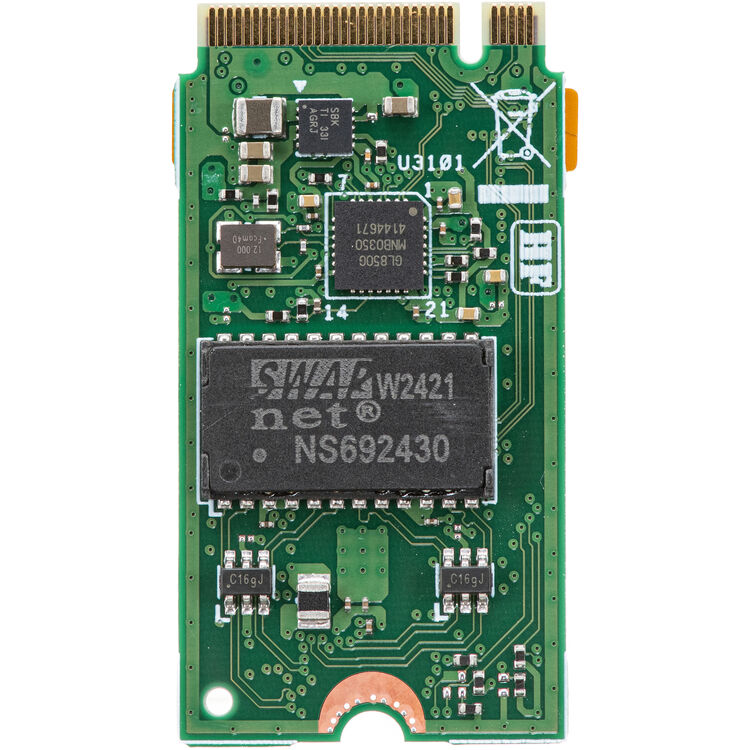

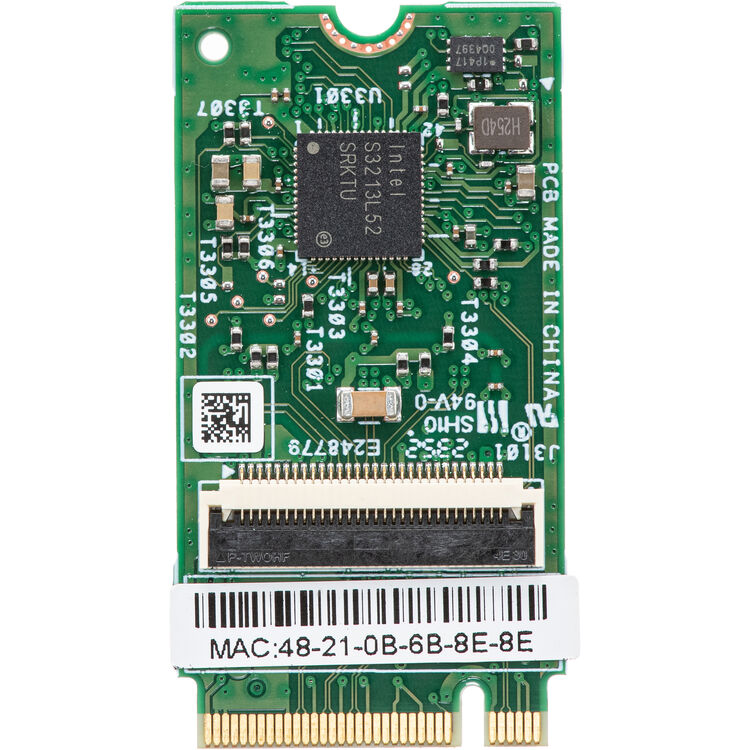

- M.2 2242 B-Key internal expansion interface
- Designed for compatible ASUS / Intel NUC Tall (“H”) chassis systems

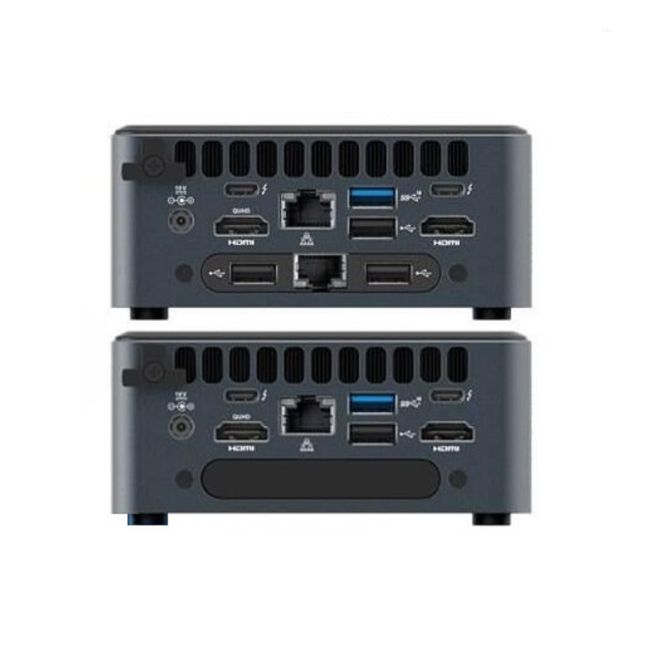

- Installs into the dedicated rear expansion bay / removable blanking plate area
- Compact OEM-style integrated rear expansion module design
- Clean internal installation with no external adapters required
- Ideal for business networking, firewalls, kiosks, servers, virtualisation, and expanded USB connectivity
Compatibility
Compatible with supported ASUS / Intel NUC Tall (“H”) chassis models featuring the rear expansion bay, removable expansion plate, and internal M.2 B-Key expansion interface, including selected NUC 11, NUC 12, and NUC 13 Tall models.
- Intel / ASUS NUC 11 Tall / Pro Tall – NUC11TNH series
- Intel / ASUS NUC 12 Tall / Pro Tall – NUC12WSH series
- Intel / ASUS NUC 13 Tall / Pro Tall – NUC13ANH series
- Also compatible with select NUC13L3H and NUC13L5H variants
Important: This module is designed for Tall / full-height (“H”) chassis models only and is not compatible with Slim (“K”) chassis variants that do not include the rear expansion bay.
Specifications
Product Type: LAN & USB Add-On Assembly Module
Part Number: 90AR0000-P00010 / NUCIOALUWS
Ethernet: 1x RJ45 LAN Port
USB Ports: 2x USB 2.0 Ports
Interface: 22x42 M.2 B-Key Expansion Connection
Installation: Internal rear expansion bay module
Compatibility: Supported ASUS / Intel NUC Tall (“H”) chassis systems only
Colour: Black
Package Contents

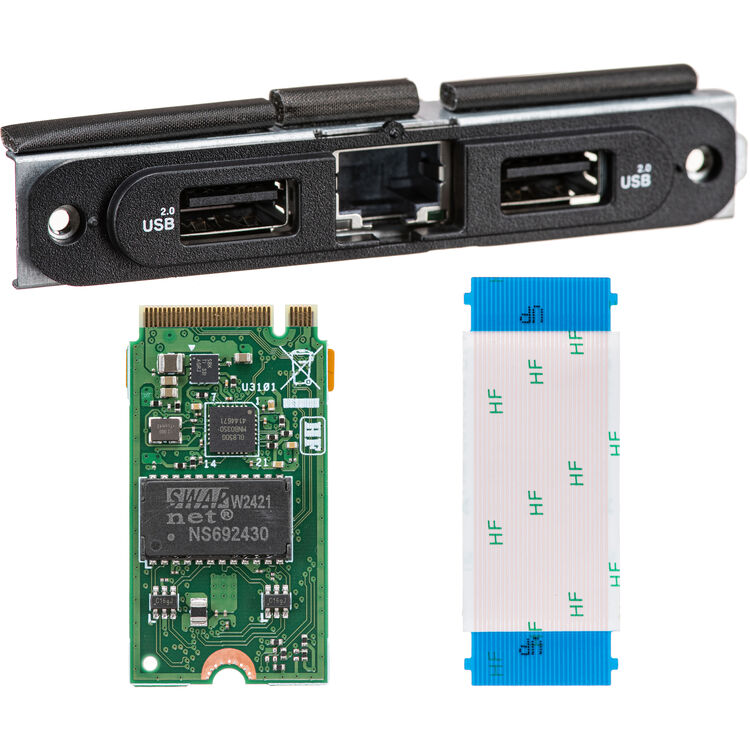

- 1x ASUS NUC LAN & USB Add-On Assembly Module

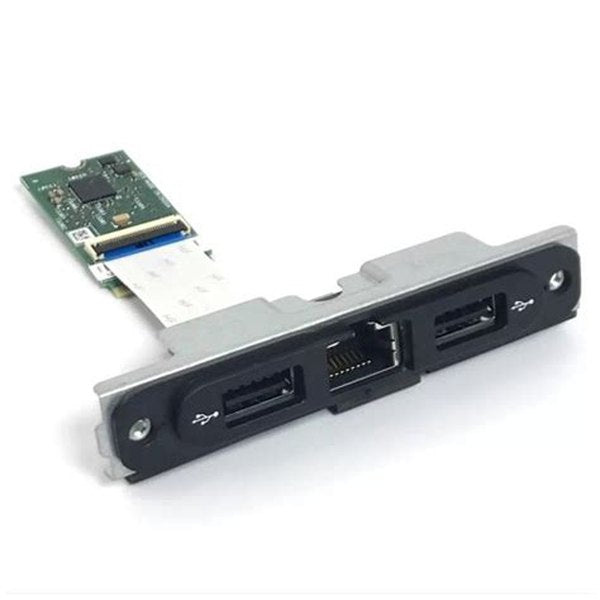

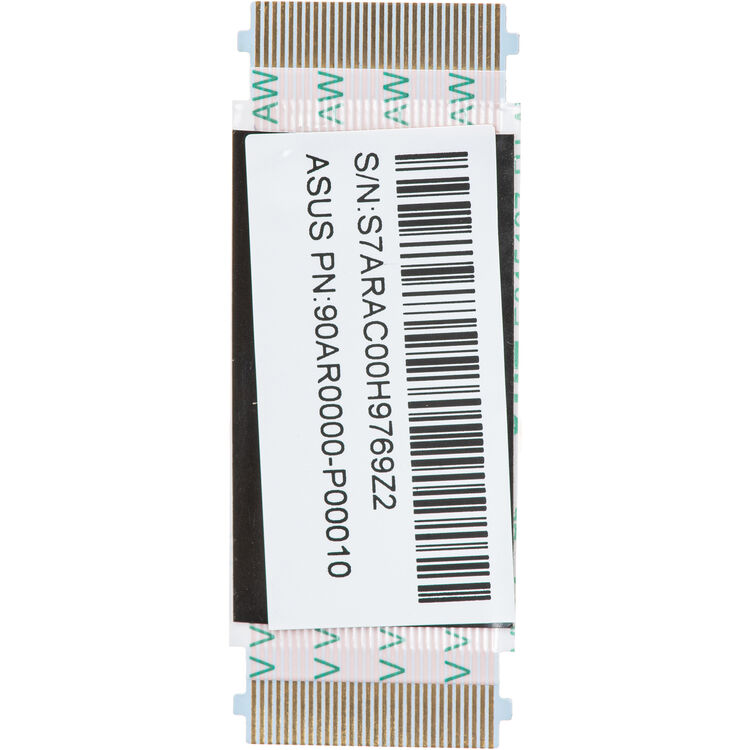

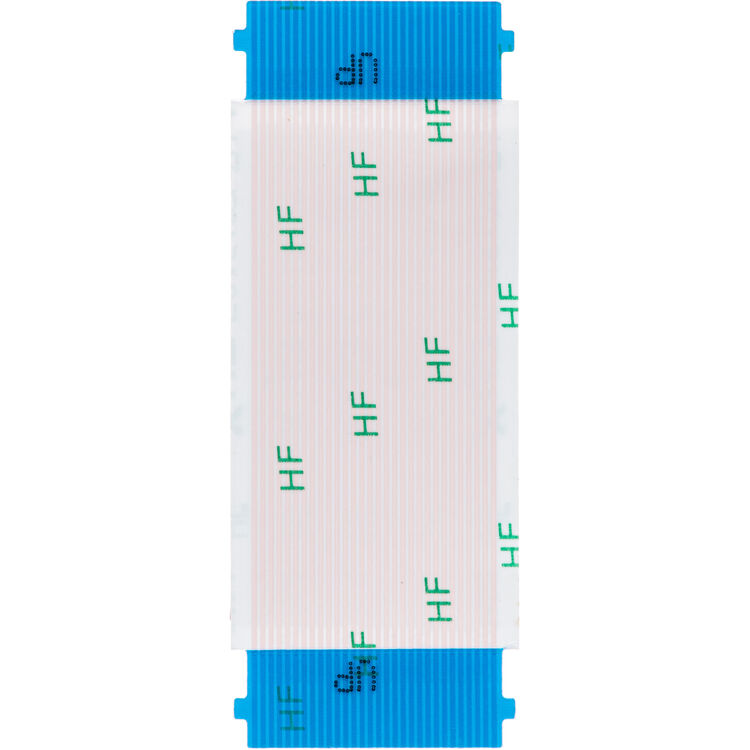

- Internal adapter cable / assembly
Please note: Compatible only with supported Tall / full-height ASUS or Intel NUC chassis models that include the removable rear expansion plate and internal expansion interface.
Warranty: 12 Months*
*Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
